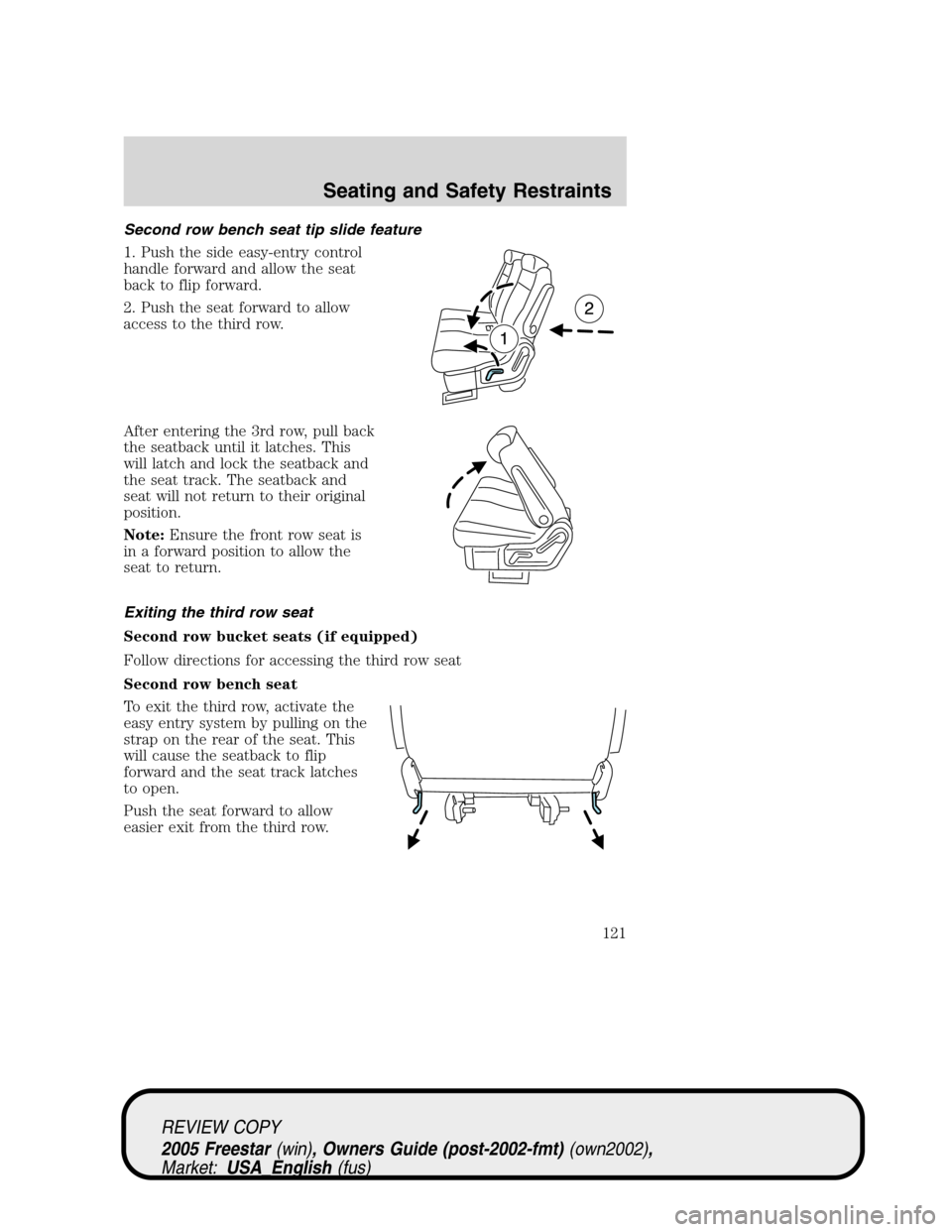

Second row bench seat tip slide feature
1. Push the side easy-entry control
handle forward and allow the seat
back to flip forward.
2. Push the seat forward to allow
access to the third row.
After entering the 3rd row, pull back
the seatback until it latches. This
will latch and lock the seatback and
the seat track. The seatback and
seat will not return to their original
position.
Note:Ensure the front row seat is
in a forward position to allow the
seat to return.
Exiting the third row seat
Second row bucket seats (if equipped)
Follow directions for accessing the third row seat
Second row bench seat
To exit the third row, activate the
easy entry system by pulling on the
strap on the rear of the seat. This
will cause the seatback to flip
forward and the seat track latches
to open.
Push the seat forward to allow
easier exit from the third row.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
121

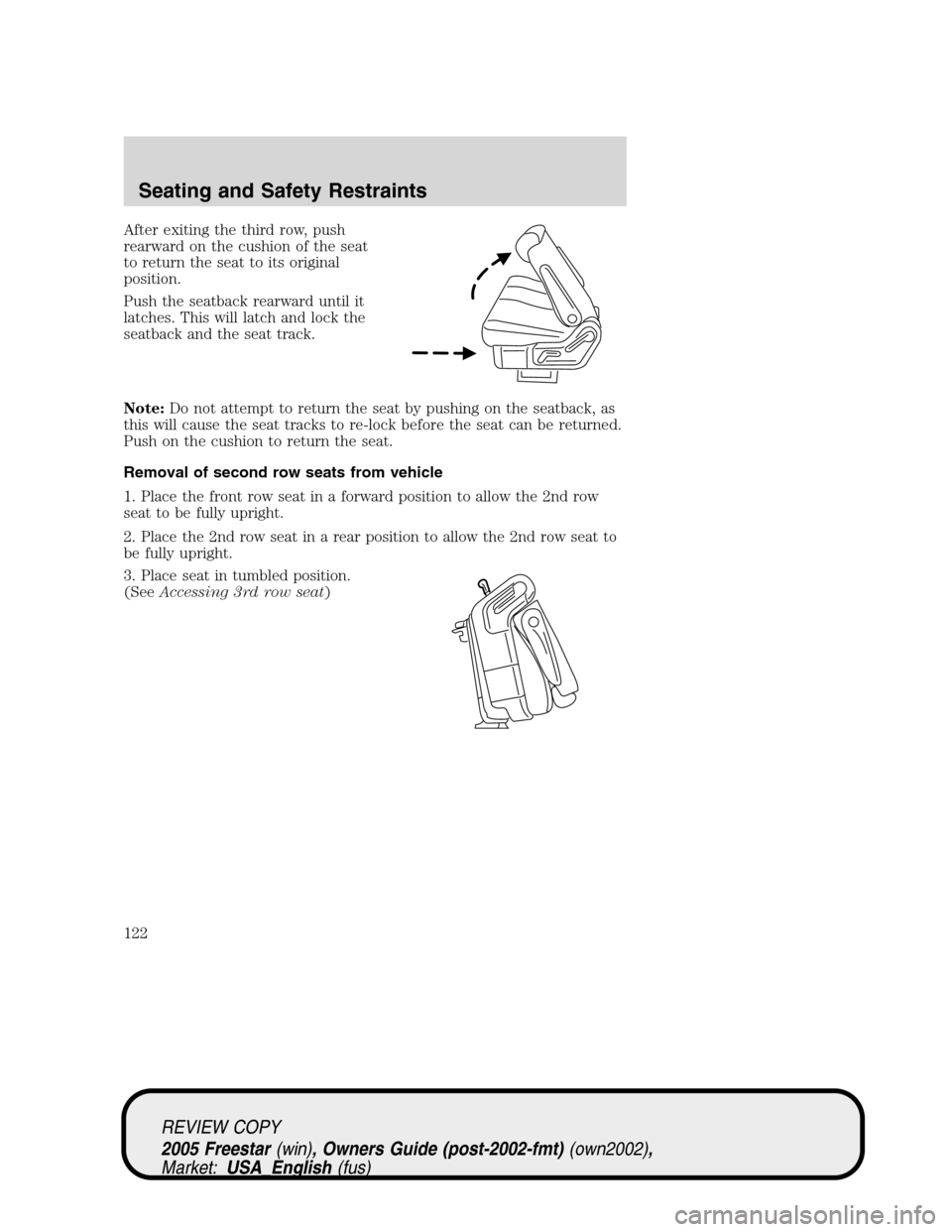

After exiting the third row, push
rearward on the cushion of the seat
to return the seat to its original
position.
Push the seatback rearward until it
latches. This will latch and lock the
seatback and the seat track.
Note:Do not attempt to return the seat by pushing on the seatback, as
this will cause the seat tracks to re-lock before the seat can be returned.
Push on the cushion to return the seat.
Removal of second row seats from vehicle
1. Place the front row seat in a forward position to allow the 2nd row
seat to be fully upright.
2. Place the 2nd row seat in a rear position to allow the 2nd row seat to
be fully upright.
3. Place seat in tumbled position.
(SeeAccessing 3rd row seat)
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
122

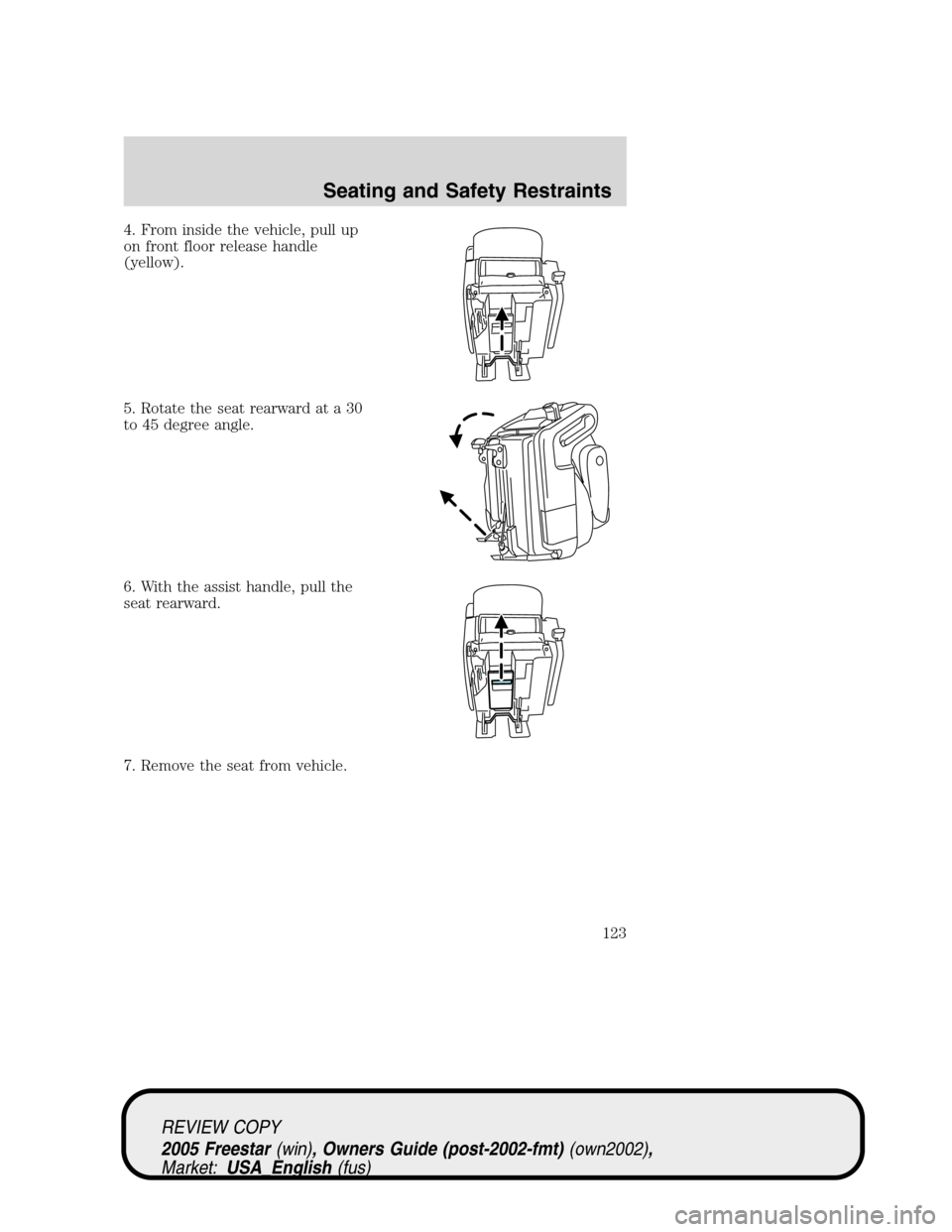

4. From inside the vehicle, pull up
on front floor release handle
(yellow).
5. Rotate the seat rearward at a 30
to 45 degree angle.
6. With the assist handle, pull the
seat rearward.
7. Remove the seat from vehicle.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
123

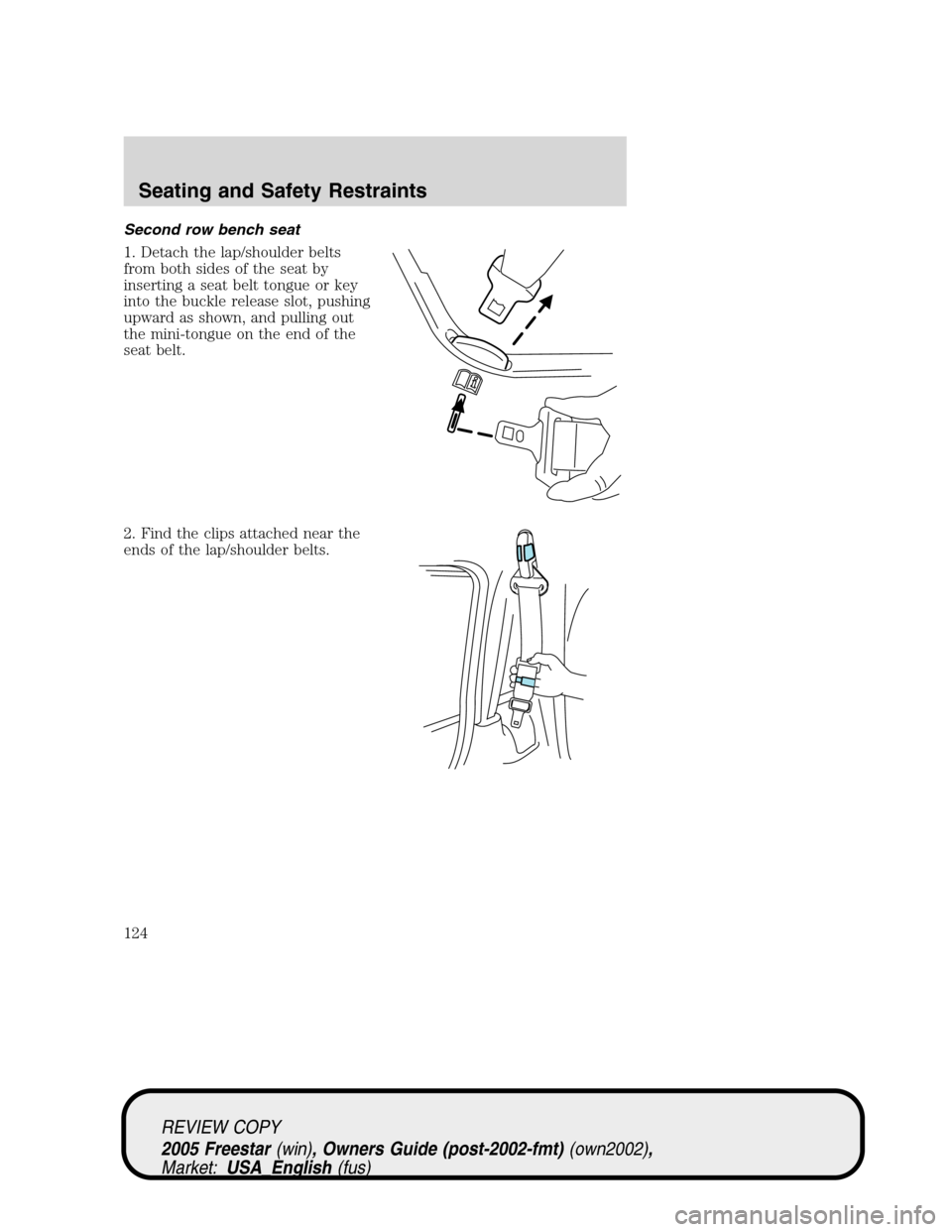

Second row bench seat
1. Detach the lap/shoulder belts
from both sides of the seat by
inserting a seat belt tongue or key
into the buckle release slot, pushing
upward as shown, and pulling out
the mini-tongue on the end of the
seat belt.
2. Find the clips attached near the
ends of the lap/shoulder belts.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
124

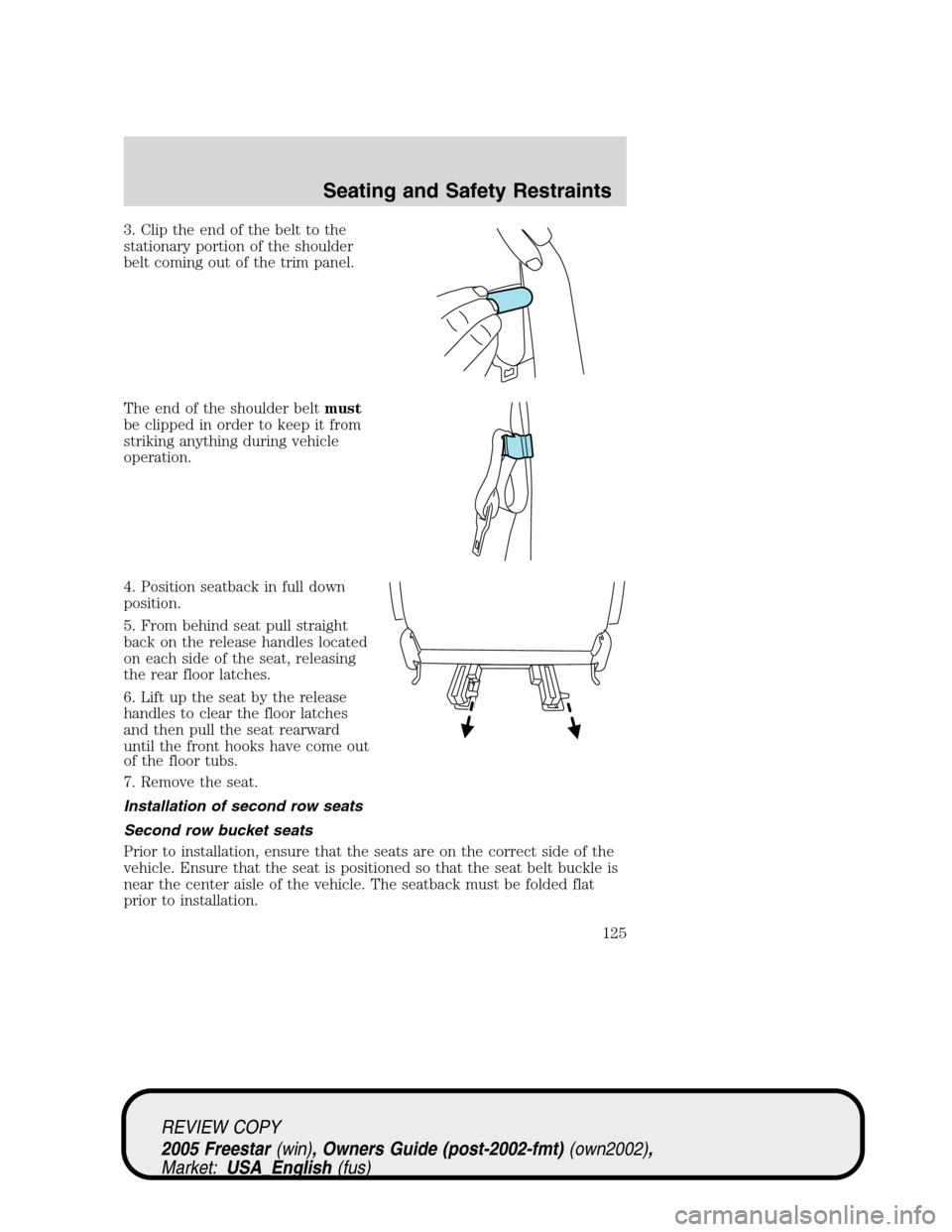

3. Clip the end of the belt to the
stationary portion of the shoulder
belt coming out of the trim panel.
The end of the shoulder beltmust
be clipped in order to keep it from
striking anything during vehicle
operation.
4. Position seatback in full down
position.
5. From behind seat pull straight
back on the release handles located
on each side of the seat, releasing
the rear floor latches.
6. Lift up the seat by the release
handles to clear the floor latches
and then pull the seat rearward
until the front hooks have come out
of the floor tubs.
7. Remove the seat.
Installation of second row seats
Second row bucket seats
Prior to installation, ensure that the seats are on the correct side of the
vehicle. Ensure that the seat is positioned so that the seat belt buckle is
near the center aisle of the vehicle. The seatback must be folded flat
prior to installation.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
125

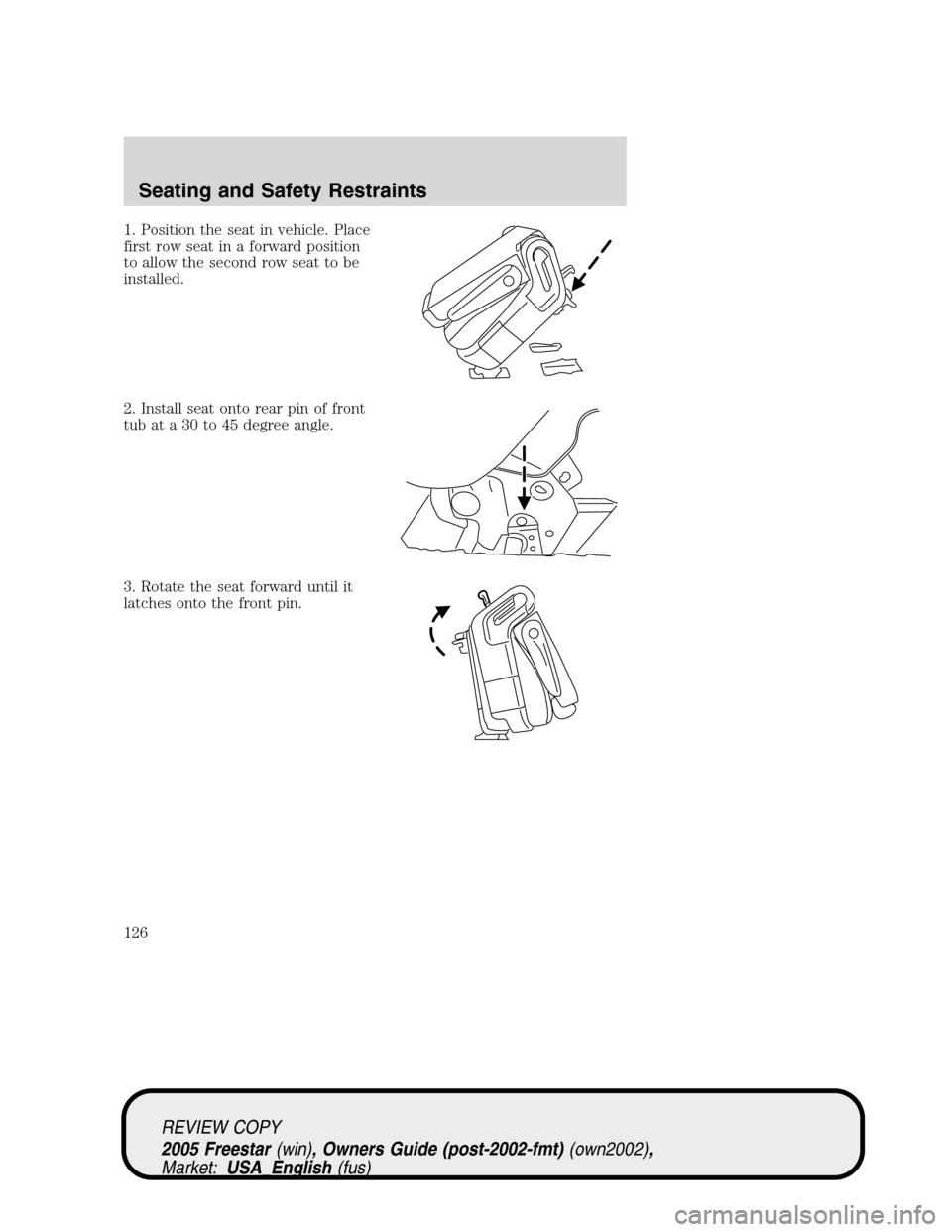

1. Position the seat in vehicle. Place
first row seat in a forward position
to allow the second row seat to be
installed.
2. Install seat onto rear pin of front
tub at a 30 to 45 degree angle.
3. Rotate the seat forward until it
latches onto the front pin.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
126

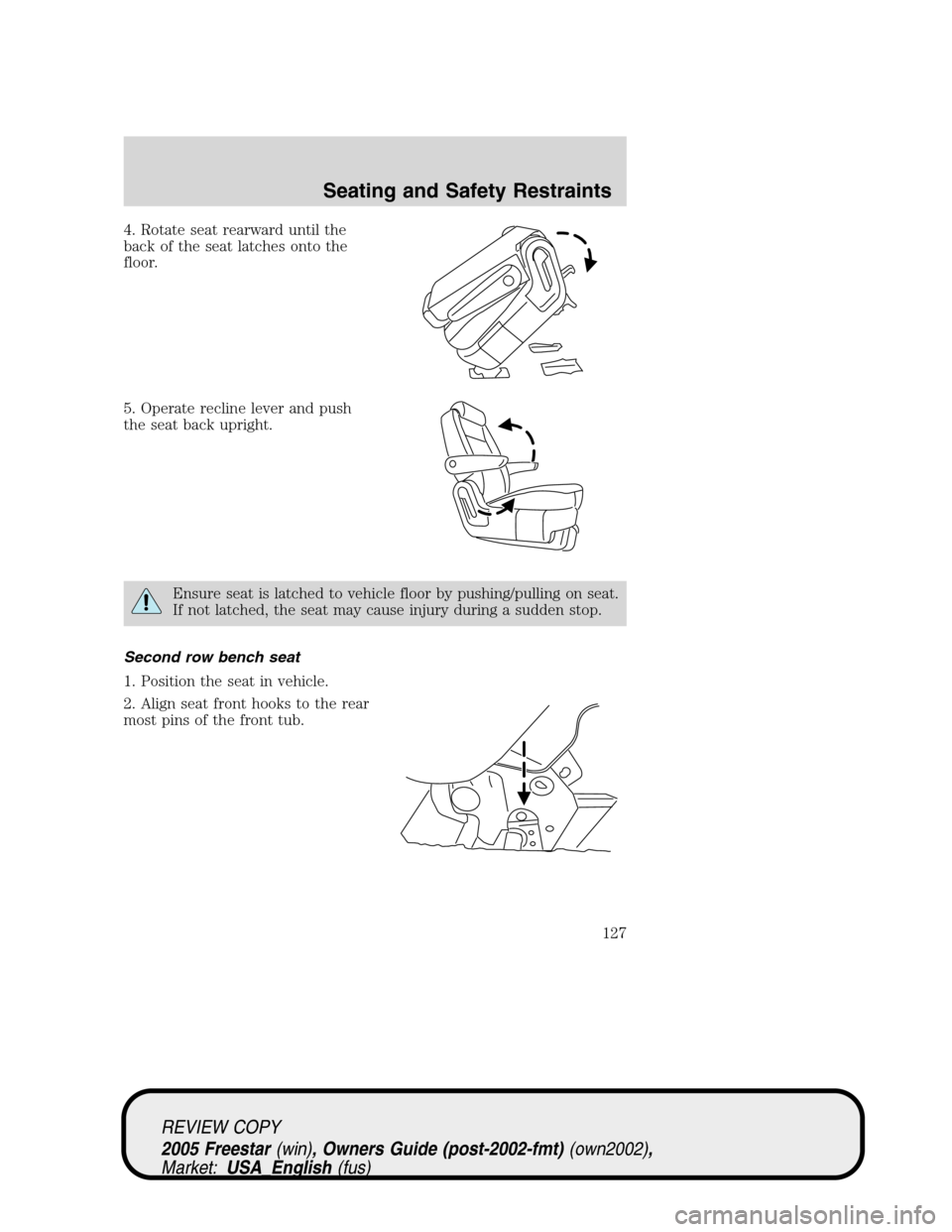

4. Rotate seat rearward until the
back of the seat latches onto the
floor.
5. Operate recline lever and push
the seat back upright.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Second row bench seat
1. Position the seat in vehicle.
2. Align seat front hooks to the rear
most pins of the front tub.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
127

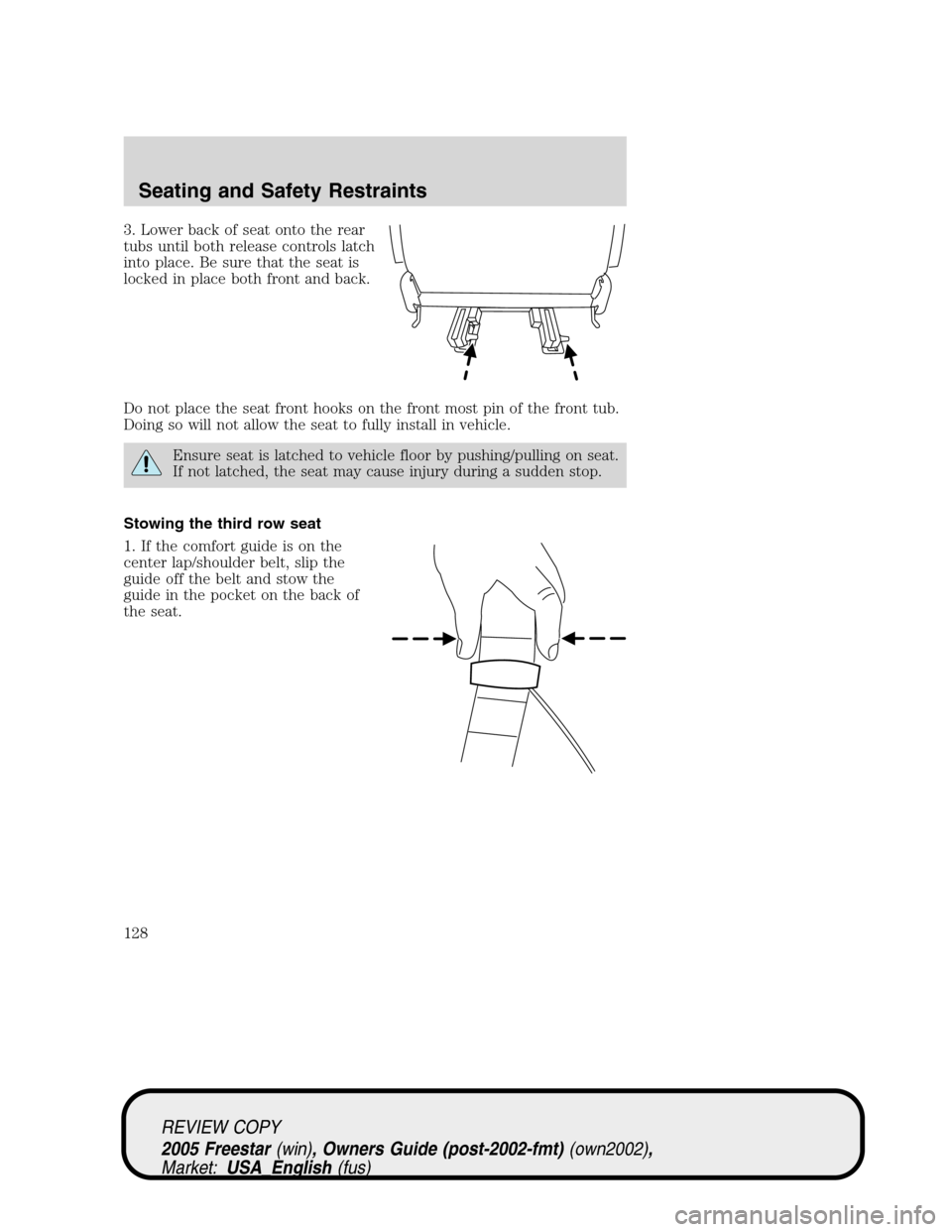

3. Lower back of seat onto the rear
tubs until both release controls latch
into place. Be sure that the seat is
locked in place both front and back.
Do not place the seat front hooks on the front most pin of the front tub.
Doing so will not allow the seat to fully install in vehicle.
Ensure seat is latched to vehicle floor by pushing/pulling on seat.
If not latched, the seat may cause injury during a sudden stop.
Stowing the third row seat
1. If the comfort guide is on the
center lap/shoulder belt, slip the
guide off the belt and stow the
guide in the pocket on the back of
the seat.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
128

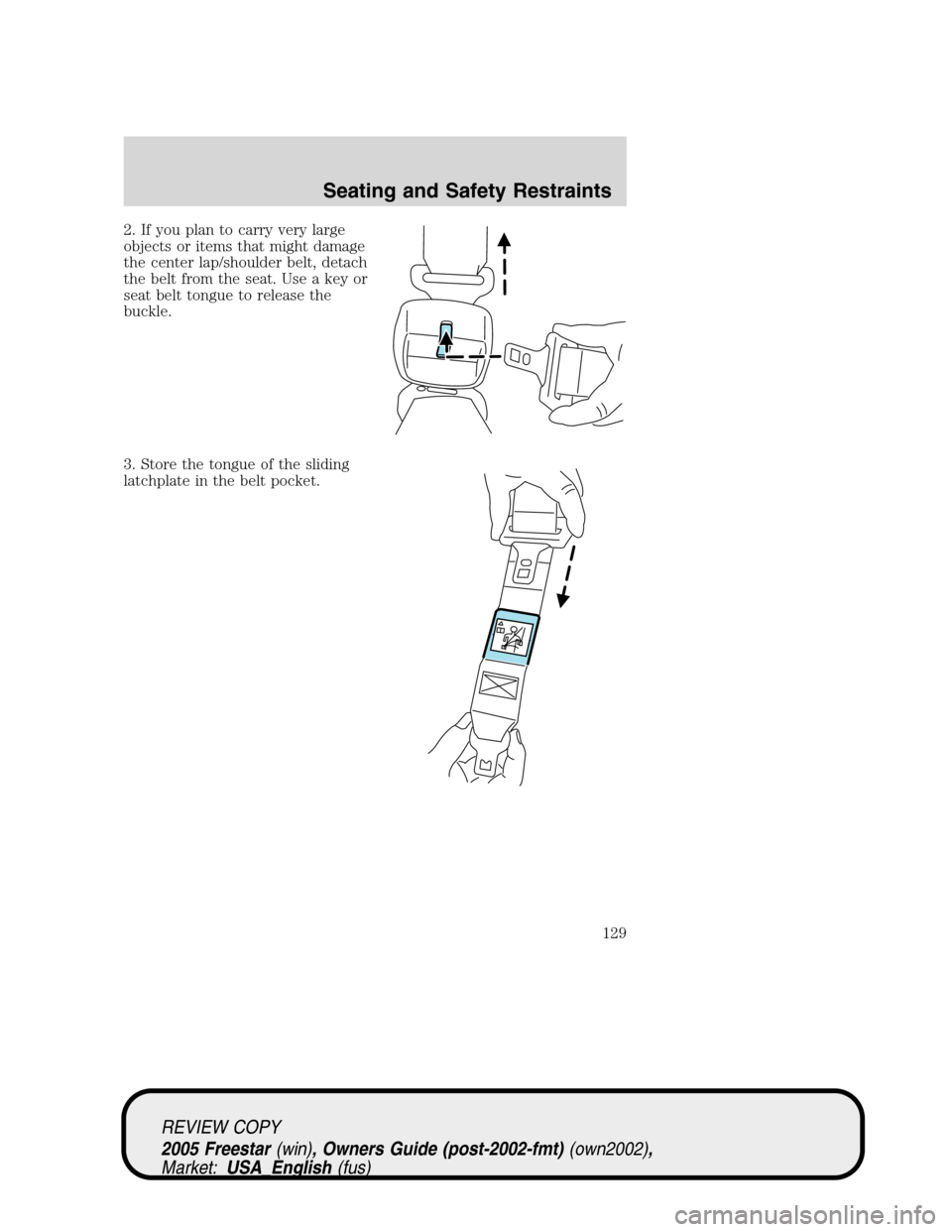

2. If you plan to carry very large
objects or items that might damage
the center lap/shoulder belt, detach
the belt from the seat. Use a key or
seat belt tongue to release the
buckle.
3. Store the tongue of the sliding
latchplate in the belt pocket.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
129

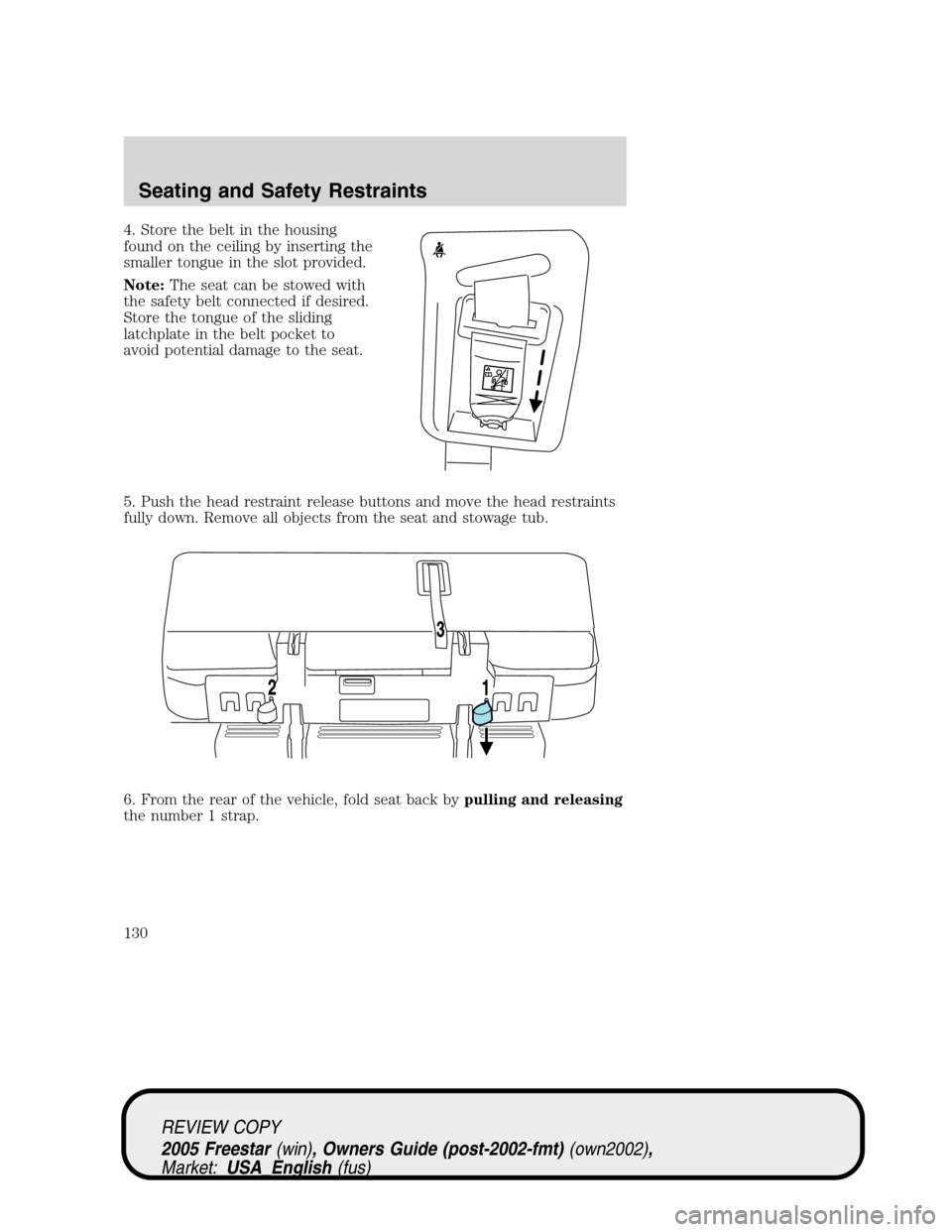

4. Store the belt in the housing
found on the ceiling by inserting the
smaller tongue in the slot provided.
Note:The seat can be stowed with
the safety belt connected if desired.
Store the tongue of the sliding
latchplate in the belt pocket to
avoid potential damage to the seat.
5. Push the head restraint release buttons and move the head restraints
fully down. Remove all objects from the seat and stowage tub.
6. From the rear of the vehicle, fold seat back bypulling and releasing
the number 1 strap.
