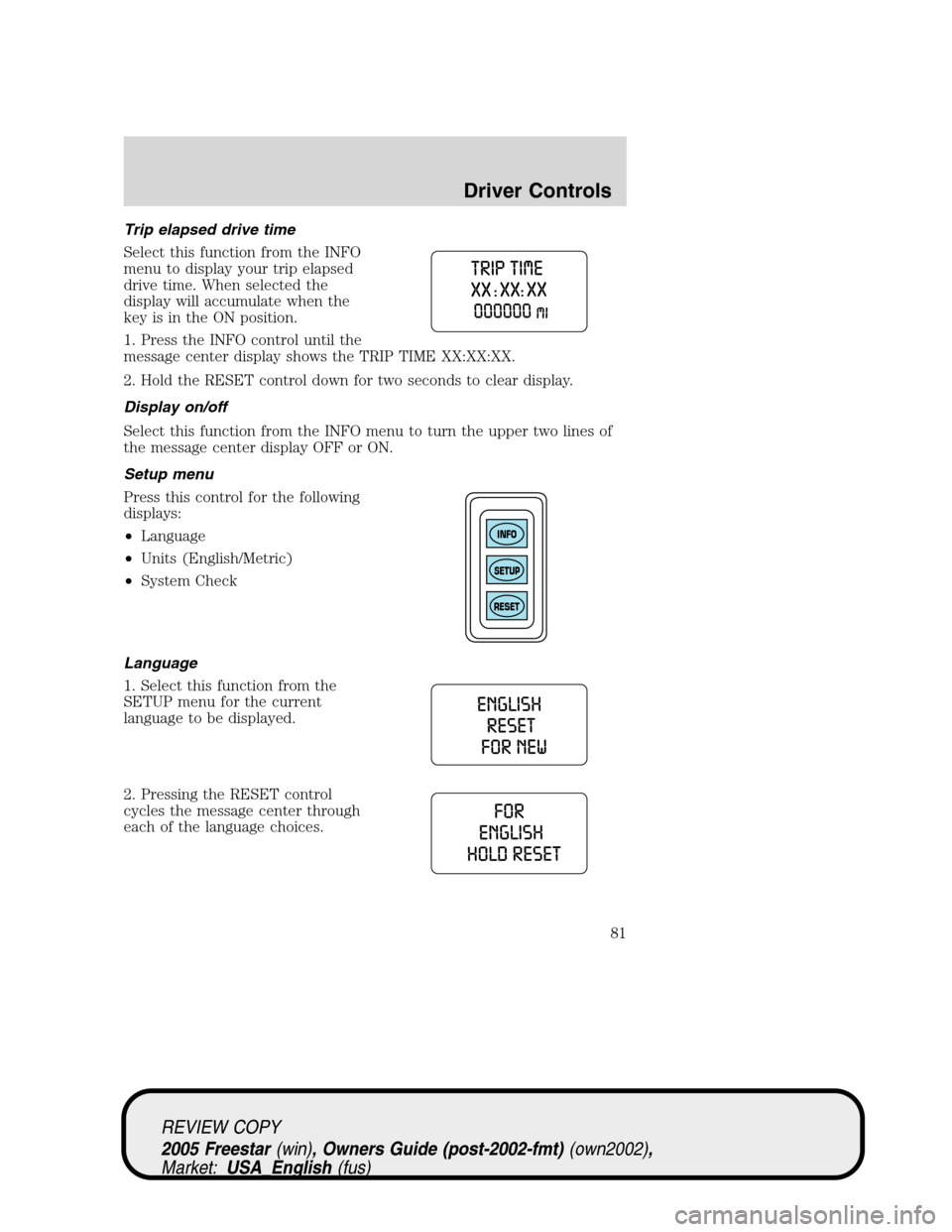

Trip elapsed drive time
Select this function from the INFO
menu to display your trip elapsed
drive time. When selected the
display will accumulate when the
key is in the ON position.
1. Press the INFO control until the
message center display shows the TRIP TIME XX:XX:XX.
2. Hold the RESET control down for two seconds to clear display.
Display on/off
Select this function from the INFO menu to turn the upper two lines of
the message center display OFF or ON.
Setup menu
Press this control for the following
displays:
•Language
•Units (English/Metric)
•System Check
Language
1. Select this function from the
SETUP menu for the current
language to be displayed.
2. Pressing the RESET control
cycles the message center through
each of the language choices.
INFO
SETUP
RESET
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
81

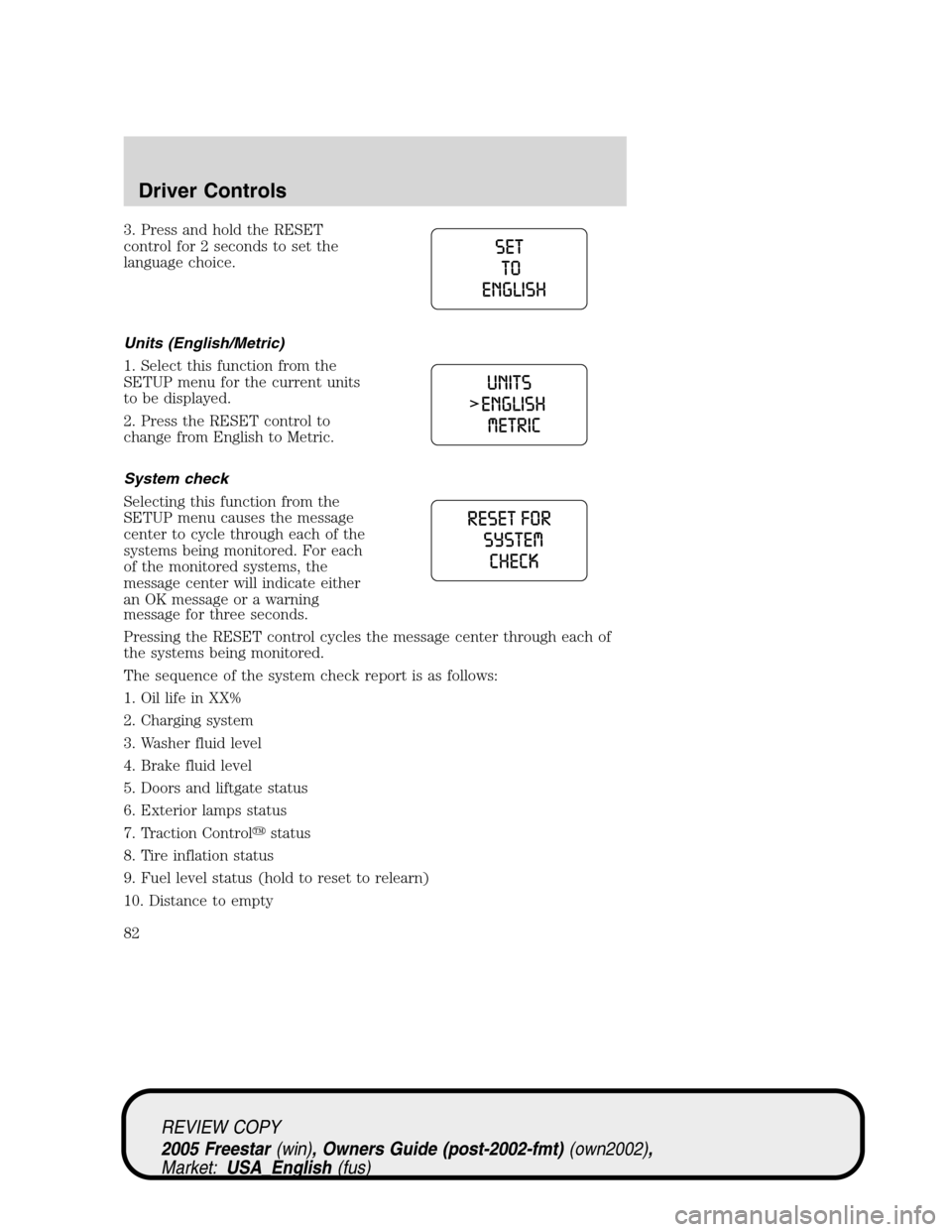

3. Press and hold the RESET
control for 2 seconds to set the
language choice.
Units (English/Metric)
1. Select this function from the
SETUP menu for the current units
to be displayed.
2. Press the RESET control to
change from English to Metric.
System check
Selecting this function from the
SETUP menu causes the message
center to cycle through each of the
systems being monitored. For each
of the monitored systems, the
message center will indicate either
an OK message or a warning
message for three seconds.
Pressing the RESET control cycles the message center through each of
the systems being monitored.
The sequence of the system check report is as follows:
1. Oil life in XX%
2. Charging system
3. Washer fluid level
4. Brake fluid level
5. Doors and liftgate status
6. Exterior lamps status
7. Traction Control
status
8. Tire inflation status
9. Fuel level status (hold to reset to relearn)
10. Distance to empty
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
82

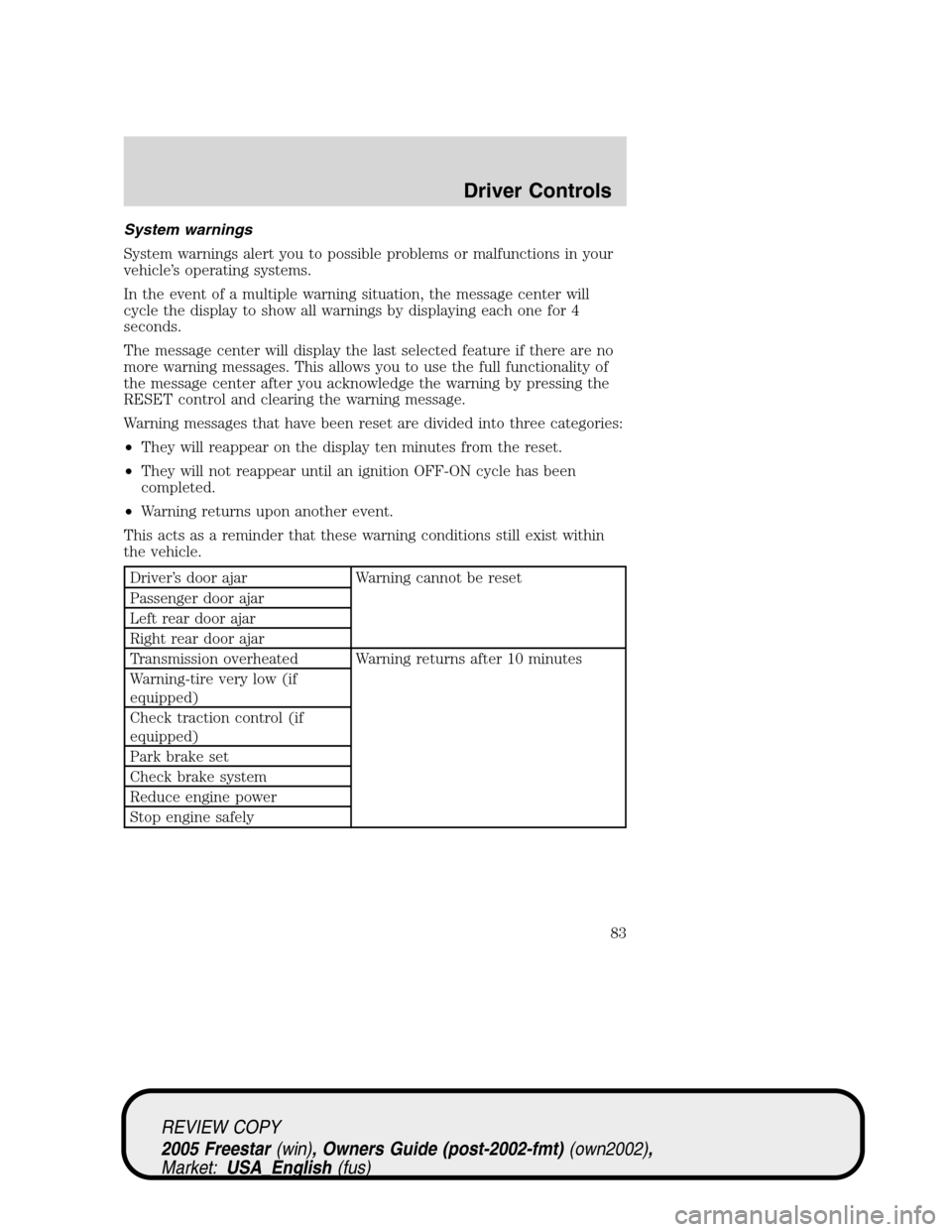

System warnings
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for 4
seconds.
The message center will display the last selected feature if there are no
more warning messages. This allows you to use the full functionality of
the message center after you acknowledge the warning by pressing the
RESET control and clearing the warning message.
Warning messages that have been reset are divided into three categories:
•They will reappear on the display ten minutes from the reset.
•They will not reappear until an ignition OFF-ON cycle has been
completed.
•Warning returns upon another event.
This acts as a reminder that these warning conditions still exist within
the vehicle.
Driver’s door ajar Warning cannot be reset
Passenger door ajar
Left rear door ajar
Right rear door ajar
Transmission overheated Warning returns after 10 minutes
Warning-tire very low (if
equipped)
Check traction control (if
equipped)
Park brake set
Check brake system
Reduce engine power
Stop engine safely
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
83

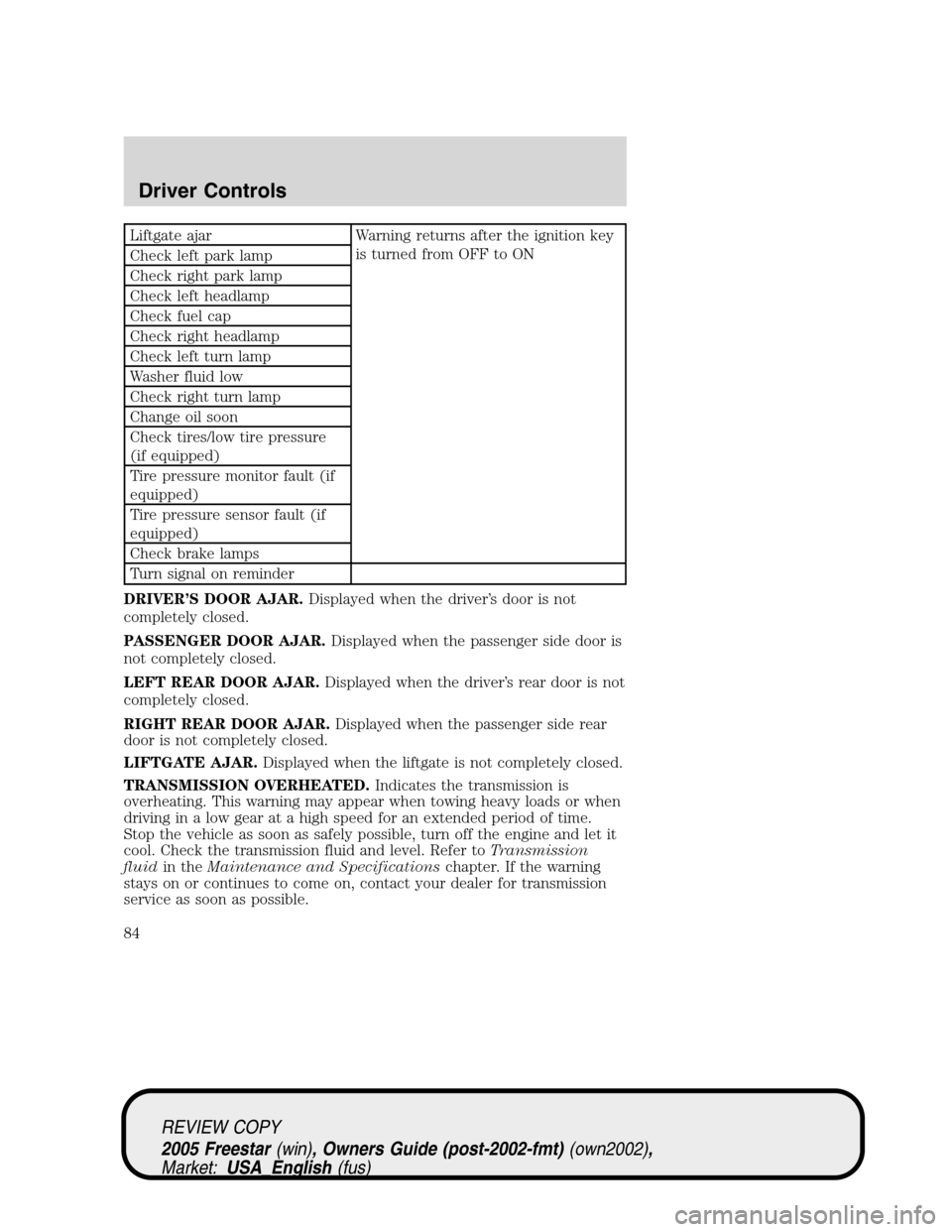

Liftgate ajar Warning returns after the ignition key
is turned from OFF to ON
Check left park lamp
Check right park lamp
Check left headlamp
Check fuel cap
Check right headlamp
Check left turn lamp
Washer fluid low
Check right turn lamp
Change oil soon
Check tires/low tire pressure
(if equipped)
Tire pressure monitor fault (if
equipped)
Tire pressure sensor fault (if
equipped)
Check brake lamps
Turn signal on reminder
DRIVER’S DOOR AJAR.Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger side door is
not completely closed.
LEFT REAR DOOR AJAR.Displayed when the driver’s rear door is not
completely closed.
RIGHT REAR DOOR AJAR.Displayed when the passenger side rear
door is not completely closed.
LIFTGATE AJAR.Displayed when the liftgate is not completely closed.
TRANSMISSION OVERHEATED.Indicates the transmission is
overheating. This warning may appear when towing heavy loads or when
driving in a low gear at a high speed for an extended period of time.
Stop the vehicle as soon as safely possible, turn off the engine and let it
cool. Check the transmission fluid and level. Refer toTransmission
fluidin theMaintenance and Specificationschapter. If the warning
stays on or continues to come on, contact your dealer for transmission
service as soon as possible.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
84

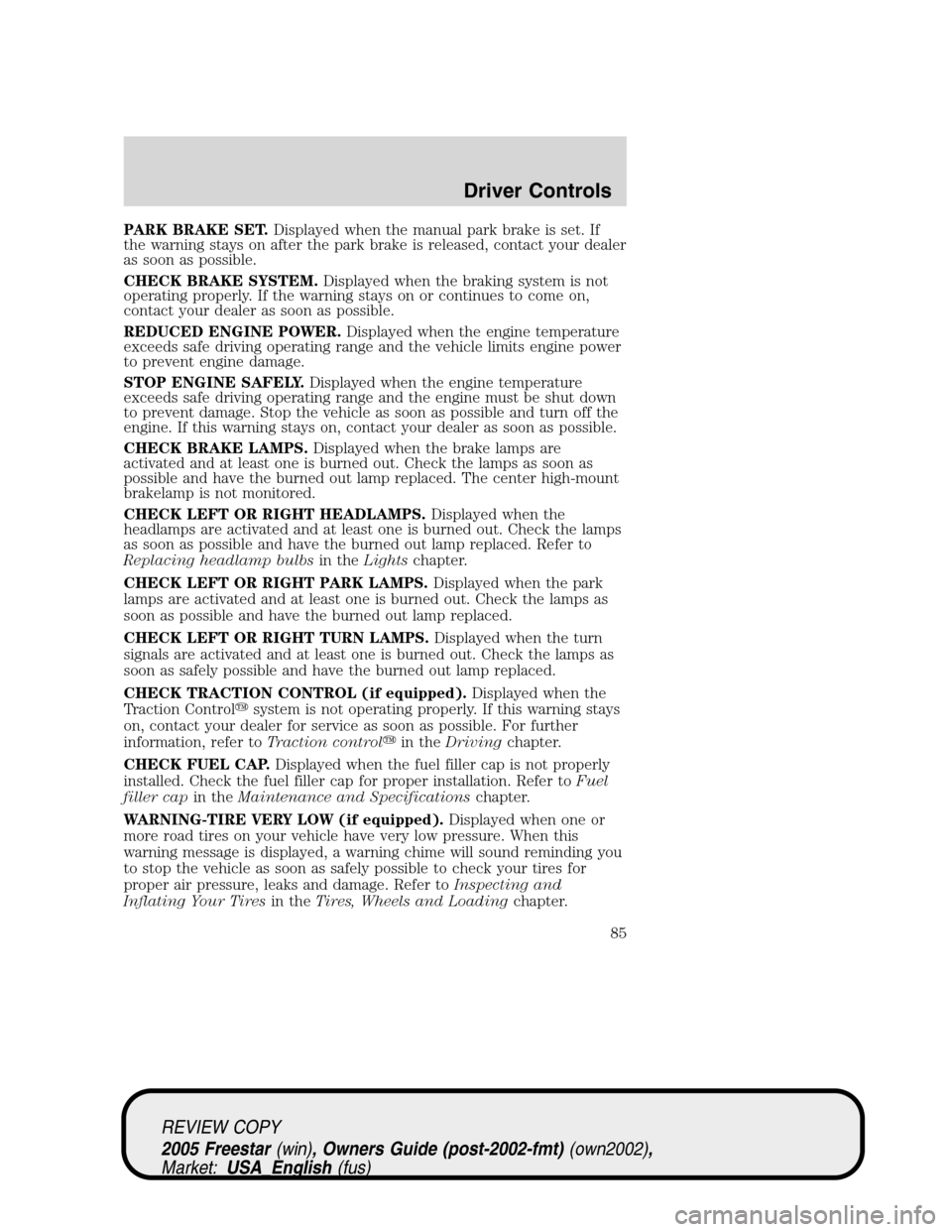

PARK BRAKE SET.Displayed when the manual park brake is set. If
the warning stays on after the park brake is released, contact your dealer
as soon as possible.
CHECK BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your dealer as soon as possible.
REDUCED ENGINE POWER.Displayed when the engine temperature
exceeds safe driving operating range and the vehicle limits engine power
to prevent engine damage.
STOP ENGINE SAFELY.Displayed when the engine temperature
exceeds safe driving operating range and the engine must be shut down
to prevent damage. Stop the vehicle as soon as possible and turn off the
engine. If this warning stays on, contact your dealer as soon as possible.
CHECK BRAKE LAMPS.Displayed when the brake lamps are
activated and at least one is burned out. Check the lamps as soon as
possible and have the burned out lamp replaced. The center high-mount
brakelamp is not monitored.
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT PARK LAMPS.Displayed when the park
lamps are activated and at least one is burned out. Check the lamps as
soon as possible and have the burned out lamp replaced.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
CHECK TRACTION CONTROL (if equipped).Displayed when the
Traction Control
system is not operating properly. If this warning stays
on, contact your dealer for service as soon as possible. For further
information, refer toTraction control
in theDrivingchapter.
CHECK FUEL CAP.Displayed when the fuel filler cap is not properly
installed. Check the fuel filler cap for proper installation. Refer toFuel
filler capin theMaintenance and Specificationschapter.
WARNING-TIRE VERY LOW (if equipped).Displayed when one or
more road tires on your vehicle have very low pressure. When this
warning message is displayed, a warning chime will sound reminding you
to stop the vehicle as soon as safely possible to check your tires for
proper air pressure, leaks and damage. Refer toInspecting and
Inflating Your Tiresin theTires, Wheels and Loadingchapter.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
85

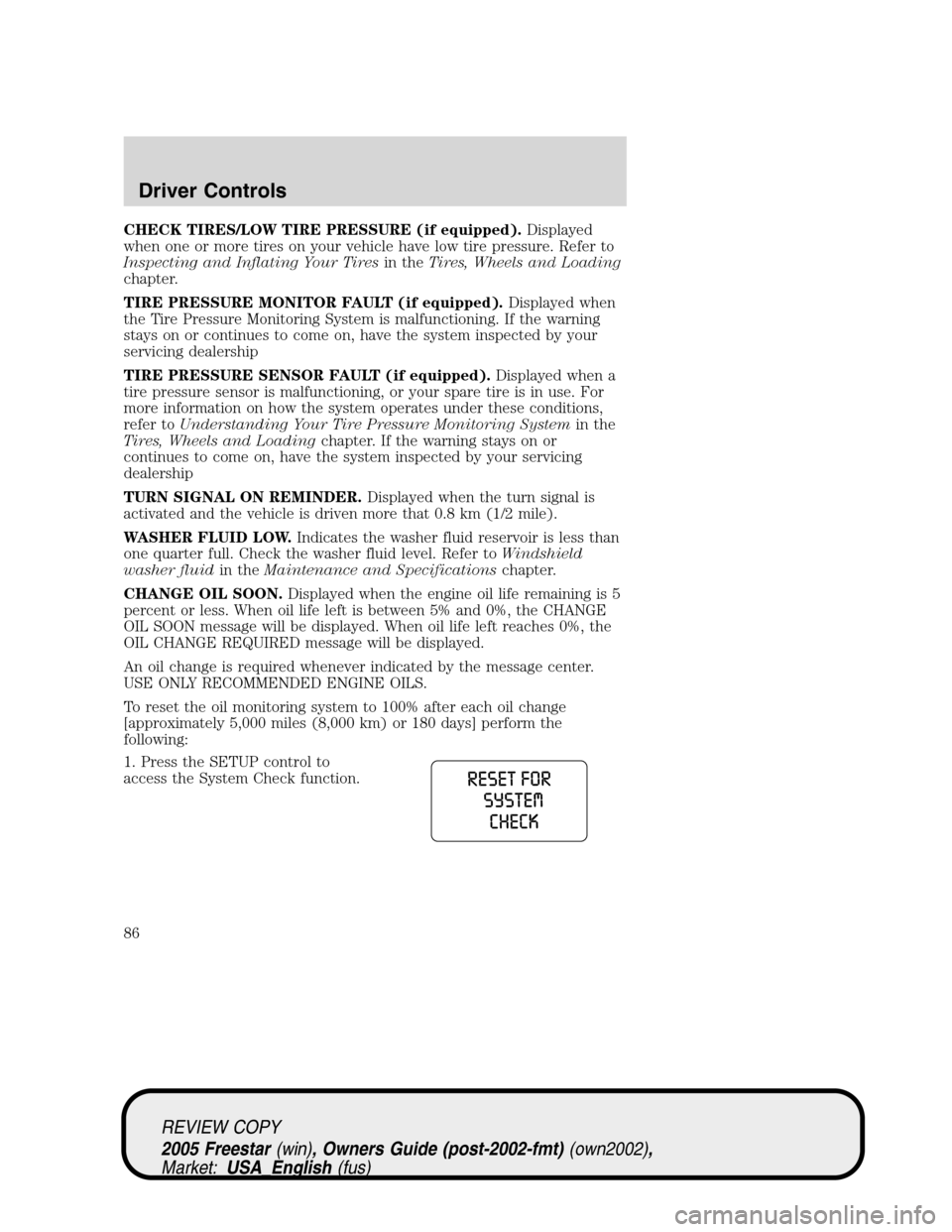

CHECK TIRES/LOW TIRE PRESSURE (if equipped).Displayed
when one or more tires on your vehicle have low tire pressure. Refer to
Inspecting and Inflating Your Tiresin theTires, Wheels and Loading
chapter.
TIRE PRESSURE MONITOR FAULT (if equipped).Displayed when
the Tire Pressure Monitoring System is malfunctioning. If the warning
stays on or continues to come on, have the system inspected by your
servicing dealership
TIRE PRESSURE SENSOR FAULT (if equipped).Displayed when a
tire pressure sensor is malfunctioning, or your spare tire is in use. For
more information on how the system operates under these conditions,
refer toUnderstanding Your Tire Pressure Monitoring Systemin the
Tires, Wheels and Loadingchapter. If the warning stays on or
continues to come on, have the system inspected by your servicing
dealership
TURN SIGNAL ON REMINDER.Displayed when the turn signal is
activated and the vehicle is driven more that 0.8 km (1/2 mile).
WASHER FLUID LOW.Indicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level. Refer toWindshield
washer fluidin theMaintenance and Specificationschapter.
CHANGE OIL SOON.Displayed when the engine oil life remaining is 5
percent or less. When oil life left is between 5% and 0%, the CHANGE
OIL SOON message will be displayed. When oil life left reaches 0%, the
OIL CHANGE REQUIRED message will be displayed.
An oil change is required whenever indicated by the message center.
USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change
[approximately 5,000 miles (8,000 km) or 180 days] perform the
following:
1. Press the SETUP control to
access the System Check function.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
86

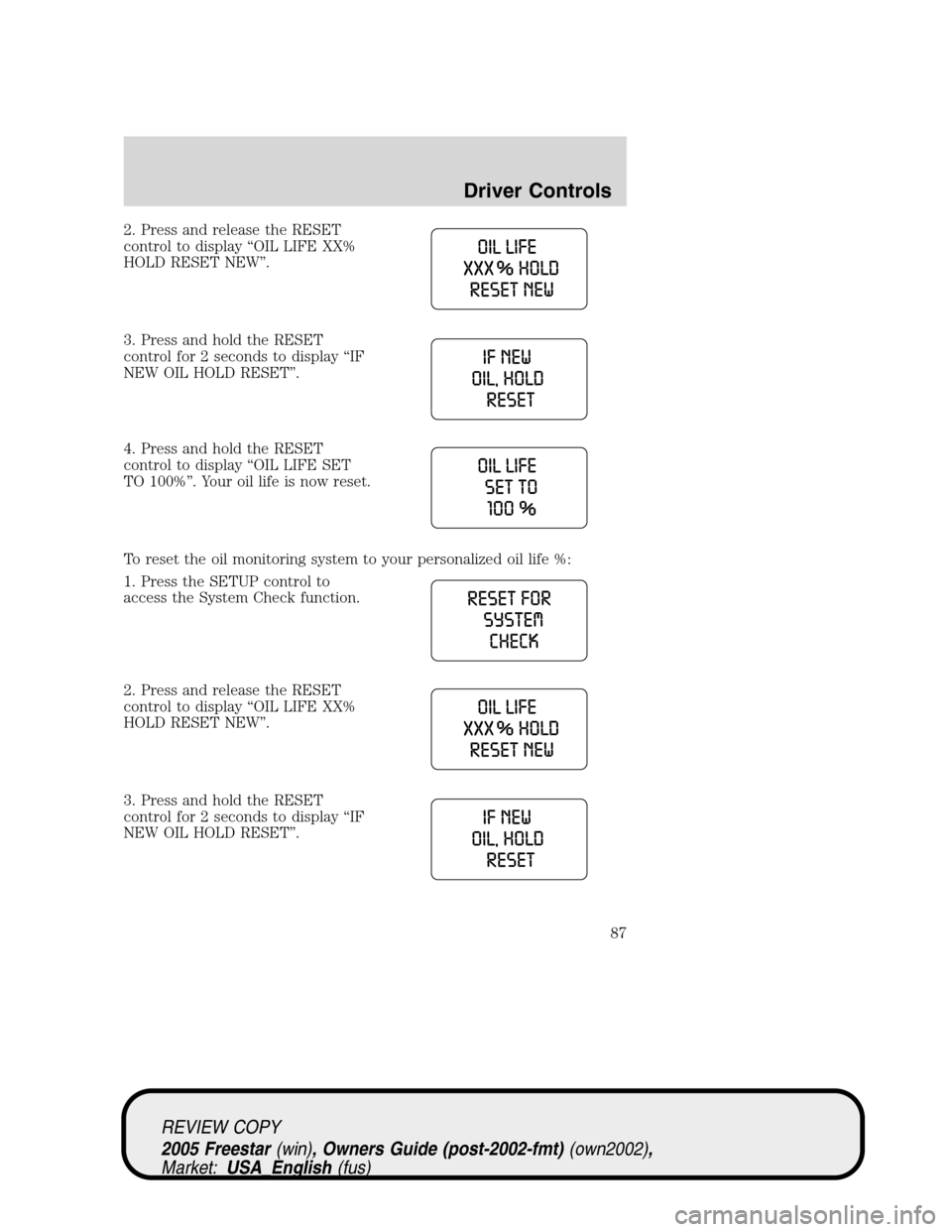

2. Press and release the RESET
control to display“OIL LIFE XX%
HOLD RESET NEW”.
3. Press and hold the RESET
control for 2 seconds to display“IF
NEW OIL HOLD RESET”.
4. Press and hold the RESET
control to display“OIL LIFE SET
TO 100%”. Your oil life is now reset.
To reset the oil monitoring system to your personalized oil life %:
1. Press the SETUP control to
access the System Check function.
2. Press and release the RESET
control to display“OIL LIFE XX%
HOLD RESET NEW”.
3. Press and hold the RESET
control for 2 seconds to display“IF
NEW OIL HOLD RESET”.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
87

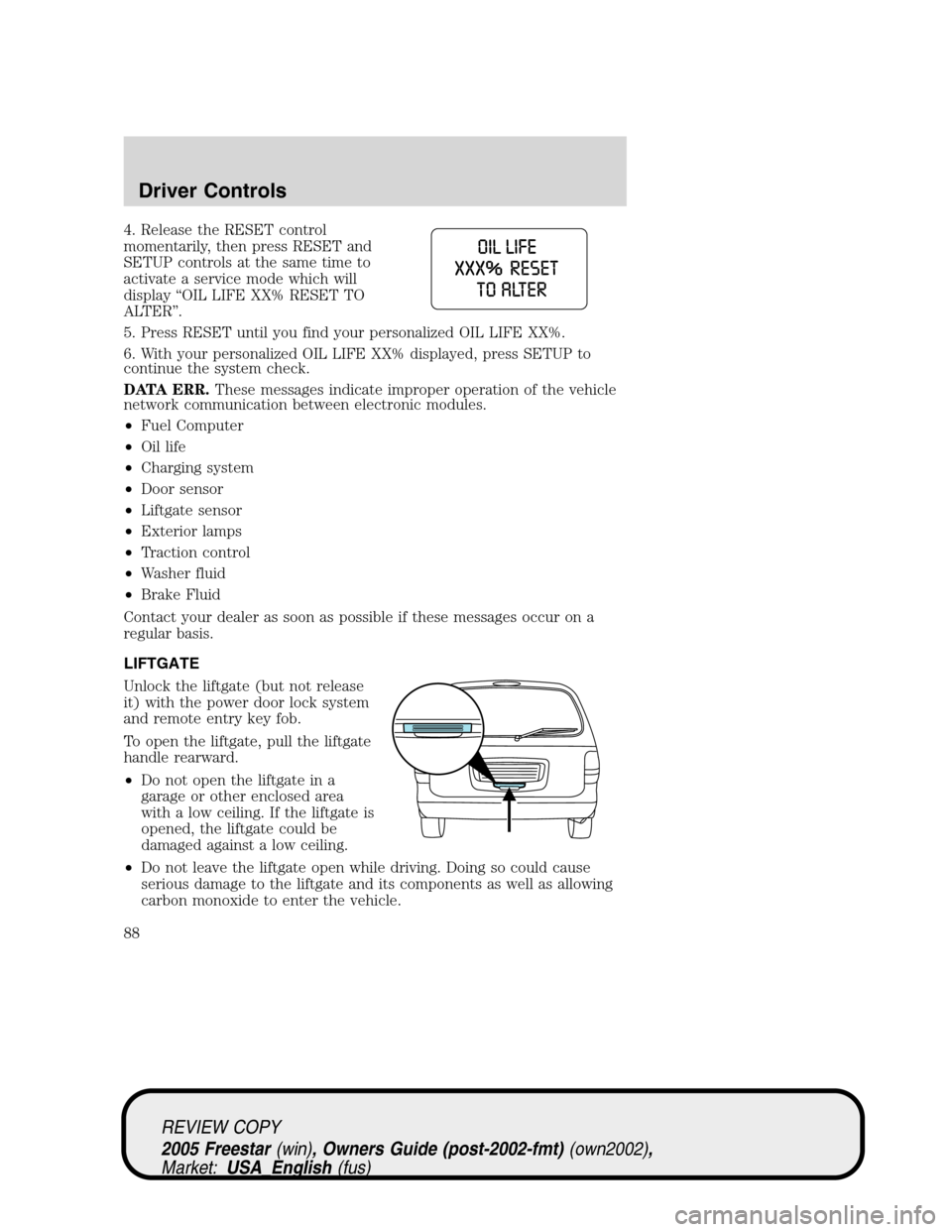

4. Release the RESET control
momentarily, then press RESET and
SETUP controls at the same time to
activate a service mode which will
display“OIL LIFE XX% RESET TO
ALTER”.
5. Press RESET until you find your personalized OIL LIFE XX%.
6. With your personalized OIL LIFE XX% displayed, press SETUP to
continue the system check.
DATA ERR.These messages indicate improper operation of the vehicle
network communication between electronic modules.
•Fuel Computer
•Oil life
•Charging system
•Door sensor
•Liftgate sensor
•Exterior lamps
•Traction control
•Washer fluid
•Brake Fluid
Contact your dealer as soon as possible if these messages occur on a
regular basis.
LIFTGATE
Unlock the liftgate (but not release
it) with the power door lock system
and remote entry key fob.
To open the liftgate, pull the liftgate
handle rearward.
•Do not open the liftgate in a
garage or other enclosed area
with a low ceiling. If the liftgate is
opened, the liftgate could be
damaged against a low ceiling.
•Do not leave the liftgate open while driving. Doing so could cause
serious damage to the liftgate and its components as well as allowing
carbon monoxide to enter the vehicle.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
88

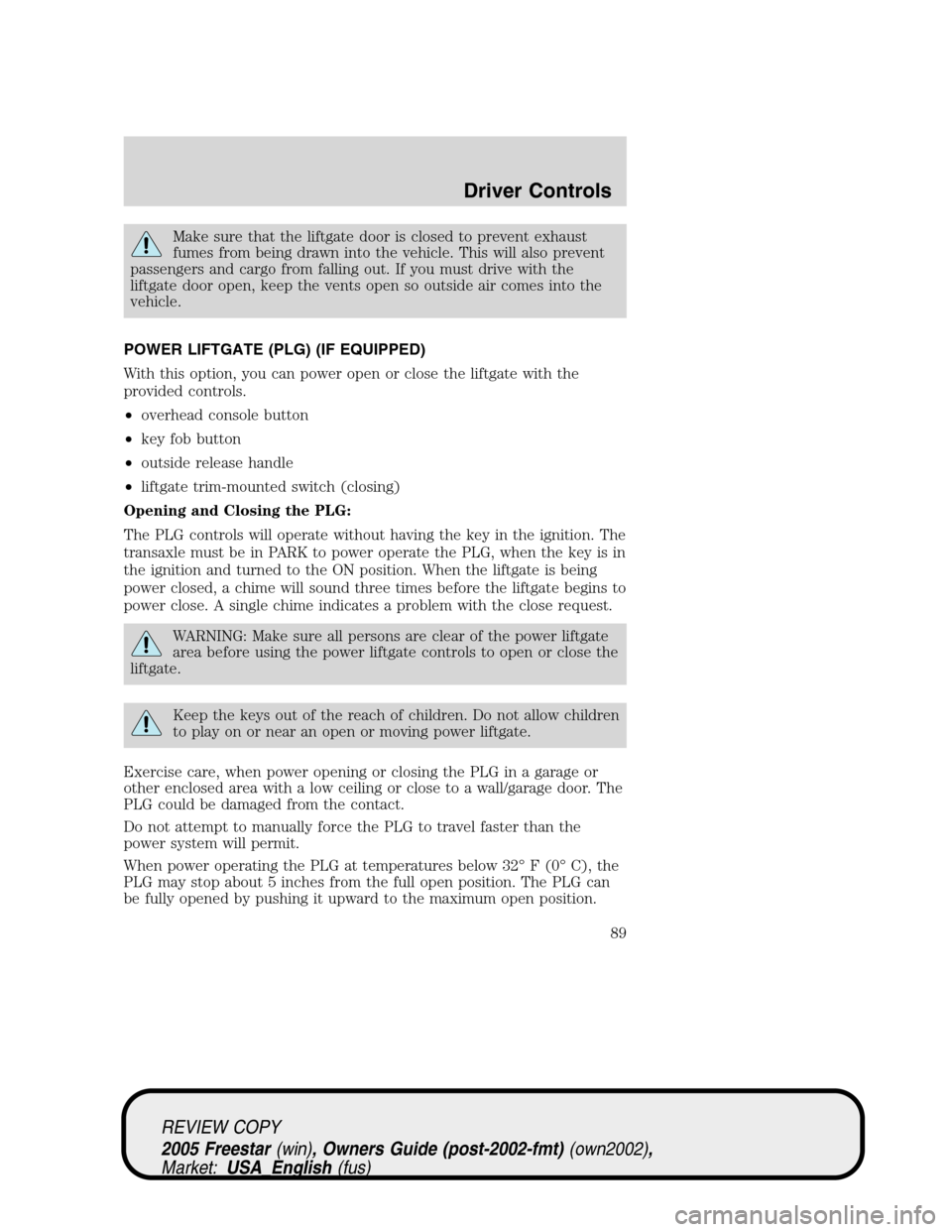

Make sure that the liftgate door is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door open, keep the vents open so outside air comes into the
vehicle.
POWER LIFTGATE (PLG) (IF EQUIPPED)
With this option, you can power open or close the liftgate with the
provided controls.
•overhead console button
•key fob button
•outside release handle
•liftgate trim-mounted switch (closing)
Opening and Closing the PLG:
The PLG controls will operate without having the key in the ignition. The
transaxle must be in PARK to power operate the PLG, when the key is in
the ignition and turned to the ON position. When the liftgate is being
power closed, a chime will sound three times before the liftgate begins to
power close. A single chime indicates a problem with the close request.
WARNING: Make sure all persons are clear of the power liftgate
area before using the power liftgate controls to open or close the
liftgate.
Keep the keys out of the reach of children. Do not allow children
to play on or near an open or moving power liftgate.
Exercise care, when power opening or closing the PLG in a garage or
other enclosed area with a low ceiling or close to a wall/garage door. The
PLG could be damaged from the contact.
Do not attempt to manually force the PLG to travel faster than the
power system will permit.
When power operating the PLG at temperatures below 32°F(0°C), the
PLG may stop about 5 inches from the full open position. The PLG can
be fully opened by pushing it upward to the maximum open position.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
89

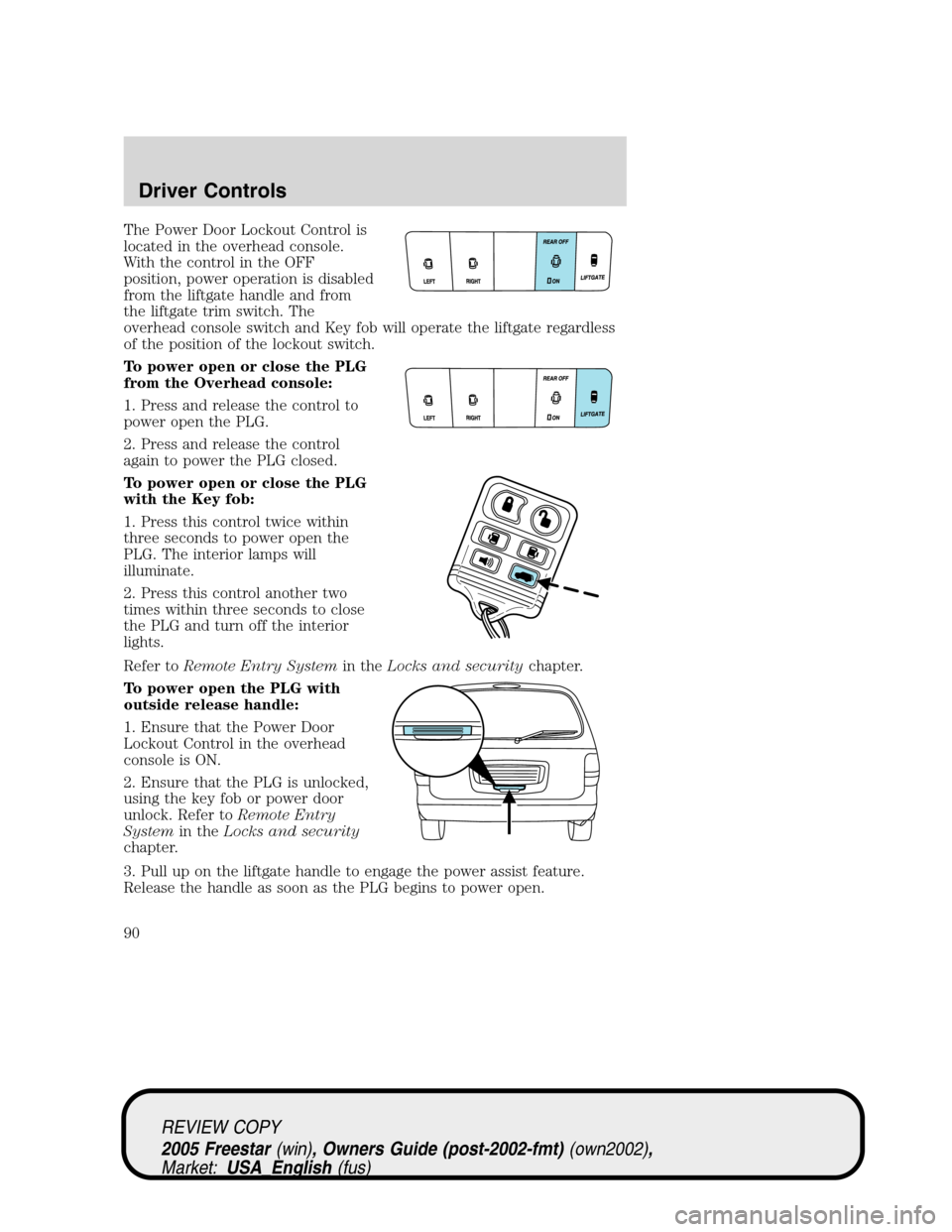

The Power Door Lockout Control is
located in the overhead console.
With the control in the OFF
position, power operation is disabled
from the liftgate handle and from
the liftgate trim switch. The
overhead console switch and Key fob will operate the liftgate regardless
of the position of the lockout switch.
To power open or close the PLG
from the Overhead console:
1. Press and release the control to
power open the PLG.
2. Press and release the control
again to power the PLG closed.
To power open or close the PLG
with the Key fob:
1. Press this control twice within
three seconds to power open the
PLG. The interior lamps will
illuminate.
2. Press this control another two
times within three seconds to close
the PLG and turn off the interior
lights.
Refer toRemote Entry Systemin theLocks and securitychapter.
To power open the PLG with
outside release handle:
1. Ensure that the Power Door
Lockout Control in the overhead
console is ON.
2. Ensure that the PLG is unlocked,
using the key fob or power door
unlock. Refer toRemote Entry
Systemin theLocks and security
chapter.
3. Pull up on the liftgate handle to engage the power assist feature.
Release the handle as soon as the PLG begins to power open.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
90
