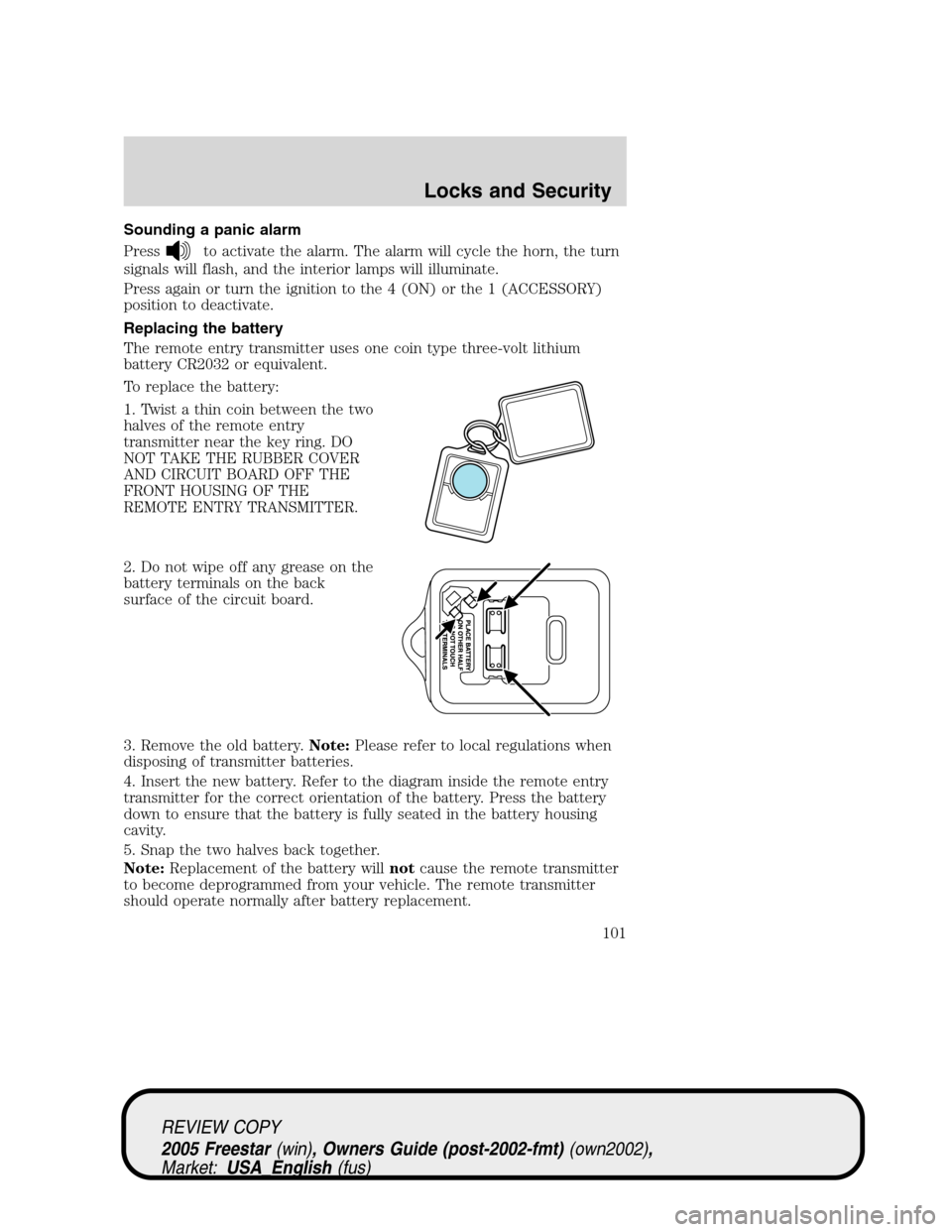

Sounding a panic alarm
Press
to activate the alarm. The alarm will cycle the horn, the turn
signals will flash, and the interior lamps will illuminate.
Press again or turn the ignition to the 4 (ON) or the 1 (ACCESSORY)
position to deactivate.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.Note:Please refer to local regulations when
disposing of transmitter batteries.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery
down to ensure that the battery is fully seated in the battery housing
cavity.
5. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
101

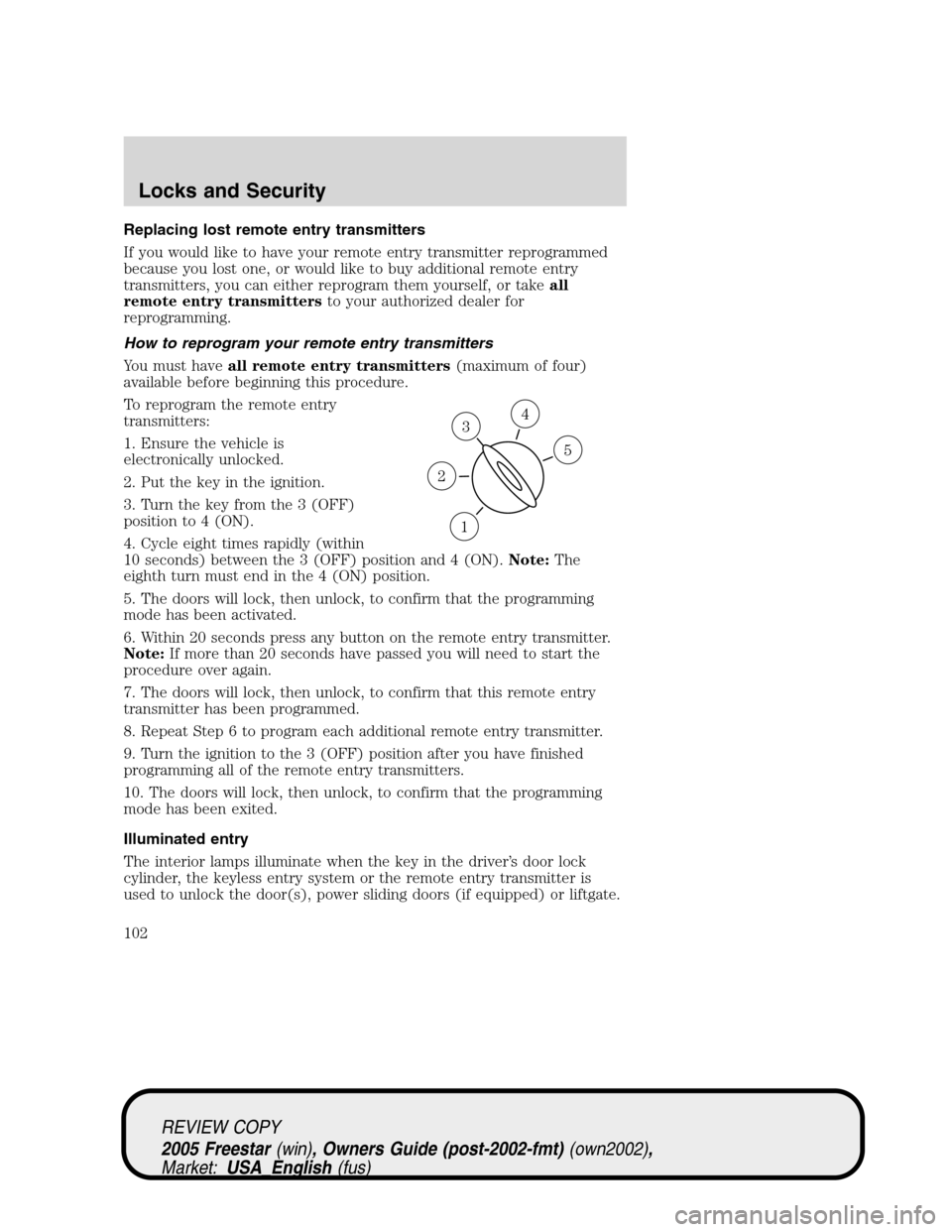

Replacing lost remote entry transmitters
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
How to reprogram your remote entry transmitters
You must haveall remote entry transmitters(maximum of four)
available before beginning this procedure.
To reprogram the remote entry
transmitters:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the ignition.
3. Turn the key from the 3 (OFF)
position to 4 (ON).
4. Cycle eight times rapidly (within
10 seconds) between the 3 (OFF) position and 4 (ON).Note:The
eighth turn must end in the 4 (ON) position.
5. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
6. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
7. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. Turn the ignition to the 3 (OFF) position after you have finished
programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the key in the driver’s door lock
cylinder, the keyless entry system or the remote entry transmitter is
used to unlock the door(s), power sliding doors (if equipped) or liftgate.
3
1
2
5
4
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
102

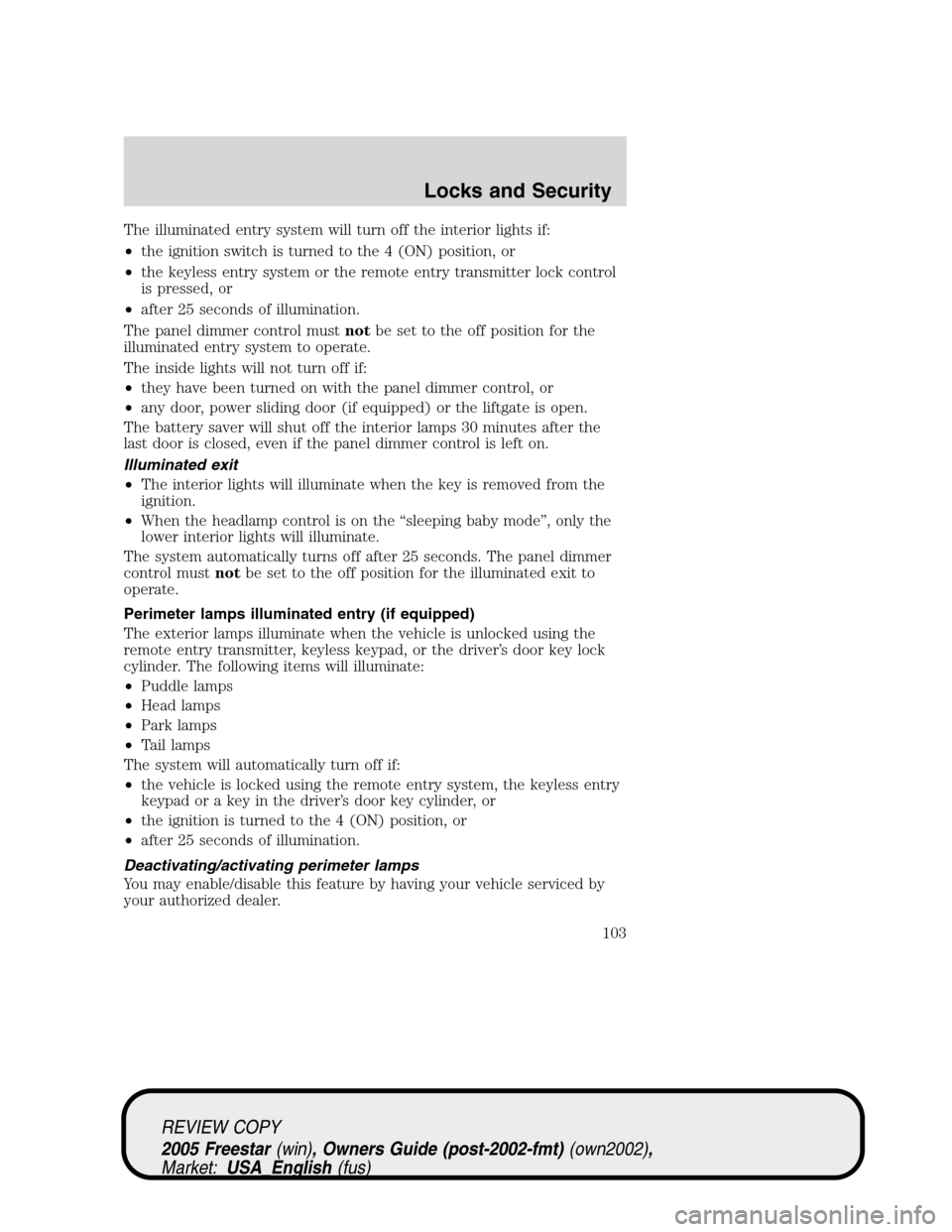

The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 4 (ON) position, or
•the keyless entry system or the remote entry transmitter lock control
is pressed, or
•after 25 seconds of illumination.
The panel dimmer control mustnotbe set to the off position for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the panel dimmer control, or
•any door, power sliding door (if equipped) or the liftgate is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, even if the panel dimmer control is left on.
Illuminated exit
•The interior lights will illuminate when the key is removed from the
ignition.
•When the headlamp control is on the“sleeping baby mode”, only the
lower interior lights will illuminate.
The system automatically turns off after 25 seconds. The panel dimmer
control mustnotbe set to the off position for the illuminated exit to
operate.
Perimeter lamps illuminated entry (if equipped)
The exterior lamps illuminate when the vehicle is unlocked using the
remote entry transmitter, keyless keypad, or the driver’s door key lock
cylinder. The following items will illuminate:
•Puddle lamps
•Head lamps
•Park lamps
•Tail lamps
The system will automatically turn off if:
•the vehicle is locked using the remote entry system, the keyless entry
keypad or a key in the driver’s door key cylinder, or
•the ignition is turned to the 4 (ON) position, or
•after 25 seconds of illumination.
Deactivating/activating perimeter lamps
You may enable/disable this feature by having your vehicle serviced by
your authorized dealer.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
103

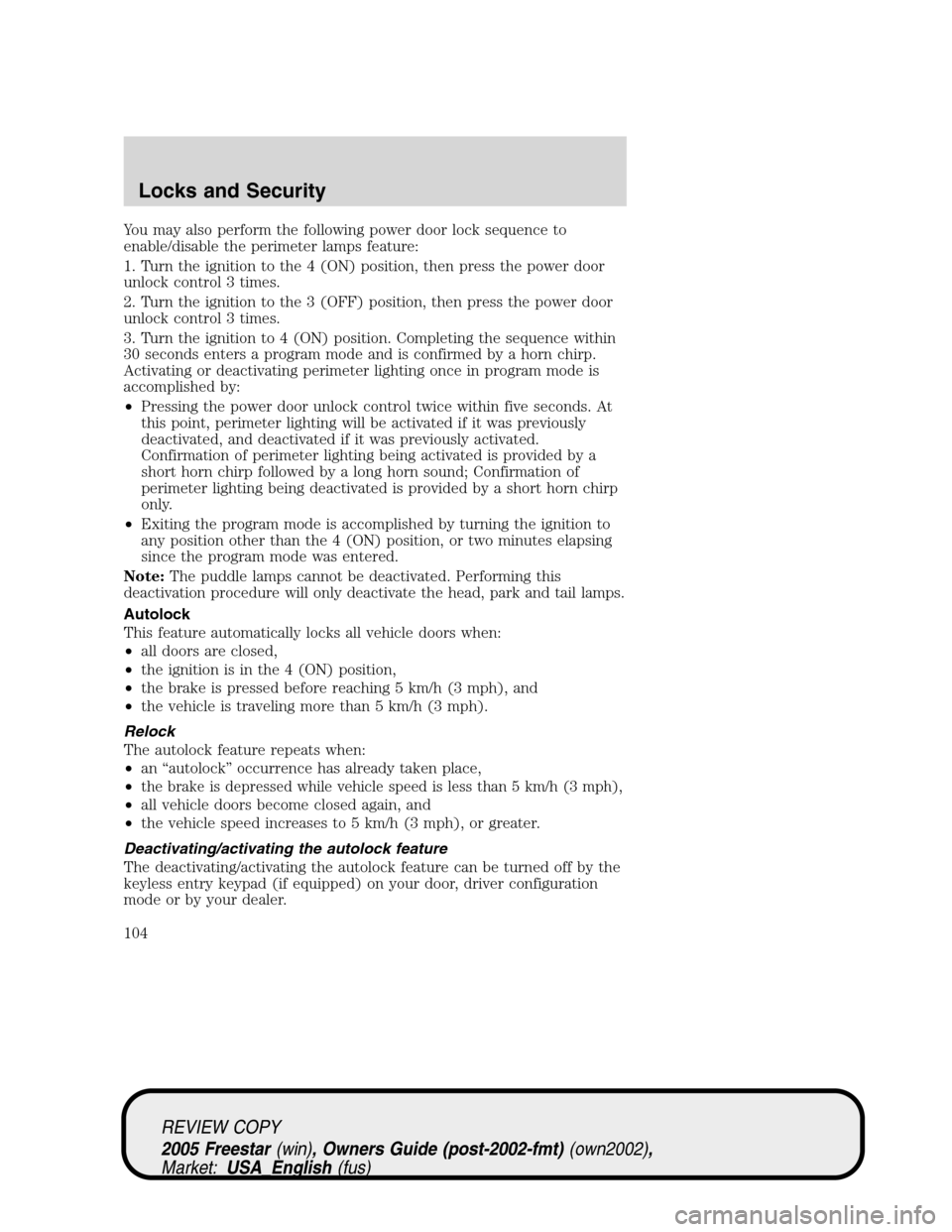

You may also perform the following power door lock sequence to
enable/disable the perimeter lamps feature:
1. Turn the ignition to the 4 (ON) position, then press the power door
unlock control 3 times.
2. Turn the ignition to the 3 (OFF) position, then press the power door
unlock control 3 times.
3. Turn the ignition to 4 (ON) position. Completing the sequence within
30 seconds enters a program mode and is confirmed by a horn chirp.
Activating or deactivating perimeter lighting once in program mode is
accomplished by:
•Pressing the power door unlock control twice within five seconds. At
this point, perimeter lighting will be activated if it was previously
deactivated, and deactivated if it was previously activated.
Confirmation of perimeter lighting being activated is provided by a
short horn chirp followed by a long horn sound; Confirmation of
perimeter lighting being deactivated is provided by a short horn chirp
only.
•Exiting the program mode is accomplished by turning the ignition to
any position other than the 4 (ON) position, or two minutes elapsing
since the program mode was entered.
Note:The puddle lamps cannot be deactivated. Performing this
deactivation procedure will only deactivate the head, park and tail lamps.
Autolock
This feature automatically locks all vehicle doors when:
•all doors are closed,
•the ignition is in the 4 (ON) position,
•the brake is pressed before reaching 5 km/h (3 mph), and
•the vehicle is traveling more than 5 km/h (3 mph).
Relock
The autolock feature repeats when:
•an“autolock”occurrence has already taken place,
•
the brake is depressed while vehicle speed is less than 5 km/h (3 mph),
•all vehicle doors become closed again, and
•the vehicle speed increases to 5 km/h (3 mph), or greater.
Deactivating/activating the autolock feature
The deactivating/activating the autolock feature can be turned off by the
keyless entry keypad (if equipped) on your door, driver configuration
mode or by your dealer.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
104

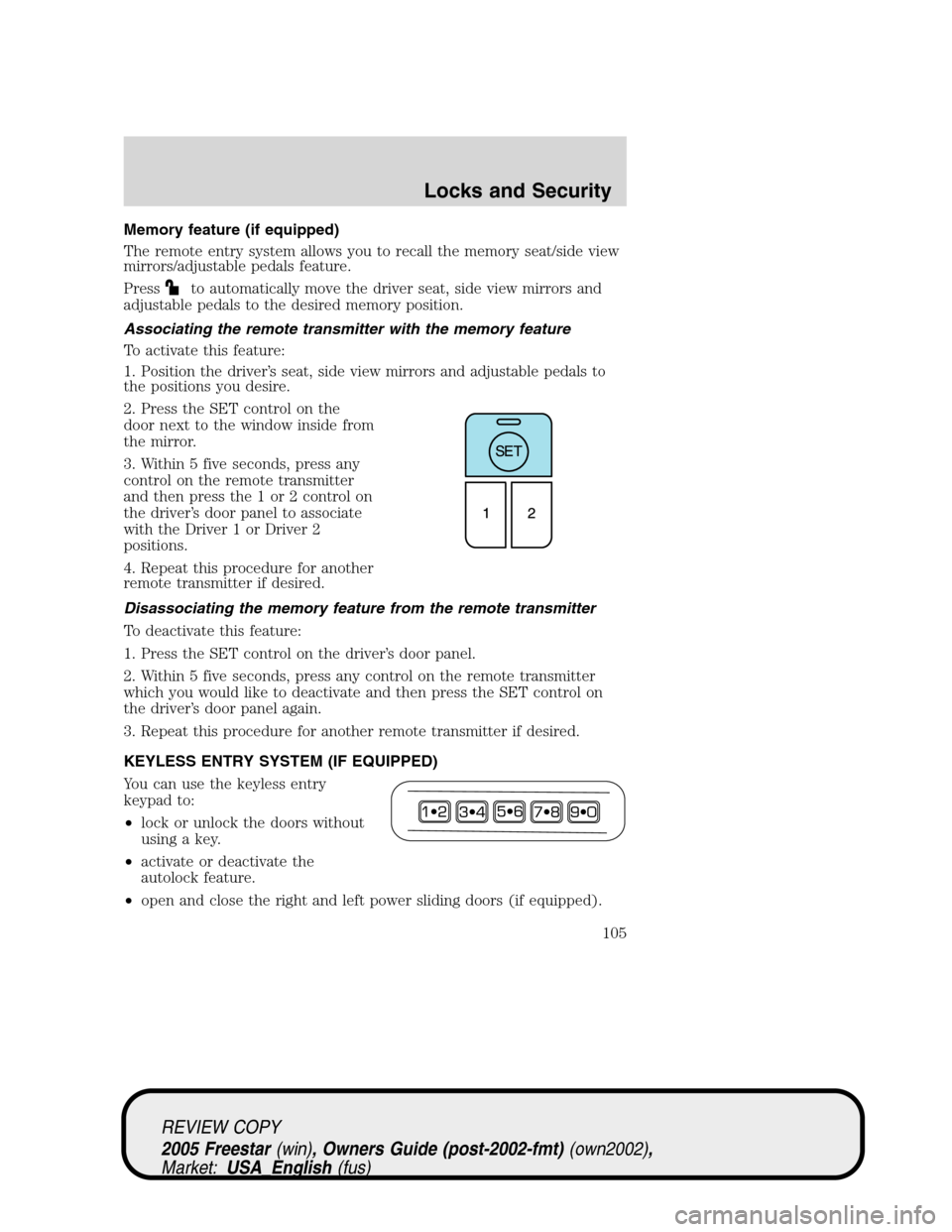

Memory feature (if equipped)
The remote entry system allows you to recall the memory seat/side view
mirrors/adjustable pedals feature.
Press
to automatically move the driver seat, side view mirrors and
adjustable pedals to the desired memory position.
Associating the remote transmitter with the memory feature
To activate this feature:
1. Position the driver’s seat, side view mirrors and adjustable pedals to
the positions you desire.
2. Press the SET control on the
door next to the window inside from
the mirror.
3. Within 5 five seconds, press any
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s door panel to associate
with the Driver 1 or Driver 2
positions.
4. Repeat this procedure for another
remote transmitter if desired.
Disassociating the memory feature from the remote transmitter
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s door panel again.
3. Repeat this procedure for another remote transmitter if desired.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•activate or deactivate the
autolock feature.
•open and close the right and left power sliding doors (if equipped).
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
105

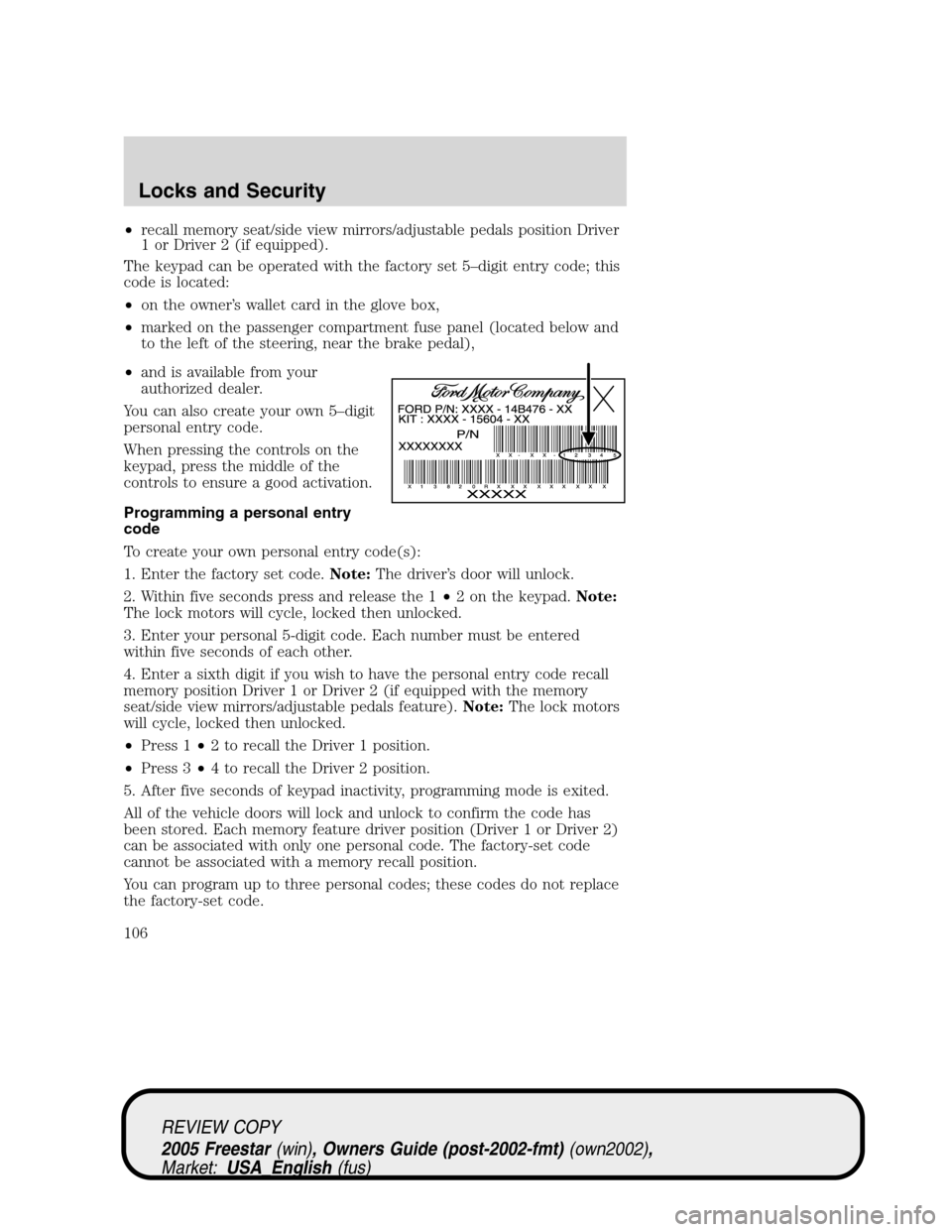

•recall memory seat/side view mirrors/adjustable pedals position Driver
1 or Driver 2 (if equipped).
The keypad can be operated with the factory set 5–digit entry code; this
code is located:
•on the owner’s wallet card in the glove box,
•marked on the passenger compartment fuse panel (located below and
to the left of the steering, near the brake pedal),
•and is available from your
authorized dealer.
You can also create your own 5–digit
personal entry code.
When pressing the controls on the
keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry
code
To create your own personal entry code(s):
1. Enter the factory set code.Note:The driver’s door will unlock.
2. Within five seconds press and release the 1•2 on the keypad.Note:
The lock motors will cycle, locked then unlocked.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Enter a sixth digit if you wish to have the personal entry code recall
memory position Driver 1 or Driver 2 (if equipped with the memory
seat/side view mirrors/adjustable pedals feature).Note:The lock motors
will cycle, locked then unlocked.
•Press 1•2 to recall the Driver 1 position.
•Press 3•4 to recall the Driver 2 position.
5. After five seconds of keypad inactivity, programming mode is exited.
All of the vehicle doors will lock and unlock to confirm the code has
been stored. Each memory feature driver position (Driver 1 or Driver 2)
can be associated with only one personal code. The factory-set code
cannot be associated with a memory recall position.
You can program up to three personal codes; these codes do not replace
the factory-set code.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
106

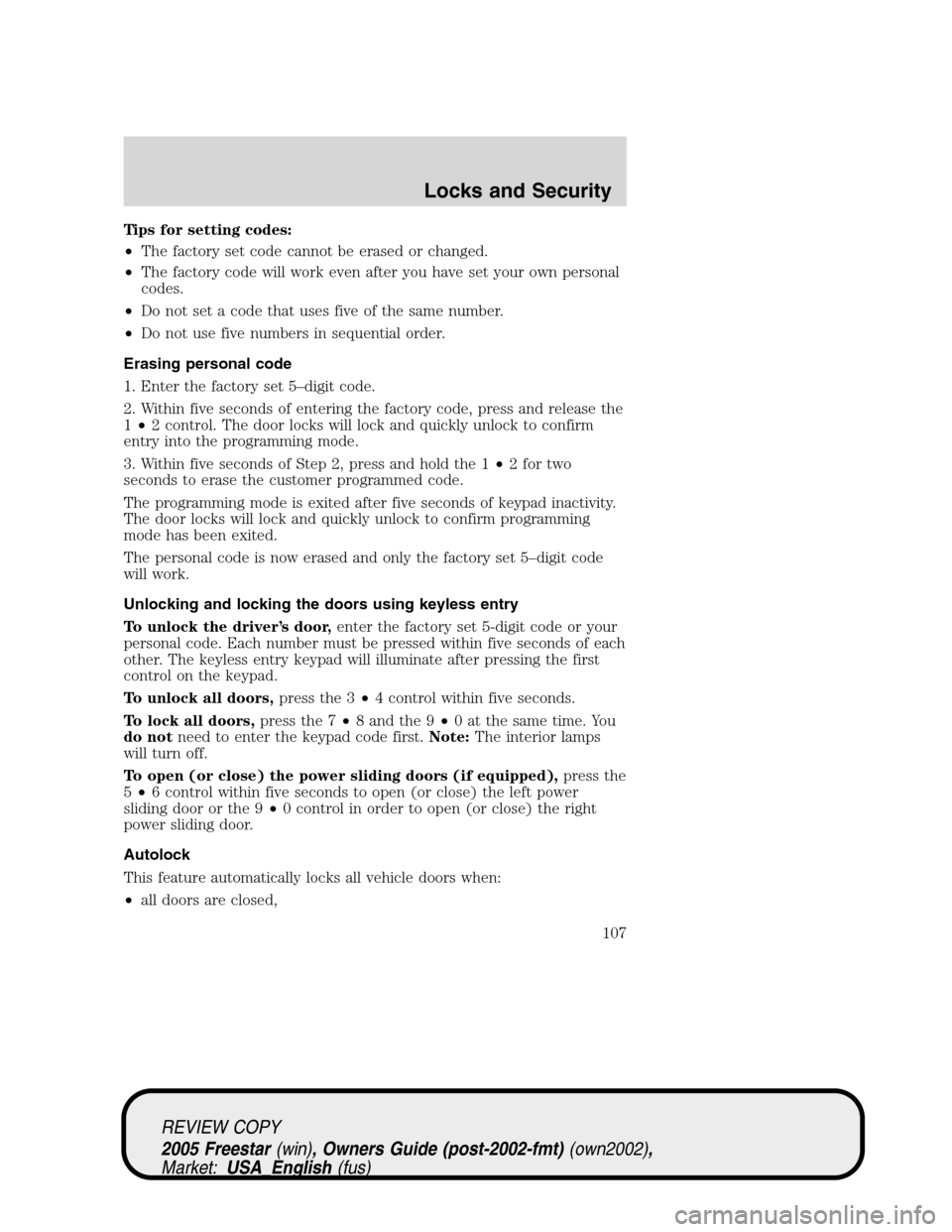

Tips for setting codes:
•The factory set code cannot be erased or changed.
•The factory code will work even after you have set your own personal
codes.
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds of entering the factory code, press and release the
1•2 control. The door locks will lock and quickly unlock to confirm
entry into the programming mode.
3. Within five seconds of Step 2, press and hold the 1•2 for two
seconds to erase the customer programmed code.
The programming mode is exited after five seconds of keypad inactivity.
The door locks will lock and quickly unlock to confirm programming
mode has been exited.
The personal code is now erased and only the factory set 5–digit code
will work.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The keyless entry keypad will illuminate after pressing the first
control on the keypad.
To unlock all doors,press the 3•4 control within five seconds.
To lock all doors,press the 7•8 and the 9•0 at the same time. You
do notneed to enter the keypad code first.Note:The interior lamps
will turn off.
To open (or close) the power sliding doors (if equipped),press the
5•6 control within five seconds to open (or close) the left power
sliding door or the 9•0 control in order to open (or close) the right
power sliding door.
Autolock
This feature automatically locks all vehicle doors when:
•all doors are closed,
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
107

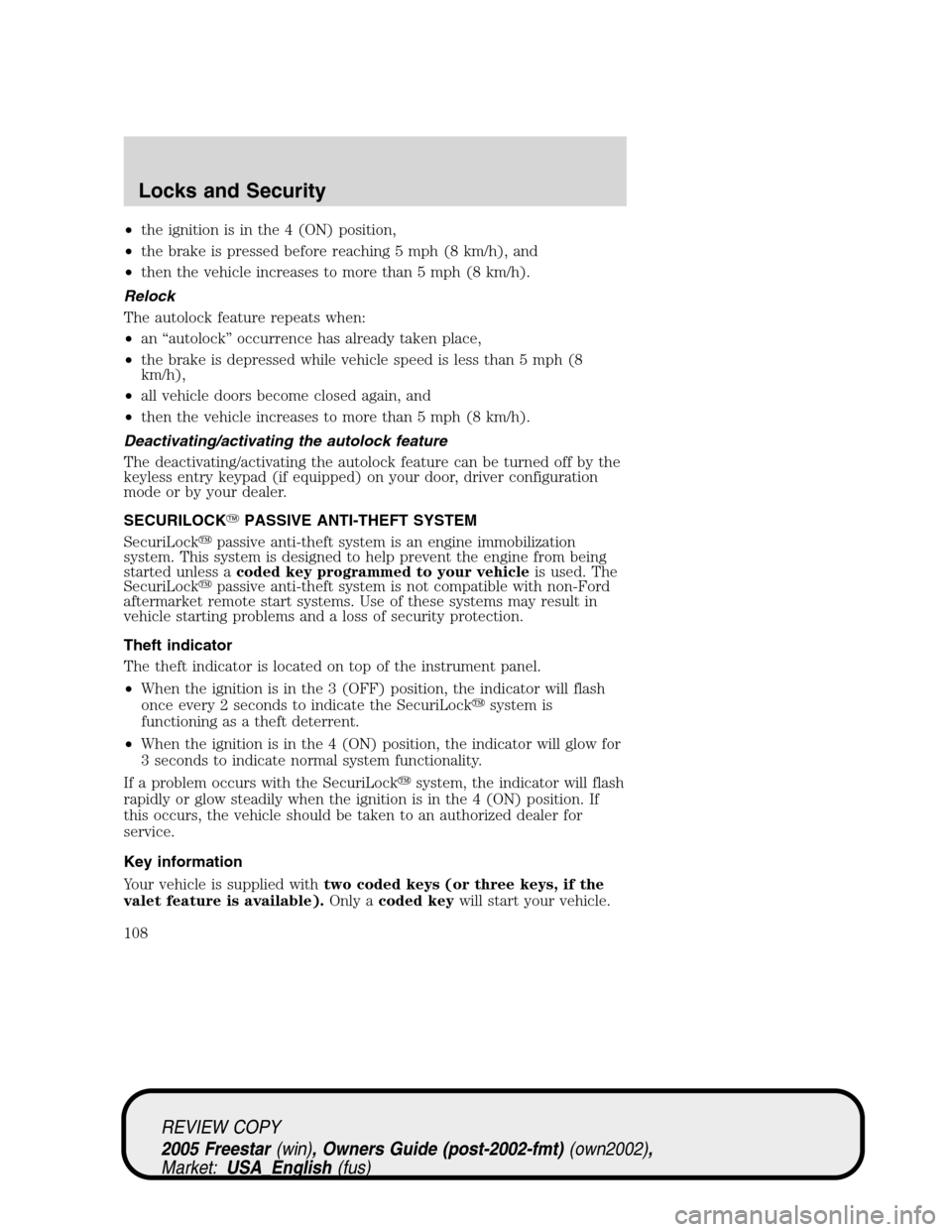

•the ignition is in the 4 (ON) position,
•the brake is pressed before reaching 5 mph (8 km/h), and
•then the vehicle increases to more than 5 mph (8 km/h).
Relock
The autolock feature repeats when:
•an“autolock”occurrence has already taken place,
•the brake is depressed while vehicle speed is less than 5 mph (8
km/h),
•all vehicle doors become closed again, and
•then the vehicle increases to more than 5 mph (8 km/h).
Deactivating/activating the autolock feature
The deactivating/activating the autolock feature can be turned off by the
keyless entry keypad (if equipped) on your door, driver configuration
mode or by your dealer.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
SecuriLock
passive anti-theft system is not compatible with non-Ford
aftermarket remote start systems. Use of these systems may result in
vehicle starting problems and a loss of security protection.
Theft indicator
The theft indicator is located on top of the instrument panel.
•When the ignition is in the 3 (OFF) position, the indicator will flash
once every 2 seconds to indicate the SecuriLock
system is
functioning as a theft deterrent.
•When the ignition is in the 4 (ON) position, the indicator will glow for
3 seconds to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the 4 (ON) position. If
this occurs, the vehicle should be taken to an authorized dealer for
service.
Key information
Your vehicle is supplied withtwo coded keys (or three keys, if the
valet feature is available).Only acoded keywill start your vehicle.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
108

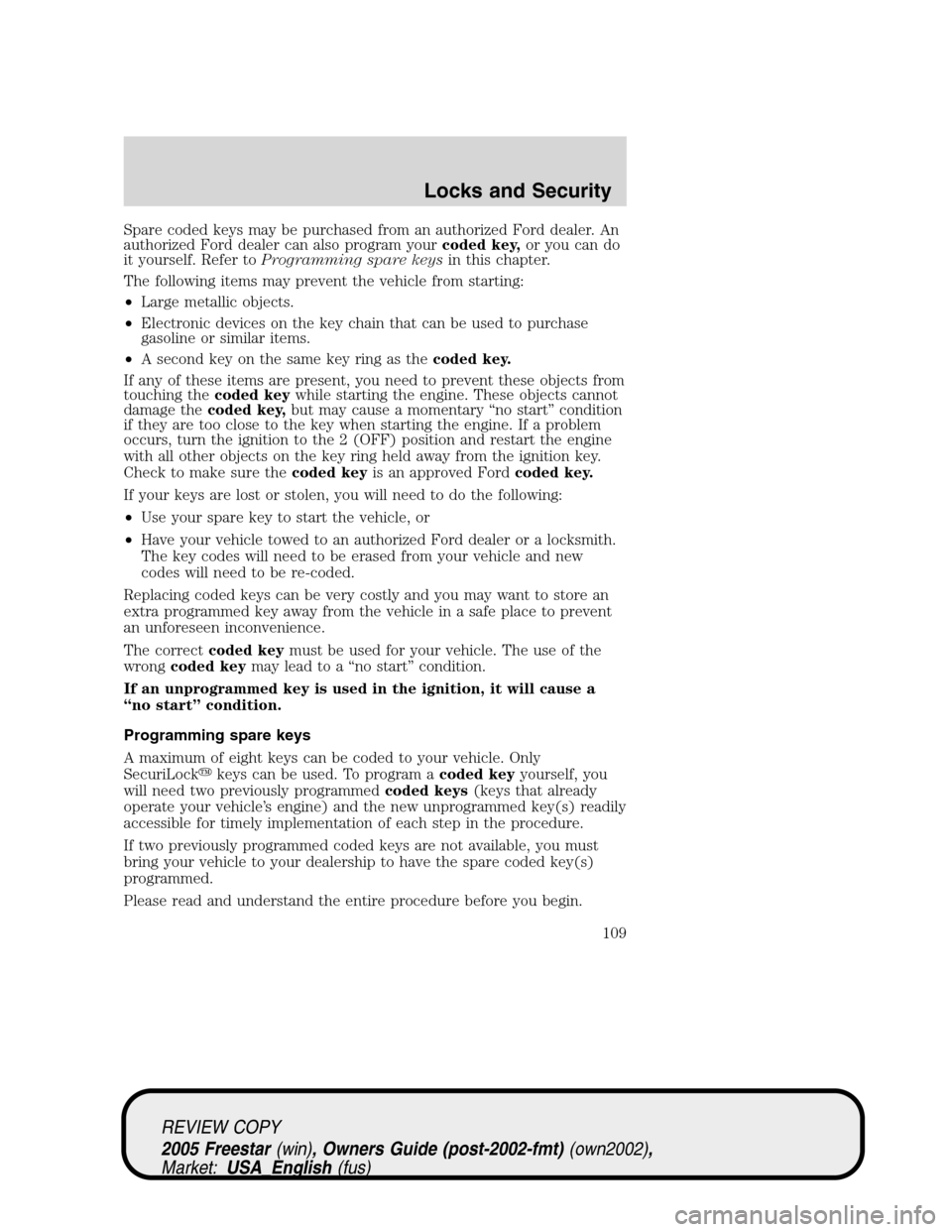

Spare coded keys may be purchased from an authorized Ford dealer. An
authorized Ford dealer can also program yourcoded key,or you can do
it yourself. Refer toProgramming spare keysin this chapter.
The following items may prevent the vehicle from starting:
•Large metallic objects.
•Electronic devices on the key chain that can be used to purchase
gasoline or similar items.
•A second key on the same key ring as thecoded key.
If any of these items are present, you need to prevent these objects from
touching thecoded keywhile starting the engine. These objects cannot
damage thecoded key,but may cause a momentary“no start”condition
if they are too close to the key when starting the engine. If a problem
occurs, turn the ignition to the 2 (OFF) position and restart the engine
with all other objects on the key ring held away from the ignition key.
Check to make sure thecoded keyis an approved Fordcoded key.
If your keys are lost or stolen, you will need to do the following:
•Use your spare key to start the vehicle, or
•Have your vehicle towed to an authorized Ford dealer or a locksmith.
The key codes will need to be erased from your vehicle and new
codes will need to be re-coded.
Replacing coded keys can be very costly and you may want to store an
extra programmed key away from the vehicle in a safe place to prevent
an unforeseen inconvenience.
The correctcoded keymust be used for your vehicle. The use of the
wrongcoded keymay lead to a“no start”condition.
If an unprogrammed key is used in the ignition, it will cause a
“no start”condition.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
SecuriLock
keys can be used. To program acoded keyyourself, you
will need two previously programmedcoded keys(keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must
bring your vehicle to your dealership to have the spare coded key(s)
programmed.
Please read and understand the entire procedure before you begin.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
109

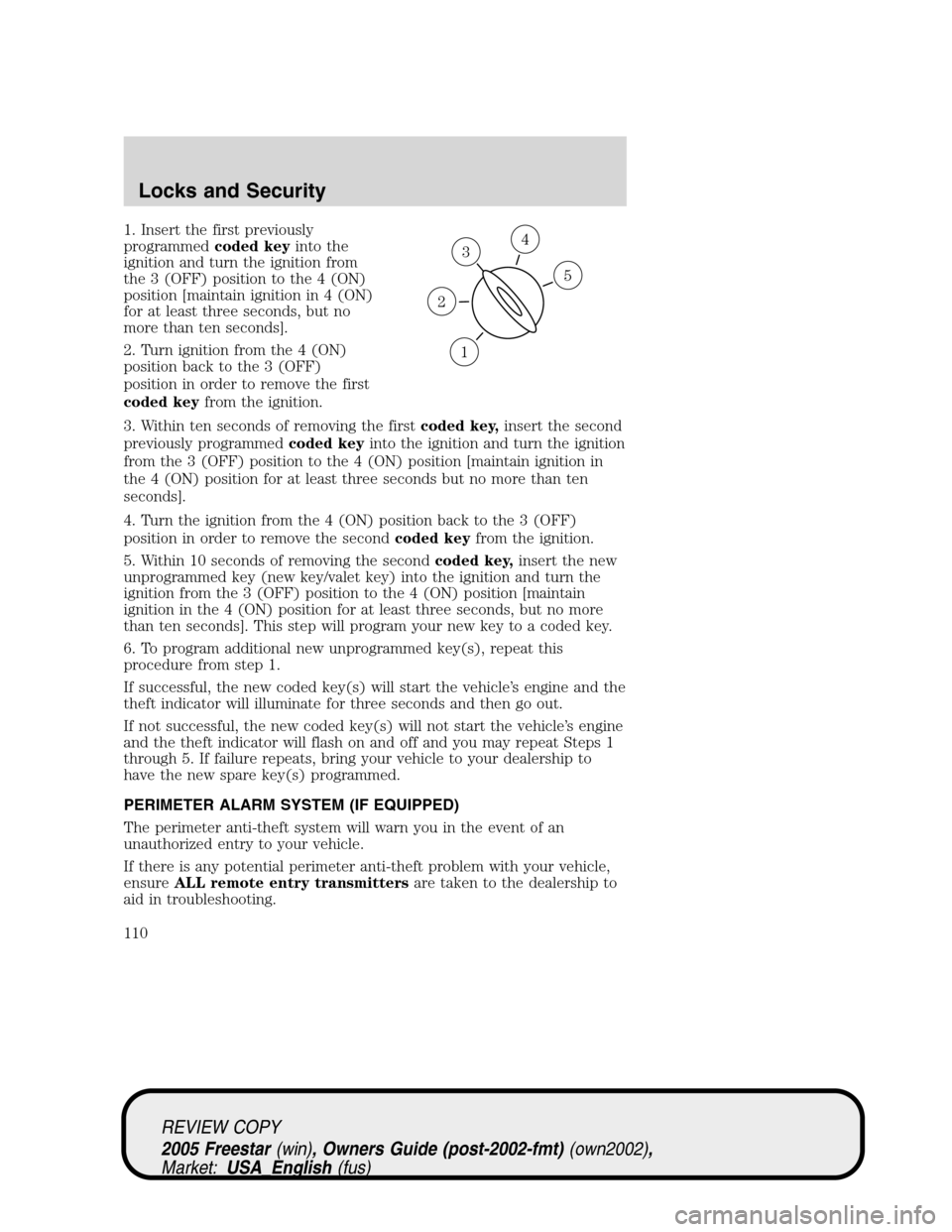

1. Insert the first previously
programmedcoded keyinto the
ignition and turn the ignition from
the 3 (OFF) position to the 4 (ON)
position [maintain ignition in 4 (ON)
for at least three seconds, but no
more than ten seconds].
2. Turn ignition from the 4 (ON)
position back to the 3 (OFF)
position in order to remove the first
coded keyfrom the ignition.
3. Within ten seconds of removing the firstcoded key,insert the second
previously programmedcoded keyinto the ignition and turn the ignition
from the 3 (OFF) position to the 4 (ON) position [maintain ignition in
the 4 (ON) position for at least three seconds but no more than ten
seconds].
4. Turn the ignition from the 4 (ON) position back to the 3 (OFF)
position in order to remove the secondcoded keyfrom the ignition.
5. Within 10 seconds of removing the secondcoded key,insert the new
unprogrammed key (new key/valet key) into the ignition and turn the
ignition from the 3 (OFF) position to the 4 (ON) position [maintain
ignition in the 4 (ON) position for at least three seconds, but no more
than ten seconds]. This step will program your new key to a coded key.
6. To program additional new unprogrammed key(s), repeat this
procedure from step 1.
If successful, the new coded key(s) will start the vehicle’s engine and the
theft indicator will illuminate for three seconds and then go out.
If not successful, the new coded key(s) will not start the vehicle’s engine
and the theft indicator will flash on and off and you may repeat Steps 1
through 5. If failure repeats, bring your vehicle to your dealership to
have the new spare key(s) programmed.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
3
1
2
5
4
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
110
