FORD KUGA 2010 1.G Owners Manual

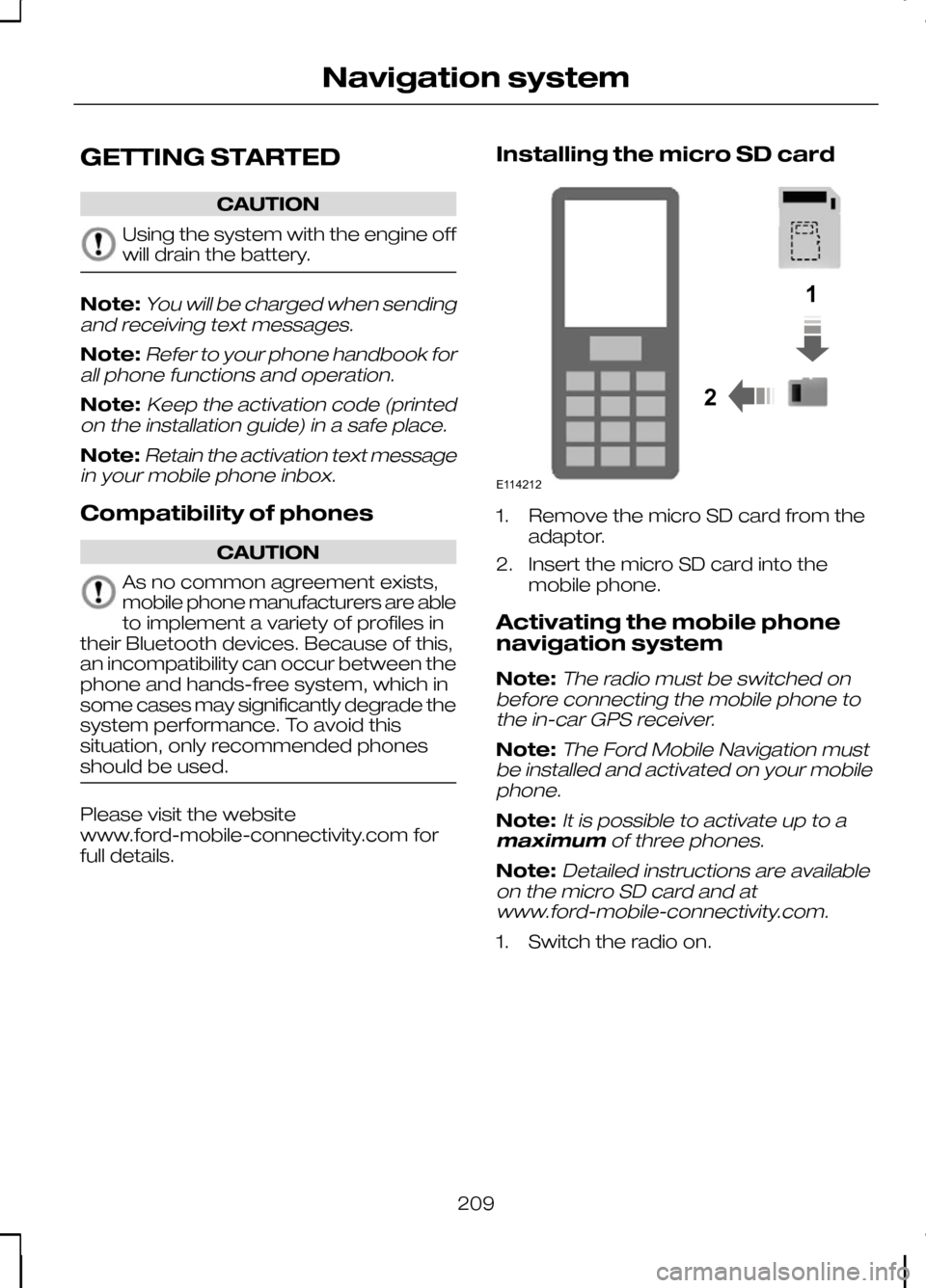

GETTING STARTED
CAUTION
Using the system with the engine off
will drain the battery.
Note:You will be charged when sending
and receiving text messages.
Note:Refer to your phone handbook for
all phone functions and operation.
Note:Keep the activation code (printed
on the installation guide) in a safe place.
Note:Retain the activation text message
in your mobile phone inbox.
Compatibility of phones CAUTION
As no common agreement exists,
mobile phone manufacturers are able
to implement a variety of profiles in
their Bluetooth devices. Because of this,
an incompatibility can occur between the
phone and hands-free system, which in
some cases may significantly degrade the
system performance. To avoid this
situation, only recommended phones
should be used. Please visit the website
www.ford-mobile-connectivity.com for
full details. Installing the micro SD card 1. Remove the micro SD card from the
adaptor.
2. Insert the micro SD card into the mobile phone.
Activating the mobile phone
navigation system
Note:
The radio must be switched on
before connecting the mobile phone to the in-car GPS receiver.
Note:The Ford Mobile Navigation must
be installed and activated on your mobile phone.
Note:It is possible to activate up to a
maximum of three phones.
Note:Detailed instructions are available
on the micro SD card and at www.ford-mobile-connectivity.com.
1. Switch the radio on.
209
Navigation system12E114212

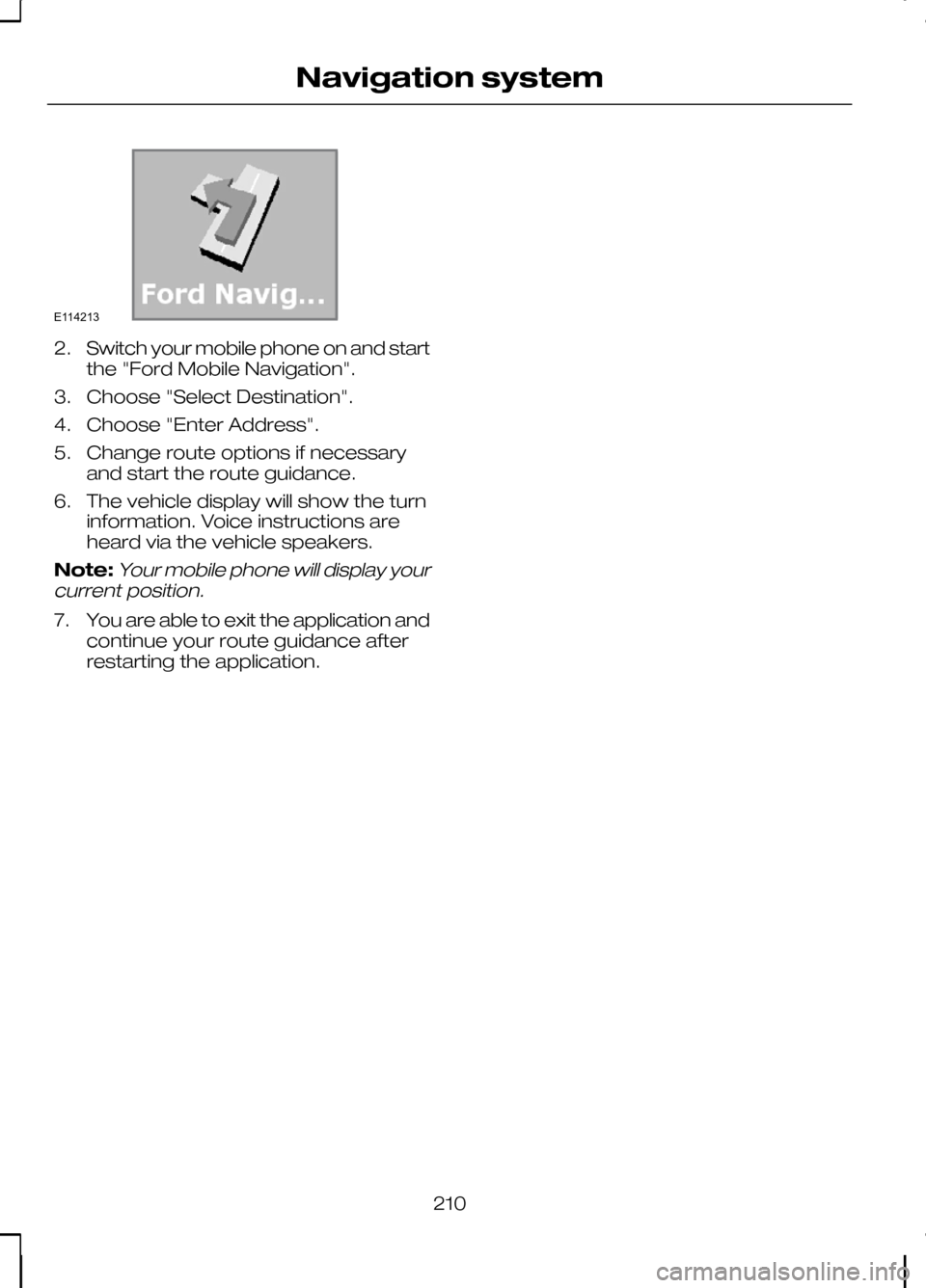

2.
Switch your mobile phone on and start
the "Ford Mobile Navigation".
3. Choose "Select Destination".
4. Choose "Enter Address".
5. Change route options if necessary and start the route guidance.
6. The vehicle display will show the turn information. Voice instructions are
heard via the vehicle speakers.
Note:Your mobile phone will display your
current position.
7. You are able to exit the application and
continue your route guidance after
restarting the application.
210
Navigation systemE114213

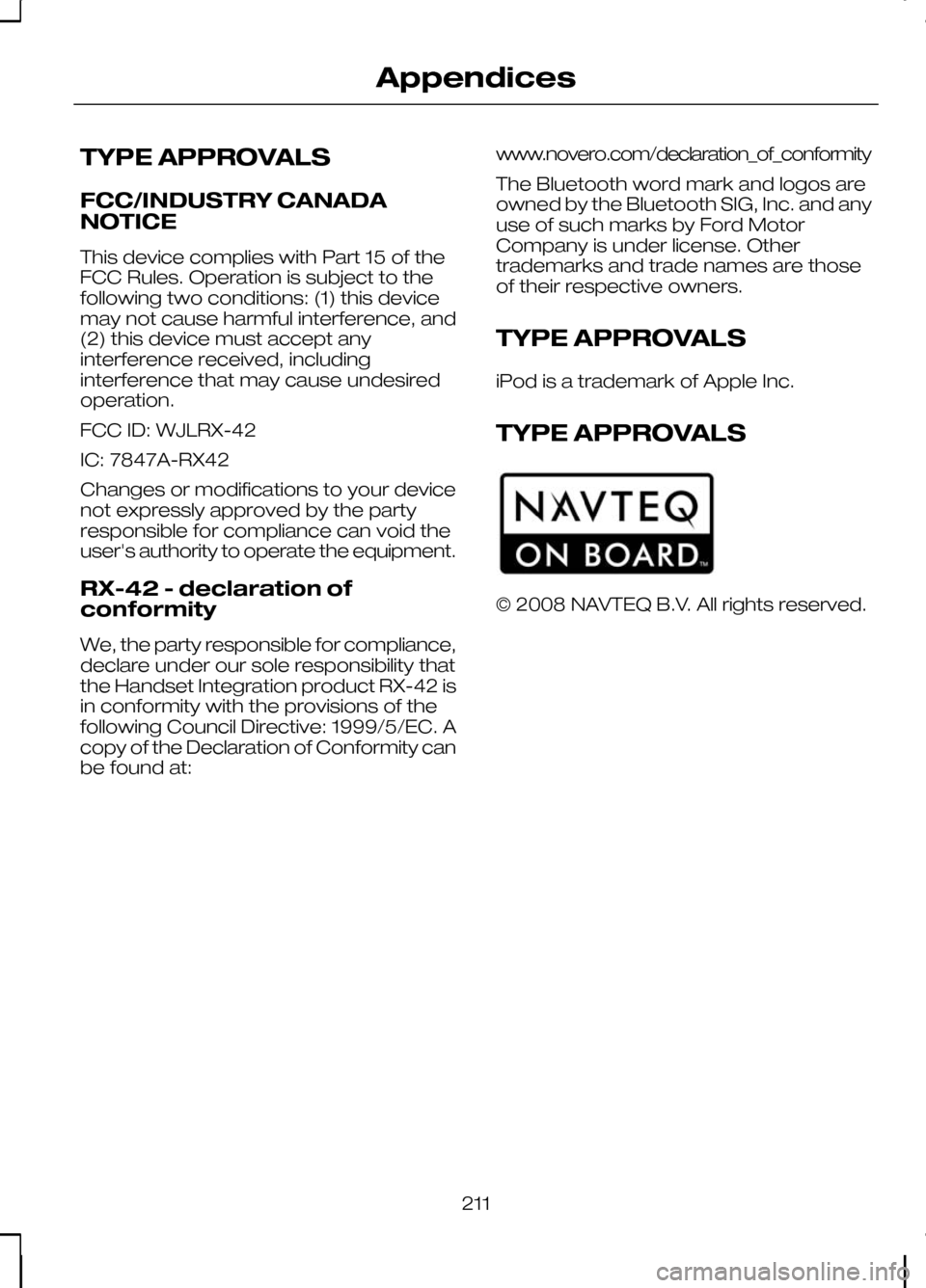

TYPE APPROVALS
FCC/INDUSTRY CANADA
NOTICE
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
FCC ID: WJLRX-42
IC: 7847A-RX42
Changes or modifications to your device
not expressly approved by the party
responsible for compliance can void the
user's authority to operate the equipment.
RX-42 - declaration of
conformity
We, the party responsible for compliance,
declare under our sole responsibility that
the Handset Integration product RX-42 is
in conformity with the provisions of the
following Council Directive: 1999/5/EC. A
copy of the Declaration of Conformity can
be found at:
www.novero.com/declaration_of_conformity
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Ford Motor
Company is under license. Other
trademarks and trade names are those
of their respective owners.
TYPE APPROVALS
iPod is a trademark of Apple Inc.
TYPE APPROVALS © 2008 NAVTEQ B.V. All rights reserved.
211
AppendicesE114214

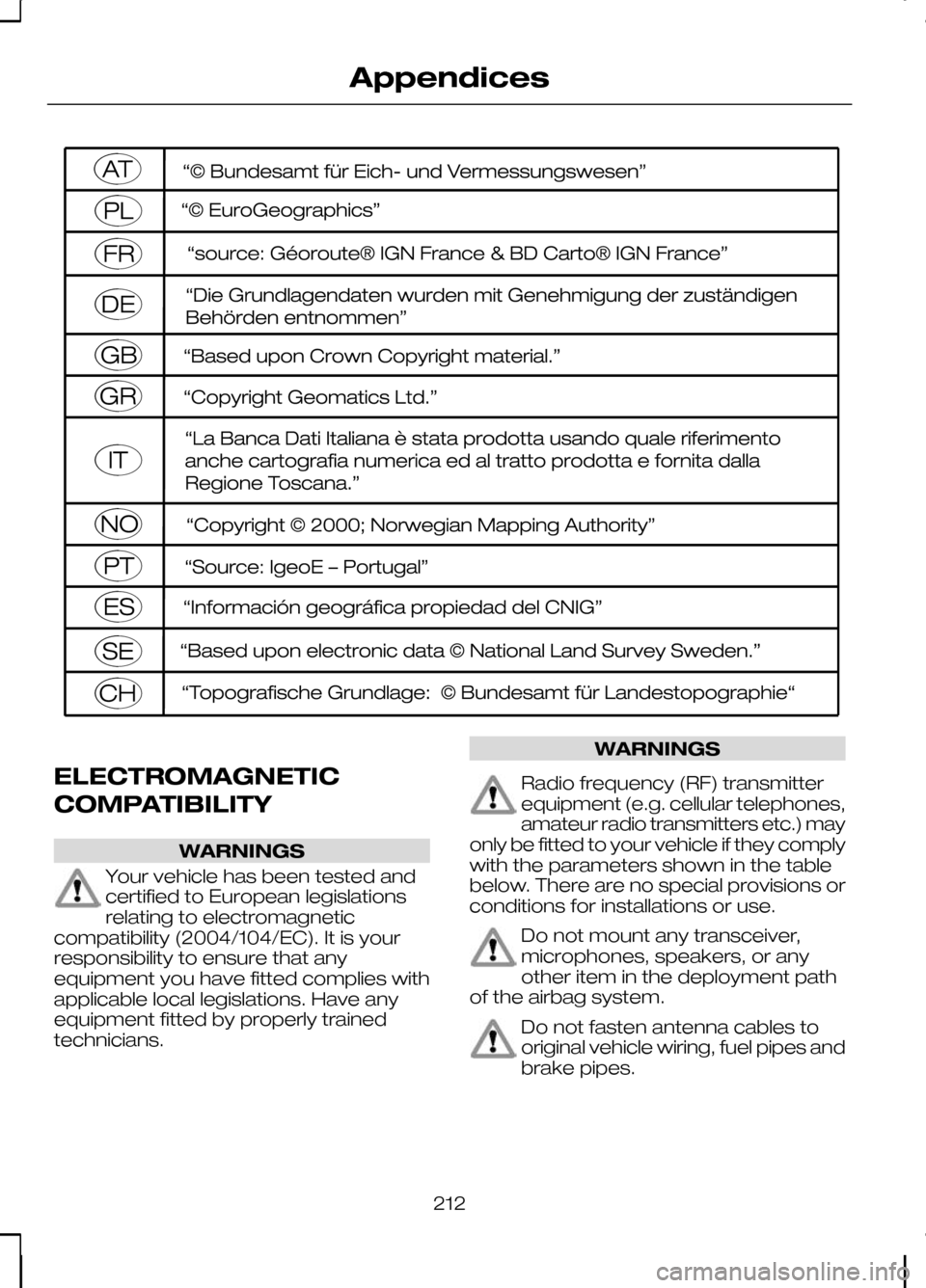

ELECTROMAGNETIC
COMPATIBILITY
WARNINGS
Your vehicle has been tested and
certified to European legislations
relating to electromagnetic
compatibility (2004/104/EC). It is your
responsibility to ensure that any
equipment you have fitted complies with
applicable local legislations. Have any
equipment fitted by properly trained
technicians. WARNINGS
Radio frequency (RF) transmitter
equipment (e.g. cellular telephones,
amateur radio transmitters etc.) may
only be fitted to your vehicle if they comply
with the parameters shown in the table
below. There are no special provisions or
conditions for installations or use. Do not mount any transceiver,
microphones, speakers, or any
other item in the deployment path
of the airbag system. Do not fasten antenna cables to
original vehicle wiring, fuel pipes and
brake pipes.
212
AppendicesE114220

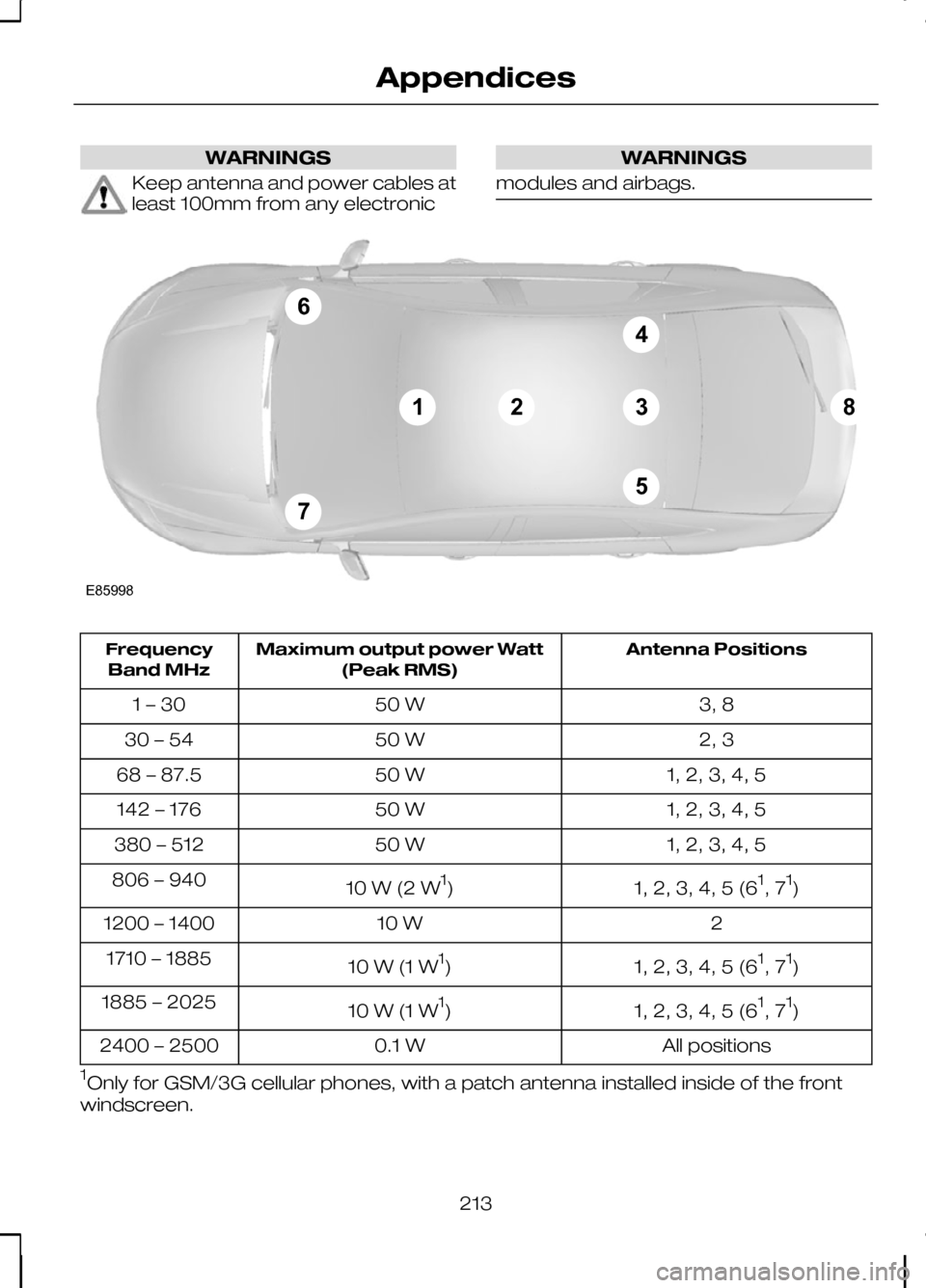

WARNINGS
Keep antenna and power cables at
least 100mm from any electronic WARNINGS
modules and airbags. Antenna Positions
Maximum output power Watt
(Peak RMS)
Frequency
Band MHz
3, 8
50 W
1 – 30
2, 3
50 W
30 – 54
1, 2, 3, 4, 5
50 W
68 – 87.5
1, 2, 3, 4, 5
50 W
142 – 176
1, 2, 3, 4, 5
50 W
380 – 512
1, 2, 3, 4, 5 (61
, 7 1
)
10 W (2 W 1
)
806 – 940
2
10 W
1200 – 1400
1, 2, 3, 4, 5 (61
, 7 1
)
10 W (1 W 1
)
1710 – 1885
1, 2, 3, 4, 5 (61
, 7 1
)
10 W (1 W 1
)
1885 – 2025
All positions
0.1 W
2400 – 2500
1 Only for GSM/3G cellular phones, with a patch antenna installed inside of the front
windscreen.
213
AppendicesE8599867123845

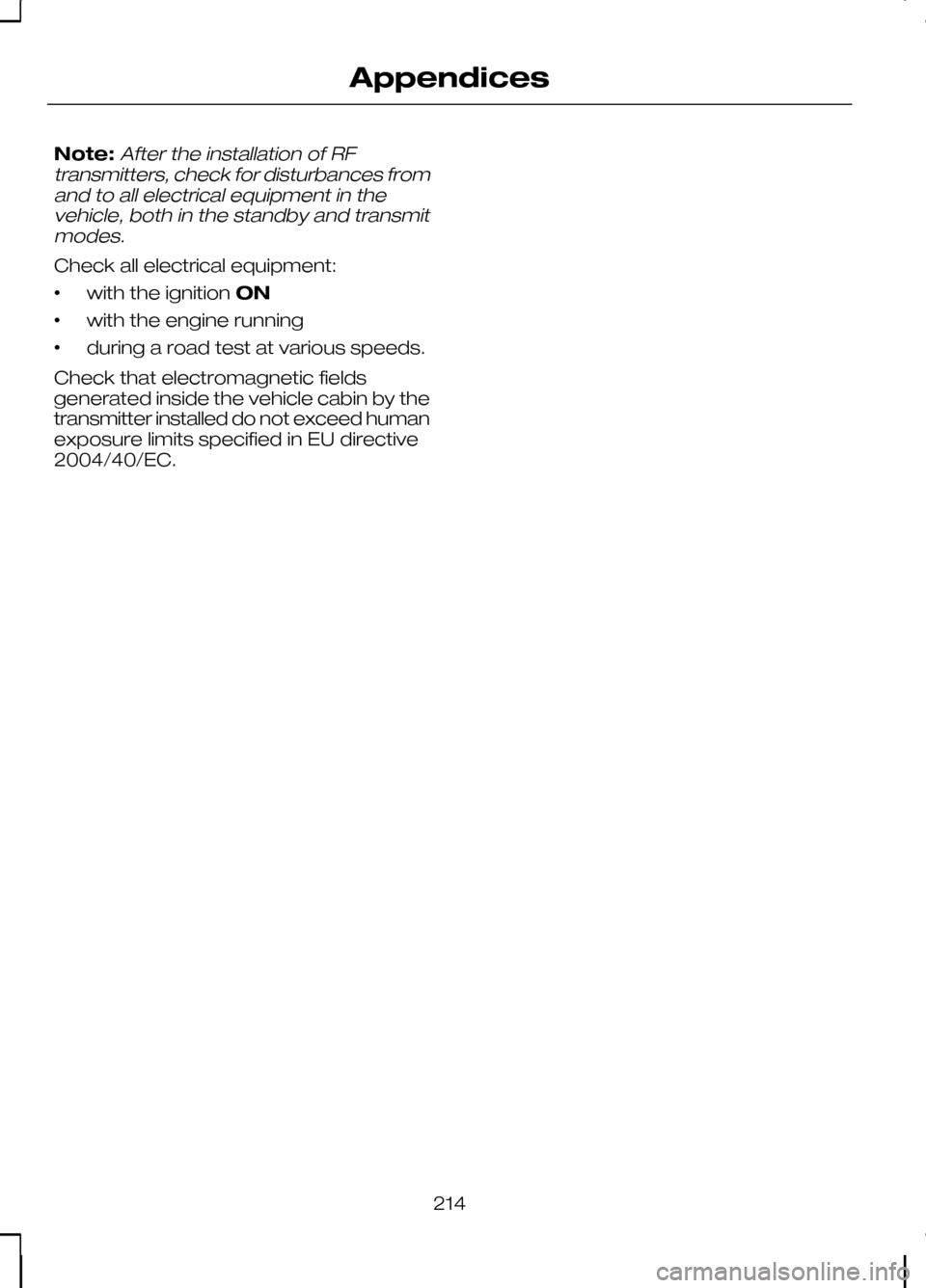

Note:After the installation of RF
transmitters, check for disturbances from and to all electrical equipment in thevehicle, both in the standby and transmitmodes.
Check all electrical equipment:
• with the ignition
ON
• with the engine running
• during a road test at various speeds.
Check that electromagnetic fields
generated inside the vehicle cabin by the
transmitter installed do not exceed human
exposure limits specified in EU directive
2004/40/EC.
214
Appendices

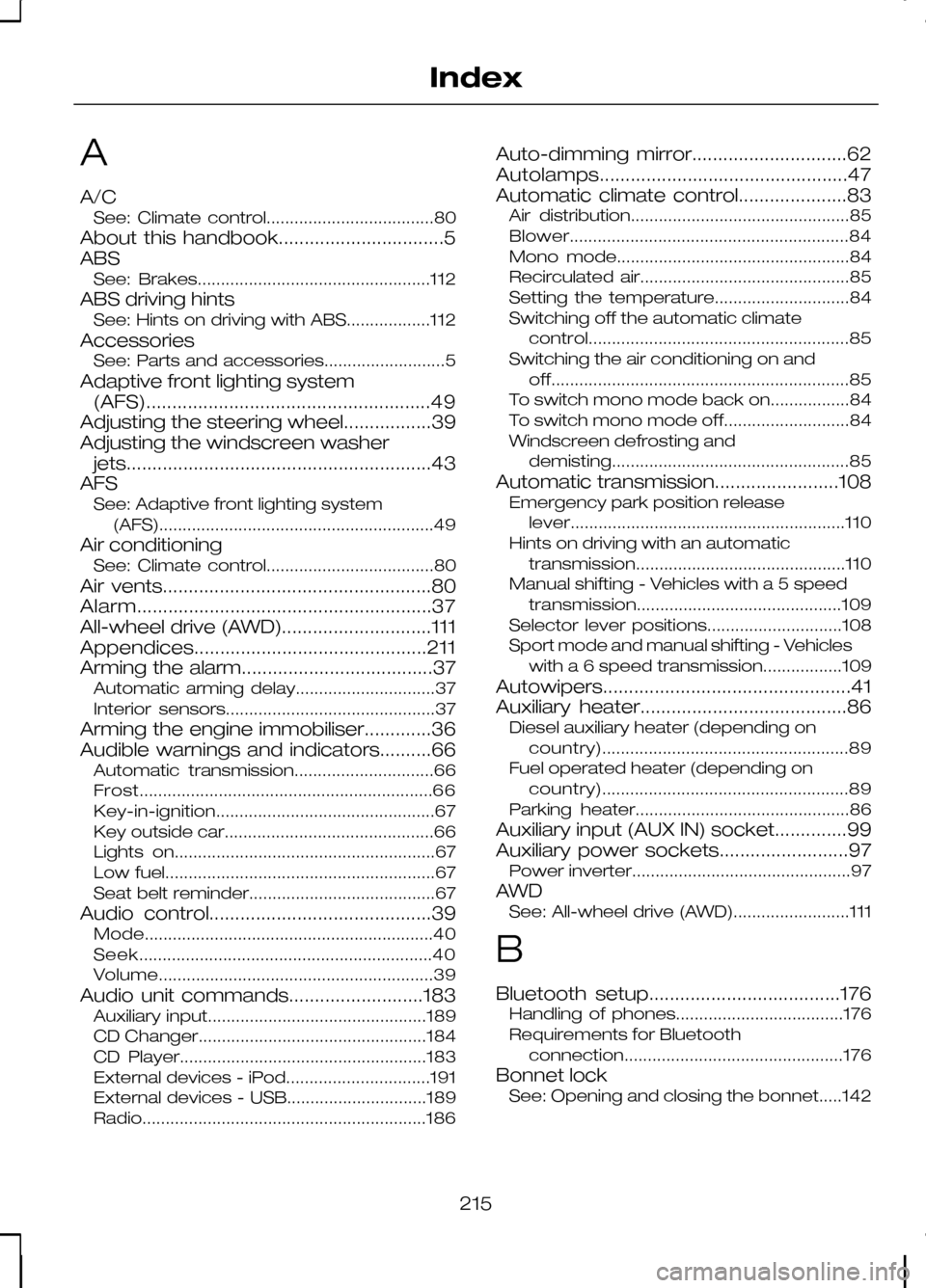

A
A/C
See: Climate control....................................80
About this handbook................................5
ABS See: Brakes..................................................112
ABS driving hints See: Hints on driving with ABS..................112
Accessories See: Parts and accessories..........................5
Adaptive front lighting system (AFS).......................................................49
Adjusting the steering wheel.................39
Adjusting the windscreen washer jets...........................................................43
AFS See: Adaptive front lighting system
(AFS)........................................................... 49
Air conditioning See: Climate control....................................80
Air vents....................................................80
Alarm.........................................................37
All-wheel drive (AWD).............................111
Appendices.............................................211
Arming the alarm.....................................37 Automatic arming delay..............................37
Interior sensors.............................................37
Arming the engine immobiliser.............36
Audible warnings and indicators..........66 Automatic transmission..............................66
Frost............................................................... 66
Key-in-ignition............................................... 67
Key outside car.............................................66
Lights on........................................................67
Low fuel..........................................................67
Seat belt reminder........................................67
Audio control...........................................39 Mode.............................................................. 40
Seek............................................................... 40
Volume........................................................... 39
Audio unit commands..........................183 Auxiliary input...............................................189
CD Changer.................................................184
CD Player.....................................................183
External devices - iPod...............................191
External devices - USB..............................189
Radio............................................................. 186Auto-dimming mirror..............................62
Autolamps................................................47
Automatic climate control.....................83
Air distribution...............................................85
Blower............................................................ 84
Mono mode..................................................84
Recirculated air.............................................85
Setting the temperature.............................84
Switching off the automatic climate control........................................................ 85
Switching the air conditioning on and off................................................................ 85
To switch mono mode back on.................84
To switch mono mode off...........................84
Windscreen defrosting and demisting................................................... 85
Automatic transmission........................108 Emergency park position release
lever........................................................... 110
Hints on driving with an automatic transmission............................................. 110
Manual shifting - Vehicles with a 5 speed transmission............................................ 109
Selector lever positions.............................108
Sport mode and manual shifting - Vehicles with a 6 speed transmission.................109
Autowipers................................................41
Auxiliary heater........................................86 Diesel auxiliary heater (depending on
country)..................................................... 89
Fuel operated heater (depending on country)..................................................... 89
Parking heater..............................................86
Auxiliary input (AUX IN) socket..............99
Auxiliary power sockets.........................97 Power inverter...............................................97
AWD See: All-wheel drive (AWD).........................111
B
Bluetooth setup.....................................176 Handling of phones....................................176
Requirements for Bluetooth
connection............................................... 176
Bonnet lock See: Opening and closing the bonnet.....142
215
Index

Booster cables
See: Using booster cables........................154
Booster cushions.....................................19 Booster cushion (Group 3)..........................19
Booster seat (Group 2)................................19
Brake and clutch fluid check...............149
Brakes......................................................112 Principle of operation..................................112
Bulb changing See: Changing a bulb..................................52
Bulb specification chart..........................58
C
Car wash See: Cleaning the exterior.........................152
Catalytic converter................................105 Driving with a catalytic converter.............105
CD changer..............................................99
Changing a bulb......................................52 Approach lamp.............................................53
Central high mounted brake lamp............56
Front fog lamps............................................54
Headlamp...................................................... 52
Interior lamp..................................................56
Luggage compartment lamp.....................58
Number plate lamp......................................56
Reading lamps..............................................57
Rear fog lamps.............................................54
Rear lamps....................................................55
Side repeaters..............................................53
Vanity mirror lamp.........................................57
Changing a fuse....................................134
Changing a road wheel........................156 Assembling the wheel brace....................158
Installing a road wheel...............................160
Jacking and lifting points............................157
Locking wheel nuts....................................156
Removing a road wheel............................159
Removing the wheel trim..........................159
Vehicle jack..................................................156
Vehicles with a temporary spare
wheel........................................................ 156
Changing the remote control battery....................................................27
Changing the wiper blades...................44 Rear window wiper blade...........................45
Windscreen wiper blades...........................44 Checking the wiper blades...................43
Child safety...............................................16
Child safety locks.....................................21
Left-hand side...............................................21
Right-hand side.............................................21
Child seat positioning..............................17 All vehicles......................................................17
Vehicles with under floor storage...............17
Child seats................................................16 Child restraints for different mass
groups........................................................ 16
Cigar lighter..............................................97
Cleaning the exterior............................152 Body paintwork preservation...................152
Cleaning the chrome trim.........................152
Cleaning the headlamps...........................152
Cleaning the rear window.........................152
Cleaning the interior..............................152 Instrument cluster screens, LCD screens,
radio screens..........................................153
Seat belts.....................................................152
Climate control........................................80 Principle of operation...................................80
Climate control commands.................197 Climate.......................................................... 197
Coded keys.............................................36
Cold weather precautions....................131
Connecting an external device...........201 Connection.................................................. 201
Connecting an external device - Vehicles With: Bluetooth....................201
Connecting a Bluetooth audio device....................................................... 201
Connectivity...........................................200 General information...................................200
Convenience features............................96
Coolant check See: Engine coolant check.......................148
Cruise control.........................................120 Principle of operation.................................120
Cruise control See: Using cruise control..........................120
Cup holders.............................................96 Seat back trays.............................................96
216
Index

D
Detachable tow ball...............................127
Driving with a trailer....................................129
Inserting the tow ball arm..........................128
Maintenance............................................... 129
Removing the tow ball arm.......................129
Unlocking the tow ball arm mechanism.............................................. 128
Diesel particulate filter (DPF)................102 Regeneration............................................... 103
Direction indicators.................................50
Disabling the passenger airbag............25 Disabling the passenger airbag.................26
Enabling the passenger airbag..................26
Fitting the passenger airbag deactivation
switch......................................................... 25
Disarming the alarm................................37 Britain and Ireland only................................38
Disarming the engine immobiliser........36
DPF See: Diesel particulate filter (DPF)............102
Driving hints.............................................131
Driving through water............................131 Driving through water ................................131
E
Electric exterior mirrors..........................62 Electric folding mirrors.................................62
Mirror tilting positions...................................62
Electric seats...........................................93 6-way electric seat......................................93
Electric windows.....................................60 Anti-trap function..........................................60
Driver's door switches.................................60
Global opening and closing........................60
Opening and closing the windows
automatically............................................. 60
Resetting the memory of the electric windows..................................................... 61
Safety switch for rear windows.................60
Electromagnetic compatibility.............212
Emergency equipment........................132
Engine compartment overview - 2.0L Duratorq-TDCi (DW) Diesel...............145
Engine compartment overview - 2.5L Duratec (VI5)........................................144 Engine coolant check...........................148
Checking the coolant level........................148
Topping up...................................................148
Engine immobiliser..................................36 Principle of operation...................................36
Engine oil check.....................................147 Checking the oil level..................................147
Topping up...................................................148
Engine oil dipstick - 2.0L Duratorq-TDCi (DW) Diesel...........................................147
Engine oil dipstick - 2.5L Duratec (VI5).......................................................147
Exterior mirrors.........................................61 Manual folding mirrors..................................61
F
Fastening the seat belts........................24
First aid kit...............................................132
Floor mats...............................................100
Fog lamp See: Front fog lamps....................................47
Front fog lamps.......................................47
Fuel and refuelling.................................104 Technical specifications.............................106
Fuel burning heater See: Auxiliary heater....................................86
Fuel consumption..................................106
Fuel consumption See: Technical specifications....................106
Fuel cut-off switch.................................133 Vehicles with a Duratec engine................133
Fuel filler flap...........................................104
Fuel quality - Diesel...............................104 Long-term storage.....................................104
Fuel quality - Petrol................................104
Fuse box locations................................134 Engine compartment fuse box................134
Passenger compartment fuse box.........134
Fuses.......................................................134
Fuse specification chart.......................135 Engine compartment fuse box................135
Passenger compartment fuse box.........137
217
Index

G
Gauges.....................................................63
Engine coolant temperature gauge..........63
Fuel gauge.....................................................64
Gearbox See: Transmission.......................................108
General information on radio frequencies............................................27
Getting started......................................209 Activating the mobile phone navigation
system..................................................... 209
Compatibility of phones............................209
Installing the micro SD card......................209
Glasses holder.........................................99
Global opening and closing...................34 Global closing................................................34
Global opening.............................................34
H
Handbrake See: Parking brake......................................112
Hazard warning flashers........................48
Headlamp levelling..................................47 Recommended headlamp levelling control
positions.................................................... 48
Headlamp washers................................43
Head restraints........................................90 Adjusting the head restraint.......................90
Removing the head restraint......................90
Heated seats...........................................94
Heated windows and mirrors...............86 Heated exterior mirrors...............................86
Heated windows..........................................86
Heating See: Climate control....................................80
Hints on driving with ABS......................112
I
Immobiliser See: Engine immobiliser..............................36
Information displays................................68 General information.....................................68 Information messages...........................73
All wheel drive...............................................74
Doors open....................................................75
Keyless system.............................................75
Lighting........................................................... 76
Maintenance................................................. 76
Message indicator........................................74
Message symbols........................................74
Power steering..............................................77
Stability control (ESP)...................................77
Transmission................................................. 78
Tyre pressure monitoring system..............79
Viewing current messages.........................74
Instrument lighting dimmer...................96
Instruments..............................................63
Interior lamps...........................................50 Courtesy lamp..............................................50
Reading lamps..............................................50
Vanity mirror lamps.......................................51
Introduction................................................5
ISOFIX anchor points..............................20 Attaching a child restraint with a top
tether.......................................................... 20
J
Jump starting See: Using booster cables........................154
K
Keyless entry............................................31 Disabled keys................................................33
General information......................................31
Locking and unlocking the doors with the
key blade...................................................34
Locking the vehicle......................................32
Passive key...................................................32
Unlocking the vehicle...................................33
Keyless starting......................................101 Failure to start..............................................102
Ignition on.....................................................101
Starting a diesel engine..............................101
Starting with automatic transmission.......101
Starting with manual transmission............101
Stopping the engine...................................102
Keys and remote controls.....................27
218
Index
