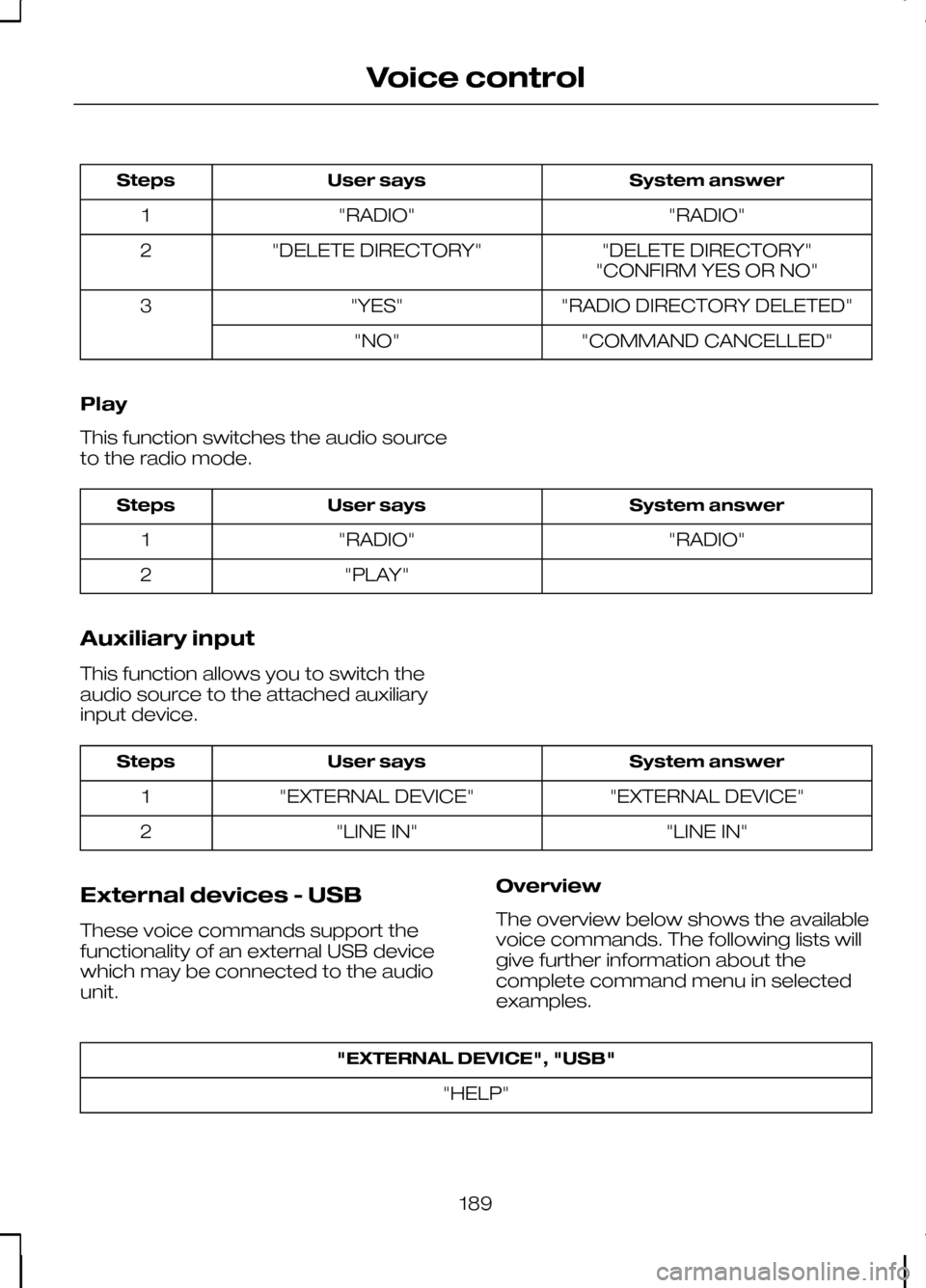

FORD KUGA 2010 1.G Owners Manual

System answer
User says
Steps
"RADIO"
"RADIO"
1
"DELETE DIRECTORY"
"DELETE DIRECTORY"
2
"CONFIRM YES OR NO"
"RADIO DIRECTORY DELETED"
"YES"
3
"COMMAND CANCELLED"
"NO"
Play
This function switches the audio source
to the radio mode. System answer
User says
Steps
"RADIO"
"RADIO"
1
"PLAY"
2
Auxiliary input
This function allows you to switch the
audio source to the attached auxiliary
input device. System answer
User says
Steps
"EXTERNAL DEVICE"
"EXTERNAL DEVICE"
1
"LINE IN"
"LINE IN"
2
External devices - USB
These voice commands support the
functionality of an external USB device
which may be connected to the audio
unit. Overview
The overview below shows the available
voice commands. The following lists will
give further information about the
complete command menu in selected
examples."EXTERNAL DEVICE", "USB"
"HELP"
189
Voice control

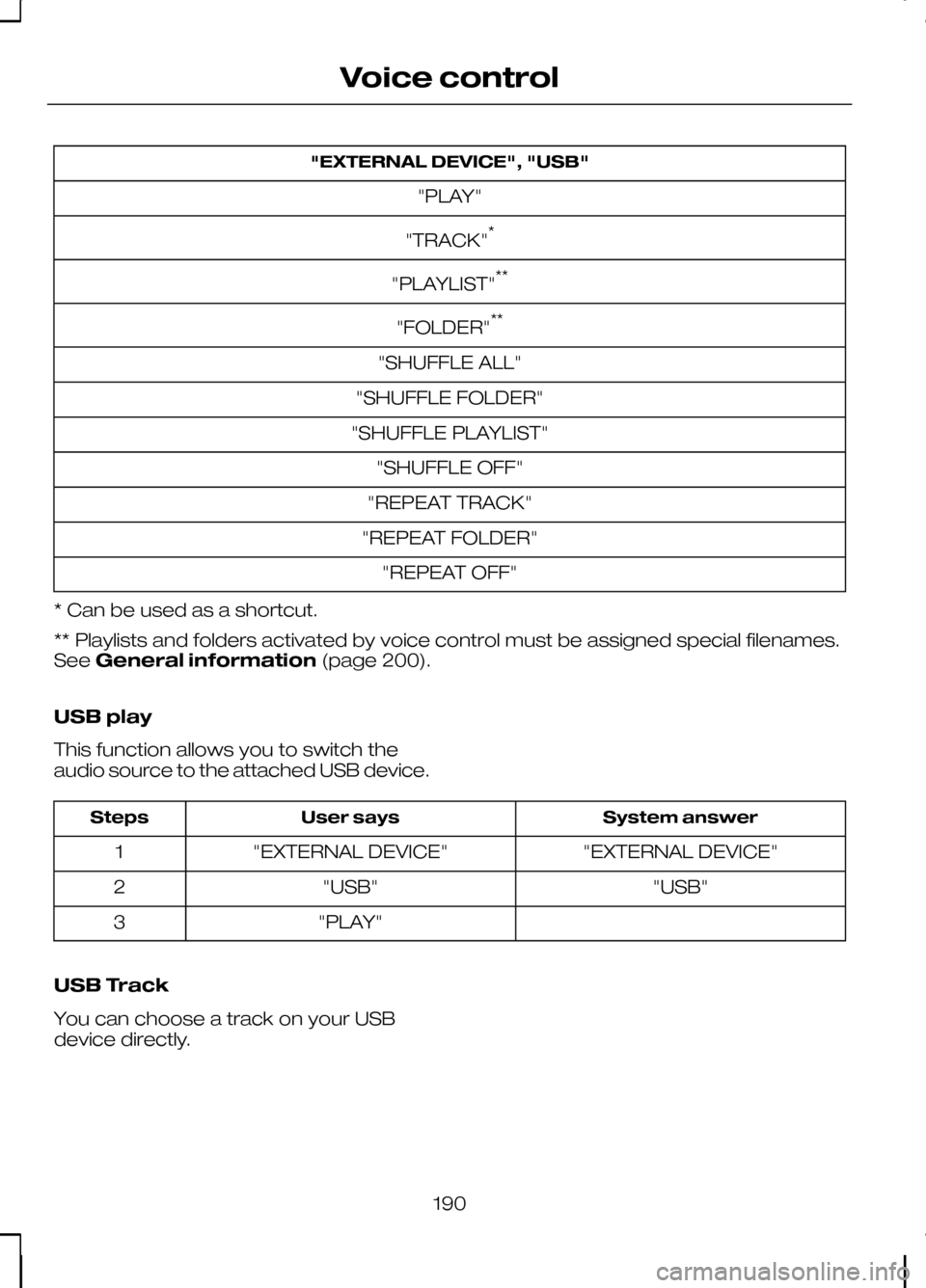

"EXTERNAL DEVICE", "USB"
"PLAY"
"TRACK" *
"PLAYLIST" **
"FOLDER" **
"SHUFFLE ALL"
"SHUFFLE FOLDER"
"SHUFFLE PLAYLIST" "SHUFFLE OFF"
"REPEAT TRACK"
"REPEAT FOLDER" "REPEAT OFF"
* Can be used as a shortcut.
** Playlists and folders activated by voice control must be assigned special filenames.
See General information (page 200).
USB play
This function allows you to switch the
audio source to the attached USB device. System answer
User says
Steps
"EXTERNAL DEVICE"
"EXTERNAL DEVICE"
1
"USB"
"USB"
2
"PLAY"
3
USB Track
You can choose a track on your USB
device directly.
190
Voice control

System answer
User says
Steps
"EXTERNAL DEVICE"
"EXTERNAL DEVICE"
1
"USB"
"USB"
2
"TRACK NUMBER PLEASE"
"TRACK"
3
"TRACK "
"" *
4
* Additionally, numbers can be spoken as up to four single digits (for example "2", "4",
"5" for track 245)
External devices - iPod
These voice commands support the
functionality of an iPod which may be
connected to the audio unit. Overview
The overview below shows the available
voice commands. The following lists will
give further information about the
complete command menu in selected
examples."EXTERNAL DEVICE", "IPOD"
"HELP""PLAY"
"TRACK" *
"PLAYLIST" **
"SHUFFLE ALL"
"SHUFFLE PLAYLIST" "SHUFFLE OFF"
"REPEAT TRACK" "REPEAT OFF"
* Can be used as a shortcut.
** Playlists activated by voice control must be assigned special filenames. See General
information (page 200).
191
Voice control

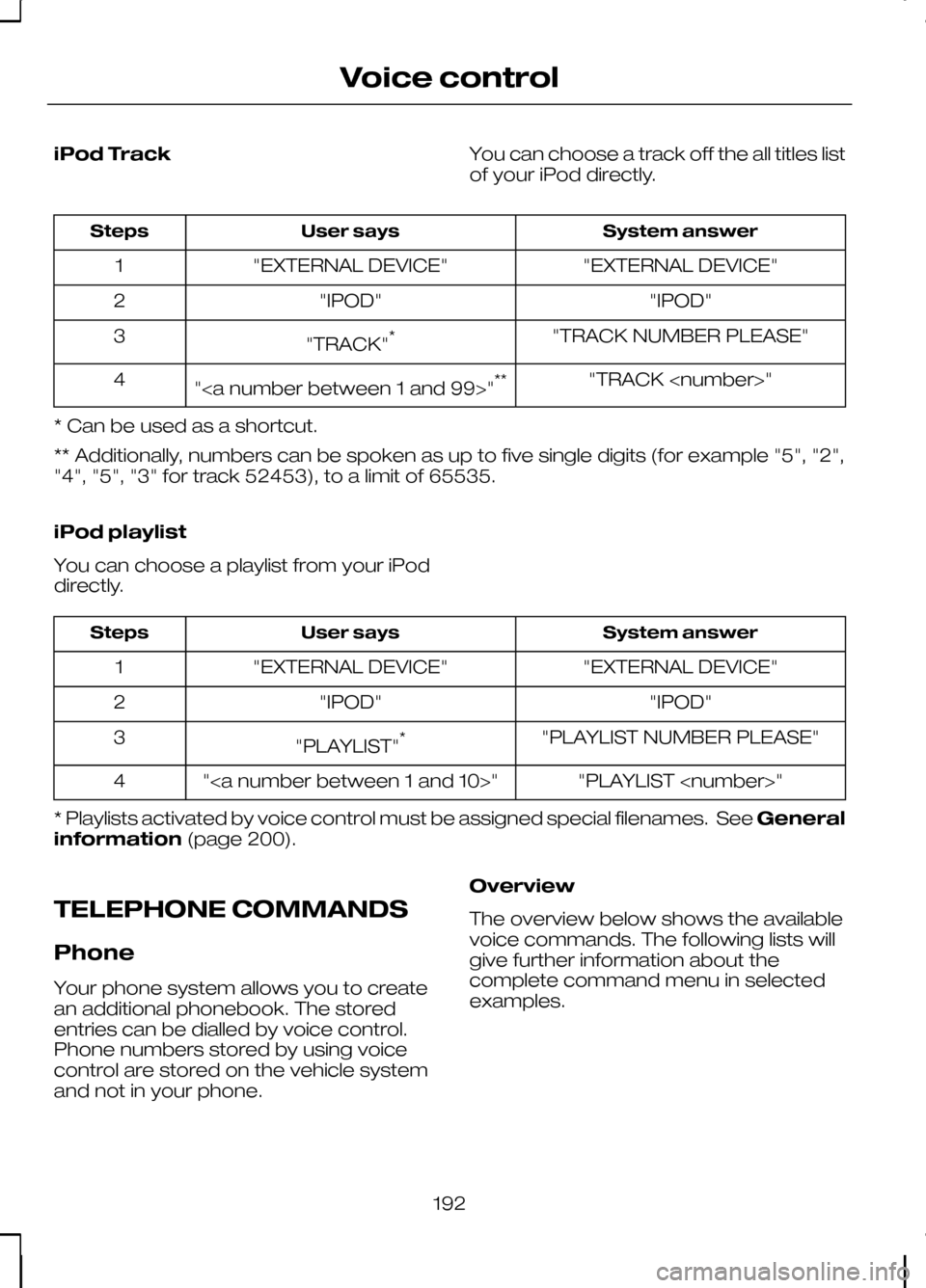

iPod Track
You can choose a track off the all titles list
of your iPod directly. System answer
User says
Steps
"EXTERNAL DEVICE"
"EXTERNAL DEVICE"
1
"IPOD"
"IPOD"
2
"TRACK NUMBER PLEASE"
"TRACK" *
3
"TRACK "
"" **
4
* Can be used as a shortcut.
** Additionally, numbers can be spoken as up to five single digits (for example "5", "2",
"4", "5", "3" for track 52453), to a limit of 65535.
iPod playlist
You can choose a playlist from your iPod
directly. System answer
User says
Steps
"EXTERNAL DEVICE"
"EXTERNAL DEVICE"
1
"IPOD"
"IPOD"
2
"PLAYLIST NUMBER PLEASE"
"PLAYLIST" *
3
"PLAYLIST "
""
4
* Playlists activated by voice control must be assigned special filenames. See General
information (page 200).
TELEPHONE COMMANDS
Phone
Your phone system allows you to create
an additional phonebook. The stored
entries can be dialled by voice control.
Phone numbers stored by using voice
control are stored on the vehicle system
and not in your phone. Overview
The overview below shows the available
voice commands. The following lists will
give further information about the
complete command menu in selected
examples.
192

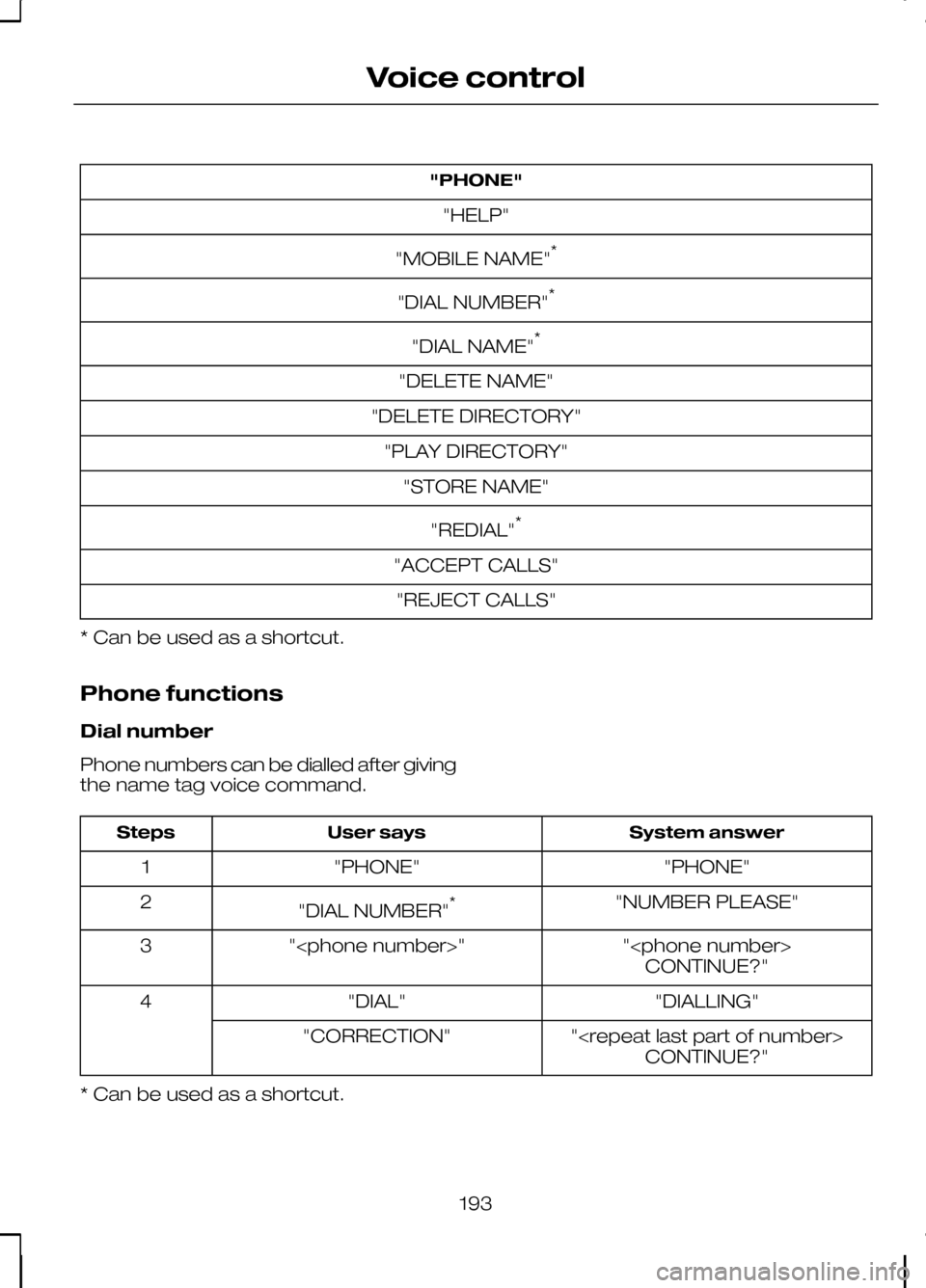

Voice control

"PHONE"
"HELP"
"MOBILE NAME" *
"DIAL NUMBER" *
"DIAL NAME" *
"DELETE NAME"
"DELETE DIRECTORY" "PLAY DIRECTORY" "STORE NAME"
"REDIAL" *
"ACCEPT CALLS" "REJECT CALLS"
* Can be used as a shortcut.
Phone functions
Dial number
Phone numbers can be dialled after giving
the name tag voice command. System answer
User says
Steps
"PHONE"
"PHONE"
1
"NUMBER PLEASE"
"DIAL NUMBER" *
2
"
""
3
CONTINUE?"
"DIALLING"
"DIAL"
4
"
"CORRECTION"
CONTINUE?"
* Can be used as a shortcut.
193
Voice control

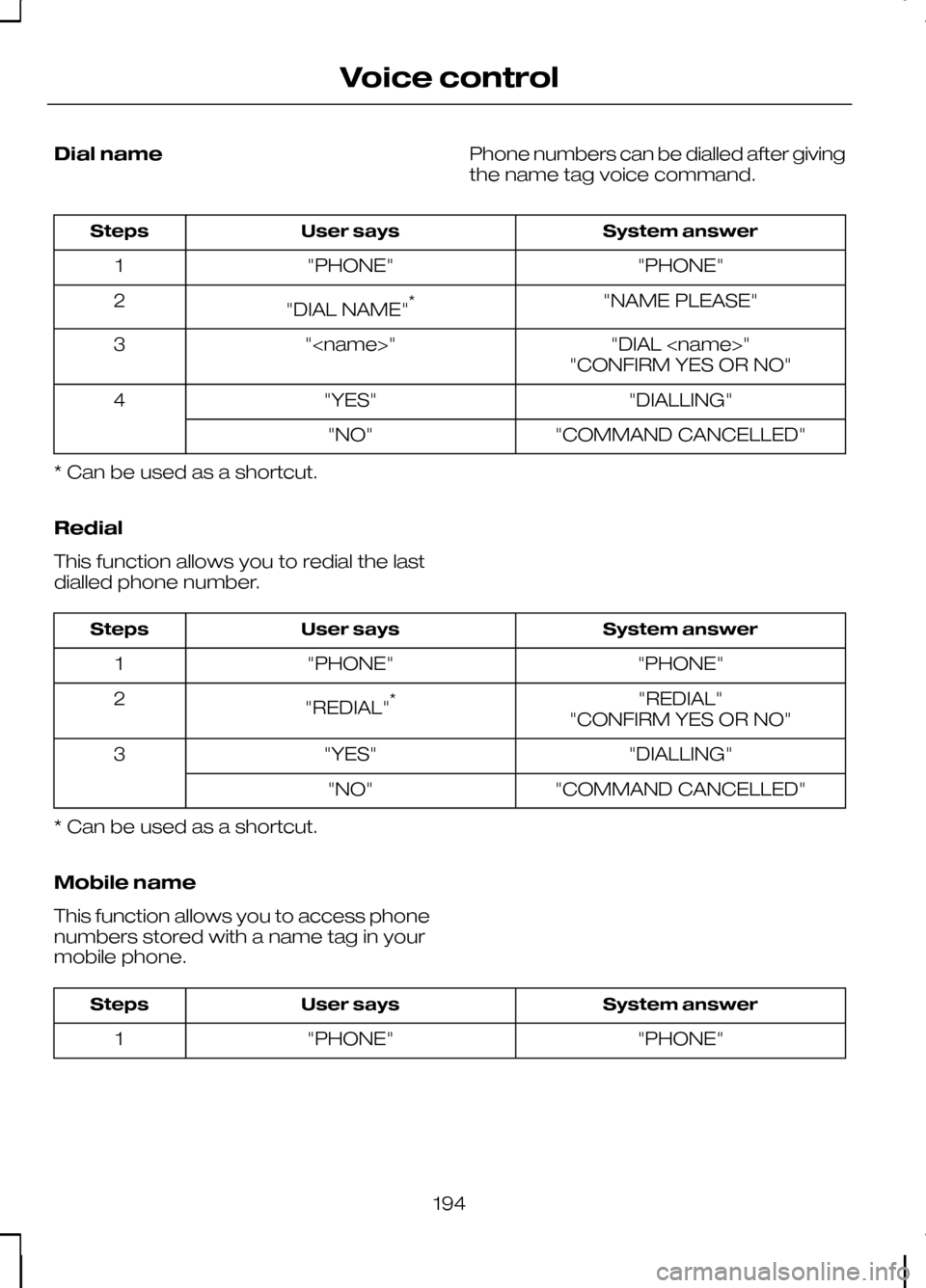

Dial name
Phone numbers can be dialled after giving
the name tag voice command. System answer
User says
Steps
"PHONE"
"PHONE"
1
"NAME PLEASE"
"DIAL NAME" *
2
"DIAL "
""
3
"CONFIRM YES OR NO"
"DIALLING"
"YES"
4
"COMMAND CANCELLED"
"NO"
* Can be used as a shortcut.
Redial
This function allows you to redial the last
dialled phone number. System answer
User says
Steps
"PHONE"
"PHONE"
1
"REDIAL"
"REDIAL" *
2
"CONFIRM YES OR NO"
"DIALLING"
"YES"
3
"COMMAND CANCELLED"
"NO"
* Can be used as a shortcut.
Mobile name
This function allows you to access phone
numbers stored with a name tag in your
mobile phone. System answer
User says
Steps
"PHONE"
"PHONE"
1
194

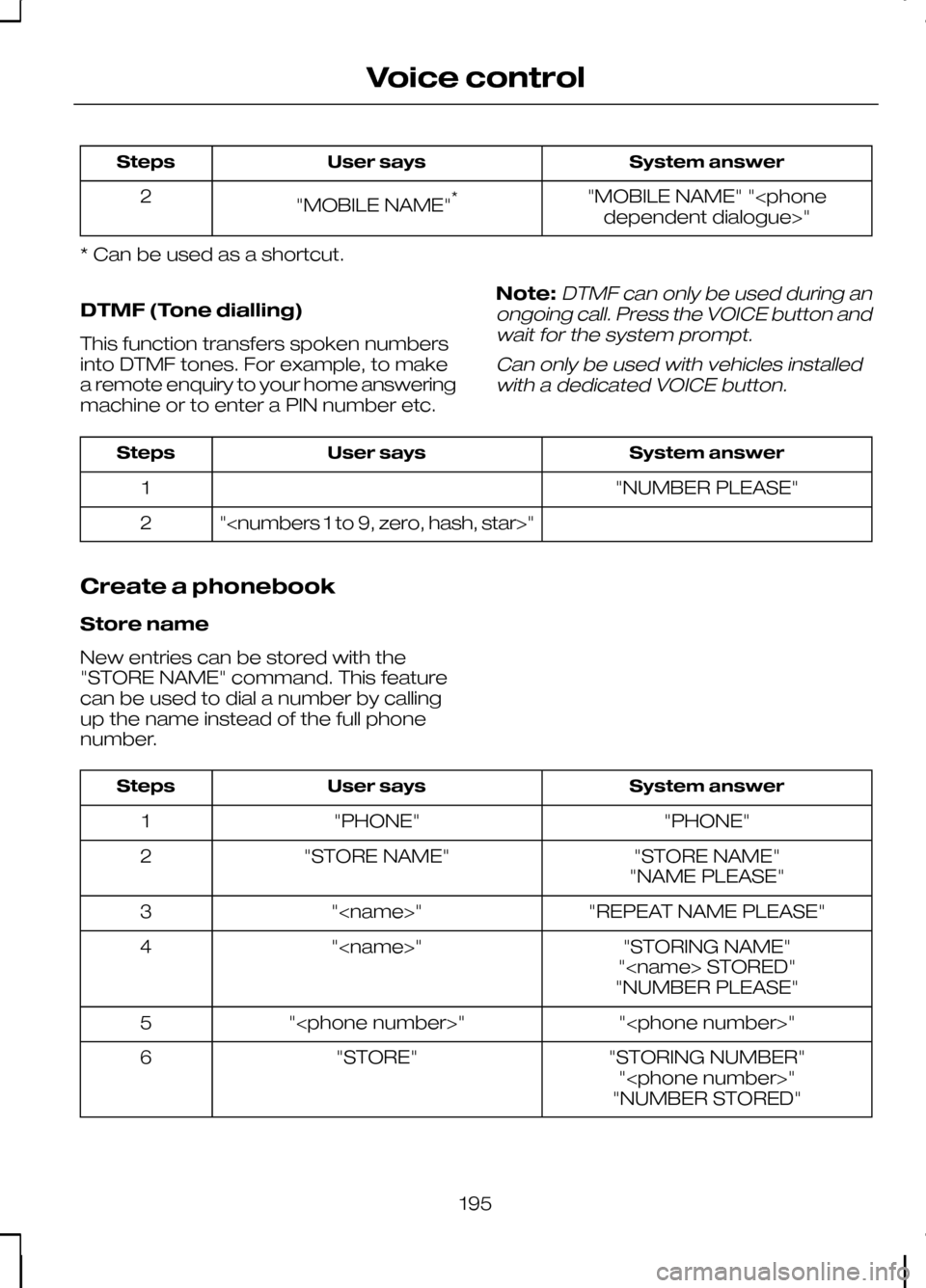

Voice control

System answer
User says
Steps
"MOBILE NAME" ""
"MOBILE NAME"
*
2
* Can be used as a shortcut.
DTMF (Tone dialling)
This function transfers spoken numbers
into DTMF tones. For example, to make
a remote enquiry to your home answering
machine or to enter a PIN number etc. Note:DTMF can only be used during an
ongoing call. Press the VOICE button and wait for the system prompt.
Can only be used with vehicles installedwith a dedicated VOICE button. System answer
User says
Steps
"NUMBER PLEASE"
1
""
2
Create a phonebook
Store name
New entries can be stored with the
"STORE NAME" command. This feature
can be used to dial a number by calling
up the name instead of the full phone
number. System answer
User says
Steps
"PHONE"
"PHONE"
1
"STORE NAME"
"STORE NAME"
2
"NAME PLEASE"
"REPEAT NAME PLEASE"
""
3
"STORING NAME"
""
4
" STORED"
"NUMBER PLEASE"
""
""
5
"STORING NUMBER"
"STORE"
6
""
"NUMBER STORED"
195
Voice control

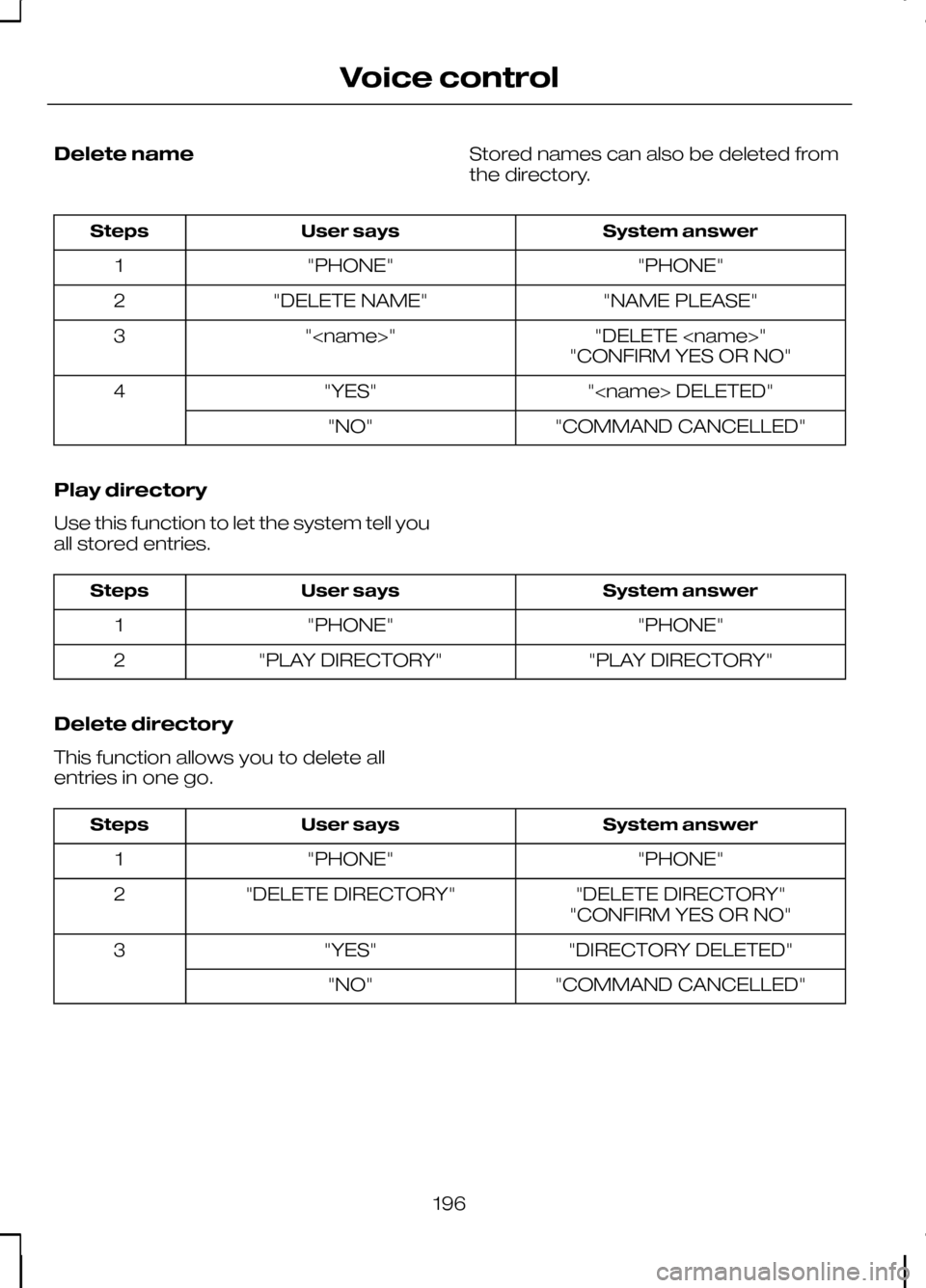

Delete name
Stored names can also be deleted from
the directory. System answer
User says
Steps
"PHONE"
"PHONE"
1
"NAME PLEASE"
"DELETE NAME"
2
"DELETE "
""
3
"CONFIRM YES OR NO"
" DELETED"
"YES"
4
"COMMAND CANCELLED"
"NO"
Play directory
Use this function to let the system tell you
all stored entries. System answer
User says
Steps
"PHONE"
"PHONE"
1
"PLAY DIRECTORY"
"PLAY DIRECTORY"
2
Delete directory
This function allows you to delete all
entries in one go. System answer
User says
Steps
"PHONE"
"PHONE"
1
"DELETE DIRECTORY"
"DELETE DIRECTORY"
2
"CONFIRM YES OR NO"
"DIRECTORY DELETED"
"YES"
3
"COMMAND CANCELLED"
"NO"
196
Voice control

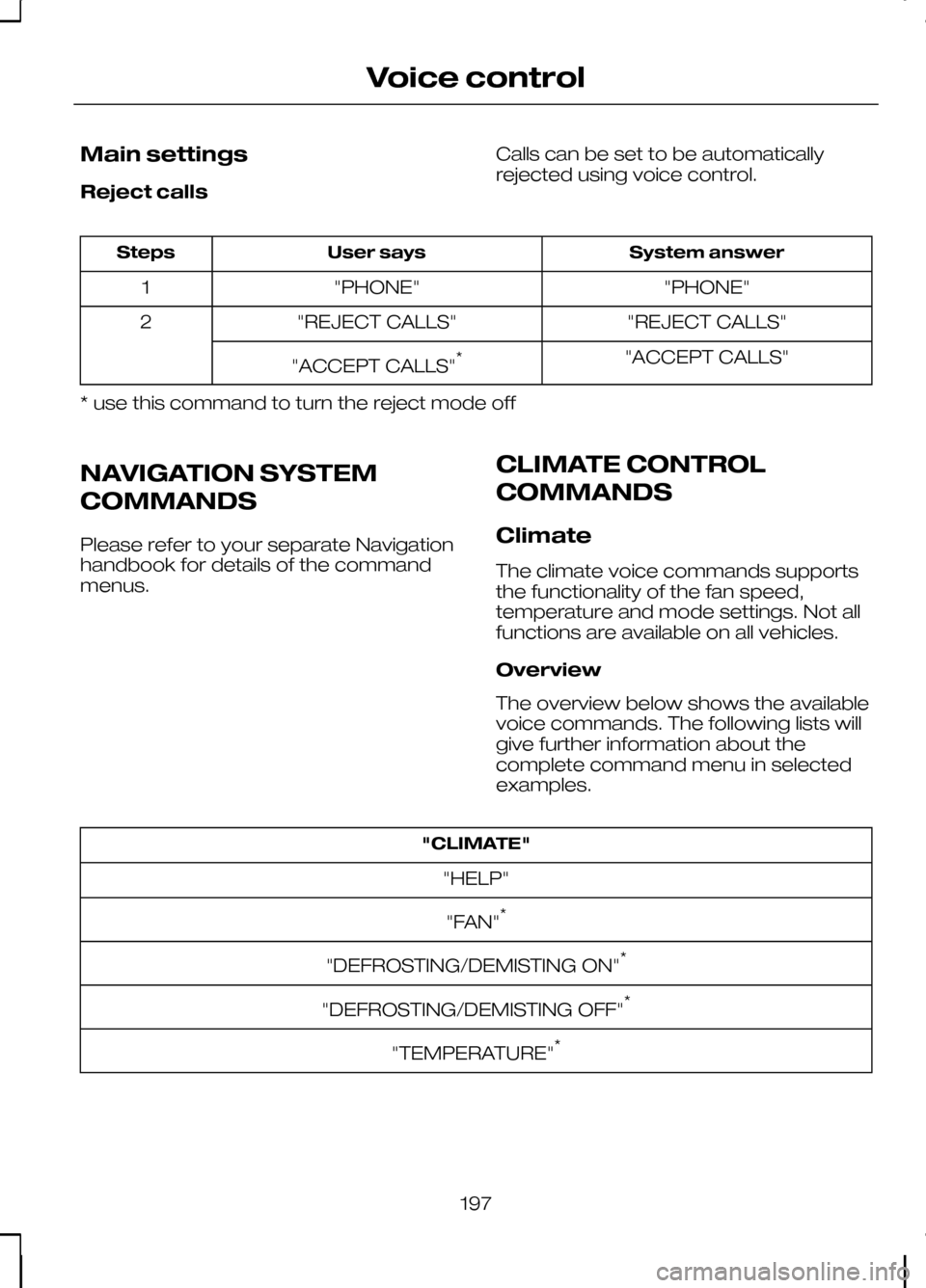

Main settings
Reject calls
Calls can be set to be automatically
rejected using voice control. System answer
User says
Steps
"PHONE"
"PHONE"
1
"REJECT CALLS"
"REJECT CALLS"
2
"ACCEPT CALLS"
"ACCEPT CALLS" *
* use this command to turn the reject mode off
NAVIGATION SYSTEM
COMMANDS
Please refer to your separate Navigation
handbook for details of the command
menus. CLIMATE CONTROL
COMMANDS
Climate
The climate voice commands supports
the functionality of the fan speed,
temperature and mode settings. Not all
functions are available on all vehicles.
Overview
The overview below shows the available
voice commands. The following lists will
give further information about the
complete command menu in selected
examples."CLIMATE"
"HELP"
"FAN" *
"DEFROSTING/DEMISTING ON" *
"DEFROSTING/DEMISTING OFF" *
"TEMPERATURE" *
197

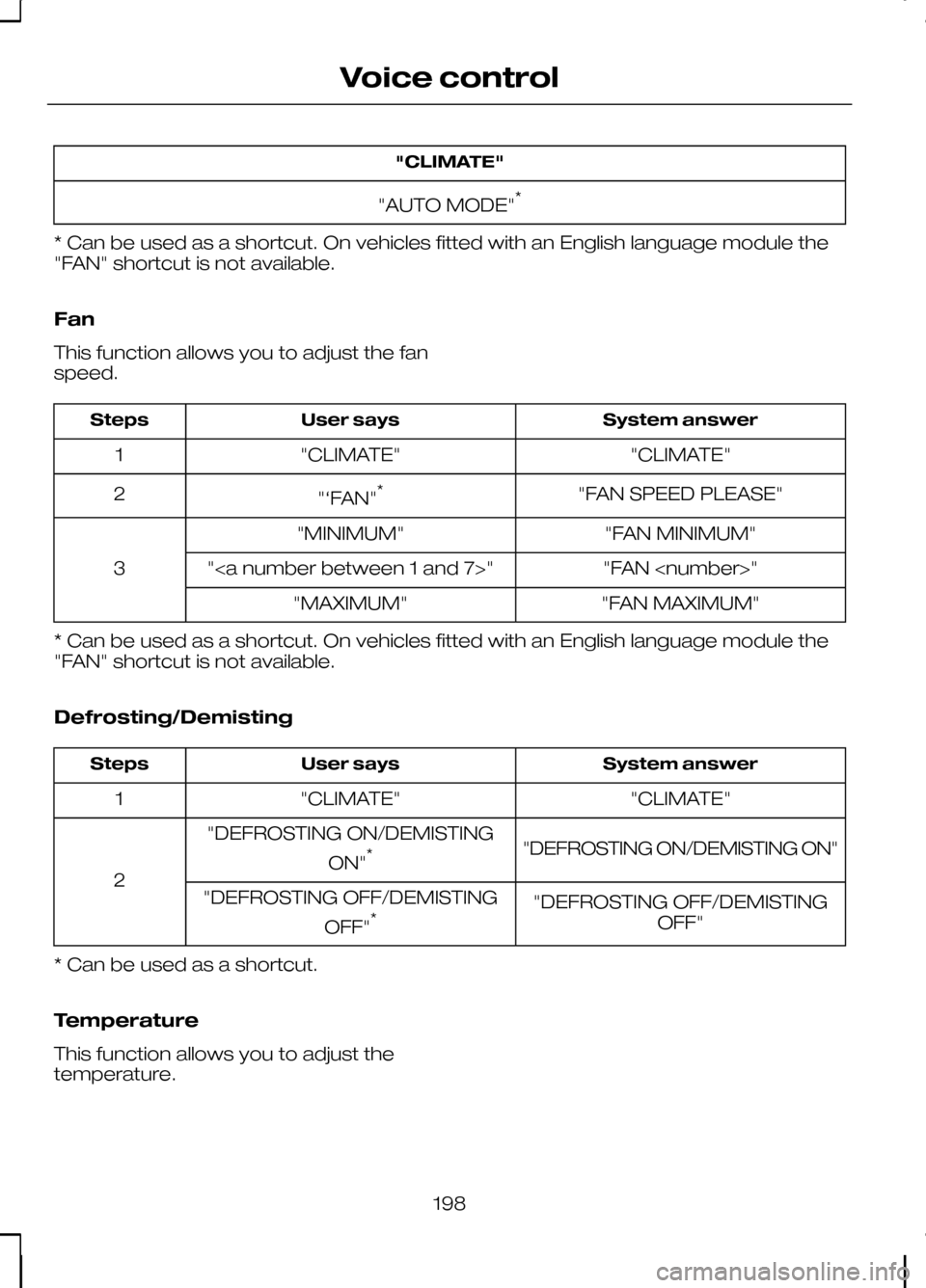

Voice control

"CLIMATE"
"AUTO MODE" *
* Can be used as a shortcut. On vehicles fitted with an English language module the
"FAN" shortcut is not available.
Fan
This function allows you to adjust the fan
speed. System answer
User says
Steps
"CLIMATE"
"CLIMATE"
1
"FAN SPEED PLEASE"
"‘FAN" *
2
"FAN MINIMUM"
"MINIMUM"
3 "FAN "
""
"FAN MAXIMUM"
"MAXIMUM"
* Can be used as a shortcut. On vehicles fitted with an English language module the
"FAN" shortcut is not available.
Defrosting/Demisting System answer
User says
Steps
"CLIMATE"
"CLIMATE"
1
"DEFROSTING ON/DEMISTING ON"
"DEFROSTING ON/DEMISTING
ON"*
2 "DEFROSTING OFF/DEMISTINGOFF"
"DEFROSTING OFF/DEMISTING
OFF"*
* Can be used as a shortcut.
Temperature
This function allows you to adjust the
temperature.
198
Voice control
