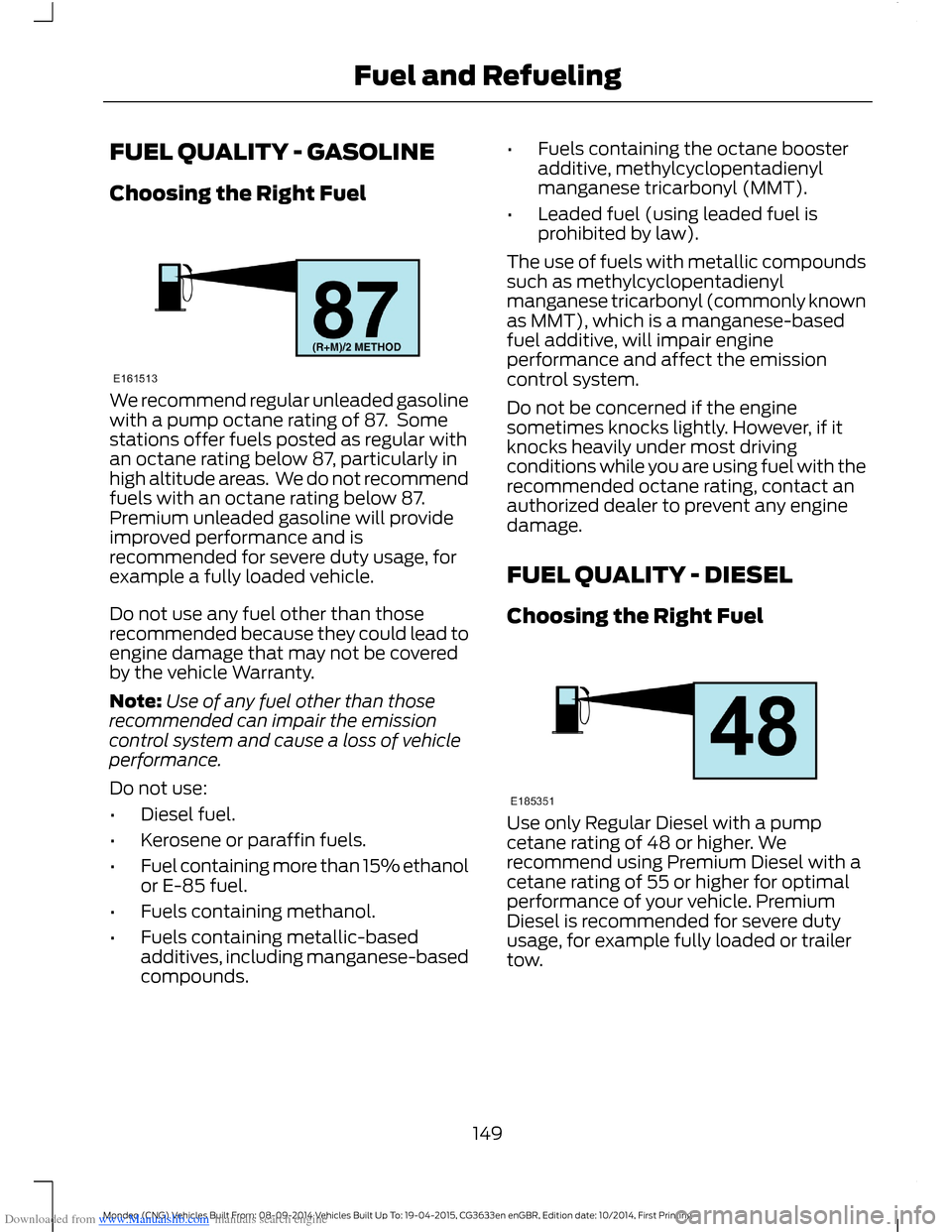

Downloaded from www.Manualslib.com manuals search engine FUEL QUALITY - GASOLINE
Choosing the Right Fuel
We recommend regular unleaded gasolinewith a pump octane rating of 87. Somestations offer fuels posted as regular withan octane rating below 87, particularly inhigh altitude areas. We do not recommendfuels with an octane rating below 87.Premium unleaded gasoline will provideimproved performance and isrecommended for severe duty usage, forexample a fully loaded vehicle.
Do not use any fuel other than thoserecommended because they could lead toengine damage that may not be coveredby the vehicle Warranty.
Note:Use of any fuel other than thoserecommended can impair the emissioncontrol system and cause a loss of vehicleperformance.
Do not use:
•Diesel fuel.
•Kerosene or paraffin fuels.
•Fuel containing more than 15% ethanolor E-85 fuel.
•Fuels containing methanol.
•Fuels containing metallic-basedadditives, including manganese-basedcompounds.
•Fuels containing the octane boosteradditive, methylcyclopentadienylmanganese tricarbonyl (MMT).
•Leaded fuel (using leaded fuel isprohibited by law).
The use of fuels with metallic compoundssuch as methylcyclopentadienylmanganese tricarbonyl (commonly knownas MMT), which is a manganese-basedfuel additive, will impair engineperformance and affect the emissioncontrol system.
Do not be concerned if the enginesometimes knocks lightly. However, if itknocks heavily under most drivingconditions while you are using fuel with therecommended octane rating, contact anauthorized dealer to prevent any enginedamage.
FUEL QUALITY - DIESEL
Choosing the Right Fuel
Use only Regular Diesel with a pumpcetane rating of 48 or higher. Werecommend using Premium Diesel with acetane rating of 55 or higher for optimalperformance of your vehicle. PremiumDiesel is recommended for severe dutyusage, for example fully loaded or trailertow.
149Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

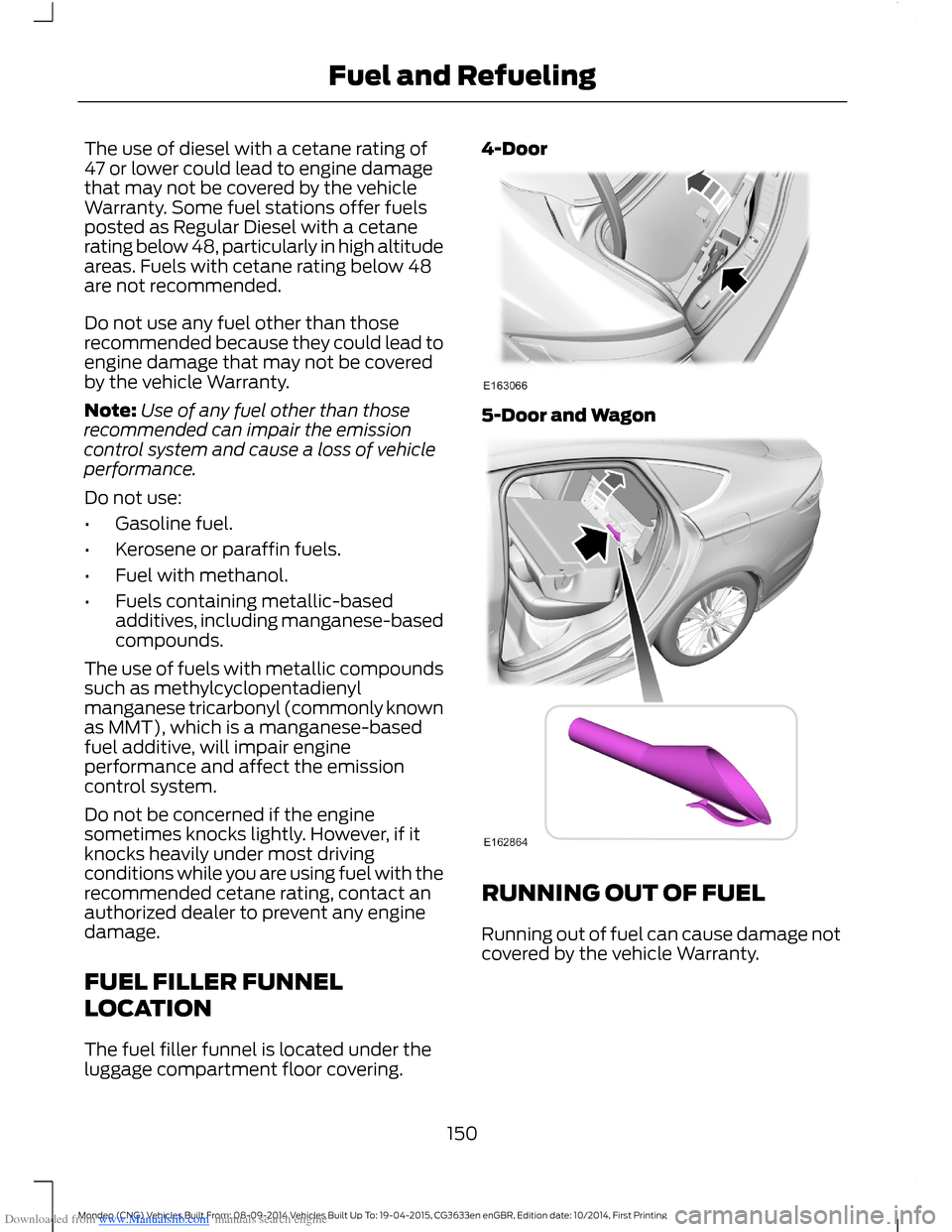

Downloaded from www.Manualslib.com manuals search engine The use of diesel with a cetane rating of47 or lower could lead to engine damagethat may not be covered by the vehicleWarranty. Some fuel stations offer fuelsposted as Regular Diesel with a cetanerating below 48, particularly in high altitudeareas. Fuels with cetane rating below 48are not recommended.
Do not use any fuel other than thoserecommended because they could lead toengine damage that may not be coveredby the vehicle Warranty.
Note:Use of any fuel other than thoserecommended can impair the emissioncontrol system and cause a loss of vehicleperformance.
Do not use:
•Gasoline fuel.
•Kerosene or paraffin fuels.
•Fuel with methanol.
•Fuels containing metallic-basedadditives, including manganese-basedcompounds.
The use of fuels with metallic compoundssuch as methylcyclopentadienylmanganese tricarbonyl (commonly knownas MMT), which is a manganese-basedfuel additive, will impair engineperformance and affect the emissioncontrol system.
Do not be concerned if the enginesometimes knocks lightly. However, if itknocks heavily under most drivingconditions while you are using fuel with therecommended cetane rating, contact anauthorized dealer to prevent any enginedamage.
FUEL FILLER FUNNEL
LOCATION
The fuel filler funnel is located under theluggage compartment floor covering.
4-Door
5-Door and Wagon
RUNNING OUT OF FUEL
Running out of fuel can cause damage notcovered by the vehicle Warranty.
150Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

Downloaded from www.Manualslib.com manuals search engine If your vehicle runs out of fuel:
•Add a minimum of 1.1 gal (5 L) of fuelto restart the engine. If your vehicle isout of fuel and on a steep slope, morefuel may be required.
•You may need to switch the ignitionfrom off to on several times afterrefueling to allow the fuel system topump the fuel from the tank to theengine. When restarting, cranking timetakes a few seconds longer thannormal.
Filling a Portable Fuel Container
Use the following guidelines to avoidelectrostatic charge build-up when fillingan ungrounded fuel container:
•Only use an approved fuel container totransfer fuel to your vehicle. Place thecontainer on the ground when filling it.
•Do not fill a fuel container when it isinside your vehicle (including the cargoarea).
•Keep the fuel pump nozzle in contactwith the fuel container when filling it.
•Do not use a device that holds the fuelpump nozzle lever in the fill position.

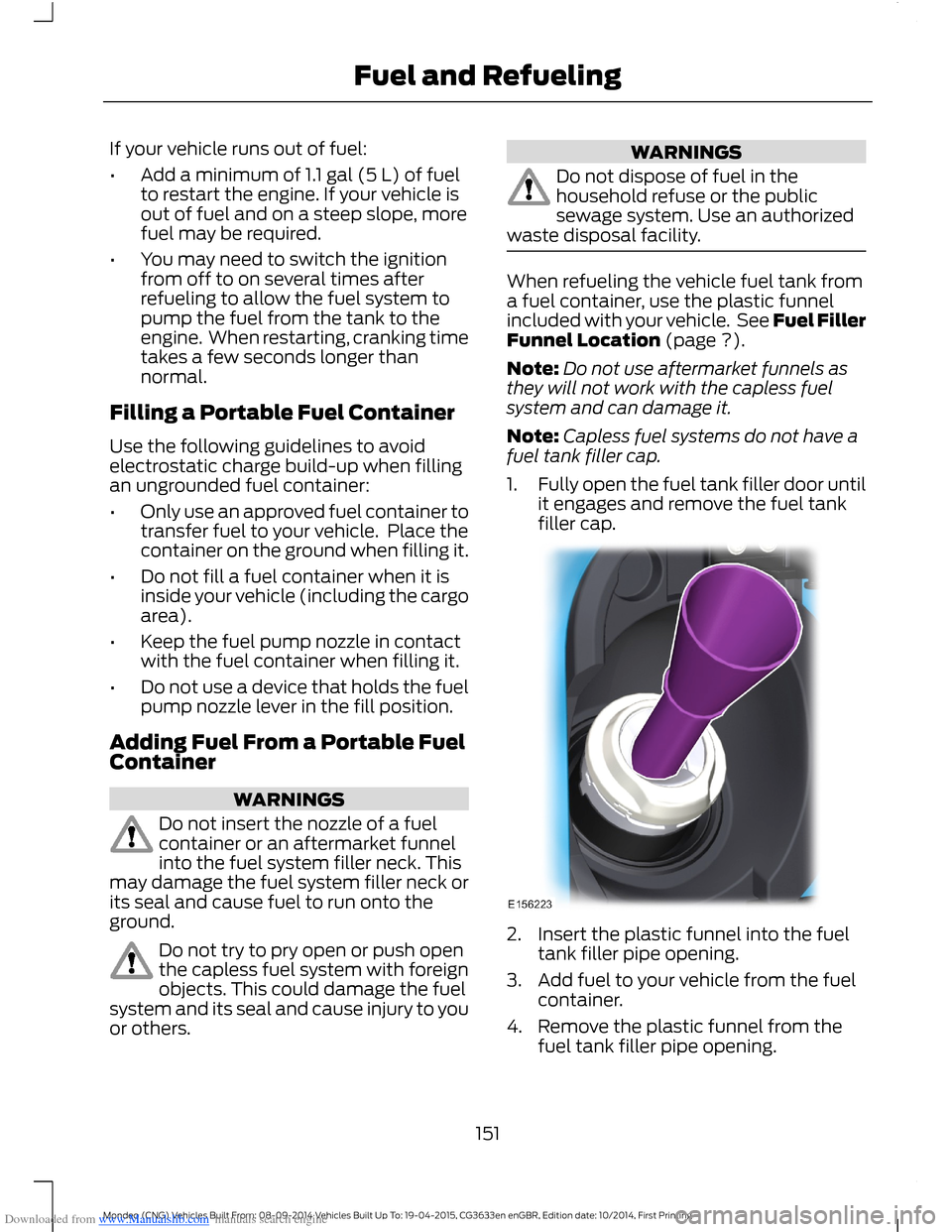

Adding Fuel From a Portable FuelContainer
WARNINGS
Do not insert the nozzle of a fuelcontainer or an aftermarket funnelinto the fuel system filler neck. Thismay damage the fuel system filler neck orits seal and cause fuel to run onto theground.
Do not try to pry open or push openthe capless fuel system with foreignobjects. This could damage the fuelsystem and its seal and cause injury to youor others.
WARNINGS
Do not dispose of fuel in thehousehold refuse or the publicsewage system. Use an authorizedwaste disposal facility.
When refueling the vehicle fuel tank froma fuel container, use the plastic funnelincluded with your vehicle. See Fuel FillerFunnel Location (page ?).
Note:Do not use aftermarket funnels asthey will not work with the capless fuelsystem and can damage it.
Note:Capless fuel systems do not have afuel tank filler cap.
1.Fully open the fuel tank filler door untilit engages and remove the fuel tankfiller cap.
2.Insert the plastic funnel into the fueltank filler pipe opening.
3.Add fuel to your vehicle from the fuelcontainer.
4.Remove the plastic funnel from thefuel tank filler pipe opening.
151Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

Downloaded from www.Manualslib.com manuals search engine 5.Replace the fuel tank filler cap andclose the fuel tank filler door.
6.Clean the plastic funnel and place itback in your vehicle or properly disposeof it.
Note:Extra funnels can be purchased froman authorized dealer if you choose todispose of the funnel.
CATALYTIC CONVERTER
WARNING
Do not park or idle your vehicle overdry leaves, dry grass or othercombustible materials. The exhaustwill radiate a considerable amount of heatduring use, and after you have switchedthe engine off. This is a potential firehazard.
Driving with a Catalytic Converter
WARNINGS
Avoid running out of fuel.
Do not crank the engine for longperiods.
Do not run the engine when a sparkplug lead is disconnected.
Do not push-start or tow-start yourvehicle. Use booster cables. SeeJump Starting the Vehicle (page225).
Do not switch the ignition off whendriving.
REFUELING
WARNINGS
Do not attempt to start the engine ifyou have filled the fuel tank with theincorrect fuel. This could damage theengine. Have your vehicle checked by anauthorized dealer immediately.
Do not use any kind of flames or heatnear the fuel system. The fuel systemis under pressure. There is a risk ofinjury if the fuel system is leaking.
If you use a high pressure spray towash your vehicle, only spray the fuelfiller flap briefly from a distance notless than 8 inches (200 millimeters).
We recommend that you wait atleast 10 seconds before removing thefuel nozzle to allow any residual fuelto drain into the fuel tank.
Stop refueling after the fuel nozzlestops the second time. Additionalfuel will fill the expansion space inthe fuel tank which could lead to fueloverflowing. Fuel spillage could behazardous to other road users.
Do not remove the fuel nozzle fromits fully inserted position during theentire refueling process.
Note:Your vehicle does not have a fuel fillercap.
152Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

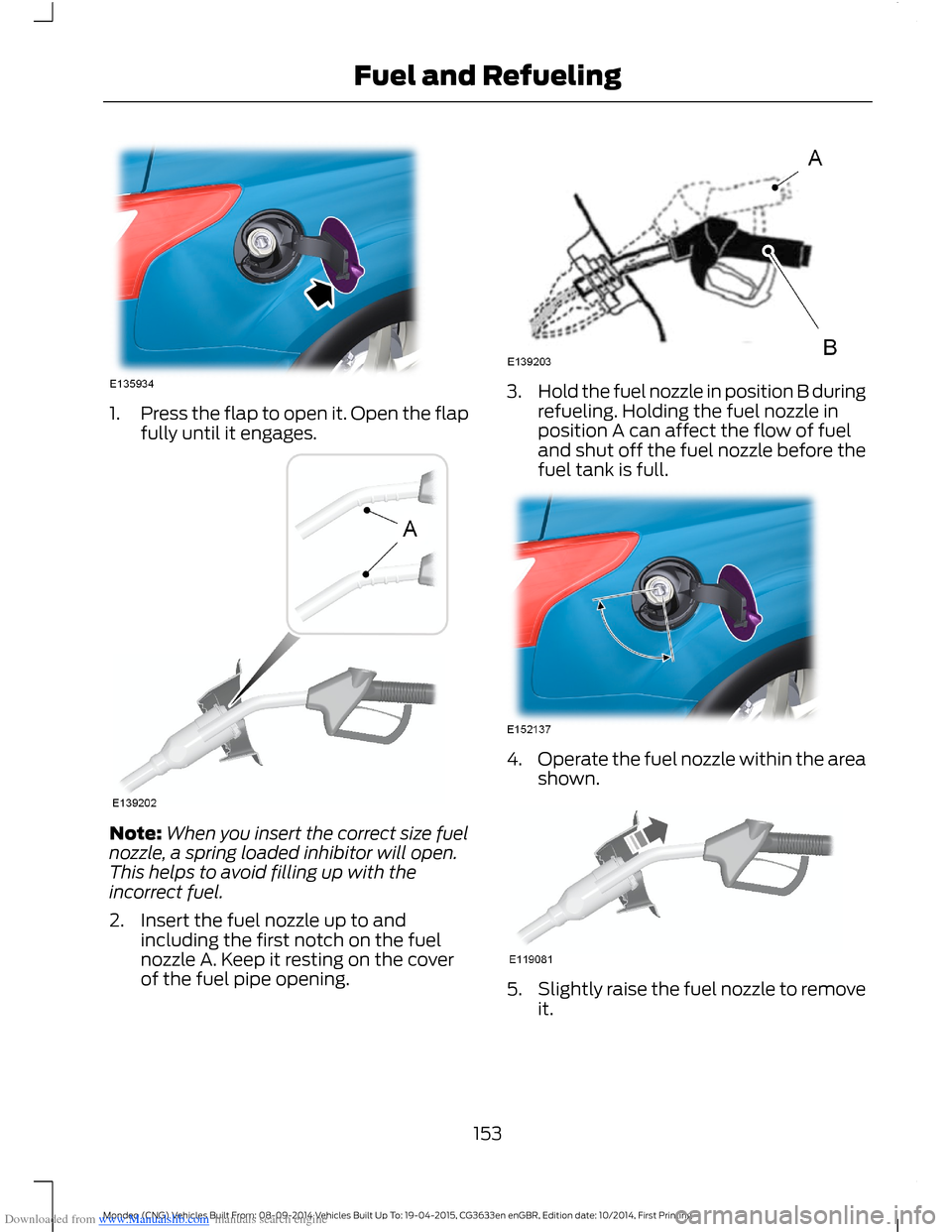

Downloaded from www.Manualslib.com manuals search engine 1.Press the flap to open it. Open the flapfully until it engages.
Note:When you insert the correct size fuelnozzle, a spring loaded inhibitor will open.This helps to avoid filling up with theincorrect fuel.
2.Insert the fuel nozzle up to andincluding the first notch on the fuelnozzle A. Keep it resting on the coverof the fuel pipe opening.
3.Hold the fuel nozzle in position B duringrefueling. Holding the fuel nozzle inposition A can affect the flow of fueland shut off the fuel nozzle before thefuel tank is full.
4.Operate the fuel nozzle within the areashown.
5.Slightly raise the fuel nozzle to removeit.
153Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

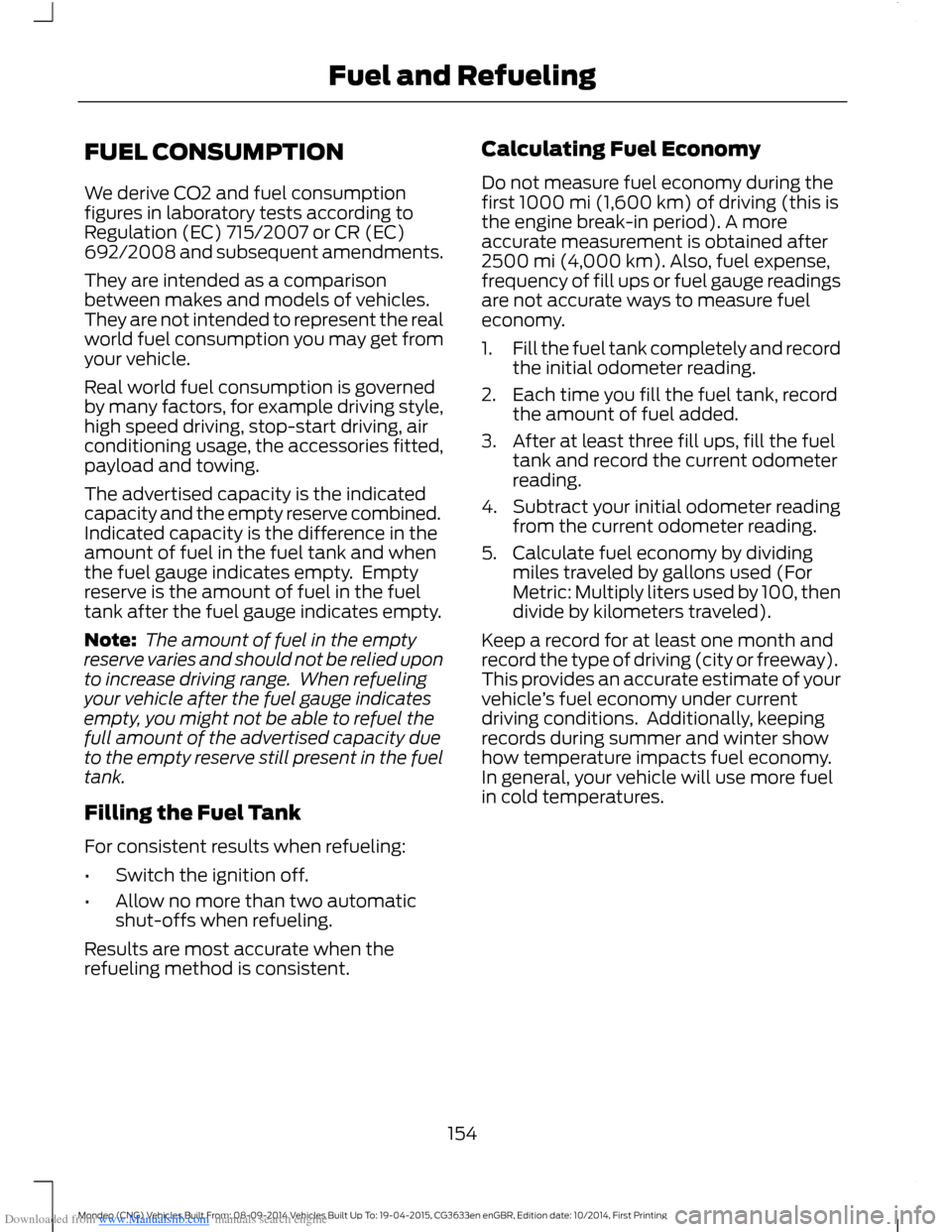

Downloaded from www.Manualslib.com manuals search engine FUEL CONSUMPTION
We derive CO2 and fuel consumptionfigures in laboratory tests according toRegulation (EC) 715/2007 or CR (EC)692/2008 and subsequent amendments.
They are intended as a comparisonbetween makes and models of vehicles.They are not intended to represent the realworld fuel consumption you may get fromyour vehicle.
Real world fuel consumption is governedby many factors, for example driving style,high speed driving, stop-start driving, airconditioning usage, the accessories fitted,payload and towing.
The advertised capacity is the indicatedcapacity and the empty reserve combined.Indicated capacity is the difference in theamount of fuel in the fuel tank and whenthe fuel gauge indicates empty. Emptyreserve is the amount of fuel in the fueltank after the fuel gauge indicates empty.
Note: The amount of fuel in the emptyreserve varies and should not be relied uponto increase driving range. When refuelingyour vehicle after the fuel gauge indicatesempty, you might not be able to refuel thefull amount of the advertised capacity dueto the empty reserve still present in the fueltank.
Filling the Fuel Tank
For consistent results when refueling:
•Switch the ignition off.
•Allow no more than two automaticshut-offs when refueling.
Results are most accurate when therefueling method is consistent.
Calculating Fuel Economy
Do not measure fuel economy during thefirst 1000 mi (1,600 km) of driving (this isthe engine break-in period). A moreaccurate measurement is obtained after2500 mi (4,000 km). Also, fuel expense,frequency of fill ups or fuel gauge readingsare not accurate ways to measure fueleconomy.
1.Fill the fuel tank completely and recordthe initial odometer reading.
2.Each time you fill the fuel tank, recordthe amount of fuel added.
3.After at least three fill ups, fill the fueltank and record the current odometerreading.
4.Subtract your initial odometer readingfrom the current odometer reading.
5.Calculate fuel economy by dividingmiles traveled by gallons used (ForMetric: Multiply liters used by 100, thendivide by kilometers traveled).
Keep a record for at least one month andrecord the type of driving (city or freeway).This provides an accurate estimate of yourvehicle’s fuel economy under currentdriving conditions. Additionally, keepingrecords during summer and winter showhow temperature impacts fuel economy.In general, your vehicle will use more fuelin cold temperatures.
154Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling

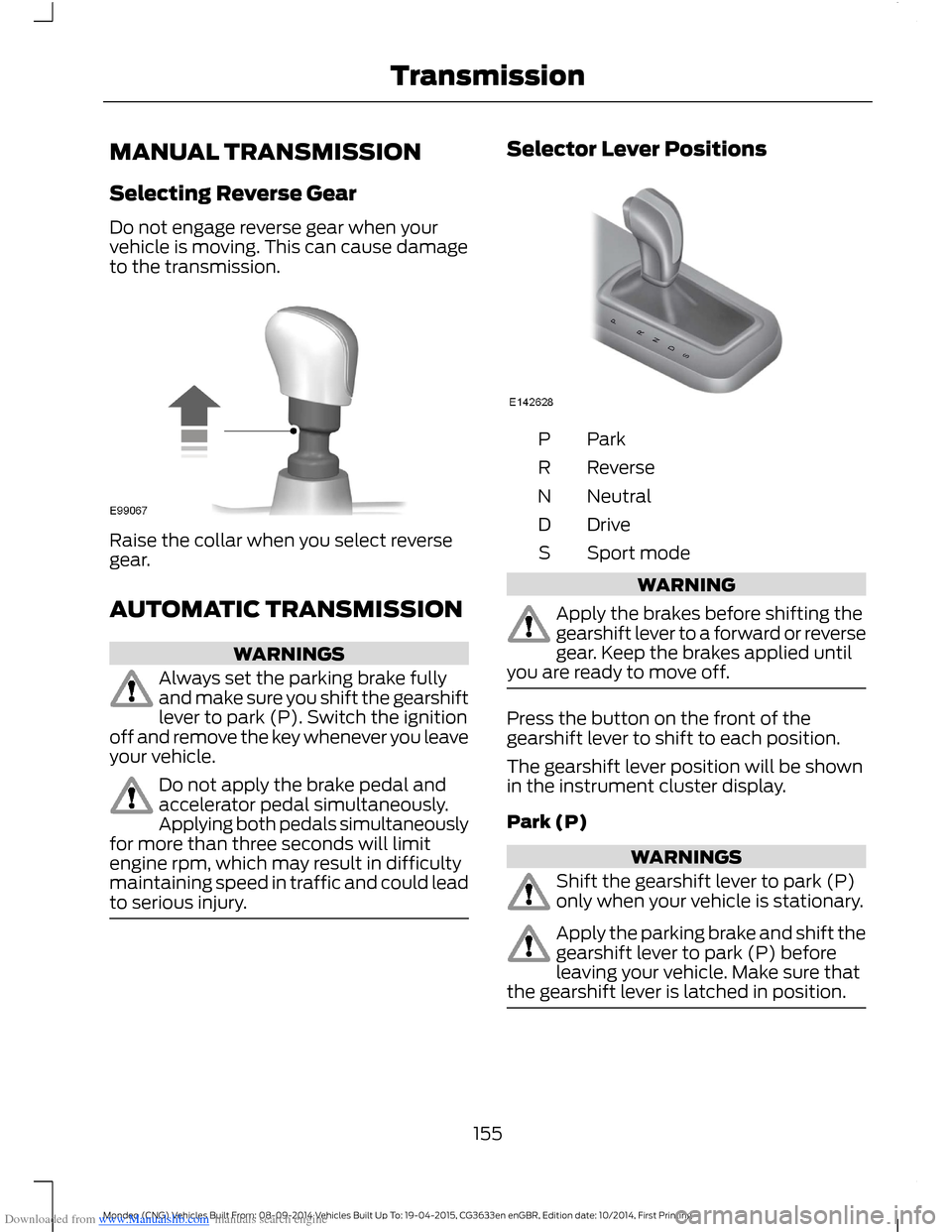

Downloaded from www.Manualslib.com manuals search engine MANUAL TRANSMISSION
Selecting Reverse Gear
Do not engage reverse gear when yourvehicle is moving. This can cause damageto the transmission.
Raise the collar when you select reversegear.
AUTOMATIC TRANSMISSION
WARNINGS
Always set the parking brake fullyand make sure you shift the gearshiftlever to park (P). Switch the ignitionoff and remove the key whenever you leaveyour vehicle.
Do not apply the brake pedal andaccelerator pedal simultaneously.Applying both pedals simultaneouslyfor more than three seconds will limitengine rpm, which may result in difficultymaintaining speed in traffic and could leadto serious injury.
Selector Lever Positions
ParkP
ReverseR
NeutralN
DriveD
Sport modeS
WARNING
Apply the brakes before shifting thegearshift lever to a forward or reversegear. Keep the brakes applied untilyou are ready to move off.
Press the button on the front of thegearshift lever to shift to each position.
The gearshift lever position will be shownin the instrument cluster display.
Park (P)
WARNINGS
Shift the gearshift lever to park (P)only when your vehicle is stationary.
Apply the parking brake and shift thegearshift lever to park (P) beforeleaving your vehicle. Make sure thatthe gearshift lever is latched in position.
155Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingTransmission

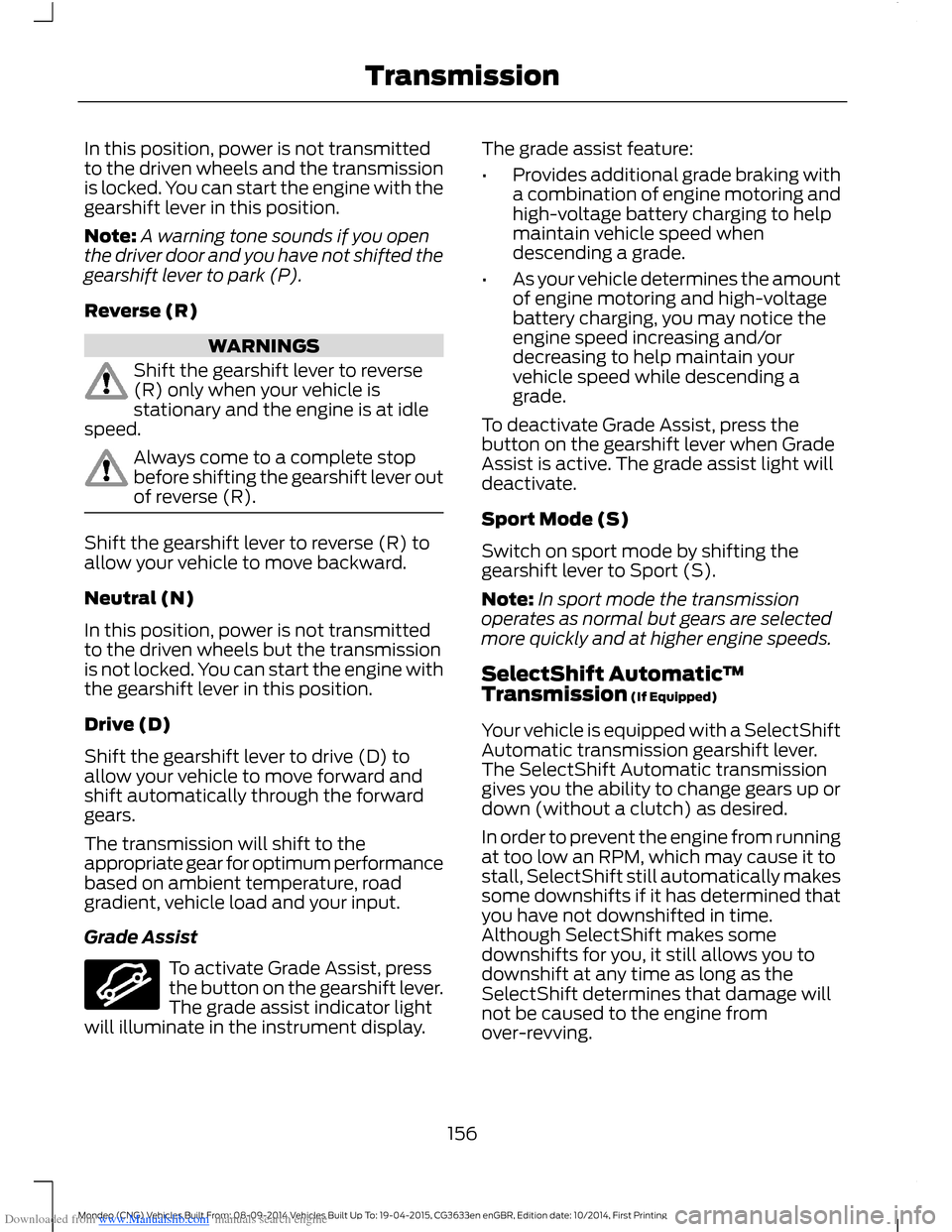

Downloaded from www.Manualslib.com manuals search engine In this position, power is not transmittedto the driven wheels and the transmissionis locked. You can start the engine with thegearshift lever in this position.
Note:A warning tone sounds if you openthe driver door and you have not shifted thegearshift lever to park (P).
Reverse (R)
WARNINGS
Shift the gearshift lever to reverse(R) only when your vehicle isstationary and the engine is at idlespeed.
Always come to a complete stopbefore shifting the gearshift lever outof reverse (R).
Shift the gearshift lever to reverse (R) toallow your vehicle to move backward.
Neutral (N)
In this position, power is not transmittedto the driven wheels but the transmissionis not locked. You can start the engine withthe gearshift lever in this position.
Drive (D)
Shift the gearshift lever to drive (D) toallow your vehicle to move forward andshift automatically through the forwardgears.
The transmission will shift to theappropriate gear for optimum performancebased on ambient temperature, roadgradient, vehicle load and your input.
Grade Assist
To activate Grade Assist, pressthe button on the gearshift lever.The grade assist indicator lightwill illuminate in the instrument display.
The grade assist feature:
•Provides additional grade braking witha combination of engine motoring andhigh-voltage battery charging to helpmaintain vehicle speed whendescending a grade.
•As your vehicle determines the amountof engine motoring and high-voltagebattery charging, you may notice theengine speed increasing and/ordecreasing to help maintain yourvehicle speed while descending agrade.
To deactivate Grade Assist, press thebutton on the gearshift lever when GradeAssist is active. The grade assist light willdeactivate.
Sport Mode (S)
Switch on sport mode by shifting thegearshift lever to Sport (S).
Note:In sport mode the transmissionoperates as normal but gears are selectedmore quickly and at higher engine speeds.
SelectShift Automatic™Transmission (If Equipped)
Your vehicle is equipped with a SelectShiftAutomatic transmission gearshift lever.The SelectShift Automatic transmissiongives you the ability to change gears up ordown (without a clutch) as desired.
In order to prevent the engine from runningat too low an RPM, which may cause it tostall, SelectShift still automatically makessome downshifts if it has determined thatyou have not downshifted in time.Although SelectShift makes somedownshifts for you, it still allows you todownshift at any time as long as theSelectShift determines that damage willnot be caused to the engine fromover-revving.
156Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingTransmission

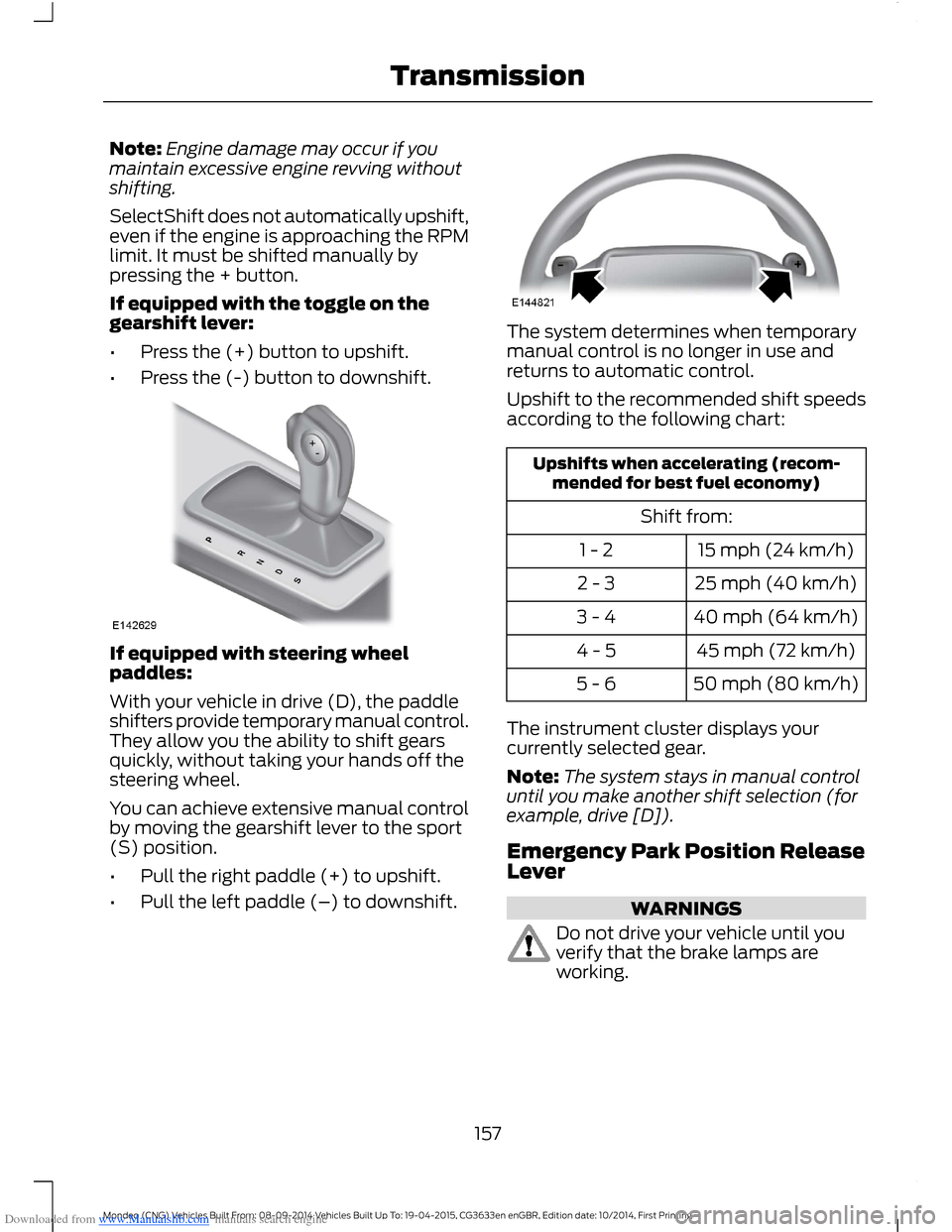

Downloaded from www.Manualslib.com manuals search engine Note:Engine damage may occur if youmaintain excessive engine revving withoutshifting.
SelectShift does not automatically upshift,even if the engine is approaching the RPMlimit. It must be shifted manually bypressing the + button.
If equipped with the toggle on thegearshift lever:
•Press the (+) button to upshift.
•Press the (-) button to downshift.
If equipped with steering wheelpaddles:
With your vehicle in drive (D), the paddleshifters provide temporary manual control.They allow you the ability to shift gearsquickly, without taking your hands off thesteering wheel.
You can achieve extensive manual controlby moving the gearshift lever to the sport(S) position.
•Pull the right paddle (+) to upshift.
•Pull the left paddle (–) to downshift.
The system determines when temporarymanual control is no longer in use andreturns to automatic control.
Upshift to the recommended shift speedsaccording to the following chart:
Upshifts when accelerating (recom-mended for best fuel economy)
Shift from:
15 mph (24 km/h)1 - 2
25 mph (40 km/h)2 - 3
40 mph (64 km/h)3 - 4
45 mph (72 km/h)4 - 5
50 mph (80 km/h)5 - 6
The instrument cluster displays yourcurrently selected gear.
Note:The system stays in manual controluntil you make another shift selection (forexample, drive [D]).
Emergency Park Position ReleaseLever
WARNINGS
Do not drive your vehicle until youverify that the brake lamps areworking.
157Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingTransmission

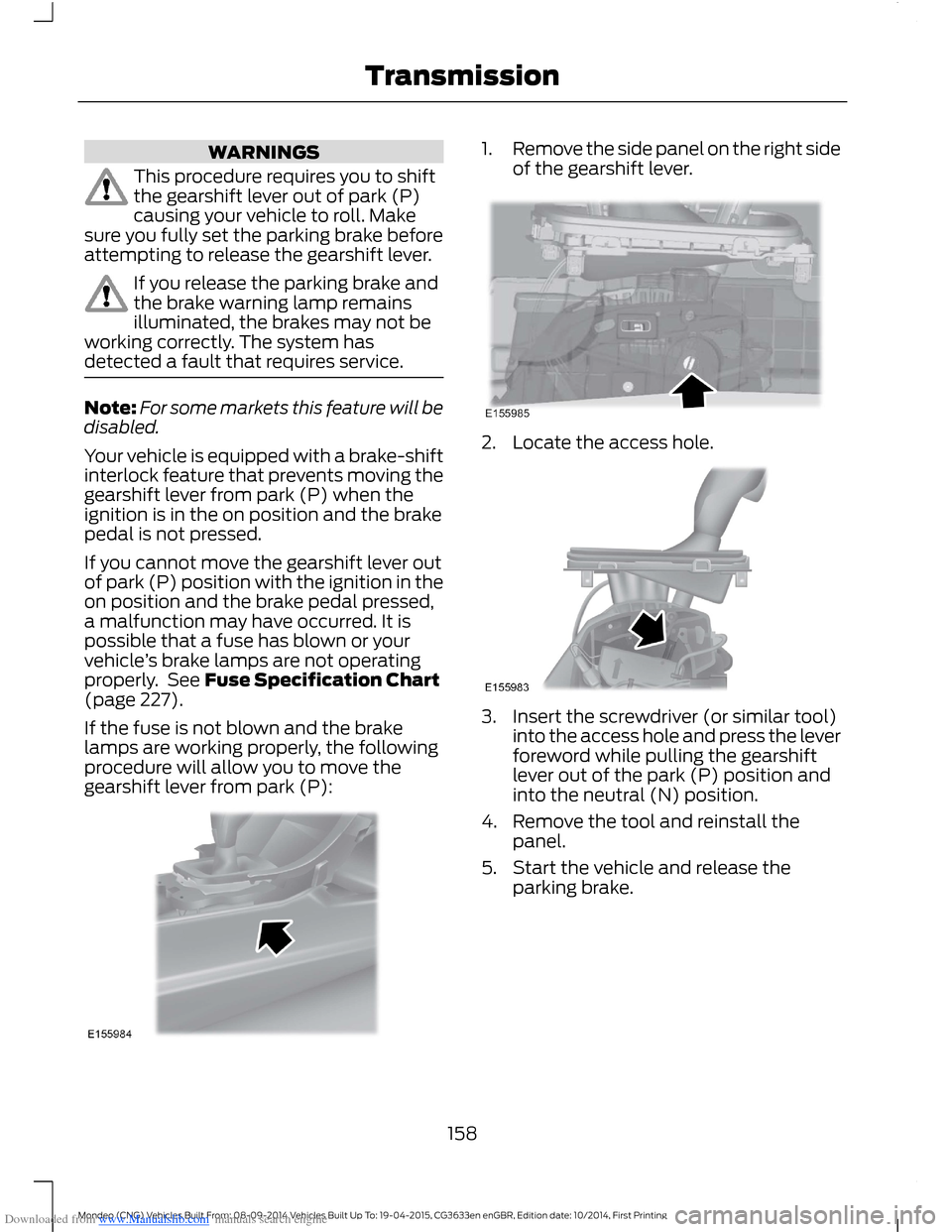

Downloaded from www.Manualslib.com manuals search engine WARNINGS
This procedure requires you to shiftthe gearshift lever out of park (P)causing your vehicle to roll. Makesure you fully set the parking brake beforeattempting to release the gearshift lever.
If you release the parking brake andthe brake warning lamp remainsilluminated, the brakes may not beworking correctly. The system hasdetected a fault that requires service.
Note:For some markets this feature will bedisabled.
Your vehicle is equipped with a brake-shiftinterlock feature that prevents moving thegearshift lever from park (P) when theignition is in the on position and the brakepedal is not pressed.
If you cannot move the gearshift lever outof park (P) position with the ignition in theon position and the brake pedal pressed,a malfunction may have occurred. It ispossible that a fuse has blown or yourvehicle’s brake lamps are not operatingproperly. See Fuse Specification Chart(page 227).
If the fuse is not blown and the brakelamps are working properly, the followingprocedure will allow you to move thegearshift lever from park (P):
1.Remove the side panel on the right sideof the gearshift lever.
2.Locate the access hole.
3.Insert the screwdriver (or similar tool)into the access hole and press the leverforeword while pulling the gearshiftlever out of the park (P) position andinto the neutral (N) position.
4.Remove the tool and reinstall thepanel.
5.Start the vehicle and release theparking brake.
