FORD MONDEO 2014 4.G Owners Manual

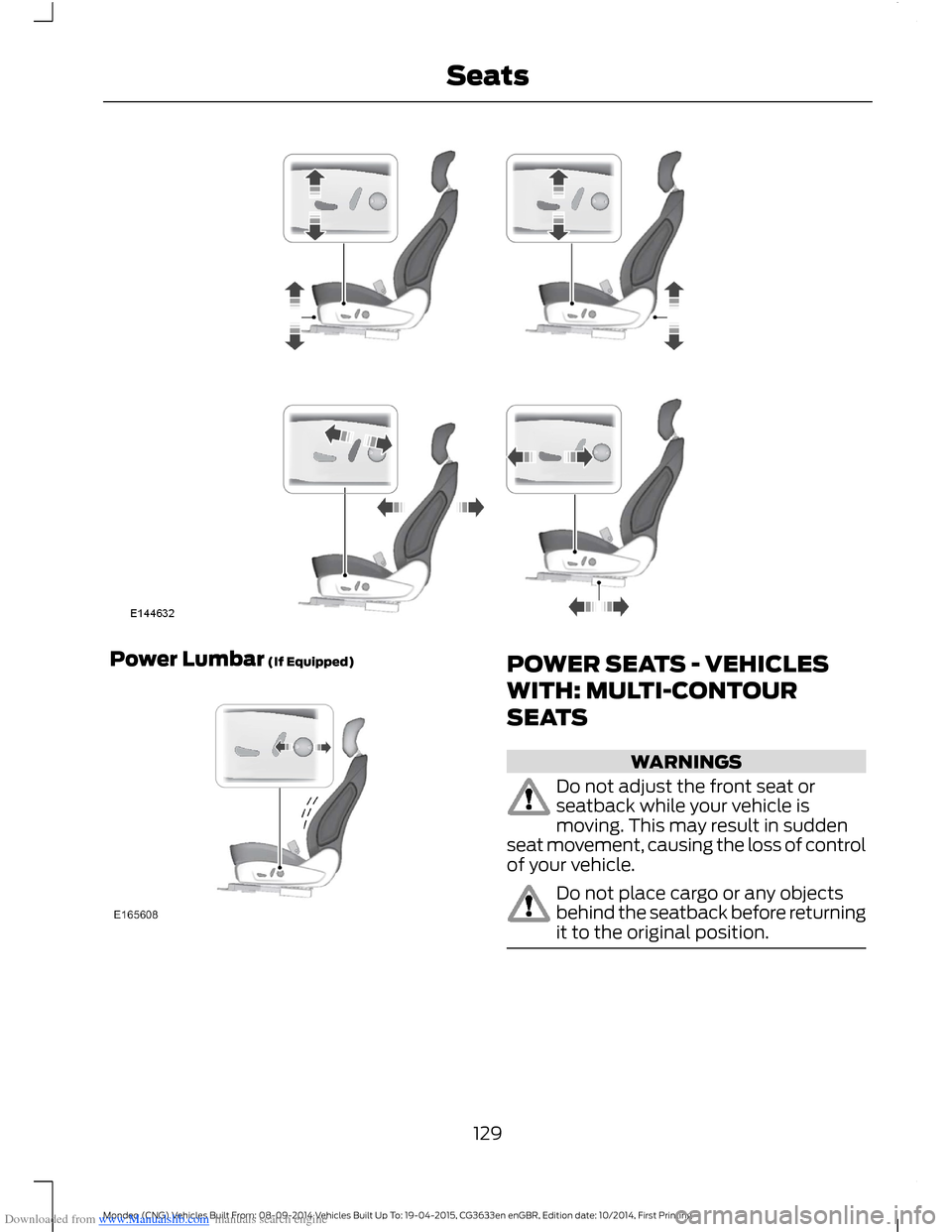

Downloaded from www.Manualslib.com manuals search engine Power Lumbar (If Equipped)POWER SEATS - VEHICLES
WITH: MULTI-CONTOUR
SEATS
WARNINGS
Do not adjust the front seat orseatback while your vehicle ismoving. This may result in suddenseat movement, causing the loss of controlof your vehicle.
Do not place cargo or any objectsbehind the seatback before returningit to the original position.
129Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

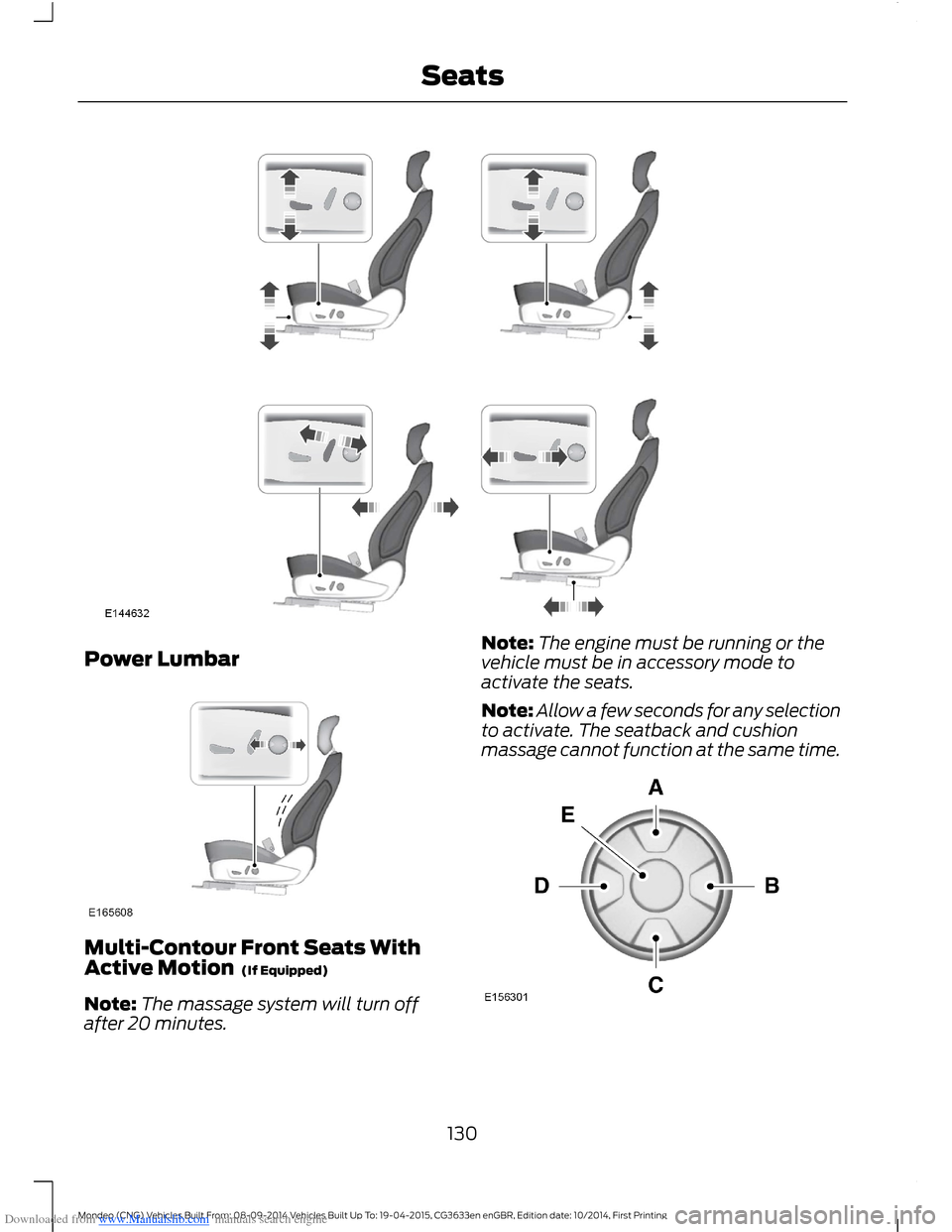

Downloaded from www.Manualslib.com manuals search engine Power Lumbar
Multi-Contour Front Seats WithActive Motion (If Equipped)
Note:The massage system will turn offafter 20 minutes.
Note:The engine must be running or thevehicle must be in accessory mode toactivate the seats.
Note:Allow a few seconds for any selectionto activate. The seatback and cushionmassage cannot function at the same time.
130Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

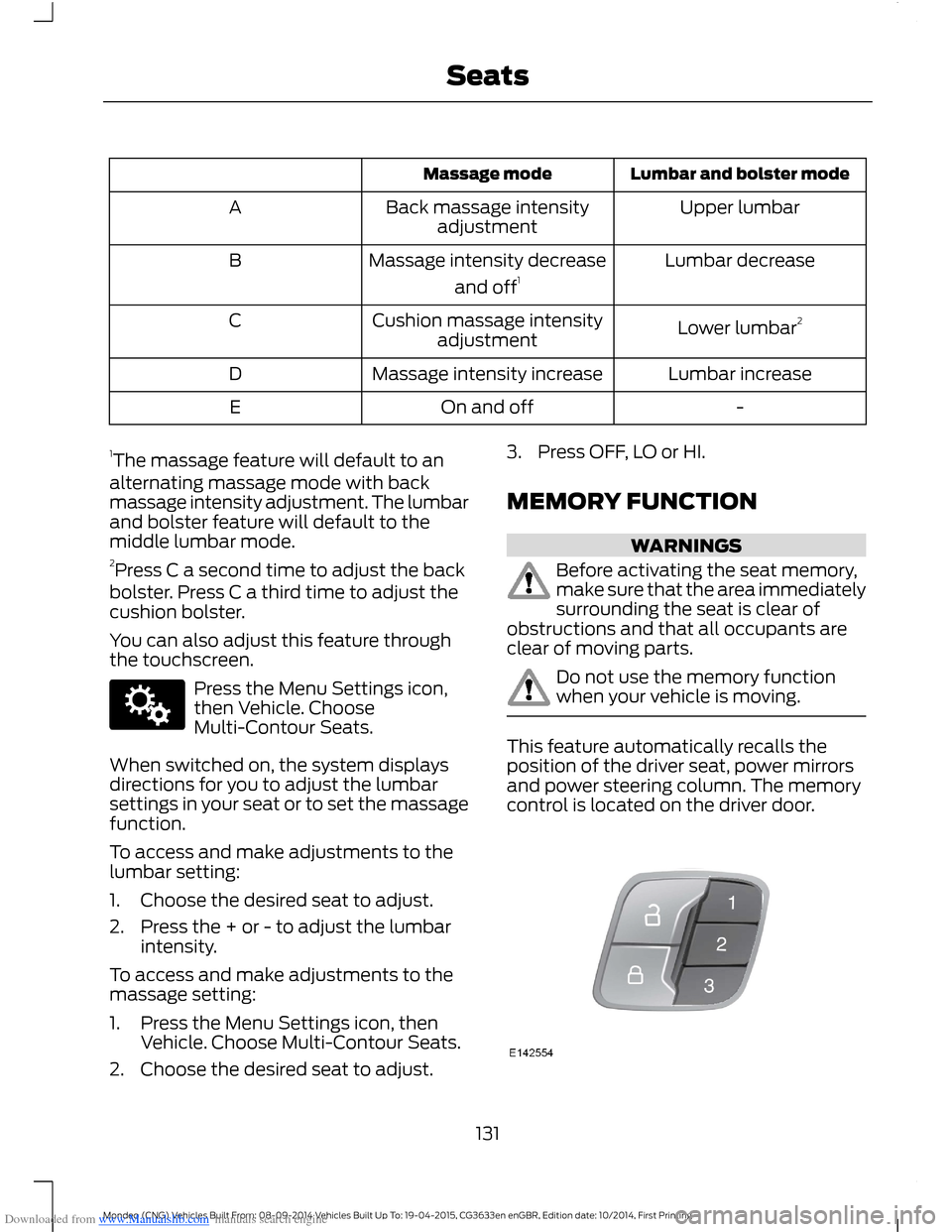

Downloaded from www.Manualslib.com manuals search engine Lumbar and bolster modeMassage mode
Upper lumbarBack massage intensityadjustmentA
Lumbar decreaseMassage intensity decrease
and off1B
Lower lumbar2Cushion massage intensityadjustmentC
Lumbar increaseMassage intensity increaseD
-On and offE
1The massage feature will default to analternating massage mode with backmassage intensity adjustment. The lumbarand bolster feature will default to themiddle lumbar mode.2Press C a second time to adjust the backbolster. Press C a third time to adjust thecushion bolster.
You can also adjust this feature throughthe touchscreen.
Press the Menu Settings icon,then Vehicle. ChooseMulti-Contour Seats.
When switched on, the system displaysdirections for you to adjust the lumbarsettings in your seat or to set the massagefunction.
To access and make adjustments to thelumbar setting:
1.Choose the desired seat to adjust.
2.Press the + or - to adjust the lumbarintensity.
To access and make adjustments to themassage setting:
1.Press the Menu Settings icon, thenVehicle. Choose Multi-Contour Seats.
2.Choose the desired seat to adjust.
3.Press OFF, LO or HI.
MEMORY FUNCTION
WARNINGS
Before activating the seat memory,make sure that the area immediatelysurrounding the seat is clear ofobstructions and that all occupants areclear of moving parts.
Do not use the memory functionwhen your vehicle is moving.
This feature automatically recalls theposition of the driver seat, power mirrorsand power steering column. The memorycontrol is located on the driver door.
131Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

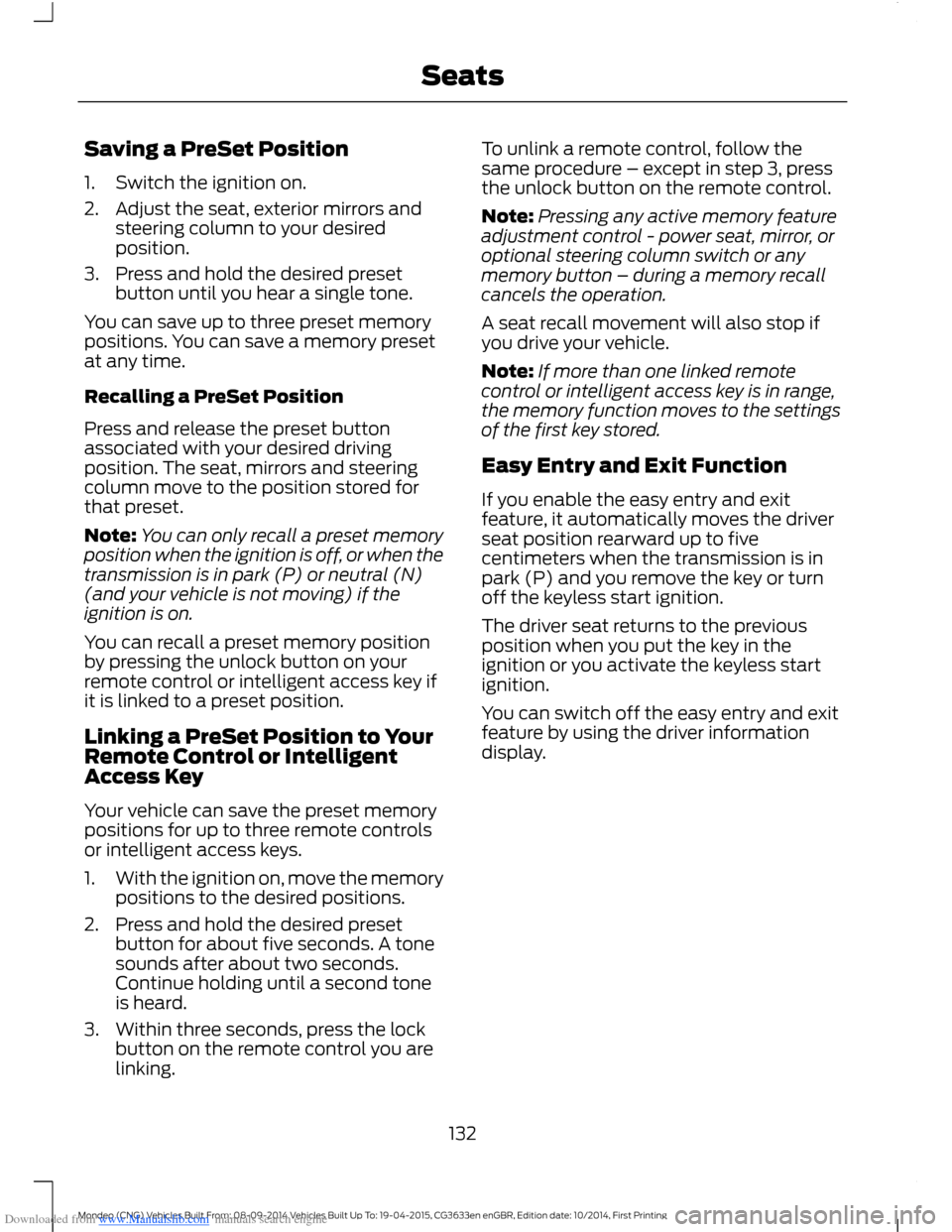

Downloaded from www.Manualslib.com manuals search engine Saving a PreSet Position
1.Switch the ignition on.
2.Adjust the seat, exterior mirrors andsteering column to your desiredposition.
3.Press and hold the desired presetbutton until you hear a single tone.
You can save up to three preset memorypositions. You can save a memory presetat any time.
Recalling a PreSet Position
Press and release the preset buttonassociated with your desired drivingposition. The seat, mirrors and steeringcolumn move to the position stored forthat preset.
Note:You can only recall a preset memoryposition when the ignition is off, or when thetransmission is in park (P) or neutral (N)(and your vehicle is not moving) if theignition is on.
You can recall a preset memory positionby pressing the unlock button on yourremote control or intelligent access key ifit is linked to a preset position.
Linking a PreSet Position to YourRemote Control or IntelligentAccess Key
Your vehicle can save the preset memorypositions for up to three remote controlsor intelligent access keys.
1.With the ignition on, move the memorypositions to the desired positions.
2.Press and hold the desired presetbutton for about five seconds. A tonesounds after about two seconds.Continue holding until a second toneis heard.
3.Within three seconds, press the lockbutton on the remote control you arelinking.
To unlink a remote control, follow thesame procedure – except in step 3, pressthe unlock button on the remote control.
Note:Pressing any active memory featureadjustment control - power seat, mirror, oroptional steering column switch or anymemory button – during a memory recallcancels the operation.
A seat recall movement will also stop ifyou drive your vehicle.
Note:If more than one linked remotecontrol or intelligent access key is in range,the memory function moves to the settingsof the first key stored.
Easy Entry and Exit Function
If you enable the easy entry and exitfeature, it automatically moves the driverseat position rearward up to fivecentimeters when the transmission is inpark (P) and you remove the key or turnoff the keyless start ignition.
The driver seat returns to the previousposition when you put the key in theignition or you activate the keyless startignition.
You can switch off the easy entry and exitfeature by using the driver informationdisplay.
132Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

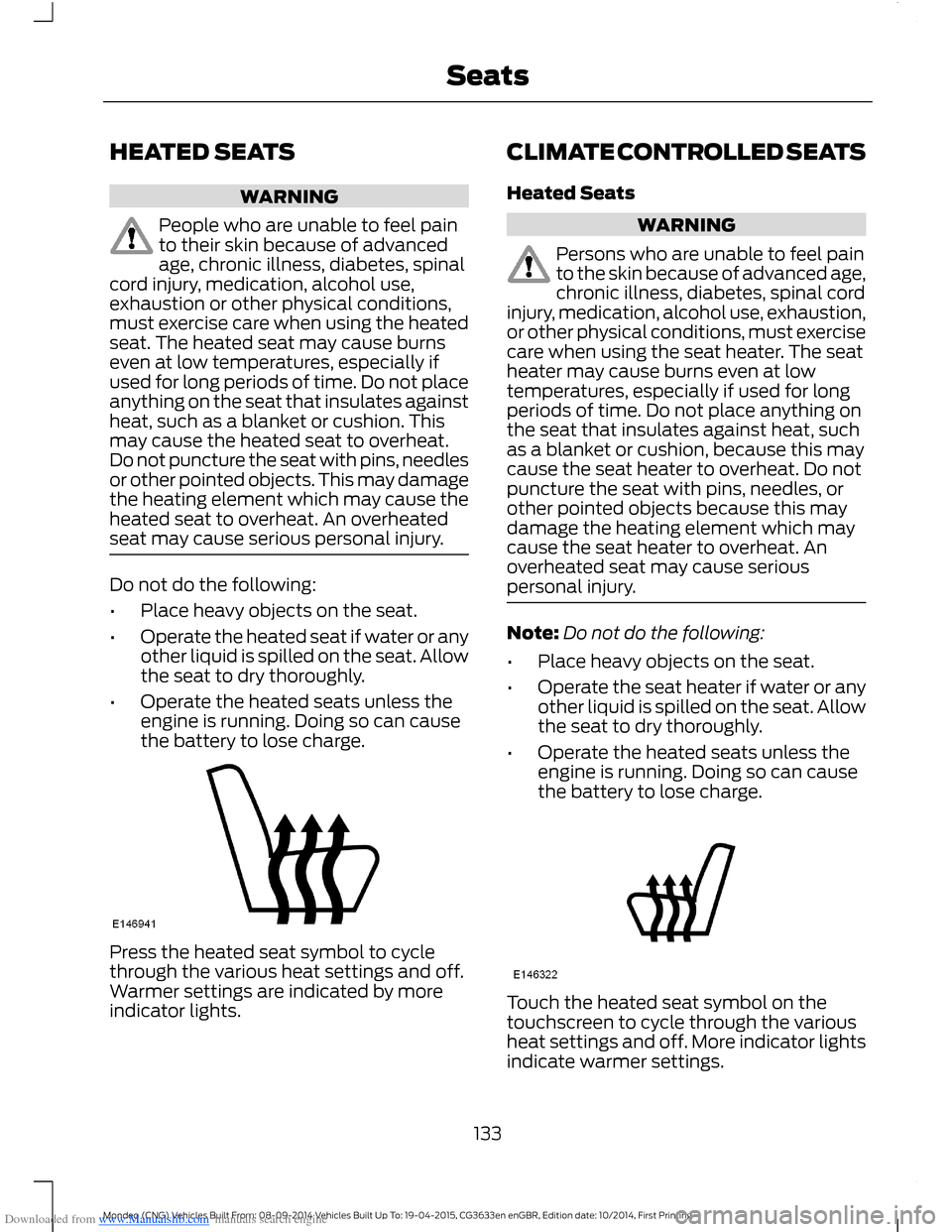

Downloaded from www.Manualslib.com manuals search engine HEATED SEATS
WARNING
People who are unable to feel painto their skin because of advancedage, chronic illness, diabetes, spinalcord injury, medication, alcohol use,exhaustion or other physical conditions,must exercise care when using the heatedseat. The heated seat may cause burnseven at low temperatures, especially ifused for long periods of time. Do not placeanything on the seat that insulates againstheat, such as a blanket or cushion. Thismay cause the heated seat to overheat.Do not puncture the seat with pins, needlesor other pointed objects. This may damagethe heating element which may cause theheated seat to overheat. An overheatedseat may cause serious personal injury.
Do not do the following:
•Place heavy objects on the seat.
•Operate the heated seat if water or anyother liquid is spilled on the seat. Allowthe seat to dry thoroughly.
•Operate the heated seats unless theengine is running. Doing so can causethe battery to lose charge.
Press the heated seat symbol to cyclethrough the various heat settings and off.Warmer settings are indicated by moreindicator lights.
CLIMATE CONTROLLED SEATS
Heated Seats
WARNING
Persons who are unable to feel painto the skin because of advanced age,chronic illness, diabetes, spinal cordinjury, medication, alcohol use, exhaustion,or other physical conditions, must exercisecare when using the seat heater. The seatheater may cause burns even at lowtemperatures, especially if used for longperiods of time. Do not place anything onthe seat that insulates against heat, suchas a blanket or cushion, because this maycause the seat heater to overheat. Do notpuncture the seat with pins, needles, orother pointed objects because this maydamage the heating element which maycause the seat heater to overheat. Anoverheated seat may cause seriouspersonal injury.
Note:Do not do the following:
•Place heavy objects on the seat.
•Operate the seat heater if water or anyother liquid is spilled on the seat. Allowthe seat to dry thoroughly.
•Operate the heated seats unless theengine is running. Doing so can causethe battery to lose charge.
Touch the heated seat symbol on thetouchscreen to cycle through the variousheat settings and off. More indicator lightsindicate warmer settings.
133Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

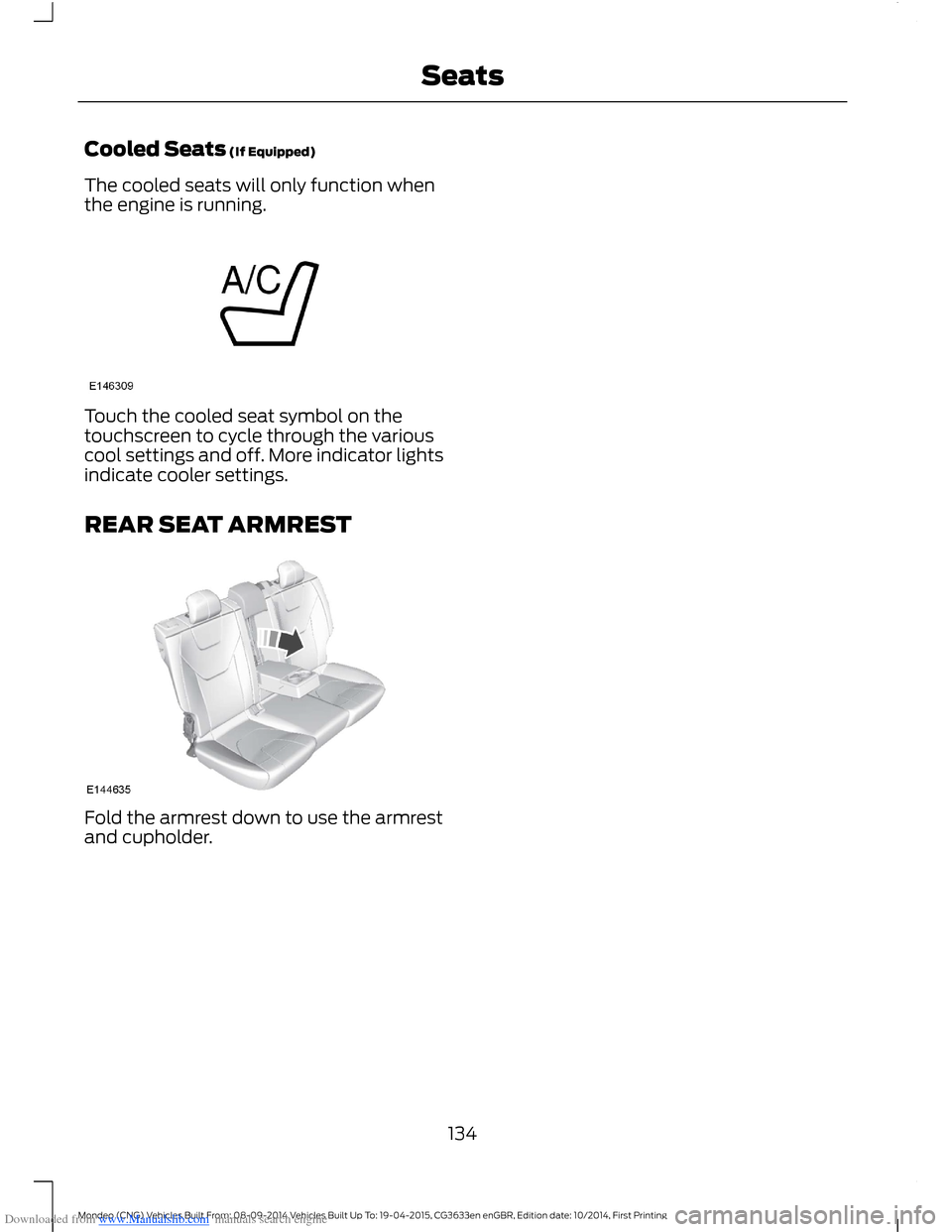

Downloaded from www.Manualslib.com manuals search engine Cooled Seats (If Equipped)
The cooled seats will only function whenthe engine is running.
Touch the cooled seat symbol on thetouchscreen to cycle through the variouscool settings and off. More indicator lightsindicate cooler settings.
REAR SEAT ARMREST
Fold the armrest down to use the armrestand cupholder.
134Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

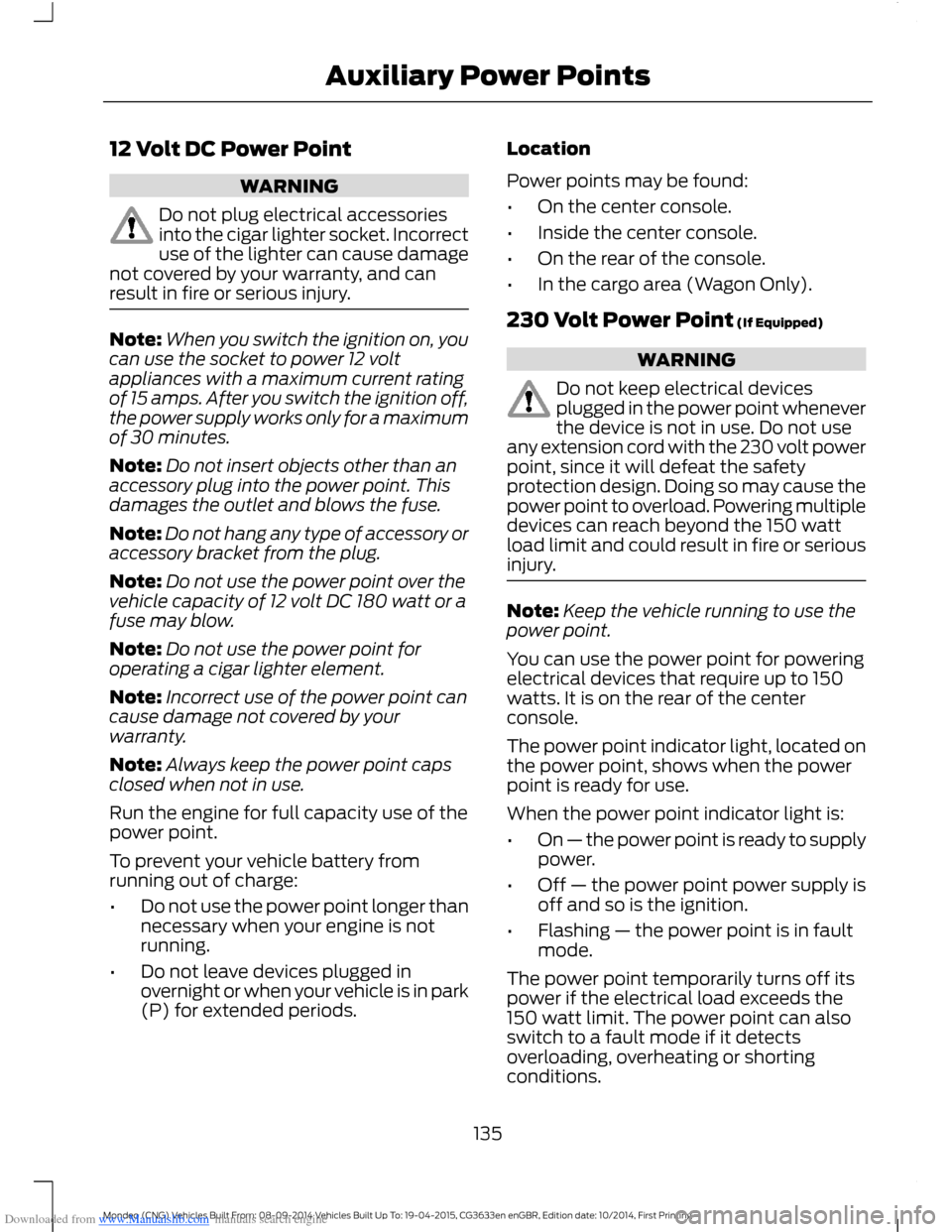

Downloaded from www.Manualslib.com manuals search engine 12 Volt DC Power Point
WARNING
Do not plug electrical accessoriesinto the cigar lighter socket. Incorrectuse of the lighter can cause damagenot covered by your warranty, and canresult in fire or serious injury.
Note:When you switch the ignition on, youcan use the socket to power 12 voltappliances with a maximum current ratingof 15 amps. After you switch the ignition off,the power supply works only for a maximumof 30 minutes.
Note:Do not insert objects other than anaccessory plug into the power point. Thisdamages the outlet and blows the fuse.
Note:Do not hang any type of accessory oraccessory bracket from the plug.
Note:Do not use the power point over thevehicle capacity of 12 volt DC 180 watt or afuse may blow.
Note:Do not use the power point foroperating a cigar lighter element.
Note:Incorrect use of the power point cancause damage not covered by yourwarranty.
Note:Always keep the power point capsclosed when not in use.
Run the engine for full capacity use of thepower point.
To prevent your vehicle battery fromrunning out of charge:
•Do not use the power point longer thannecessary when your engine is notrunning.
•Do not leave devices plugged inovernight or when your vehicle is in park(P) for extended periods.
Location
Power points may be found:
•On the center console.
•Inside the center console.
•On the rear of the console.
•In the cargo area (Wagon Only).
230 Volt Power Point (If Equipped)
WARNING
Do not keep electrical devicesplugged in the power point wheneverthe device is not in use. Do not useany extension cord with the 230 volt powerpoint, since it will defeat the safetyprotection design. Doing so may cause thepower point to overload. Powering multipledevices can reach beyond the 150 wattload limit and could result in fire or seriousinjury.
Note:Keep the vehicle running to use thepower point.
You can use the power point for poweringelectrical devices that require up to 150watts. It is on the rear of the centerconsole.
The power point indicator light, located onthe power point, shows when the powerpoint is ready for use.
When the power point indicator light is:
•On — the power point is ready to supplypower.
•Off — the power point power supply isoff and so is the ignition.
•Flashing — the power point is in faultmode.
The power point temporarily turns off itspower if the electrical load exceeds the150 watt limit. The power point can alsoswitch to a fault mode if it detectsoverloading, overheating or shortingconditions.
135Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAuxiliary Power Points

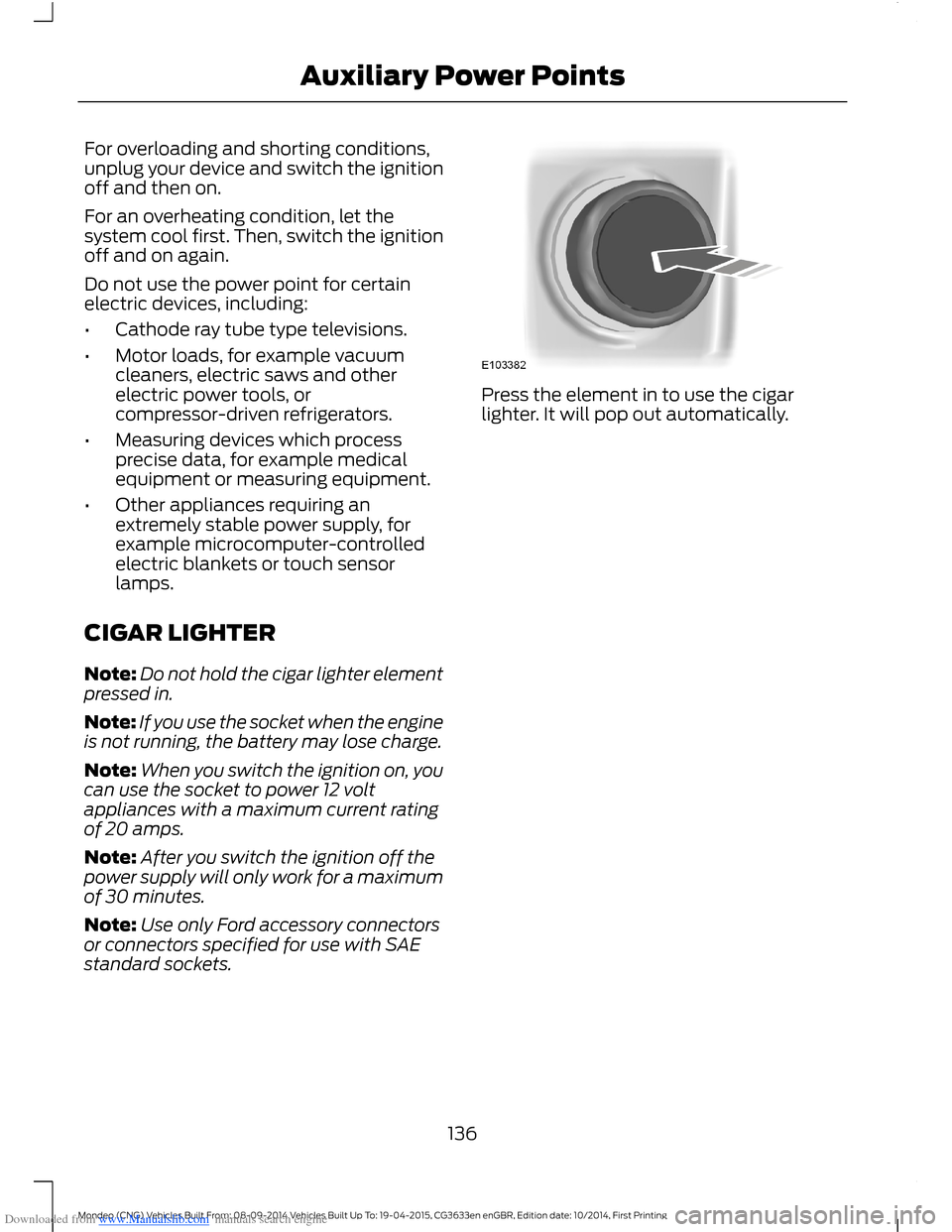

Downloaded from www.Manualslib.com manuals search engine For overloading and shorting conditions,unplug your device and switch the ignitionoff and then on.
For an overheating condition, let thesystem cool first. Then, switch the ignitionoff and on again.
Do not use the power point for certainelectric devices, including:
•Cathode ray tube type televisions.
•Motor loads, for example vacuumcleaners, electric saws and otherelectric power tools, orcompressor-driven refrigerators.
•Measuring devices which processprecise data, for example medicalequipment or measuring equipment.
•Other appliances requiring anextremely stable power supply, forexample microcomputer-controlledelectric blankets or touch sensorlamps.
CIGAR LIGHTER
Note:Do not hold the cigar lighter elementpressed in.
Note:If you use the socket when the engineis not running, the battery may lose charge.
Note:When you switch the ignition on, youcan use the socket to power 12 voltappliances with a maximum current ratingof 20 amps.
Note:After you switch the ignition off thepower supply will only work for a maximumof 30 minutes.
Note:Use only Ford accessory connectorsor connectors specified for use with SAEstandard sockets.
Press the element in to use the cigarlighter. It will pop out automatically.
136Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingAuxiliary Power Points

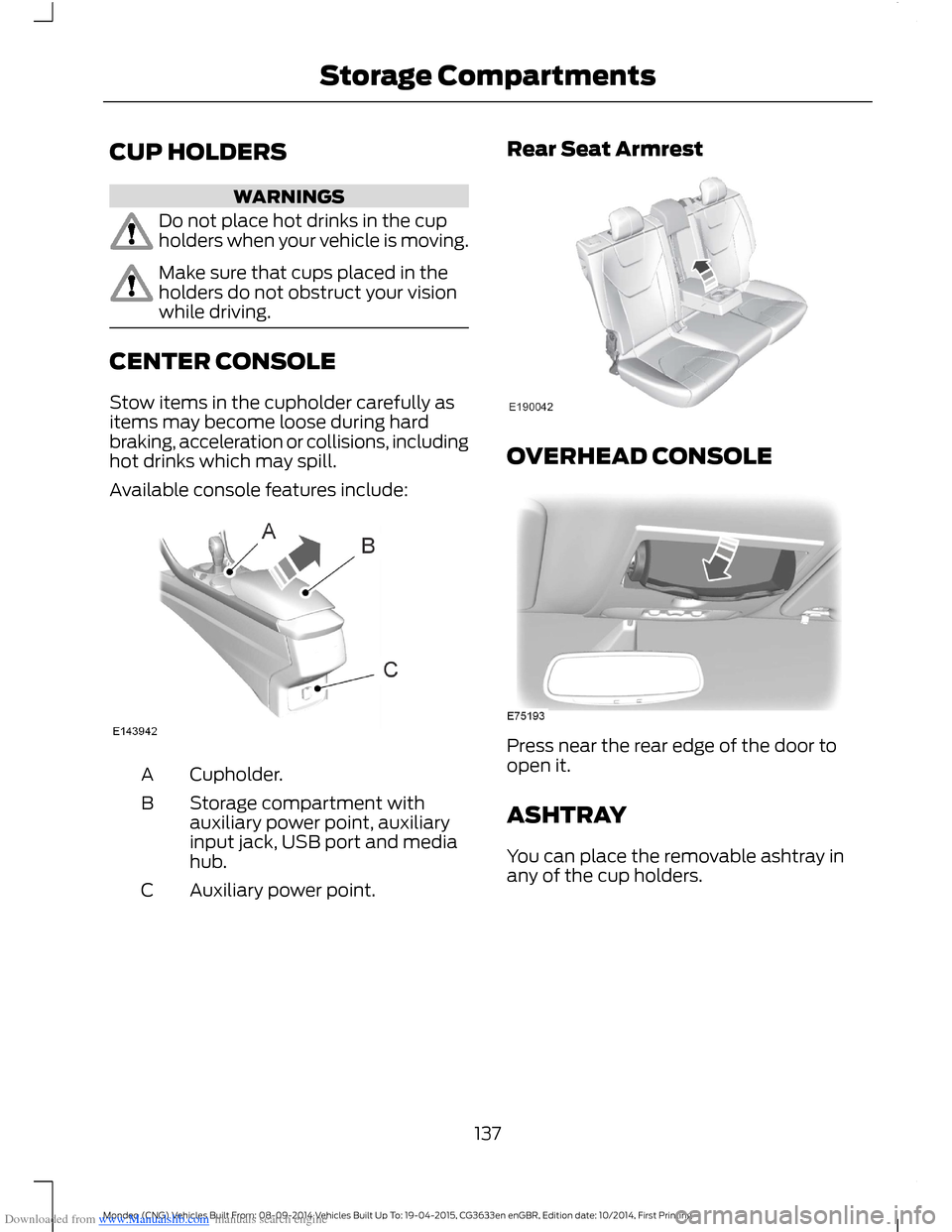

Downloaded from www.Manualslib.com manuals search engine CUP HOLDERS
WARNINGS
Do not place hot drinks in the cupholders when your vehicle is moving.
Make sure that cups placed in theholders do not obstruct your visionwhile driving.
CENTER CONSOLE
Stow items in the cupholder carefully asitems may become loose during hardbraking, acceleration or collisions, includinghot drinks which may spill.
Available console features include:
Cupholder.A
Storage compartment withauxiliary power point, auxiliaryinput jack, USB port and mediahub.
B
Auxiliary power point.C
Rear Seat Armrest
OVERHEAD CONSOLE
Press near the rear edge of the door toopen it.
ASHTRAY
You can place the removable ashtray inany of the cup holders.
137Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStorage Compartments

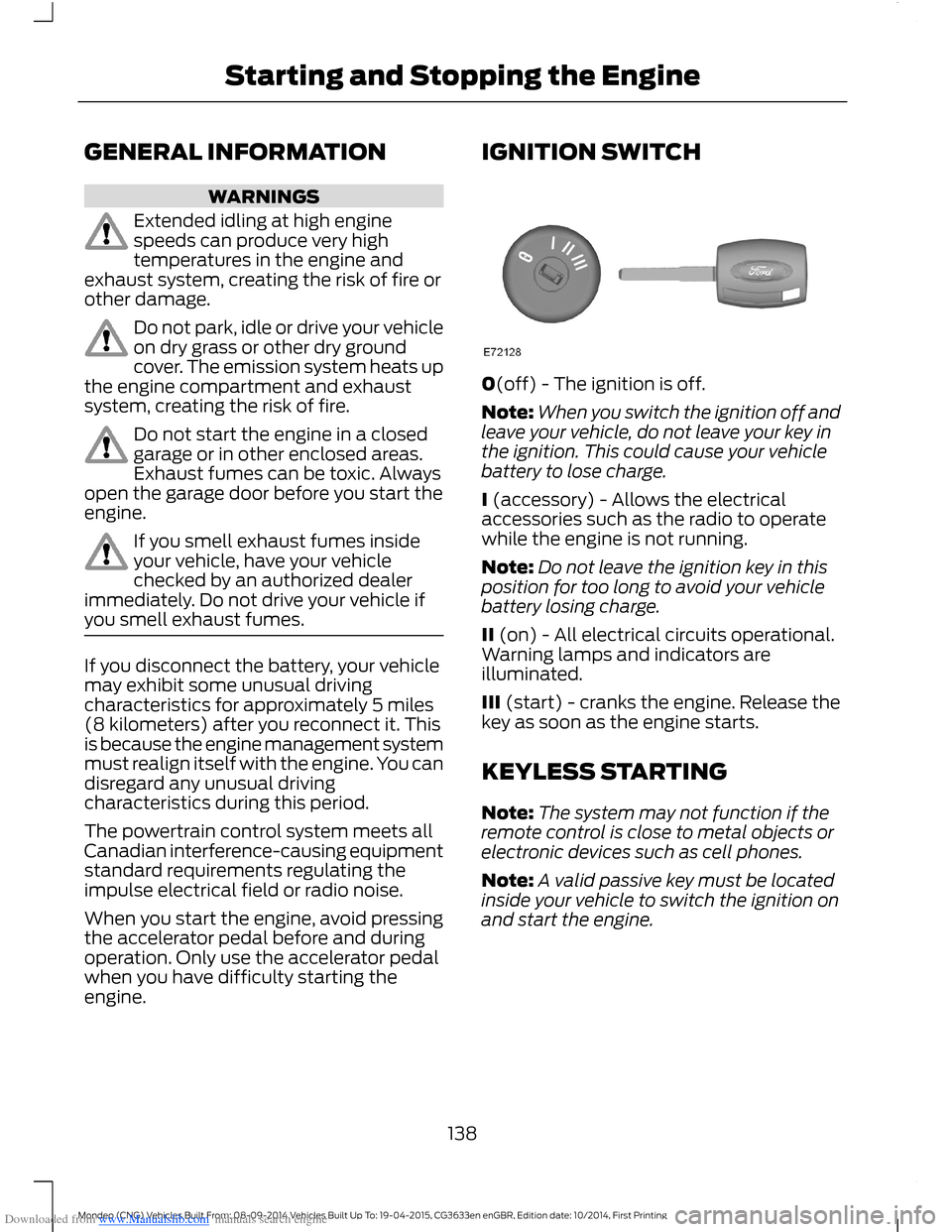

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
WARNINGS
Extended idling at high enginespeeds can produce very hightemperatures in the engine andexhaust system, creating the risk of fire orother damage.
Do not park, idle or drive your vehicleon dry grass or other dry groundcover. The emission system heats upthe engine compartment and exhaustsystem, creating the risk of fire.
Do not start the engine in a closedgarage or in other enclosed areas.Exhaust fumes can be toxic. Alwaysopen the garage door before you start theengine.
If you smell exhaust fumes insideyour vehicle, have your vehiclechecked by an authorized dealerimmediately. Do not drive your vehicle ifyou smell exhaust fumes.
If you disconnect the battery, your vehiclemay exhibit some unusual drivingcharacteristics for approximately 5 miles(8 kilometers) after you reconnect it. Thisis because the engine management systemmust realign itself with the engine. You candisregard any unusual drivingcharacteristics during this period.
The powertrain control system meets allCanadian interference-causing equipmentstandard requirements regulating theimpulse electrical field or radio noise.
When you start the engine, avoid pressingthe accelerator pedal before and duringoperation. Only use the accelerator pedalwhen you have difficulty starting theengine.
IGNITION SWITCH
0(off) - The ignition is off.
Note:When you switch the ignition off andleave your vehicle, do not leave your key inthe ignition. This could cause your vehiclebattery to lose charge.
I (accessory) - Allows the electricalaccessories such as the radio to operatewhile the engine is not running.
Note:Do not leave the ignition key in thisposition for too long to avoid your vehiclebattery losing charge.
II (on) - All electrical circuits operational.Warning lamps and indicators areilluminated.
III (start) - cranks the engine. Release thekey as soon as the engine starts.
KEYLESS STARTING
Note:The system may not function if theremote control is close to metal objects orelectronic devices such as cell phones.
Note:A valid passive key must be locatedinside your vehicle to switch the ignition onand start the engine.
