FORD MONDEO 2014 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Switching the Ignition On
Press the button once without your footon the brake or clutch pedal. It is locatedon the instrument panel near the steeringwheel. All electrical circuits andaccessories are operational and thewarning lamps and indicators illuminate.
Press the button again without your footon the brake or clutch pedal to turn yourvehicle off completely.
Starting Your Vehicle
Manual Transmission
1.Fully depress the clutch pedal.
2.Briefly press the button.
Note:Releasing the clutch pedal duringengine start will stop the engine and returnto ignition on.
Automatic Transmission
1.Move the transmission selector leverto park.
2.Fully depress the brake pedal.
3.Briefly press the button.
Note:Releasing the brake pedal duringengine start will stop the engine and returnto ignition on.
Diesel Engine
Note:Engine start will not commence untilthe engine glow plug cycle has beencompleted. This may take several secondsin extremely cold conditions.
STEERING WHEEL LOCK -
VEHICLES WITHOUT: KEYLESS
ENTRY AND PUSH BUTTON
START
WARNING
Always check that the steering isunlocked before attempting to moveyour vehicle.
To lock the steering wheel:
1.Remove the key from the ignitionswitch.
2.Rotate the steering wheel slightly toengage the lock.
To unlock the steering wheel:
1.Insert the key in the ignition switch.
2.Turn the key to position I.
Note:You may need to rotate the steeringwheel slightly to assist unlocking if there isa steering wheel load applied.
STEERING WHEEL LOCK -
VEHICLES WITH: KEYLESS
ENTRY AND PUSH BUTTON
START
Your vehicle has an electronicallycontrolled steering wheel lock thatoperates automatically.
139Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

Downloaded from www.Manualslib.com manuals search engine The system will lock the steering wheelafter a short period of time once you haveparked your vehicle and the passive key isoutside your vehicle, or when you lock yourvehicle.
Note:The system will not lock the steeringwheel when the ignition is on or while yourvehicle is moving.
Unlocking the Steering Wheel
Switch the ignition on to unlock thesteering wheel.
Note:You may have to rotate the steeringwheel slightly to assist unlocking.
STARTING A GASOLINE
ENGINE
When you start the engine, the idle speedincreases. This helps to warm up theengine. If the engine idle speed does notslow down automatically, have yourvehicle checked by an authorized dealer.
Note:You can crank the engine for a totalof 60 seconds (without the engine starting)before the starting system temporarilydisables. The 60 seconds does not have tobe all at once. For example, if you crank theengine three times for 20 seconds eachtime, without the engine starting, youreached the 60-second time limit. Amessage appears in the information displayalerting you that you exceeded the crankingtime. You cannot attempt to start the enginefor at least 15 minutes. After 15 minutes, youare limited to a 15-second engine crankingtime. You need to wait 60 minutes beforeyou can crank the engine for 60 secondsagain.
Before starting your vehicle, check thefollowing:
•Make sure all occupants have fastenedtheir safety belts.
•Make sure the headlamps andelectrical accessories are off.
•Make sure the parking brake is on.
•Move the transmission selector leverto a low gear (manual transmission)or park (P) (automatic transmission).
•Switch the ignition key to position II. Ifyour vehicle is equipped with a keylessignition, see the following instructions.
Vehicles with an Ignition Key
Note:Do not touch the accelerator pedal.
1.Fully press the brake pedal. If yourvehicle is equipped with a manualtransmission, fully press the clutchpedal also.
2.Turn the key to position III to start theengine. Release the key when theengine starts.
Note:The engine may continue crankingfor up to 15 seconds or until it starts.
Note:If you cannot start the engine on thefirst try, wait for a short period and try again.
Vehicles with Keyless Start
Note:Do not touch the accelerator pedal.
Note:You must have your intelligent accesskey in the vehicle in order to shift thetransmission out of park (P).
1.Fully press the clutch pedal (manualtransmission) or brake pedal(automatic transmission).
2.Press the button.
140Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

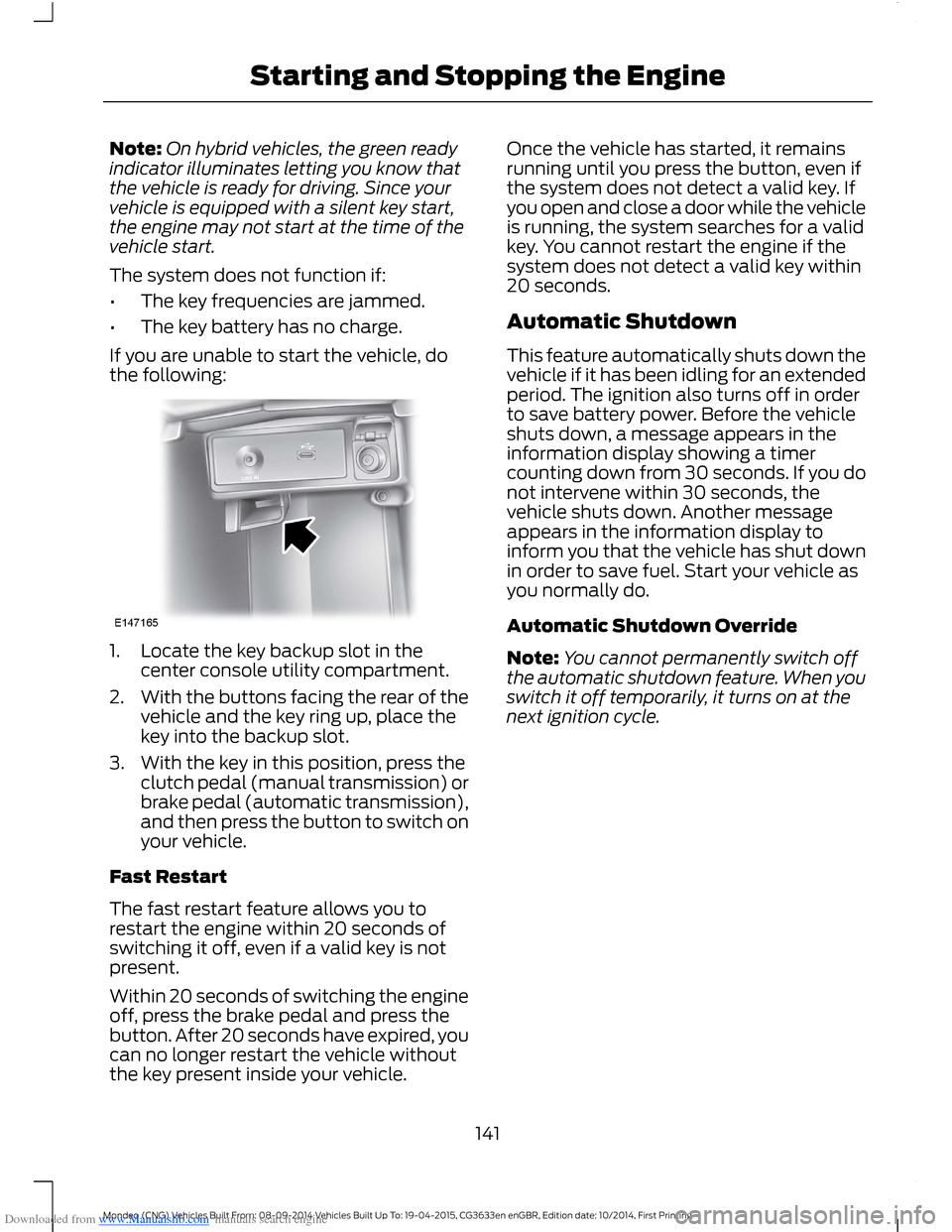

Downloaded from www.Manualslib.com manuals search engine Note:On hybrid vehicles, the green readyindicator illuminates letting you know thatthe vehicle is ready for driving. Since yourvehicle is equipped with a silent key start,the engine may not start at the time of thevehicle start.
The system does not function if:
•The key frequencies are jammed.
•The key battery has no charge.
If you are unable to start the vehicle, dothe following:
1.Locate the key backup slot in thecenter console utility compartment.
2.With the buttons facing the rear of thevehicle and the key ring up, place thekey into the backup slot.
3.With the key in this position, press theclutch pedal (manual transmission) orbrake pedal (automatic transmission),and then press the button to switch onyour vehicle.
Fast Restart
The fast restart feature allows you torestart the engine within 20 seconds ofswitching it off, even if a valid key is notpresent.
Within 20 seconds of switching the engineoff, press the brake pedal and press thebutton. After 20 seconds have expired, youcan no longer restart the vehicle withoutthe key present inside your vehicle.
Once the vehicle has started, it remainsrunning until you press the button, even ifthe system does not detect a valid key. Ifyou open and close a door while the vehicleis running, the system searches for a validkey. You cannot restart the engine if thesystem does not detect a valid key within20 seconds.
Automatic Shutdown
This feature automatically shuts down thevehicle if it has been idling for an extendedperiod. The ignition also turns off in orderto save battery power. Before the vehicleshuts down, a message appears in theinformation display showing a timercounting down from 30 seconds. If you donot intervene within 30 seconds, thevehicle shuts down. Another messageappears in the information display toinform you that the vehicle has shut downin order to save fuel. Start your vehicle asyou normally do.
Automatic Shutdown Override
Note:You cannot permanently switch offthe automatic shutdown feature. When youswitch it off temporarily, it turns on at thenext ignition cycle.
141Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

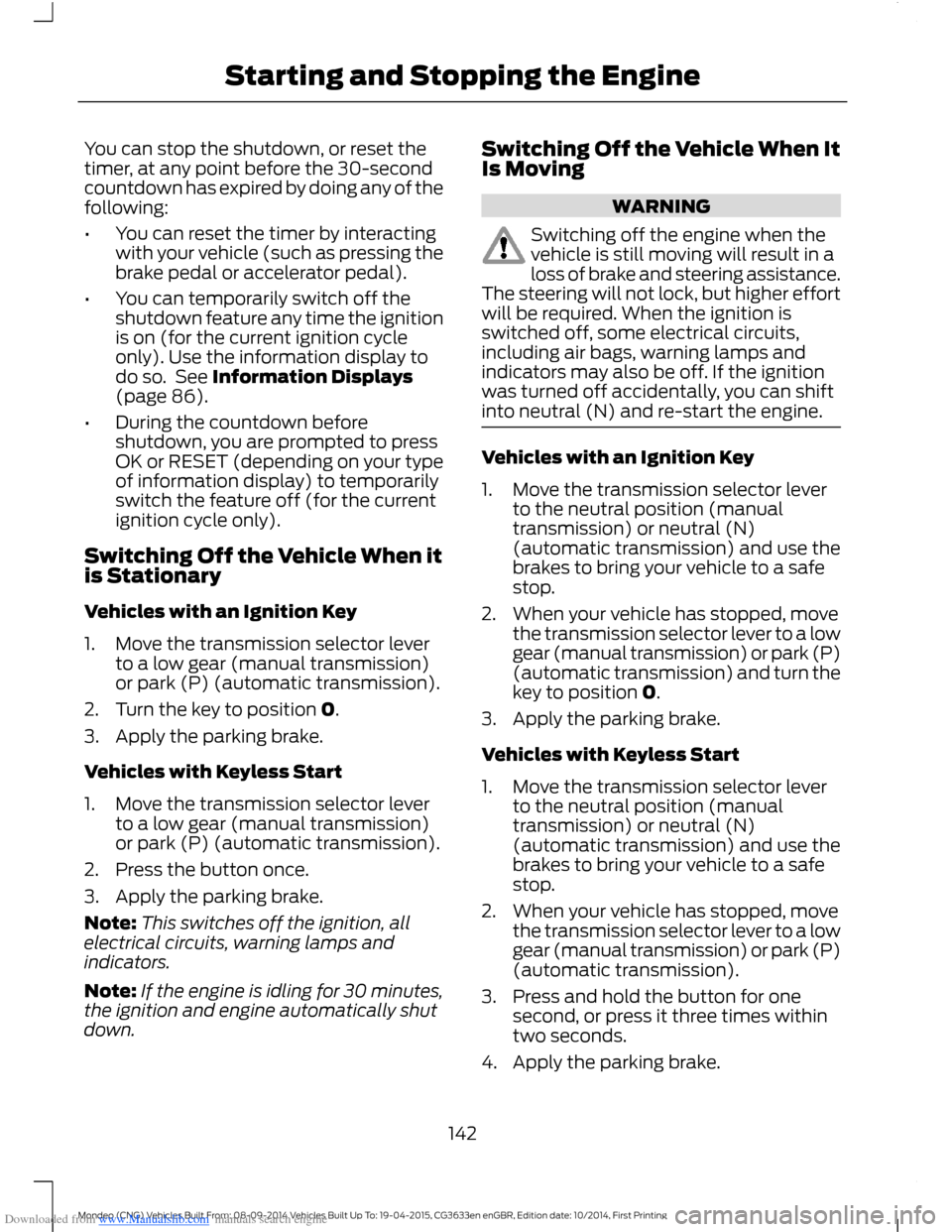

Downloaded from www.Manualslib.com manuals search engine You can stop the shutdown, or reset thetimer, at any point before the 30-secondcountdown has expired by doing any of thefollowing:
•You can reset the timer by interactingwith your vehicle (such as pressing thebrake pedal or accelerator pedal).
•You can temporarily switch off theshutdown feature any time the ignitionis on (for the current ignition cycleonly). Use the information display todo so. See Information Displays(page 86).
•During the countdown beforeshutdown, you are prompted to pressOK or RESET (depending on your typeof information display) to temporarilyswitch the feature off (for the currentignition cycle only).
Switching Off the Vehicle When itis Stationary
Vehicles with an Ignition Key
1.Move the transmission selector leverto a low gear (manual transmission)or park (P) (automatic transmission).
2.Turn the key to position 0.
3.Apply the parking brake.
Vehicles with Keyless Start
1.Move the transmission selector leverto a low gear (manual transmission)or park (P) (automatic transmission).
2.Press the button once.
3.Apply the parking brake.
Note:This switches off the ignition, allelectrical circuits, warning lamps andindicators.
Note:If the engine is idling for 30 minutes,the ignition and engine automatically shutdown.
Switching Off the Vehicle When ItIs Moving
WARNING
Switching off the engine when thevehicle is still moving will result in aloss of brake and steering assistance.The steering will not lock, but higher effortwill be required. When the ignition isswitched off, some electrical circuits,including air bags, warning lamps andindicators may also be off. If the ignitionwas turned off accidentally, you can shiftinto neutral (N) and re-start the engine.
Vehicles with an Ignition Key
1.Move the transmission selector leverto the neutral position (manualtransmission) or neutral (N)(automatic transmission) and use thebrakes to bring your vehicle to a safestop.
2.When your vehicle has stopped, movethe transmission selector lever to a lowgear (manual transmission) or park (P)(automatic transmission) and turn thekey to position 0.
3.Apply the parking brake.
Vehicles with Keyless Start
1.Move the transmission selector leverto the neutral position (manualtransmission) or neutral (N)(automatic transmission) and use thebrakes to bring your vehicle to a safestop.
2.When your vehicle has stopped, movethe transmission selector lever to a lowgear (manual transmission) or park (P)(automatic transmission).
3.Press and hold the button for onesecond, or press it three times withintwo seconds.
4.Apply the parking brake.
142Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

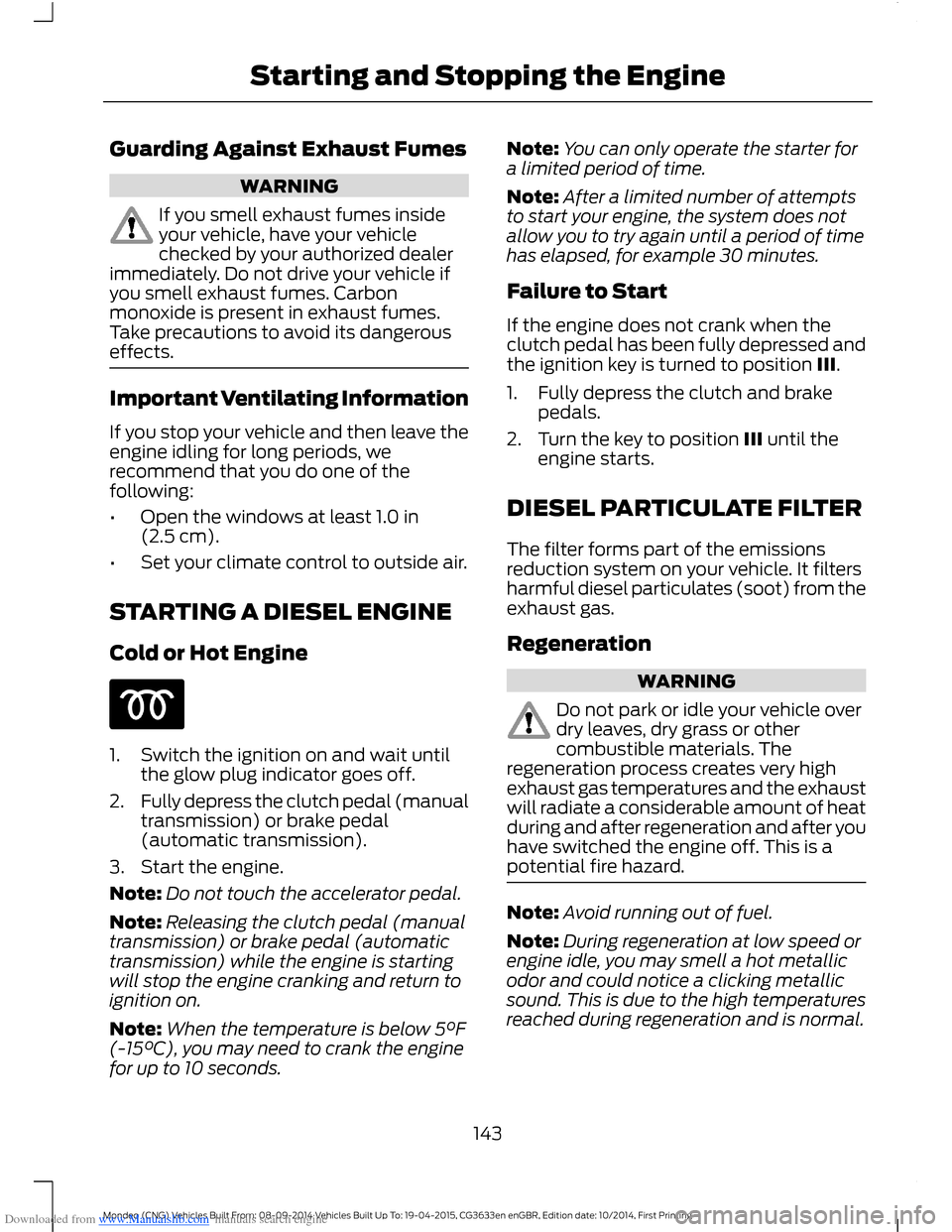

Downloaded from www.Manualslib.com manuals search engine Guarding Against Exhaust Fumes
WARNING
If you smell exhaust fumes insideyour vehicle, have your vehiclechecked by your authorized dealerimmediately. Do not drive your vehicle ifyou smell exhaust fumes. Carbonmonoxide is present in exhaust fumes.Take precautions to avoid its dangerouseffects.
Important Ventilating Information
If you stop your vehicle and then leave theengine idling for long periods, werecommend that you do one of thefollowing:
•Open the windows at least 1.0 in(2.5 cm).
•Set your climate control to outside air.
STARTING A DIESEL ENGINE
Cold or Hot Engine
1.Switch the ignition on and wait untilthe glow plug indicator goes off.
2.Fully depress the clutch pedal (manualtransmission) or brake pedal(automatic transmission).
3.Start the engine.
Note:Do not touch the accelerator pedal.
Note:Releasing the clutch pedal (manualtransmission) or brake pedal (automatictransmission) while the engine is startingwill stop the engine cranking and return toignition on.
Note:When the temperature is below 5°F(-15°C), you may need to crank the enginefor up to 10 seconds.
Note:You can only operate the starter fora limited period of time.
Note:After a limited number of attemptsto start your engine, the system does notallow you to try again until a period of timehas elapsed, for example 30 minutes.
Failure to Start
If the engine does not crank when theclutch pedal has been fully depressed andthe ignition key is turned to position III.
1.Fully depress the clutch and brakepedals.
2.Turn the key to position III until theengine starts.
DIESEL PARTICULATE FILTER
The filter forms part of the emissionsreduction system on your vehicle. It filtersharmful diesel particulates (soot) from theexhaust gas.
Regeneration
WARNING
Do not park or idle your vehicle overdry leaves, dry grass or othercombustible materials. Theregeneration process creates very highexhaust gas temperatures and the exhaustwill radiate a considerable amount of heatduring and after regeneration and after youhave switched the engine off. This is apotential fire hazard.
Note:Avoid running out of fuel.
Note:During regeneration at low speed orengine idle, you may smell a hot metallicodor and could notice a clicking metallicsound. This is due to the high temperaturesreached during regeneration and is normal.
143Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

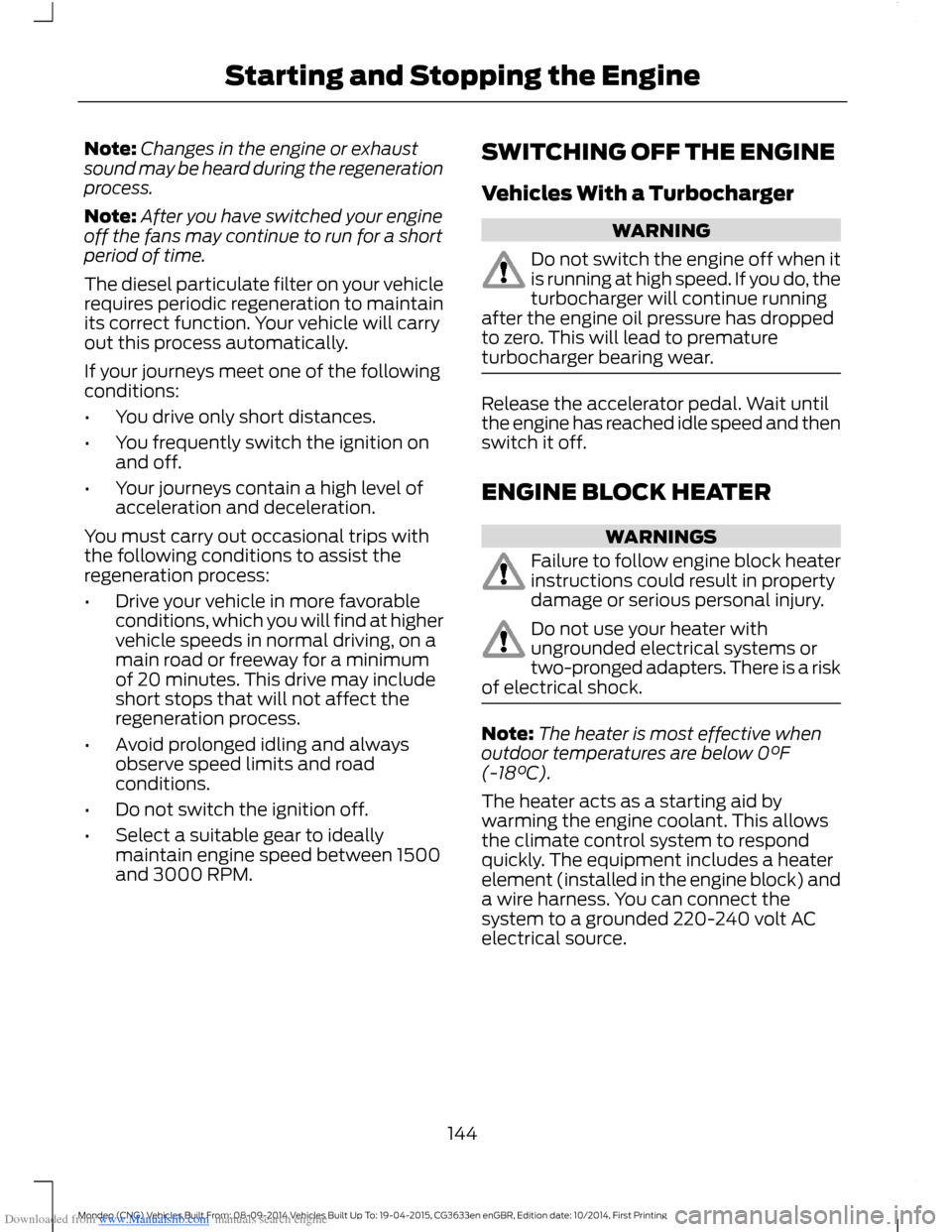

Downloaded from www.Manualslib.com manuals search engine Note:Changes in the engine or exhaustsound may be heard during the regenerationprocess.
Note:After you have switched your engineoff the fans may continue to run for a shortperiod of time.
The diesel particulate filter on your vehiclerequires periodic regeneration to maintainits correct function. Your vehicle will carryout this process automatically.
If your journeys meet one of the followingconditions:
•You drive only short distances.
•You frequently switch the ignition onand off.
•Your journeys contain a high level ofacceleration and deceleration.
You must carry out occasional trips withthe following conditions to assist theregeneration process:
•Drive your vehicle in more favorableconditions, which you will find at highervehicle speeds in normal driving, on amain road or freeway for a minimumof 20 minutes. This drive may includeshort stops that will not affect theregeneration process.
•Avoid prolonged idling and alwaysobserve speed limits and roadconditions.
•Do not switch the ignition off.
•Select a suitable gear to ideallymaintain engine speed between 1500and 3000 RPM.
SWITCHING OFF THE ENGINE
Vehicles With a Turbocharger
WARNING
Do not switch the engine off when itis running at high speed. If you do, theturbocharger will continue runningafter the engine oil pressure has droppedto zero. This will lead to prematureturbocharger bearing wear.
Release the accelerator pedal. Wait untilthe engine has reached idle speed and thenswitch it off.
ENGINE BLOCK HEATER
WARNINGS
Failure to follow engine block heaterinstructions could result in propertydamage or serious personal injury.
Do not use your heater withungrounded electrical systems ortwo-pronged adapters. There is a riskof electrical shock.
Note:The heater is most effective whenoutdoor temperatures are below 0°F(-18°C).
The heater acts as a starting aid bywarming the engine coolant. This allowsthe climate control system to respondquickly. The equipment includes a heaterelement (installed in the engine block) anda wire harness. You can connect thesystem to a grounded 220-240 volt ACelectrical source.
144Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

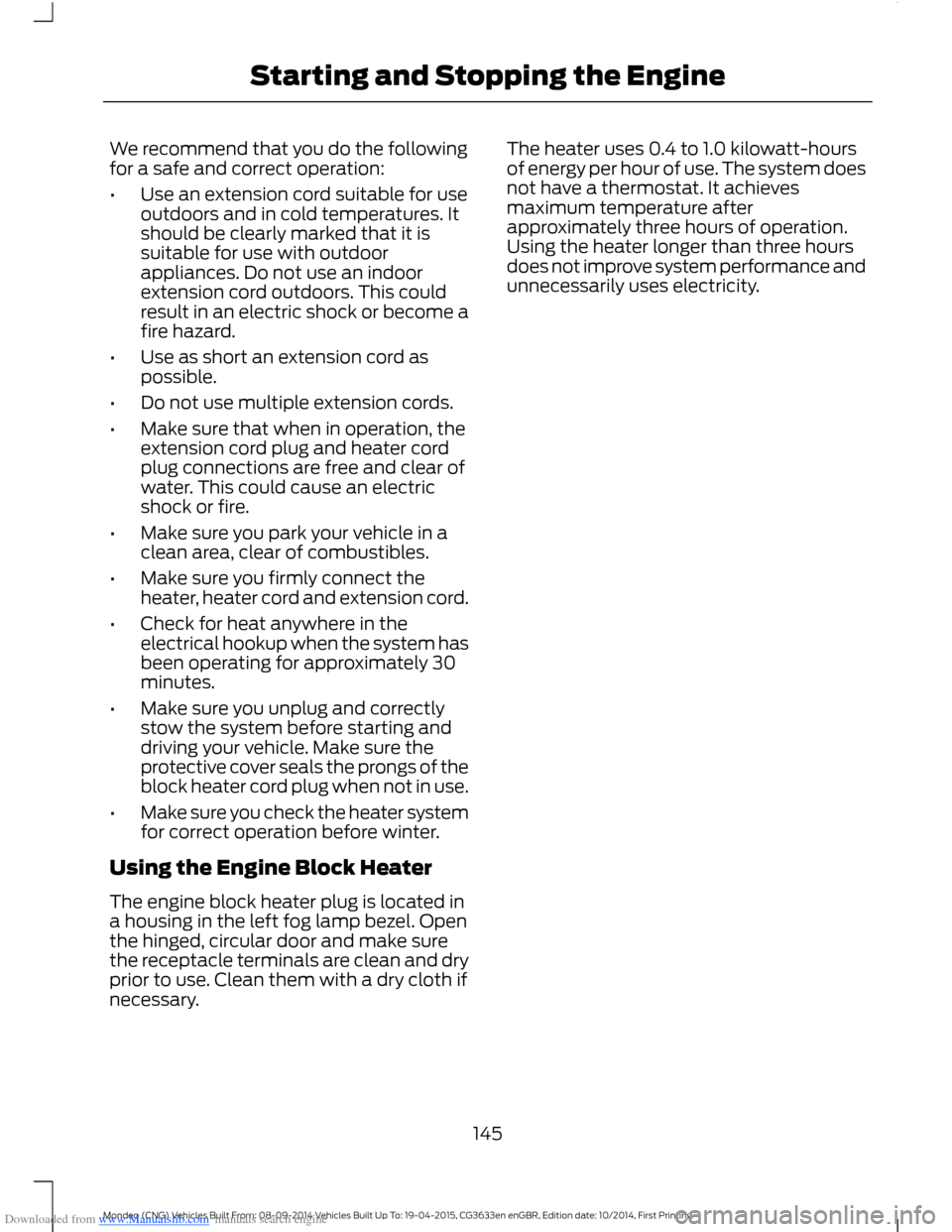

Downloaded from www.Manualslib.com manuals search engine We recommend that you do the followingfor a safe and correct operation:
•Use an extension cord suitable for useoutdoors and in cold temperatures. Itshould be clearly marked that it issuitable for use with outdoorappliances. Do not use an indoorextension cord outdoors. This couldresult in an electric shock or become afire hazard.
•Use as short an extension cord aspossible.
•Do not use multiple extension cords.
•Make sure that when in operation, theextension cord plug and heater cordplug connections are free and clear ofwater. This could cause an electricshock or fire.
•Make sure you park your vehicle in aclean area, clear of combustibles.
•Make sure you firmly connect theheater, heater cord and extension cord.
•Check for heat anywhere in theelectrical hookup when the system hasbeen operating for approximately 30minutes.
•Make sure you unplug and correctlystow the system before starting anddriving your vehicle. Make sure theprotective cover seals the prongs of theblock heater cord plug when not in use.
•Make sure you check the heater systemfor correct operation before winter.
Using the Engine Block Heater
The engine block heater plug is located ina housing in the left fog lamp bezel. Openthe hinged, circular door and make surethe receptacle terminals are clean and dryprior to use. Clean them with a dry cloth ifnecessary.
The heater uses 0.4 to 1.0 kilowatt-hoursof energy per hour of use. The system doesnot have a thermostat. It achievesmaximum temperature afterapproximately three hours of operation.Using the heater longer than three hoursdoes not improve system performance andunnecessarily uses electricity.
145Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingStarting and Stopping the Engine

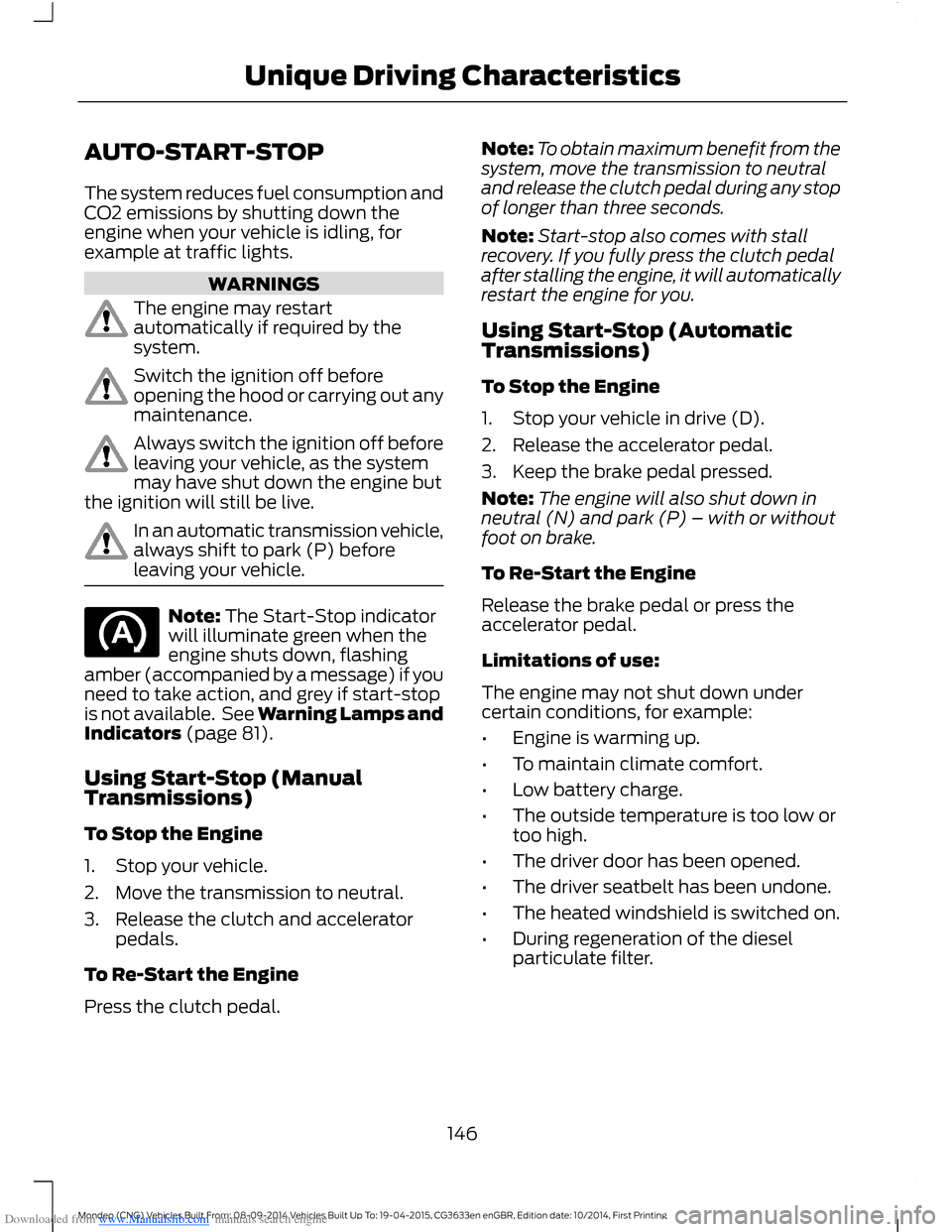

Downloaded from www.Manualslib.com manuals search engine AUTO-START-STOP
The system reduces fuel consumption andCO2 emissions by shutting down theengine when your vehicle is idling, forexample at traffic lights.
WARNINGS
The engine may restartautomatically if required by thesystem.
Switch the ignition off beforeopening the hood or carrying out anymaintenance.
Always switch the ignition off beforeleaving your vehicle, as the systemmay have shut down the engine butthe ignition will still be live.
In an automatic transmission vehicle,always shift to park (P) beforeleaving your vehicle.
Note: The Start-Stop indicatorwill illuminate green when theengine shuts down, flashingamber (accompanied by a message) if youneed to take action, and grey if start-stopis not available. See Warning Lamps andIndicators (page 81).
Using Start-Stop (ManualTransmissions)
To Stop the Engine
1.Stop your vehicle.
2.Move the transmission to neutral.
3.Release the clutch and acceleratorpedals.
To Re-Start the Engine
Press the clutch pedal.
Note:To obtain maximum benefit from thesystem, move the transmission to neutraland release the clutch pedal during any stopof longer than three seconds.
Note:Start-stop also comes with stallrecovery. If you fully press the clutch pedalafter stalling the engine, it will automaticallyrestart the engine for you.
Using Start-Stop (AutomaticTransmissions)
To Stop the Engine
1.Stop your vehicle in drive (D).
2.Release the accelerator pedal.
3.Keep the brake pedal pressed.
Note:The engine will also shut down inneutral (N) and park (P) – with or withoutfoot on brake.
To Re-Start the Engine
Release the brake pedal or press theaccelerator pedal.
Limitations of use:
The engine may not shut down undercertain conditions, for example:
•Engine is warming up.
•To maintain climate comfort.
•Low battery charge.
•The outside temperature is too low ortoo high.
•The driver door has been opened.
•The driver seatbelt has been undone.
•The heated windshield is switched on.
•During regeneration of the dieselparticulate filter.
146Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingUnique Driving Characteristics

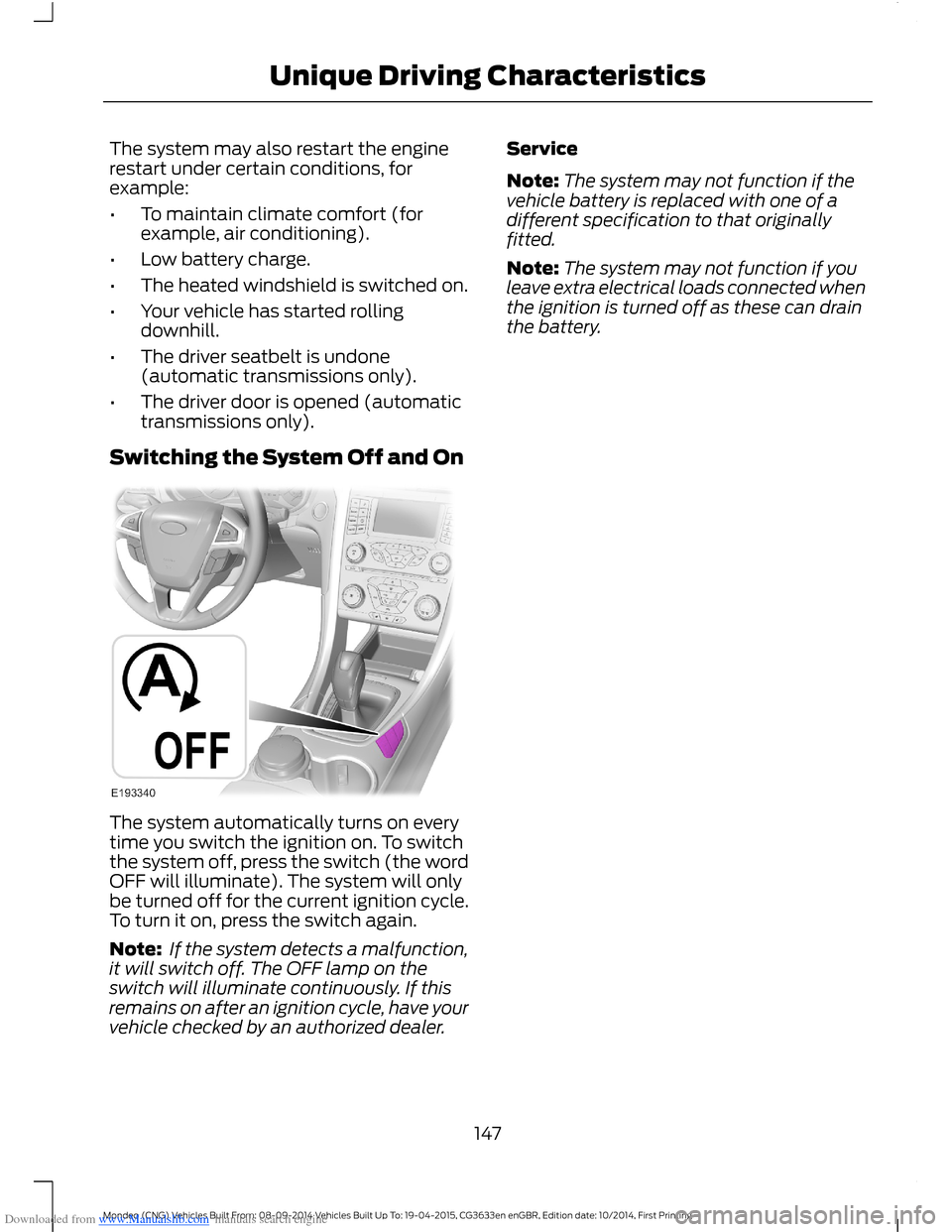

Downloaded from www.Manualslib.com manuals search engine The system may also restart the enginerestart under certain conditions, forexample:
•To maintain climate comfort (forexample, air conditioning).
•Low battery charge.
•The heated windshield is switched on.
•Your vehicle has started rollingdownhill.
•The driver seatbelt is undone(automatic transmissions only).
•The driver door is opened (automatictransmissions only).
Switching the System Off and On
The system automatically turns on everytime you switch the ignition on. To switchthe system off, press the switch (the wordOFF will illuminate). The system will onlybe turned off for the current ignition cycle.To turn it on, press the switch again.
Note: If the system detects a malfunction,it will switch off. The OFF lamp on theswitch will illuminate continuously. If thisremains on after an ignition cycle, have yourvehicle checked by an authorized dealer.
Service
Note:The system may not function if thevehicle battery is replaced with one of adifferent specification to that originallyfitted.
Note:The system may not function if youleave extra electrical loads connected whenthe ignition is turned off as these can drainthe battery.
147Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingUnique Driving Characteristics

Downloaded from www.Manualslib.com manuals search engine SAFETY PRECAUTIONS
WARNINGS
Do not overfill the fuel tank. Thepressure in an overfilled tank maycause leakage and lead to fuel sprayand fire.
The fuel system may be underpressure. If you hear a hissing soundnear the fuel filler door (Easy Fuelcapless fuel system), do not refuel untilthe sound stops. Otherwise, fuel may sprayout, which could cause serious personalinjury.
Automotive fuels can cause seriousinjury or death if misused ormishandled.
Flow of fuel through a fuel pumpnozzle can produce static electricity.This can cause a fire if you are fillingan ungrounded fuel container.
Fuel ethanol and gasoline maycontain benzene, which is acancer-causing agent.
When refueling always shut theengine off and never allow sparks oropen flames near the filler neck.Never smoke or use a cell phone whilerefueling. Fuel vapor is extremelyhazardous under certain conditions. Avoidinhaling excess fumes.
Observe the following guidelines whenhandling automotive fuel:
•Extinguish all smoking materials andany open flames before refueling yourvehicle.
•Always turn off the vehicle beforerefueling.
•Automotive fuels can be harmful orfatal if swallowed. Fuel such asgasoline is highly toxic and ifswallowed can cause death orpermanent injury. If fuel is swallowed,call a physician immediately, even if nosymptoms are immediately apparent.The toxic effects of fuel may not bevisible for hours.
•Avoid inhaling fuel vapors. Inhaling toomuch fuel vapor of any kind can leadto eye and respiratory tract irritation.In severe cases, excessive or prolongedbreathing of fuel vapor can causeserious illness and permanent injury.
•Avoid getting fuel liquid in your eyes. Iffuel is splashed in the eyes, removecontact lenses (if worn), flush withwater for 15 minutes and seek medicalattention. Failure to seek propermedical attention could lead topermanent injury.
•Fuels can also be harmful if absorbedthrough the skin. If fuel is splashed onthe skin, clothing or both, promptlyremove contaminated clothing andwash skin thoroughly with soap andwater. Repeated or prolonged skincontact with fuel liquid or vapor causesskin irritation.
•Be particularly careful if you are taking“Antabuse” or other forms of disulfiramfor the treatment of alcoholism.Breathing gasoline vapors, or skincontact could cause an adversereaction. In sensitive individuals, seriouspersonal injury or sickness may result.If fuel is splashed on the skin, promptlywash skin thoroughly with soap andwater. Consult a physician immediatelyif you experience an adverse reaction.
148Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuel and Refueling
