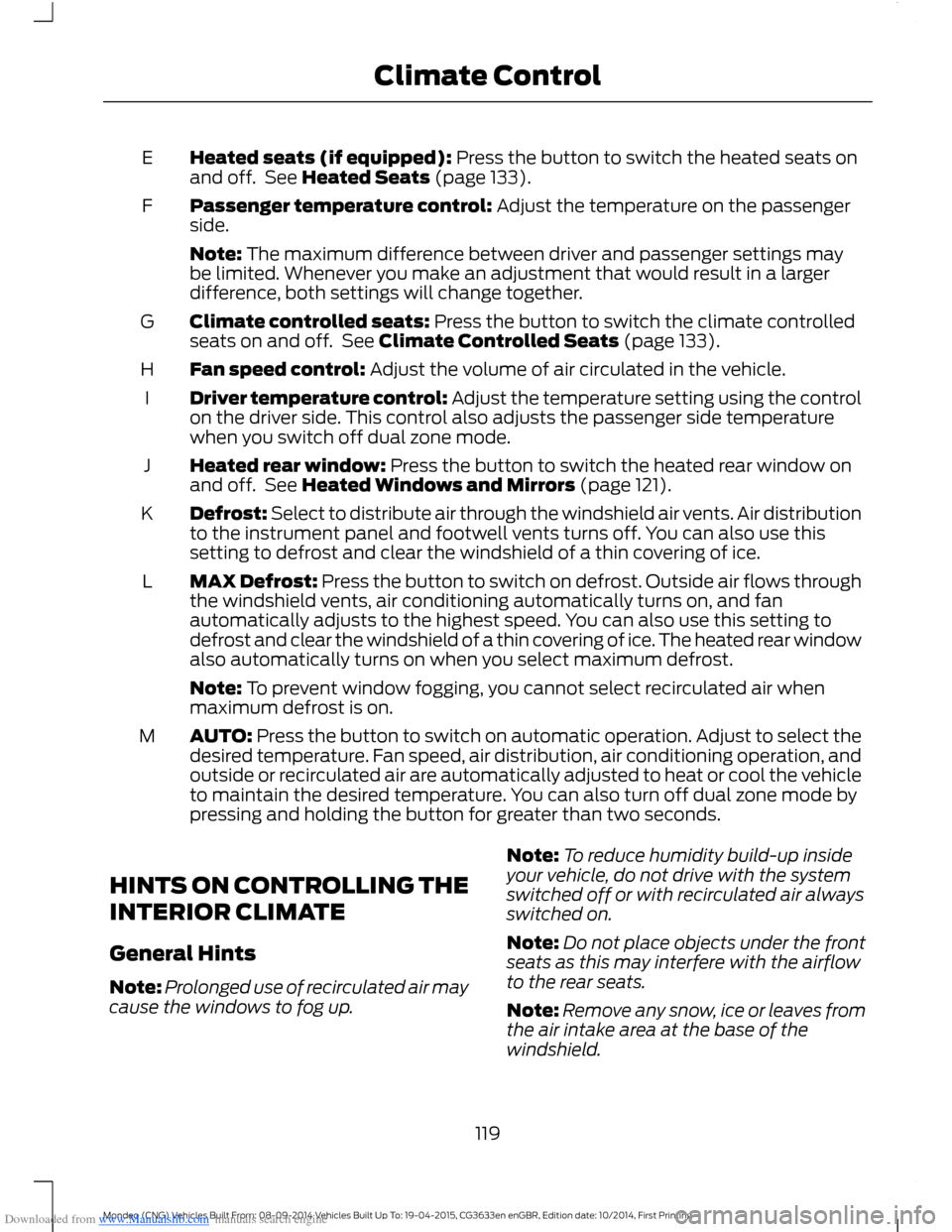

Downloaded from www.Manualslib.com manuals search engine Heated seats (if equipped): Press the button to switch the heated seats onand off. See Heated Seats (page 133).E
Passenger temperature control: Adjust the temperature on the passengerside.F
Note: The maximum difference between driver and passenger settings maybe limited. Whenever you make an adjustment that would result in a largerdifference, both settings will change together.
Climate controlled seats: Press the button to switch the climate controlledseats on and off. See Climate Controlled Seats (page 133).G
Fan speed control: Adjust the volume of air circulated in the vehicle.H
Driver temperature control: Adjust the temperature setting using the controlon the driver side. This control also adjusts the passenger side temperaturewhen you switch off dual zone mode.
I
Heated rear window: Press the button to switch the heated rear window onand off. See Heated Windows and Mirrors (page 121).J
Defrost: Select to distribute air through the windshield air vents. Air distributionto the instrument panel and footwell vents turns off. You can also use thissetting to defrost and clear the windshield of a thin covering of ice.
K
MAX Defrost: Press the button to switch on defrost. Outside air flows throughthe windshield vents, air conditioning automatically turns on, and fanautomatically adjusts to the highest speed. You can also use this setting todefrost and clear the windshield of a thin covering of ice. The heated rear windowalso automatically turns on when you select maximum defrost.
L
Note: To prevent window fogging, you cannot select recirculated air whenmaximum defrost is on.
AUTO: Press the button to switch on automatic operation. Adjust to select thedesired temperature. Fan speed, air distribution, air conditioning operation, andoutside or recirculated air are automatically adjusted to heat or cool the vehicleto maintain the desired temperature. You can also turn off dual zone mode bypressing and holding the button for greater than two seconds.
M
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air maycause the windows to fog up.
Note:To reduce humidity build-up insideyour vehicle, do not drive with the systemswitched off or with recirculated air alwaysswitched on.
Note:Do not place objects under the frontseats as this may interfere with the airflowto the rear seats.
Note:Remove any snow, ice or leaves fromthe air intake area at the base of thewindshield.
119Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

Downloaded from www.Manualslib.com manuals search engine Note:To improve air conditioning whenstarting your vehicle, drive with the windowsslightly open for two to three minutes.
Manual Climate Control
Note:To reduce fogging of the windshieldduring humid weather, adjust the airdistribution control to the windshield airvents position.
Automatic Climate Control
Note:Do not adjust the settings when yourvehicle interior is extremely hot or cold. Thesystem automatically adjusts to thepreviously stored settings. For the systemto function efficiently, the instrument paneland side air vents should be fully open.
Note:At low ambient temperatures withAUTO selected, the air stream is directedtoward the windshield and side windowsfor as long as the engine remains cold.
Note:When the system is in AUTO mode,and the interior and exterior temperaturesare high, the system automatically selectsrecirculated air to maximize cooling of theinterior. When the selected air temperatureis reached, the system automatically selectsoutside air.

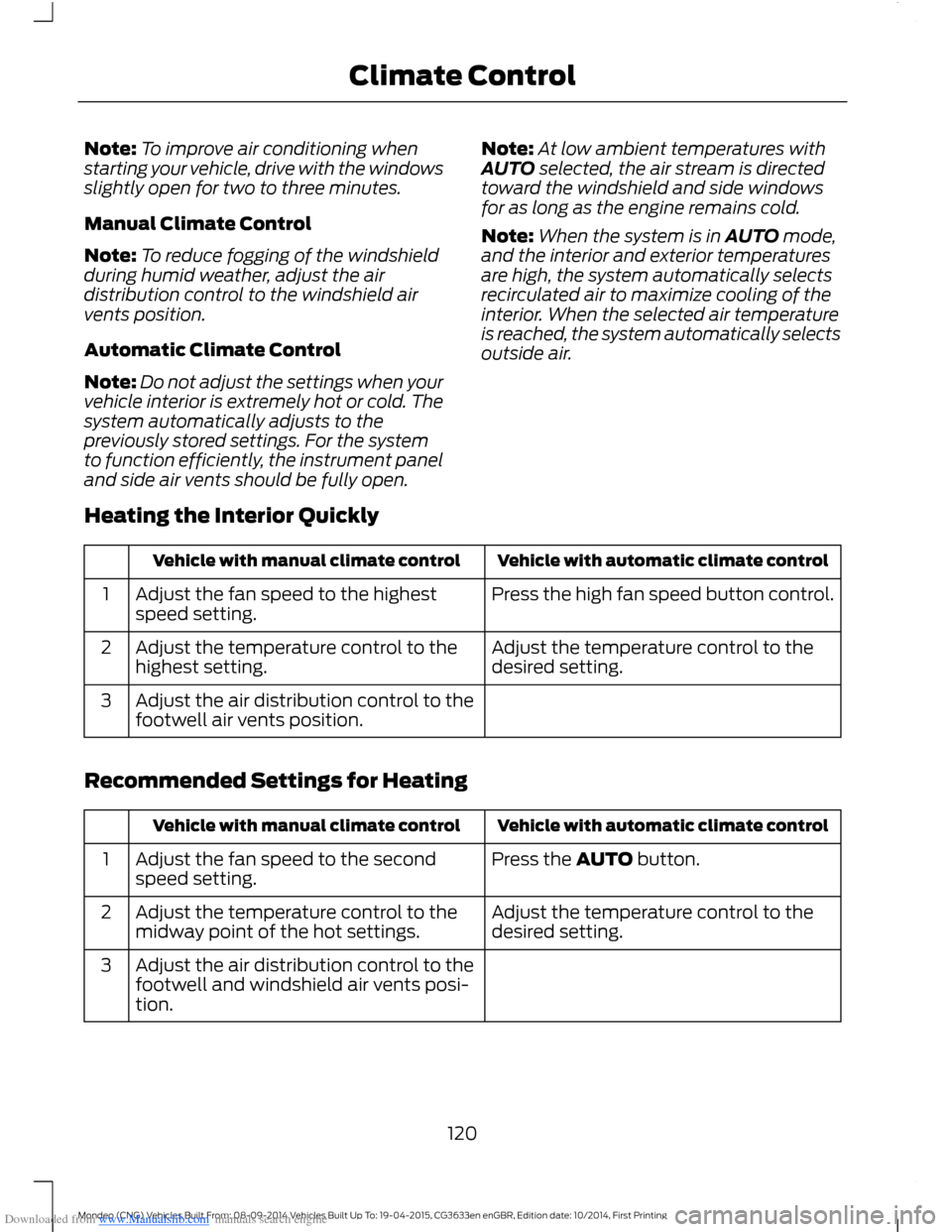

Heating the Interior Quickly
Vehicle with automatic climate controlVehicle with manual climate control
Press the high fan speed button control.Adjust the fan speed to the highestspeed setting.1
Adjust the temperature control to thedesired setting.Adjust the temperature control to thehighest setting.2
Adjust the air distribution control to thefootwell air vents position.3
Recommended Settings for Heating
Vehicle with automatic climate controlVehicle with manual climate control
Press the AUTO button.Adjust the fan speed to the secondspeed setting.1
Adjust the temperature control to thedesired setting.Adjust the temperature control to themidway point of the hot settings.2
Adjust the air distribution control to thefootwell and windshield air vents posi-tion.
3
120Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

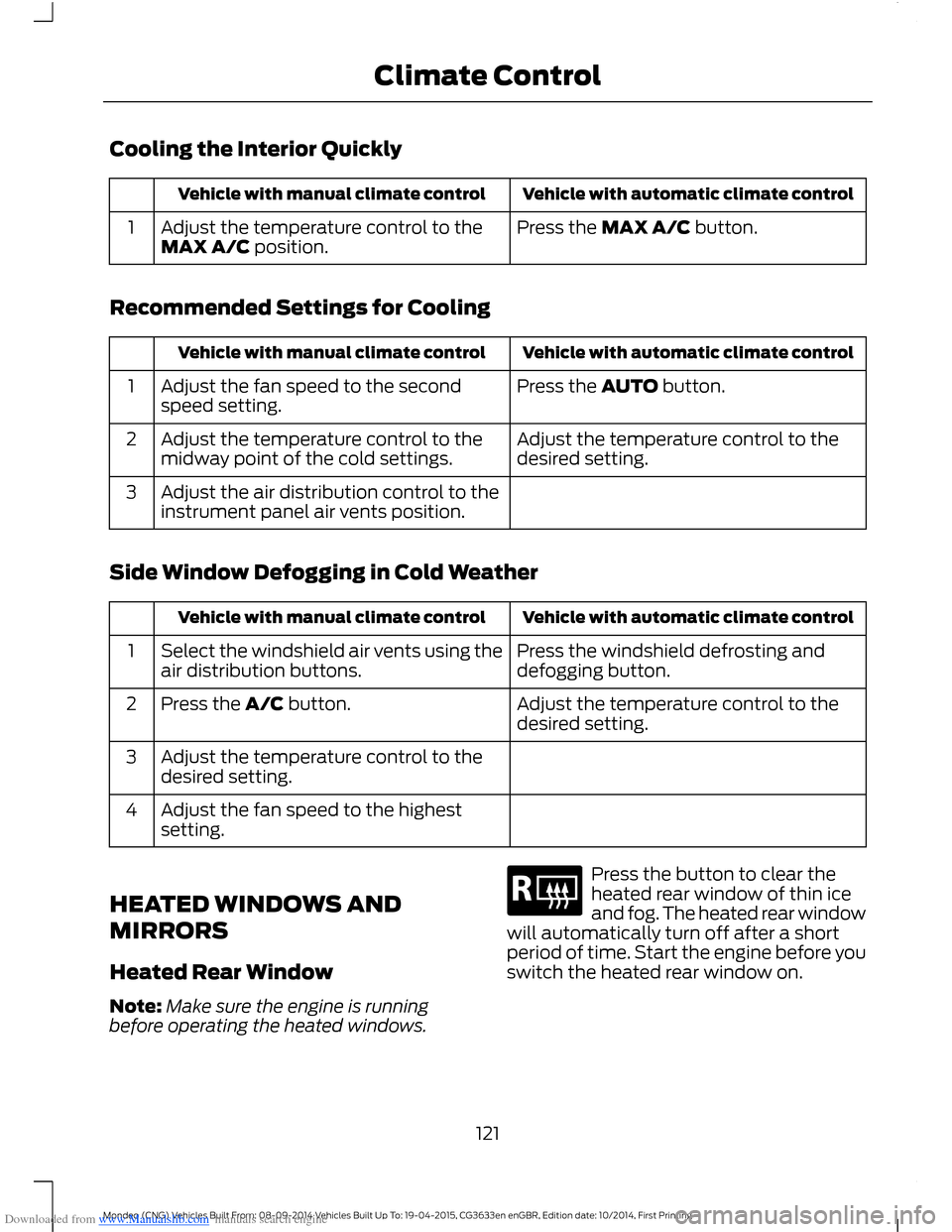

Downloaded from www.Manualslib.com manuals search engine Cooling the Interior Quickly
Vehicle with automatic climate controlVehicle with manual climate control
Press the MAX A/C button.Adjust the temperature control to theMAX A/C position.1
Recommended Settings for Cooling
Vehicle with automatic climate controlVehicle with manual climate control
Press the AUTO button.Adjust the fan speed to the secondspeed setting.1
Adjust the temperature control to thedesired setting.Adjust the temperature control to themidway point of the cold settings.2
Adjust the air distribution control to theinstrument panel air vents position.3
Side Window Defogging in Cold Weather
Vehicle with automatic climate controlVehicle with manual climate control
Press the windshield defrosting anddefogging button.Select the windshield air vents using theair distribution buttons.1
Adjust the temperature control to thedesired setting.Press the A/C button.2
Adjust the temperature control to thedesired setting.3
Adjust the fan speed to the highestsetting.4
HEATED WINDOWS AND
MIRRORS
Heated Rear Window
Note:Make sure the engine is runningbefore operating the heated windows.
Press the button to clear theheated rear window of thin iceand fog. The heated rear windowwill automatically turn off after a shortperiod of time. Start the engine before youswitch the heated rear window on.
121Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

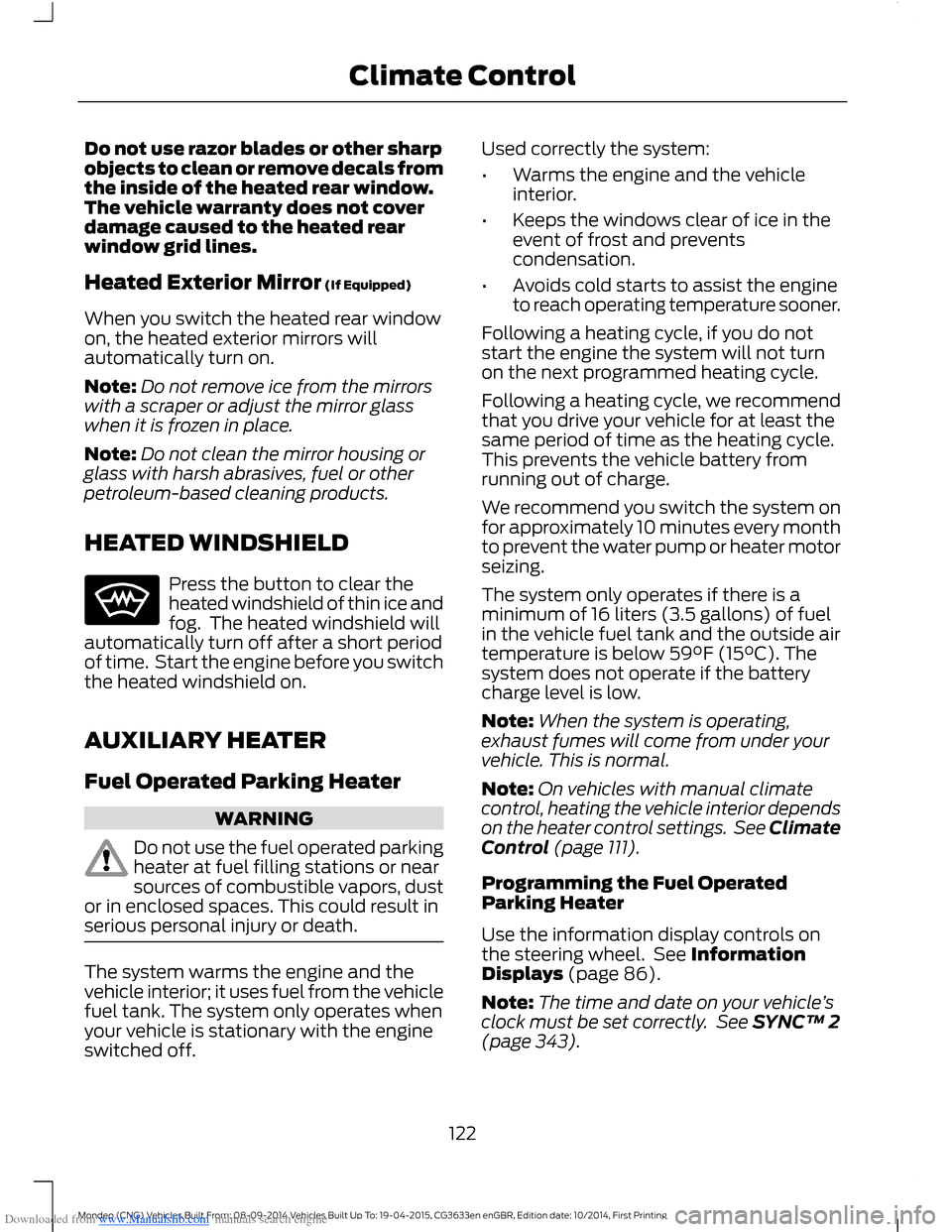

Downloaded from www.Manualslib.com manuals search engine Do not use razor blades or other sharpobjects to clean or remove decals fromthe inside of the heated rear window.The vehicle warranty does not coverdamage caused to the heated rearwindow grid lines.
Heated Exterior Mirror (If Equipped)
When you switch the heated rear windowon, the heated exterior mirrors willautomatically turn on.
Note:Do not remove ice from the mirrorswith a scraper or adjust the mirror glasswhen it is frozen in place.
Note:Do not clean the mirror housing orglass with harsh abrasives, fuel or otherpetroleum-based cleaning products.
HEATED WINDSHIELD
Press the button to clear theheated windshield of thin ice andfog. The heated windshield willautomatically turn off after a short periodof time. Start the engine before you switchthe heated windshield on.
AUXILIARY HEATER
Fuel Operated Parking Heater
WARNING
Do not use the fuel operated parkingheater at fuel filling stations or nearsources of combustible vapors, dustor in enclosed spaces. This could result inserious personal injury or death.
The system warms the engine and thevehicle interior; it uses fuel from the vehiclefuel tank. The system only operates whenyour vehicle is stationary with the engineswitched off.
Used correctly the system:
•Warms the engine and the vehicleinterior.
•Keeps the windows clear of ice in theevent of frost and preventscondensation.
•Avoids cold starts to assist the engineto reach operating temperature sooner.
Following a heating cycle, if you do notstart the engine the system will not turnon the next programmed heating cycle.
Following a heating cycle, we recommendthat you drive your vehicle for at least thesame period of time as the heating cycle.This prevents the vehicle battery fromrunning out of charge.
We recommend you switch the system onfor approximately 10 minutes every monthto prevent the water pump or heater motorseizing.
The system only operates if there is aminimum of 16 liters (3.5 gallons) of fuelin the vehicle fuel tank and the outside airtemperature is below 59°F (15°C). Thesystem does not operate if the batterycharge level is low.
Note:When the system is operating,exhaust fumes will come from under yourvehicle. This is normal.
Note:On vehicles with manual climatecontrol, heating the vehicle interior dependson the heater control settings. See ClimateControl (page 111).
Programming the Fuel OperatedParking Heater
Use the information display controls onthe steering wheel. See InformationDisplays (page 86).
Note:The time and date on your vehicle’sclock must be set correctly. See SYNC™ 2(page 343).
122Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

Downloaded from www.Manualslib.com manuals search engine Note:You must program the time at least70 minutes before the time you wish to set.Note:The programmed time is when youwant your vehicle to be warm and ready todrive, not when the heater turns on.
To program the fuel operated parking heater, scroll to:
Action and DescriptionMessage
Press the OK button.Settings
Press the OK button.Convenience
Press the OK button.Park heater
Select one of the following:
Allows you to program a heating cycle for each day of theweek. These times remain stored and the system warms upyour vehicle at the programmed times.
Time 1
Allows you to program a second heating cycle for each dayof the week. These times remain stored and the systemwarms up your vehicle at the programmed times.
Time 2
Select to set a second heating cycle, for example differenttimes on different days or twice on the same day.
Allows you to program one heating cycle for a specific day.Once
Switches the system on immediately.Heat now

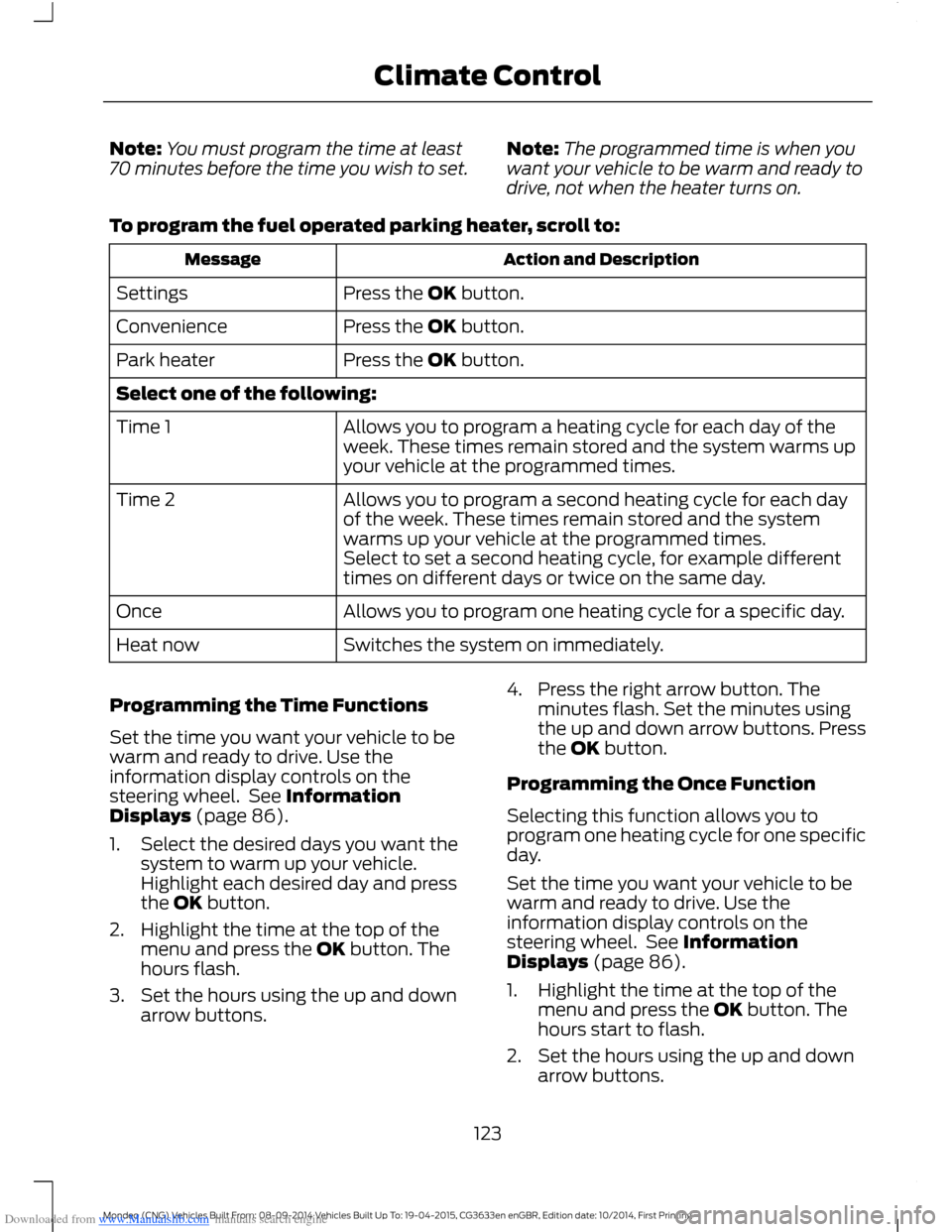

Programming the Time Functions
Set the time you want your vehicle to bewarm and ready to drive. Use theinformation display controls on thesteering wheel. See InformationDisplays (page 86).
1.Select the desired days you want thesystem to warm up your vehicle.Highlight each desired day and pressthe OK button.
2.Highlight the time at the top of themenu and press the OK button. Thehours flash.
3.Set the hours using the up and downarrow buttons.
4.Press the right arrow button. Theminutes flash. Set the minutes usingthe up and down arrow buttons. Pressthe OK button.
Programming the Once Function
Selecting this function allows you toprogram one heating cycle for one specificday.
Set the time you want your vehicle to bewarm and ready to drive. Use theinformation display controls on thesteering wheel. See InformationDisplays (page 86).
1.Highlight the time at the top of themenu and press the OK button. Thehours start to flash.
2.Set the hours using the up and downarrow buttons.
123Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

Downloaded from www.Manualslib.com manuals search engine 3.Press the right arrow button. Set theminutes using the up and down arrowbuttons. Press the OK button.

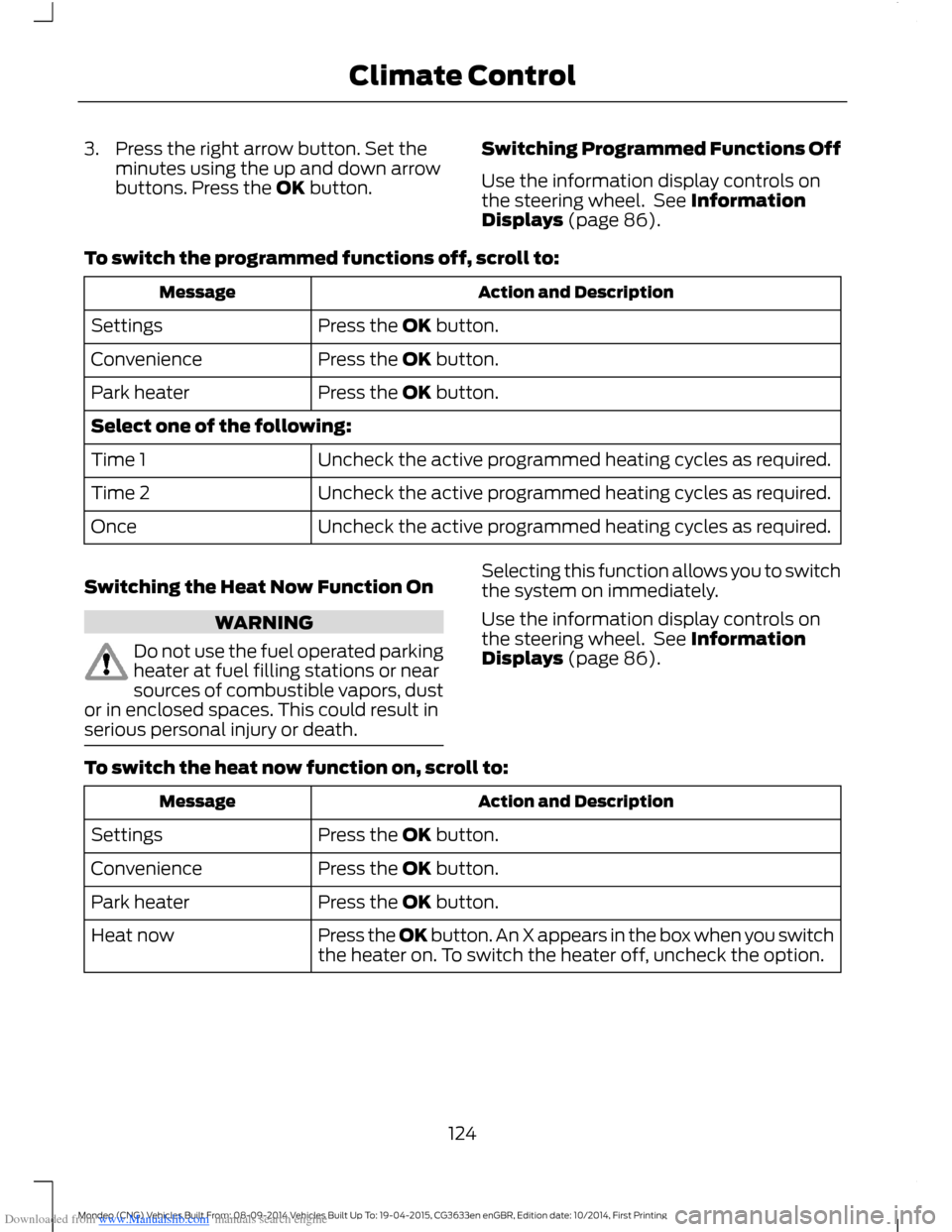

Switching Programmed Functions Off
Use the information display controls onthe steering wheel. See InformationDisplays (page 86).
To switch the programmed functions off, scroll to:
Action and DescriptionMessage
Press the OK button.Settings
Press the OK button.Convenience
Press the OK button.Park heater
Select one of the following:
Uncheck the active programmed heating cycles as required.Time 1
Uncheck the active programmed heating cycles as required.Time 2
Uncheck the active programmed heating cycles as required.Once
Switching the Heat Now Function On
WARNING
Do not use the fuel operated parkingheater at fuel filling stations or nearsources of combustible vapors, dustor in enclosed spaces. This could result inserious personal injury or death.
Selecting this function allows you to switchthe system on immediately.
Use the information display controls onthe steering wheel. See InformationDisplays (page 86).
To switch the heat now function on, scroll to:
Action and DescriptionMessage
Press the OK button.Settings
Press the OK button.Convenience
Press the OK button.Park heater
Press the OK button. An X appears in the box when you switchthe heater on. To switch the heater off, uncheck the option.Heat now
124Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

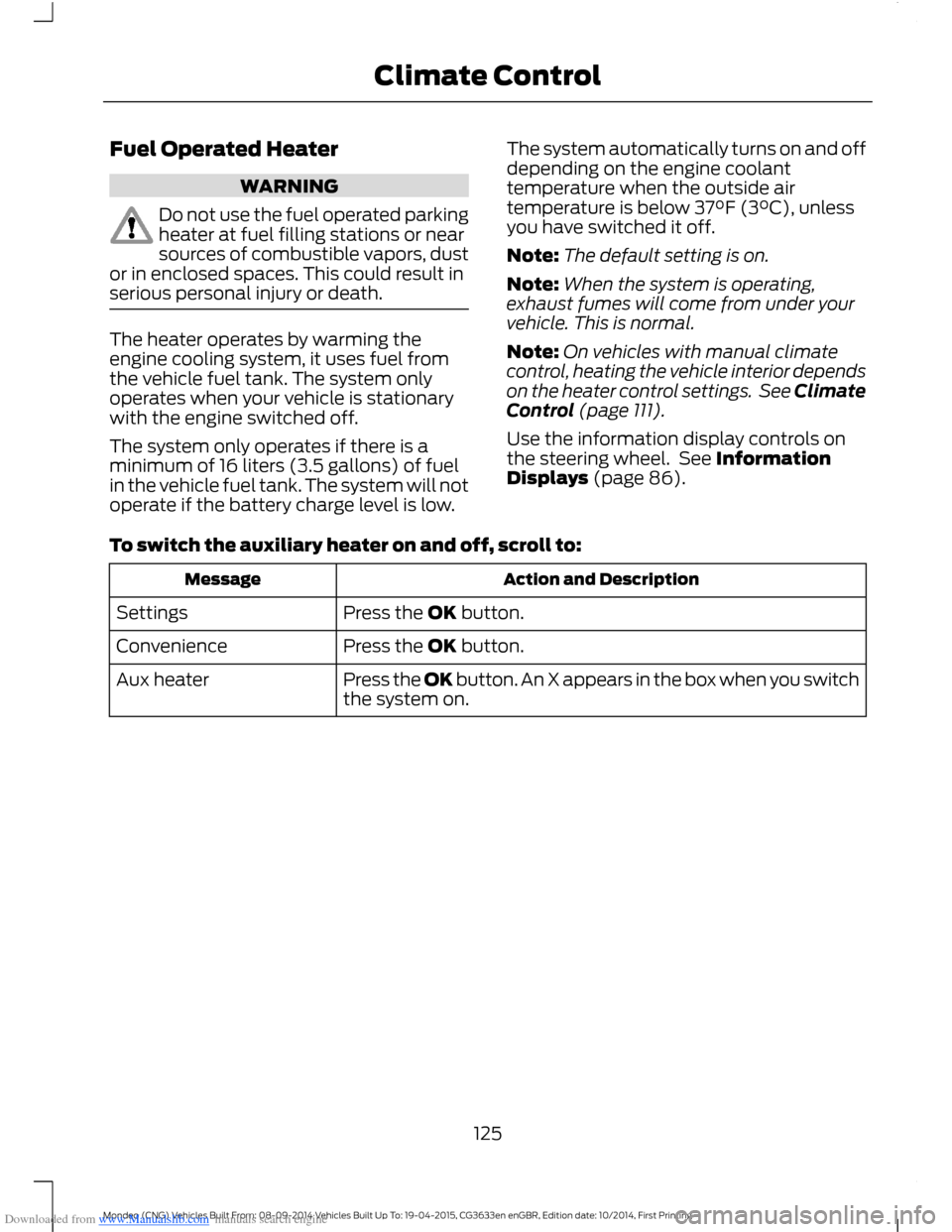

Downloaded from www.Manualslib.com manuals search engine Fuel Operated Heater
WARNING
Do not use the fuel operated parkingheater at fuel filling stations or nearsources of combustible vapors, dustor in enclosed spaces. This could result inserious personal injury or death.
The heater operates by warming theengine cooling system, it uses fuel fromthe vehicle fuel tank. The system onlyoperates when your vehicle is stationarywith the engine switched off.
The system only operates if there is aminimum of 16 liters (3.5 gallons) of fuelin the vehicle fuel tank. The system will notoperate if the battery charge level is low.
The system automatically turns on and offdepending on the engine coolanttemperature when the outside airtemperature is below 37°F (3°C), unlessyou have switched it off.
Note:The default setting is on.
Note:When the system is operating,exhaust fumes will come from under yourvehicle. This is normal.
Note:On vehicles with manual climatecontrol, heating the vehicle interior dependson the heater control settings. See ClimateControl (page 111).
Use the information display controls onthe steering wheel. See InformationDisplays (page 86).
To switch the auxiliary heater on and off, scroll to:
Action and DescriptionMessage
Press the OK button.Settings
Press the OK button.Convenience
Press the OK button. An X appears in the box when you switchthe system on.Aux heater
125Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingClimate Control

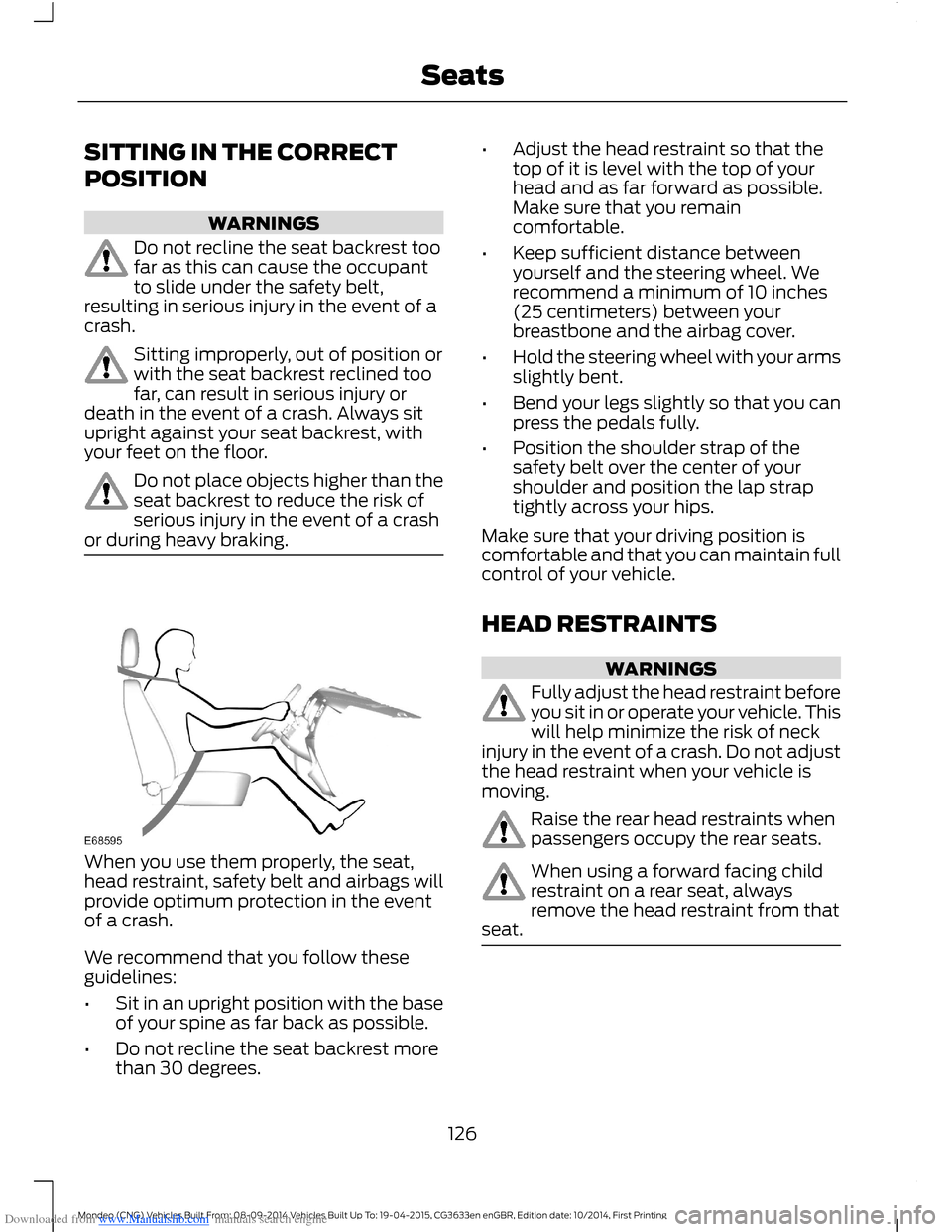

Downloaded from www.Manualslib.com manuals search engine SITTING IN THE CORRECT
POSITION
WARNINGS
Do not recline the seat backrest toofar as this can cause the occupantto slide under the safety belt,resulting in serious injury in the event of acrash.
Sitting improperly, out of position orwith the seat backrest reclined toofar, can result in serious injury ordeath in the event of a crash. Always situpright against your seat backrest, withyour feet on the floor.
Do not place objects higher than theseat backrest to reduce the risk ofserious injury in the event of a crashor during heavy braking.
When you use them properly, the seat,head restraint, safety belt and airbags willprovide optimum protection in the eventof a crash.
We recommend that you follow theseguidelines:
•Sit in an upright position with the baseof your spine as far back as possible.
•Do not recline the seat backrest morethan 30 degrees.
•Adjust the head restraint so that thetop of it is level with the top of yourhead and as far forward as possible.Make sure that you remaincomfortable.
•Keep sufficient distance betweenyourself and the steering wheel. Werecommend a minimum of 10 inches(25 centimeters) between yourbreastbone and the airbag cover.
•Hold the steering wheel with your armsslightly bent.
•Bend your legs slightly so that you canpress the pedals fully.
•Position the shoulder strap of thesafety belt over the center of yourshoulder and position the lap straptightly across your hips.
Make sure that your driving position iscomfortable and that you can maintain fullcontrol of your vehicle.
HEAD RESTRAINTS
WARNINGS
Fully adjust the head restraint beforeyou sit in or operate your vehicle. Thiswill help minimize the risk of neckinjury in the event of a crash. Do not adjustthe head restraint when your vehicle ismoving.
Raise the rear head restraints whenpassengers occupy the rear seats.
When using a forward facing childrestraint on a rear seat, alwaysremove the head restraint from thatseat.
126Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

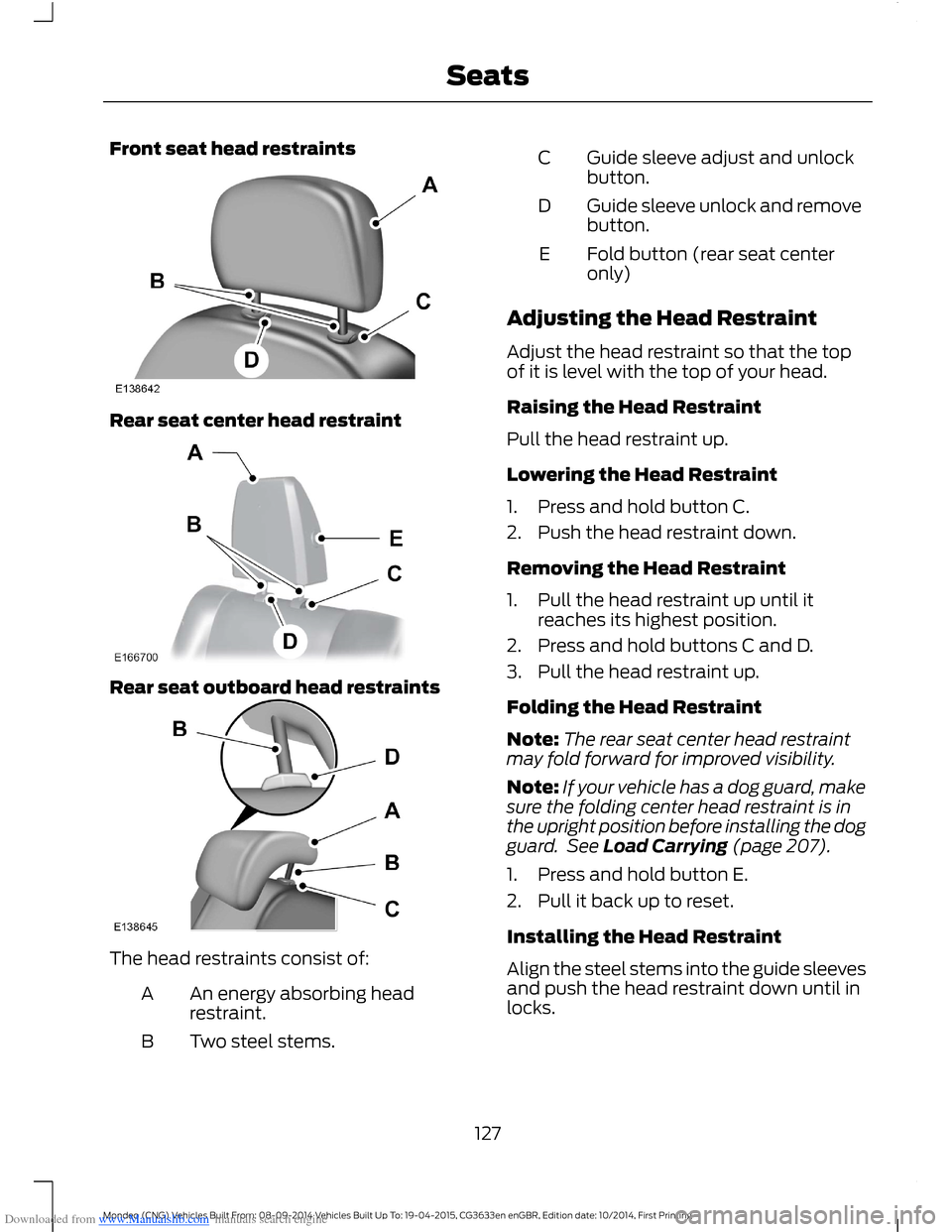

Downloaded from www.Manualslib.com manuals search engine Front seat head restraints
Rear seat center head restraint
Rear seat outboard head restraints
The head restraints consist of:
An energy absorbing headrestraint.A
Two steel stems.B
Guide sleeve adjust and unlockbutton.C
Guide sleeve unlock and removebutton.D
Fold button (rear seat centeronly)E
Adjusting the Head Restraint
Adjust the head restraint so that the topof it is level with the top of your head.
Raising the Head Restraint
Pull the head restraint up.
Lowering the Head Restraint
1.Press and hold button C.
2.Push the head restraint down.
Removing the Head Restraint
1.Pull the head restraint up until itreaches its highest position.
2.Press and hold buttons C and D.
3.Pull the head restraint up.
Folding the Head Restraint
Note:The rear seat center head restraintmay fold forward for improved visibility.
Note:If your vehicle has a dog guard, makesure the folding center head restraint is inthe upright position before installing the dogguard. See Load Carrying (page 207).
1.Press and hold button E.
2.Pull it back up to reset.
Installing the Head Restraint
Align the steel stems into the guide sleevesand push the head restraint down until inlocks.
127Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats

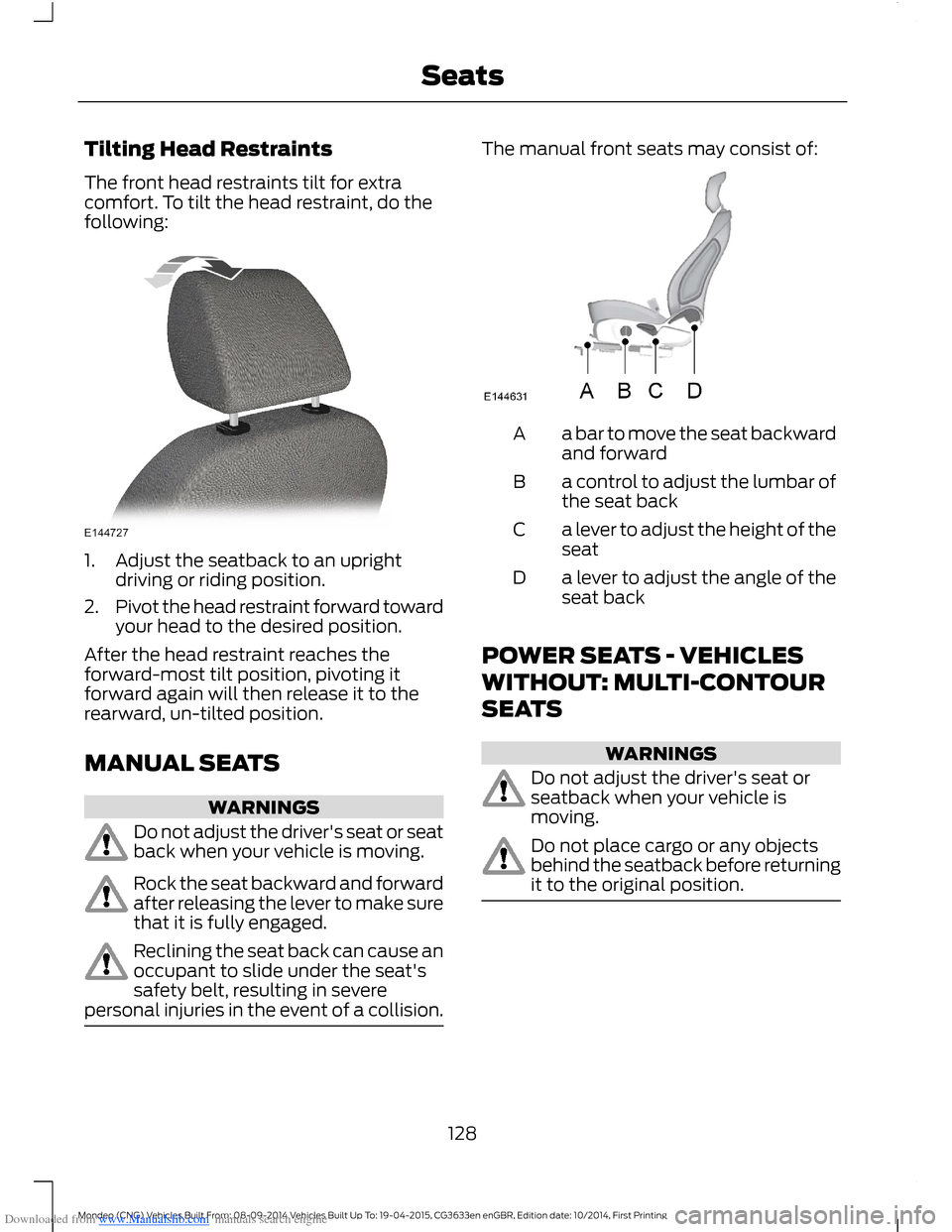

Downloaded from www.Manualslib.com manuals search engine Tilting Head Restraints
The front head restraints tilt for extracomfort. To tilt the head restraint, do thefollowing:
1.Adjust the seatback to an uprightdriving or riding position.
2.Pivot the head restraint forward towardyour head to the desired position.
After the head restraint reaches theforward-most tilt position, pivoting itforward again will then release it to therearward, un-tilted position.
MANUAL SEATS
WARNINGS
Do not adjust the driver's seat or seatback when your vehicle is moving.
Rock the seat backward and forwardafter releasing the lever to make surethat it is fully engaged.
Reclining the seat back can cause anoccupant to slide under the seat'ssafety belt, resulting in severepersonal injuries in the event of a collision.
The manual front seats may consist of:
a bar to move the seat backwardand forwardA
a control to adjust the lumbar ofthe seat backB
a lever to adjust the height of theseatC
a lever to adjust the angle of theseat backD
POWER SEATS - VEHICLES
WITHOUT: MULTI-CONTOUR
SEATS
WARNINGS
Do not adjust the driver's seat orseatback when your vehicle ismoving.
Do not place cargo or any objectsbehind the seatback before returningit to the original position.
128Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingSeats
