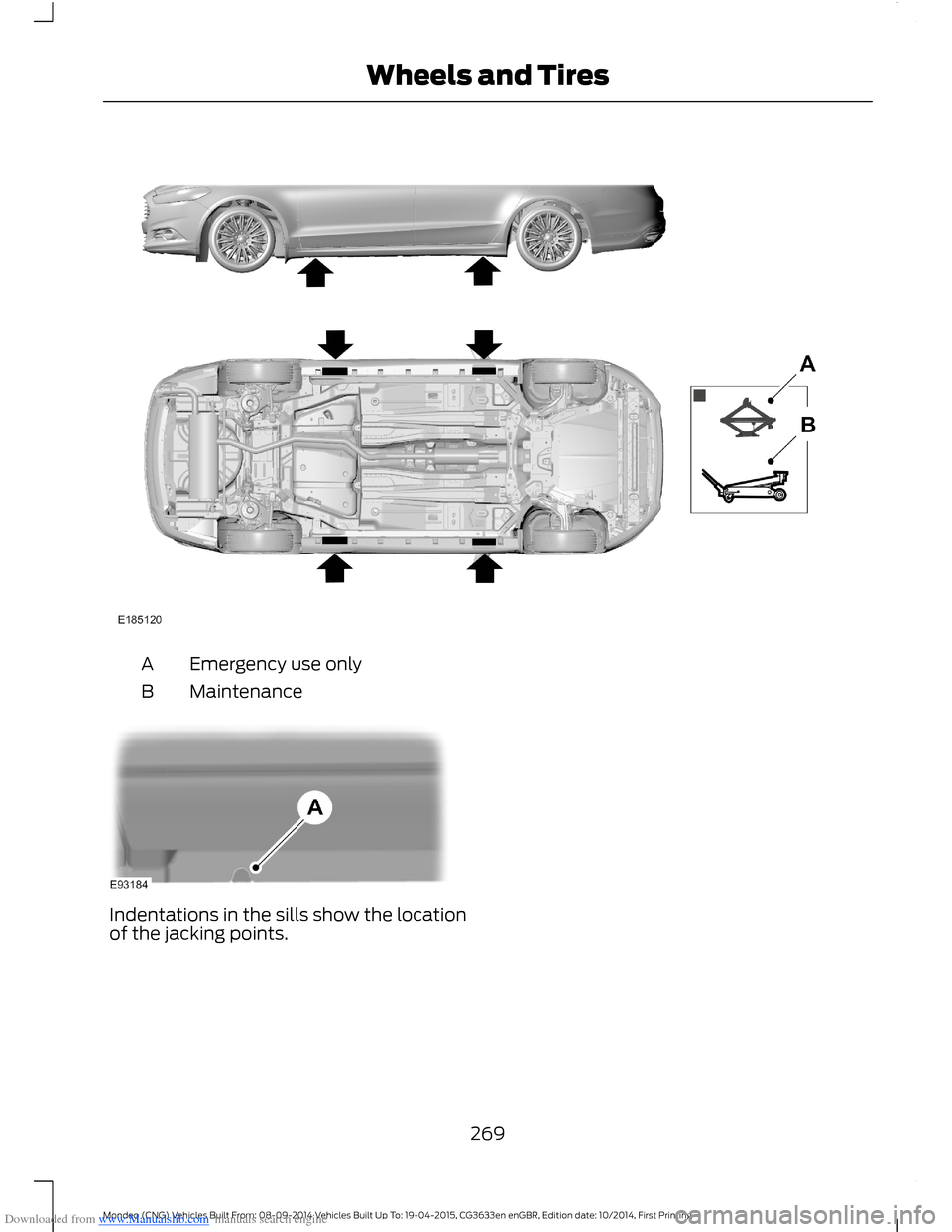

Downloaded from www.Manualslib.com manuals search engine Emergency use onlyA
MaintenanceB
Indentations in the sills show the locationof the jacking points.
269Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

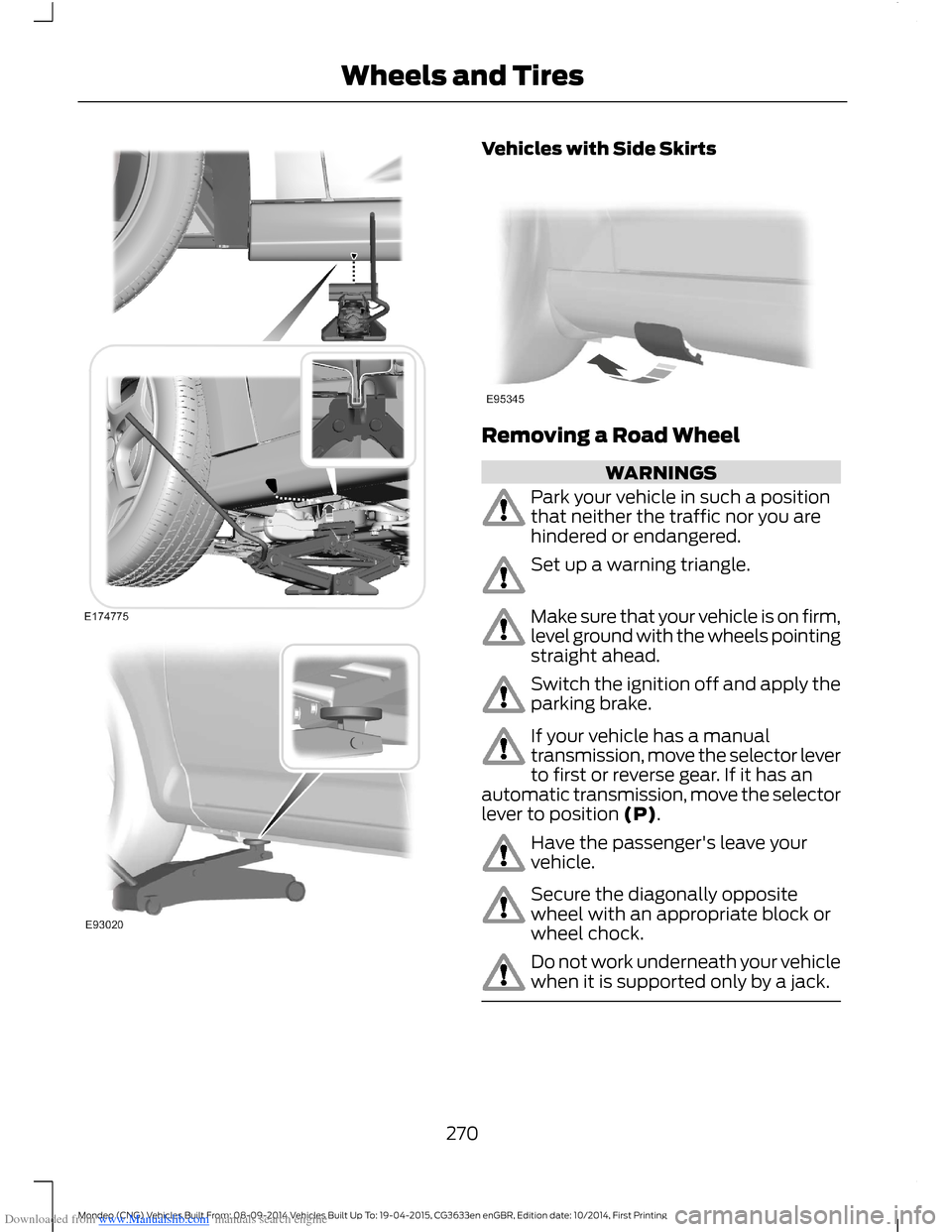

Downloaded from www.Manualslib.com manuals search engine Vehicles with Side Skirts
Removing a Road Wheel
WARNINGS
Park your vehicle in such a positionthat neither the traffic nor you arehindered or endangered.
Set up a warning triangle.
Make sure that your vehicle is on firm,level ground with the wheels pointingstraight ahead.
Switch the ignition off and apply theparking brake.
If your vehicle has a manualtransmission, move the selector leverto first or reverse gear. If it has anautomatic transmission, move the selectorlever to position (P).
Have the passenger's leave yourvehicle.
Secure the diagonally oppositewheel with an appropriate block orwheel chock.
Do not work underneath your vehiclewhen it is supported only by a jack.
270Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

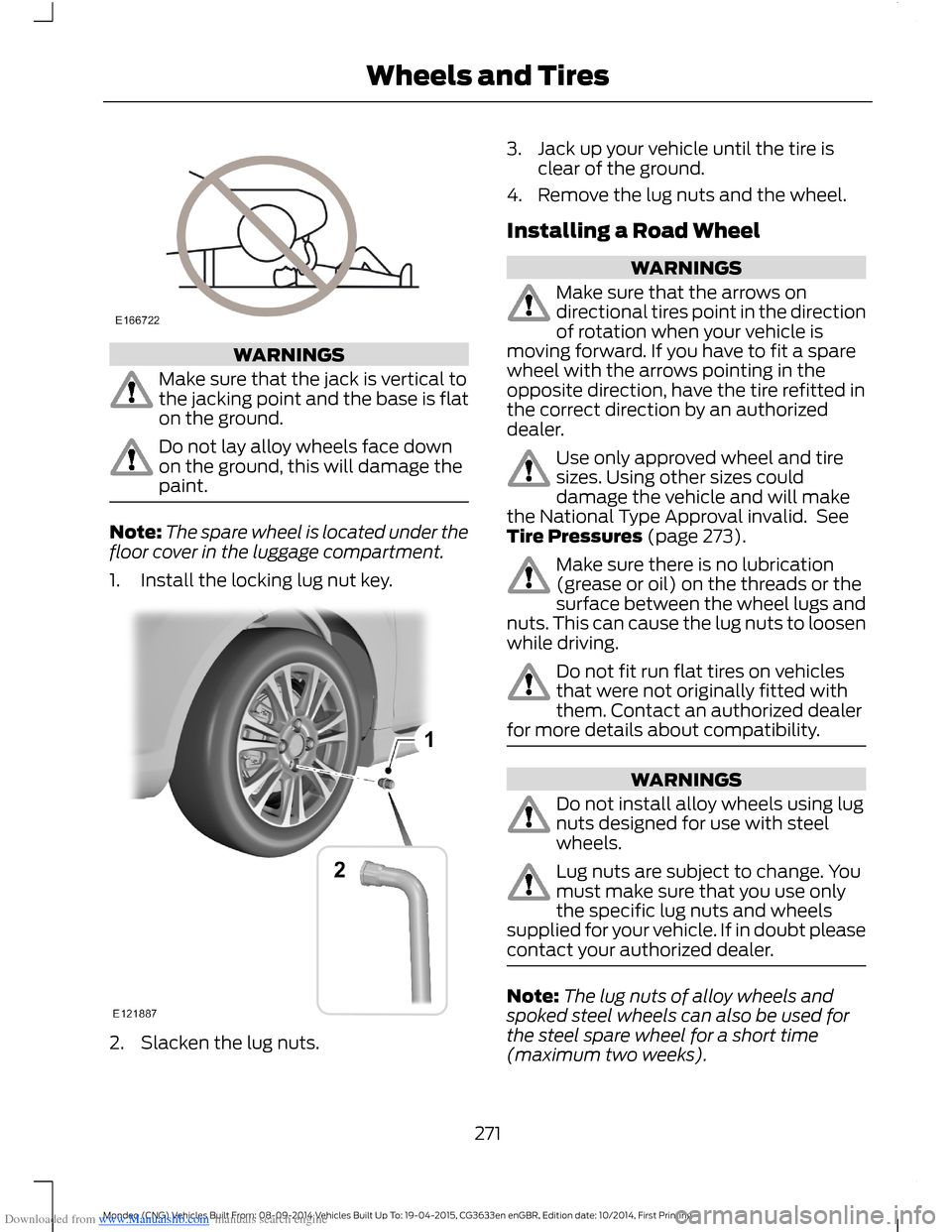

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Make sure that the jack is vertical tothe jacking point and the base is flaton the ground.
Do not lay alloy wheels face downon the ground, this will damage thepaint.
Note:The spare wheel is located under thefloor cover in the luggage compartment.
1.Install the locking lug nut key.
2.Slacken the lug nuts.
3.Jack up your vehicle until the tire isclear of the ground.
4.Remove the lug nuts and the wheel.
Installing a Road Wheel
WARNINGS
Make sure that the arrows ondirectional tires point in the directionof rotation when your vehicle ismoving forward. If you have to fit a sparewheel with the arrows pointing in theopposite direction, have the tire refitted inthe correct direction by an authorizeddealer.
Use only approved wheel and tiresizes. Using other sizes coulddamage the vehicle and will makethe National Type Approval invalid. SeeTire Pressures (page 273).
Make sure there is no lubrication(grease or oil) on the threads or thesurface between the wheel lugs andnuts. This can cause the lug nuts to loosenwhile driving.
Do not fit run flat tires on vehiclesthat were not originally fitted withthem. Contact an authorized dealerfor more details about compatibility.
WARNINGS
Do not install alloy wheels using lugnuts designed for use with steelwheels.
Lug nuts are subject to change. Youmust make sure that you use onlythe specific lug nuts and wheelssupplied for your vehicle. If in doubt pleasecontact your authorized dealer.
Note:The lug nuts of alloy wheels andspoked steel wheels can also be used forthe steel spare wheel for a short time(maximum two weeks).
271Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

Downloaded from www.Manualslib.com manuals search engine Note:Make sure the wheel and hub contactsurfaces are free from foreign matter.
Note:Make sure that the cones on the lugnuts are against the wheel.
1.Install the wheel.
2.Install the lug nuts finger tight.
3.Install the locking lug nut key.
4.Partially tighten the lug nuts in thesequence shown.
5.Lower your vehicle and remove thejack.
6.Fully tighten the lug nuts in thesequence shown.
7.Install the wheel trim using the ball ofyour hand.
WARNING
Have the lug nuts checked fortightness and the tire pressurechecked as soon as possible.
272Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

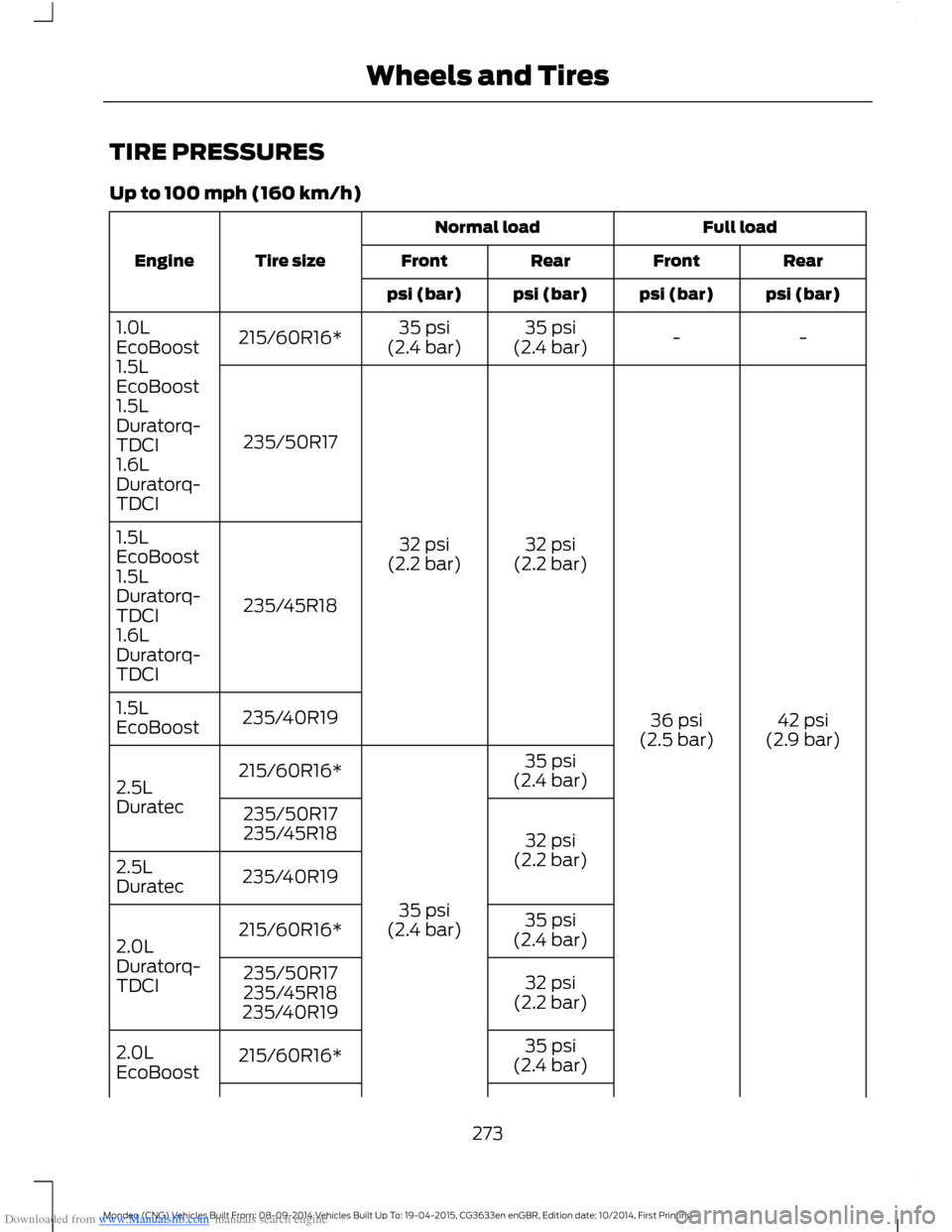

Downloaded from www.Manualslib.com manuals search engine TIRE PRESSURES
Up to 100 mph (160 km/h)
Full loadNormal load
Tire sizeEngineRearFrontRearFront
psi (bar)psi (bar)psi (bar)psi (bar)
--35 psi(2.4 bar)35 psi(2.4 bar)215/60R16*1.0LEcoBoost1.5LEcoBoost
42 psi(2.9 bar)36 psi(2.5 bar)
32 psi(2.2 bar)32 psi(2.2 bar)
235/50R17
1.5LDuratorq-TDCI1.6LDuratorq-TDCI
235/45R18
1.5LEcoBoost1.5LDuratorq-TDCI1.6LDuratorq-TDCI
235/40R191.5LEcoBoost
35 psi(2.4 bar)
35 psi(2.4 bar)
215/60R16*2.5LDuratec
32 psi(2.2 bar)
235/50R17235/45R18
235/40R192.5LDuratec
35 psi(2.4 bar)215/60R16*2.0LDuratorq-TDCI32 psi(2.2 bar)
235/50R17235/45R18235/40R19
35 psi(2.4 bar)215/60R16*2.0LEcoBoost
273Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

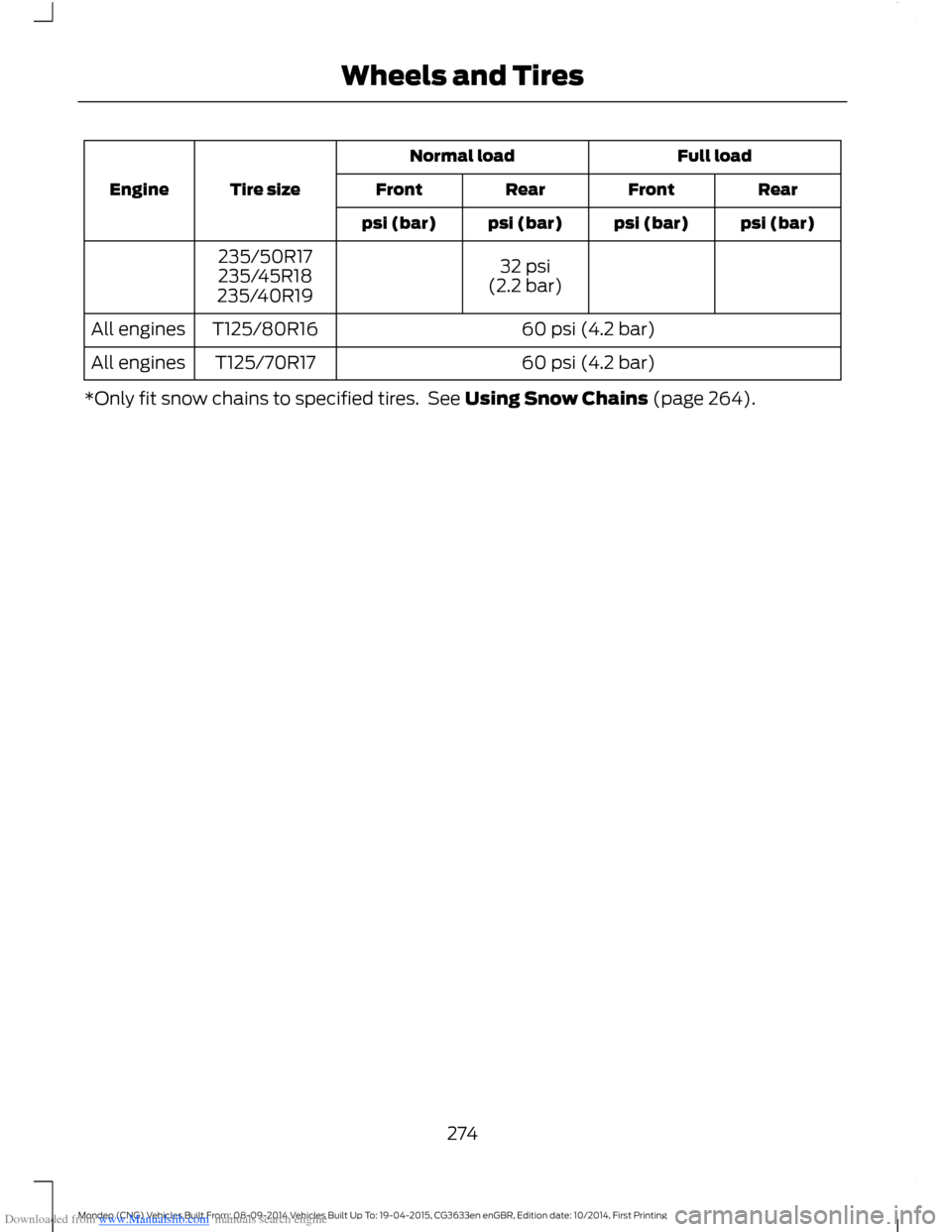

Downloaded from www.Manualslib.com manuals search engine Full loadNormal load
Tire sizeEngineRearFrontRearFront
psi (bar)psi (bar)psi (bar)psi (bar)
32 psi(2.2 bar)
235/50R17235/45R18235/40R19
60 psi (4.2 bar)T125/80R16All engines
60 psi (4.2 bar)T125/70R17All engines
*Only fit snow chains to specified tires. See Using Snow Chains (page 264).
274Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

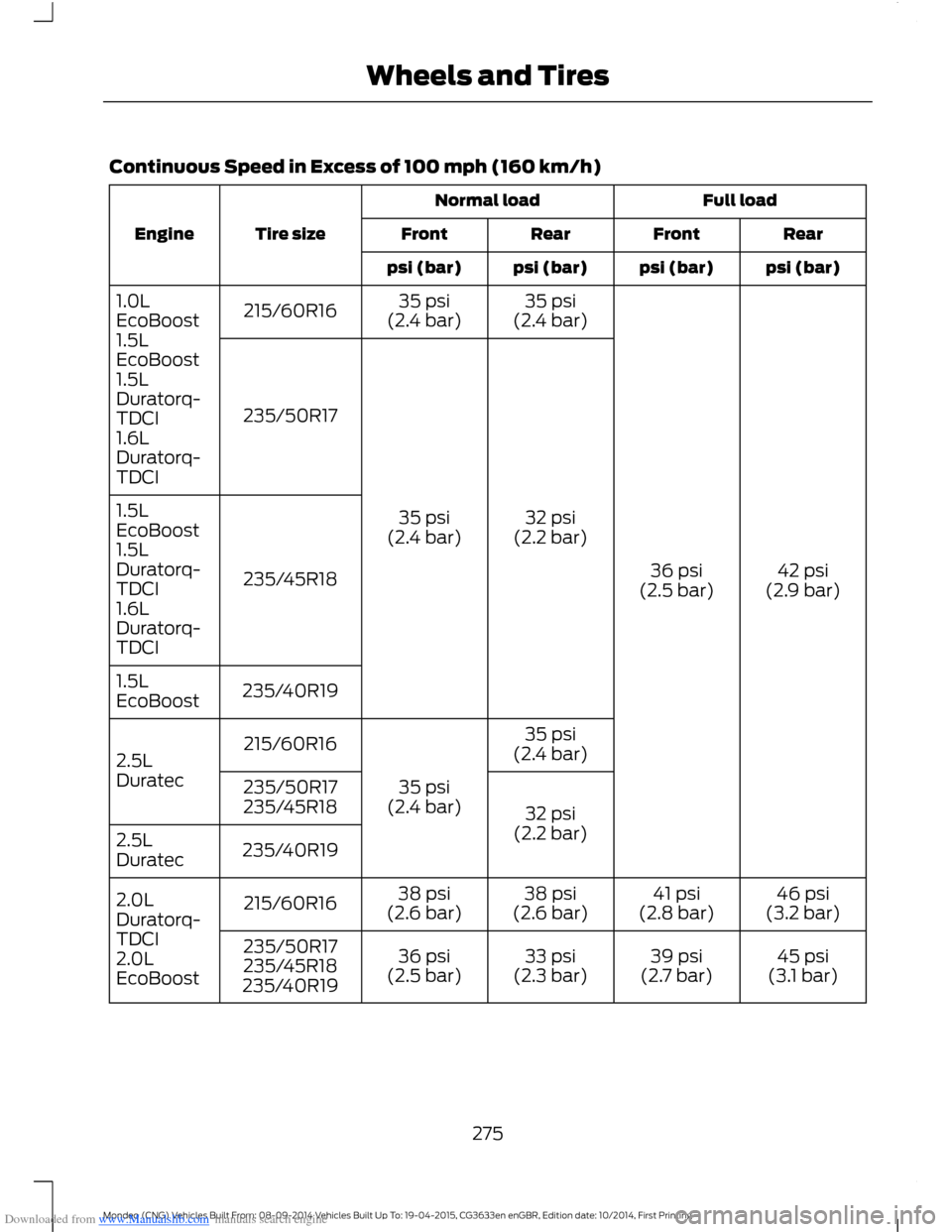

Downloaded from www.Manualslib.com manuals search engine Continuous Speed in Excess of 100 mph (160 km/h)
Full loadNormal load
Tire sizeEngineRearFrontRearFront
psi (bar)psi (bar)psi (bar)psi (bar)
42 psi(2.9 bar)36 psi(2.5 bar)
35 psi(2.4 bar)35 psi(2.4 bar)215/60R161.0LEcoBoost1.5LEcoBoost
32 psi(2.2 bar)35 psi(2.4 bar)
235/50R17
1.5LDuratorq-TDCI1.6LDuratorq-TDCI
235/45R18
1.5LEcoBoost1.5LDuratorq-TDCI1.6LDuratorq-TDCI
235/40R191.5LEcoBoost
35 psi(2.4 bar)
35 psi(2.4 bar)
215/60R162.5LDuratec
32 psi(2.2 bar)
235/50R17235/45R18
235/40R192.5LDuratec
46 psi(3.2 bar)41 psi(2.8 bar)38 psi(2.6 bar)38 psi(2.6 bar)215/60R162.0LDuratorq-TDCI45 psi(3.1 bar)39 psi(2.7 bar)33 psi(2.3 bar)36 psi(2.5 bar)
235/50R17235/45R182.0LEcoBoost235/40R19
275Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

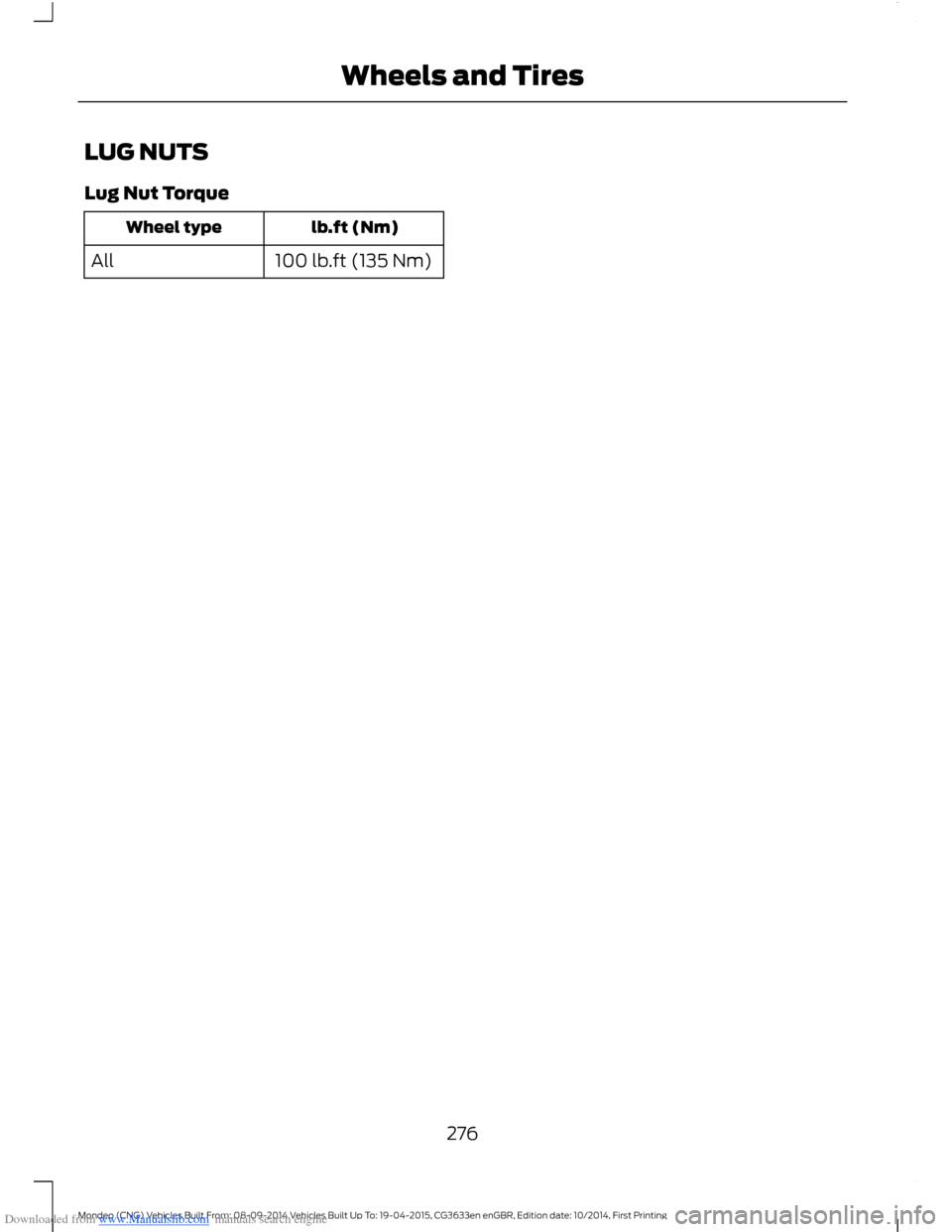

Downloaded from www.Manualslib.com manuals search engine LUG NUTS
Lug Nut Torque
lb.ft (Nm)Wheel type
100 lb.ft (135 Nm)All
276Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingWheels and Tires

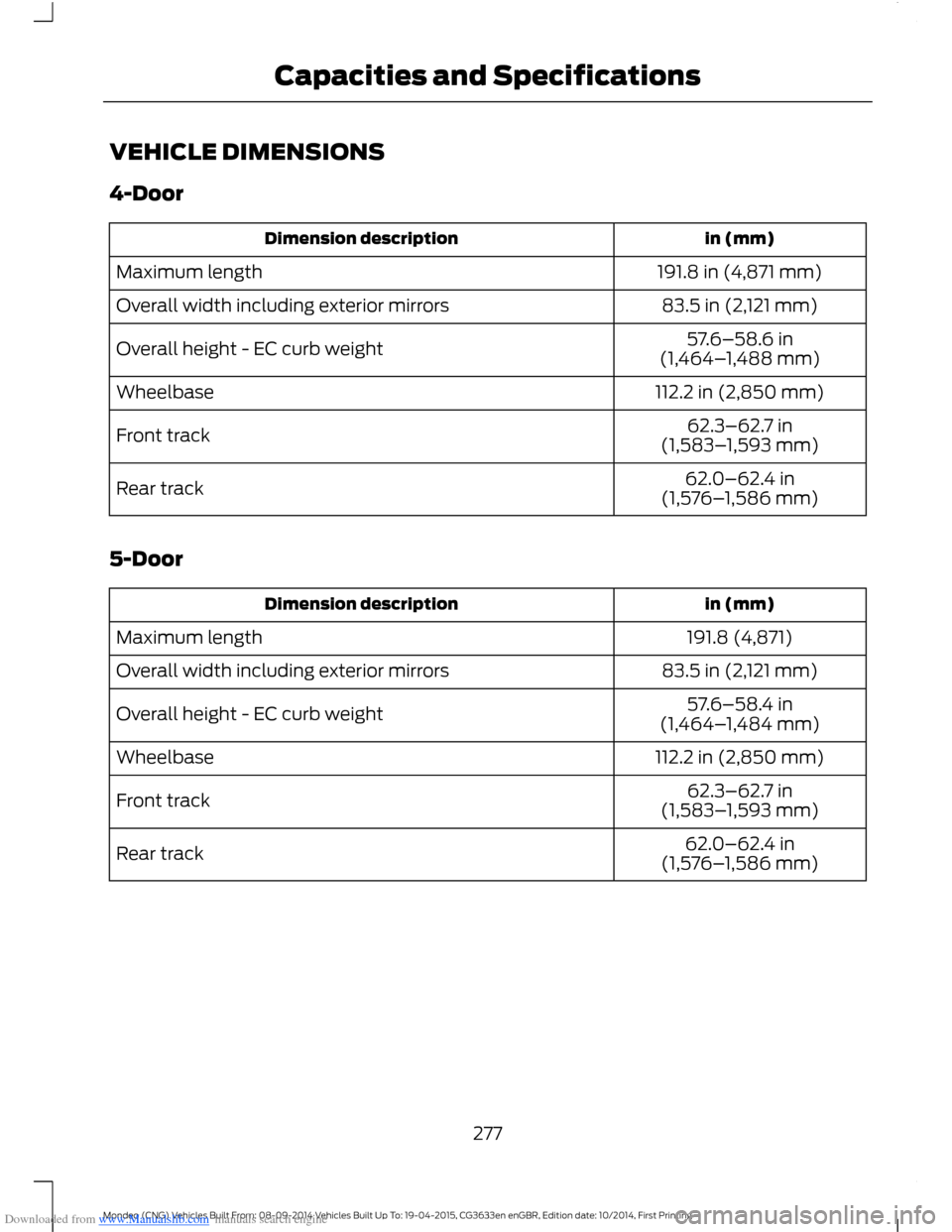

Downloaded from www.Manualslib.com manuals search engine VEHICLE DIMENSIONS
4-Door
in (mm)Dimension description
191.8 in (4,871 mm)Maximum length
83.5 in (2,121 mm)Overall width including exterior mirrors
57.6–58.6 in(1,464–1,488 mm)Overall height - EC curb weight
112.2 in (2,850 mm)Wheelbase
62.3–62.7 in(1,583–1,593 mm)Front track
62.0–62.4 in(1,576–1,586 mm)Rear track
5-Door
in (mm)Dimension description
191.8 (4,871)Maximum length
83.5 in (2,121 mm)Overall width including exterior mirrors
57.6–58.4 in(1,464–1,484 mm)Overall height - EC curb weight
112.2 in (2,850 mm)Wheelbase
62.3–62.7 in(1,583–1,593 mm)Front track
62.0–62.4 in(1,576–1,586 mm)Rear track
277Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications

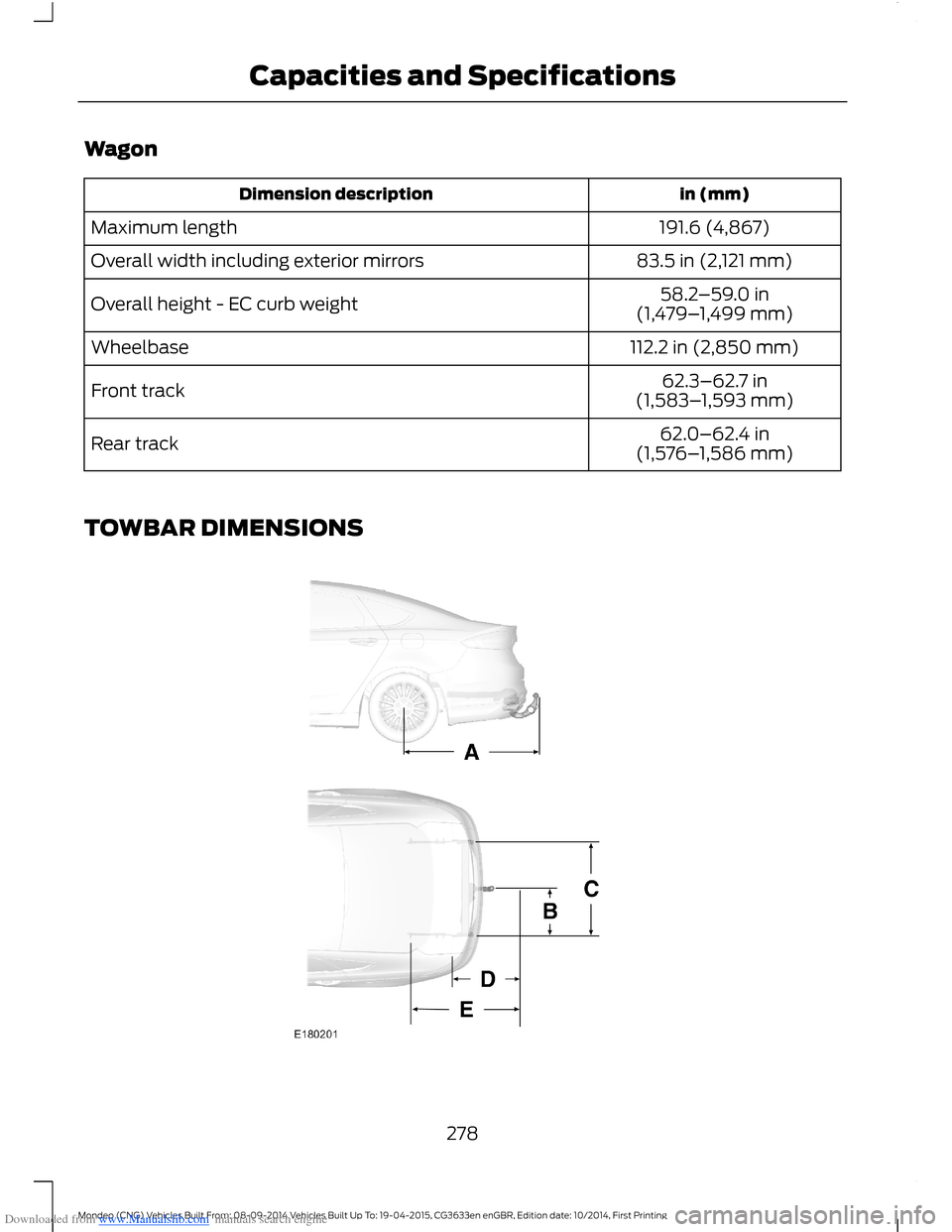

Downloaded from www.Manualslib.com manuals search engine Wagon
in (mm)Dimension description
191.6 (4,867)Maximum length
83.5 in (2,121 mm)Overall width including exterior mirrors
58.2–59.0 in(1,479–1,499 mm)Overall height - EC curb weight
112.2 in (2,850 mm)Wheelbase
62.3–62.7 in(1,583–1,593 mm)Front track
62.0–62.4 in(1,576–1,586 mm)Rear track
TOWBAR DIMENSIONS
278Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingCapacities and Specifications
