Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

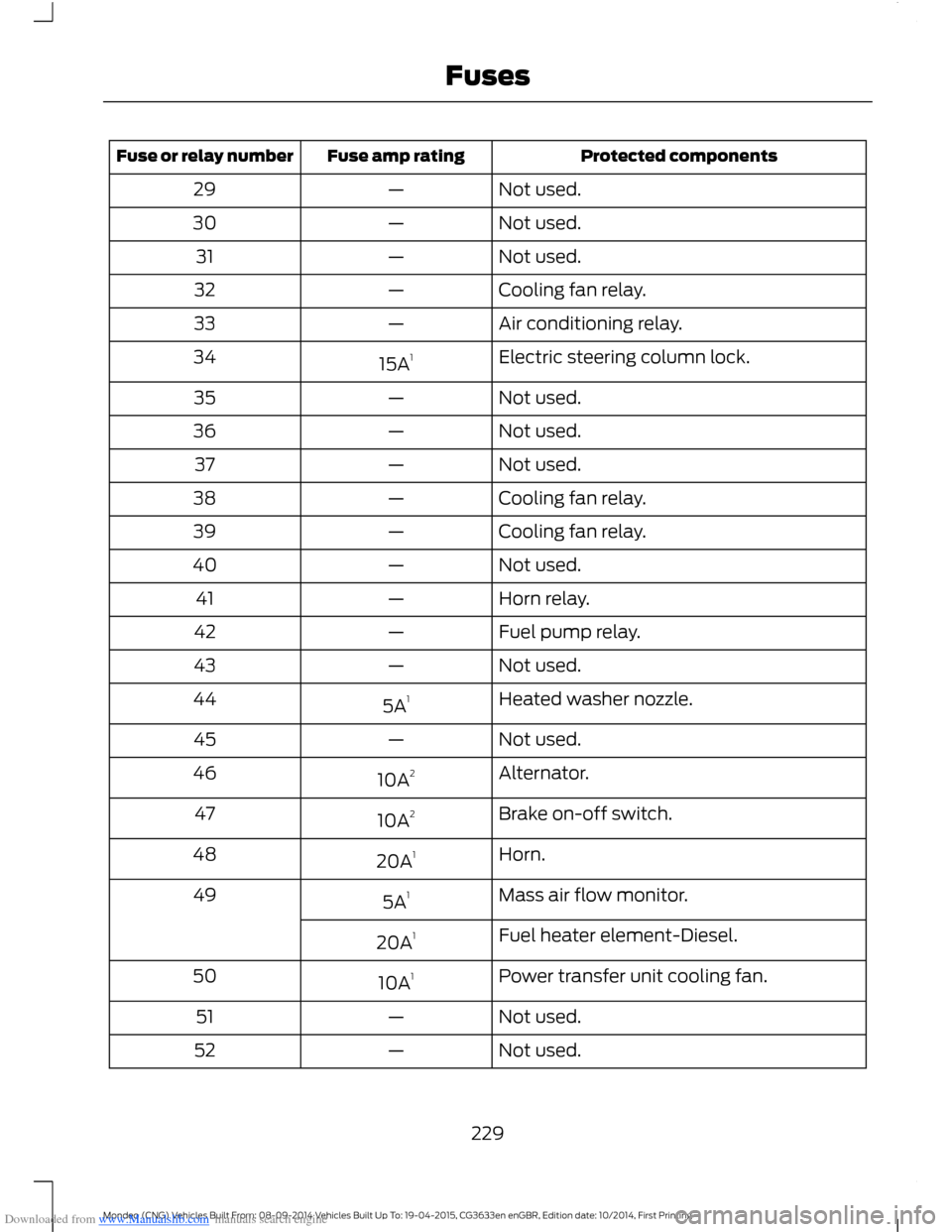

Not used.—29
Not used.—30
Not used.—31
Cooling fan relay.—32
Air conditioning relay.—33
Electric steering column lock.15A134
Not used.—35
Not used.—36
Not used.—37
Cooling fan relay.—38
Cooling fan relay.—39
Not used.—40
Horn relay.—41
Fuel pump relay.—42
Not used.—43
Heated washer nozzle.5A144
Not used.—45
Alternator.10A246
Brake on-off switch.10A247
Horn.20A148
Mass air flow monitor.5A149
Fuel heater element-Diesel.20A1
Power transfer unit cooling fan.10A150
Not used.—51
Not used.—52
229Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

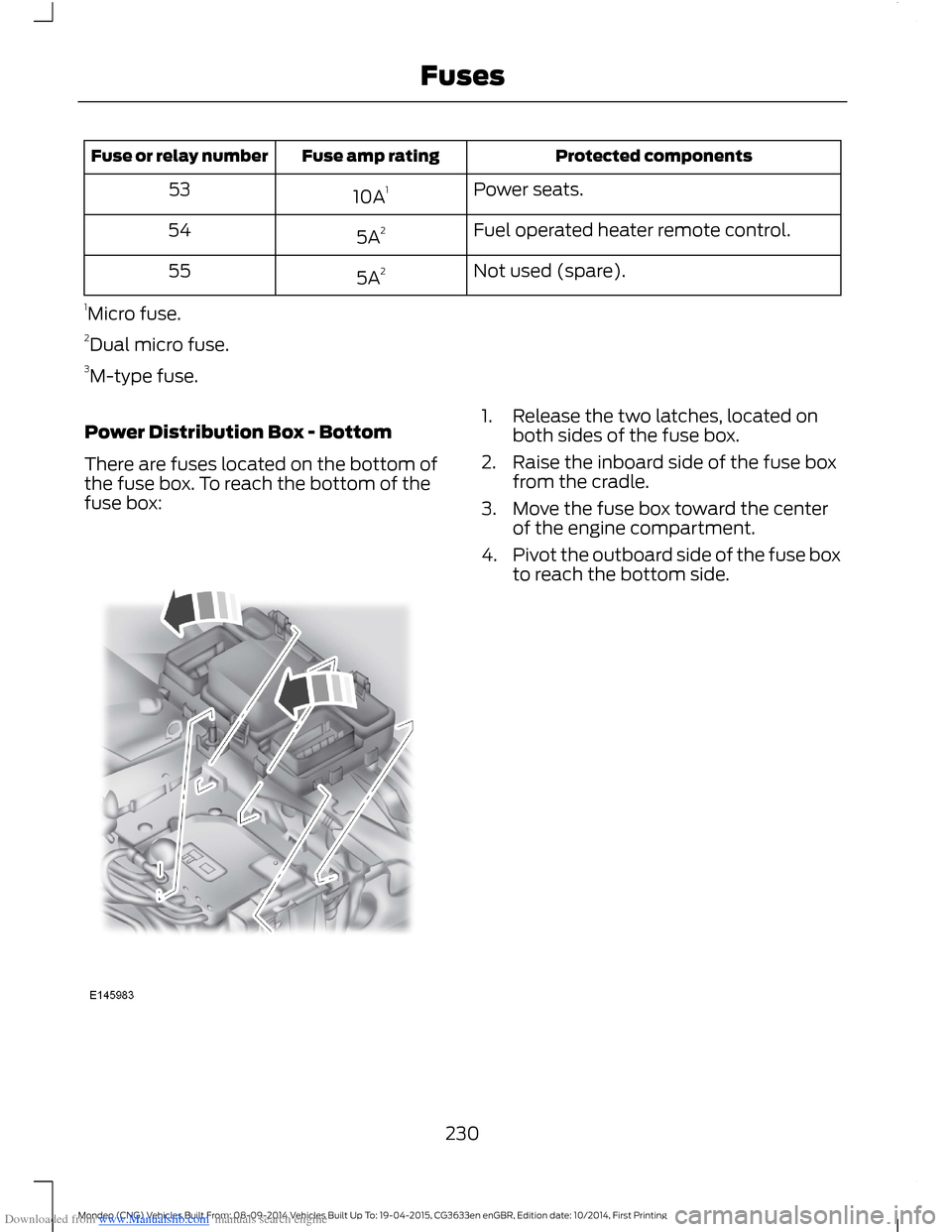

Power seats.10A153
Fuel operated heater remote control.5A254
Not used (spare).5A255
1Micro fuse.2Dual micro fuse.3M-type fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom ofthe fuse box. To reach the bottom of thefuse box:
1.Release the two latches, located onboth sides of the fuse box.
2.Raise the inboard side of the fuse boxfrom the cradle.
3.Move the fuse box toward the centerof the engine compartment.
4.Pivot the outboard side of the fuse boxto reach the bottom side.
230Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

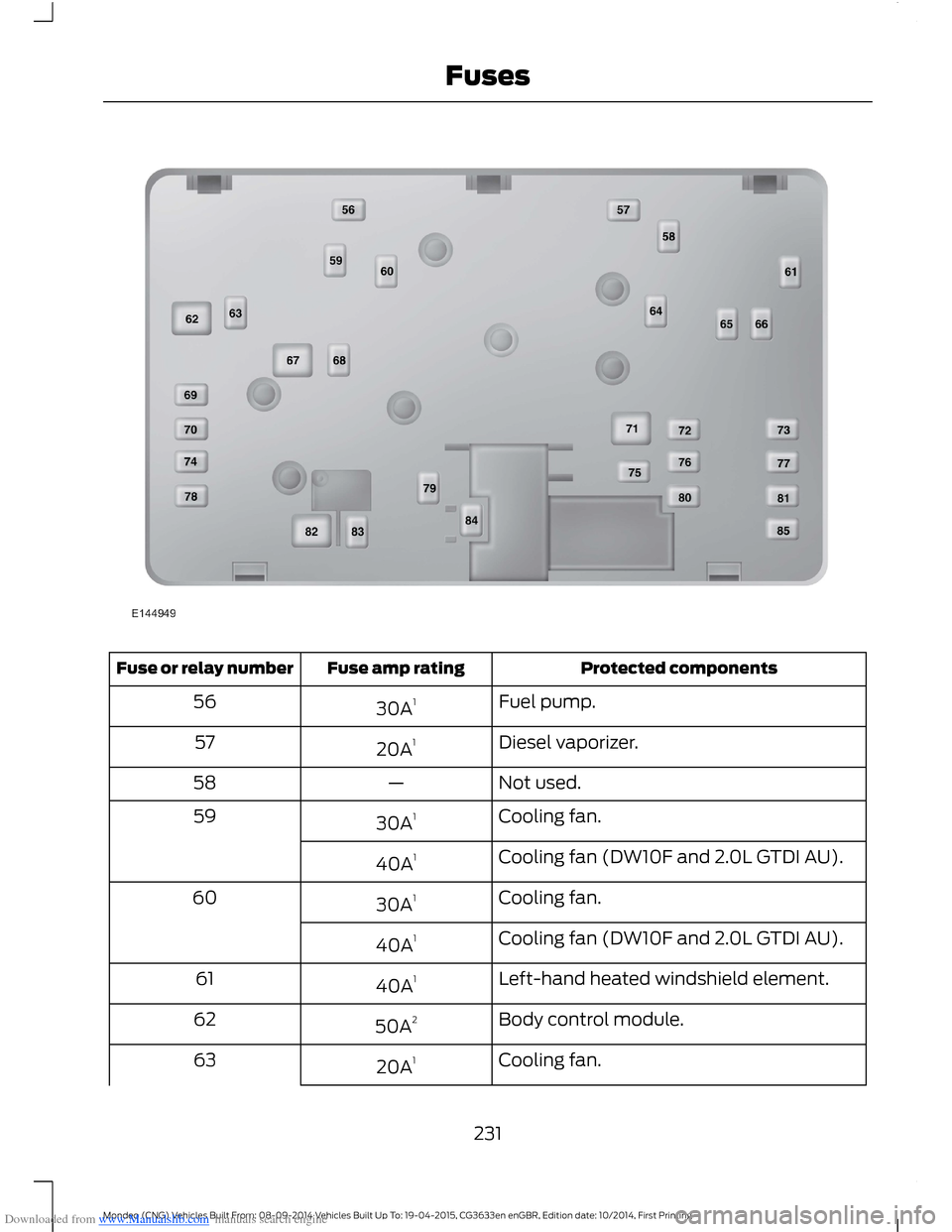

Fuel pump.30A156
Diesel vaporizer.20A157
Not used.—58
Cooling fan.30A159
Cooling fan (DW10F and 2.0L GTDI AU).40A1
Cooling fan.30A160
Cooling fan (DW10F and 2.0L GTDI AU).40A1
Left-hand heated windshield element.40A161
Body control module.50A262
Cooling fan.20A163
231Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

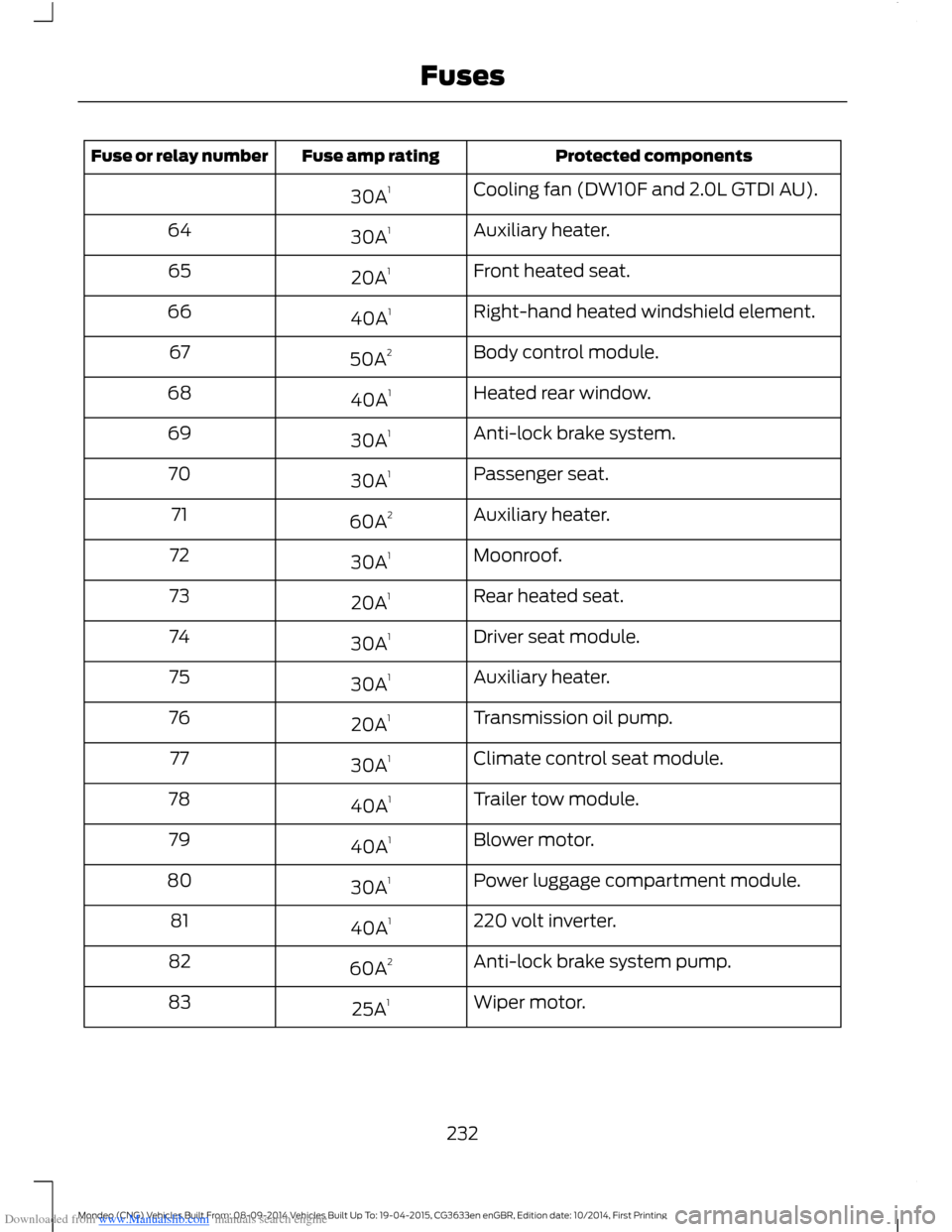

Cooling fan (DW10F and 2.0L GTDI AU).30A1
Auxiliary heater.30A164
Front heated seat.20A165
Right-hand heated windshield element.40A166
Body control module.50A267
Heated rear window.40A168
Anti-lock brake system.30A169
Passenger seat.30A170
Auxiliary heater.60A271
Moonroof.30A172
Rear heated seat.20A173
Driver seat module.30A174
Auxiliary heater.30A175
Transmission oil pump.20A176
Climate control seat module.30A177
Trailer tow module.40A178
Blower motor.40A179
Power luggage compartment module.30A180
220 volt inverter.40A181
Anti-lock brake system pump.60A282
Wiper motor.25A183
232Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

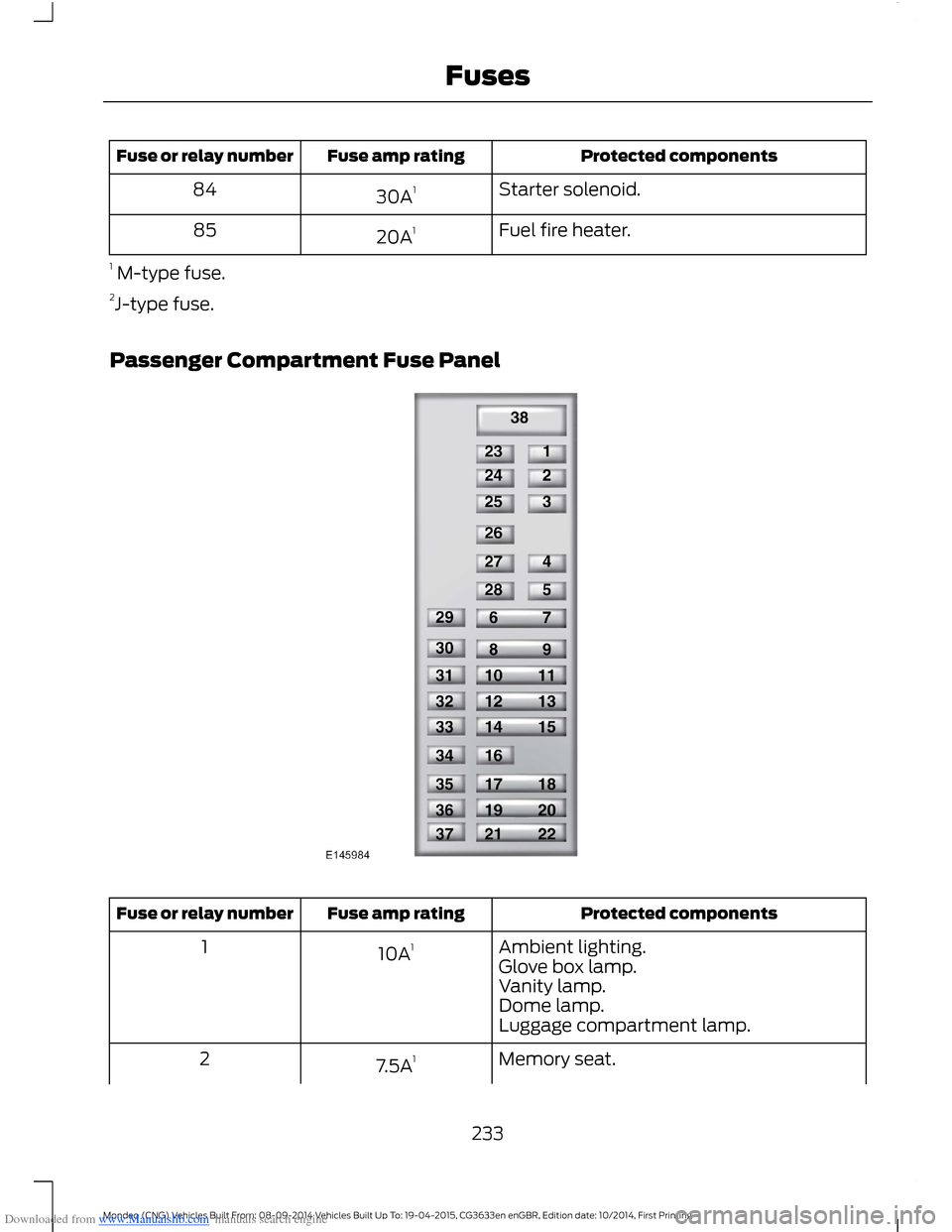

Starter solenoid.30A184
Fuel fire heater.20A185
1 M-type fuse.2J-type fuse.
Passenger Compartment Fuse Panel
Protected componentsFuse amp ratingFuse or relay number
Ambient lighting.10A11Glove box lamp.Vanity lamp.Dome lamp.Luggage compartment lamp.
Memory seat.7.5A12
233Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

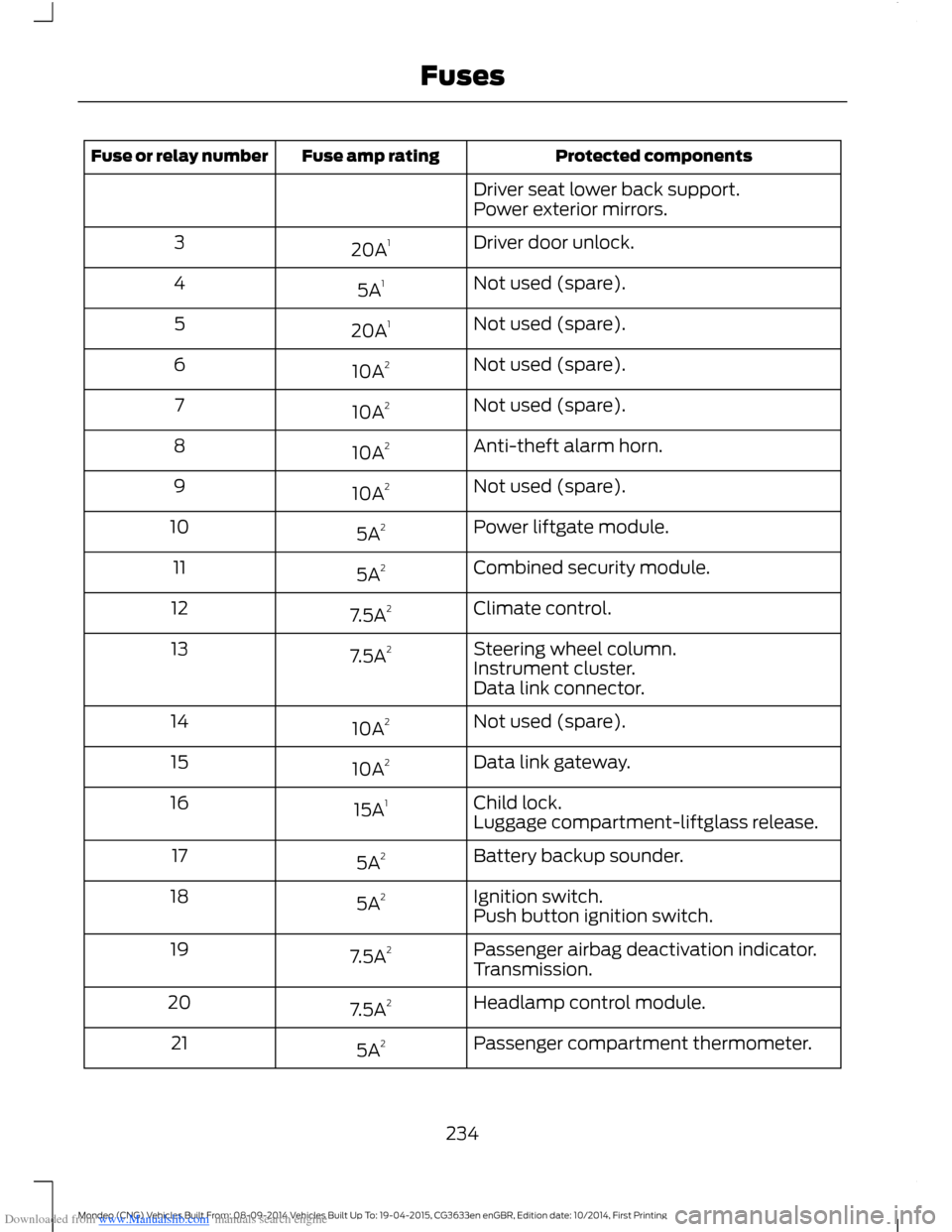

Driver seat lower back support.Power exterior mirrors.
Driver door unlock.20A13
Not used (spare).5A14
Not used (spare).20A15
Not used (spare).10A26
Not used (spare).10A27
Anti-theft alarm horn.10A28
Not used (spare).10A29
Power liftgate module.5A210
Combined security module.5A211
Climate control.7.5A212
Steering wheel column.7.5A213Instrument cluster.Data link connector.
Not used (spare).10A214
Data link gateway.10A215
Child lock.15A116Luggage compartment-liftglass release.
Battery backup sounder.5A217
Ignition switch.5A218Push button ignition switch.
Passenger airbag deactivation indicator.7.5A219Transmission.
Headlamp control module.7.5A220
Passenger compartment thermometer.5A221
234Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number

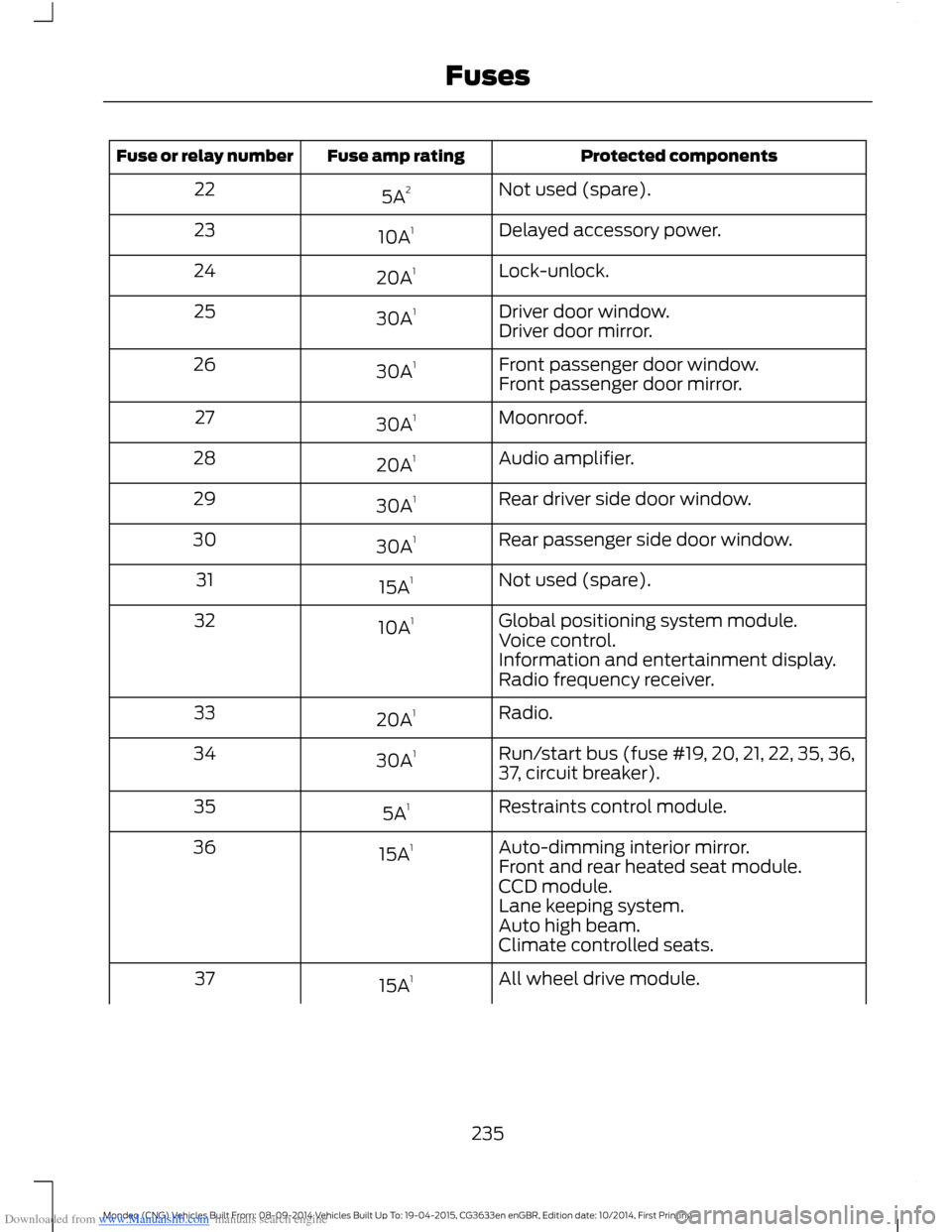

Not used (spare).5A222
Delayed accessory power.10A123
Lock-unlock.20A124
Driver door window.30A125Driver door mirror.
Front passenger door window.30A126Front passenger door mirror.
Moonroof.30A127
Audio amplifier.20A128
Rear driver side door window.30A129
Rear passenger side door window.30A130
Not used (spare).15A131
Global positioning system module.10A132Voice control.Information and entertainment display.Radio frequency receiver.
Radio.20A133
Run/start bus (fuse #19, 20, 21, 22, 35, 36,37, circuit breaker).30A134
Restraints control module.5A135
Auto-dimming interior mirror.15A136Front and rear heated seat module.CCD module.Lane keeping system.Auto high beam.Climate controlled seats.
All wheel drive module.15A137
235Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

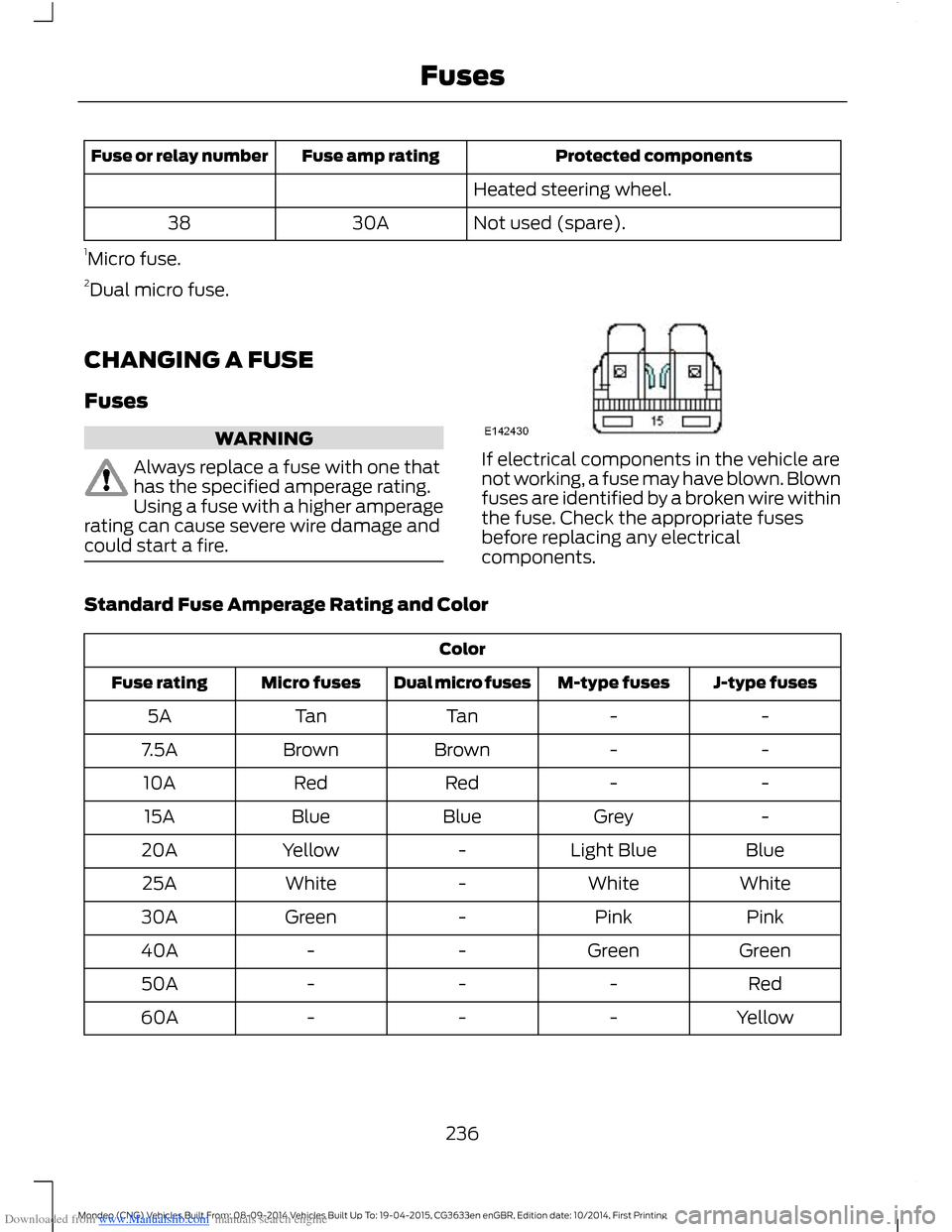

Downloaded from www.Manualslib.com manuals search engine Protected componentsFuse amp ratingFuse or relay number
Heated steering wheel.
Not used (spare).30A38
1Micro fuse.2Dual micro fuse.
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperagerating can cause severe wire damage andcould start a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
Standard Fuse Amperage Rating and Color
Color
J-type fusesM-type fusesDual micro fusesMicro fusesFuse rating
--TanTan5A
--BrownBrown7.5A
--RedRed10A
-GreyBlueBlue15A
BlueLight Blue-Yellow20A
WhiteWhite-White25A
PinkPink-Green30A
GreenGreen--40A
Red---50A
Yellow---60A
236Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingFuses

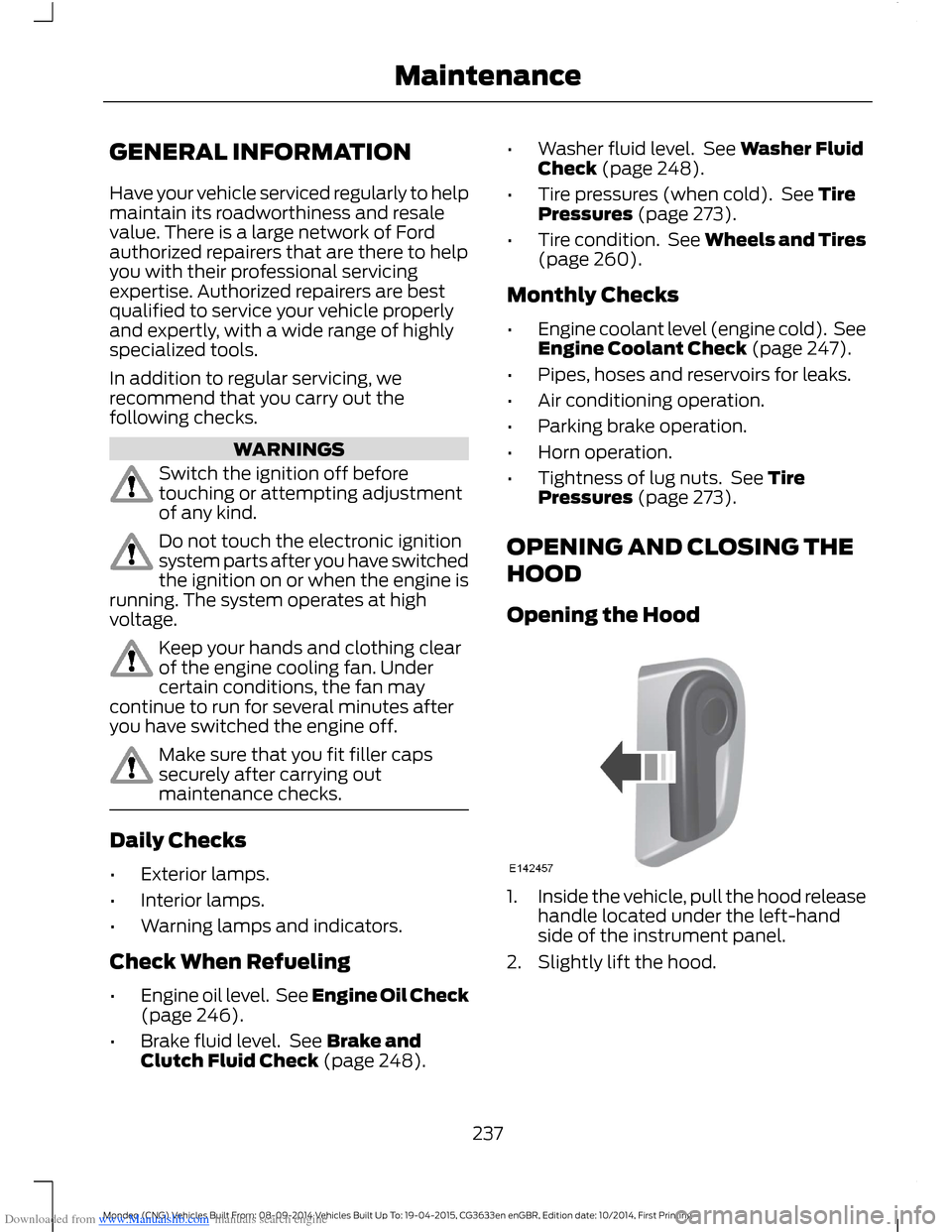

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network of Fordauthorized repairers that are there to helpyou with their professional servicingexpertise. Authorized repairers are bestqualified to service your vehicle properlyand expertly, with a wide range of highlyspecialized tools.
In addition to regular servicing, werecommend that you carry out thefollowing checks.
WARNINGS
Switch the ignition off beforetouching or attempting adjustmentof any kind.
Do not touch the electronic ignitionsystem parts after you have switchedthe ignition on or when the engine isrunning. The system operates at highvoltage.
Keep your hands and clothing clearof the engine cooling fan. Undercertain conditions, the fan maycontinue to run for several minutes afteryou have switched the engine off.
Make sure that you fit filler capssecurely after carrying outmaintenance checks.
Daily Checks
•Exterior lamps.
•Interior lamps.
•Warning lamps and indicators.
Check When Refueling
•Engine oil level. See Engine Oil Check(page 246).
•Brake fluid level. See Brake andClutch Fluid Check (page 248).
•Washer fluid level. See Washer FluidCheck (page 248).
•Tire pressures (when cold). See TirePressures (page 273).
•Tire condition. See Wheels and Tires(page 260).
Monthly Checks
•Engine coolant level (engine cold). SeeEngine Coolant Check (page 247).
•Pipes, hoses and reservoirs for leaks.
•Air conditioning operation.
•Parking brake operation.
•Horn operation.
•Tightness of lug nuts. See TirePressures (page 273).
OPENING AND CLOSING THE
HOOD
Opening the Hood
1.Inside the vehicle, pull the hood releasehandle located under the left-handside of the instrument panel.
2.Slightly lift the hood.
237Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

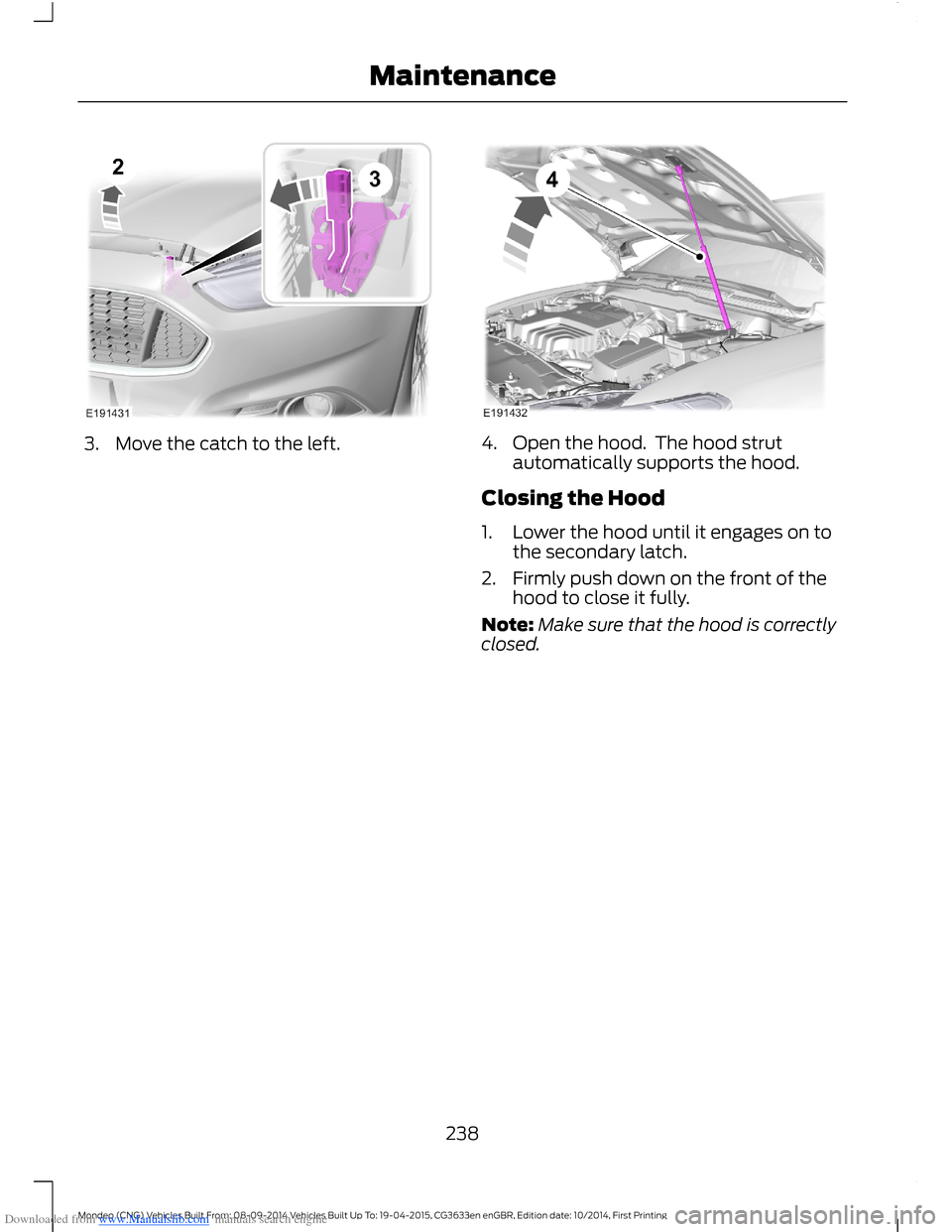

Downloaded from www.Manualslib.com manuals search engine 3.Move the catch to the left.4.Open the hood. The hood strutautomatically supports the hood.
Closing the Hood
1.Lower the hood until it engages on tothe secondary latch.
2.Firmly push down on the front of thehood to close it fully.
Note:Make sure that the hood is correctlyclosed.
