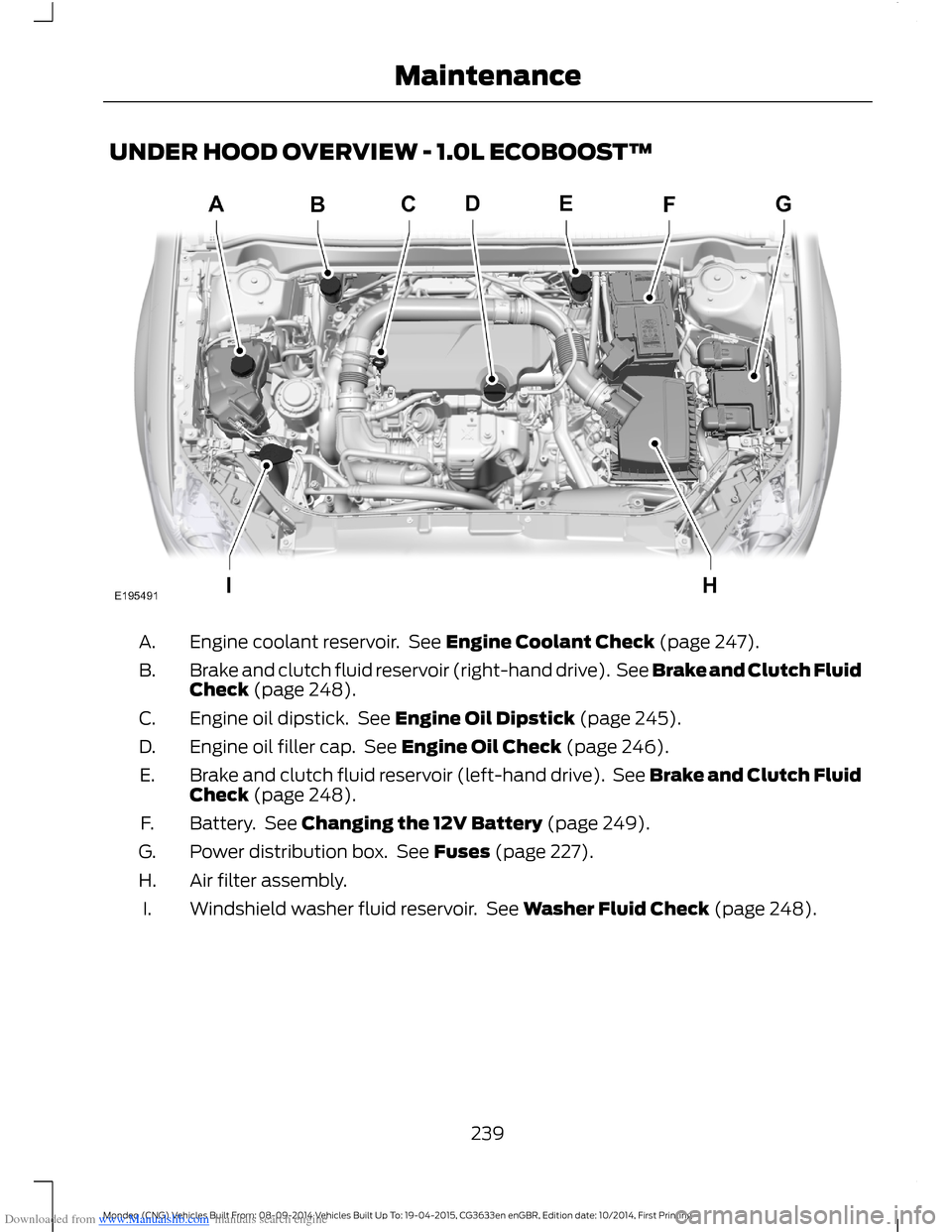

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil dipstick. See Engine Oil Dipstick (page 245).C.
Engine oil filler cap. See Engine Oil Check (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
239Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

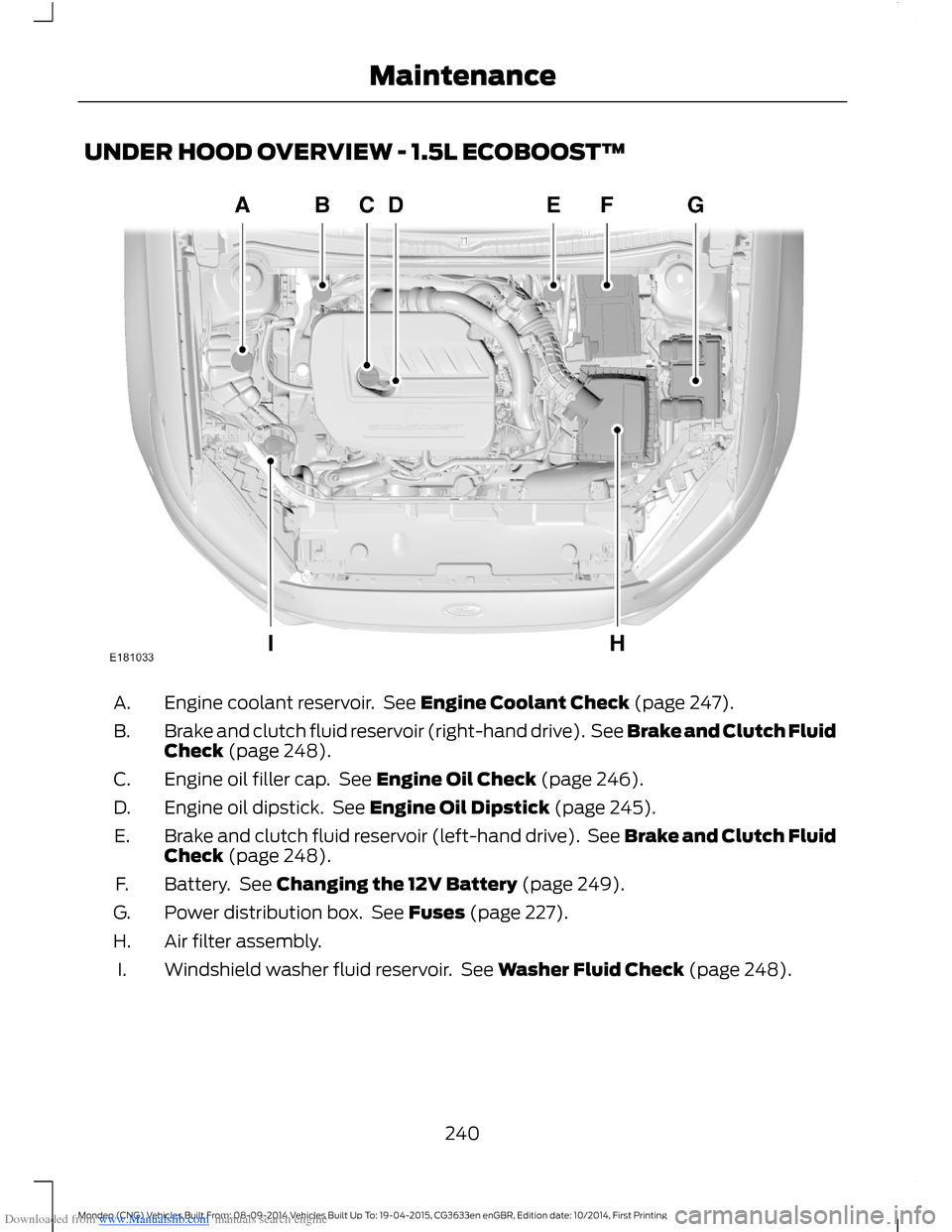

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.5L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 245).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
240Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

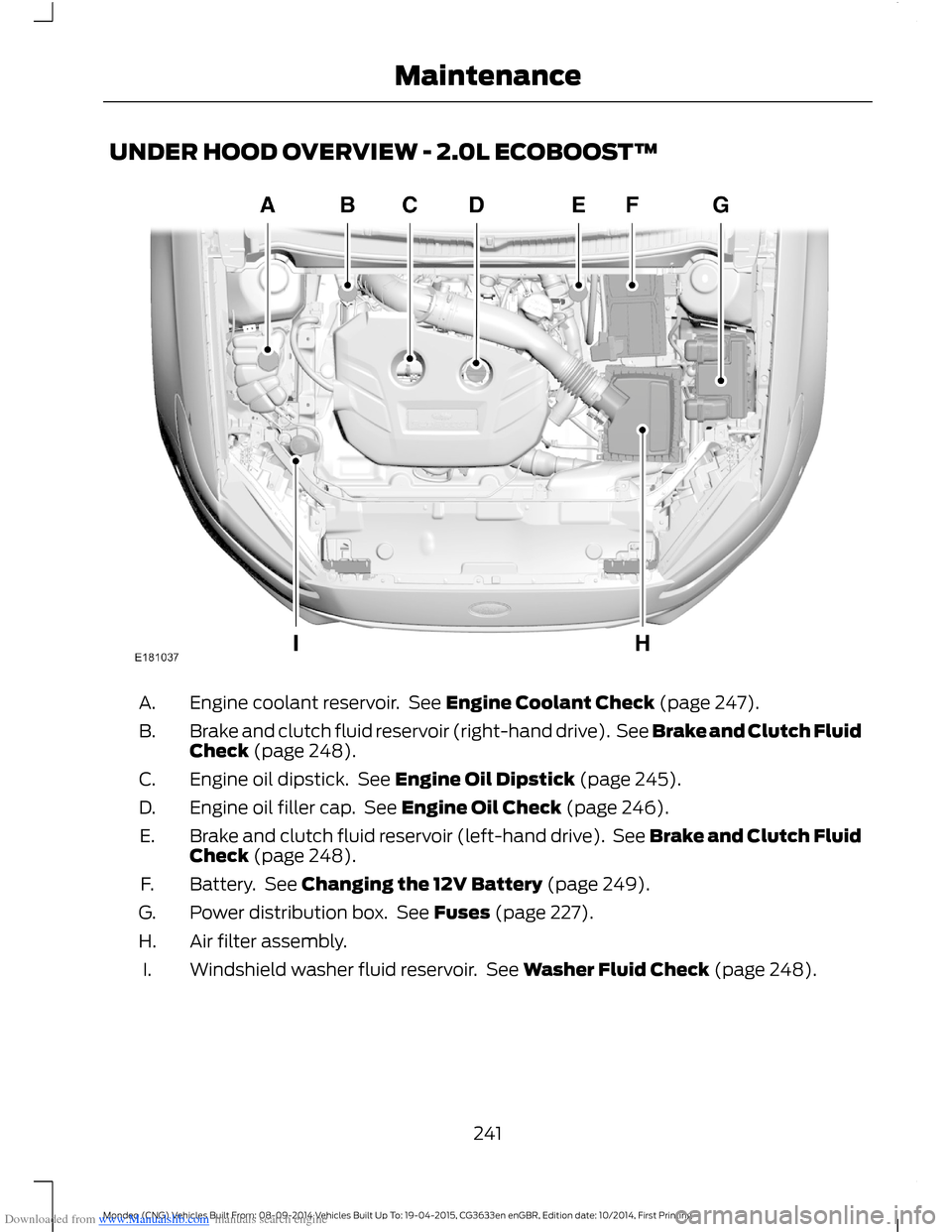

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil dipstick. See Engine Oil Dipstick (page 245).C.
Engine oil filler cap. See Engine Oil Check (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
241Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

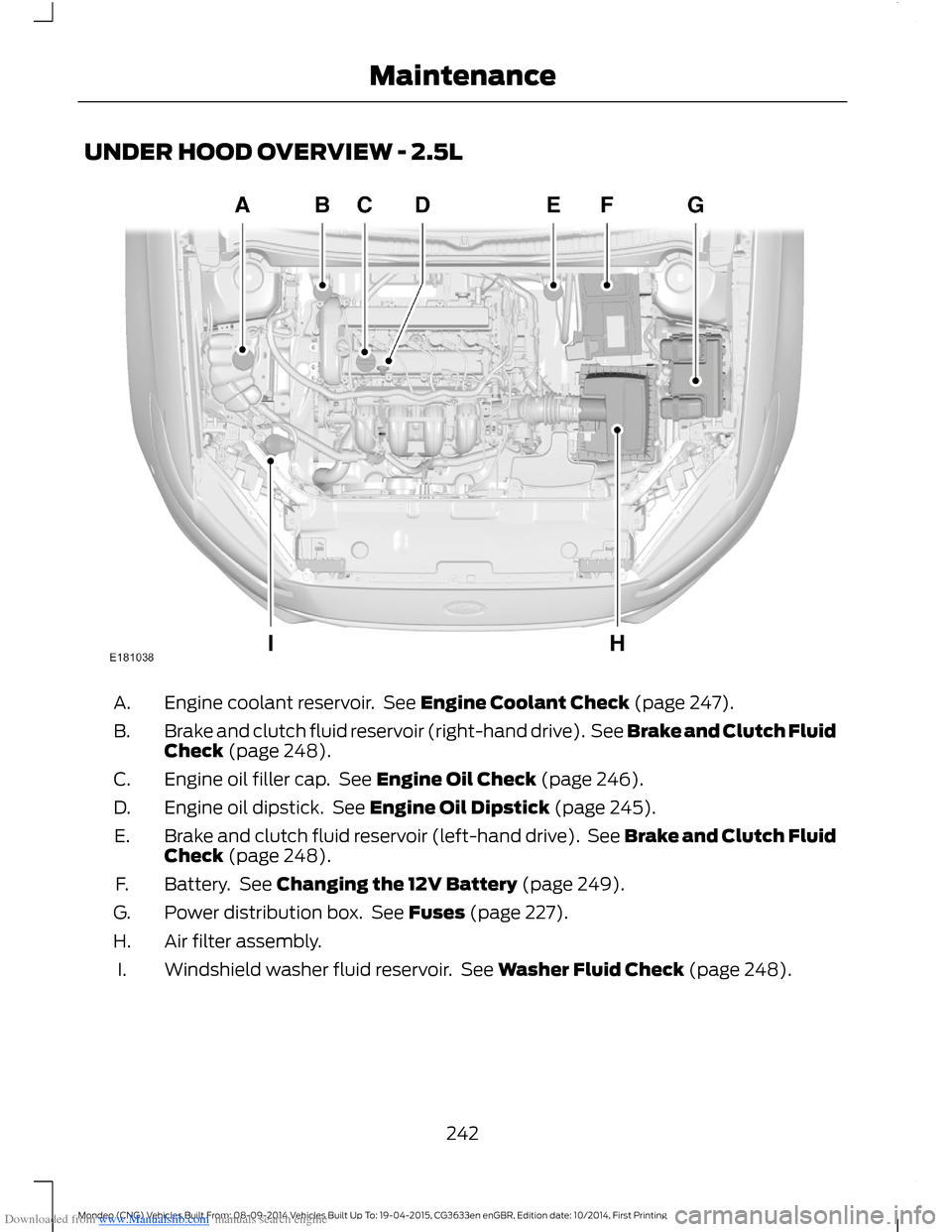

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 2.5L
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 245).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
242Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

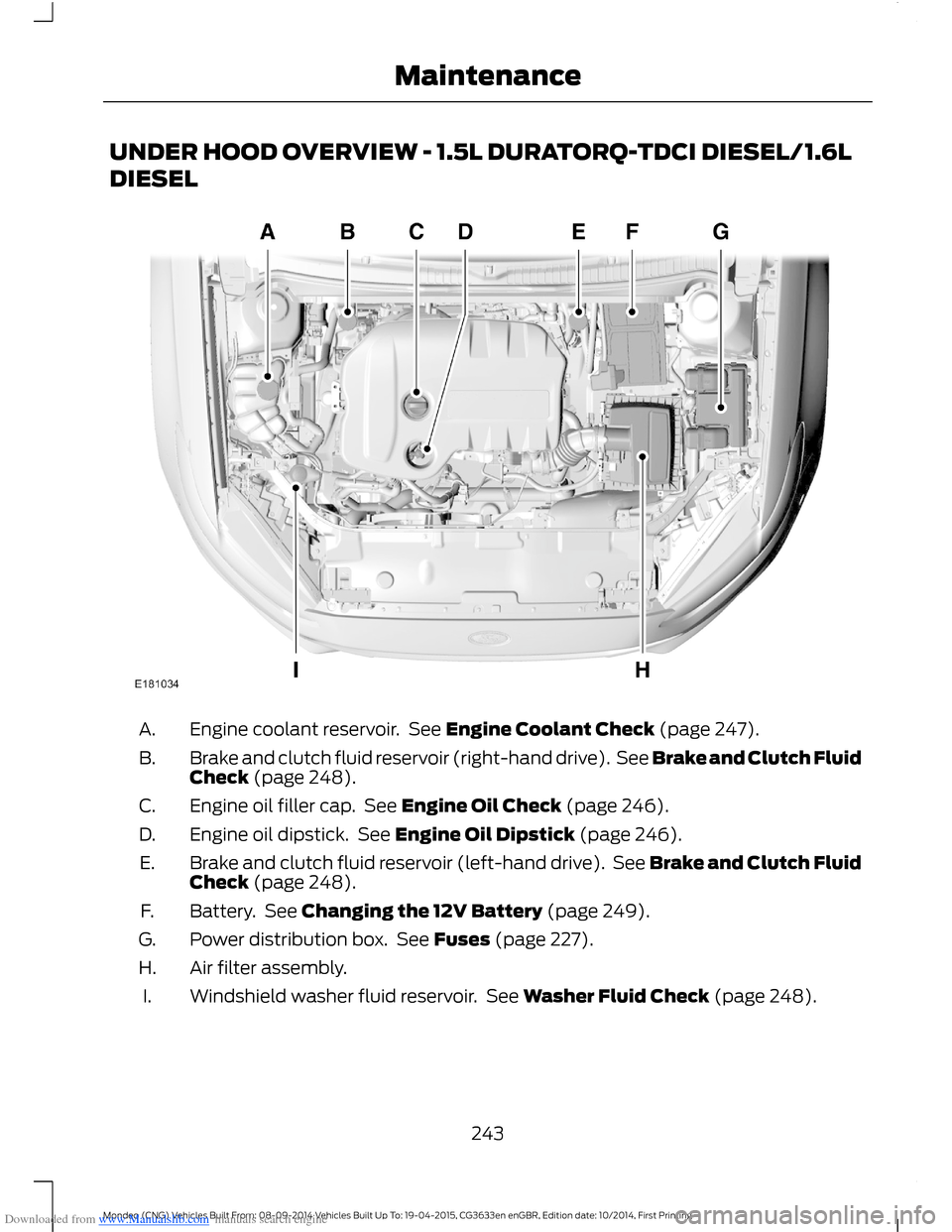

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 1.5L DURATORQ-TDCI DIESEL/1.6L
DIESEL
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
243Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

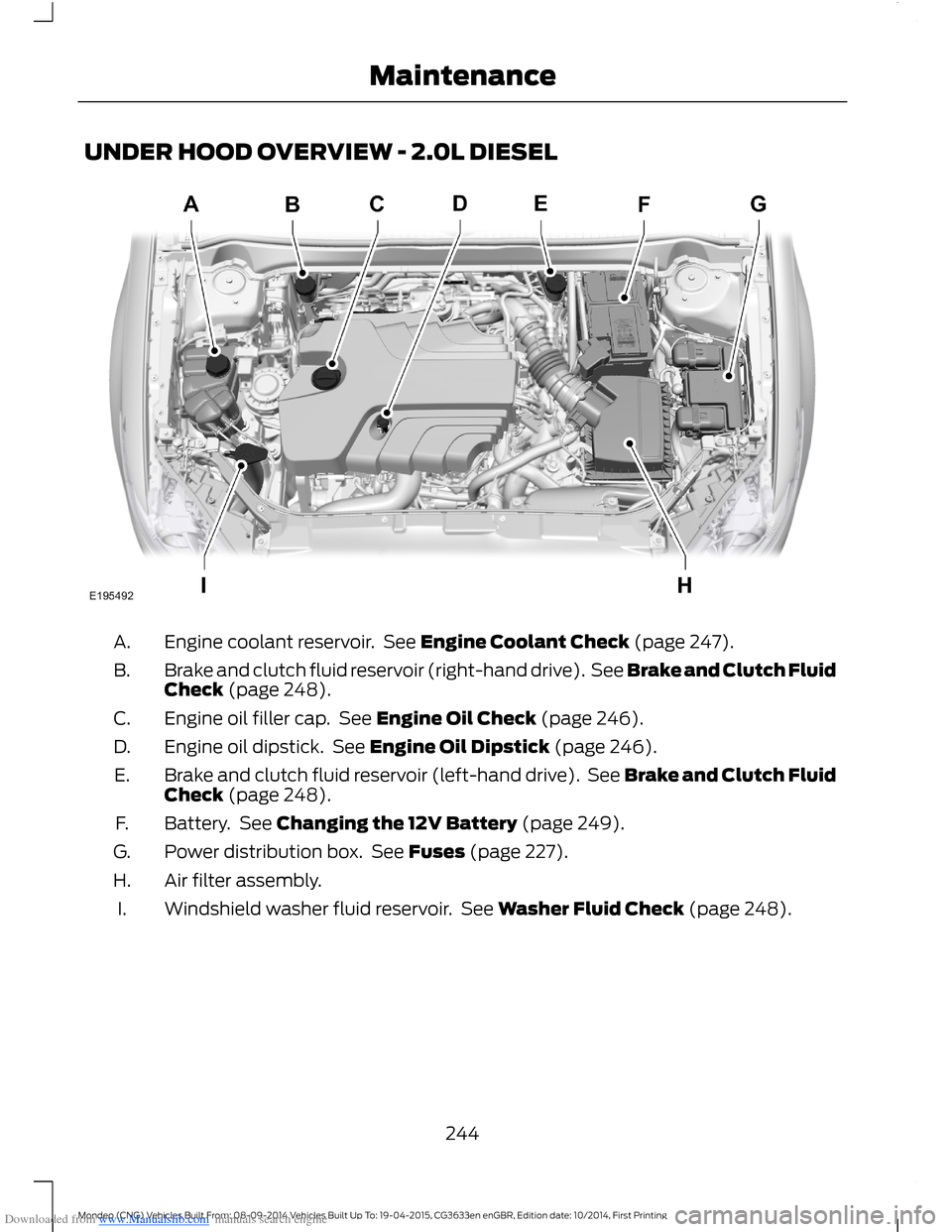

Downloaded from www.Manualslib.com manuals search engine UNDER HOOD OVERVIEW - 2.0L DIESEL
Engine coolant reservoir. See Engine Coolant Check (page 247).A.
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch FluidCheck (page 248).B.
Engine oil filler cap. See Engine Oil Check (page 246).C.
Engine oil dipstick. See Engine Oil Dipstick (page 246).D.
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch FluidCheck (page 248).E.
Battery. See Changing the 12V Battery (page 249).F.
Power distribution box. See Fuses (page 227).G.
Air filter assembly.H.
Windshield washer fluid reservoir. See Washer Fluid Check (page 248).I.
244Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

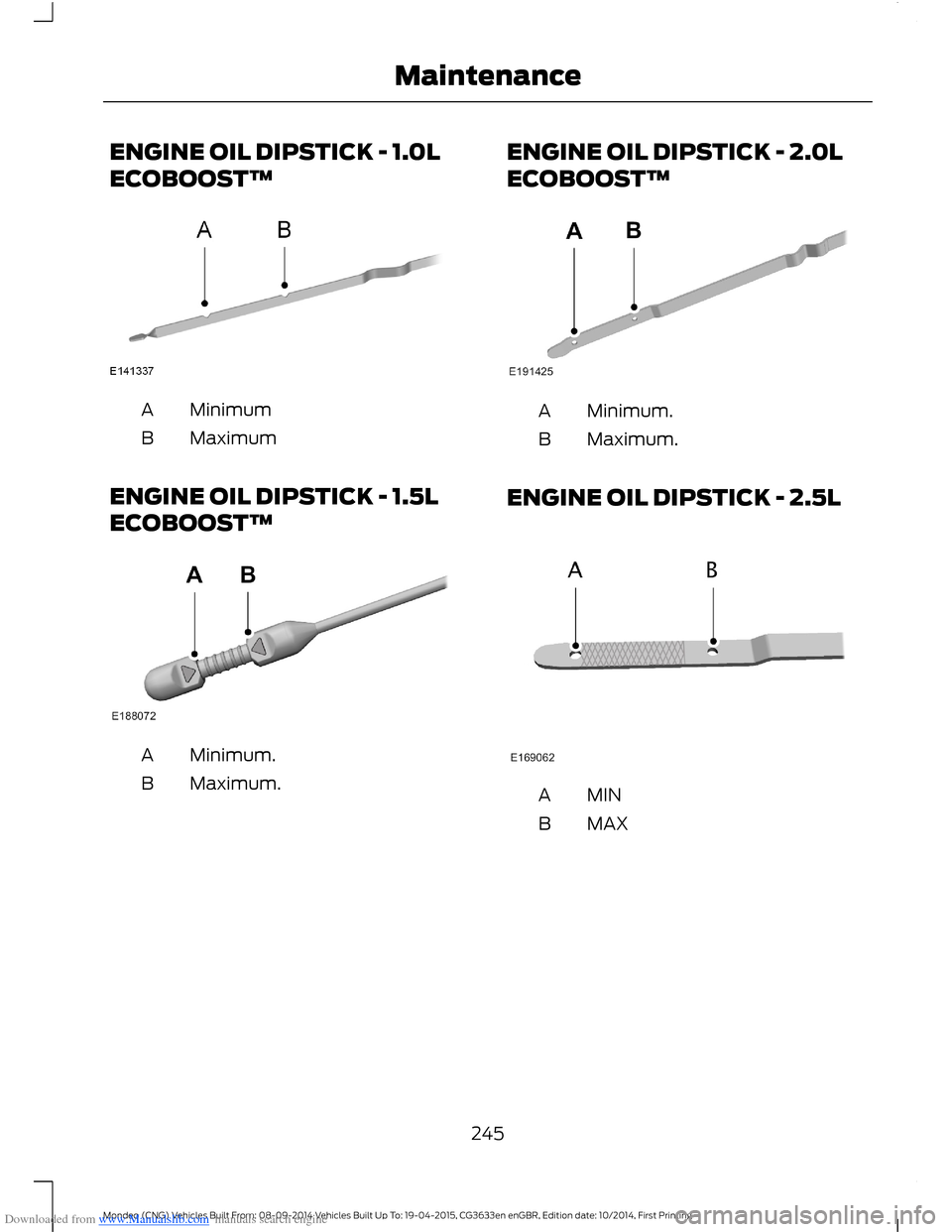

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.0L
ECOBOOST™
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.5L
ECOBOOST™
Minimum.A
Maximum.B
ENGINE OIL DIPSTICK - 2.0L
ECOBOOST™
Minimum.A
Maximum.B
ENGINE OIL DIPSTICK - 2.5L
MINA
MAXB
245Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

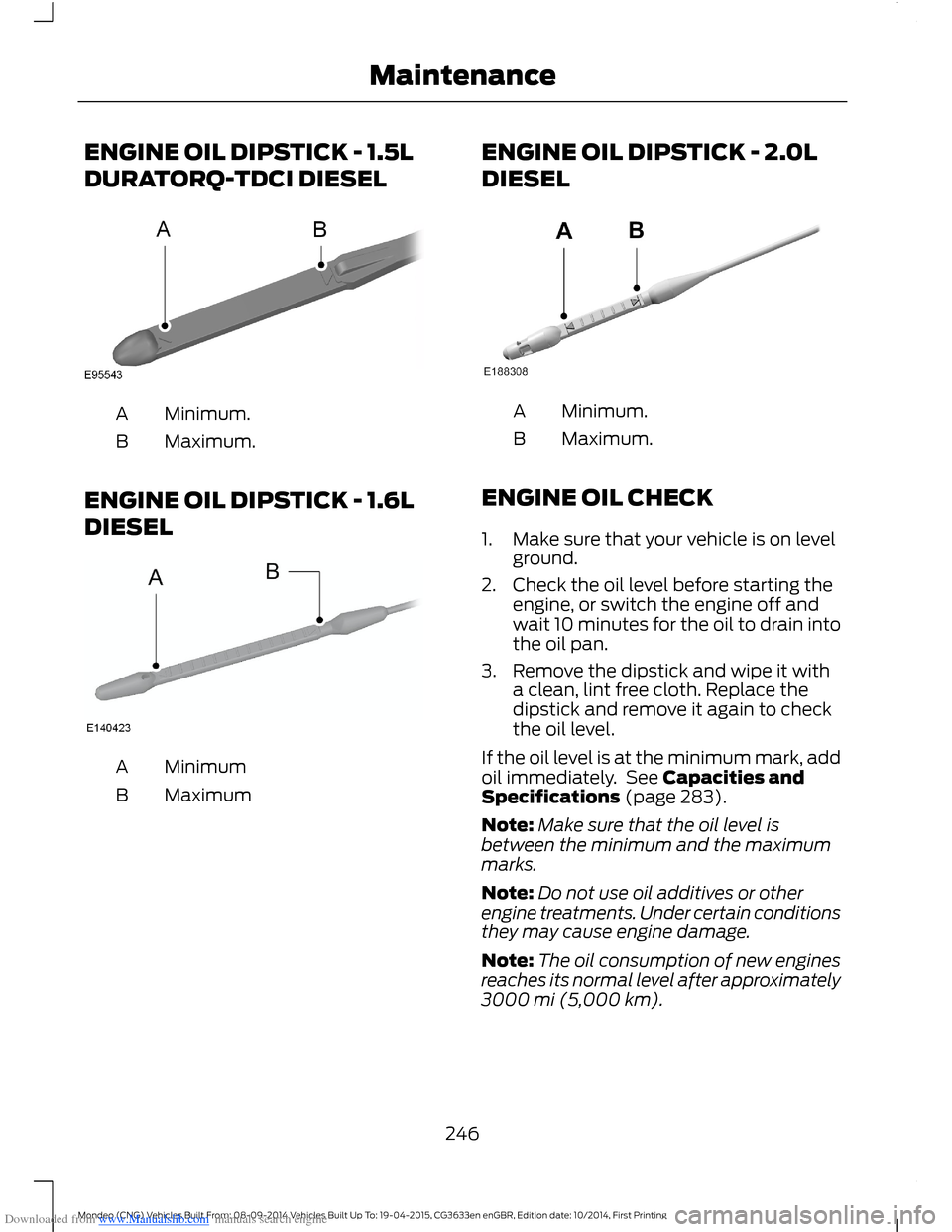

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.5L
DURATORQ-TDCI DIESEL
Minimum.A
Maximum.B
ENGINE OIL DIPSTICK - 1.6L
DIESEL
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 2.0L
DIESEL
Minimum.A
Maximum.B
ENGINE OIL CHECK
1.Make sure that your vehicle is on levelground.
2.Check the oil level before starting theengine, or switch the engine off andwait 10 minutes for the oil to drain intothe oil pan.
3.Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the oil level is at the minimum mark, addoil immediately. See Capacities andSpecifications (page 283).
Note:Make sure that the oil level isbetween the minimum and the maximummarks.
Note:Do not use oil additives or otherengine treatments. Under certain conditionsthey may cause engine damage.
Note:The oil consumption of new enginesreaches its normal level after approximately3000 mi (5,000 km).
246Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

Downloaded from www.Manualslib.com manuals search engine Adding Engine Oil
WARNINGS
Only add oil when the engine is cold.If the engine is hot, wait 10 minutesfor the engine to cool down.
Do not remove the filler cap whenthe engine is running.
1.Remove the engine oil filler cap. SeeMaintenance (page 237).
2.Add engine oil that meets Fordspecifications. See Capacities andSpecifications (page 283).
3.Replace the engine oil filler cap. Turnit until you feel a strong resistance.
Note:Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Soak up any spillage with anabsorbent cloth immediately.
ENGINE COOLANT CHECK
WARNINGS
Never remove the coolant reservoircap while the engine is running or hot.
Only add coolant when the engine iscold. If the engine is hot, wait 10minutes for the engine to cool down.
Do not allow the fluid to touch yourskin or eyes. If this happens, rinse theaffected areas immediately withplenty of water and contact your physician.
Undiluted coolant is flammable andmay ignite if spilt on a hot exhaust.
Make sure that the coolant level isbetween the MIN and MAX marks on thecoolant reservoir. If the level is at the MINmark, below the MIN mark, or empty, addcoolant immediately. See Capacities andSpecifications (page 277).
Note: Coolant expands when it is hot. Thelevel may extend beyond the MAX mark.
Adding Engine Coolant
1.Remove the filler cap.
2.Add engine coolant to the MAX mark,do not overfill.
3.Replace the filler cap. Turn it until youfeel a strong resistance.
Note: Add a 50/50 mixture of antifreezeand water or prediluted engine coolant thatmeets the correct specification. SeeCapacities and Specifications (page ?).
Note:In case of emergency, you can add alarge amount of water without enginecoolant in order to reach a vehicle servicelocation.
Note:Prolonged use of an incorrect dilutionof engine coolant can cause engine damage,such as corrosion, overheating or freezing.
247Mondeo (CNG) Vehicles Built From: 08-09-2014 Vehicles Built Up To: 19-04-2015, CG3633en enGBR, Edition date: 10/2014, First PrintingMaintenance

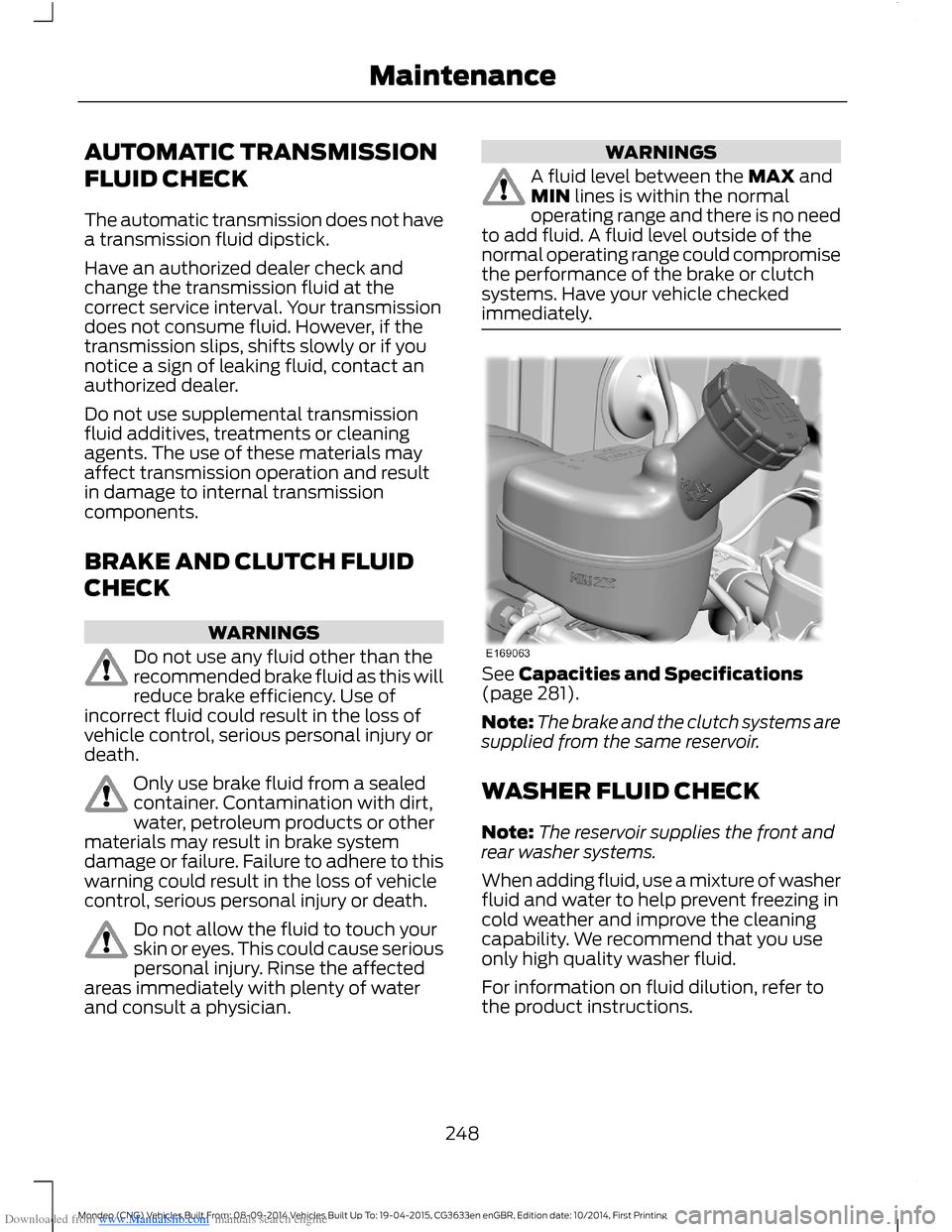

Downloaded from www.Manualslib.com manuals search engine AUTOMATIC TRANSMISSION
FLUID CHECK
The automatic transmission does not havea transmission fluid dipstick.
Have an authorized dealer check andchange the transmission fluid at thecorrect service interval. Your transmissiondoes not consume fluid. However, if thetransmission slips, shifts slowly or if younotice a sign of leaking fluid, contact anauthorized dealer.
Do not use supplemental transmissionfluid additives, treatments or cleaningagents. The use of these materials mayaffect transmission operation and resultin damage to internal transmissioncomponents.
BRAKE AND CLUTCH FLUID
CHECK
WARNINGS
Do not use any fluid other than therecommended brake fluid as this willreduce brake efficiency. Use ofincorrect fluid could result in the loss ofvehicle control, serious personal injury ordeath.
Only use brake fluid from a sealedcontainer. Contamination with dirt,water, petroleum products or othermaterials may result in brake systemdamage or failure. Failure to adhere to thiswarning could result in the loss of vehiclecontrol, serious personal injury or death.
Do not allow the fluid to touch yourskin or eyes. This could cause seriouspersonal injury. Rinse the affectedareas immediately with plenty of waterand consult a physician.
WARNINGS
A fluid level between the MAX andMIN lines is within the normaloperating range and there is no needto add fluid. A fluid level outside of thenormal operating range could compromisethe performance of the brake or clutchsystems. Have your vehicle checkedimmediately.
See Capacities and Specifications(page 281).
Note:The brake and the clutch systems aresupplied from the same reservoir.
WASHER FLUID CHECK
Note:The reservoir supplies the front andrear washer systems.
When adding fluid, use a mixture of washerfluid and water to help prevent freezing incold weather and improve the cleaningcapability. We recommend that you useonly high quality washer fluid.
For information on fluid dilution, refer tothe product instructions.
