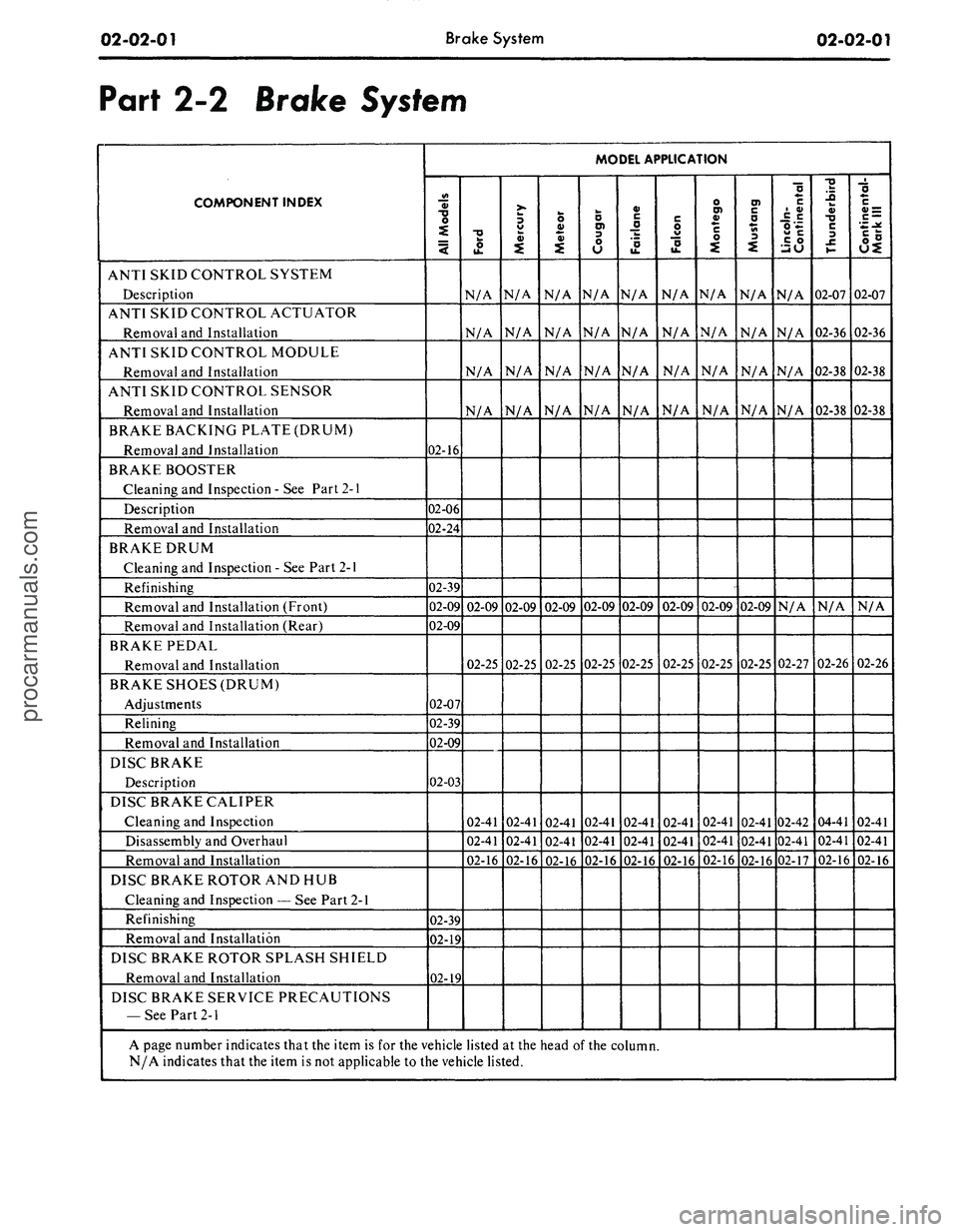

sensor FORD MUSTANG 1969 Volume One Chassis

02-02-01
Brake System

02-02-01

Part 2-2 Brake
System

COMPONENT INDEX

ANTI SKID CONTROL SYSTEM

Description

ANTI SKID CONTROL ACTUATOR

Removal and Installation

ANTI SKID CONTROL MODULE

Removal and Installation

ANTI SKID CONTROL SENSOR

Removal and Installation

BRAKE BACKING PLATE (DRUM)

Removal and Installation

BRAKE BOOSTER

Cleaning and Inspection
-
See Part 2-1

Description

Removal and Installation

BRAKE DRUM

Cleaning and Inspection
-
See Part 2-1

Refinishing

Removal and Installation (Front)

Removal and Installation (Rear)

BRAKE PEDAL

Removal and Installation

BRAKE SHOES (DRUM)

Adjustments

Relining

Removal and Installation

DISC BRAKE

Description

DISC BRAKE CALIPER

Cleaning and Inspection

Disassembly and Overhaul

Removal and Installation

DISC BRAKE ROTOR AND HUB

Cleaning and Inspection
—
See Part 2-1

Refinishing

Removal and Installation

DISC BRAKE ROTOR SPLASH SHIELD

Removal and Installation

DISC BRAKE SERVICE PRECAUTIONS

—
See Part 2-1
MODEL APPLICATION
All
Models

02-16

02-06

02-24

02-39

02-09

02-09

02-07

02-39

02-09

02-03

02-39

02-19

02-19
Ford
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Mercury
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Meteor
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Cougar
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Fairlane
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Falcon
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Montego
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Mustang
N/A

N/A

N/A

N/A

02-09

02-25

02-41

02-41

02-16
Lincoln-
Continental
N/A

N/A

N/A

N/A

N/A

02-27

02-42

02-41

02-17
Thunderbird
02-07

02-36

02-38

02-38

N/A

02-26

04-41

02-41

02-16
Continental-
Mark
III
02-07

02-36

02-38

02-38

N/A

02-26

02-41

02-41

02-16

A page number indicates that the item is for the vehicle listed at the head of the column.

N/A indicates that the item is not applicable to the vehicle listed.
procarmanuals.com

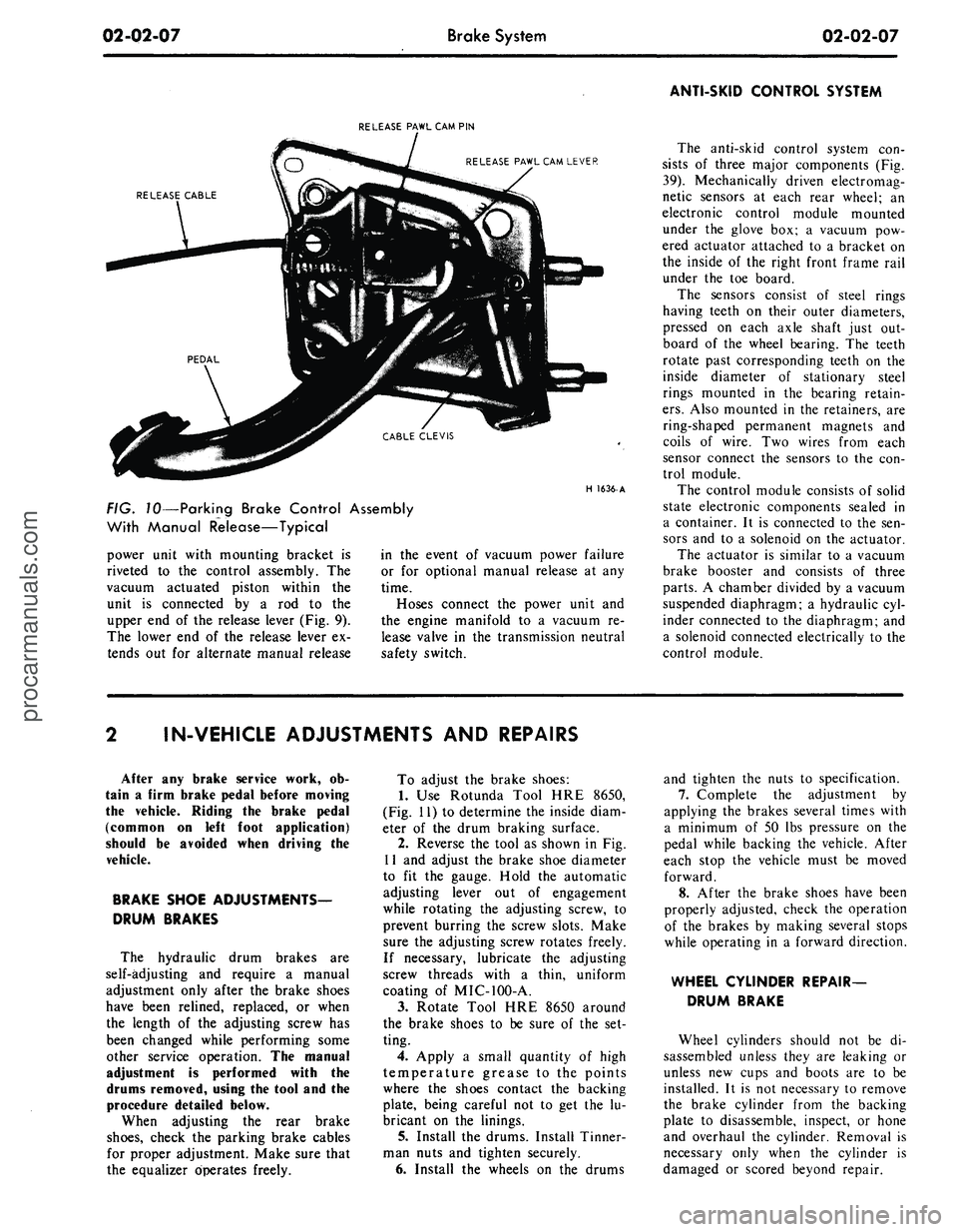

02-02-07
Brake System

02-02-07

ANTI-SKID CONTROL SYSTEM

RELEASE PAWL CAM PIN

RELEASE PAWL CAM LEVER

RELEASE CABLE

H
1636-
A

FIG. 10—Parking Brake Control Assembly

With Manual Release—Typical

power unit with mounting bracket is

riveted to the control assembly. The

vacuum actuated piston within the

unit is connected by a rod to the

upper end of the release lever (Fig. 9).

The lower end of the release lever ex-

tends out for alternate manual release
in the event of vacuum power failure

or for optional manual release at any

time.

Hoses connect the power unit and

the engine manifold to a vacuum re-

lease valve in the transmission neutral

safety switch.
The anti-skid control system con-

sists of three major components (Fig.

39).
Mechanically driven electromag-

netic sensors at each rear wheel; an

electronic control module mounted

under the glove box; a vacuum pow-

ered actuator attached to a bracket on

the inside of the right front frame rail

under the toe board.

The sensors consist of steel rings

having teeth on their outer diameters,

pressed on each axle shaft just out-

board of the wheel bearing. The teeth

rotate past corresponding teeth on the

inside diameter of stationary steel

rings mounted in the bearing retain-

ers.
Also mounted in the retainers, are

ring-shaped permanent magnets and

coils of wire. Two wires from each

sensor connect the sensors to the con-

trol module.

The control module consists of solid

state electronic components sealed in

a container. It is connected to the sen-

sors and to a solenoid on the actuator.

The actuator is similar to a vacuum

brake booster and consists of three

parts.
A chamber divided by a vacuum

suspended diaphragm; a hydraulic cyl-

inder connected to the diaphragm; and

a solenoid connected electrically to the

control module.

IN-VEHICLE ADJUSTMENTS AND REPAIRS

After any brake service work, ob-

tain a firm brake pedal before moving

the vehicle. Riding the brake pedal

(common on left foot application)

should be avoided when driving the

vehicle.

BRAKE SHOE ADJUSTMENTS—

DRUM BRAKES

The hydraulic drum brakes are

self-adjusting and require a manual

adjustment only after the brake shoes

have been relined, replaced, or when

the length of the adjusting screw has

been changed while performing some

other service operation. The manual

adjustment is performed with the

drums removed, using the tool and the

procedure detailed below.

When adjusting the rear brake

shoes,
check the parking brake cables

for proper adjustment. Make sure that

the equalizer operates freely.
To adjust the brake shoes:

1.
Use Rotunda Tool HRE 8650,

(Fig. 11) to determine the inside diam-

eter of the drum braking surface.

2.
Reverse the tool as shown in Fig.

11 and adjust the brake shoe diameter

to fit the gauge. Hold the automatic

adjusting lever out of engagement

while rotating the adjusting screw, to

prevent burring the screw slots. Make

sure the adjusting screw rotates freely.

If necessary, lubricate the adjusting

screw threads with a thin, uniform

coating of MIC-100-A.

3.
Rotate Tool HRE 8650 around

the brake shoes to be sure of the set-

ting.

4.
Apply a small quantity of high

temperature grease to the points

where the shoes contact the backing

plate, being careful not to get the lu-

bricant on the linings.

5. Install the drums. Install Tinner-

man nuts and tighten securely.

6. Install the wheels on the drums
and tighten the nuts to specification.

7.
Complete the adjustment by

applying the brakes several times with

a minimum of 50 lbs pressure on the

pedal while backing the vehicle. After

each stop the vehicle must be moved

forward.

8. After the brake shoes have been

properly adjusted, check the operation

of the brakes by making several stops

while operating in a forward direction.

WHEEL CYLINDER REPAIR-

DRUM BRAKE

Wheel cylinders should not be di-

sassembled unless they are leaking or

unless new cups and boots are to be

installed. It is not necessary to remove

the brake cylinder from the backing

plate to disassemble, inspect, or hone

and overhaul the cylinder. Removal is

necessary only when the cylinder is

damaged or scored beyond repair.procarmanuals.com

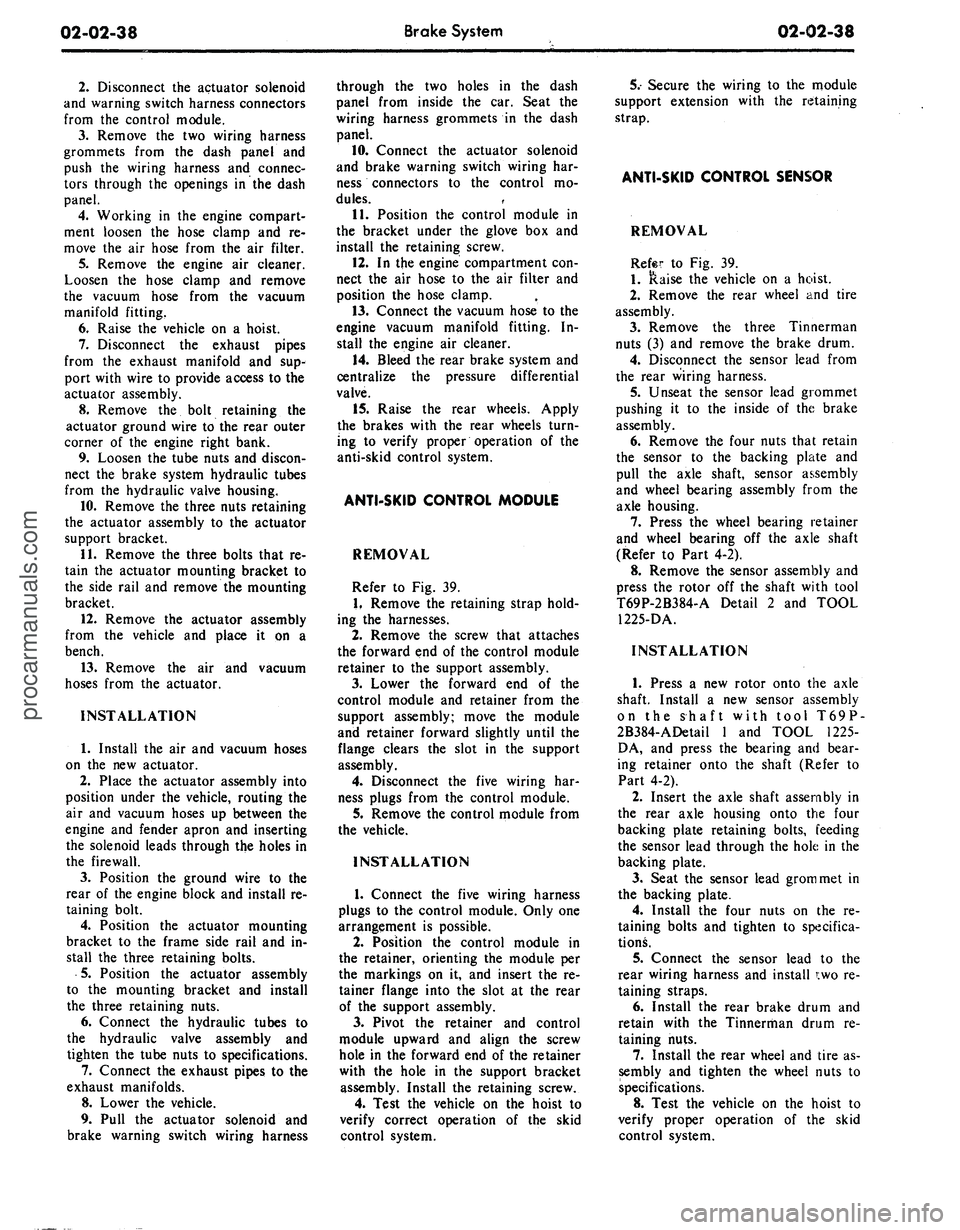

02-02-38
Brake System

02-02-38

2.
Disconnect the actuator solenoid

and warning switch harness connectors

from the control module.

3.
Remove the two wiring harness

grommets from the dash panel and

push the wiring harness and connec-

tors through the openings in the dash

panel.

4.
Working in the engine compart-

ment loosen the hose clamp and re-

move the air hose from the air filter.

5.
Remove the engine air cleaner-

Loosen the hose clamp and remove

the vacuum hose from the vacuum

manifold fitting.

6. Raise the vehicle on a hoist.

7.
Disconnect the exhaust pipes

from the exhaust manifold and sup-

port with wire to provide access to the

actuator assembly.

8. Remove the bolt retaining the

actuator ground wire to the rear outer

corner of the engine right bank.

9. Loosen the tube nuts and discon-

nect the brake system hydraulic tubes

from the hydraulic valve housing.

10.
Remove the three nuts retaining

the actuator assembly to the actuator

support bracket.

11.
Remove the three bolts that re-

tain the actuator mounting bracket to

the side rail and remove the mounting

bracket.

12.
Remove the actuator assembly

from the vehicle and place it on a

bench.

13.
Remove the air and vacuum

hoses from the actuator.

INSTALLATION

1.
Install the air and vacuum hoses

on the new actuator.

2.
Place the actuator assembly into

position under the vehicle, routing the

air and vacuum hoses up between the

engine and fender apron and inserting

the solenoid leads through the holes in

the firewall.

3.
Position the ground wire to the

rear of the engine block and install re-

taining bolt.

4.
Position the actuator mounting

bracket to the frame side rail and in-

stall the three retaining bolts.

5.
Position the actuator assembly

to the mounting bracket and install

the three retaining nuts.

6. Connect the hydraulic tubes to

the hydraulic valve assembly and

tighten the tube nuts to specifications.

7.
Connect the exhaust pipes to the

exhaust manifolds.

8. Lower the vehicle.

9. Pull the actuator solenoid and

brake warning switch wiring harness
through the two holes in the dash

panel from inside the car. Seat the

wiring harness grommets in the dash

panel.

10.
Connect the actuator solenoid

and brake warning switch wiring har-

ness connectors to the control mo-

dules.
'

11.
Position the control module in

the bracket under the glove box and

install the retaining screw.

12.
In the engine compartment con-

nect the air hose to the air filter and

position the hose clamp.

13.
Connect the vacuum hose to the

engine vacuum manifold fitting. In-

stall the engine air cleaner.

14.
Bleed the rear brake system and

centralize the pressure differential

valve.

15.
Raise the rear wheels. Apply

the brakes with the rear wheels turn-

ing to verify proper operation of the

anti-skid control system.

ANTI-SKID CONTROL MODULE

REMOVAL

Refer to Fig. 39.

1.
Remove the retaining strap hold-

ing the harnesses.

2.
Remove the screw that attaches

the forward end of the control module

retainer to the support assembly.

3.
Lower the forward end of the

control module and retainer from the

support assembly; move the module

and retainer forward slightly until the

flange clears the slot in the support

assembly.

4.
Disconnect the five wiring har-

ness plugs from the control module.

5.
Remove the control module from

the vehicle.

INSTALLATION

1.
Connect the five wiring harness

plugs to the control module. Only one

arrangement is possible.

2.
Position the control module in

the retainer, orienting the module per

the markings on it, and insert the re-

tainer flange into the slot at the rear

of the support assembly.

3.
Pivot the retainer and control

module upward and align the screw

hole in the forward end of the retainer

with the hole in the support bracket

assembly. Install the retaining screw.

4.
Test the vehicle on the hoist to

verify correct operation of the skid

control system.
5.-
Secure the wiring to the module

support extension with the retaining

strap.

ANTI-SKID CONTROL SENSOR

REMOVAL

Refer to Fig. 39.

1.
Raise the vehicle on a hoist.

2.
Remove the rear wheel and tire

assembly.

3.
Remove the three Tinnerman

nuts (3) and remove the brake drum.

4.
Disconnect the sensor lead from

the rear wiring harness.

5.
Unseat the sensor lead grommet

pushing it to the inside of the brake

assembly.

6. Remove the four nuts that retain

the sensor to the backing plate and

pull the axle shaft, sensor assembly

and wheel bearing assembly from the

axle housing.

7.
Press the wheel bearing retainer

and wheel bearing off the axle shaft

(Refer to Part 4-2).

8. Remove the sensor assembly and

press the rotor off the shaft with tool

T69P-2B384-A Detail 2 and TOOL

1225-DA.

INSTALLATION

1.
Press a new rotor onto the axle

shaft. Install a new sensor assembly

on the shaft with tool T69P-

2B384-ADetail 1 and TOOL 1225-

DA, and press the bearing and bear-

ing retainer onto the shaft (Refer to

Part 4-2).

2.
Insert the axle shaft assembly in

the rear axle housing onto the four

backing plate retaining bolts, feeding

the sensor lead through the hole in the

backing plate.

3.
Seat the sensor lead grommet in

the backing plate.

4.
Install the four nuts on the re-

taining bolts and tighten to specifica-

tions.

5.
Connect the sensor lead to the

rear wiring harness and install two re-

taining straps.

6. Install the rear brake drum and

retain with the Tinnerrhan drum re-

taining nuts.

7.
Install the rear wheel and tire as-

sembly and tighten the wheel nuts to

specifications.

8. Test the vehicle on the hoist to

verify proper operation of the skid

control system.procarmanuals.com
