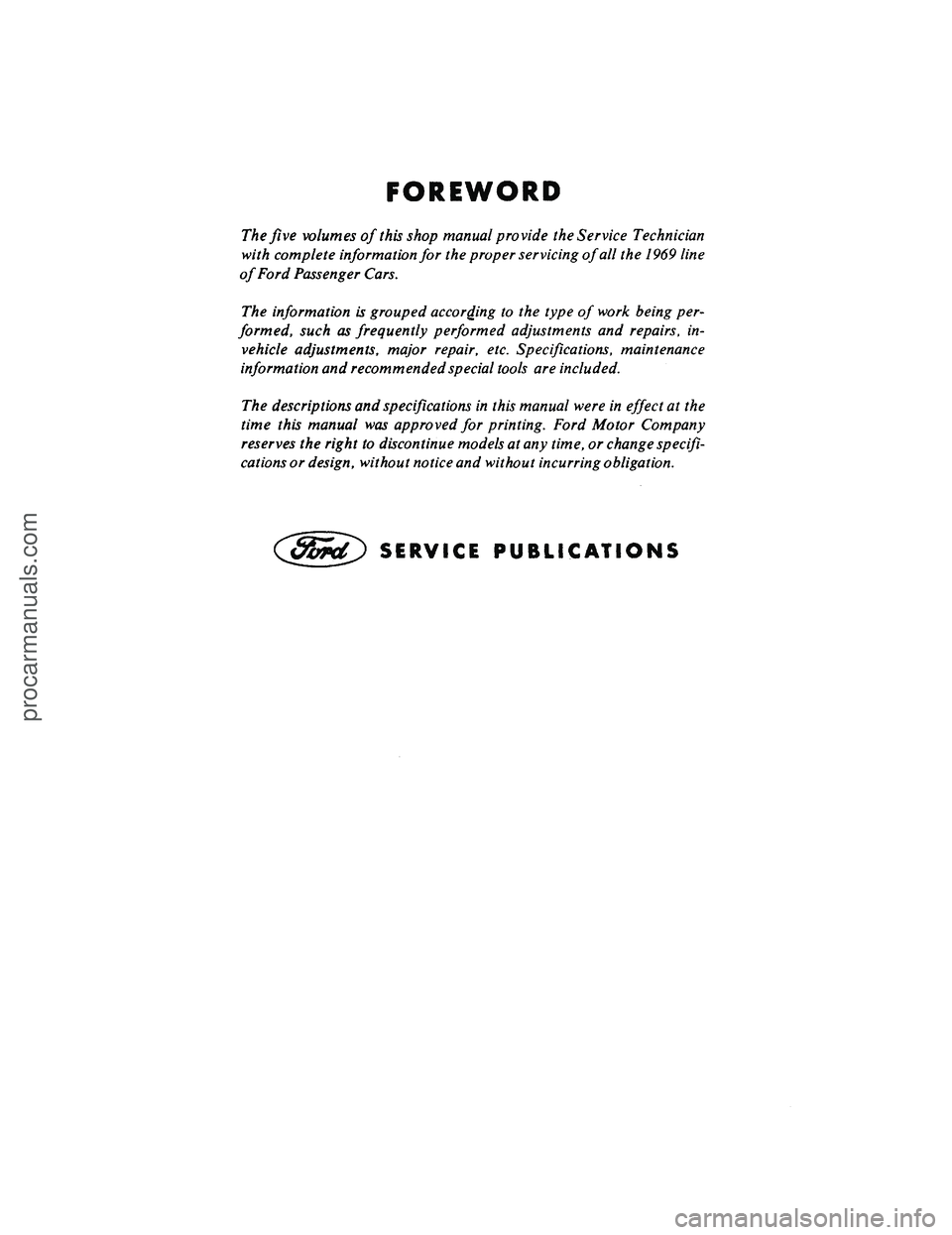

FOREWORD
The five volumes of
this
shop manual provide the Service Technician
with complete information for the proper servicing of all the 1969 line
of Ford Passenger Cars.
The information is grouped according to the type of work being per-
formed,
such as frequently performed adjustments and repairs, in-
vehicle adjustments, major repair, etc. Specifications, maintenance
information and recommended special tools are
included.
The descriptions and specifications in this manual were in effect at the
time this manual was approved for printing. Ford Motor Company
reserves the right to discontinue models at any time, or change specifi-
cations
or design, without notice and without incurring obligation.
SERVICE PUBLICATIONSprocarmanuals.com
Page 4 of 413

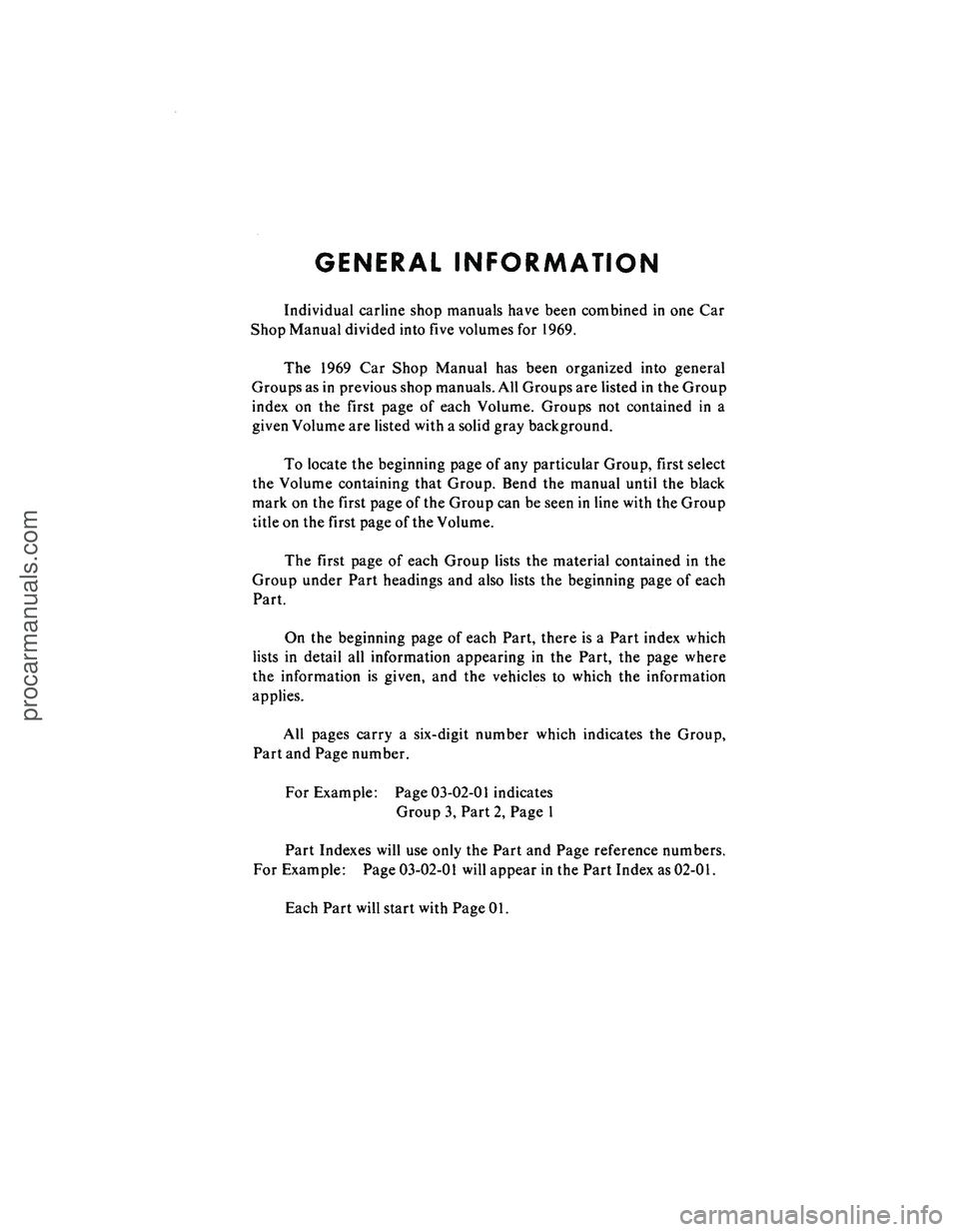

GENERAL INFORMATION
Individual carline shop manuals have been combined in one Car
Shop Manual divided into five volumes for 1969.
The 1969 Car Shop Manual has been organized into general
Groups as in previous shop manuals. All Groups are listed in the Group
index on the first page of each Volume. Groups not contained in a
given Volume are listed with a solid gray background.
To locate the beginning page of any particular Group, first select
the Volume containing that Group. Bend the manual until the black
mark on the first page of the Group can be seen in line with the Group
title on the first page of the Volume.
The first page of each Group lists the material contained in the
Group under Part headings and also lists the beginning page of each
Part.
On the beginning page of each Part, there is a Part index which
lists in detail all information appearing in the Part, the page where
the information is given, and the vehicles to which the information
applies.
All pages carry a six-digit number which indicates the Group,
Part and Page number.
For Example: Page 03-02-01 indicates
Group 3, Part 2, Page 1
Part Indexes will use only the Part and Page reference numbers.
For Example: Page 03-02-01 will appear in the Part Index as
02-01.
Each Part will start with Page 01.procarmanuals.com
Page 5 of 413
01-01-01
01-01-01
1
I 9Y82A848000
|
Y89A848000
rMMUNTrNUMBW
I 53A
A IA I8H 34 4
^J MODEL YEAR CODE
2)
ASSEMBLY PLANT CODE
5)
BODY SERIAL CODE
T)
ENGINE CODE
T)
CONSECUTIVE UNIT
NO.
T)
BODY TYPE CODE
(7)
COLOR CODE
0 TRIM CODE
® DATE CODE
(JO) DISTRICT-SPEC. EQUIP. CODE
(lT) REAR AXLE CODE
(12) TRANSMISSION CODE

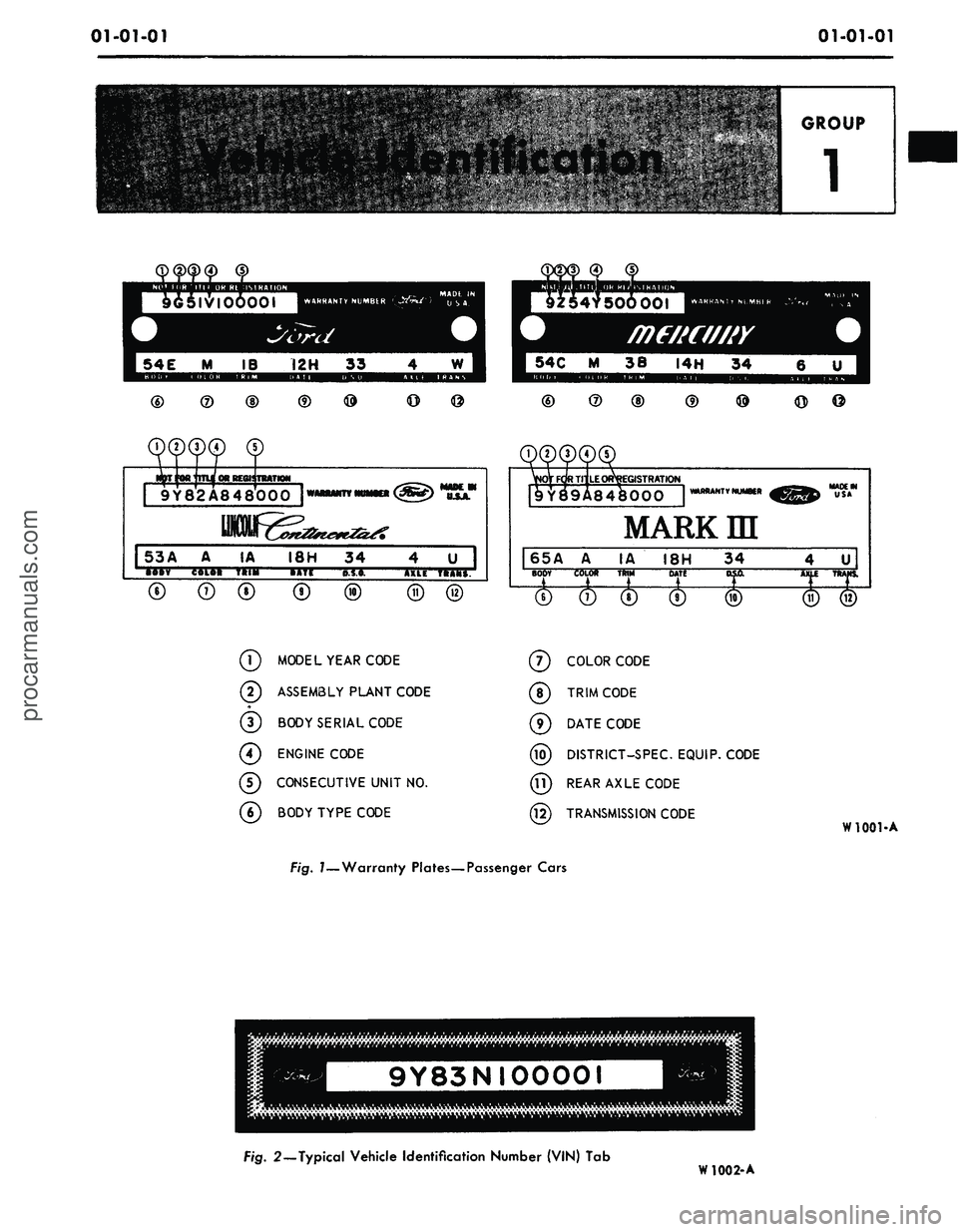

W1001-A
Fig.
1—Warranty
Plates—Passenger Cars
9Y83NI0000I
Fig. 2—Typical Vehicle Identification Number
(VIN) Tab
W
1002-Aprocarmanuals.com
Page 6 of 413
01-01-02

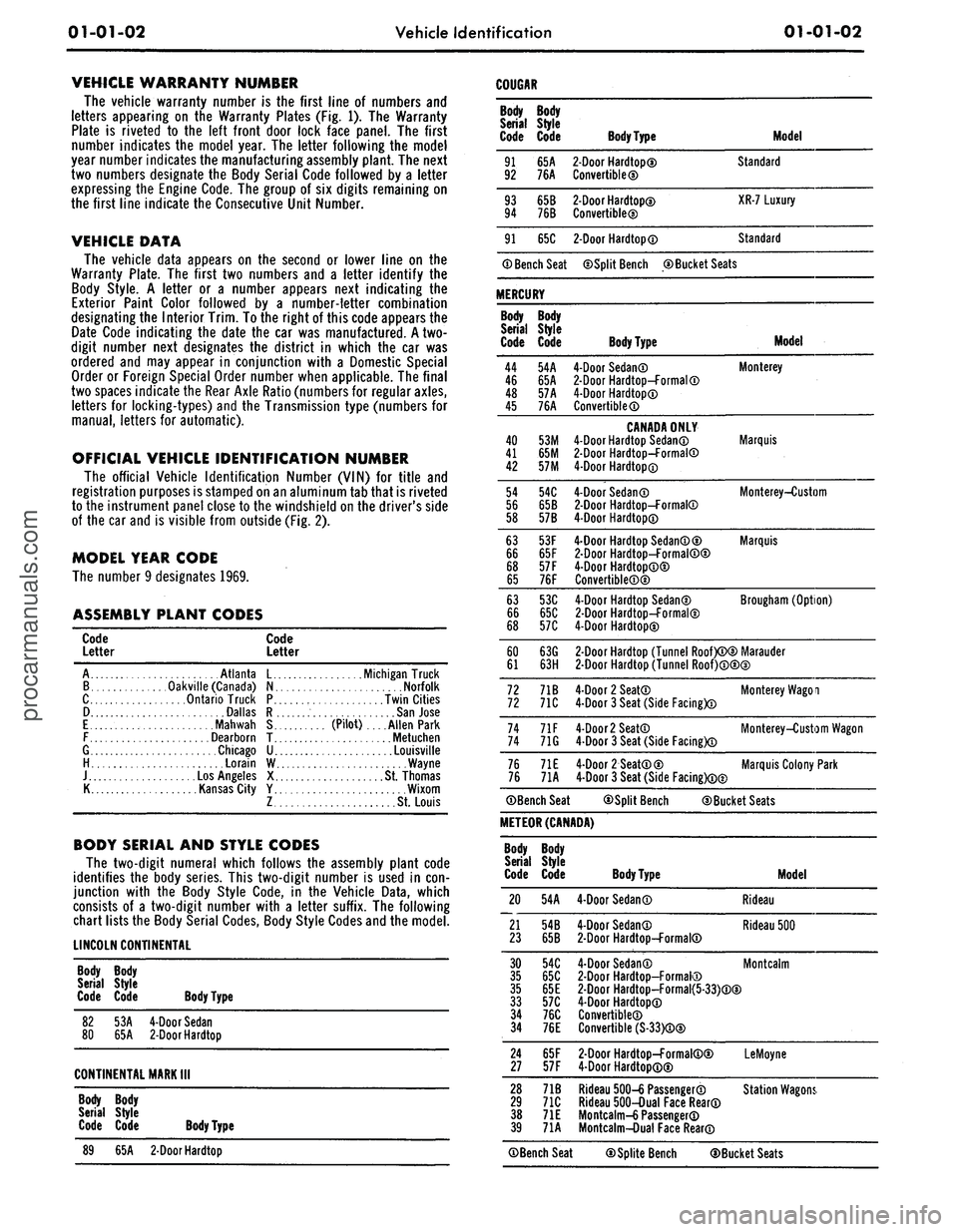

Vehicle Identification
01-01-02
VEHICLE WARRANTY NUMBER
The vehicle warranty number is the first line of numbers and
letters appearing on the Warranty Plates (Fig. 1). The Warranty
Plate is riveted to the left front door lock face panel. The first
number indicates the model year. The letter following the model
year number indicates the manufacturing assembly plant. The next
two numbers designate the Body Serial Code followed by a letter
expressing the Engine Code. The group of six digits remaining on
the first line indicate the Consecutive Unit Number.
VEHICLE DATA
The vehicle data appears on the second or lower line on the
Warranty Plate. The first two numbers and a letter identify the
Body Style. A letter or a number appears next indicating the
Exterior Paint Color followed by a number-letter combination
designating the Interior Trim. To the right of this code appears the
Date Code indicating the date the car was manufactured. A two-
digit number next designates the district in which the car was
ordered and may appear in conjunction with a Domestic Special
Order or Foreign Special Order number when applicable. The final
two spaces indicate the Rear Axle Ratio (numbers for regular axles,
letters for locking-types) and the Transmission type (numbers for
manual,
letters for automatic).
OFFICIAL VEHICLE IDENTIFICATION NUMBER
The official Vehicle Identification Number (VIN) for title and
registration purposes is stamped on an aluminum tab that is riveted
to the instrument panel close to the windshield on the driver's side
of the car and is visible from outside (Fig. 2).
MODEL YEAR CODE
The number 9 designates 1969.
ASSEMBLY PLANT CODES
COUGAR
Code
Letter
Code
Letter
A
B
C
D
E
F
G
H
J
K
Atlanta
L
Oakville (Canada)
N
Ontario Truck
P
Dallas
R
.,
Mahwah
S
Dearborn
T
Chicago
U
Lorain
W
Los Angeles
X
Kansas City
Y
Z
Michigan Truck
Norfolk
Twin Cities
San Jose
.
(Pilot). ...Allen Park
Metuchen
Louisville
Wayne
St. Thomas
Wixom
St. Louis
BODY SERIAL AND STYLE CODES
The two-digit numeral which follows the assembly plant code
identifies the body series. This two-digit number is used in con-
junction with the Body Style Code, in the Vehicle Data, which
consists of a two-digit number with a letter suffix. The following
chart lists the Body Serial Codes, Body Style Codes and the model.
LINCOLN CONTINENTAL
Body Body
Serial Style
Code Code Body Type
82
53A
4-Door Sedan
80
65A
2-Door
Hardtop
CONTINENTAL MARK
III
Body Body
Serial Style
Code Code Body Type
89
65A
2-Door
Hardtop
Body
Serial
Code
91
92
93
94
91
Body
Style
Code
65A
76A
65B
76B
65C
® Bench Seat
MERCURY
Body
Serial
Code
44
46
48
45
40
41
42
54
56
58
63
66
68
65
63
66
68
60
61
72
72
74
74
76
76
Body
Style
Code
54A
65A
57A
76A
53M
65M
57M
54C
65B
57B
53F
65F
57 F
76F
53C
65C
57C
63G
63H
71B
71C
71F
71G
71E
71A
©Bench Seat
Body
Type
2-Door
Hardtop©
Convertible©
2-Door
Hardtop©
Convertible®
2-Door
Hardtop®
Model
Standard
XR-7 Luxury
Standard
©Split Bench ©Bucket Seats
Body Type
4-Door Sedan©
2-Door
Hardtop-Formal®
4-Door Hardtop®
Convertible®
CANADA ONLY
4-Door Hardtop Sedan®
2-Door
Hardtop-Formal®
4-Door Hardtop®
4-Door Sedan®
2-Door
Hardtop-Formal®
4-Door Hardtop®
4-Door Hardtop Sedan®©
2-Door
Hardtop-Formal®©
4-Door Hardtop®®
Convertible®®
4-Door Hardtop Sedan©
2-Door
Hardtop-Formal©
4-Door Hardtop©
Model
Monterey
Marquis
Monterey-Custom
Marquis
Brougham (Option)
2-Door
Hardtop (Tunnel Roof)®© Marauder
2-Door
Hardtop (Tunnel Roof)®®©
4-Door 2 Seat®
4-Door 3 Seat (Side Facing)®
4-Door
2
Seat®
4-Door 3 Seat (Side Facing)®
4-Door 2 Seat®©
4-Door 3 Seat (Side Facing)®©
Monterey Wagoi
Monterey-Custom Wagon
Marquis Colony Park
©Split Bench ©Bucket Seats
METEOR (CANADA)
Body
Serial
Code
20
21
23
Body
Style
Code
54A
54B
65B
Body Type
4-Door Sedan®
4-Door Sedan®
2-Door
Hardtop-Formal®
Model
Rideau
Rideau 500
30
54C
4-Door Sedan®
35
65C
2-Door
Hardtop-Formal®
35
65E
2-Door
Hardtop-Formal{5-33)®®
33
57C
4-Door Hardtop®
34
76C
Convertible®
34
76E
Convertible (S-33)®®
Montcalm
24
65F
2-Door
Hardtop-Formal®©
27
57F
4-Door Hardtop®®
LeMoyne
28
71B
Rideau 500-6 Passenger®
29
71C
Rideau 500-Dual Face Rear®
38
71E
Mo ntcalm-6 Passenger®
39
71A
Montcalm-Dual Face Rear®
Station Wagons.
©Bench Seat ©Splite Bench ©Bucket Seatsprocarmanuals.com
Page 7 of 413
01-01-03
Vehicle Identification
01-01-03

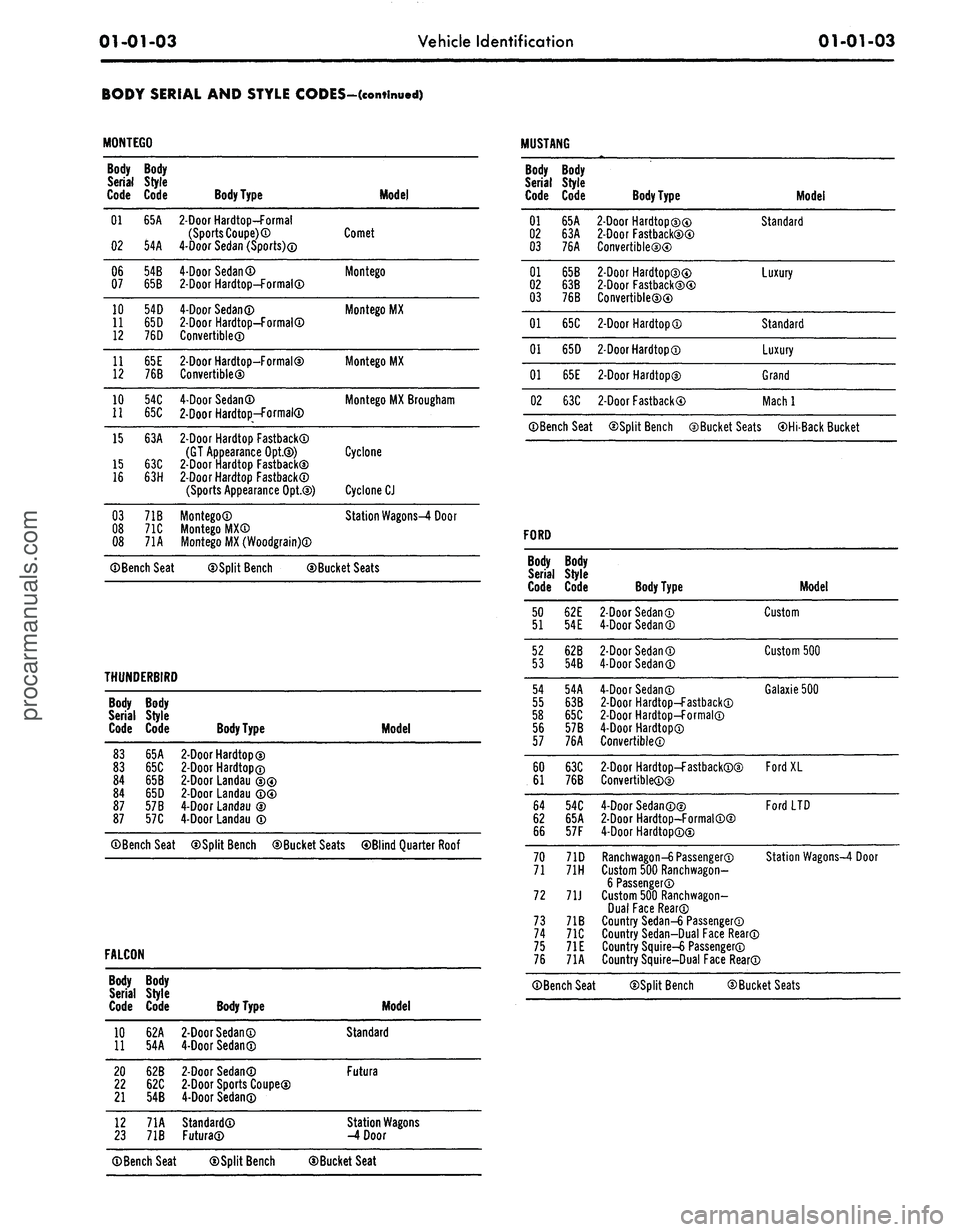

BODY SERIAL AND STYLE CODES-(continued)
MONTEGO
Body
Serial
Code
01
02
06
07
10
11
12
11
12
10
11
Body
Style
Code
65A
54A
54B
65B
54D
65D
76D
65 E
76B
54C
65C
Body Type
2-Door Hardtop-formal
(Sports Coupe)®
4-Door Sedan (Sports)®
4-Door Sedan®
2-Door Hardtop-Formal®
4-Door Sedan®
2-Door Hardtop-Formal®
Convertible®
2-Door Hardtop-Formal©
Convertible®
4-Door Sedan®
2-Door Hardtop-Formal®
Model
Comet
Montego
Montego MX
Montego MX
Montego MX Brougham
MUSTANG
15
63A
2-Door Hardtop Fastback®
(GT Appearance Opt.®) Cyclone
15
63C
2-Door Hardtop Fastback®
16
63H
2-Door Hardtop Fastback®
(Sports Appearance Opt.©) Cyclone CJ
03
71B
Montego®
08
71C
Montego MX®
08
71A
Montego MX (Woodgrain)®
Station Wagons-4 Door
©Bench Seat ©Split Bench ©Bucket Seats
THUNDERBIRD
Body Body
Serial Style
Code Code
Body Type
Model
83
65A
2-Door Hardtop®
83
65C
2-Door Hardtop®
84
65B
2-Door Landau
®
84
65D
2-Door Landau
®
87
57B
4-Door Landau
©
87
57C
4-Door Landau
®
©Bench Seat ©Split Bench ©Bucket Seats ©Blind Quarter Roof
FALCON
Body
Serial
Code
10
11
20
22
21
12
23
Body
Style
Code
62A
54A
62B
62C
54B
71A
71B
©Bench Seat
Body Type
2-Door Sedan®
4-Door Sedan®
2-Door Sedan®
2-Door Sports Coupe®
4-Door Sedan©
Standard©
Futura©
©Split Bench
Model
Standard
Futura
Station Wagons
-4 Door
©Bucket Seat
Body
Serial
Code
01
02
03
01
02
03
01
01
01
02
Body
Style
Code
65A
63A
76A
65B
63B
76B
65C
65D
65E
63C
©Bench Seat
Body Type
2-Door Hardtop©©
2-Door Fastback©®
Convertible®®
2-Door Hardtop®®
2-Door Fastback®©
Convertible©®
2-Door Hardtop®
2-Door Hardtop®
2-Door Hardtop©
2-Door Fastback®
Model
Standard
Luxury
Standard
Luxury
Grand
Machl
©Split Bench ©Bucket Seats ©Hi-Back Bucket
FORD
Body
Serial
Code
50
51
52
53
Body
Style
Code
62E
54 E
62B
54B
Body Type
2-Door Sedan®
4-Door Sedan®
2-Door Sedan®
4-Door Sedan®
Model
Custom
Custom 500
54
54A
4-Door Sedan®
55
63B
2-Door Hardtop-Fastback®
58
65C
2-Door Hardtop-Formal®
Galaxie 500
56
57
60
61
64
62
66
57B
76A
63C
76B
54C
65A
57F
4-Door Hardtop®
Convertible®
2-Door Hardtop-Fastback®®
Convertible®©
4-Door Sedan®®
2-Door Hardtop-Formal®®
4-Door Hardtop®©
Ford XL
Ford LTD
70
71D
Ranchwagon-6 Passenger©
71
71H
Custom 500 Ranchwagon-
6 Passenger©
72
71J
Custom 500 Ranchwagon-
Dual Face Rear©
73
71B
Country Sedan-6 Passenger®
74
71C
Country Sedan-Dual Face Rear®
75
71E
Country Squire—6 Passenger®
76
71A
Country Squire-Dual Face Rear®
Station Wagons-4 Door
©Bench Seat ©Split Bench ©Bucket Seatsprocarmanuals.com
Page 8 of 413
01-01-04
Vehicle Identification
01-01-04
BODY SERIAL AND STYLE CODES-(continued)
FAIRLANE
Body
Serial
Code
30
31
34
35
33
36
35
33
36
40
41
42
44
43
42
44
43
46
46
45
45
32
37
38
47
48
48
49
49
Body
Style
Code
65A
54A
54B
63B
65B
76B
63E
65E
76E
65C
54C
63F
65F
76F
63D
65D
76D
63B
63E
65A
65E
71D
71B
71E
66A
66B
66B
(Opt.)
66C
66D
©Bench Seat
Body Type
2-Door
Hardtop-formal®
4-Door
Sedan®
4-Door
Sedan®
2-Door
Hardtop—Fastback®
2-Door
Hardtop-formal®
Convertible®
2-Door
Hardtop—Fastback©
2-Door
Hardtop-Formal©
Convertible®
2-Door
Hardtop-Formal®
4-Door
Sedan®
r t
2-Door
Hardtop—FastbackCD
2-Door
Hardtop-Formal®
Convertible®
2-Door
Hardtop—Fastback®
2-Door
Hardtop-Formal®
Convertible®
2-Door
Hardtop-Fastback®
2-Door
Hardtop-Fastback®
2-Door
Hardtop-Formal®
2-Door
Hardtop-formal®
Fairlane®
Fairlane 500®
Fairlane Torino Squire®
Ranchero®
Ranchero 500®
Ranchero 500®
Ranchero®
Ranchero®
Model
Fairlane
Fairlane 500
Fairlane 500
Torino
Torino GT
Torino GT
Cobra
Station Wagons-4 Door
Ranchero
Ranchero
Ranchero GT
©Split Bench ©Bucket Seats
REAR AXLE RATIO CODES
Conventional
Limited-Slip
Ratio
1
J
2.50:1
2
K
2.75:1
3
L
2.79:1
4
M 2.801
5
N
2.83:1
6
0
3.00:1
7
P
3.10:1
8
Q
3.20:1
9
R
3.25:1
A
S
3.50:1
B
T
3.07:1
C
U
3.08:1
D
V
3.91:1
E
W
4.30:1
TRANSMISSION CODES
Code Type
1
3-Speed
Manual
5 4-Speed Manual-wide ratio (2.78 1st Gear)
6 4-Speed Manual-close ratio (2.32 1st Gear)
W Automatic (C4) (XP-3)
U Automatic (C6) (XPL)
Y Automatic (MX)
X Automatic (FMX)
Z Automatic (C6 Special) (XPL, Special)®
©For Police & trailer towing
-
Not available with bucket seats
ENGINE CODES
Code
U
6Cyl.
T
6Cyl.
2
6 Cyl.®
L 6 Cyl.
3
6 Cyl CD
V
6
Cyl."
5
.
6 Cyl CD
B .6
Cyl.
E
6
Cyl.
F
8
Cyl.
6 8 Cyl.®
D 8
Cyl.
H 8 Cyl.
M 8 Cyl.
Y 8
Cyl.
X 8 Cyl.©
S 8 Cyl.©
P 8 Cyl.®
8 Cyl.
8 Cyl.®
K 8
Cyl.
N
8
Cyl.
A 8
Cyl.
©Low Compression
©High Performance
Type
170
Cu.
In.
(IV)
200
Cu.
In.
(IV)
200
Cu.
In.
(IV)
250
Cu.
In.
(IV)
250
Cu.
In.
(IV)
240
Cu.
In.
(IV)
240
Cu.
In.
(IV)
240 Cu. In. (IV) Police
240 Cu. In. (IV) Taxi
302
Cu.
In.
(2V)
302
Cu.
In.
(2V)
302 Cu. In. (2V) Police & Taxi
351
Cu.
In.
(2V)
351
Cu.
In.
(4V)
390
Cu.
In.
(2V)
390Cu.ln.(2V)
390
Cu.
In.
(4V)
428 Cu. In. (4V) Police Interceptor
428
Cu.
In.
(4V)
CJ
428
Cu.
In.
(4V)
CJ
429
Cu.
In.
(2V)
429
Cu.
In.
(4V)
460
Cu.
In.
(4V)
©Premium Fuel ©Improved Performance
©Ram Air Induction
CONSECUTIVE UNIT NUMBER
Starting Serial Numbers—1969 Passenger Cars
100,001—Ford, Fairlane, Falcon, Mustang, Thunderbird
500,001 -Mercury, Montego,
Cougar,
Meteor
848,000—Lincoln Continental & Continental Mark
III
EXTERIOR PAINT COLOR CODES
Code
Reference
Number
Color
A
B
c
D
E
F
G
H
|
J
K
L
. .
M
N
p
Q
R
S.
.. .
T
u
v
W
X
Y
z
2.
..
3
4
6.
. .
7
8
..
1724-A
1
3059-A
3197-A
3303-A
3191-A
3065-A
. .
3203-A
..
,.2067-A
2041-A
3080-A
3204-A
3060-A
1619-A
..
921-A
3064-A
1624-A
3198-A
. .
3199-A
2008-A
1070-A
3201-A
3120-A
3061-A
. . .
3202-A
2044-A
3071-A
. .
1730-A
3230-A
.
3077-A
3193-A
3190-A
..M6J-49B..
....M6J-50B.
Black
Maroon
Dk. Ivy Green Met.
Pastel Gray
Lt. Aqua
Dk. Aqua Met. (Brt.)
Med.
Orchid Met.
Lt. Green
Med.
Lime Met.
Dk. Aqua Met.
Dk. Orchid Met.
Lt. Gray Met.
White
Platinum
Med.
Blue Met.
Med.
Blue Met.
Lt. Gold
Med.
Gold Met.
Red
Med.
Aqua Met.
Lt. Aurora Copper IVIet.
Yellow
Dk. Blue Met.
Burnt Orange Met.
Dk. Grey Met.
Lt. Ivy Yellow
Calypso Coral
Med.
Emerald Met.
Med.
Blue Met. (Brt)
Lt. Emerald Green Met.
Lt. Blue
Red Primer
Grey Primerprocarmanuals.com
Page 9 of 413

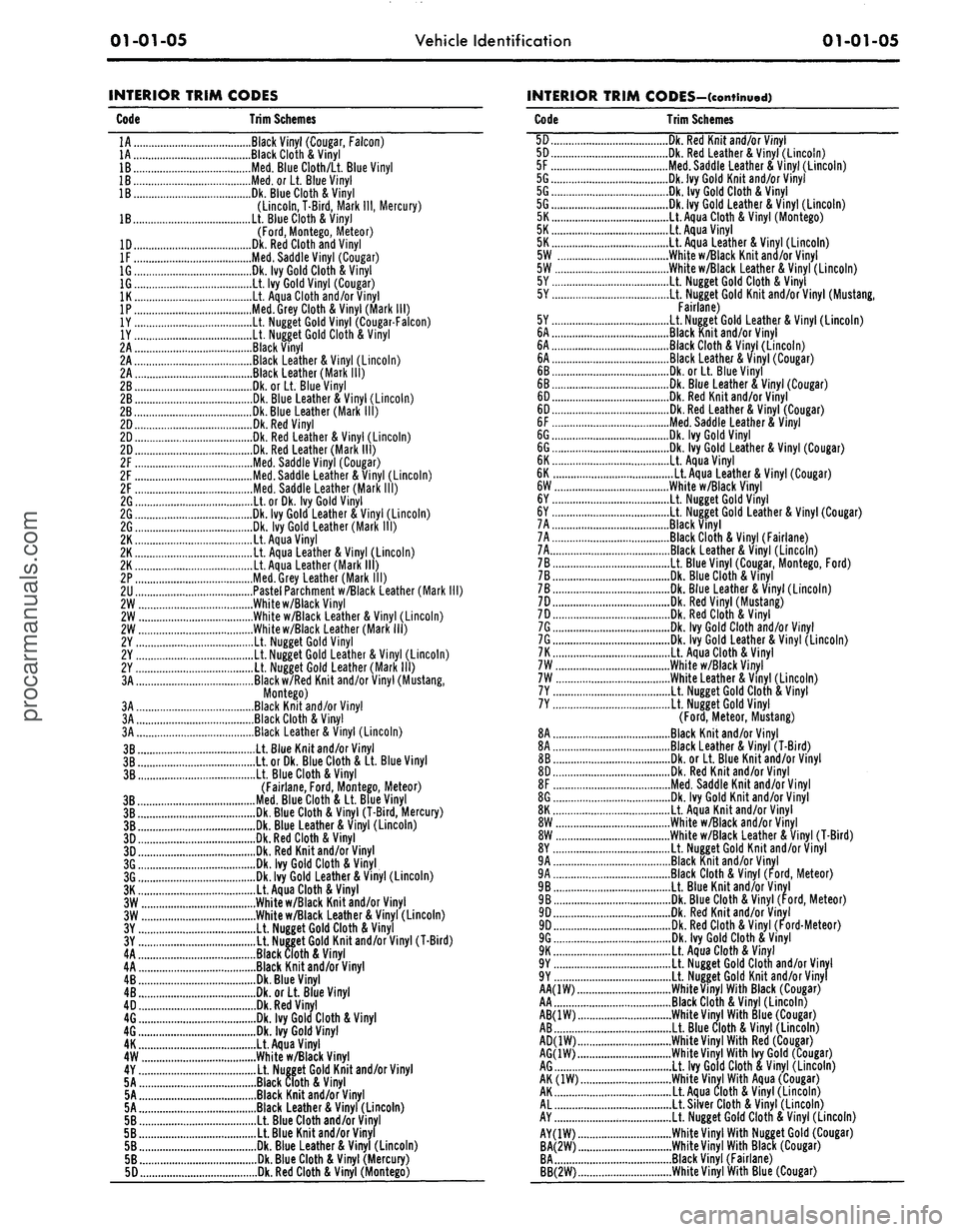

01-01-05
Vehicle Identification
01-01-05
INTERIOR TRIM CODES
Code Trim Schemes
1A Black Vinyl (Cougar, Falcon)
1A Black Cloth & Vinyl
IB Med. Blue Cloth/Lt. Blue Vinyl
IB Med. or Lt. Blue Vinyl
IB Dk. Blue Cloth & Vinyl
(Lincoln,
T-Bird, Mark III, Mercury)
IB Lt. Blue Cloth & Vinyl
(Ford,
Montego, Meteor)
ID Dk. Red Cloth and Vinyl
IF Med. Saddle Vinyl (Cougar)
1G Dk. Ivy Gold Cloth & Vinyl
1G Lt. Ivy Gold Vinyl (Cougar)
IK Lt. Aqua Cloth and/or Vinyl
IP
Med.
Grey Cloth & Vinyl (Mark III)
1Y Lt. Nugget Gold Vinyl (Cougar-Falcon)
1Y Lt. Nugget Gold Cloth & Vinyl
2A Black Vinyl
2A Black Leather & Vinyl (Lincoln)
2A Black Leather (Mark III)
2B Dk. or Lt. Blue Vinyl
2B Dk. Blue Leather & Vinyl (Lincoln)
2B Dk. Blue Leather (Mark III)
2D Dk. Red Vinyl
2D Dk. Red Leather & Vinyl (Lincoln)
2D Dk. Red Leather (Mark III)
2F Med. Saddle Vinyl (Cougar)
2F
Med.
Saddle Leather & Vinyl (Lincoln)
2F Med. Saddle Leather (Mark III)
2G Lt. or Dk. Ivy Gold Vinyl
2G Dk. Ivy Gold Leather & Vinyl (Lincoln)
2G Dk. Ivy Gold Leather (Mark III)
2K Lt. Aqua Vinyl
2K Lt. Aqua Leather & Vinyl (Lincoln)
2K Lt. Aqua Leather (Mark III)
2P
Med.
Grey Leather (Mark III)
2U Pastel Parchment w/Black Leather (Mark III)
2W Whitew/Black Vinyl
2W White w/Black Leather & Vinyl (Lincoln)
2W Whitew/Black Leather (Mark III)
2Y Lt. Nugget Gold Vinyl
2Y Lt. Nugget Gold Leather & Vinyl (Lincoln)
2Y Lt. Nugget Gold Leather (Mark III)
3A Black w/Red Knit and/or Vinyl (Mustang,
Montego)
3A Black Knit and/or Vinyl
3A Black Cloth & Vinyl
3A Black Leather & Vinyl (Lincoln)
3B Lt. Blue Knit and/or Vinyl
3B Lt. or Dk. Blue Cloth & Lt. Blue Vinyl
3B Lt. Blue Cloth & Vinyl
(Fairlane,
Ford,
Montego, Meteor)
3B Med. Blue Cloth & Lt. Blue Vinyl
3B Dk. Blue Cloth & Vinyl (T-Bird, Mercury)
3B Dk. Blue Leather & Vinyl (Lincoln)
3D Dk.Red Cloth & Vinyl
3D Dk. Red Knit and/or Vinyl
3G Dk. Ivy Gold Cloth & Vinyl
3G Dk. Ivy Gold Leather & Vinyl (Lincoln)
3K Lt. Aqua Cloth & Vinyl
3W White w/Black Knit and/or Vinyl
3W Whitew/Black Leather & Vinyl (Lincoln)
3Y Lt. Nugget Gold Cloth & Vinyl
3Y Lt. Nugget Gold Knit and/or Vinyl (T-Bird)
4A Black Cloth & Vinyl
4A Black Knit and/or Vinyl
4B Dk. Blue Vinyl
4B Dk. or Lt. Blue Vinyl
4D Dk.Red Vinyl
4G Dk. Ivy Gold Cloth & Vinyl
4G Dk. Ivy Gold Vinyl
4K Lt. Aqua Vinyl
4W White w/Black Vinyl
4Y Lt. Nugget Gold Knit and/or Vinyl
5A Black Cloth & Vinyl
5A Black Knit and/or Vinyl
5A Black Leather & Vinyl (Lincoln)
5B Lt. Blue Cloth and/or Vinyl
5B Lt. Blue Knit and/or Vinyl
5B Dk. Blue Leather & Vinyl (Lincoln)
5B Dk. Blue Cloth & Vinyl (Mercury)
5D Dk.Red Cloth & Vinyl (Montego)
INTERIOR TRIM CODES-(continued)
Code Trim Schemes
5D Dk. Red Knit and/or Vinyl
5D Dk. Red Leather & Vinyl (Lincoln)
5F
Med.
Saddle Leather & Vinyl (Lincoln)
5G Dk. Ivy Gold Knit and/or Vinyl
5G Dk. Ivy Gold Cloth & Vinyl
5G Dk. Ivy Gold Leather & Vinyl (Lincoln)
5K Lt. Aqua Cloth & Vinyl (Montego)
5K Lt. Aqua Vinyl
5K Lt. Aqua Leather & Vinyl (Lincoln)
5W White w/Black Knit and/or Vinyl
5W White w/Black Leather & Vinyl (Lincoln)
5Y Lt. Nugget Gold Cloth & Vinyl
5Y Lt. Nugget Gold Knit and/or Vinyl (Mustang,
Fairlane)
5Y Lt. Nugget Gold Leather & Vinyl (Lincoln)
6A Black Knit and/or Vinyl
6A Black Cloth & Vinyl (Lincoln)
6A Black Leathe; & Vinyl (Cougar)
6B Dk. or Lt. Blue Vinyl
6B Dk. Blue Leather & Vinyl (Cougar)
6D Dk. Red Knit and/or Vinyl
6D Dk.Red Leather & Vinyl (Cougar)
6F
Med.
Saddle Leather I Vinyl
6G Dk. Ivy Gold Vinyl
6G Dk. Ivy Gold Leather & Vinyl (Cougar)
6K Lt. Aqua Vinyl
6K Lt. Aqua Leather & Vinyl (Cougar)
6W White w/Black Vinyl
6Y Lt. Nugget Gold Vinyl
6Y Lt. Nugget Gold Leather & Vinyl (Cougar)
7A Black Vinyl
7A Black Cloth & Vinyl (Fairlane)
7A Black Leather & Vinyl (Lincoln)
7B Lt. Blue Vinyl (Cougar, Montego, Ford)
7B Dk. Blue Cloth & Vinyl
7B Dk. Blue Leathe; & Vinyl (Lincoln)
7D Dk. Red Vinyl (Mustang)
7D Dk. Red Cloth & Vinyl
7G Dk. Ivy Gold Cloth and/or Vinyl
7G Dk. Ivy Gold Leather & Vinyl (Lincoln)
7K Lt. Aqua Cloth & Vinyl
7W White w/Black Vinyl
7W White Leather & Vinyl (Lincoln)
7Y Lt. Nugget Gold Cloth & Vinyl
7Y Lt. Nugget Gold Vinyl
(Ford,
Meteor, Mustang)
8A Black Knit and/or Vinyl
8A Black Leather & Vinyl (T-Bird)
8B Dk. or Lt. Blue Knit and/or Vinyl
8D Dk. Red Knit and/or Vinyl
8F Med. Saddle Knit and/or Vinyl
8G Dk. Ivy Gold Knit and/or Vinyl
8K Lt. Aqua Knit and/or Vinyl
8W White w/Black and/or Vinyl
8W White w/Black Leather & Vinyl (T-Bird)
8Y Lt. Nugget Gold Knit and/or Vinyl
9A Black Knit and/or Vinyl
9A Black Cloth & Vinyl (Ford, Meteor)
9B Lt. Blue Knit and/or Vinyl
9B Dk. Blue Cloth & Vinyl (Ford, Meteor)
9D Dk. Red Knit and/or Vinyl
9D Dk. Red Cloth & Vinyl (Ford-Meteor)
9G Dk. Ivy Gold Cloth & Vinyl
9K Lt. Aqua Cloth & Vinyl
9Y Lt. Nugget Gold Cloth and/or Vinyl
9Y Lt. Nugget Gold Knit and/or Vinyl
AA(1W)
White Vinyl
With Black (Cougar)
AA Black Cloth & Vinyl (Lincoln)
AB(1W) White Vinyl With Blue (Cougar)
AB Lt. Blue Cloth & Vinyl (Lincoln)
AD(1W) White Vinyl With Red (Cougar)
AG(1W) White Vinyl With Ivy Gold (Cougar)
AG Lt. Ivy Gold Cloth & Vinyl (Lincoln)
AK (1W) White Vinyl With Aqua (Cougar)
AK Lt. Aqua Cloth & Vinyl (Lincoln)
AL Lt. Silver Cloth & Vinyl (Lincoln)
AY Lt. Nugget Gold Cloth & Vinyl (Lincoln)
AY(1W) White Vinyl With Nugget Gold (Cougar)
BA(2W) White Vinyl With Black (Cougar)
BA Black Vinyl (Fairlane)
BB(2W) White Vinyl With Blue (Cougar)procarmanuals.com
Page 10 of 413

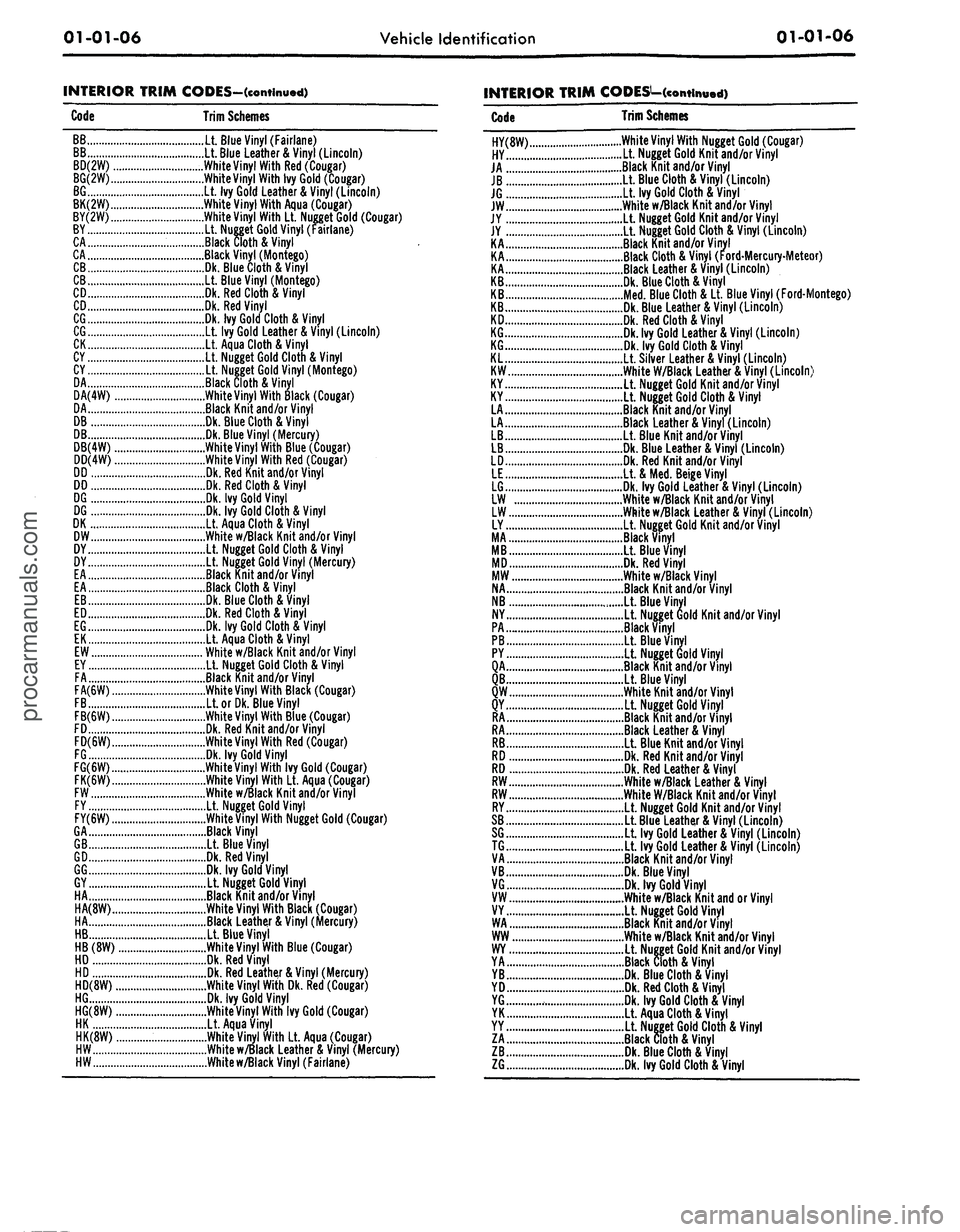

01-01-06
Vehicle Identification
01-01-06
INTERIOR TRIM CODES-(continued)
Code Trim Schemes
BB Lt. Blue Vinyl (Fairlane)
BB Lt. Blue Leather & Vinyl (Lincoln)
BD(2W) ..White Vinyl With Red (Cougar)
BG(2W) White
Vinyl
With Ivy Gold (Cougar)
BG Lt. Ivy Gold Leather & Vinyl (Lincoln)
BK(2W) White Vinyl With Aqua (Cougar)
BY(2W) White Vinyl With Lt. Nugget Gold (Cougar)
BY Lt. Nugget Gold Vinyl (Fairlane)
CA Black Cloth & Vinyl
CA Black Vinyl (Montego)
CB Dk. Blue Cloth & Vinyl
CB Lt. Blue Vinyl (Montego)
CD Dk. Red Cloth & Vinyl
CD Dk. Red Vinyl
CG Dk. Ivy Gold Cloth & Vinyl
CG Lt. Ivy Gold Leather & Vinyl (Lincoln)
CK Lt. Aqua Cloth & Vinyl
CY Lt. Nugget Gold Cloth & Vinyl
CY Lt. Nugget Gold Vinyl (Montego)
DA Black Cloth & Vinyl
DA(4W) White
Vinyl
With Black (Cougar)
DA Black Knit and/or Vinyl
DB Dk. Blue Cloth & Vinyl
DB Dk. Blue Vinyl (Mercury)
DB(4W) White Vinyl With Blue (Cougar)
DD(4W) White Vinyl With Red (Cougar)
DD Dk. Red Knit and/or Vinyl
DD Dk. Red Cloth & Vinyl
DG Dk. Ivy Gold Vinyl
DG Dk. Ivy Gold Cloth & Vinyl
DK Lt. Aqua Cloth & Vinyl
DW White w/Black Knit and/or Vinyl
DY Lt. Nugget Gold Cloth & Vinyl
DY Lt. Nugget Gold Vinyl (Mercury)
EA Black Knit and/or Vinyl
EA Black Cloth & Vinyl
EB Dk. Blue Cloth & Vinyl
ED Dk. Red Cloth & Vinyl
EG Dk. Ivy Gold Cloth & Vinyl
EK Lt. Aqua Cloth & Vinyl
EW White w/Black Knit and/or Vinyl
EY Lt. Nugget Gold Cloth & Vinyl
FA Black Knit and/or Vinyl
FA(6W) White
Vinyl
With Black (Cougar)
FB Lt. or Dk. Blue Vinyl
FB(6W) White Vinyl With Blue (Cougar)
FD Dk. Red Knit and/or Vinyl
FD(6W) White Vinyl With Red (Cougar)
FG Dk. Ivy Gold Vinyl
FG(6W) White
Vinyl
With Ivy Gold (Cougar)
FK(6W) White Vinyl With Lt. Aqua (Cougar)
FW White w/Black Knit and/or Vinyl
FY Lt. Nugget Gold Vinyl
FY(6W) White Vinyl With Nugget Gold (Cougar)
GA Black Vinyl
GB Lt. Blue Vinyl
GD Dk. Red Vinyl
GG Dk. Ivy Gold Vinyl
GY Lt. Nugget Gold Vinyl
HA Black Knit and/or Vinyl
HA(8W) White Vinyl With Black (Cougar)
HA Black Leather & Vinyl (Mercury)
HB Lt. Blue Vinyl
HB (8W) White Vinyl With Blue (Cougar)
HD Dk. Red Vinyl
HD Dk. Red Leathe; & Vinyl (Mercury)
HD(8W) White Vinyl With Dk. Red (Cougar)
HG Dk. Ivy Gold Vinyl
HG(8W) White Vinyl With Ivy Gold (Cougar)
HK Lt. Aqua Vinyl
HK(8W) White Vinyl With Lt. Aqua (Cougar)
HW White w/Black Leather & Vinyl (Mercury)
HW White w/Black Vinyl (Fairlane)
INTERIOR TRIM CODES-(contlnuad)
Code Trim Schemes
HY(8W) White Vinyl With Nugget Gold (Cougar)
HY Lt. Nugget Gold Knit and/or Vinyl
JA Black Knit and/or Vinyl
JB Lt. Blue Cloth & Vinyl (Lincoln)
JG Lt. Ivy Gold Cloth & Vinyl
JW .....White w/Black Knit and/or Vinyl
JY Lt. Nugget Gold Knit and/or Vinyl
JY Lt. Nugget Gold Cloth & Vinyl (Lincoln)
KA Black Knit and/or Vinyl
KA Black Cloth & Vinyl (Ford-Mercury-Meteor)
KA Black Leather & Vinyl (Lincoln)
KB Dk. Blue Cloth & Vinyl
KB .....Med. Blue Cloth & Lt. Blue Vinyl (Ford-Montego)
KB Dk. Blue Leather & Vinyl (Lincoln)
KD Dk. Red Cloth & Vinyl
KG Dk. Ivy Gold Leather & Vinyl (Lincoln)
KG Dk. Ivy Gold Cloth & Vinyl
KL Lt. Silver Leather & Vinyl (Lincoln)
KW White W/Black Leather & Vinyl (Lincoln)
KY Lt. Nugget Gold Knit and/or Vinyl
KY Lt. Nugget Gold Cloth & Vinyl
LA Black Knit and/or Vinyl
LA Black Leather & Vinyl (Lincoln)
LB Lt. Blue Knit and/or Vinyl
LB Dk. Blue Leather & Vinyl (Lincoln)
LD Dk. Red Knit and/or Vinyl
LE Lt. & Med. Beige Vinyl
LG Dk. Ivy Gold Leather & Vinyl (Lincoln)
LW White w/Black Knit and/or Vinyl
LW White w/Black Leather & Vinyl (Lincoln)
LY Lt. Nugget Gold Knit and/or Vinyl
MA Black Vinyl
MB Lt. Blue Vinyl
MD
Dk
Red Vinyl
MW White w/Black Vinyl
NA Black Knit and/or Vinyl
NB Lt. Blue Vinyl
NY Lt. Nugget Gold Knit and/or Vinyl
PA Black Vinyl
PB Lt. Blue Vinyl
PY Lt. Nugget Gold Vinyl
QA Black Knit and/or Vinyl
)B
. Lt
Blue Vinyl
JW White Knit and/or Vinyl
Lt. Nugget Gold Vinyl
Black Knit and/or Vinyl
RA Black Leather & Vinyl
RB Lt. Blue Knit and/or Vinyl
RD Dk. Red Knit and/or Vinyl
RD Dk. Red Leather & Vinyl
RW White w/Black Leather & Vinyl
RW White W/Black Knit and/or Vinyl
RY Lt. Nugget Gold Knit and/or Vinyl
SB Lt. Blue Leather & Vinyl (Lincoln)
SG Lt. Ivy Gold Leather & Vinyl (Lincoln)
TG Lt. Ivy Gold Leather & Vinyl (Lincoln)
VA Black Knit and/or Vinyl
VB
Dk
Blue Vinyl
VG Dk. Ivy Gold Vinyl
VW White w/Black Knit and or Vinyl
VY Lt. Nugget Gold Vinyl
WA Black Knit and/or Vinyl
WW White w/Black Knit and/or Vinyl
WY Lt. Nugget Gold Knit and/or Vinyl
YA Black Cloth & Vinyl
YB Dk. Blue Cloth & Vinyl
YD Dk. Red Cloth & Vinyl
YG Dk. Ivy Gold Cloth
&
Vinyl
YK Lt. Aqua Cloth & Vinyl
YY Lt. Nugget Gold Cloth & Vinyl
ZA Black Cloth & Vinyl
ZB Dk. Blue Cloth & Vinyl
ZG Dk. Ivy Gold Cloth & Vinylprocarmanuals.com
