FORD MUSTANG 1996 4.G Owners Manual

257 %
*
[SV20100( ALL)08/95]
Engine Coolant Drain and Flush
*
[SV20200( ALL)11/94]
Proper procedures for a complete coolant drain
and flush of the cooling system can be found in
theCar Service Manual. Following these
recommended procedures will ensure that the
specified coolant level and a 50/50 or
appropriate mixture of coolant and water is
maintained.
*
[SV20300( ALL)08/95]
Engine Coolant Refill Procedure
*
[SV20400( ALL)01/95]
When the entire cooling system is drained and
refilled, the following procedure should be used
to ensure a complete fill:
*
[SV20450( ALL)05/95]
NOTE: It is imperative the following
procedure be adhered to. Failure to do
so could result in damage to your
engine.
[SV20500(MBC )03/95]
3.8L engine only
[SV20601(MBC )03/94]
q
Open the vent plug.
[SV20700(MBC )03/93]
q
Remove coolant recovery reservoir cap.
[SV20801(MBC )03/93]
q
Remove radiator pressure cap.
[SV20900(MBC )05/94]
q
With the engine off and cool, add a 50/50
mixture of recommended cooling system fluid
and water to the radiator until full, then add
to the reservoir until the reservoir is at the
FULL-HOT level.
[SV21000(MBC )12/91]
q
Close the vent plug.
[SV21100(MBC )03/93]
q
Reinstall the coolant recovery reservoir cap
by installing the cap to the fully installed
position.
[SV21110(MBC )03/93]
q
Reinstall the pressure cap to the pressure
relief position by installing the cap to the
fully installed position, and then backing off
to the first stop.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

258 [SV21200(MBC )03/93]q
Start and idle engine until the radiator upper
hose is warm (this indicates the thermostat is
open and coolant is flowing through the
entire system).
[SV21300(MBC )03/93]
q
Immediately shut off engine. Cover cap
completely with a thick cloth and cautiously
remove radiator pressure cap and add a
50/50 mixture of recommended coolant and
water until system is full.
[SV21400(MBC )03/91]
q
Reinstall the radiator cap securely.
[SV21500(MBC )05/94]
q
Remove the cap from the engine coolant
recovery reservoir and add a 50/50 mixture
of recommended cooling system fluid and
water to the FULL-HOT mark on the engine
coolant recovery reservoir. Check that
reservoir hose is not kinked.
[SV21800(MBC )03/93]
q
Reinstall the reservoir cap.
*
[SV21900(MBC )05/95]
q
Check for leaks at the draincock, block plug
and vent plug.
*
[SV22000(MBC )03/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
[SV22012(M )05/95]
4.6L (2V) engine only Ð GT models
*
[SV22014( ALL)03/95]
q
With the engine OFF and cool, remove the
pressure cap, located on the coolant reservoir.
Remove the heater hose and clamp, located
on the rear of the intake manifold.
*
[SV22021( ALL)03/95]
q
Add a 50/50 mixture of specified coolant and
water to the coolant reservoir. Refer toRefill
Capacitieslater in this chapter for the correct
amount. Add coolant to the reservoir until
the coolant continuously flows out of the tube
in the rear of engine. Reattach hose and
secure clamp.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

259 [SV22026( ALL)03/95]
q
Continue to fill the reservoir until the coolant
is at the FULL COLD level.
*
[SV22031( ALL)05/95]
q
Reinstall the pressure cap to the fully
installed position.
*
[SV22036( ALL)05/95]
q
Start and idle the engine until the radiator
upper hose is warm (this indicates the
thermostat is open and coolant is flowing
through the entire system).
*
[SV22041( ALL)03/95]
q
Immediately shut off the engine and let cool.
Cautiously remove the pressure relief cap and
add a 50/50 mixture of specified coolant and
water until the coolant is at the COLD FILL
level in the coolant reservoir.
*
[SV22046( ALL)03/95]
q
Reinstall the pressure cap securely.
*
[SV22050( ALL)03/95]
q
Check for leaks at the draincock.
*
[SV22055( ALL)03/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
%
*
[SV22090( ALL)03/95]
Battery
*
[SV22100( ALL)02/95]
Your vehicle may have a Motorcraft
maintenance-free battery. When the original
equipment battery is replaced under warranty, it
may be replaced by a Motorcraft
Low-Maintenance Battery.
*
[SV22130( ALL)06/95]
The Low-Maintenance Battery has removable
vent caps for checking the electrolyte level and
for adding water, if necessary. The electrolyte
level should be checked at least every 24 months
or 24,000 miles (40,000 km) in temperatures up
to 90ÊF (32ÊC) andmore often in temperatures
above90ÊF (32ÊC).Keep the electrolyte level in
each cell up to the level indicator. Do not
overfill.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

260
*
[SV22145( ALL)02/95]
If the level gets low, you can add tap water to
the battery, provided the water isn't hard or
doesn't have a high mineral or alkali content.
However, if possible you should refill the battery
with distilled water. If the battery needs water
quite often, have the charging system checked
for a possible malfunction.
%*
[SV22160( ALL)03/95]
Help Us Protect Our Environment
*
[SV22175( ALL)04/95]
Ford Motor Company strongly recommends that
used lead-acid batteries be returned to an
authorized recycling facility for disposal.
*
[SV22190( ALL)03/95]
one inch art:0000983-A
Battery recycling symbol
% [SV22192(M )03/95]
Because your vehicle's engine is electronically
controlled by a computer, some control
conditions are maintained by power from the
battery. If you ever disconnect the battery, install
a new battery, or experience a dead battery, you
must allow the computer to ªrelearnº its idle
conditions before your vehicle will idle at its
best. To let the engine do this, put the gearshift
in P (Park) (automatic transmission) or Neutral
(manual transmission), turn off all the
accessories, and start the vehicle. Let the engine
idle for at least one minute. (Engine must be
warm in order to ªlearn.º) Also, allow
approximately 10 miles (16 km) of stop and go
traffic for your vehicle's engine to completely
ªrelearnº its idle.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

261 [SV22198(M )09/95]
NOTE: If your vehicle is equipped with a 3.8L
engine you will need to perform
additional steps after the battery has
been disconnected, jump started or
replaced. SeeReadiness for
Inspection/Maintenance Testingin
Servicing Your Vehicle chapter.
%
*
[SV22200( ALL)03/95]
Windshield Washer Fluid and
Wipers
%*
[SV22250( ALL)03/95]
Washer Fluid
[SV22300( ALL)12/94]
Check the level of the windshield washer fluid
periodically, or when the optional lamp indicates
low fluid. The reservoir for washer fluid is
located on the driver's side of the engine
compartment. Visual inspection can determine if
the washer fluid is adequate. Do not operate the
washer when the reservoir is empty.
[SV22900(M )10/95]
half page art:0010374-D
The reservoir for the windshield washer fluid
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

262
*
[SV23400( ALL)05/95]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
%*
[SV23500( ALL)01/95]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
regulations on Volatile Organic Compounds
(VOC's) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
%*
[SV23600( ALL)03/95]
Wiper Blades
*
[SV23700( ALL)03/95]
Check the windshield wiper blades at least twice
a year. Also check them whenever they seem
less effective than usual. Substances such as tree
sap and some hot wax treatments used by
commercial car washes reduce the effectiveness
of wiper blades.
*
[SV23800( ALL)09/95]
If the blades do not wipe properly, clean both
the windshield and the wiper blades. Use
undiluted windshield washer solution or a mild
detergent. Rinse thoroughly with clear water. Do
not use fuel, kerosene, paint thinner, or other
solvents to clean your wiper blades. These will
damage your blades.
*
[SV23900( ALL)03/95]
To make reaching the wiper blades easy, simply
turn the ignition to the ACC position and turn
your wipers on. Wait for them to reach a
vertical position and turn the ignition to the OFF
position. Do not move the wipers manually.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

263
Manually moving the wipers across the
windshield may damage them.
*
[SV24000( ALL)03/01]
Wiper blade replacement
*
[SV24100( ALL)09/95]
If the wiper blades still do not work properly
after you clean them, you may need to replace
the wiper blade assembly or the blade element.
When replacing the wiper blade assembly, blade
refill, or wiper arm always use a Motorcraft part
or equivalent. To replace the blades, follow the
instructions that come with them.
%
*
[SV24200( ALL)03/95]
Tires
*
[SV24300( ALL)03/95]
Look at your tires each time you fill your fuel
tank. If one tire looks lower than the others,
check the pressure in all of them. Always follow
these precautions:
*
[SV24500( ALL)03/95]
q
Keep your tires inflated to the recommended
pressures.
*
[SV24600( ALL)02/95]
q
Stay within the recommended load limits (see
Load limitsin the Index).
*
[SV24700( ALL)02/95]
q
Make sure the weight of your load is evenly
distributed.
*
[SV24800( ALL)10/89]
q
Drive at safe speeds.
*
[SV24900( ALL)01/95]
If you do not take these precautions, your tires
may fail or go flat.
*
[SV24950( ALL)07/95]
Ford Motor Company recommends obeying
posted speed limits.
*
[SV25000( ALL)05/95]
RWARNING
Driving too fast for conditions creates the
possibility of loss of vehicle control.
Driving at very high speeds for extended
periods of time may result in damage to
vehicle components.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

264 %
*
[SV25200( ALL)05/95]
At least once a month, check the pressure in all
your vehicle's tires, including the spare. Use an
accurate tire pressure gauge. Check the tire
pressure when tires are cold, after the vehicle
has been parked for at least one hour or has
been driven less than 3 miles (5 km). You can
find proper cold pressure and load limits of
recommended size tires on the Safety
Compliance Certification Label.
*
[SV25400( ALL)05/95]
RWARNING
Improperly inflated tires can affect vehicle
handling and can fail suddenly, possibly
resulting in loss of vehicle control.
%*
[SV25500( ALL)02/95]

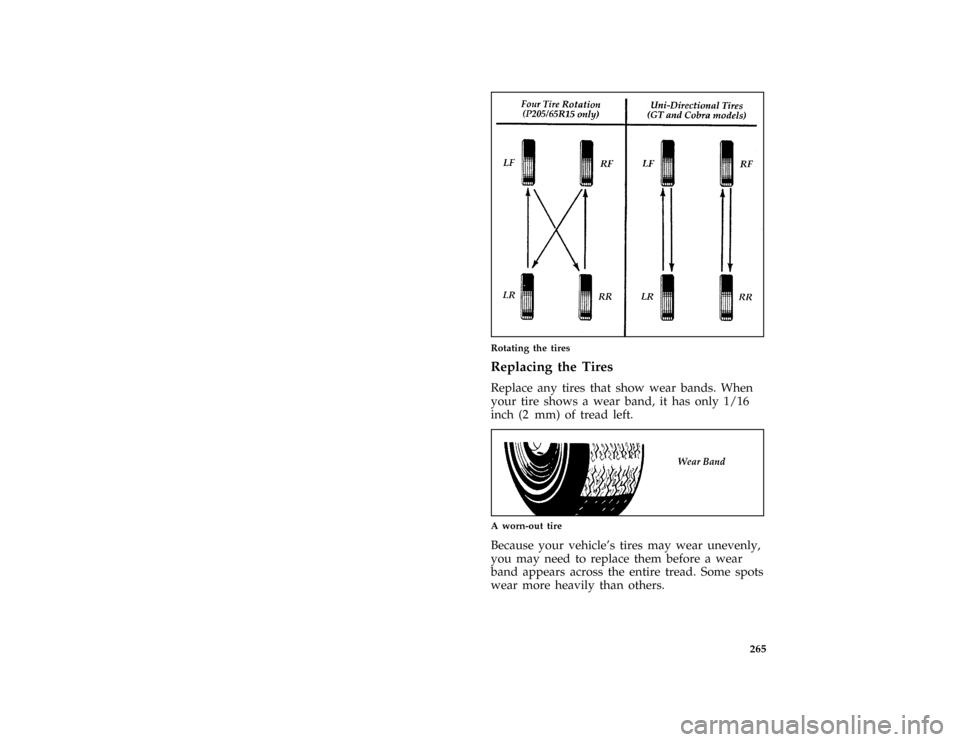

Tire Rotation
*
[SV25600( ALL)04/95]
Because your vehicle's front and rear tires
perform different jobs, they often wear
differently. To make sure your tires wear evenly
and last longer, rotate them as indicated in the
following diagram.
*
[SV25700( ALL)01/95]
For tire rotation intervals, see theMaintenance
Schedule. If you notice that the tires wear
unevenly, have them checked.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

265 [SV25900(M )03/93]
half page art:0010378-C
Rotating the tires
%*
[SV26500( ALL)04/95]
Replacing the Tires
*
[SV26600( ALL)05/95]
Replace any tires that show wear bands. When
your tire shows a wear band, it has only 1/16
inch (2 mm) of tread left.
% [SV26700( ALL)05/94]
one inch art:0001318-A
A worn-out tire
*
[SV26800( ALL)01/95]
Because your vehicle's tires may wear unevenly,
you may need to replace them before a wear
band appears across the entire tread. Some spots
wear more heavily than others.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

266
*
[SV26850( ALL)01/95]
RWARNING
When replacing full size tires, never mix
radial, bias-belted, or bias-type tires. Use
only the tire sizes that are listed on the
tire pressure decal. Make sure that all tires
are the same size, speed rating, and
load-carrying capacity. Use only the tire
combinations recommended on the decal.
If you do not follow these precautions,
your vehicle may not drive properly and
safely.
*
[SV27100( ALL)01/95]
Tires that are larger or smaller than your
vehicle's original tires may also affect the
accuracy of your speedometer.
%*
[SV28100( ALL)02/95]
Information About Tire Quality Grades
*
[SV28200( ALL)01/95]
New vehicles are fitted with tires that have their
Tire Quality Grade (described below) molded
into the tire's sidewall. These Tire Quality
Grades are determined by standards that the
United States Department of Transportation has
set.
*
[SV28250( ALL)01/95]
Tire Quality Grades apply to new pneumatic
tires for use on passenger cars. They do not
apply to deep tread, winter-type snow tires,
space-saver or temporary use spare tires, tires
with nominal rim diameters of 10 to 12 inches or
limited production tires as defined in Title 49
Code of Federal Regulations Part 575.104(c)(2).
*
[SV28300( ALL)01/95]
U.S. Department of Transportation Ð Tire
quality grades:The U.S. Department of
Transportation requires Ford to give you the
following information about tire grades exactly
as the government has written it.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996
