39 % [SR31855(M )12/93]
Installing Safety Seats in the Front Seat
(Coupe only) and Rear Seating Positions
(Coupe and Convertible)
[SR31861( ALL)03/95]
For seating positions equipped with a dual
locking mode retractor, use the following
procedure.
*
[SR31865( ALL)06/95]
If you choose to install a child safety seat or
infant carrier in the front seating positions, move
vehicle seat as far back as possible.
*
[SR31870( ALL)06/95]
1. Position the child seat in the center of the
passenger seat.
*
[SR31875( ALL)09/95]
2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. See
Figure 1.
*
[SR31880( ALL)09/95]
half page art:0011238-B
Pulling out belt webbing
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 42 of 332
40
*
[SR31885( ALL)08/95]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
*
[SR31890( ALL)06/95]
half page art:0011239-B
Routing the lap/shoulder belt
*
[SR31893( ALL)08/95]

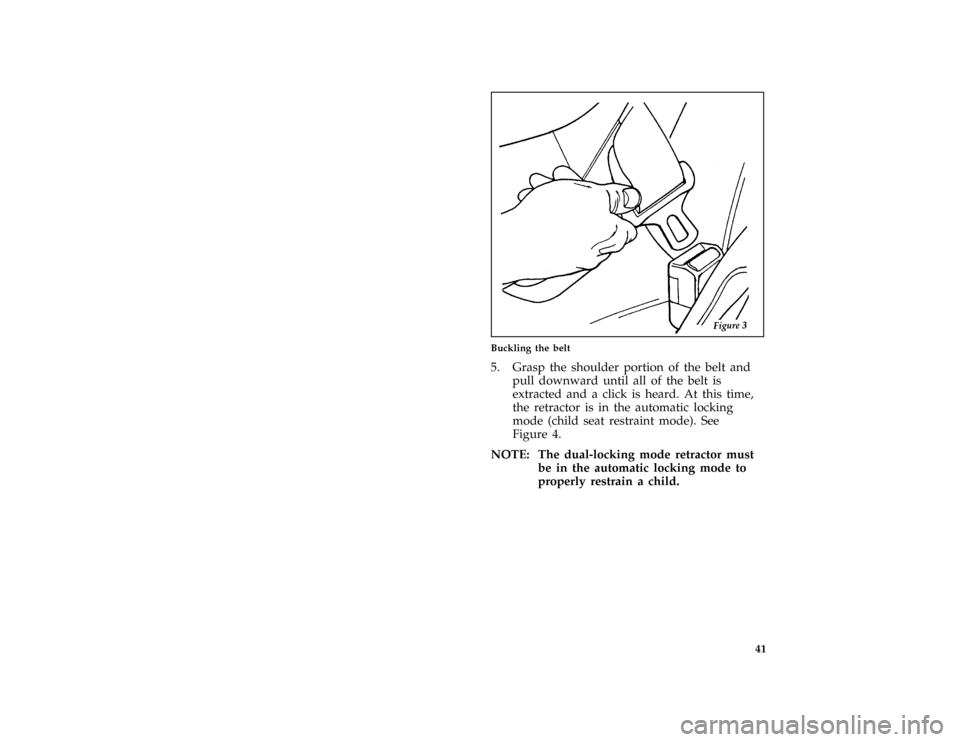

4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. See Figure 3. Make sure tongue
is latched securely to buckle by pulling on
tongue.
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 43 of 332
41
*
[SR31895( ALL)06/95]
half page art:0011240-B
Buckling the belt
*
[SR31900( ALL)08/95]

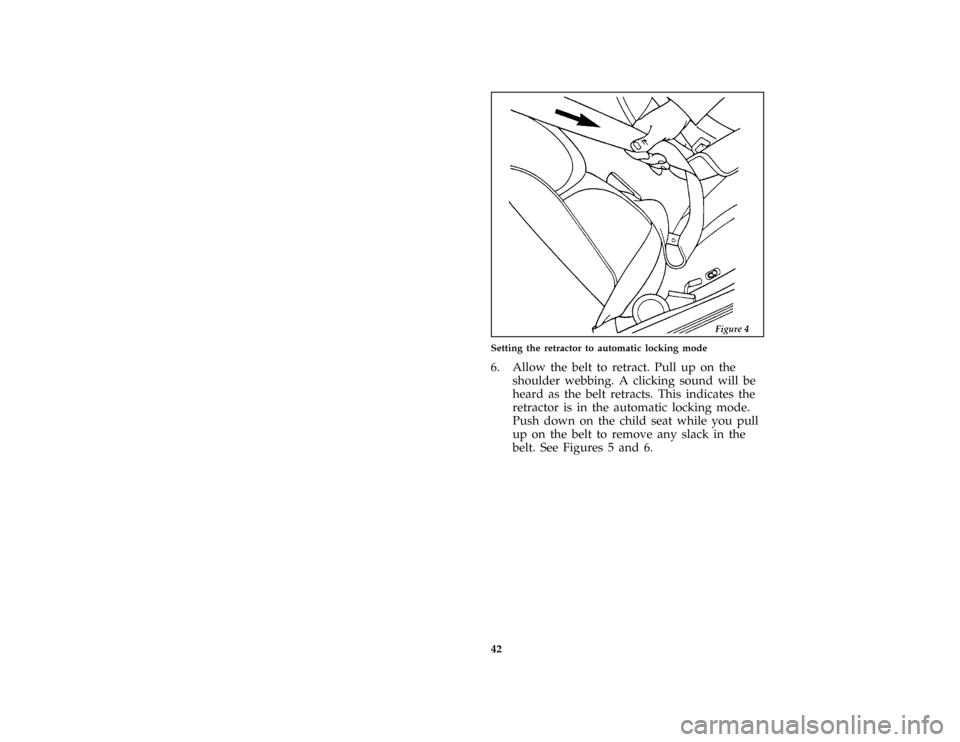

5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). See
Figure 4.
*
[SR31902( ALL)09/95]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 44 of 332
42
*
[SR31905( ALL)06/95]
half page art:0011241-A
Setting the retractor to automatic locking mode
*
[SR31910( ALL)08/95]

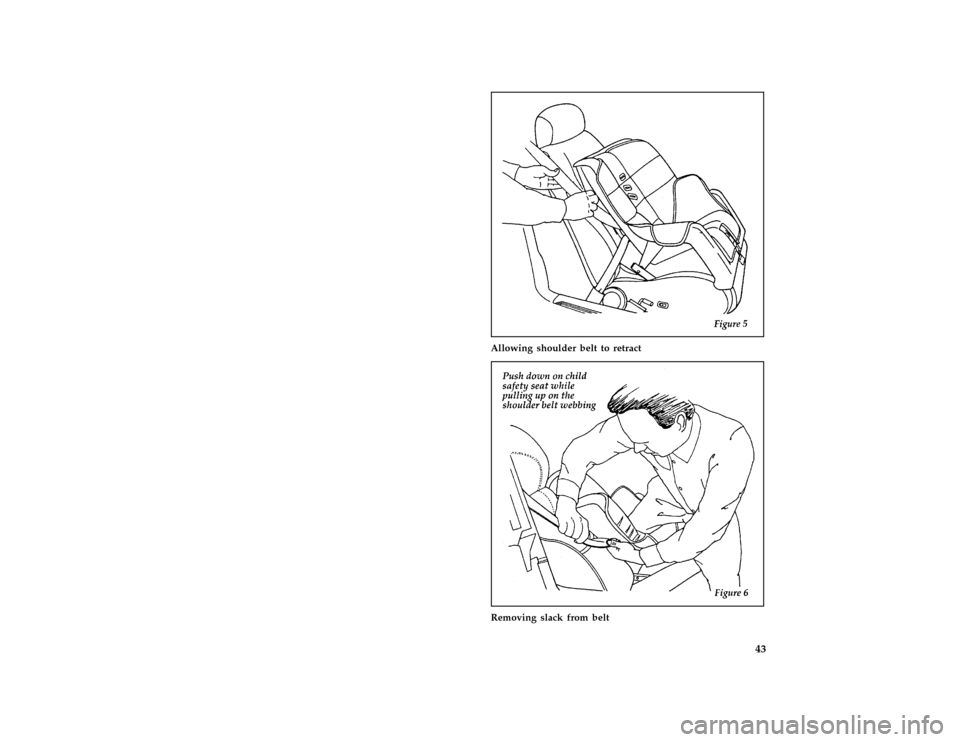

6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. See Figures 5 and 6.
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 45 of 332
43
*
[SR31915( ALL)09/95]
half page art:0011242-A
Allowing shoulder belt to retract
*
[SR31920( ALL)09/95]
half page art:0011243-A
Removing slack from belt
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 46 of 332
44
*
[SR31925( ALL)08/95]

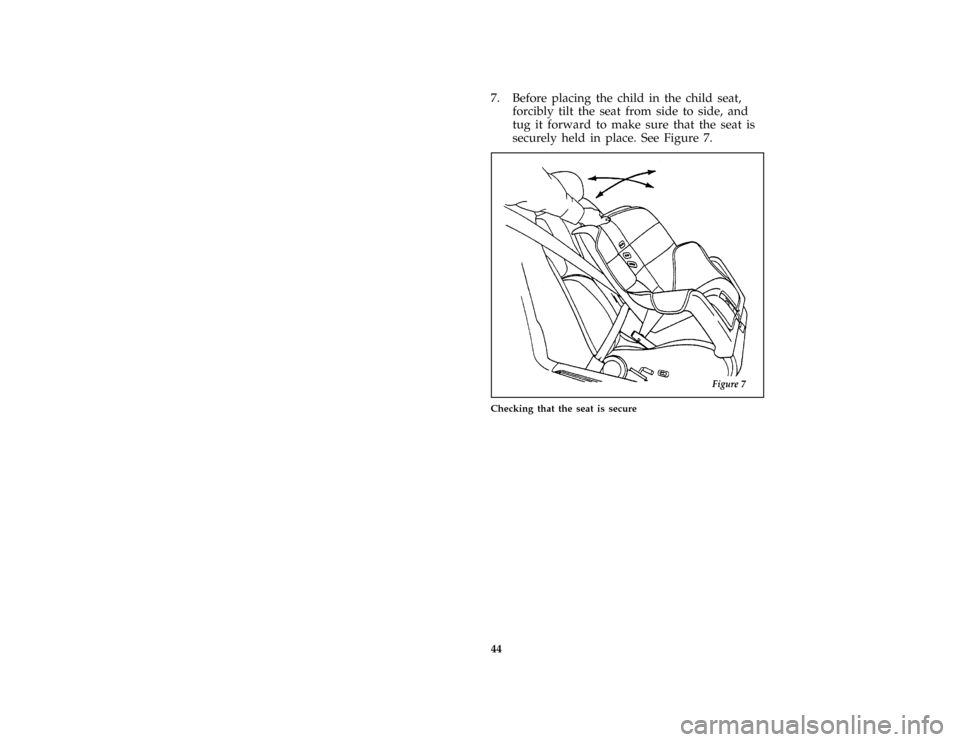

7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place. See Figure 7.
*
[SR31930( ALL)06/95]
half page art:0011244-A
Checking that the seat is secure
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 47 of 332
45
*
[SR31935( ALL)08/95]

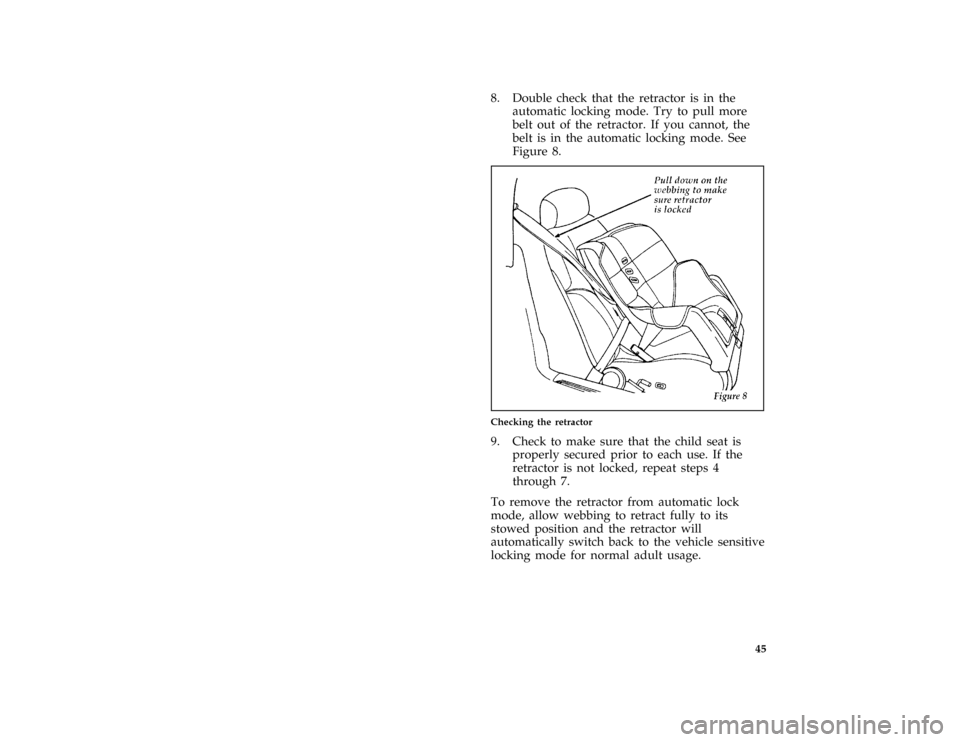

8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See
Figure 8.
*
[SR31940( ALL)06/95]
half page art:0011245-B
Checking the retractor
*
[SR31945( ALL)06/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
*
[SR31950(M )06/95]
To remove the retractor from automatic lock
mode, allow webbing to retract fully to its
stowed position and the retractor will
automatically switch back to the vehicle sensitive
locking mode for normal adult usage.
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 48 of 332
46 %
*
[SR38300( ALL)07/95]
Safety Belts for Children
*
[SR38400( ALL)07/95]
Children who are too large for child safety seats
should always wear safety belts. (See instructions
with your child seat, or contact its manufacturer,
to determine maximum size of child that will
safely fit in the seat.)
*
[SR38500( ALL)07/95]
RWARNING
If safety belts are not properly worn and
adjusted as described, the risk of serious
injury to the child in a collision will be
much greater.
*
[SR38600( ALL)07/95]
If the shoulder belt portion of one of the lap and
shoulder belts can be positioned so that it does
not cross or rest in front of the child's face or
neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the
vehicle may help provide a good shoulder belt
fit.
*
[SR38830( ALL)07/95]
To improve the fit of lap and shoulder belts on
children who have outgrown child safety seats,
Ford recommends use of a belt-positioning
booster seat that is labelled as conforming to all
Federal motor vehicle safety standards.
Belt-positioning booster seats raise the child and
provide a shorter, firmer seating cushion that
encourages safer seating posture and better fit of
lap and shoulder belts on the child. A
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 49 of 332
47
belt-positioning booster should be used if the
shoulder belt rests in front of the child's face or
neck, or if the lap belt does not fit snugly on
both thighs, or if the thighs are too short to let
the child sit all the way back on the seat cushion
when the lower legs hang over the edge of the
seat cushion. You may wish to discuss the
specific needs of your child with your
pediatrician.
*
[SR38860( ALL)07/95]
RWARNING
Do not use a belt-positioning booster with
a lap-only belt.
*
[SR38900( ALL)07/95]
Lap belts and the lap belt portion of lap and
shoulder belts should always be worn snugly
and below the hips, touching the child's thighs.
*
[SR39000( ALL)08/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
File:03rcsrm.ex
Update:Wed Mar 27 09:23:48 1996
Page 50 of 332
49
Starting Your Mustang
*
[ST03400( ALL)03/95]
Ignition
%*
[ST03500( ALL)01/95]
Understanding the Positions of the Ignition
[ST03750( ALL)12/94]
quarter page art:0010035-B

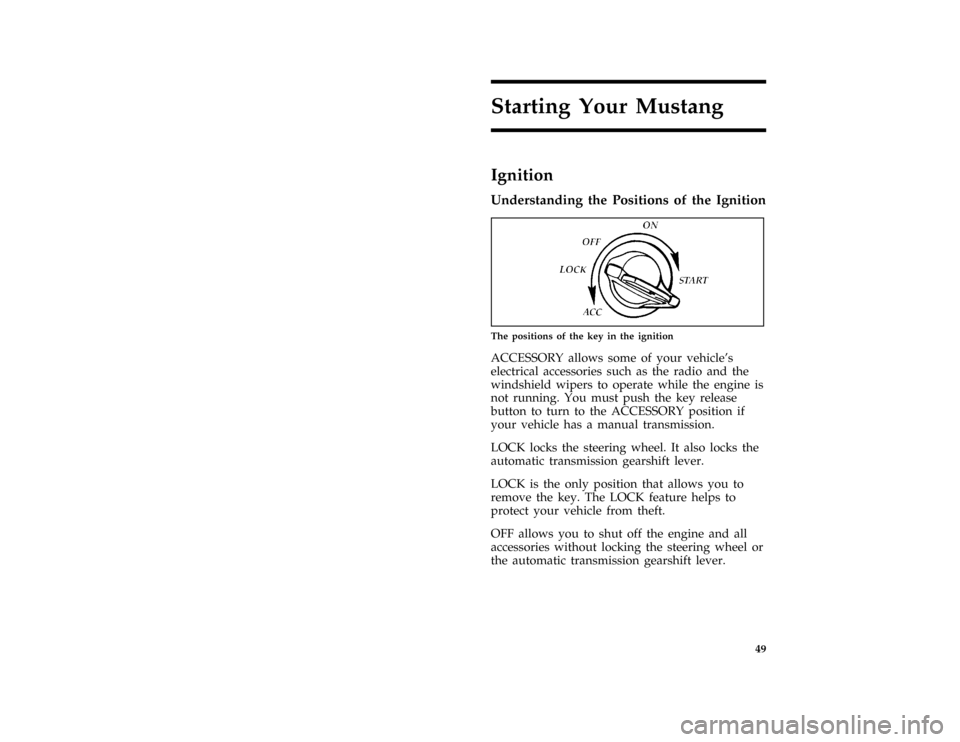

The positions of the key in the ignition
% [ST03800(M )03/95]
ACCESSORY allows some of your vehicle's
electrical accessories such as the radio and the
windshield wipers to operate while the engine is
not running. You must push the key release
button to turn to the ACCESSORY position if
your vehicle has a manual transmission.
% [ST04001( ALL)12/94]
LOCK locks the steering wheel. It also locks the
automatic transmission gearshift lever.
*
[ST04101( ALL)01/95]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
*
[ST04200( ALL)03/95]
OFF allows you to shut off the engine and all
accessories without locking the steering wheel or
the automatic transmission gearshift lever.
File:04rcstm.ex
Update:Wed Mar 27 09:28:42 1996
