The knobs that control the optional heating and air
conditioning system
[IP01435(M )08/93]
The heating system in the optional heating and
air conditioning system operates the same as the
heater only system. SeeThe Heater Only System.
[IP01440(M )05/95]
To cool your vehicle quickly in warm weather,
turn the SELECT knob to MAX A/C, turn the
TEMP knob all the way to the end of the blue
range (full left) and turn the FAN knob to HI.
MAX A/C uses recirculated air and is the most
fuel efficient way to cool your vehicle and can
also be used in heavy traffic to prevent exhaust
fumes from entering the vehicle. MAX A/C can
also be used in high humidity areas for more
efficient operation.
[IP01445(M )08/93]
If the interior of your vehicle is very warm,
drive for the first few minutes with the windows
open. This forces most of the hot, stale air out of
the vehicle and allows the air conditioning to
work faster.
% [IP01450(M )05/95]
To cool your vehicle using outside air, turn the
SELECT knob to NORM A/C, turn the TEMP
knob all the way to the end of the blue range
(full left) and turn the FAN knob to the desired
speed between LO and HI. NORM A/C
provides quieter system operation than MAX
A/C.
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 82 of 332
82 [IP01455(M )08/93]Under normal conditions, the SELECT knob
should be left in any position other than MAX
A/C or OFF when the vehicle is parked. This
allows the vehicle to ªbreatheº through the
outside air inlet duct.
% [IP01500(M )05/92]
The Heater Only System
[IP01600(M )01/89]
You can heat the inside of your vehicle, defrost
the windshield, or use the vents by adjusting the
three knobs in the center of the instrument
panel:
[IP01700(M )08/93]
q
FAN
[IP01800(M )08/93]
q
TEMP
[IP01900(M )08/93]
q
SELECT
[IP02000(M )05/95]
quarter page art:0010177-H
The knobs that control the standard heating only system
[IP02200(M )05/95]
To heat the inside of your vehicle, turn the
SELECT knob to FLOOR, turn the TEMP knob
all the way to the end of the red range (full
right) and turn the FAN knob to HI. After the
vehicle is warm, the temperature and blower
speed can be adjusted to maintain a comfortable
temperature.
% [IP02600(M )05/95]
To defrost the windshield and side windows,
turn the SELECT knob to Defrost symbol, turn
the TEMP knob to the end of the red range (full
right) and turn the FAN knob to HI.
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 83 of 332
83 [IP02700(M )05/95]
To heat the inside of your vehicle and defrost
the windshield and side windows at the same
time, turn the SELECT knob to MIX, turn the
TEMP knob into the red range, as required, and
turn the FAN knob to the desired speed between
LO and HI.
% [IP02800(M )05/95]
On mild days you may want to ventilate your
vehicle with outside air. Turn the SELECT knob
to VENT, turn the TEMP knob to the end of the
blue range (full left) and turn the FAN knob to
the desired speed. Air will be delivered through
the instrument panel registers.
[IP02900(M )03/94]
Under normal conditions, the SELECT knob
should be left in any position except OFF when
the vehicle is parked. This allows the vehicle to
ªbreatheº through the outside air inlet duct.
%
*
[IP31700(MBC )06/95]
Rear Window Defroster
(If equipped)
*
[IP32000( ALL)12/91]
The defroster for the rear window clears frost,
fog, or thin ice from both the inside and outside
of the rear window.
[IP32200(M )03/94]
The button for the rear window defroster is
located on the left side of the instrument panel
below the headlamp switch.
[IP32500(M )08/93]
one third page art:0010189-B

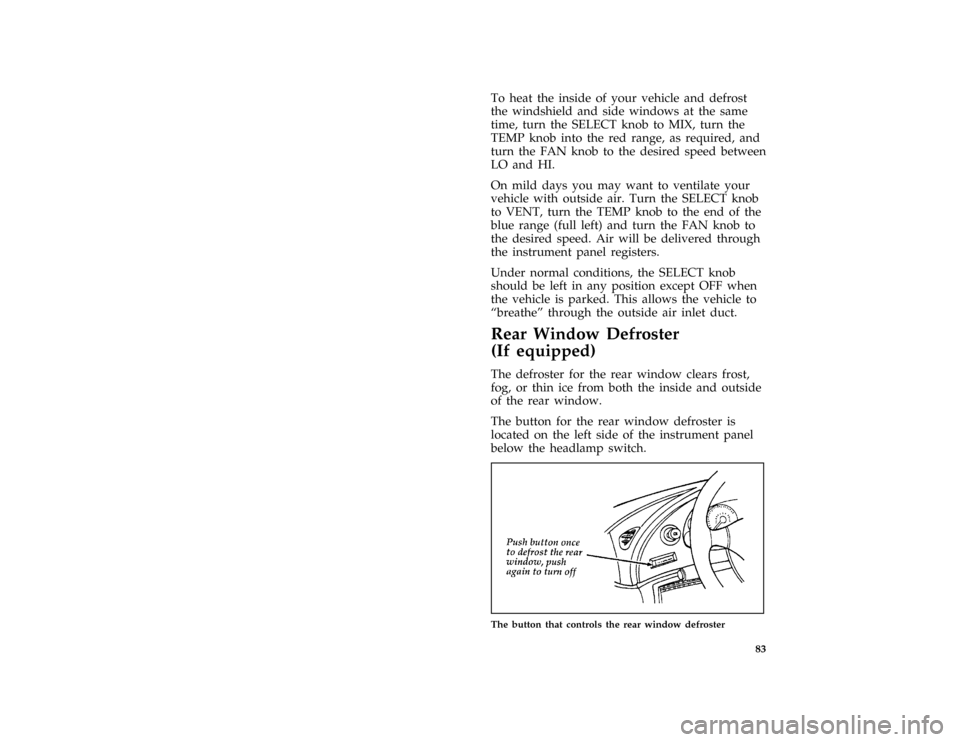

The button that controls the rear window defroster
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 84 of 332
84 [IP33000( ALL)12/94]Clear away any snow that is on the rear
window before using the defroster. With the
engine running, push the defrost button.
[IP33100( ALL)12/94]
After approximately 10 minutes, the defroster
will turn off. If the window is still not clear,
turn the defroster on again.
[IP33200( ALL)12/94]
The defroster will turn off when the ignition key
is turned to the OFF position.
*
[IP33300( ALL)02/95]
The heating elements are bonded to the inside of
the rear window. Do not use sharp objects to
scrape the inside of the rear window or use
abrasive cleaners to clean it. Doing so could
damage the heating elements.
%
*
[IP34200( ALL)01/95]
The Interior and Exterior Lights
%*
[IP34310( ALL)01/95]
Daytime Running Light System
*
[IP34312( ALL)03/95]
(Canadian vehicles only)
*
[IP34320( ALL)03/95]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[IP34325( ALL)03/95]
q
The headlamp system is in the OFF position,
and
*
[IP34330( ALL)03/95]
q
The vehicle is running, and
*
[IP34340( ALL)01/95]
q
The vehicle has a fully released parking
brake.
*
[IP34363( ALL)09/95]
NOTE: The high beam indicator will not turn
on in the flash-to-pass mode during
nighttime driving.
*
[IP34365( ALL)01/95]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 85 of 332
85
*
[IP34367( ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
%*
[IP34370( ALL)01/95]
Turning On the Exterior Lights
[IP34500(M )12/94]
To turn on the headlamps, parking lamps, side
markers, and tail lamps, use the control knob
that is to the left of the steering wheel.
[IP34510(M )08/93]
one third page art:0011227-A

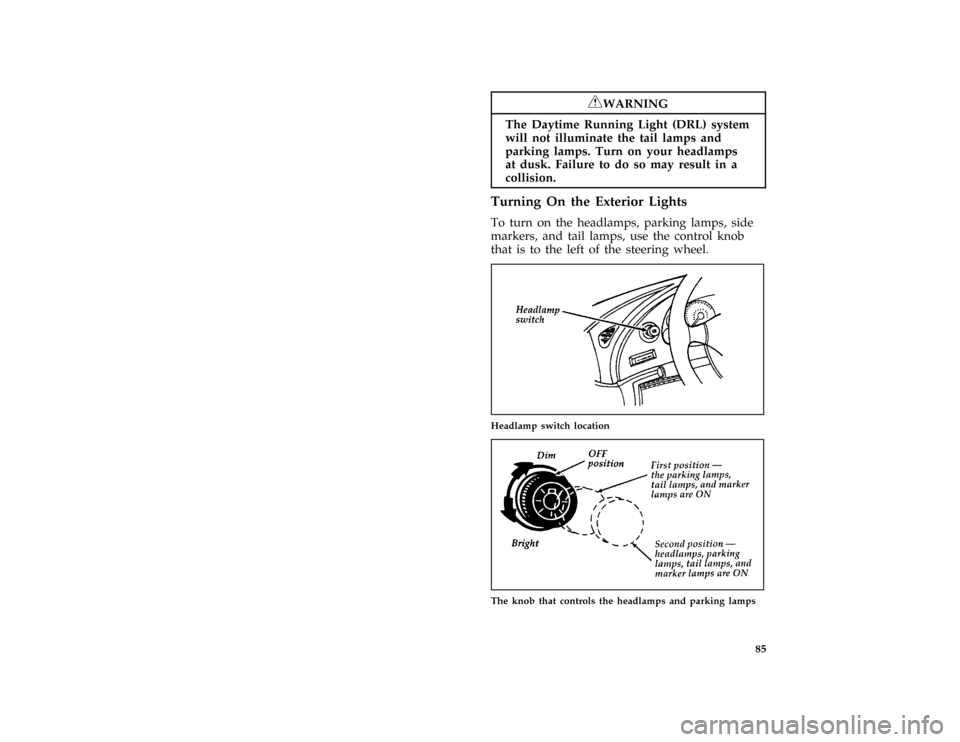

Headlamp switch location
[IP34900(M )05/95]
one third page art:0010194-D
The knob that controls the headlamps and parking lamps
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 86 of 332
86 [IP35200( ALL)12/91]When you turn on the headlamps, the parking
lamps, tail lamps, and side markers
automatically turn on. But you can turn on the
parking lamps, tail lamps, and side markers
without turning on the headlamps.
*
[IP36100( ALL)01/95]
For more information about how the high beams
work, refer to theSteering Column Controls
chapter.
%*
[IP36200( ALL)08/95]
Cleaning the Exterior Lamps
*
[IP36300( ALL)08/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
%*
[IP42400(M )04/95]
Fog Lamps (If equipped)
[IP42600(M )06/93]
The fog lamps switch is located on the console
to the left of the parking brake. The fog lamps
act as a supplement to the low beam headlamps
under limited visibility conditions such as rain,
snow, dust or fog and operate only when the
low beam headlamps are on.
[IP42750(M )08/93]
one third page art:0011228-A

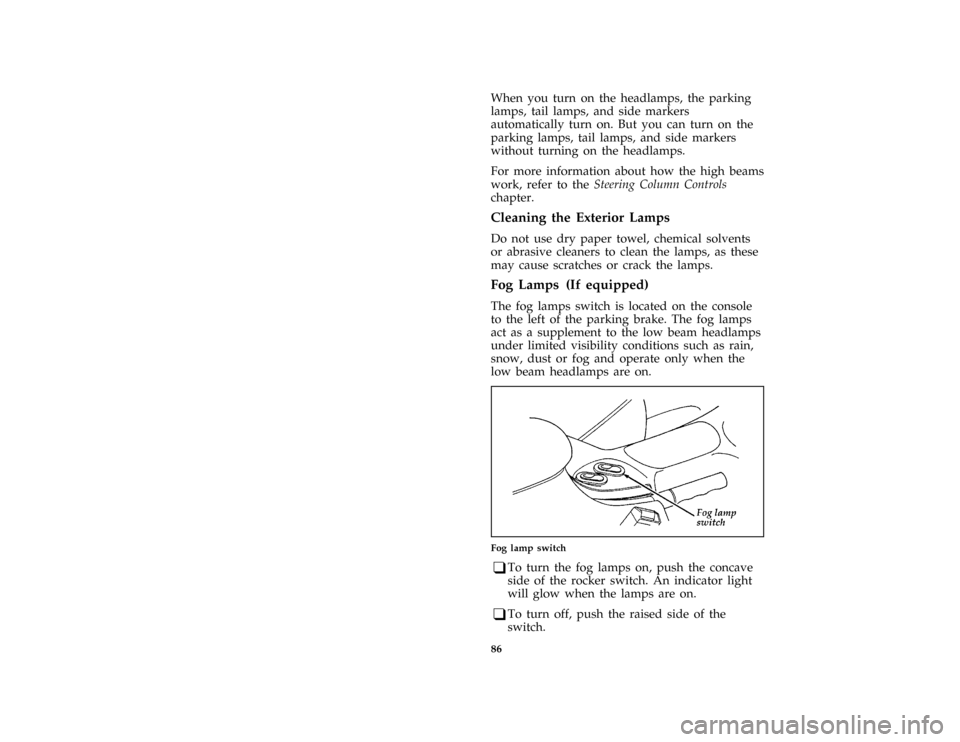

Fog lamp switch
[IP44200(M )03/95]
q
To turn the fog lamps on, push the concave
side of the rocker switch. An indicator light
will glow when the lamps are on.
[IP44400(M )03/95]
q
To turn off, push the raised side of the
switch.
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 87 of 332
87 %
*
[IP44500( ALL)01/95]
Lighting Up the Interior and Instrument
Panel
[IP44900(M )05/95]
With the headlamp knob in the parking lamps
or headlamps position, you can brighten or dim
the lights on the instrument panel. To do this,
rotate the headlamp knob clockwise (to dim the
lights) or counterclockwise (to brighten the
lights). Rotate the knob fully counterclockwise to
operate the interior lights.
[IP45150(M )03/95]
one third page art:0011307-A

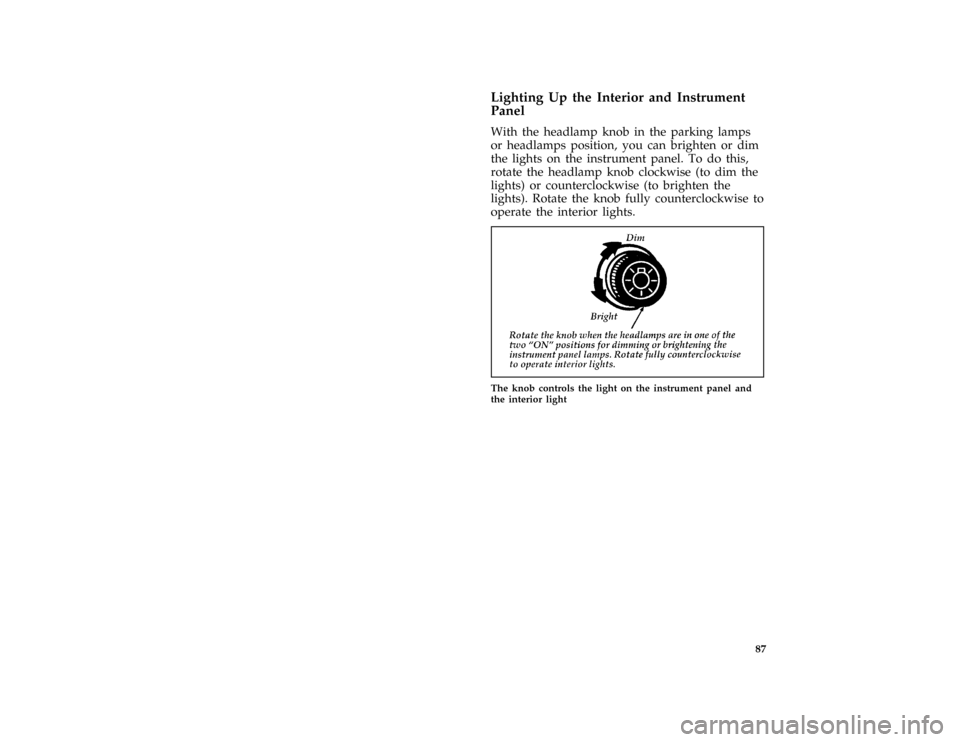

The knob controls the light on the instrument panel and
the interior light
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 88 of 332
88 %
*
[IP46300( ALL)01/95]
Turning on the Map and Reading Lamps
*
[IP46425( ALL)01/95]
Your vehicle has two map lamps for the
passenger and the driver. To turn on the map
lamps, push the switch next to each lamp.
[IP46700(M )08/93]
one third page art:0010266-B
Map lamp (convertible only)
[IP46725(M )08/93]
one third page art:0010651-C
Front seat map and dome lamps (coupe only)
*
[IP47010( ALL)01/95]
The dual beam map lamps are located on each
side of the dome lamp. Each map lamp can be
turned on by the switches on the lamp.
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 89 of 332
89 %
*
[IP47270( ALL)04/95]
Cleaning the Interior Lamps
*
[IP47290( ALL)04/95]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
%
*
[IP47300( ALL)03/95]
Clock
[IP47455(M )05/95]
quarter page art:0011163-B
The digital clock
[IP47500( ALL)05/95]
1. To set the hour, press and hold the H
button. When the desired hour appears,
release the button.
[IP47600( ALL)05/95]
2. To set the minutes, press and hold the M
button. When the desired minute appears,
release the button.
%*
[IP49400( ALL)04/95]
Cleaning the Instrument Panel Lens
*
[IP49500( ALL)04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or any abrasive cleaner to clean the
lens as these may cause scratches.
File:06rcipm.ex
Update:Wed Mar 27 09:30:23 1996
Page 90 of 332
91
Steering Column Controls
*
[SC00200( ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
%
*
[SC00300( ALL)01/95]
The Turn Signal Lever
*
[SC00400( ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00500( ALL)07/94]
q
operate the turn signals
*
[SC00600( ALL)01/95]
q
turn the high beams on/off
*
[SC00700( ALL)05/95]
q
flash the lamps
*
[SC00800( ALL)01/95]
q
turn the windshield wipers and washer
on/off
[SC01900( ALL)02/95]
one third page art:0011292-A
The turn signal lever
%*
[SC02100( ALL)01/95]
Turn Signals
*
[SC02201( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
File:07rcscm.ex
