FORD MUSTANG 1997 4.G Owners Manual

120 [SS18800( ALL)01/96]To unfasten all the belts:
[SS18900(MBC )01/96]
1. Push the release button on the end of the
buckle. This allows the tongue to unlatch
from the buckle.
[SS19400(M )12/95]
quarter page art:0010559-F
Unfastening the front (coupes) and rear outboard
lap/shoulder belts
[SS19500(M )12/95]
quarter page art:0010616-B
Unfastening the Mustang convertible front outboard
lap/shoulder belts
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

121
*
[SS19600( ALL)01/96]
2. While the belt retracts, guide the tongue to
its stowed position. If you do not guide the
tongue, it may strike you or part of the
vehicle.
[SS19700(M )12/95]
3. (Coupe only). Place the belt in the belt
holder at the top of the seatback. The
retracted belt should be stored on this holder
when not in use, except when a passenger is
entering or leaving the rear seat area of the
vehicle.
[SS19800(M )04/96]
half page art:0011198-B

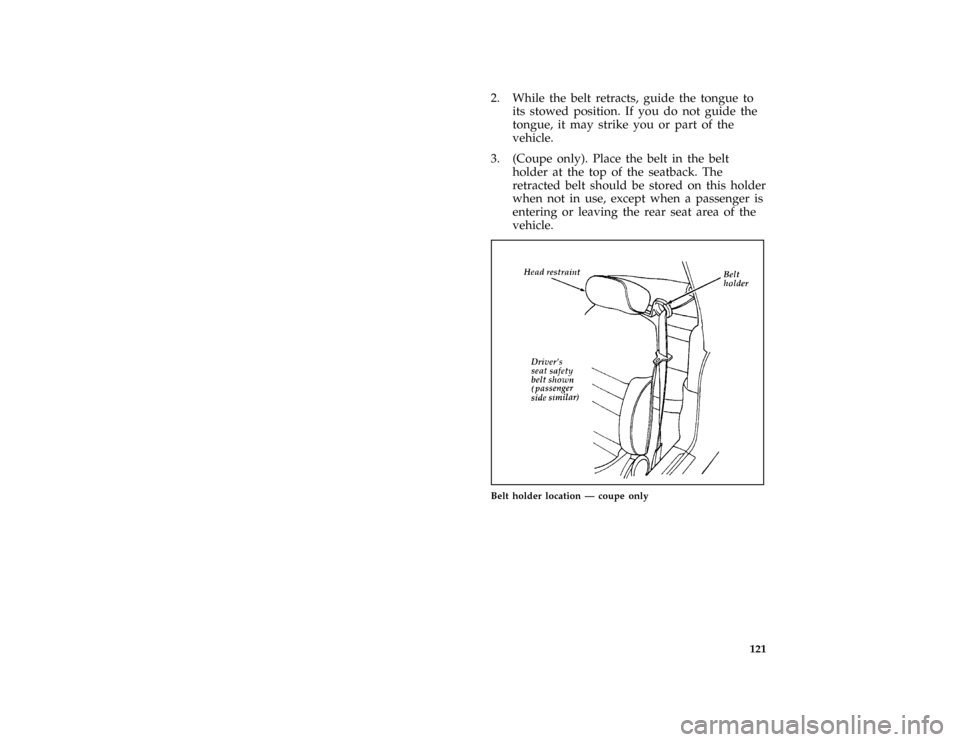

Belt holder location Ð coupe only
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

122 [SS19900(M )12/95]4. (Convertible only). Place the shoulder belt in
the belt holder at the top of the seatback and
place the lap belt in the belt guide at the
side of the seat cushion. The retracted belt
should be stored on this holder and in the
belt guide when not in use, except when a
passenger is entering or leaving the rear seat
area of the vehicle.
[SS20000(M )12/95]
half page art:0010624-B

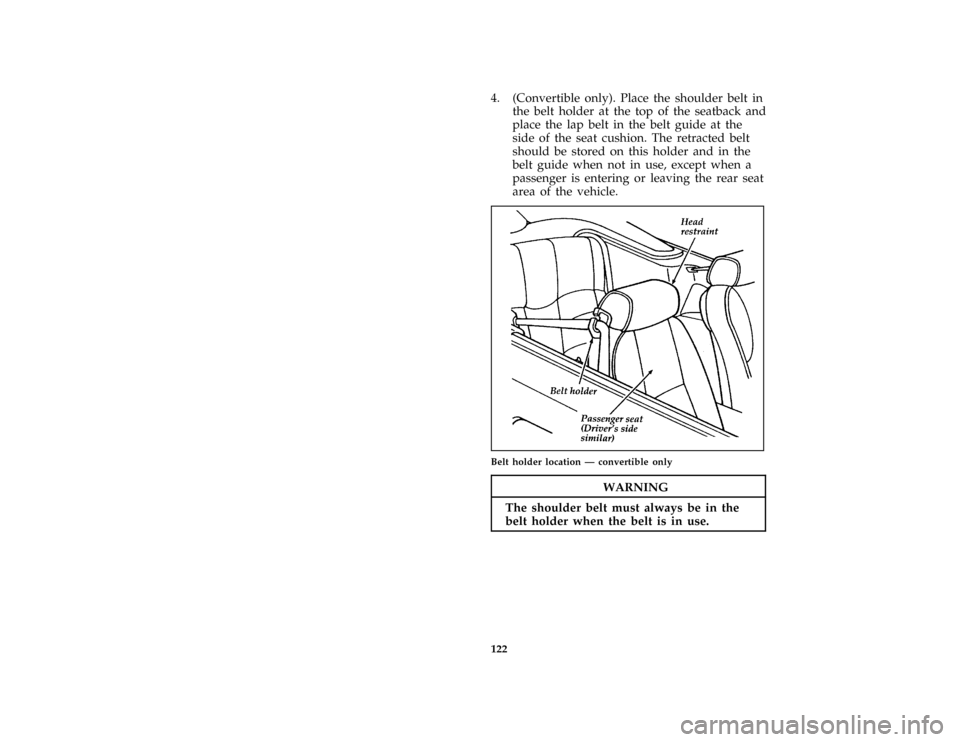

Belt holder location Ð convertible only
[SS20100(M )12/95]
WARNING
The shoulder belt must always be in the
belt holder when the belt is in use.
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

123 %
*
[SS21400( ALL)02/96]
Safety Belt Extension Assembly
*
[SS21500( ALL)01/96]
For some people, the safety belt may be too
short even when it is fully extended. You can
add about eight inches (20 cm) to the belt length
with a safety belt extension assembly (part
number 611C22). Safety belt extensions are
available at no cost from your dealer.
*
[SS21600( ALL)02/96]
WARNING
Failure to follow these instructions will
affect the performance of the safety belts
and increase the risk of personal injury.
*
[SS21700( ALL)01/96]
Use only extensions manufactured by the same
supplier as the safety belt. Manufacturer
identification is located at the end of the
webbing on the label. Also, use the safety belt
extension only if the safety belt is too short for
you when fully extended. Do not use extension
to change the fit of the shoulder belt across the
torso.
%
*
[SS21800( ALL)03/96]
Safety Belt Maintenance
*
[SS21900( ALL)02/96]
Check the safety belt systems periodically to
make sure that they work properly and are not
damaged.
%*
[SS22000( ALL)01/96]
All safety belt assemblies, including retractors,
buckles, front seat belt buckle support assemblies
(slide bar) (if equipped), child safety seat tether
bracket assemblies (if equipped), and attaching
hardware, should be inspected after any
collision. Ford recommends that all safety belt
assemblies used in vehicles involved in a
collision be replaced. However, if the collision
was minor and a qualified technician finds that
the belts do not show damage and continue to
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

124operate properly, they do not need to be
replaced. Safety belt assemblies not in use
during a collision should also be inspected and
replaced if either damage or improper operation
is noted.
%
*
[SS22100( ALL)01/96]
Air Bag Supplemental Restraint
System (SRS)
*
[SS22201( ALL)03/96]
Important Air Bag Precautions
*
[SS22301( ALL)03/96]
Your vehicle is equipped with a supplemental
restraint system designed to work with the
safety belts to help protect you and your right
front seat passenger in the event of a collision.
The Air Bag Supplemental Restraint System is
primarily designed to reduce certain upper body
injuries.
*
[SS22401( ALL)03/96]
WARNING
All occupants of the vehicle, including the
driver, should always wear their safety
belts, failure to do so may increase the
risk of personal injury in the event of a
collision.
*
[SS22601( ALL)03/96]
WARNING
Do not place objects or mount equipment
on or near the air bag covers that may
come into contact with an inflating air
bag. Failure to follow these instructions
may increase the risk of personal injury in
the event of a collision.
*
[SS22701( ALL)03/96]
WARNING
Do not attempt to service, repair, or
modify the air bag Supplemental Restraint
System or its fuses. See your Ford or
Lincoln-Mercury dealer.
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

125
*
[SS22801( ALL)03/96]
WARNING
If you are close to an inflating air bag, it
could seriously injure you. Position your
seat such that it is as far back from the
steering wheel as possible but still allows
you to properly control the vehicle.
*
[SS22901( ALL)03/96]
Children and Air Bags
*
[SS23001( ALL)03/96]
NOTE: For additional important safety
information on the proper use of seat
belts, child seats, and infant seats,
please read the entire Safety Restraints
section in this owner guide.
*
[SS23101( ALL)03/96]
WARNING
Children should always wear their safety
belts. Failure to follow these instructions
may increase the risk of personal injury in
the event of a collision.
*
[SS23201( ALL)03/96]
WARNING
Rear-facing infant seats must always be
secured in the rear seat.
%*
[SS23301( ALL)03/96]
How Does the Air Bag Supplemental
Restraint System Work?
*
[SS23401( ALL)04/96]
The Air Bag Supplemental Restraint System is
designed to activate when the vehicle is in a
collision similar to hitting a fixed barrier head
on at 8-14 mph (13-23 km/h). The fact that the
air bags did not inflate in a collision does not
mean that something is wrong with the system.
Rather, it means the forces were not of the type
sufficient to cause acitivation.
*
[SS23501( ALL)04/96]
If the vehicle is in a moderate or severe frontal
collision, the system is activated and the air bags
inflate rapidly. After the air bag inflates, it will
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

126quickly deflate. After the air bag deployment,
you may notice a smoke-like, powdery residue
or smell the burnt propellant. This is normal.
The residue may consist of cornstarch or talcum
powder (which is used to lubricate the air bag)
or sodium compounds, such as sodium
carbonates (e.g. baking soda) that result from the
combustion process that inflates the air bag.
Small amounts of sodium hydroxide may be
present which may irritate the skin and eyes, but
none of the residue is toxic. The Air Bag
Supplemental Restraint System will reduce, but
not eliminate all injuries in an accident.
*
[SS23601( ALL)03/96]
WARNING
Several air bag system components get hot
after inflation. Do not try to touch them
after inflation.
*
[SS23701( ALL)03/96]
WARNING
The air bag will inflate only once. The
system is designed to function on a
one-time-only basis. If the air bag is
inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE
REPLACED IMMEDIATELY. If the air
bag is not replaced, this will increase the
risk of injury in a subsequent collision.
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

127
*
[SS23801( ALL)03/96]
The Air Bag Supplemental Restraint System
consists of:
*
[SS23901( ALL)03/96]
q
driver and passenger air bag modules (which
include the inflators and air bags),
*
[SS24001( ALL)03/96]
q
one or more impact and safing sensors,
*
[SS24101( ALL)00/96]
q
a system diagnostic module,
*
[SS24201( ALL)03/96]
q
a readiness light and tone,
*
[SS24301( ALL)03/96]
q
and the electrical wiring which connects the
components.
[SS24350( ALL)04/96]
The diagnostic module monitors its own circuits,
the air bag electrical system, the air bag
readiness light, the air bag power, and the air
bag inflators.
*
[SS24401( ALL)03/96]
Determining if System Is Operational
*
[SS24501( ALL)03/96]
The Air Bag Supplemental Restraint System uses
a readiness light and a tone to indicate the
condition of the system. The readiness light is in
the instrument cluster. When you turn the
ignition key to ON, this light will illuminate for
approximately six (6) seconds and then turn off.
This indicates that the system is operating
normally. NOTE: Routine maintenance of the air
bag system is not required.
%*
[SS24601( ALL)03/96]
A problem with the system is indicated by one
or more of the following:
*
[SS24701( ALL)03/96]
q
the readiness light will either flash or stay lit,
*
[SS24801( ALL)03/96]
q
the readiness light will not light immediately
after ignition is turned on,
%*
[SS24901( ALL)12/95]
q
a group of five beeps will be heard. The tone
pattern will repeat periodically until the
problem and light are repaired.
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

128
*
[SS25001( ALL)03/96]
If any of these things happen, even
intermittently, have the Air Bag Supplemental
Restraint System serviced at your Ford or
Lincoln-Mercury dealer immediately. Unless
serviced, the system may not function properly
in the event of a collision.
*
[SS25101( ALL)03/96]
Disposal of Air Bags and Air Bag
Equipped Vehicles
*
[SS25201( ALL)03/96]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer. Air bags MUST BE disposed of by
qualified personnel.
%
*
[SS26300( ALL)01/96]
Safety Restraints for Children
*
[SS26400( ALL)01/96]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
*
[SS26500( ALL)02/96]
WARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SS26600( ALL)01/96]
WARNING
Cargo should always be secured to
prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997

129
*
[SS26700( ALL)01/96]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SS26800( ALL)03/96]
WARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SS26900( ALL)01/96]
WARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
*
[SS27000( ALL)03/96]
WARNING
Do not leave children, unreliable adults,
or pets unattended in your vehicle.
%*
[SS27100( ALL)03/96]
WARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. Never
secure rear-facing infant seats in the front
seat.
File:06rcssm.ex
Update:Mon Feb 24 10:16:50 1997
