[CF39800( ALL)05/96]
Sun Visors
% [CF40300( ALL)04/96]
Turning on the Mirror Light on the Sun
Visors (If equipped)
[CF40400( ALL)12/95]
To turn on the visor mirror light, lift the mirror
cover.
[CF40500(M )12/95]

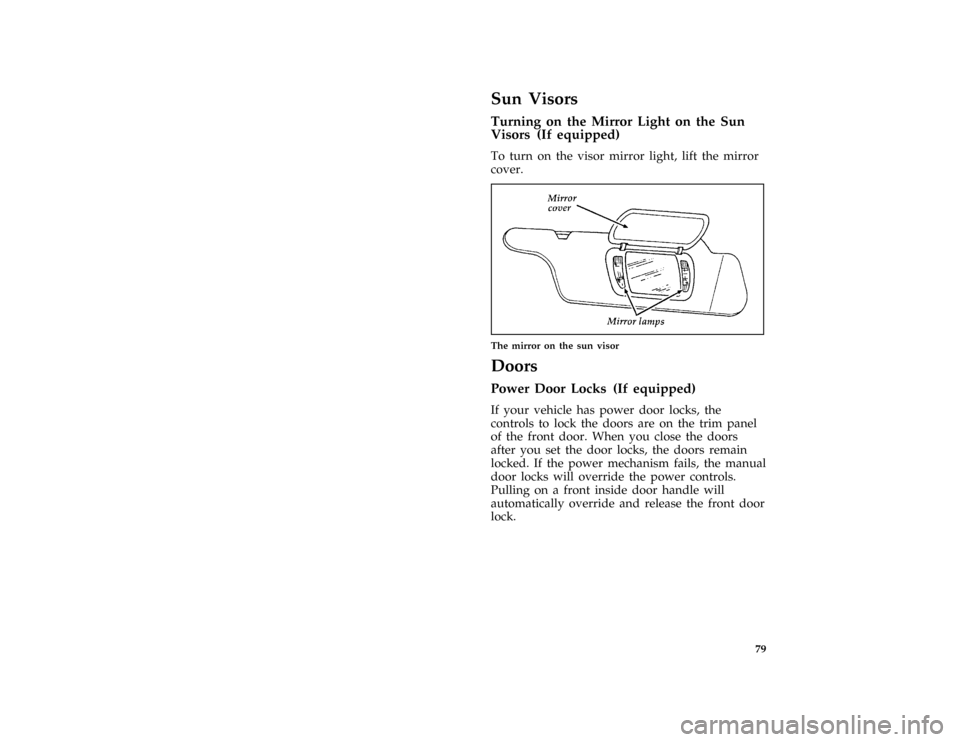

one third page art:0010276-B
The mirror on the sun visor
%*
[CF40800( ALL)02/96]
Doors
%*
[CF41800( ALL)01/96]
Power Door Locks (If equipped)
[CF41900( ALL)12/95]
If your vehicle has power door locks, the
controls to lock the doors are on the trim panel
of the front door. When you close the doors
after you set the door locks, the doors remain
locked. If the power mechanism fails, the manual
door locks will override the power controls.
Pulling on a front inside door handle will
automatically override and release the front door
lock.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

80 [CF42100(M )04/96]

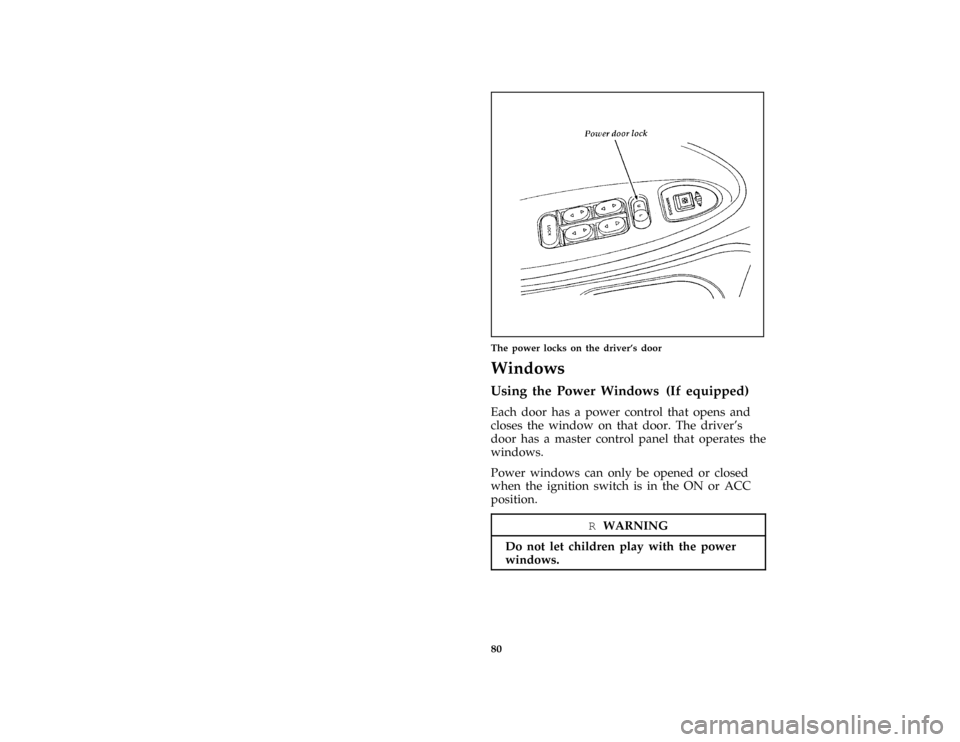

half page art:0010222-DThe power locks on the driver's door
%*
[CF43405( ALL)04/96]
Windows
%*
[CF43410(M )01/96]
Using the Power Windows (If equipped)
[CF43420(MBC )12/95]
Each door has a power control that opens and
closes the window on that door. The driver's
door has a master control panel that operates the
windows.
*
[CF43430( ALL)12/95]
Power windows can only be opened or closed
when the ignition switch is in the ON or ACC
position.
*
[CF43435( ALL)01/96]
RWARNING
Do not let children play with the power
windows.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

81 [CF43440(M )04/96]
half page art:0010232-D

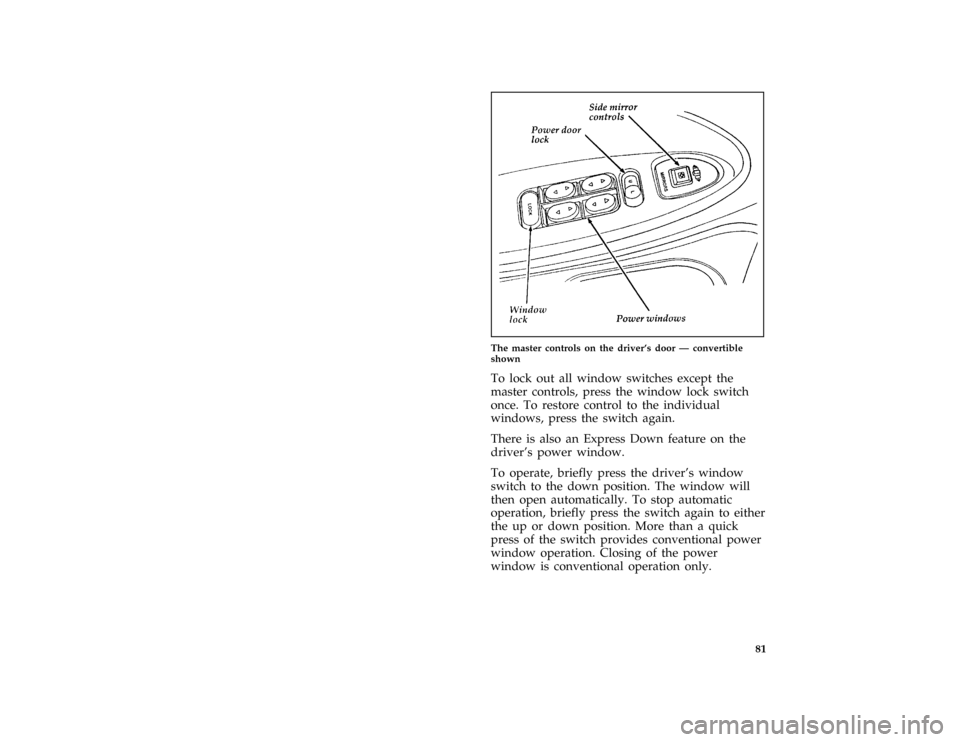

The master controls on the driver's door Ð convertible
shown
*
[CF43455(M GV)12/95]
To lock out all window switches except the
master controls, press the window lock switch
once. To restore control to the individual
windows, press the switch again.
%*
[CF43460(M GV)03/96]
There is also an Express Down feature on the
driver's power window.
*
[CF43465(M GV)05/96]
To operate, briefly press the driver's window
switch to the down position. The window will
then open automatically. To stop automatic
operation, briefly press the switch again to either
the up or down position. More than a quick
press of the switch provides conventional power
window operation. Closing of the power
window is conventional operation only.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

82
% [CF43500(M )03/96]
Adjusting the Side View Mirrors
[CF43800(MBC )05/96]
The switch for controlling the dual electric
remote control mirrors is located on the driver's
door.
%*
[CF44000( ALL)12/95]
Do not clean the housing or glass of any mirror
with harsh abrasives, fuel or other
petroleum-based cleaning products.
[CF44300(M )04/96]

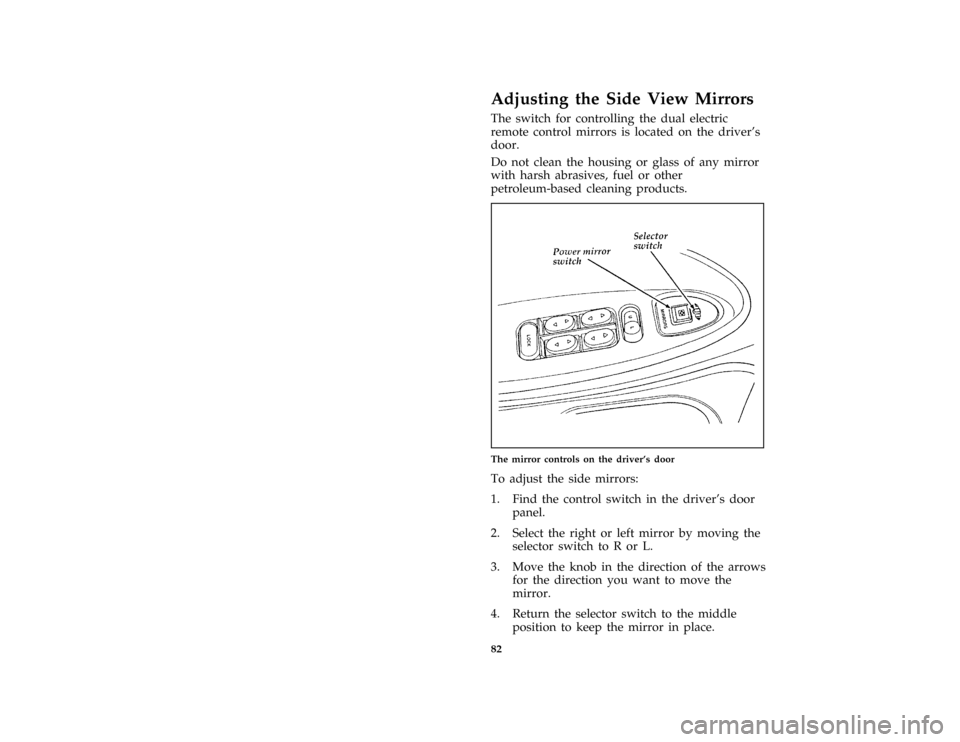

half page art:0010272-D
The mirror controls on the driver's door
*
[CF44400( ALL)01/96]
To adjust the side mirrors:
*
[CF44500( ALL)05/96]
1. Find the control switch in the driver's door
panel.
*
[CF44600( ALL)05/96]
2. Select the right or left mirror by moving the
selector switch to R or L.
[CF44700(M GV)05/96]
3. Move the knob in the direction of the arrows
for the direction you want to move the
mirror.
*
[CF44800( ALL)05/96]
4. Return the selector switch to the middle
position to keep the mirror in place.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

83 [CF44900( ALL)12/95]
The Right Side Convex Mirror
*
[CF45000( ALL)12/95]
The side view mirror on the right is a convex
mirror. This mirror gives you a wider view of
the lanes on your right and behind you.
*
[CF45100( ALL)05/96]
RWARNING
The right side view mirror makes objects
appear smaller and farther away than they
actually are.
%
*
[CF46100(MBC )01/96]
Console
[CF46200(MBC )12/95]
Your vehicle has a full console. The full console
has the features shown in the illustration below.
[CF46300(M )04/96]

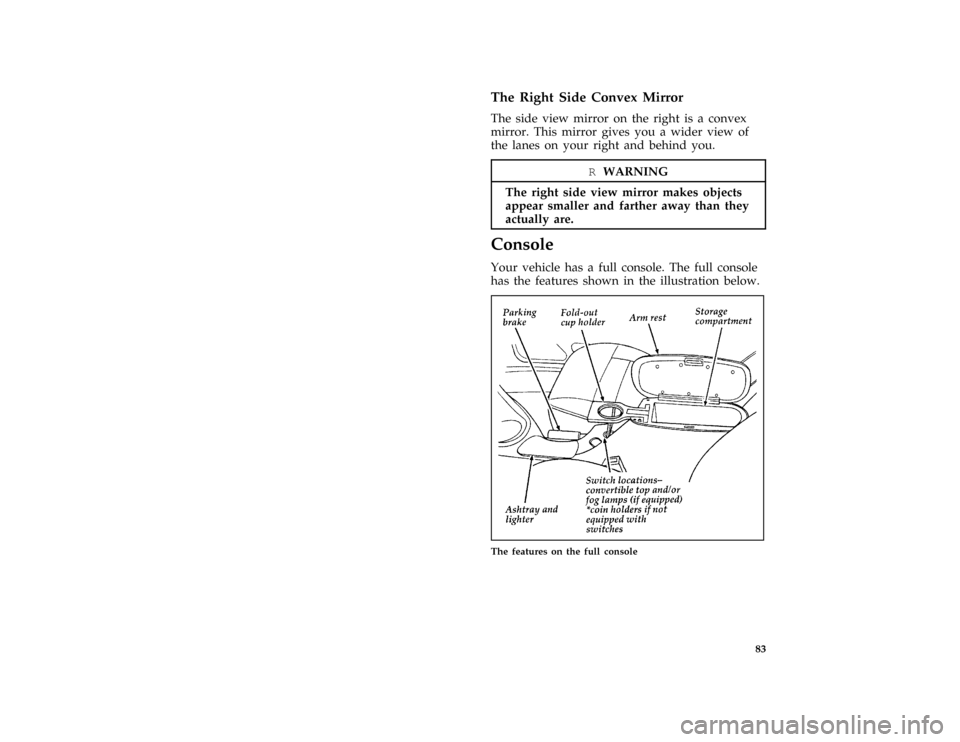

half page art:0010281-F
The features on the full console
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

84 %
*
[CF46460(M )05/96]
Fog Lamps (If equipped)
[CF46540(M )03/96]
The fog lamps switch is located on the console
to the left of the parking brake. The fog lamps
act as a supplement to the low beam headlamps
under limited visibility conditions such as rain,
snow, dust or fog and operate only when the
low beam headlamps are on.
[CF46550(M )04/96]
one third page art:0011228-A
Fog lamp switch
[CF46560(M )04/96]
q
To turn the fog lamps on, push the concave
side of the rocker switch. An indicator light
will glow when the lamps are on.
[CF46570(M )04/96]
q
To turn off, push the raised side of the
switch.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

85
% [CF46600(M )12/95]
Convertible (If equipped)
[CF46700(M )12/95]
NOTE: Do not store articles behind rear seat.
Articles stored in the convertible top
stowage compartment may break the
rear glass window when the top is
lowered.
% [CF46800(M )12/95]
Lowering the Convertible Top
[CF46900(M )12/95]
The convertible top can be lowered with the side
windows either up or down.
[CF47000(M )12/95]
NOTE: CONVERTIBLE TOP WILL NOT
OPERATE UNLESS PARKING BRAKE
IS ENGAGED. Do not lower the top
while the vehicle is moving because
the top may be severely damaged.
Also, do not lower the top when the
top material is wet.
[CF47100(M )12/95]
To lower the convertible top:
[CF47200(M )12/95]
1. Bring vehicle to a complete stop. Engage the
parking brake.
[CF47300(M )12/95]
2. Check the convertible top stowage
compartment behind the rear seat to be sure
it is empty and ready to receive the top.
[CF47400(M )12/95]
3. Unclamp the top from the windshield header
at both the right and left sides by pulling
each clamp rearward until the hook in the
windshield header is free. The clamps are
flush with the header when in the closed
position.
[CF47500(M )12/95]
4. Close the windshield header clamps
immediately after disengagement, to avoid
cutting the top material and to permit
installation of the vinyl boot.
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

86 [CF47600(M )12/95]5. If the top has not been lowered for some
time and sticks to the windshield header,
push the front of the top up slightly with
your hand to loosen it.
[CF47700(M )12/95]

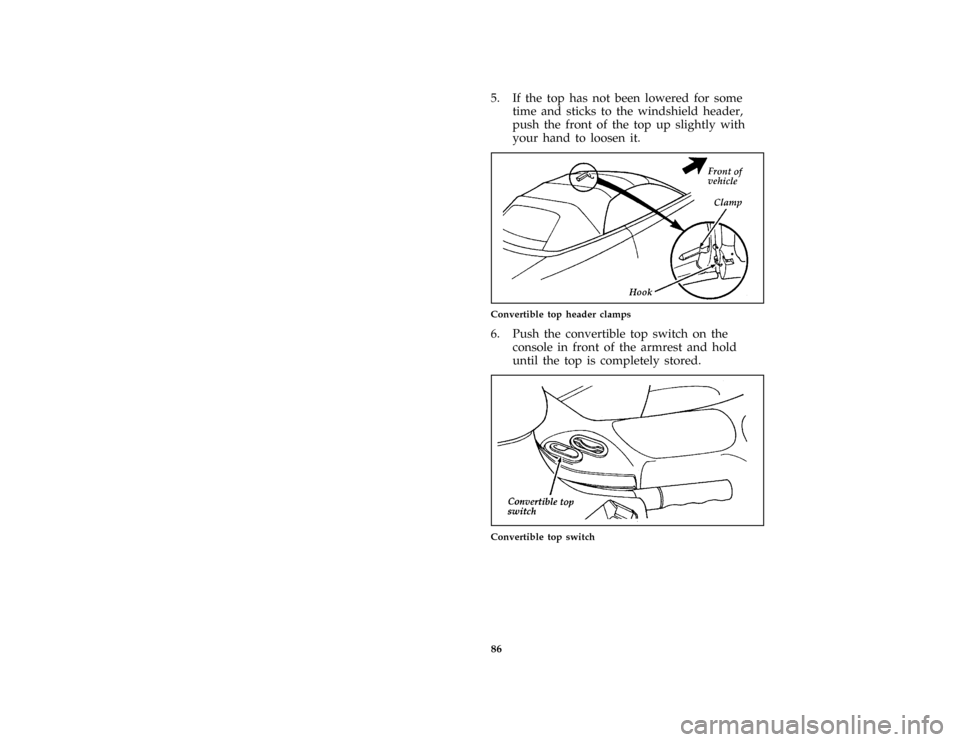

one third page art:0010289-C
Convertible top header clamps
[CF47800(M )12/95]
6. Push the convertible top switch on the
console in front of the armrest and hold
until the top is completely stored.
[CF47900(M )12/95]
one third page art:0011189-A
Convertible top switch
File:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

87 % [CF48000(M )12/95]
Installation of the Boot
[CF48100(M )12/95]
To install the boot:
[CF48200(M )12/95]

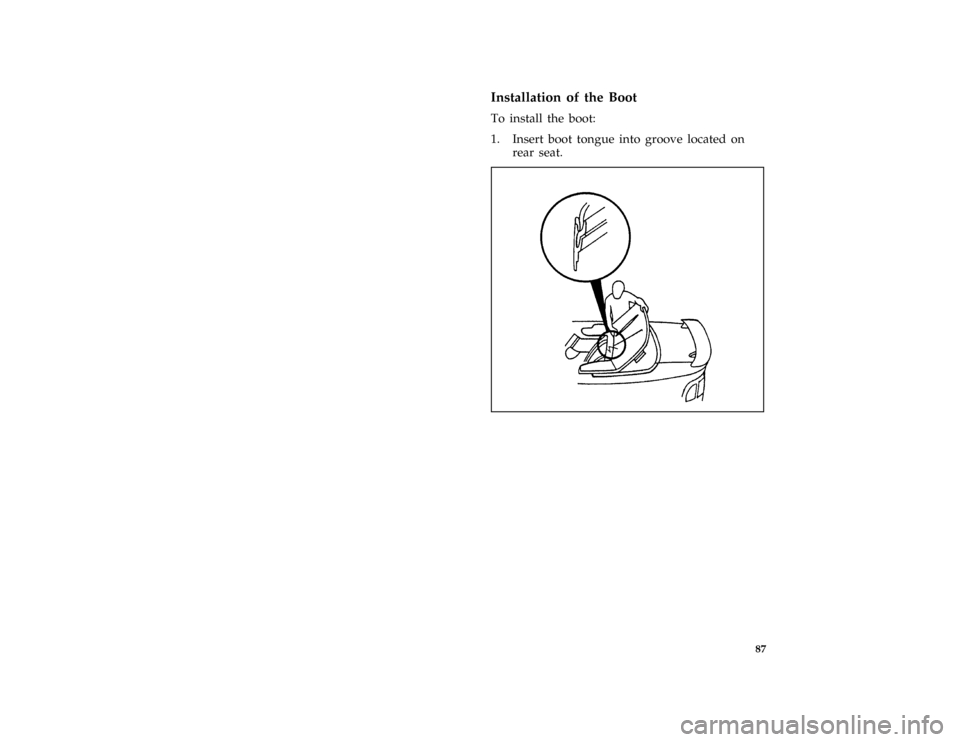

1. Insert boot tongue into groove located on
rear seat.
[CF48300(M )04/96]
half page art:0011356-BFile:05rccfm.ex
Update:Thu Apr 3 07:41:31 1997

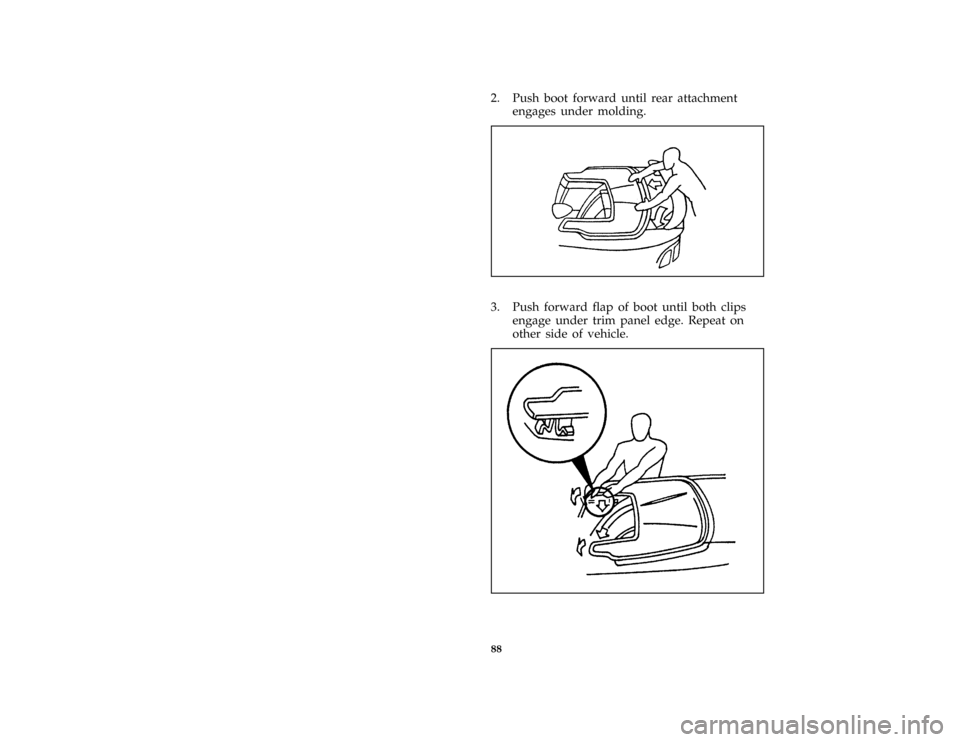

88 [CF48400(M )12/95]2. Push boot forward until rear attachment
engages under molding.
[CF48500(M )04/96]
one third page art:0011357-B[CF48600(M )04/96]
3. Push forward flap of boot until both clips
engage under trim panel edge. Repeat on
other side of vehicle.
[CF48700(M )12/95]
half page art:0011358-AFile:05rccfm.ex
