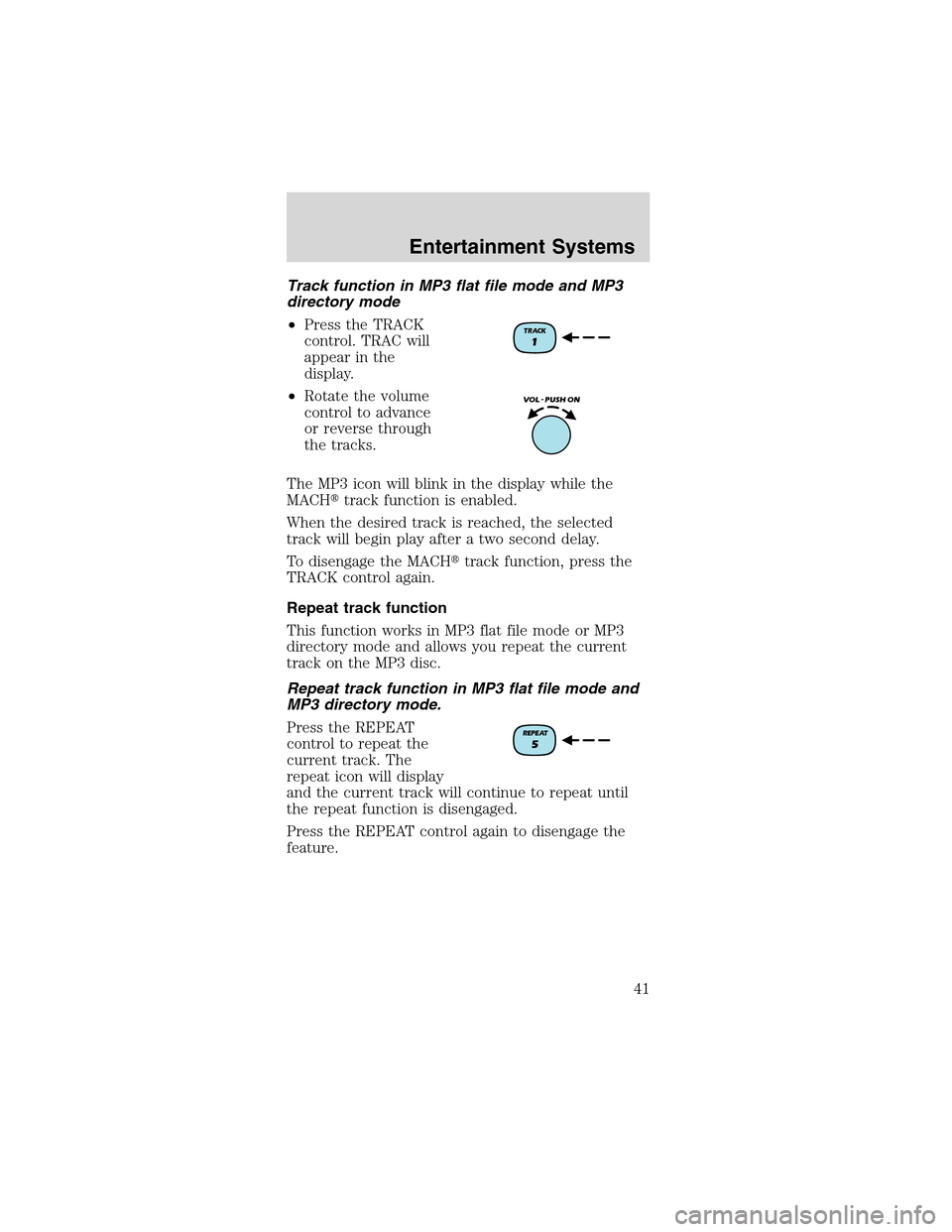

Track function in MP3 flat file mode and MP3
directory mode
•Press the TRACK
control. TRAC will
appear in the
display.
•Rotate the volume
control to advance
or reverse through
the tracks.
The MP3 icon will blink in the display while the
MACHtrack function is enabled.
When the desired track is reached, the selected
track will begin play after a two second delay.
To disengage the MACHtrack function, press the
TRACK control again.
Repeat track function
This function works in MP3 flat file mode or MP3
directory mode and allows you repeat the current
track on the MP3 disc.
Repeat track function in MP3 flat file mode and
MP3 directory mode.
Press the REPEAT
control to repeat the
current track. The
repeat icon will display
and the current track will continue to repeat until
the repeat function is disengaged.
Press the REPEAT control again to disengage the
feature.
Entertainment Systems
41
Page 42 of 256

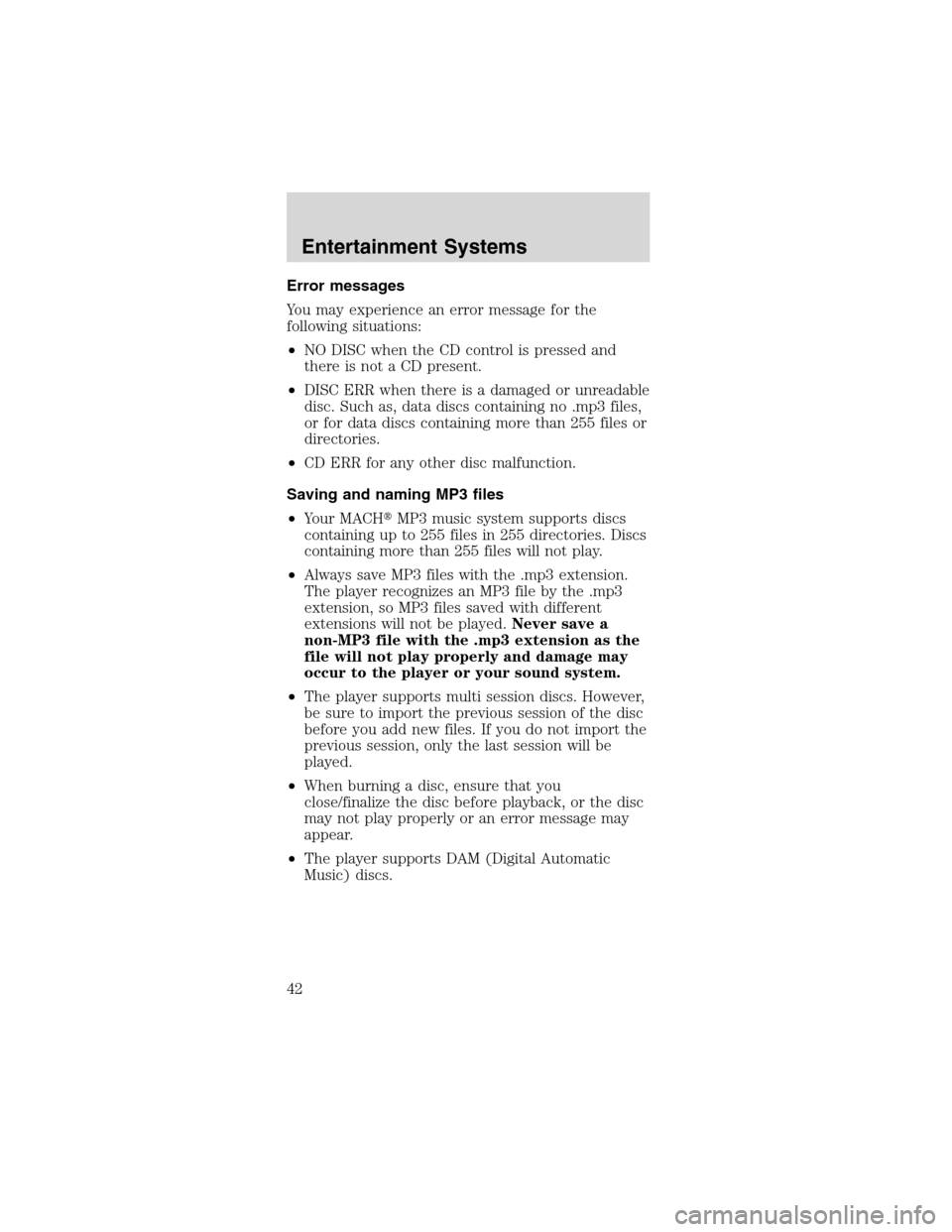

Errormessages
You may experience an error message for the
following situations:
•NO DISC when the CD control is pressed and
there is not a CD present.
•DISC ERR when there is a damaged or unreadable
disc. Such as, data discs containing no .mp3 files,
or for data discs containing more than 255 files or
directories.
•CD ERR for any other disc malfunction.
Saving and naming MP3 files
•Your MACHMP3 music system supports discs
containing up to 255 files in 255 directories. Discs
containing more than 255 files will not play.
•Always save MP3 files with the .mp3 extension.
The player recognizes an MP3 file by the .mp3
extension, so MP3 files saved with different
extensions will not be played.Never save a
non-MP3 file with the .mp3 extension as the
file will not play properly and damage may
occur to the player or your sound system.
•The player supports multi session discs. However,
be sure to import the previous session of the disc
before you add new files. If you do not import the
previous session, only the last session will be
played.
•When burning a disc, ensure that you
close/finalize the disc before playback, or the disc
may not play properly or an error message may
appear.
•The player supports DAM (Digital Automatic
Music) discs.
Entertainment Systems
42
Page 43 of 256

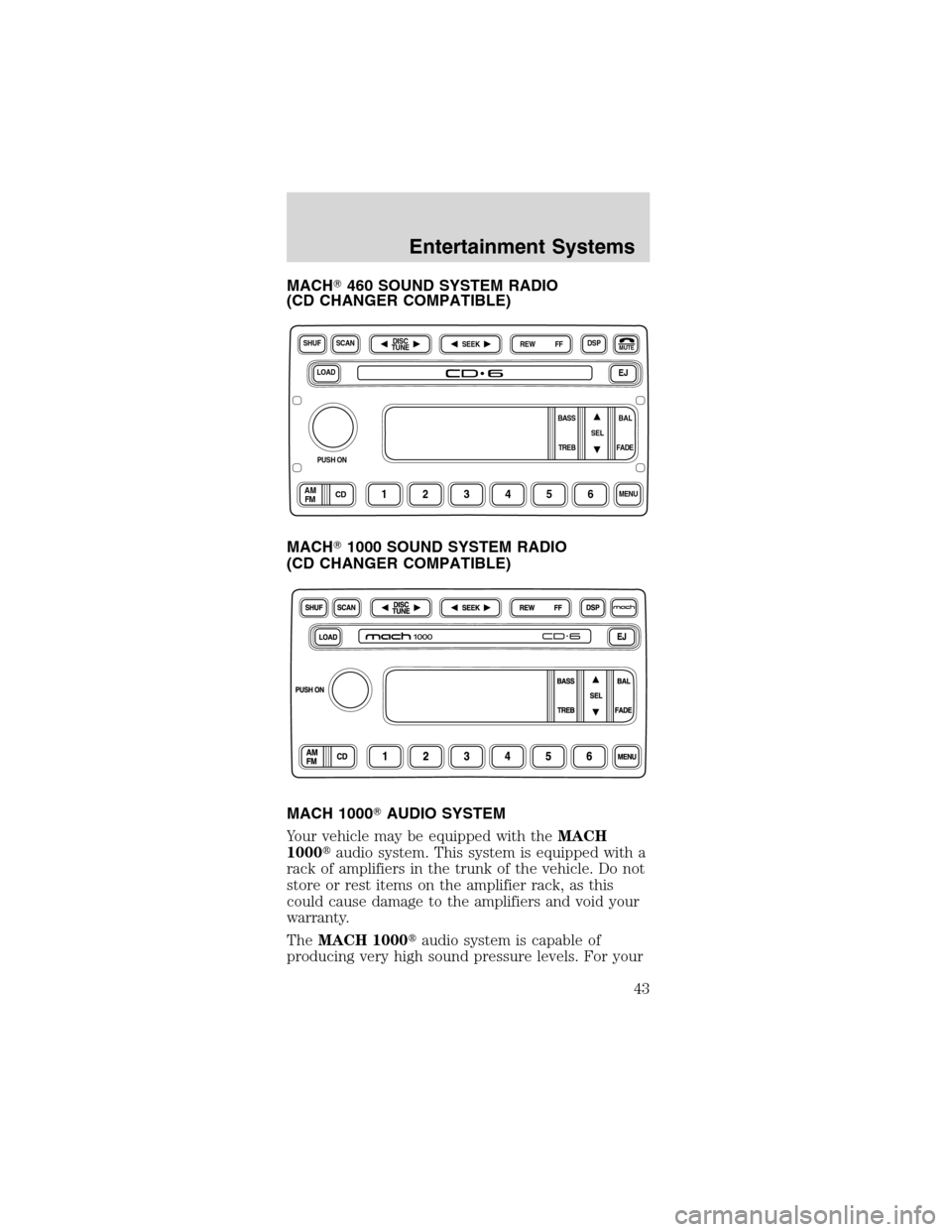

MACH460 SOUND SYSTEM RADIO
(CD CHANGER COMPATIBLE)
MACH1000 SOUND SYSTEM RADIO
(CD CHANGER COMPATIBLE)
MACH 1000AUDIO SYSTEM
Your vehicle may be equipped with theMACH
1000audio system. This system is equipped with a
rack of amplifiers in the trunk of the vehicle. Do not
store or rest items on the amplifier rack, as this
could cause damage to the amplifiers and void your
warranty.
TheMACH 1000audio system is capable of
producing very high sound pressure levels. For your
LOADEJ
SHUFDSPMUTE
SELBAL BASS
FADE TREB
SCAN
PUSH ON
CD123456MENUAM
FM
SEEKREW FFDISC
TUNE
Entertainment Systems
43
Page 44 of 256

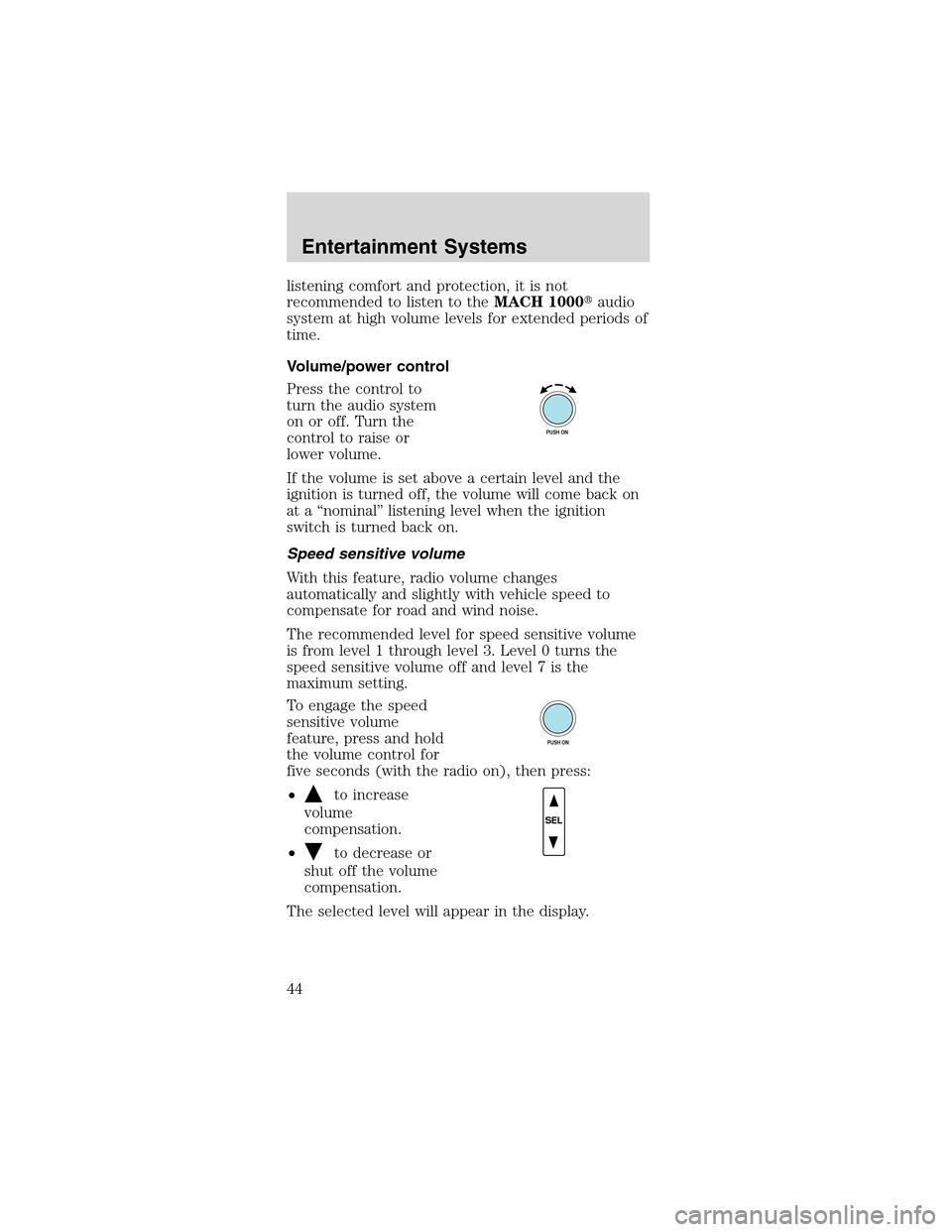

listening comfort and protection, it is not
recommended to listen to theMACH 1000audio
system at high volume levels for extended periods of
time.
Volume/power control
Press the control to
turn the audio system
on or off. Turn the
control to raise or
lower volume.
If the volume is set above a certain level and the
ignition is turned off, the volume will come back on
at a“nominal”listening level when the ignition
switch is turned back on.
Speed sensitive volume
With this feature, radio volume changes
automatically and slightly with vehicle speed to
compensate for road and wind noise.
The recommended level for speed sensitive volume
is from level 1 through level 3. Level 0 turns the
speed sensitive volume off and level 7 is the
maximum setting.
To engage the speed
sensitive volume
feature, press and hold
the volume control for
five seconds (with the radio on), then press:
•
to increase
volume
compensation.
•
to decrease or
shut off the volume
compensation.
The selected level will appear in the display.
PUSH ON
PUSH ON
SEL
Entertainment Systems
44
Page 45 of 256

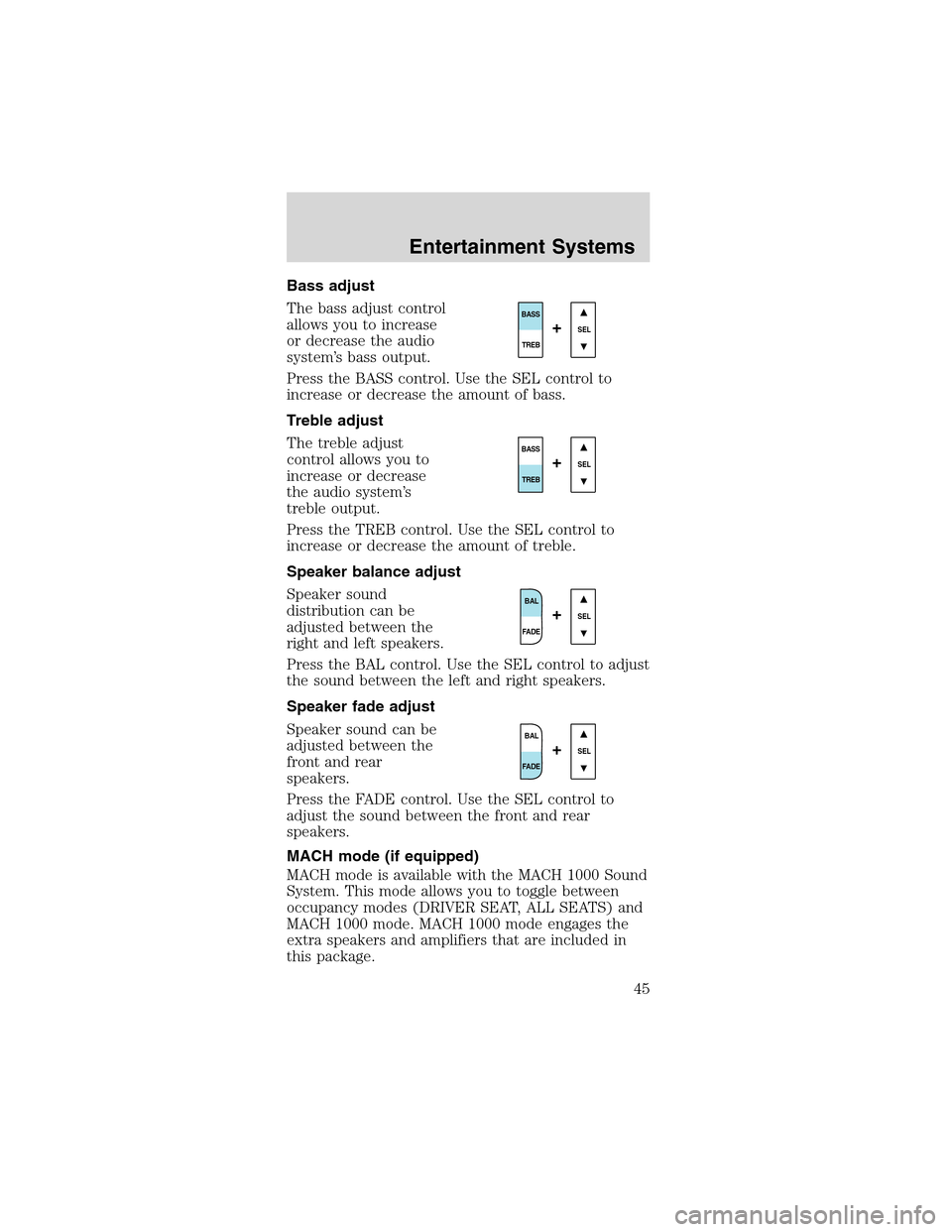

Bass adjust
The bass adjust control
allows you to increase
or decrease the audio
system’s bass output.
Press the BASS control. Use the SEL control to
increase or decrease the amount of bass.
Treble adjust
The treble adjust
control allows you to
increase or decrease
the audio system’s
treble output.
Press the TREB control. Use the SEL control to
increase or decrease the amount of treble.
Speaker balance adjust
Speaker sound
distribution can be
adjusted between the
right and left speakers.
Press the BAL control. Use the SEL control to adjust
the sound between the left and right speakers.
Speaker fade adjust
Speaker sound can be
adjusted between the
front and rear
speakers.
Press the FADE control. Use the SEL control to
adjust the sound between the front and rear
speakers.
MACH mode (if equipped)
MACH mode is available with the MACH 1000 Sound
System. This mode allows you to toggle between
occupancy modes (DRIVER SEAT, ALL SEATS) and
MACH 1000 mode. MACH 1000 mode engages the
extra speakers and amplifiers that are included in
this package.
SELBASS
TREB
+
SELBASS
TREB
+
BAL
FADESEL+
BAL
FADESEL+
Entertainment Systems
45
Page 46 of 256
Press the MACH control
to toggle between
occupancy modes.
Seek function
The seek function works in radio or CD mode.
Seek function in radio mode
•Press
to find the
next listenable
station down the
frequency band. SEEK DOWN will display.
•Press
to find the next listenable station up
the frequency band. SEEK UP will display.
Seek function in CD mode
•Press
to seek to
the previous track of
the current disc. If
the beginning of the disc is reached, the CD
player seeks to the beginning of the last track on
the current disc and begins playing.
•Press
to seek forward to the next track of the
current disc. After the last track has been
completed, the first track of the current disc will
automatically replay.
Scan function
The scan function works
in radio or CD mode.
Scan function in radio mode
Press the SCAN control to hear a brief sampling of
all listenable stations on the frequency band. Press
the SCAN control again to stop the scan mode.
Scan function in CD mode
Press the SCAN control to hear a short sampling of
all selections on the CD. (The CD scans in a forward
direction, wrapping back to the first track at the end
of the CD.) To stop on a particular selection, press
the control again.
Entertainment Systems
46
Page 47 of 256

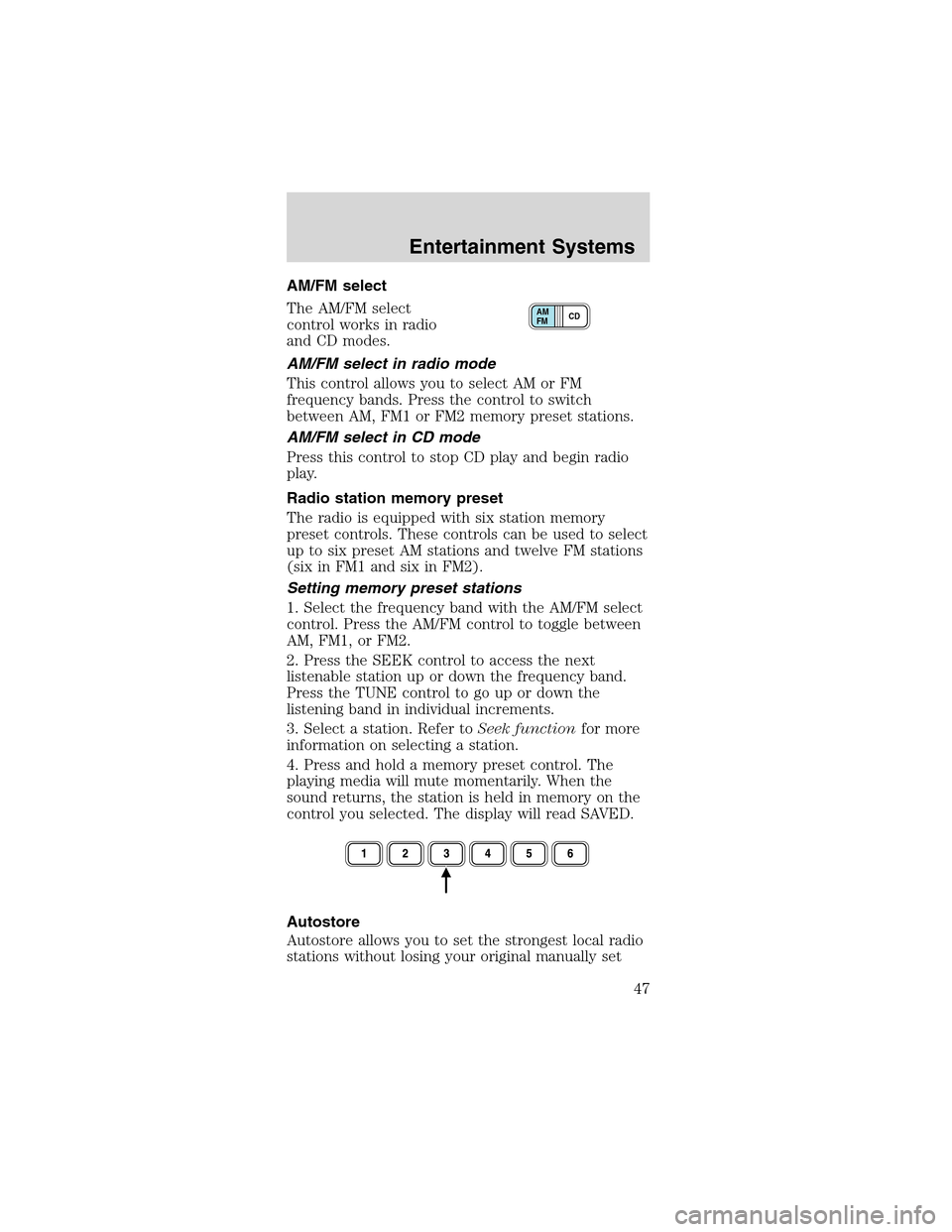

AM/FM select
The AM/FM select
control works in radio
and CD modes.
AM/FM select in radio mode
This control allows you to select AM or FM
frequency bands. Press the control to switch
between AM, FM1 or FM2 memory preset stations.
AM/FM select in CD mode
Press this control to stop CD play and begin radio
play.
Radio station memory preset
The radio is equipped with six station memory
preset controls. These controls can be used to select
up to six preset AM stations and twelve FM stations
(six in FM1 and six in FM2).
Setting memory preset stations
1. Select the frequency band with the AM/FM select
control. Press the AM/FM control to toggle between
AM, FM1, or FM2.
2. Press the SEEK control to access the next
listenable station up or down the frequency band.
Press the TUNE control to go up or down the
listening band in individual increments.
3. Select a station. Refer toSeek functionfor more
information on selecting a station.
4. Press and hold a memory preset control. The
playing media will mute momentarily. When the
sound returns, the station is held in memory on the
control you selected. The display will read SAVED.
Autostore
Autostore allows you to set the strongest local radio
stations without losing your original manually set
CD AM
FM
Entertainment Systems
47
Page 48 of 256
preset stations. This feature is helpful on trips when
you travel between cities with different radio
stations.
Starting autostore
1. Press and momentarily hold the AM/FM control.
2. AUTOSET will flash
in the display as the
frequency band is
scrolled through.
3. When the six strongest stations are filled, the
station stored in memory preset control 1 will start
playing.
If there are fewer than six strong stations available
on the frequency band, the remaining memory
preset controls will all store the last strong station
available.
To deactivate autoset and return to your audio
system’s manually set memory stations, press the
AM/FM control again.
Setting the clock
Press the MENU
control until SELECT
HOUR or SELECT
MINUTE is displayed. (The menu mode must be
engaged to enable clock mode).
Use the SEL control to
manually set the time.
•Press
to
increase
hours/minutes.
•Press
to decrease hours/minutes.
Press the MENU control again to disengage the
clock mode.
Tune/disc adjust
The tune control works in radio or CD mode.
CD AM
FM
SEL
Entertainment Systems
48
Page 49 of 256
Tune adjust in radio mode
•Press
to move to
the next frequency
down the band
(whether or not a listenable station is located
there). Hold the control to move through the
frequencies quickly.
•Press
to move to the next frequency up the
band (whether or not a listenable station is
located there). Hold for quick movement.
Disc adjust for CD mode
•Press
to select
the previous disc.
(Play will begin on
the first track of the disc unless shuffle mode is
engaged.) Refer toShuffle featurefor more
information. Hold the control to continue
reversing through the discs.
•Press
to select the next disc. Hold the control
to fast-forward through the remaining discs.
CD select
CD mode may be
entered by pressing the
CD control and the
LOAD control. Load the CD into the audio system.
The first track of the disc will begin playing. After
that, CD play will begin where it stopped last.
If an alternative CD is desired, press the
corresponding preset control (1–6) of a loaded CD,
or press the TUNE control to access the other
loaded CDs.
NO CD will display if the CD control is activated
when there is not a CD present in the audio system.
NO CD will illuminate in the display if the CD
control and a present number (that is currently
empty) are pressed. The system will play the next
available disc.
DISC
TUNE
DISC
TUNE
CD AM
FM
Entertainment Systems
49
Page 50 of 256

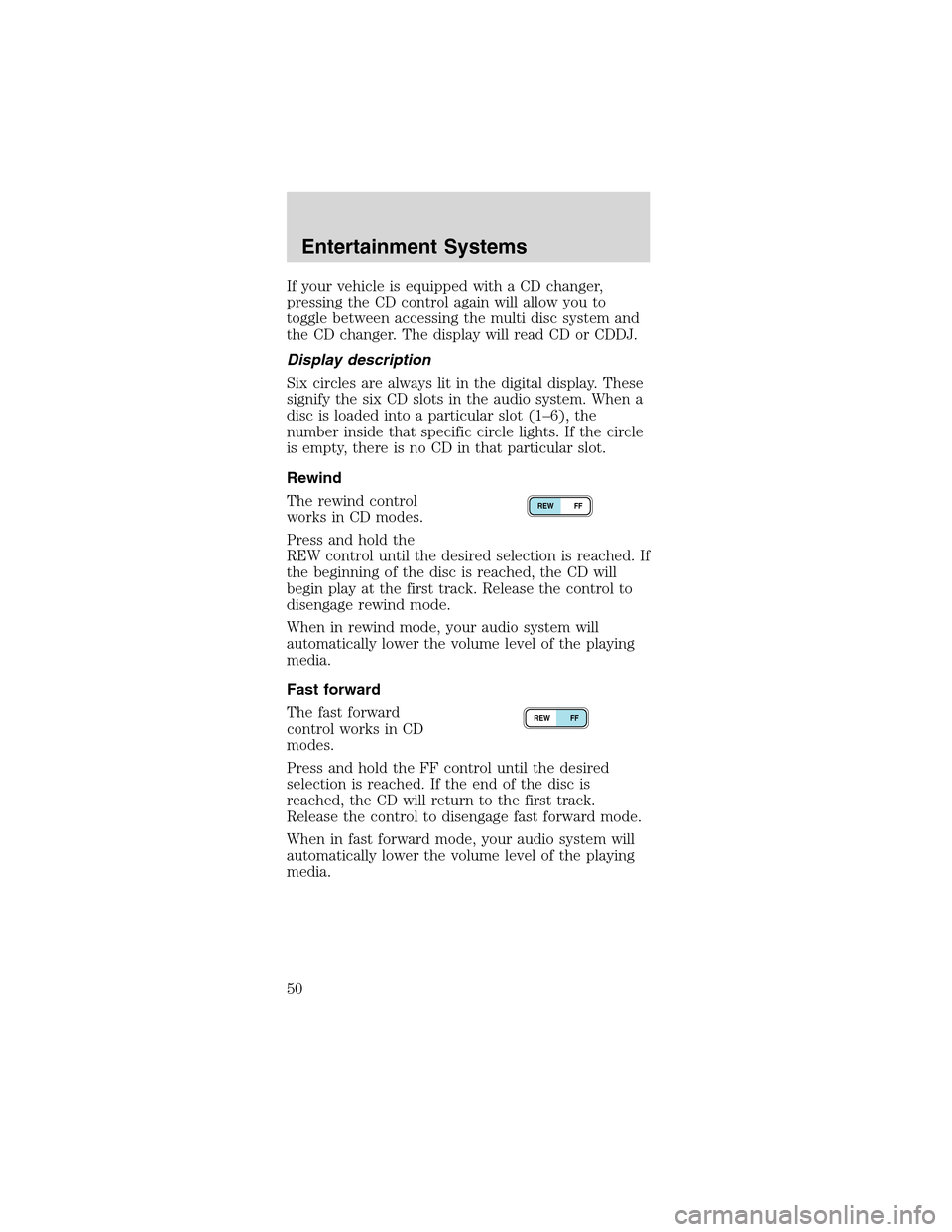

If your vehicle is equipped with a CD changer,
pressing the CD control again will allow you to
toggle between accessing the multi disc system and
the CD changer. The display will read CD or CDDJ.
Display description
Six circles are always lit in the digital display. These
signify the six CD slots in the audio system. When a
disc is loaded into a particular slot (1–6), the
number inside that specific circle lights. If the circle
is empty, there is no CD in that particular slot.
Rewind
The rewind control
works in CD modes.
Press and hold the
REW control until the desired selection is reached. If
the beginning of the disc is reached, the CD will
begin play at the first track. Release the control to
disengage rewind mode.
When in rewind mode, your audio system will
automatically lower the volume level of the playing
media.
Fast forward
The fast forward
control works in CD
modes.
Press and hold the FF control until the desired
selection is reached. If the end of the disc is
reached, the CD will return to the first track.
Release the control to disengage fast forward mode.
When in fast forward mode, your audio system will
automatically lower the volume level of the playing
media.
REW FF
REW FF
Entertainment Systems
50
