Page 21 of 256

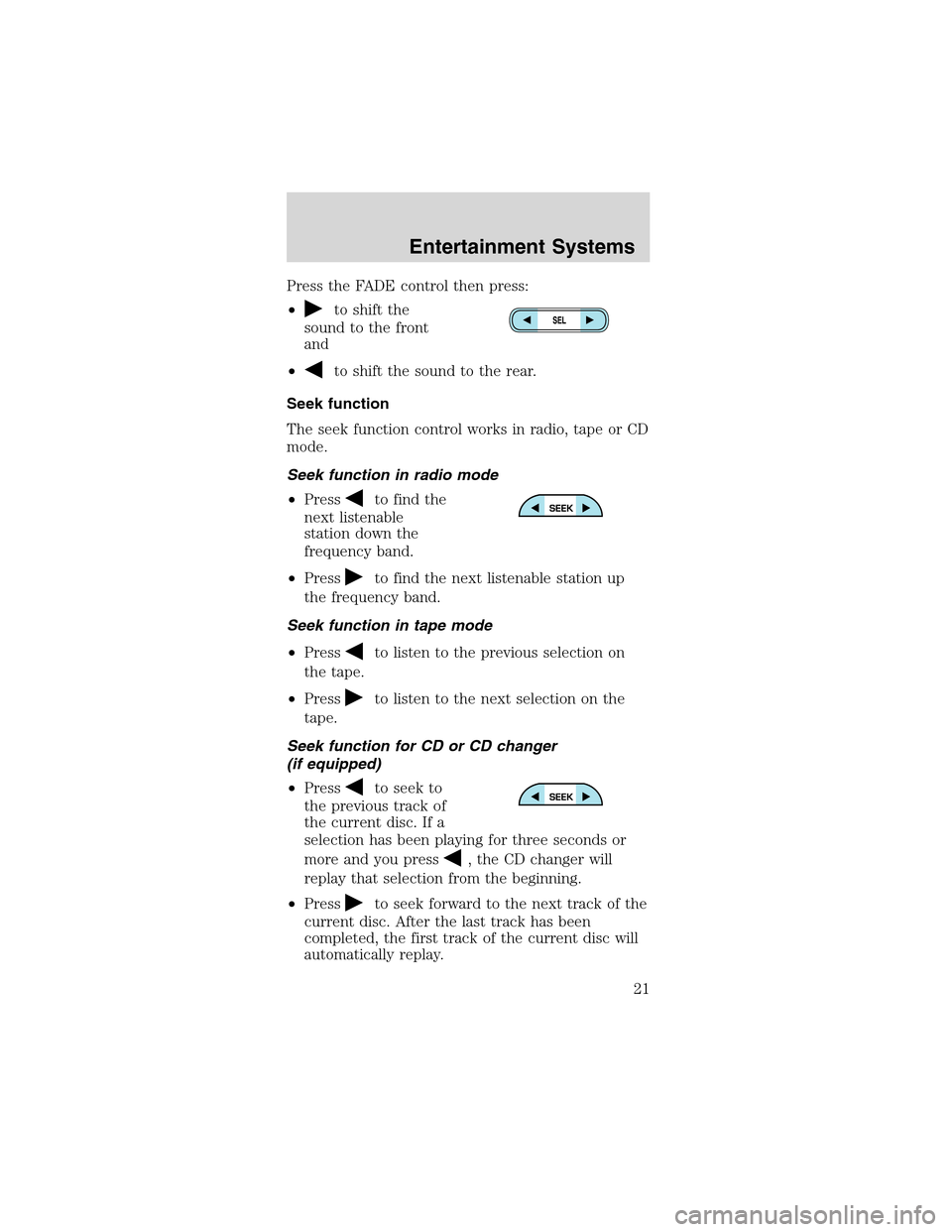

Press the FADE control then press:
•
to shift the
sound to the front
and
•
to shift the sound to the rear.
Seek function
The seek function control works in radio, tape or CD
mode.
Seek function in radio mode
•Press
to find the
next listenable
station down the
frequency band.
•Press
to find the next listenable station up
the frequency band.
Seek function in tape mode
•Press
to listen to the previous selection on
the tape.
•Press
to listen to the next selection on the
tape.
Seek function for CD or CD changer
(if equipped)
•Press
to seek to
the previous track of
the current disc. If a
selection has been playing for three seconds or
more and you press
, the CD changer will
replay that selection from the beginning.
•Press
to seek forward to the next track of the
current disc. After the last track has been
completed, the first track of the current disc will
automatically replay.
Entertainment Systems
21
Page 22 of 256

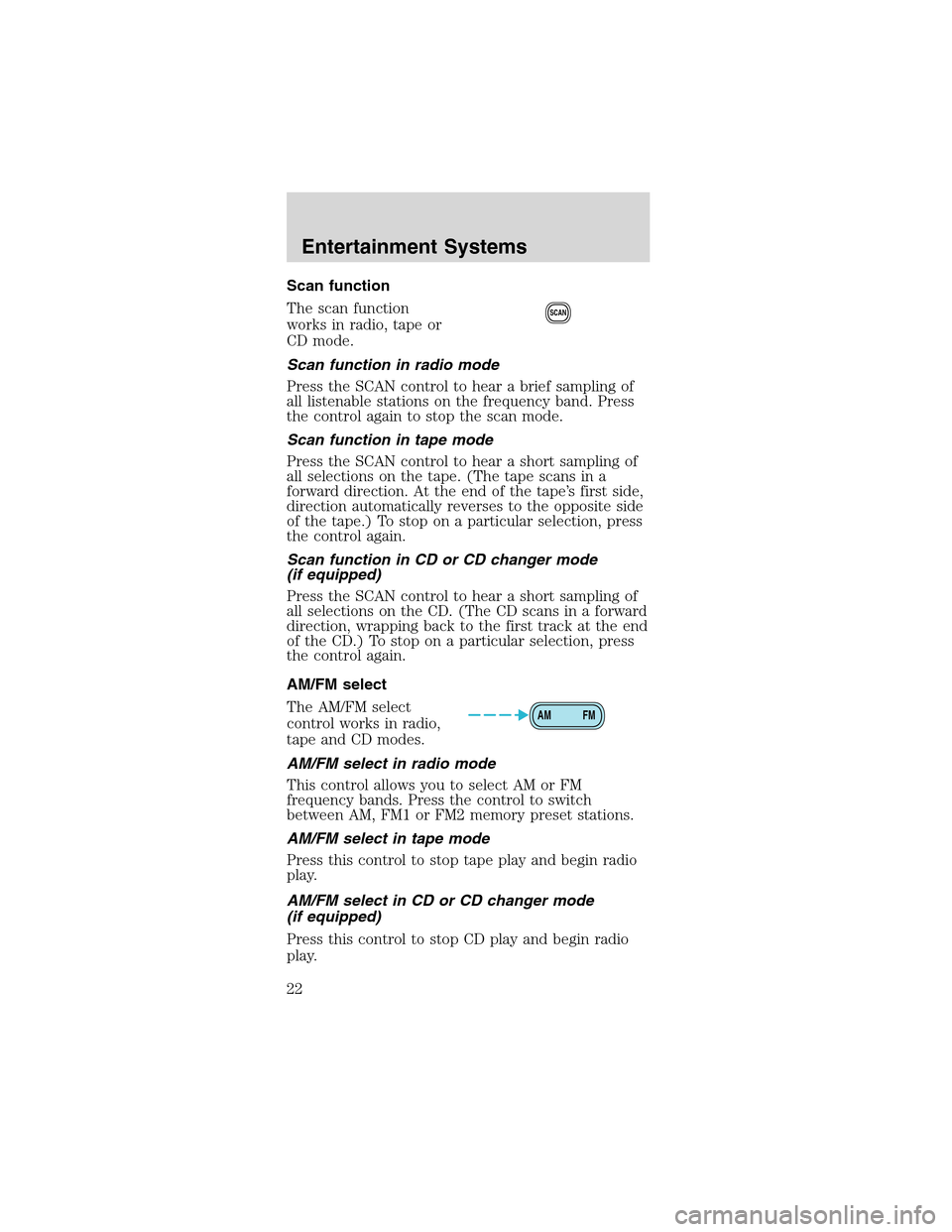

Scan function
The scan function
works in radio, tape or
CD mode.
Scan function in radio mode
Press the SCAN control to hear a brief sampling of
all listenable stations on the frequency band. Press
the control again to stop the scan mode.
Scan function in tape mode
Press the SCAN control to hear a short sampling of
all selections on the tape. (The tape scans in a
forward direction. At the end of the tape’s first side,
direction automatically reverses to the opposite side
of the tape.) To stop on a particular selection, press
the control again.
Scan function in CD or CD changer mode
(if equipped)
Press the SCAN control to hear a short sampling of
all selections on the CD. (The CD scans in a forward
direction, wrapping back to the first track at the end
of the CD.) To stop on a particular selection, press
the control again.
AM/FM select
The AM/FM select
control works in radio,
tape and CD modes.
AM/FM select in radio mode
This control allows you to select AM or FM
frequency bands. Press the control to switch
between AM, FM1 or FM2 memory preset stations.
AM/FM select in tape mode
Press this control to stop tape play and begin radio
play.
AM/FM select in CD or CD changer mode
(if equipped)
Press this control to stop CD play and begin radio
play.
SCAN
AM FM
Entertainment Systems
22
Page 23 of 256

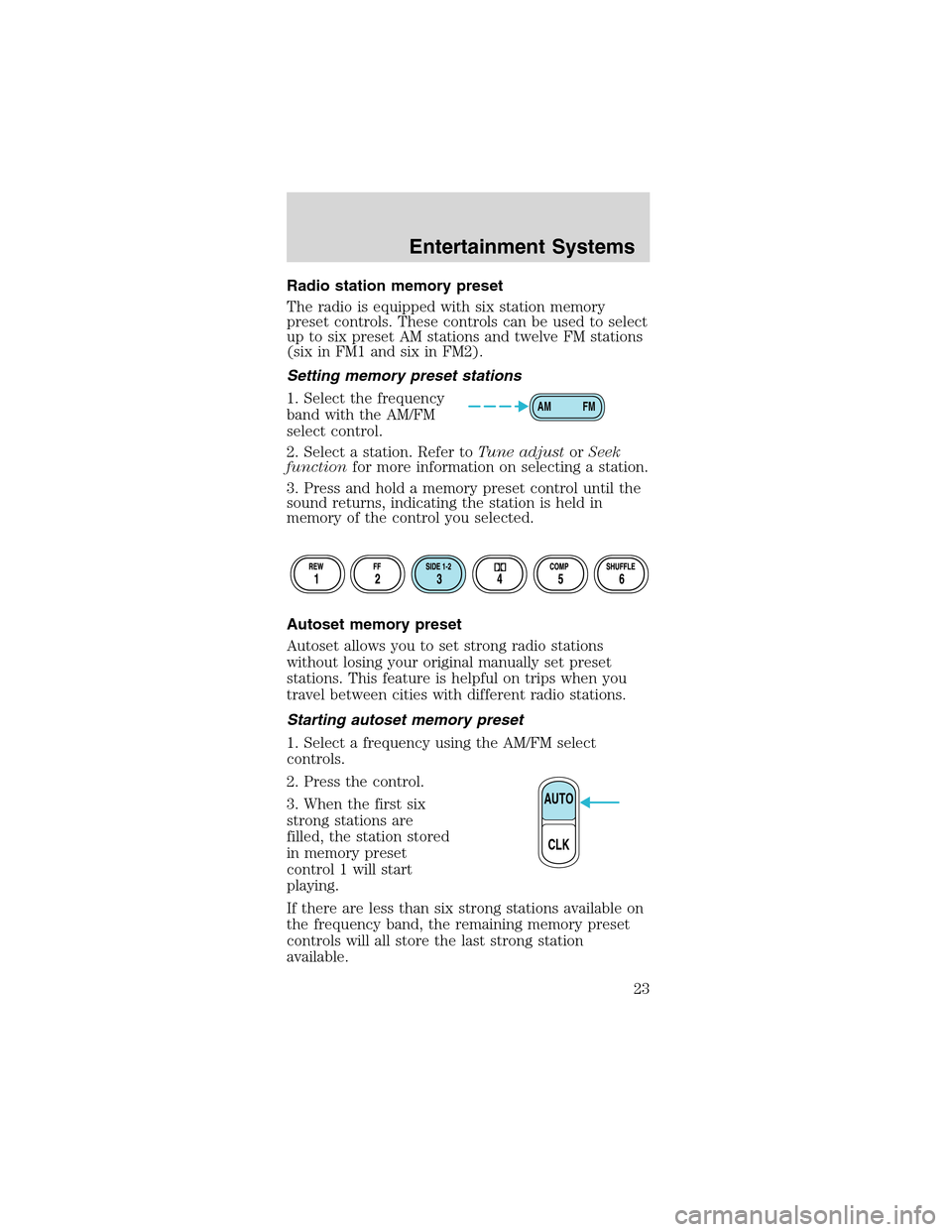

Radio station memory preset
The radio is equipped with six station memory
preset controls. These controls can be used to select
up to six preset AM stations and twelve FM stations
(six in FM1 and six in FM2).
Setting memory preset stations
1. Select the frequency
band with the AM/FM
select control.
2. Select a station. Refer toTune adjustorSeek
functionfor more information on selecting a station.
3. Press and hold a memory preset control until the
sound returns, indicating the station is held in
memory of the control you selected.
Autoset memory preset
Autoset allows you to set strong radio stations
without losing your original manually set preset
stations. This feature is helpful on trips when you
travel between cities with different radio stations.
Starting autoset memory preset
1. Select a frequency using the AM/FM select
controls.
2. Press the control.
3. When the first six
strong stations are
filled, the station stored
in memory preset
control 1 will start
playing.
If there are less than six strong stations available on
the frequency band, the remaining memory preset
controls will all store the last strong station
available.
AM FM
AUTO
CLK
Entertainment Systems
23
Page 24 of 256

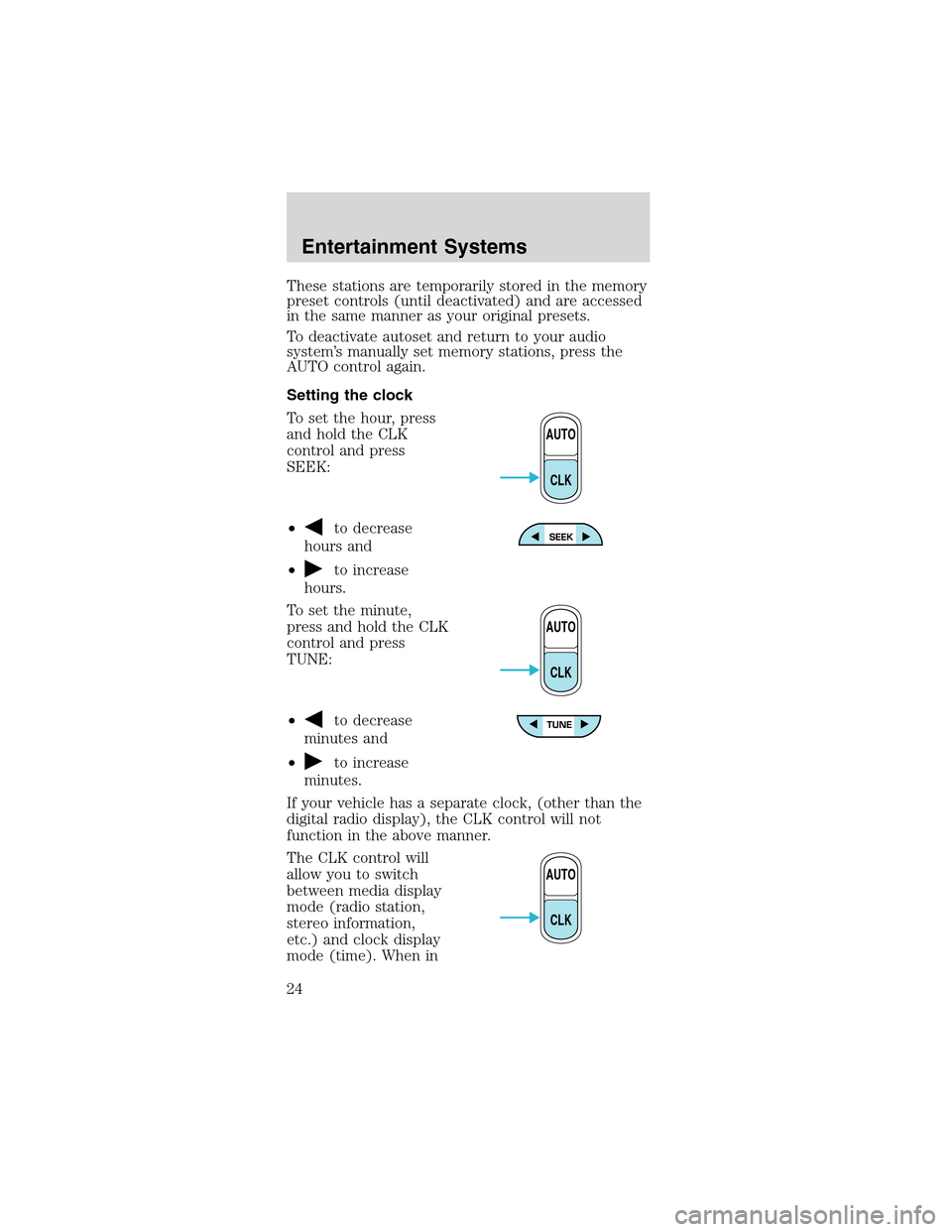

These stations are temporarily stored in the memory
preset controls (until deactivated) and are accessed
in the same manner as your original presets.
To deactivate autoset and return to your audio
system’s manually set memory stations, press the
AUTO control again.
Setting the clock
To set the hour, press
and hold the CLK
control and press
SEEK:
•
to decrease
hours and
•
to increase
hours.
To set the minute,
press and hold the CLK
control and press
TUNE:
•
to decrease
minutes and
•
to increase
minutes.
If your vehicle has a separate clock, (other than the
digital radio display), the CLK control will not
function in the above manner.
The CLK control will
allow you to switch
between media display
mode (radio station,
stereo information,
etc.) and clock display
mode (time). When in
AUTO
CLK
AUTO
CLK
AUTO
CLK
Entertainment Systems
24
Page 25 of 256

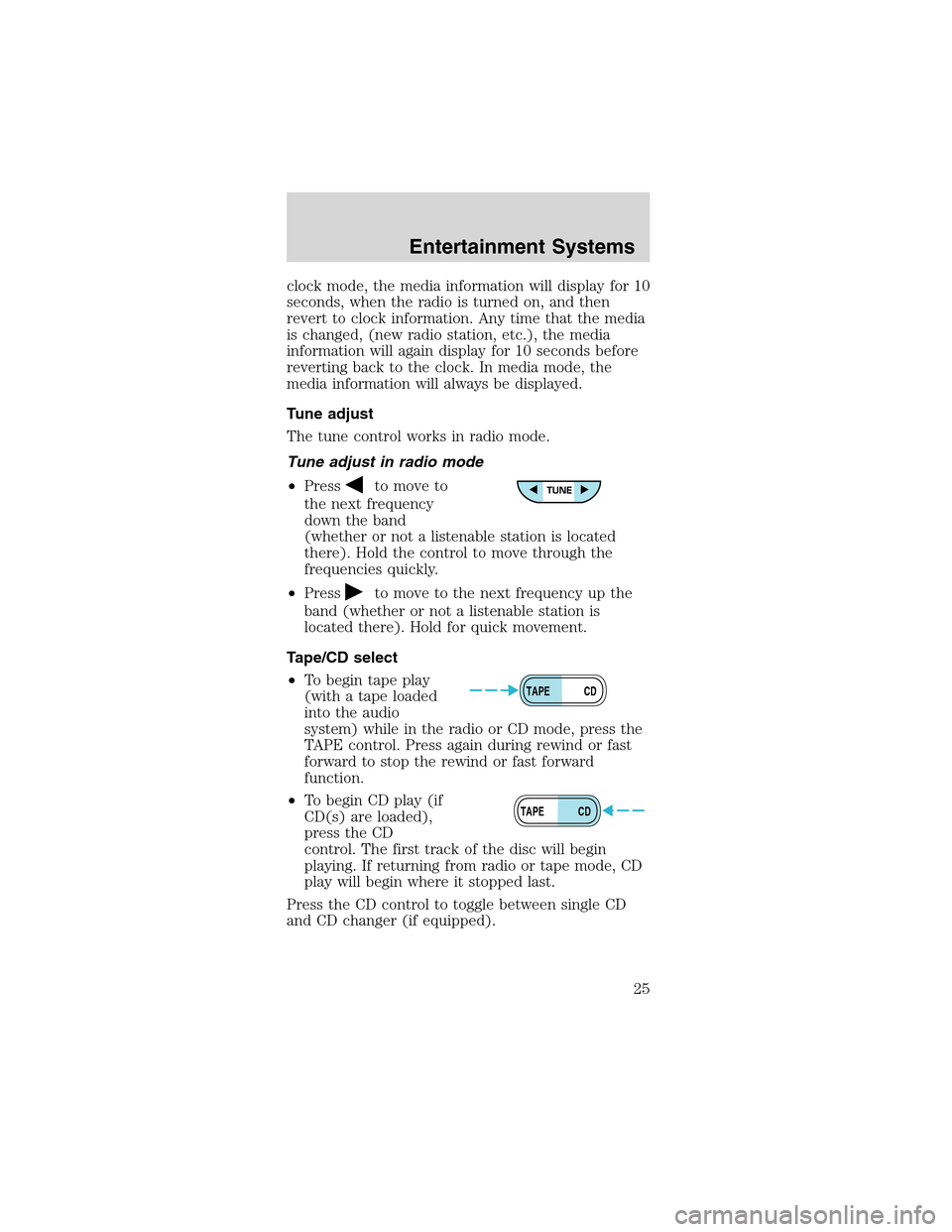

clock mode, the media information will display for 10
seconds, when the radio is turned on, and then
revert to clock information. Any time that the media
is changed, (new radio station, etc.), the media
information will again display for 10 seconds before
reverting back to the clock. In media mode, the
media information will always be displayed.
Tune adjust
The tune control works in radio mode.
Tune adjust in radio mode
•Press
to move to
the next frequency
down the band
(whether or not a listenable station is located
there). Hold the control to move through the
frequencies quickly.
•Press
to move to the next frequency up the
band (whether or not a listenable station is
located there). Hold for quick movement.
Tape/CD select
•To begin tape play
(with a tape loaded
into the audio
system) while in the radio or CD mode, press the
TAPE control. Press again during rewind or fast
forward to stop the rewind or fast forward
function.
•To begin CD play (if
CD(s) are loaded),
press the CD
control. The first track of the disc will begin
playing. If returning from radio or tape mode, CD
play will begin where it stopped last.
Press the CD control to toggle between single CD
and CD changer (if equipped).
TAPE CD
TAPE CD
Entertainment Systems
25
Page 26 of 256

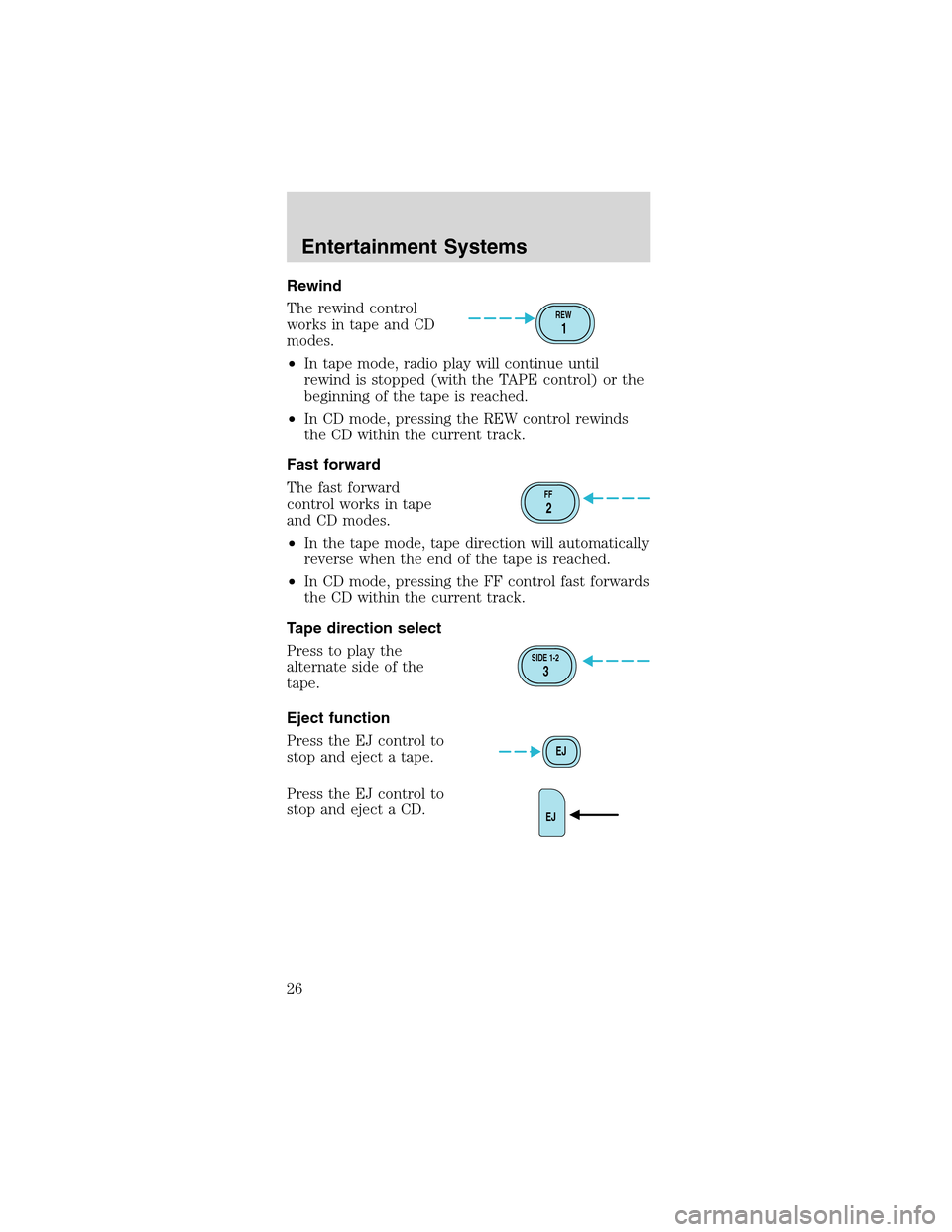

Rewind
Therewindcontrol
worksintapeandCD
modes.
•In tape mode, radio play will continue until
rewind is stopped (with the TAPE control) or the
beginning of the tape is reached.
•In CD mode, pressing the REW control rewinds
the CD within the current track.
Fast forward
The fast forward
control works in tape
and CD modes.
•In the tape mode, tape direction will automatically
reverse when the end of the tape is reached.
•In CD mode, pressing the FF control fast forwards
the CD within the current track.
Tape direction select
Press to play the
alternate side of the
tape.
Eject function
Press the EJ control to
stop and eject a tape.
Press the EJ control to
stop and eject a CD.
REW1
FF2
SIDE 1-23
EJ
EJ
Entertainment Systems
26
Page 27 of 256

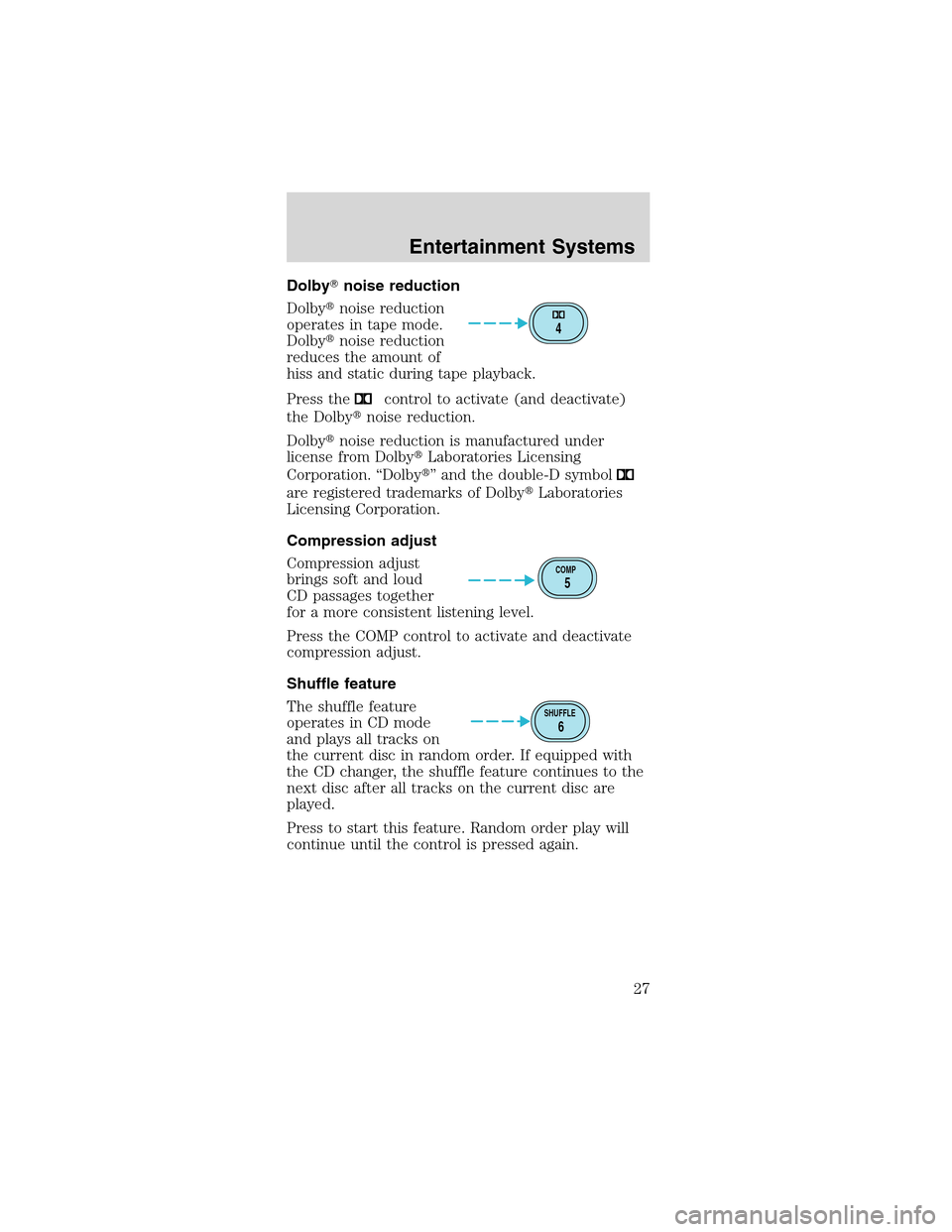

Dolbynoise reduction
Dolbynoise reduction
operates in tape mode.
Dolbynoise reduction
reduces the amount of
hiss and static during tape playback.
Press the
control to activate (and deactivate)
the Dolbynoise reduction.
Dolbynoise reduction is manufactured under
license from DolbyLaboratories Licensing
Corporation.“Dolby”and the double-D symbol
are registered trademarks of DolbyLaboratories
Licensing Corporation.
Compression adjust
Compression adjust
brings soft and loud
CD passages together
for a more consistent listening level.
Press the COMP control to activate and deactivate
compression adjust.
Shuffle feature
The shuffle feature
operates in CD mode
and plays all tracks on
the current disc in random order. If equipped with
the CD changer, the shuffle feature continues to the
next disc after all tracks on the current disc are
played.
Press to start this feature. Random order play will
continue until the control is pressed again.
4
COMP5
SHUFFLE6
Entertainment Systems
27
Page 28 of 256

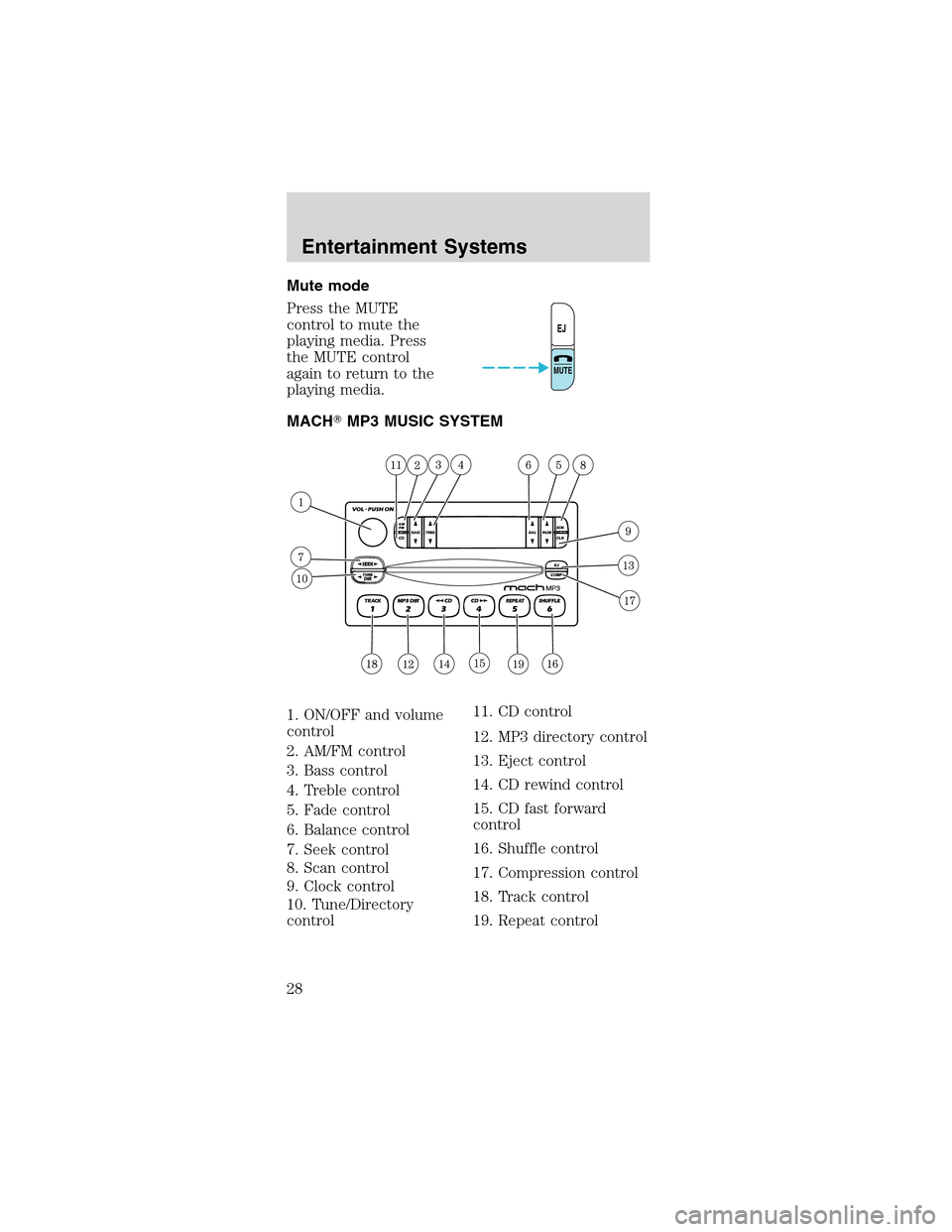

Mute mode
Press the MUTE
control to mute the
playing media. Press
the MUTE control
again to return to the
playing media.
MACHMP3 MUSIC SYSTEM
1. ON/OFF and volume
control
2. AM/FM control
3. Bass control
4. Treble control
5. Fade control
6. Balance control
7. Seek control
8. Scan control
9. Clock control
10. Tune/Directory
control11. CD control
12. MP3 directory control
13. Eject control
14. CD rewind control
15. CD fast forward
control
16. Shuffle control
17. Compression control
18. Track control
19. Repeat control
EJ
MUTE
Entertainment Systems
28
Page 29 of 256

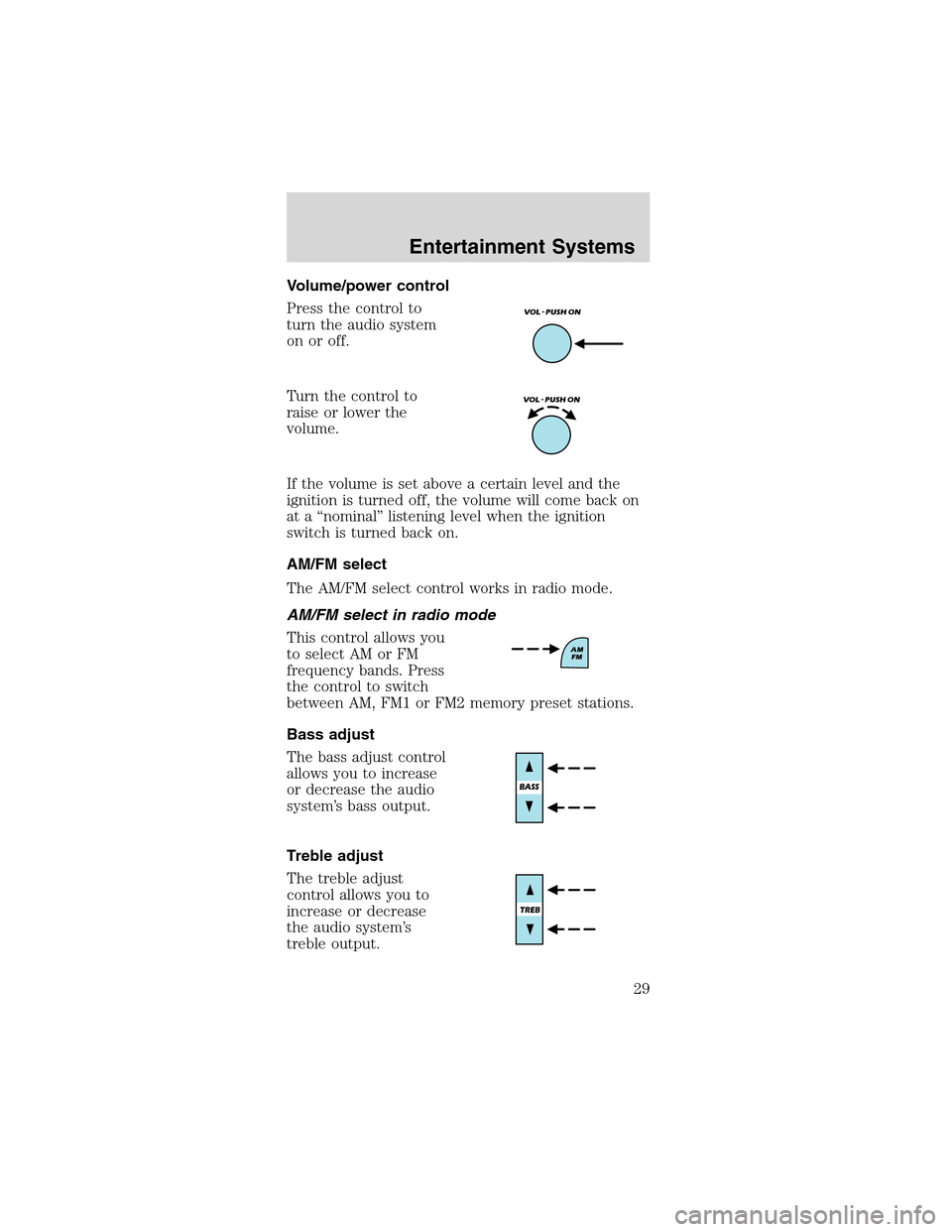

Volume/power control
Press the control to
turn the audio system
on or off.
Turn the control to
raise or lower the
volume.
If the volume is set above a certain level and the
ignition is turned off, the volume will come back on
at a“nominal”listening level when the ignition
switch is turned back on.
AM/FM select
The AM/FM select control works in radio mode.
AM/FM select in radio mode
This control allows you
to select AM or FM
frequency bands. Press
the control to switch
between AM, FM1 or FM2 memory preset stations.
Bass adjust
The bass adjust control
allows you to increase
or decrease the audio
system’s bass output.
Treble adjust
The treble adjust
control allows you to
increase or decrease
the audio system’s
treble output.
Entertainment Systems
29
Page 30 of 256

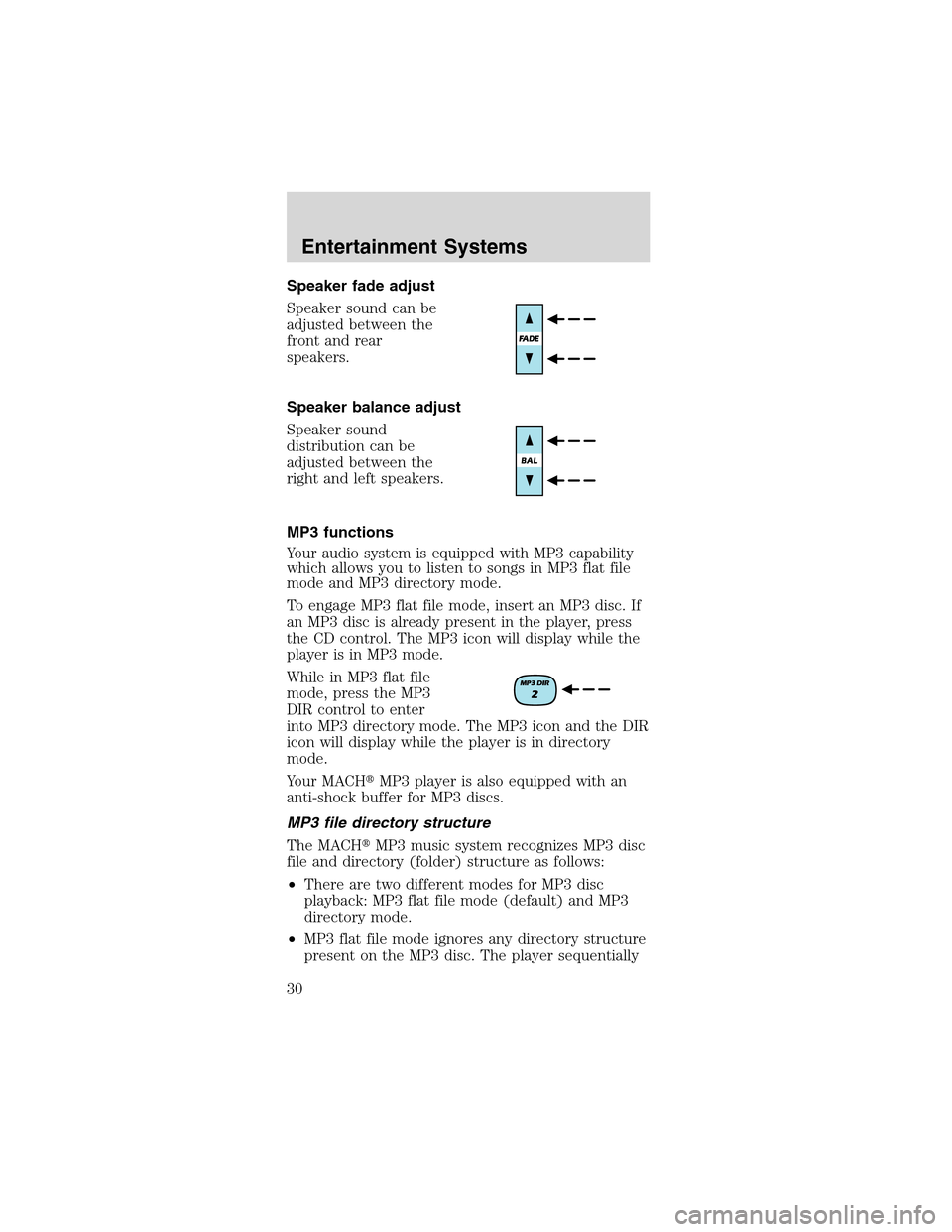

Speaker fade adjust
Speaker sound can be
adjusted between the
front and rear
speakers.
Speaker balance adjust
Speaker sound
distribution can be
adjusted between the
right and left speakers.
MP3 functions
Your audio system is equipped with MP3 capability
which allows you to listen to songs in MP3 flat file
mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If
an MP3 disc is already present in the player, press
the CD control. The MP3 icon will display while the
player is in MP3 mode.
While in MP3 flat file
mode, press the MP3
DIR control to enter
into MP3 directory mode. The MP3 icon and the DIR
icon will display while the player is in directory
mode.
Your MACHMP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 file directory structure
The MACHMP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
•There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
•MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
Entertainment Systems
