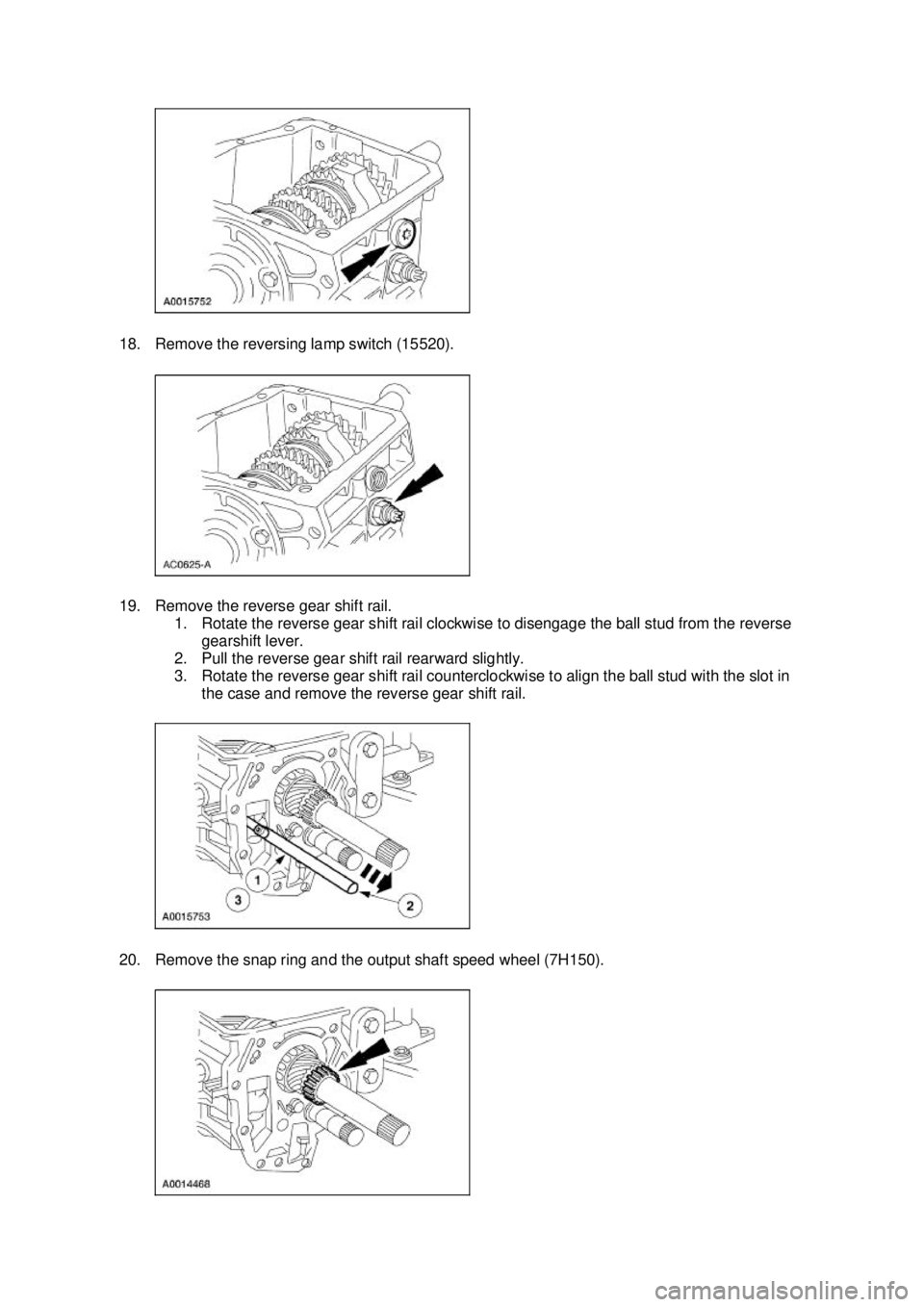

18. Remove the reversing lamp switch (15520).
19. Remove the reverse gear shift rail.
1. Rotate the reverse gear shift rail clockwise to disengage the ball stud from the reverse gearshift lever.
2. Pull the reverse gear shift rail rearward slightly.
3. Rotate the reverse gear shift rail counterclockwise to align the ball stud with the slot in the case and remove the reverse gear shift rail.
20. Remove the snap ring and the output shaft speed wheel (7H150). Klj . 6 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

2. Assemble the gear shifter forks.
1. Install the gear shift plate into the gear shifter fork.
2. Install the gear shift fork inserts.
3. NOTE: Position the narrow side of the C- shaped gear selector interlock sleeve in the case
cover slot. Position the roll pin hole in the selector body toward the rear of the cover.
Install the gear selector interlock sleeve and the selector body as an assembly.
4. Lubricate the main shift control shaft with petroleum jelly.
5. NOTE: The 1-2 gear shifter fork is the larger shifter fork. The gear shifter fork offset lever must
face the cover. Position the gear shift plate attached to the 3- 4 gear shifter fork under the gear
shift plate attached to the 1- 2 gear shifter fork.
Position the gear shifter forks and the main shift control shaft in the cover. zSlide the shaft through the cover and shift the components until the shaft stops against
the cover.
6. CAUTION: Install the pin slightly below the selector body surface. Failure to
countersink the pin may result in interference between the pin and the gear selector interlock sleeve during shifts. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Synchronizers
Disassembly
NOTE:
This procedure applies to all synchronizer assemblies (7124). The synchronizers are slightly
different in design. Notation is made where procedural differences occur.

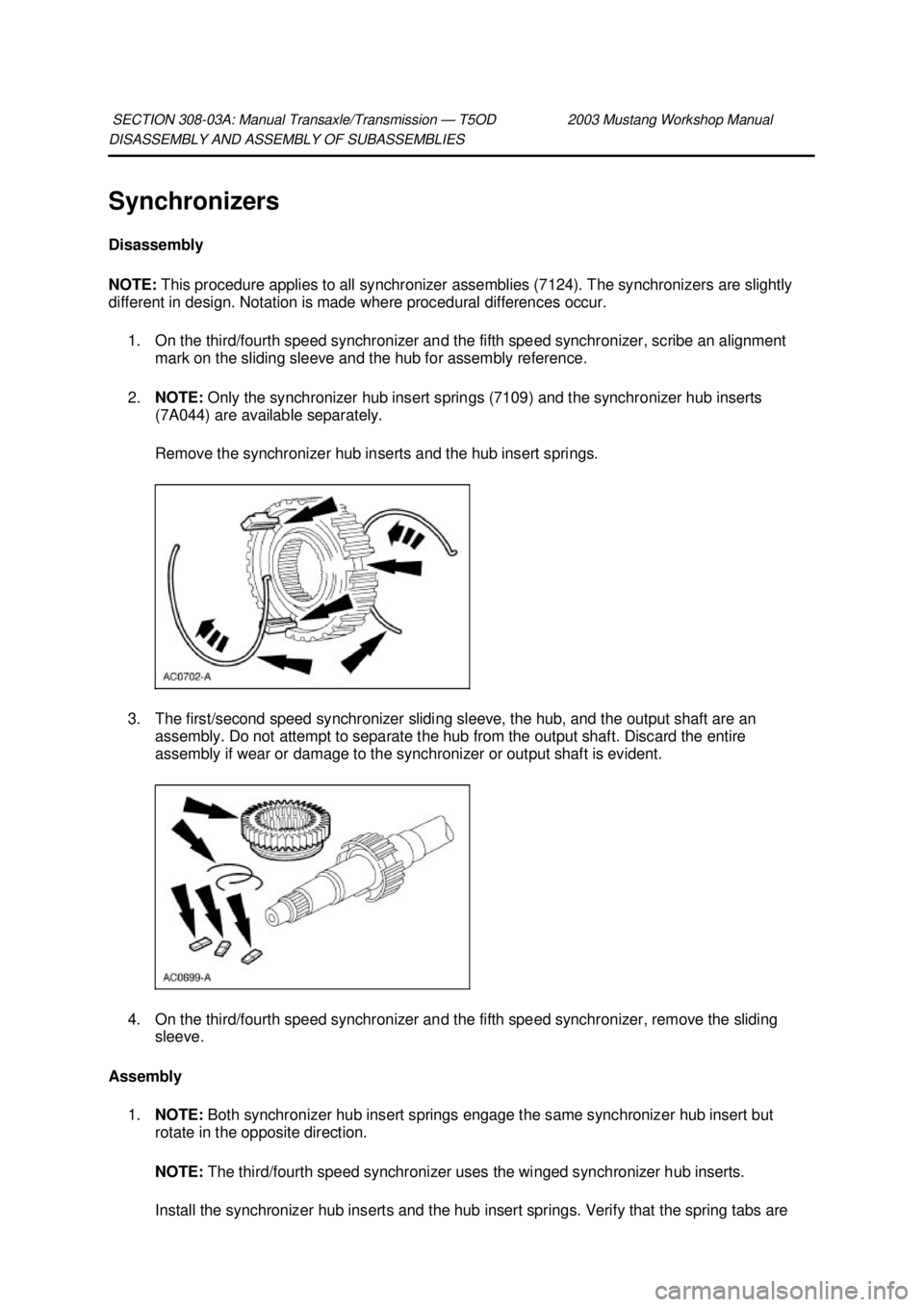

1. On the third/fourth speed synchronizer and the fifth speed synchronizer, scribe an alignment mark on the sliding sleeve and the hub for assembly reference.
2. NOTE: Only the synchronizer hub insert springs (7109) and the synchronizer hub inserts
(7A044) are available separately.
Remove the synchronizer hub inserts and the hub insert springs.
3. The first/second speed synchronizer sliding sleeve, the hub, and the output shaft are an assembly. Do not attempt to separate the hub from the output shaft. Discard the entire
assembly if wear or damage to the synchronizer or output shaft is evident.
4. On the third/fourth speed synchronizer and the fifth speed synchronizer, remove the sliding sleeve.
Assembly 1. NOTE: Both synchronizer hub insert springs engage the same synchronizer hub insert but
rotate in the opposite direction.
NOTE: The third/fourth speed synchronizer uses the winged synchronizer hub inserts.
Install the synchronizer hub inserts and the hub insert springs. Verify that the spring tabs are
SECTION 308-
03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL
Transmission

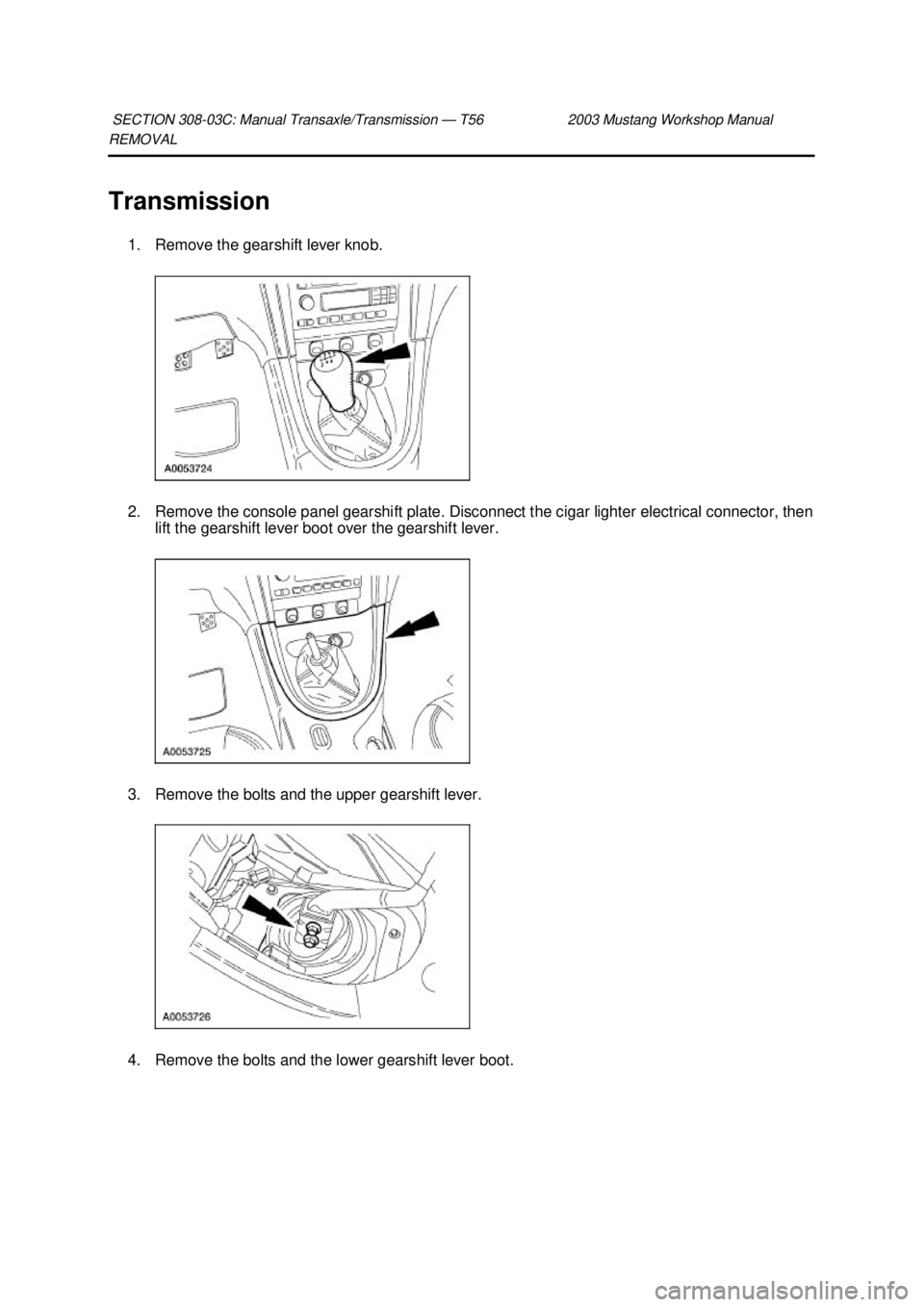

1. Remove the gearshift lever knob.
2. Remove the console panel gearshift plate. Disconnect the cigar lighter electrical connector, then lift the gearshift lever boot over the gearshift lever.
3. Remove the bolts and the upper gearshift lever.
4. Remove the bolts and the lower gearshift lever boot.
SECTION 308-
03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

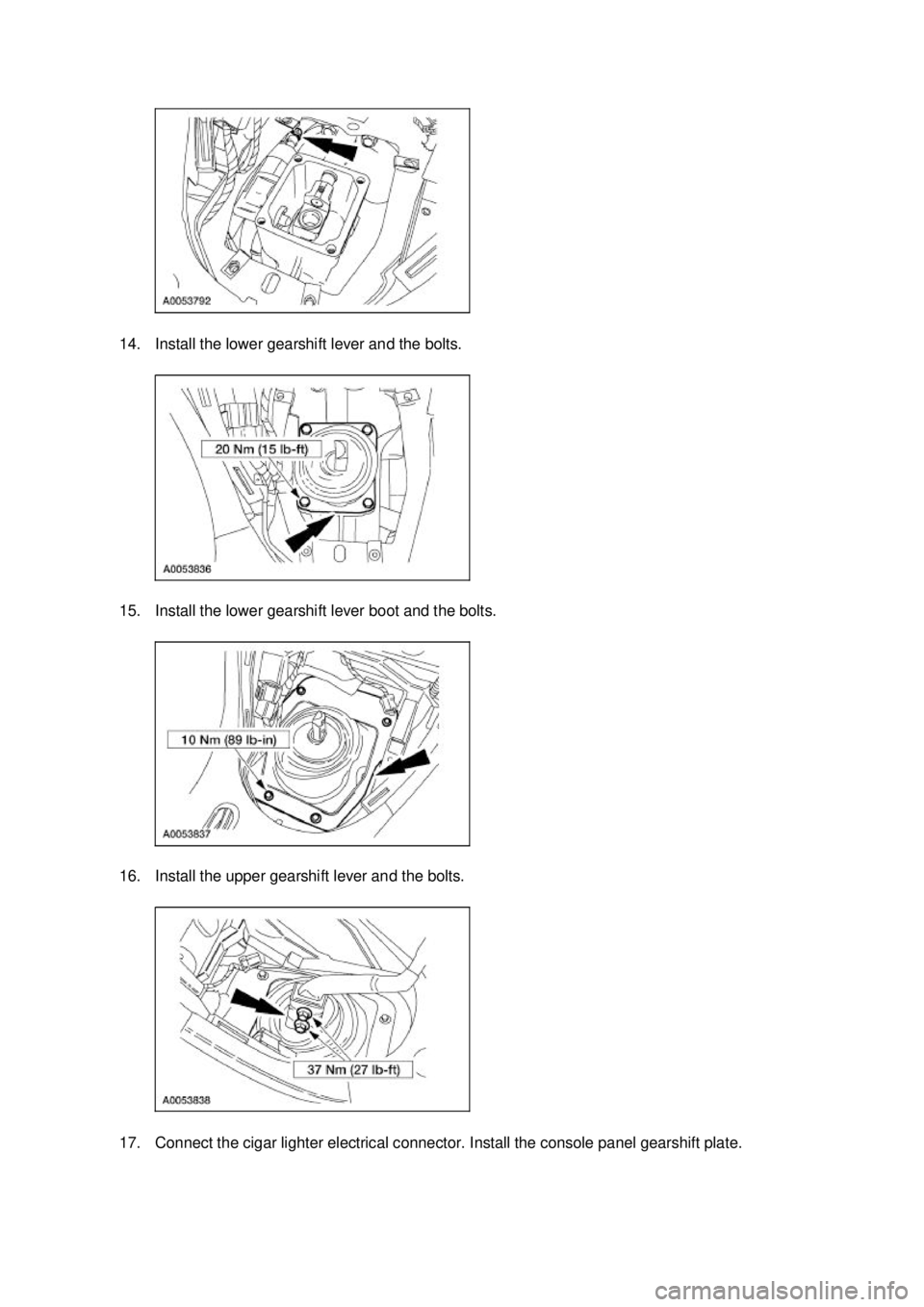

14. Install the lower gearshift lever and the bolts.
15. Install the lower gearshift lever boot and the bolts.
16. Install the upper gearshift lever and the bolts.
17. Connect the cigar lighter electrical connector. Install the console panel gearshift plate. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Fuel System
Component Location
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury. SECTION 310-
00: Fuel System — General Information 2003 Mustang Workshop Manual Item Part Number Description
1 9341 Inertia fuel shutoff switch
2 9F593 Fuel injector
3 9155 Fuel filter
4 9002 Fuel tank
5 9H307 Fuel pump module and flange assembly Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Pressure Relief
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before servicing or disconnecting any of the fuel lines or fuel system components,
the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing
personal injury or a fire hazard.
1. Remove the Schrader valve cap and install the Fuel Pressure Gauge.
2. CAUTION: Open the manual valve slowly on the Fuel Pressure Gauge.
Relieve the fuel pressure. zPlace the fuel in a suitable container.
SECTION 310-
00: Fuel System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Fuel Pressure Gauge
310-
012 (T80L-9974- B) Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Fuel Tank Draining
WARNING: Do not smoke or carry lighted tobacco or an open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, resulting in possible personal injury.
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Remove the fuel tank filler cap.
3. Insert the hose guide into the filler neck.
4. NOTE: Insert the hose until the stop contacts the guide tube. If the stop does not contact the
guide tube, remove the hose and repeat the procedure.
Insert the chamfered end of the hose into the filler neck through the guide tube.
SECTION 310-
00: Fuel System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Fuel Storage Tanker
164-R3202 or equivalent
Fuel Tank Drain Hose
310-
F013 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Spring Lock Couplings
Disconnect
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before servicing or disconnecting any of the fuel lines or fuel system components,
the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing
personal injury or a fire hazard.
1. Relieve the fuel system pressure. For additional information, refer to Pressure Relief in this
section.
2. Remove the fuel tube clip.
SECTION 310-
00: Fuel System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Disconnect Tool, Spring Lock
Coupling (3/8 inch yellow)
310-
D004 (D87L-9280- A) or
equivalent Disconnect Tool, Spring Lock
Coupling (1/2 inch green)
310-
D005 (D87L-9280- B) or
equivalent
Material Item Specification
SAE 5W-
20 Super Premium
Synthetic Blend Motor Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Fuel Line Fittings —
Push Connect
Disconnect WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before servicing or disconnecting any of the fuel lines or fuel system components,
the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing
personal injury or a fire hazard.
1. Relieve the fuel system pressure. For additional information, refer to Pressure Relief in this
section.
2. Disconnect the safety clip from the male hose.
3. Install the Fuel Line Disconnect Set and push into the fitting.
SECTION 310-
00: Fuel System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Disconnect Tool, Spring Lock
Coupling
310-
S039 (T90T-9550- S)
Material Item Specification
SAE 5W-
20 Super Premium
Blend Motor Oil
XO- 5W20-QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
32003 Mustang Workshop Manual
