light FORD MUSTANG 2003 Workshop Manual

GENERAL PROCEDURES
Fittings
—R-Clip
Disconnect WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, resulting in possible personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before servicing or disconnecting any of the fuel lines or fuel system components,
the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing
possible personal injury or a fire hazard.
CAUTION: Do not use any tools. The use of tools may cause a deformity in the clip
components which may cause fuel leaks.
1. Relieve the fuel system pressure. For additional information, refer to Pressure Relief in this
section.
2. Remove the shipping tab by bending.
3. Spread the R- clip legs and push the clip into the fitting.
SECTION 310-
00: Fuel System — General Information 2003 Mustang Workshop Manual Material
Item Specification
SAE 5W-
20 Super Premium
Synthetic Blend Motor Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

4. Separate the fitting from the tube.
Connect 1. NOTE: Apply a light coat of clean engine oil.
Clean and inspect the fitting and the tube for damage.
2. Insert the R- clip into the fitting.
3. Insert the tube in the fitting and push together until a click is heard. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Fuel Tank And Lines
WARNING: Do not smoke, carry lighted tobacco or an open flame of any type when
working on or near any fuel- related component. Highly flammable mixtures are always present
and may be ignited, possibly resulting in personal injury.
The vehicle utilizes a returnless fuel system consisting of:
zthe fuel tank.
z a fuel tank filler pipe which contains a restrictor plate to permit only unleaded fuel to be pumped
into the fuel tank.
z a 1/8 turn fuel tank filler cap.
z a fuel filter providing filtration to protect the fuel injectors.
z a single fuel line accommodating the returnless fuel system.
z a fuel injection supply manifold which contains a differential pressure sensor and a fuel
temperature sensor.
z a fuel pump and sender assembly which provides pressurized fuel to the engine and contains:
„an inlet filter.
„ a check valve which maintains system pressure after the pump is shut off.
„ a pressure relief valve for overpressure protection in the event of restricted flow.
The fuel pump is controlled by an electronic fuel pump driver module which is enabled by the
powertrain control module (PCM). Electrical power to the fuel pump is provided through the inertia fuel
shutoff (IFS) switch, which is located in the luggage compartment. SECTION 310-
01: Fuel Tank and Lines 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Fuel Tank
Removal
WARNING: Do not smoke, carry lighted tobacco or an open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, possibly resulting in personal injury.
WARNING: Fuel supply lines on all vehicles equipped with fuel injected engines will
remain pressurized for long periods of time after engine shutdown. Fuel system pressure must
be relieved prior to fuel system service to prevent possible personal injury or a fire hazard.
1. Disconnect the battery. For additional information, refer to Section 414 - 01 .
2. Relieve the fuel system pressure. For additional information, refer to Section 310 - 00 .
3. Drain the fuel tank. For additional information, refer to Section 310 - 00 .
4. Raise the vehicle. For additional information, refer to Section 100 - 02 .
5. Remove the filler pipe bolt and disconnect the filler pipe hose connections to the fuel tank.
6. Disconnect the fuel tank electrical connector.
SECTION 310-
01: Fuel Tank and Lines 2003 Mustang Workshop Manual Material
Item Specification
Serfactant
(Merpol)
ESE-
M99B144- B Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Support Straps
Removal
WARNING: Do not smoke, carry lighted tobacco or an open flame of any type when
working on or near any fuel- related components. Highly flammable mixtures are always present
and may be ignited, possibly resulting in personal injury.
WARNING: Fuel supply lines on all vehicles equipped with fuel injected engines will
remain pressurized for long periods of time after engine shutdown. Fuel system pressure must
be relieved prior to fuel system service to prevent possible personal injury or a fire hazard.
1. Remove the fuel tank. For additional information, refer to Fuel Tank in this section.
2. Slide the strap and the retaining pin into the recess and remove the strap retaining pin.
3. Remove the strap.
Installation 1. To install, reverse the removal procedure.
SECTION 310-
01: Fuel Tank and Lines 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
a
Manifold gauge set pressures may vary slightly depending on the distance between the service
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual General Specifications
Item Specification
A/C Compressor
Type FS-
10 swashplate, 5 double- acting pistons Displacement 170 cc (10.4 cu in)
Rotation Clockwise
A/C Pressure Relief Valve
a Open pressures 3,792-
4,137 kPa (550- 600 psi) A/C Pressure Sensor Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
Coolant Hose Lubricant
MERPOL® ESE-
M99B144- B Evaporator Core Orifice
Color Orange
Diameter 1.45 mm (0.057 in)
Magnetic Clutch
Air gap clearance 0.35-
0.75 mm (0.014- 0.030 in) Dual Function Pressure Switch (V8)
a Fan on/open 2,137-
2,344 kPa (310- 340 psi) Fan off/close 1,655-
2,137 kPa (240- 310 psi) Clutch off/open 2,999-
3,275 kPa (435- 475 psi) Clutch on/closed 1,517-
1,931 kPa (220- 280 psi) Pressure Cutoff Switch (V6)
a Open 2,999-
3,275 kPa (435- 475 psi) Close 1,586-
1,999 kPa (230- 290 psi) A/C Cycling Switch Open and Closed Pressures
a Open pressure 145-
159 kPa (21- 23 psi) Close pressure 290 kPa (42 psi)
Refrigerant Lubricant and Capacity
PAG Refrigerant Compressor Oil (R-134a Systems)
F7AZ- 19589- DA (Motorcraft YN-12- C) WSH-
M1C231- B Capacity 254 ml (8.6 oz)
Refrigerant and Capacity
R134a Refrigerant YN-
19 WSH-
M17B19- A Capacity .96 kg (34 oz)
Refrigerant System Cleaner
A/C Systems Flushing Solvent F4AZ-19579-
A — Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

4.
NOTE: A slight twisting motion while pulling on the heater water hose may be necessary to
assist in the removal.
Pull the heater hose away from the heater core tube.
5. Spread the retainer tabs apart and slide the retainer off the tube. zDiscard the retainer.
Connect 1. Clean the tubes and lubricate with coolant hose lubricant or plain water.
2. Install a new coupling retainer (18D434) into the heater hose coupling housing. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

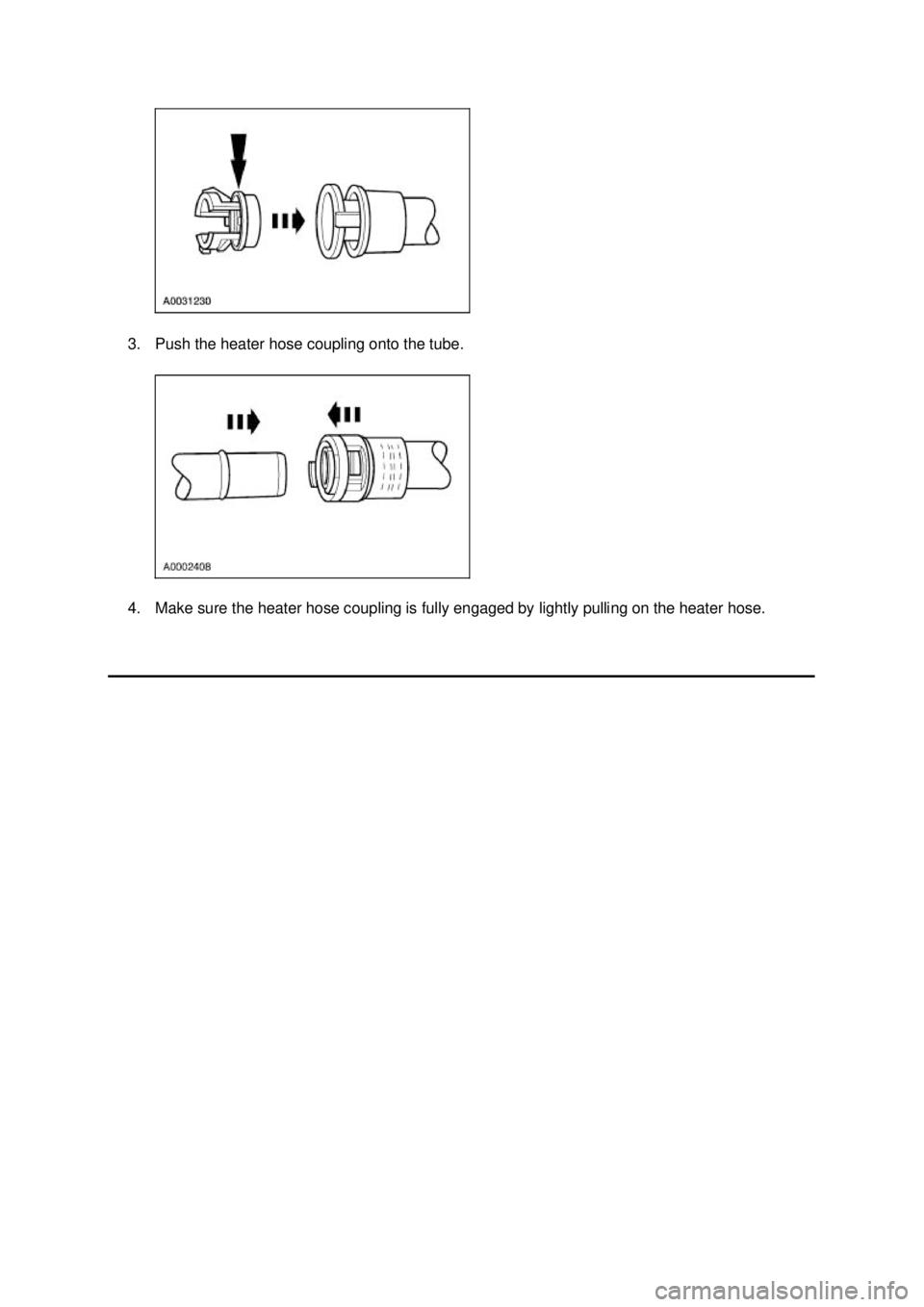

3. Push the heater hose coupling onto the tube.
4. Make sure the heater hose coupling is fully engaged by lightly pulling on the heater hose. Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Refrigerant Identification Testing
1. NOTE: An A/C refrigerant analyzer must be used to identify gas samples taken directly from the
refrigeration system or storage containers prior to recovering or charging the refrigerant system.
Follow the instructions included with the Deluxe Refrigerant Diagnostic Tool to obtain the
sample for testing.
2. The diagnostic tool will display one of the following: zIf the purity level of R- 134a or R-12 is 98% or greater by weight, the green "PASS" light
emitting diode (LED) will light. The weight concentrations of R- 134a, R-12, R-22,
hydrocarbons, and air will be displayed on the digital display.
z If refrigerants R-134a or R- 12 do not meet the 98% purity levels, the red "FAIL" LED will
light and a horn will sound alerting the user of potential hazards. The weight
concentrations of R-134a, R- 12, R-22, and hydrocarbons will be displayed on the digital
display.
z If hydrocarbon concentrations are 2% or greater by weight, the red "FAIL" LED will light,
"Hydrocarbon High" will be displayed on the digital display, and a horn will sound alerting
the user of potential hazards. The weight concentrations of R- 134a, R-12, R-22, and
hydrocarbons will also be displayed on the digital display.
3. The percentage of air contained in the sample will be displayed if the R- 134a or R-12 content is
98% or greater. The diagnostic tool eliminates the effect of air when determining the refrigerant
sample content because air is not considered a contaminant, although air can affect A/C system
performance. When the diagnostic tool has determined that a refrigerant source is pure (R- 134a
or R- 12 is 98% or greater by weight) and air concentration levels are 2% or greater by weight,
the diagnostic tool will prompt the user if an air purge is desired.
4. If contaminated refrigerant is detected, repeat the refrigerant identification test to verify that the refrigerant is indeed contaminated.
5. CAUTION: If contaminated refrigerant is detected, DO NOT recover the refrigerant
into R- 134a or R- 12 recovery/recycling equipment.
Recover any contaminated refrigerant using suitable recovery- only equipment designed for
capturing and storing contaminated refrigerant. For additional information, refer to
Contaminated Refrigerant Handling in this section.
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Special Tool(s)
Refrigerant Identifier with Air-
Radicator
198-
00003 or equivalent Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

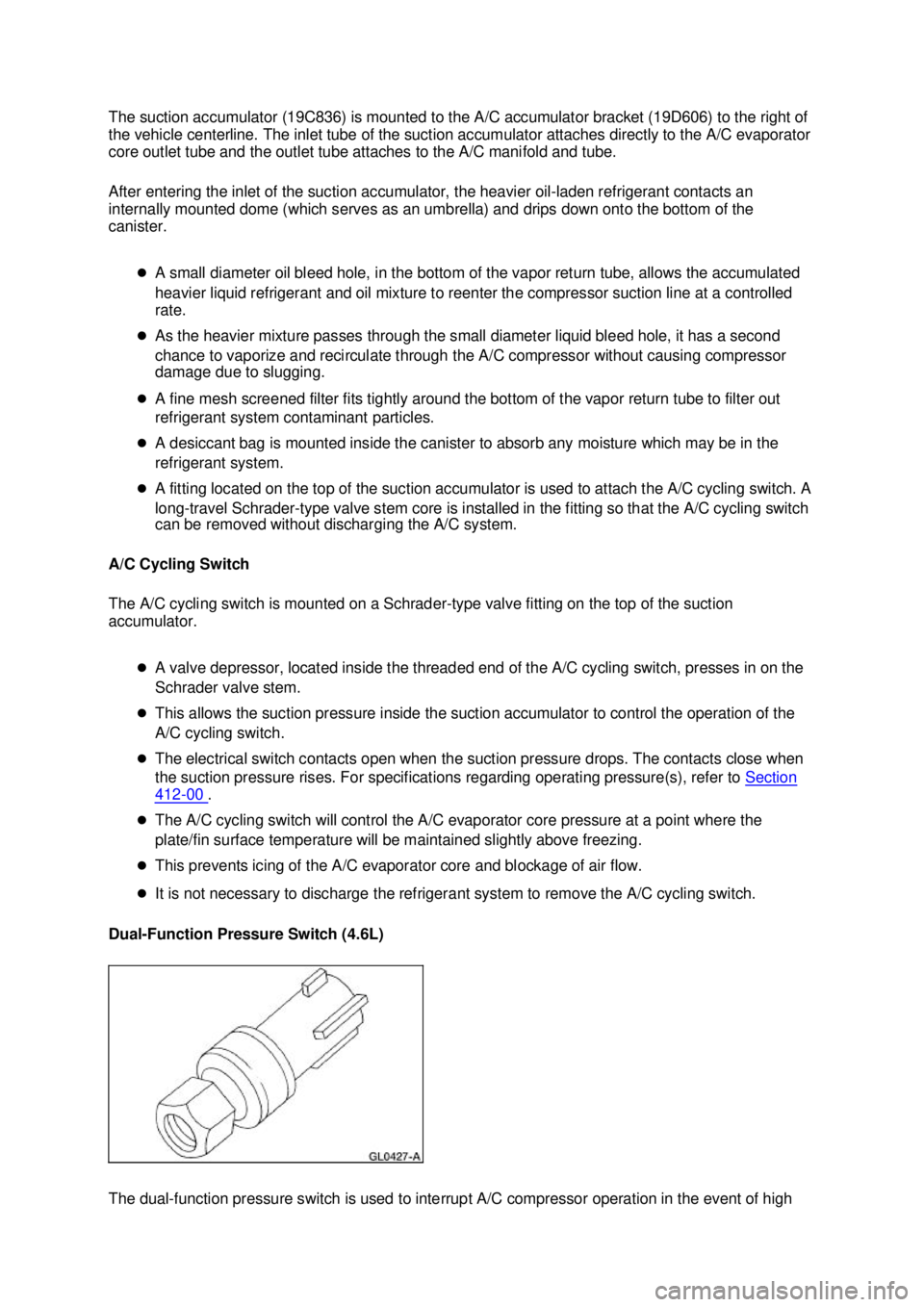

The suction accumulator (19C836) is mounted to the A/C accumulator bracket (19D606) to the right of
the vehicle centerline. The inlet tube of the suction accumulator attaches directly to the A/C evaporator
core outlet tube and the outlet tube attaches to the A/C manifold and tube.
After entering the inlet of the suction accumulator, the heavier oil-
laden refrigerant contacts an
internally mounted dome (which serves as an umbrella) and drips down onto the bottom of the
canister.
zA small diameter oil bleed hole, in the bottom of the vapor return tube, allows the accumulated
heavier liquid refrigerant and oil mixture to reenter the compressor suction line at a controlled
rate.
z As the heavier mixture passes through the small diameter liquid bleed hole, it has a second
chance to vaporize and recirculate through the A/C compressor without causing compressor
damage due to slugging.
z A fine mesh screened filter fits tightly around the bottom of the vapor return tube to filter out
refrigerant system contaminant particles.
z A desiccant bag is mounted inside the canister to absorb any moisture which may be in the
refrigerant system.
z A fitting located on the top of the suction accumulator is used to attach the A/C cycling switch. A
long- travel Schrader- type valve stem core is installed in the fitting so that the A/C cycling switch
can be removed without discharging the A/C system.
A/C Cycling Switch
The A/C cycling switch is mounted on a Schrader- type valve fitting on the top of the suction
accumulator.
zA valve depressor, located inside the threaded end of the A/C cycling switch, presses in on the
Schrader valve stem.
z This allows the suction pressure inside the suction accumulator to control the operation of the
A/C cycling switch.
z The electrical switch contacts open when the suction pressure drops. The contacts close when
the suction pressure rises. For specifications regarding operating pressure(s), refer to Section 412 - 00 .
z The A/C cycling switch will control the A/C evaporator core pressure at a point where the
plate/fin surface temperature will be maintained slightly above freezing.
z This prevents icing of the A/C evaporator core and blockage of air flow.
z It is not necessary to discharge the refrigerant system to remove the A/C cycling switch.
Dual- Function Pressure Switch (4.6L)
The dual- function pressure switch is used to interrupt A/C compressor operation in the event of high Klj . 7 ba
102003 Mustang Workshop Manual
