steering FORD MUSTANG 2003 Workshop Manual

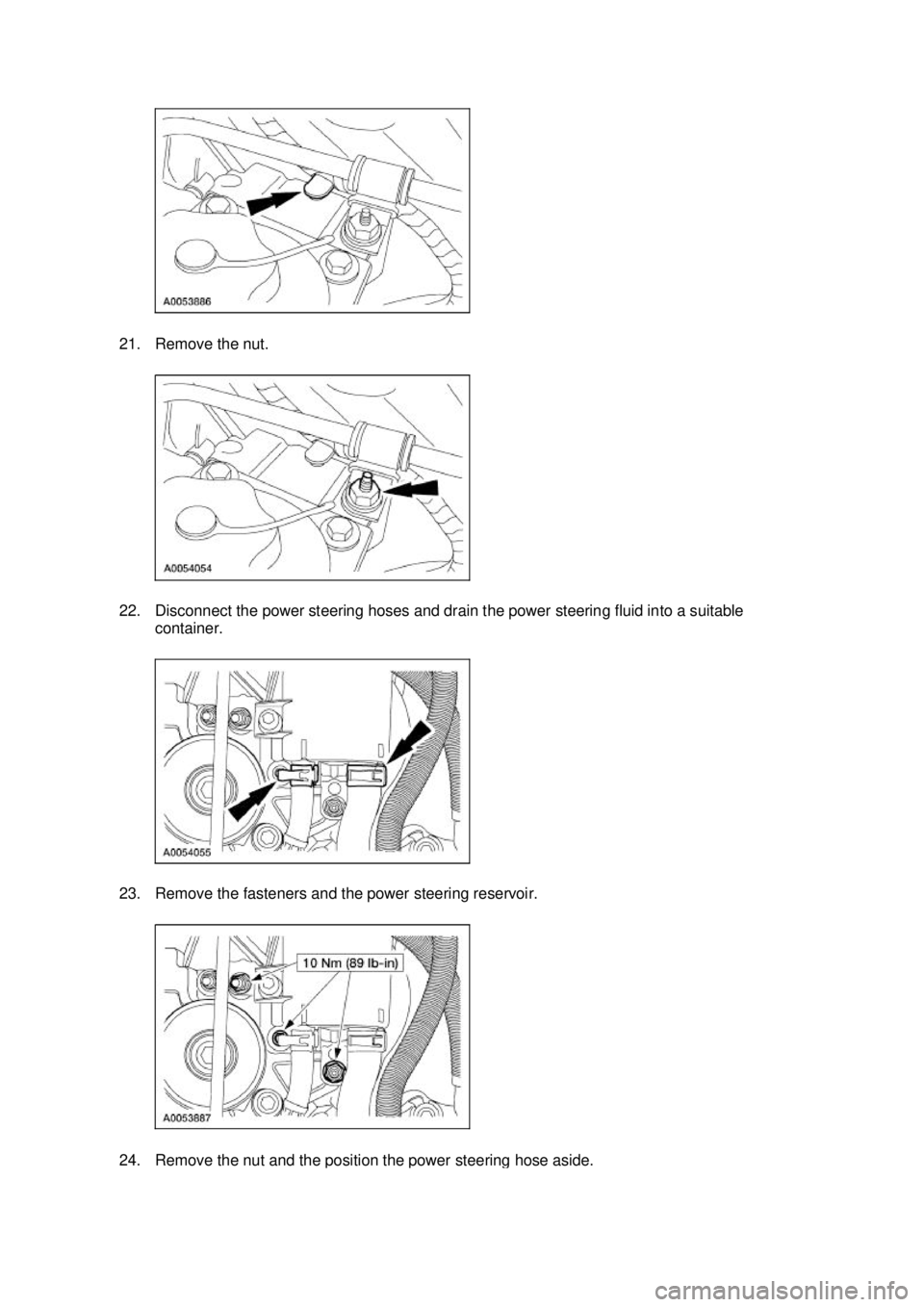

21. Remove the nut.
22. Disconnect the power steering hoses and drain the power steering fluid into a suitable
container.
23. Remove the fasteners and the power steering reservoir. 24. Remove the nut and the position the power steering hose aside. Klj . 5 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

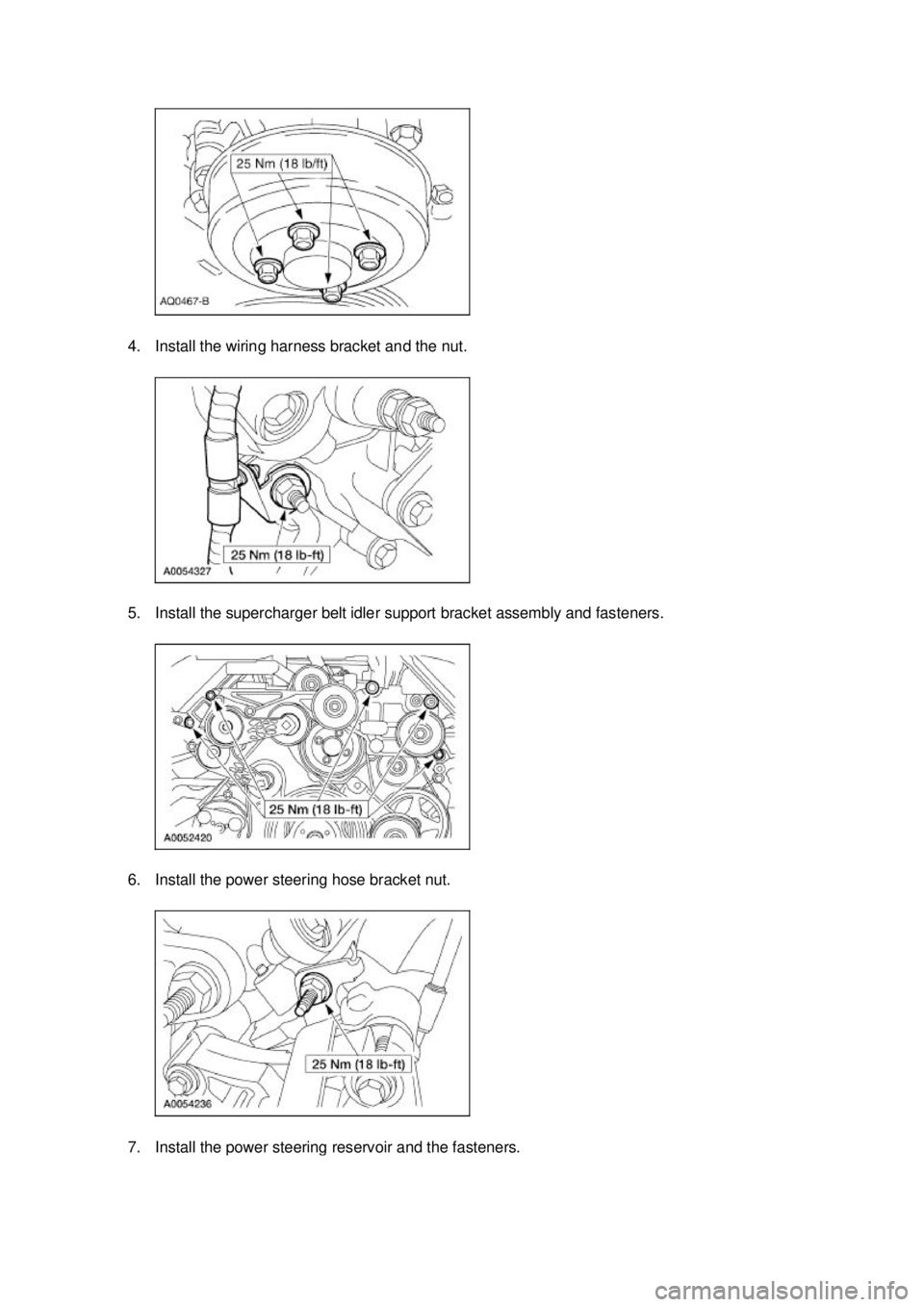

4. Install the wiring harness bracket and the nut.
5. Install the supercharger belt idler support bracket assembly and fasteners.
6. Install the power steering hose bracket nut.
7. Install the power steering reservoir and the fasteners. Klj . 9 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

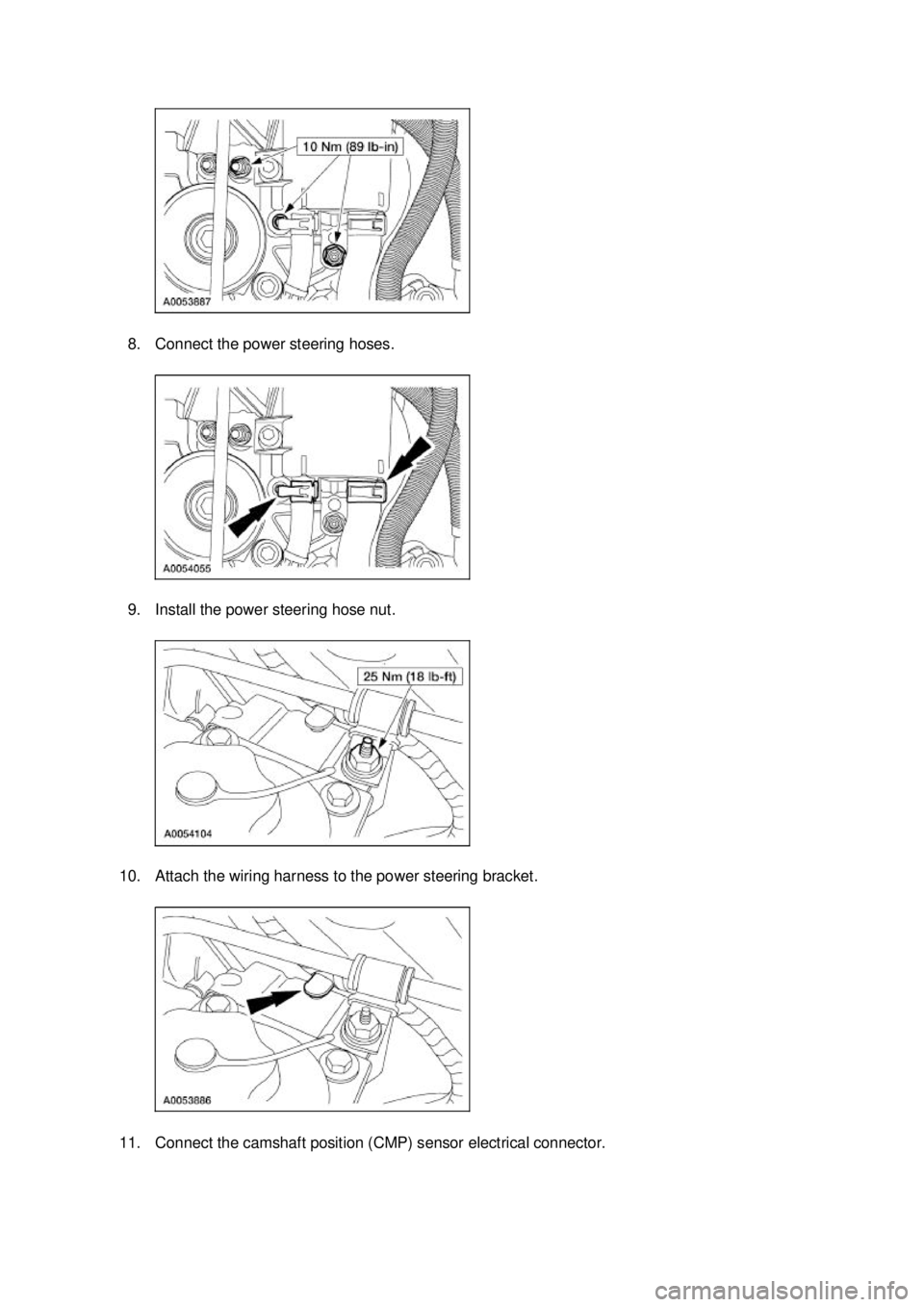

8. Connect the power steering hoses.
9. Install the power steering hose nut.
10. Attach the wiring harness to the power steering bracket.
11. Connect the camshaft position (CMP) sensor electrical connector. Klj . 10 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

26. Position the power steering pump and install the bolts.
27. Install the oil filter adapter. For additional information, refer to
Oil Filter Adapter in this section.
28. Install the crankshaft front seal. For additional information, refer to Crankshaft Front Seal in this
section.
29. Fill and bleed the engine coolant and the supercharger coolant. For additional information, refer to Section 303 - 03A and
Section 303 - 03B .
30. Fill the crankcase with clean engine oil. Klj . 14 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Exhaust Manifold LH
Removal and Installation 1. Position the steering wheel straight ahead and lock the column.
2. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
3. Raise the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the dual converter Y- pipe. For additional information, refer to Section 309 - 00 .
5. Remove and discard the pinch bolt.
6. Separate the steering coupler.
7. Disconnect the exhaust gas recirculation (EGR) tube at the exhaust manifold.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

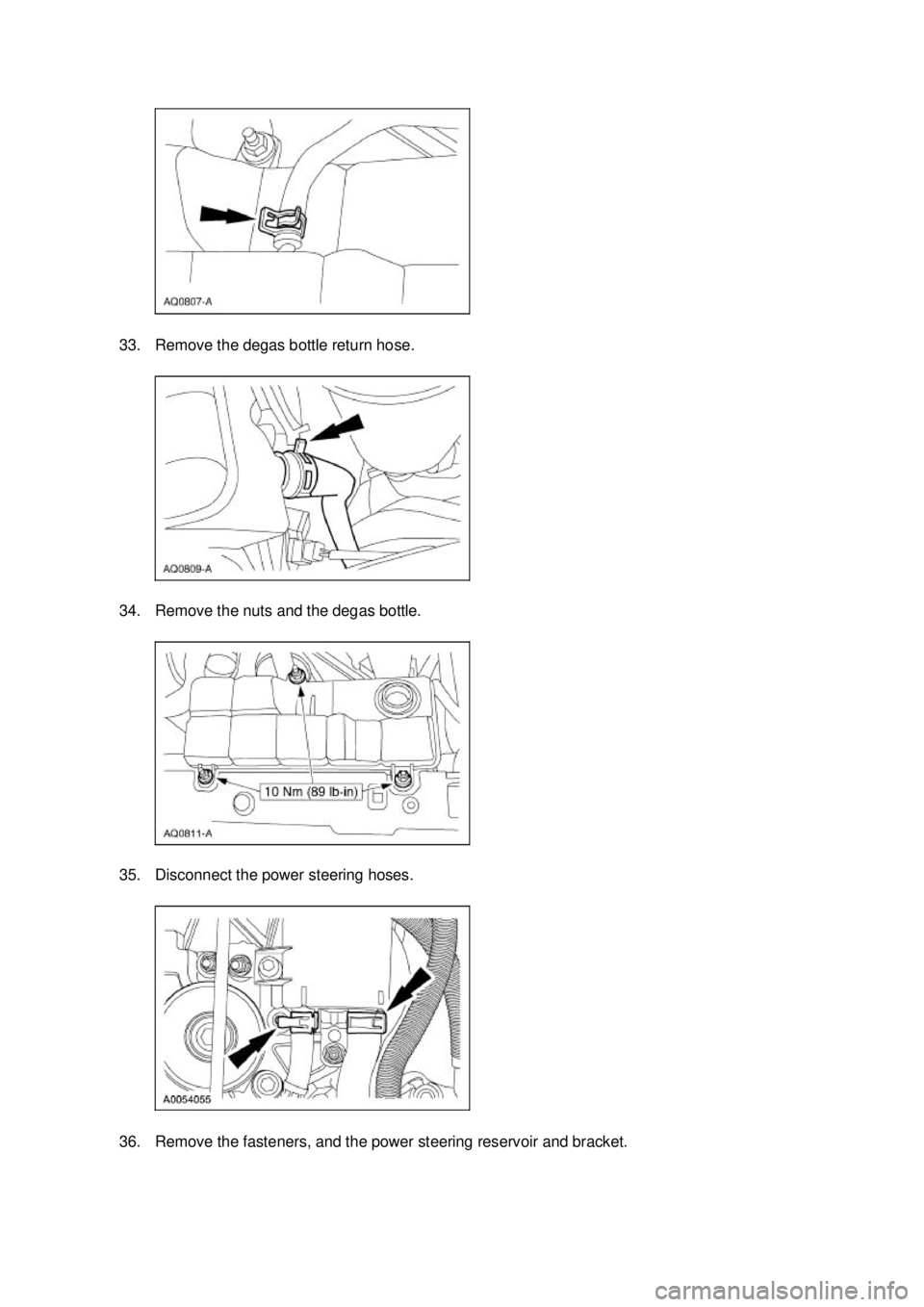

33. Remove the degas bottle return hose.
34. Remove the nuts and the degas bottle.
35. Disconnect the power steering hoses.
36. Remove the fasteners, and the power steering reservoir and bracket. Klj . 8 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

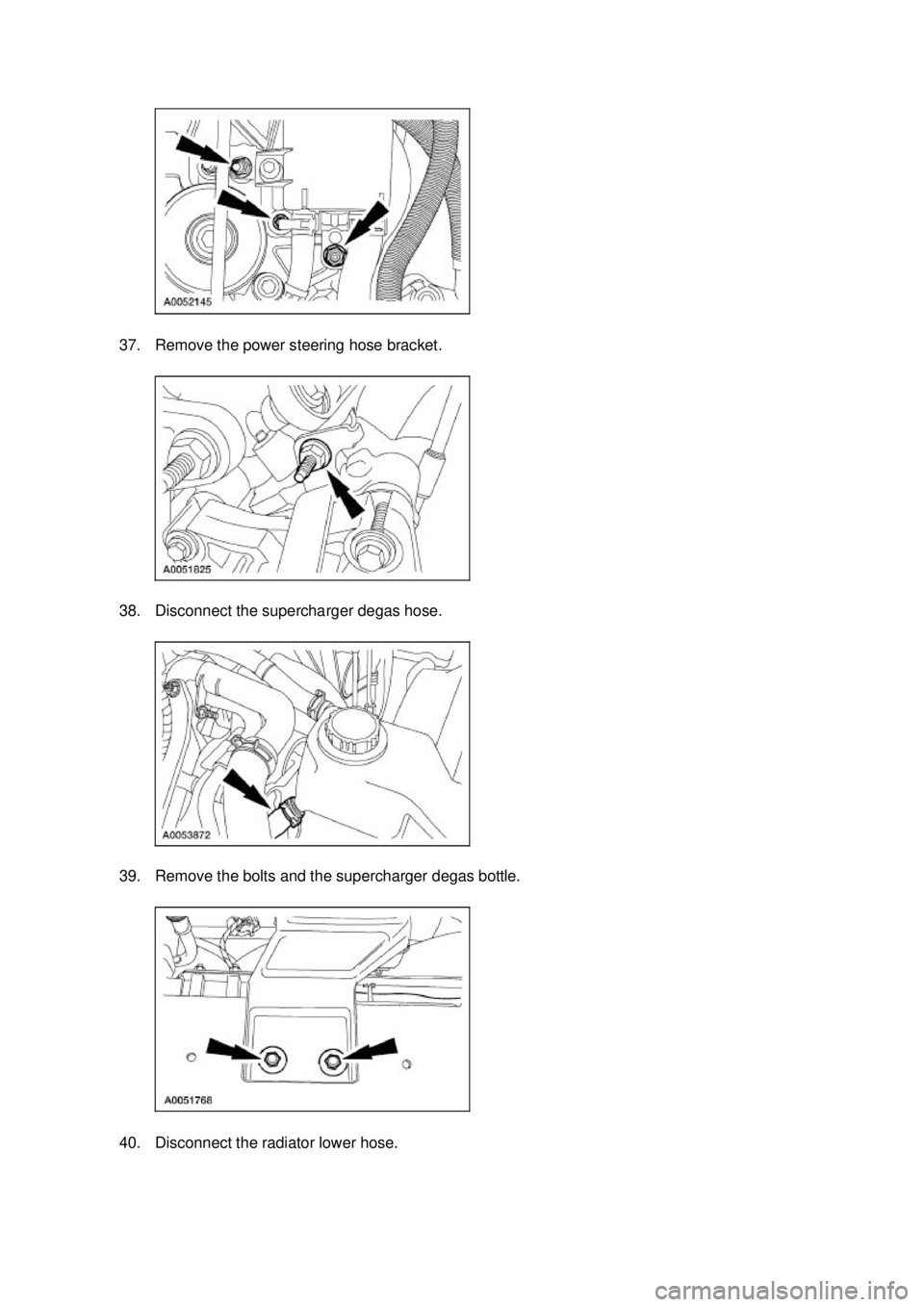

37. Remove the power steering hose bracket.
38. Disconnect the supercharger degas hose.
39. Remove the bolts and the supercharger degas bottle.
40. Disconnect the radiator lower hose. Klj . 9 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

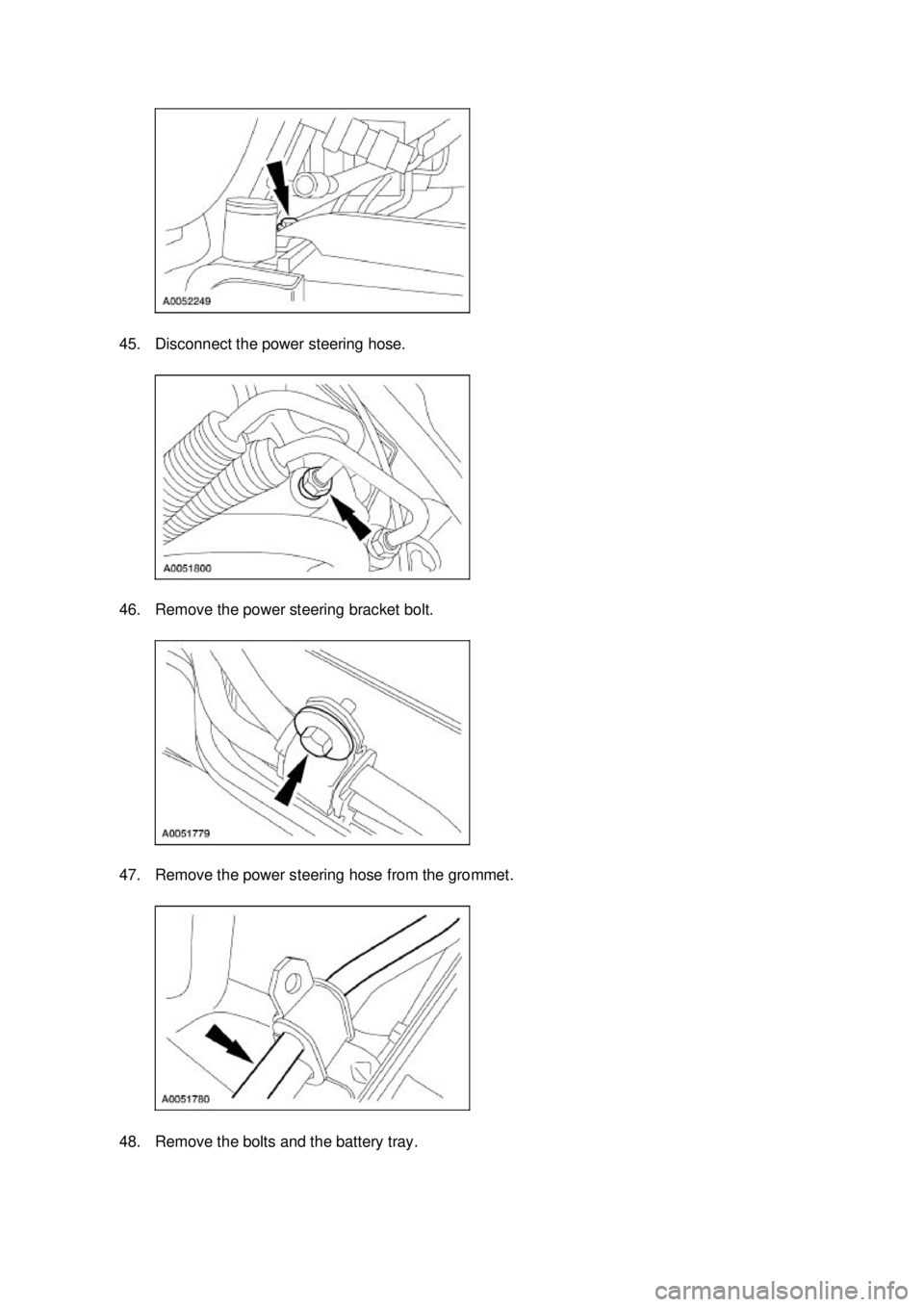

45. Disconnect the power steering hose.
46. Remove the power steering bracket bolt.
47. Remove the power steering hose from the grommet.
48. Remove the bolts and the battery tray. Klj . 11 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

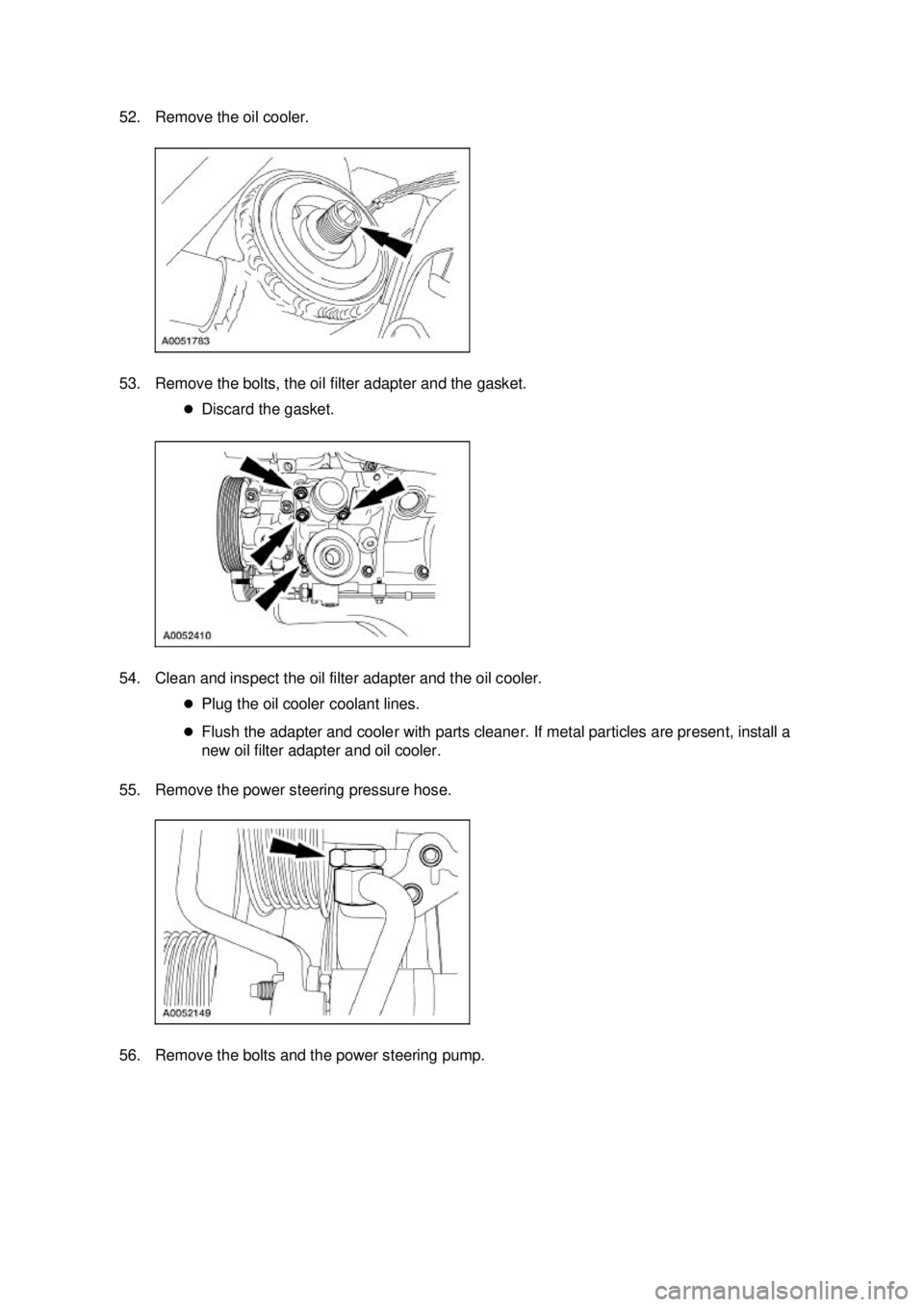

52. Remove the oil cooler.
53. Remove the bolts, the oil filter adapter and the gasket.
zDiscard the gasket.
54. Clean and inspect the oil filter adapter and the oil cooler. zPlug the oil cooler coolant lines.
z Flush the adapter and cooler with parts cleaner. If metal particles are present, install a
new oil filter adapter and oil cooler.
55. Remove the power steering pressure hose.
56. Remove the bolts and the power steering pump. Klj . 15 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

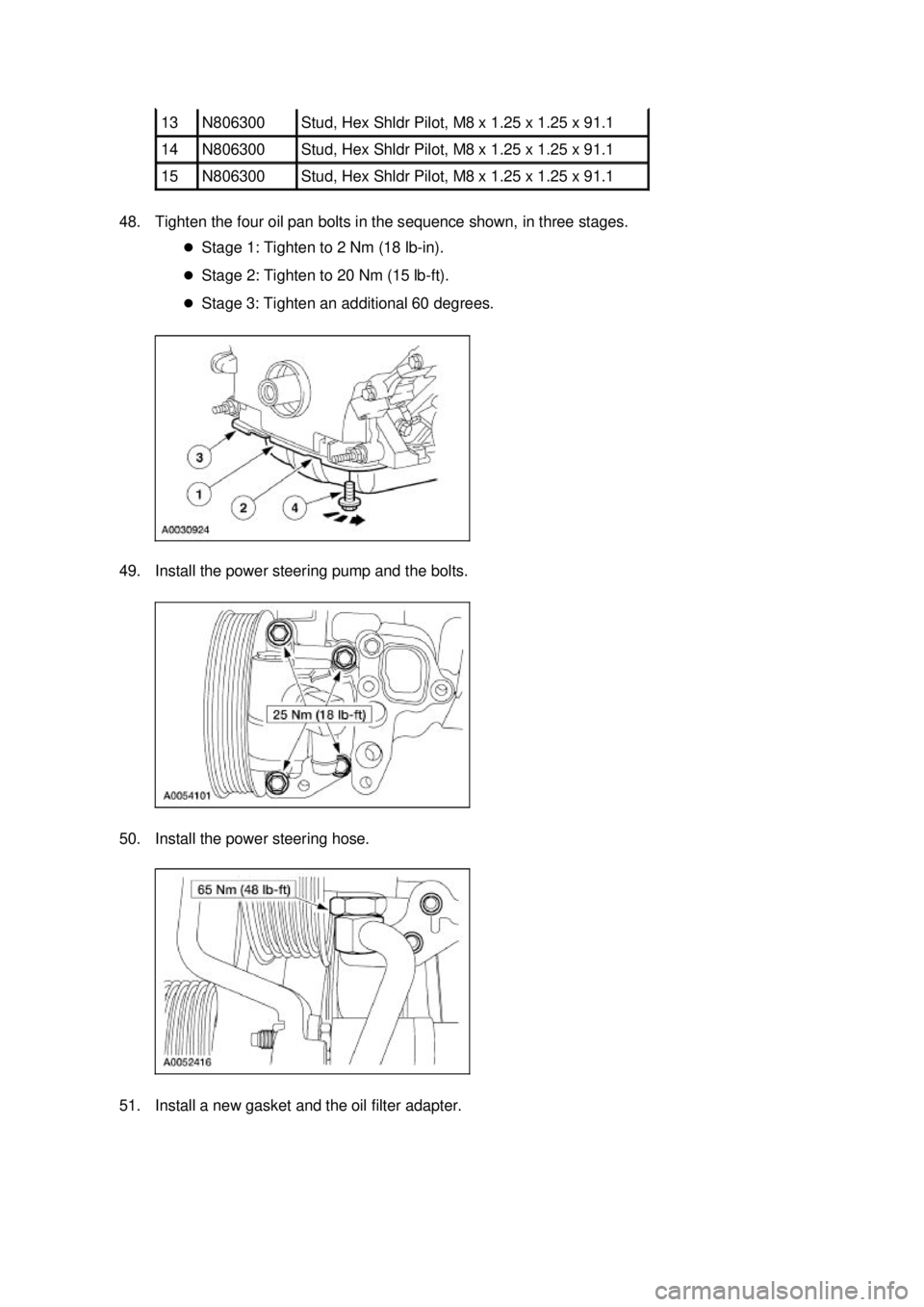

48. Tighten the four oil pan bolts in the sequence shown, in three stages.
zStage 1: Tighten to 2 Nm (18 lb- in).
z Stage 2: Tighten to 20 Nm (15 lb- ft).
z Stage 3: Tighten an additional 60 degrees.
49. Install the power steering pump and the bolts.
50. Install the power steering hose.
51. Install a new gasket and the oil filter adapter. 13 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 1.25 x 91.1
14 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 1.25 x 91.1
15 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 1.25 x 91.1 Klj . 19 ba
352003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
