PINPOINT TEST L: THE TRACTION CONTROL IS INOPERATIVE—
DOES NOT OPERATE CORRECTLY K8 CHECK THE RR ABS VALVE OPERATION
z
NOTE: Trigger must be depressed twice.
Each depress runs the pump motor for two
seconds.
z Trigger the anti- lock brake control module
active command PMP MOTOR ON for four
seconds.
z Apply moderate brake pedal effort.
z Have an assistant attempt to rotate the RR
wheel while the pump motor is running.
z Does the RR wheel rotate? Yes
INSTALL a new HCU; REFER to
Hydraulic Control Unit
. TEST the system
for normal operation.
No
GO to K9 .
K9 CHECK THE RR ABS VALVE RELEASE
z
Apply moderate brake pedal effort.
z Trigger the anti- lock brake control module
active command RF INLET and RF OUTLET.
z NOTE: The scan tool will energize the valves
for only two seconds per trigger press.
z Have an assistant rotate the RR wheel
immediately after depressing trigger.
z Does the RR wheel rotate? Yes
The ABS system is operating correctly.
No
GO to
K10 .
K10 CHECK FOR DTCS
z
Carry out the anti- lock brake control module
self- test.
z Are any DTCs retrieved? Yes
GO to the Anti-
Lock Brake Control Module
Diagnostic Trouble Code (DTC) Index.
No
INSTALL a new HCU; REFER to
Hydraulic Control Unit . TEST the system
for normal operation. Test Step Result / Action to Take
L1 CHECK THE TRACTION CONTROL SWITCH CIRCUITRY
z
Key in OFF position.
z Disconnect: Instrument Cluster C251.
z Key in ON position.
z Measure the voltage between instrument cluster C251 Pin 9,
Circuit 959 (GY), harness side and ground, while depressing
and releasing the traction control switch.
z Is the voltage greater than 10 volts with the traction control
switch depressed and zero volts with the traction control
switch released? Yes
INSTALL a new
instrument cluster,
REFER to
Section 413 -
01 . TEST the system
for normal operation.
No
GO to L2 . Klj . 17 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST M: THE TRACTION CONTROL INDICATOR IS
INOPERATIVE—
TRACTION CONTROL SWITCH L2 CHECK CIRCUIT 959 (GY) FOR AN OPEN
z
Key in OFF position.
z Disconnect: Traction Control Switch C239.
z Measure the resistance between instrument cluster C251 Pin 9,
Circuit 959 (GY), harness side and traction control switch C239
Pin 4, Circuit 959 (GY), harness side.
z Is the resistance less than 5 ohms? Yes
GO to
L3 .
No
REPAIR the circuit.
TEST the system for
normal operation. L3 CHECK CIRCUIT 489 (PK/BK) FOR AN OPEN
z
Key in ON position.
z Measure the voltage between traction control switch C239 Pin
3, Circuit 489 (PK/BK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
INSTALL a new traction
control switch. TEST the
system for normal
operation.
No
REPAIR the circuit.
TEST the system for
normal operation.
Test Step Result / Action to
Take M1 CHECK CIRCUIT 960 (BK/LB)
z
Key in OFF position.
z Disconnect: Instrument Cluster C251.
z Disconnect: Traction Control Switch C239.
z Measure the resistance between instrument cluster C251 Pin 8,
Circuit 960 (BK/LB), harness side and traction control switch C239
Pin 5, Circuit 960 (BK/LB), harness side; and between instrument
cluster C251 Pin 8, Circuit 960 (BK/LB), harness side and ground. Yes
GO to
M2 .
No Klj . 18 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
Is the resistance less than 5 ohms between the instrument
cluster and traction control switch and greater than 10,000
ohms between instrument cluster and ground? M2 CHECK CIRCUIT 489 (PK/BK) FOR AN OPEN
z
Key in ON position.
z Measure the voltage between traction control switch C239 Pin 3,
Circuit 489 (PK/BK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
M3 .
No
REPAIR the circuit.
TEST the system
for normal
operation. M3 CHECK THE TRACTION CONTROL SWITCH INDICATOR
z
Key in OFF position.
z Connect: Traction Control Switch C239.
z Key in ON position.
z Momentarily connect a fused (10A) jumper wire between instrument
cluster C251 Pin 8, Circuit 960 (BK/LB), harness side and ground,
while observing the traction control switch indicator.
z Does the traction control switch indicator illuminate? Yes
INSTALL a new
instrument cluster;
REFER to
Section 413 - 01 . TEST the
system for normal
operation.
No
INSTALL a new
traction control
switch. TEST the
system for normal
operation. Klj . 19 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Sensor Indicator —
Rear
Removal 1. Remove the rear axle shaft bearing, refer to Section 205 - 02A or
Section 205 - 02B .
2. Using the special tool, remove the anti- lock brake sensor indicator from the axle shaft.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Special Tool(s)
Pinion Bearing Cone Remover
205-
D002 (D79P- 4621A) Axle Bearing/Seal Plate
205-
090 (T75L-1165- B) Sensing Ring Replacer
206-
041 (T89P-20202- A) Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

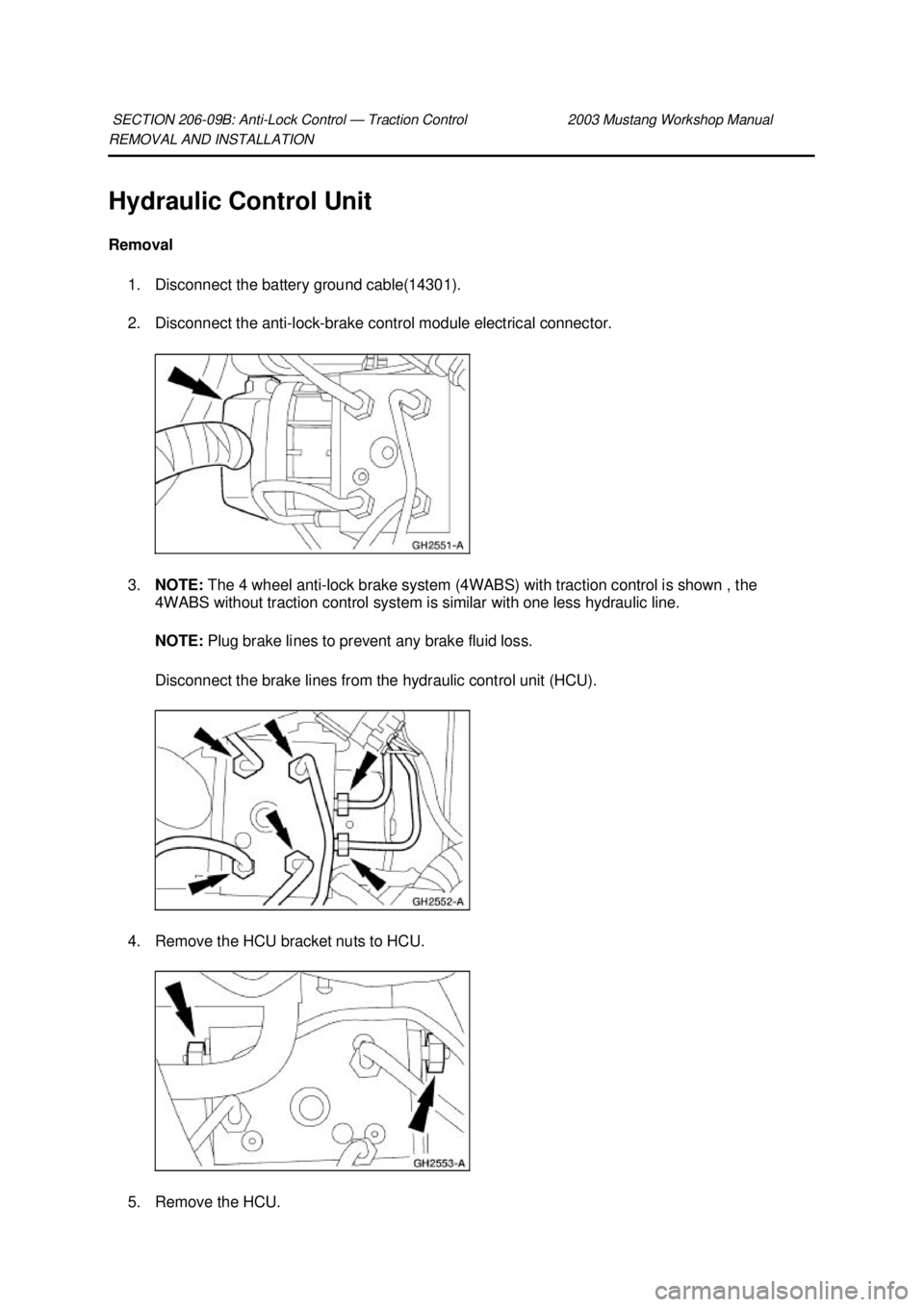

Hydraulic Control Unit
Removal
1. Disconnect the battery ground cable(14301).
2. Disconnect the anti- lock-brake control module electrical connector.
3. NOTE: The 4 wheel anti- lock brake system (4WABS) with traction control is shown , the
4WABS without traction control system is similar with one less hydraulic line.
NOTE: Plug brake lines to prevent any brake fluid loss.
Disconnect the brake lines from the hydraulic control unit (HCU).
4. Remove the HCU bracket nuts to HCU.
5. Remove the HCU.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Module
Removal
1. Remove the hydraulic control unit (HCU). Refer to Hydraulic Control Unit .
2. Remove the pump motor electrical connector.
3. Remove the anti- lock-brake control module screws.
4. Remove the anti- lock-brake control module from the HCU.
Installation
1. NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to Section 206 - 00 .
To install, reverse the removal procedure.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Sensor —
Front
Removal 1. Remove the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
2. Remove the inner fender splash shield. 1. Remove the inner fender splash shield push pins.
2. Remove the inner fender splash shield screw.
3. Remove the inner fender splash shield.
3. Remove the front anti- lock brake sensor electrical connector.
4. Remove the front anti- lock brake sensor harness from the anti- lock brake sensor harness clips.
5. Remove the front anti- lock brake sensor.
1. Remove the front anti- lock brake sensor bolt.
2. Remove the anti- lock brake sensor harness from the harness clips.
3. Remove the front anti- lock brake sensor.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Sensor —
Rear
Removal 1. Remove the rear passenger seat.
2. Disconnect the rear anti- lock brake sensor electrical connector.
3. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the rear anti- lock brake sensor harness from the floor pan.
5. Remove the anti- lock brake sensor harness bracket bolt.
6. NOTE: The sensor may be siezed to the axle. Use Rust Penetrant and Inhibitor F2AZ-19A501-
A meeting Ford specification ESR- M99C56-A to loosen the sensor for removal.
Remove the rear anti- lock brake sensor.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

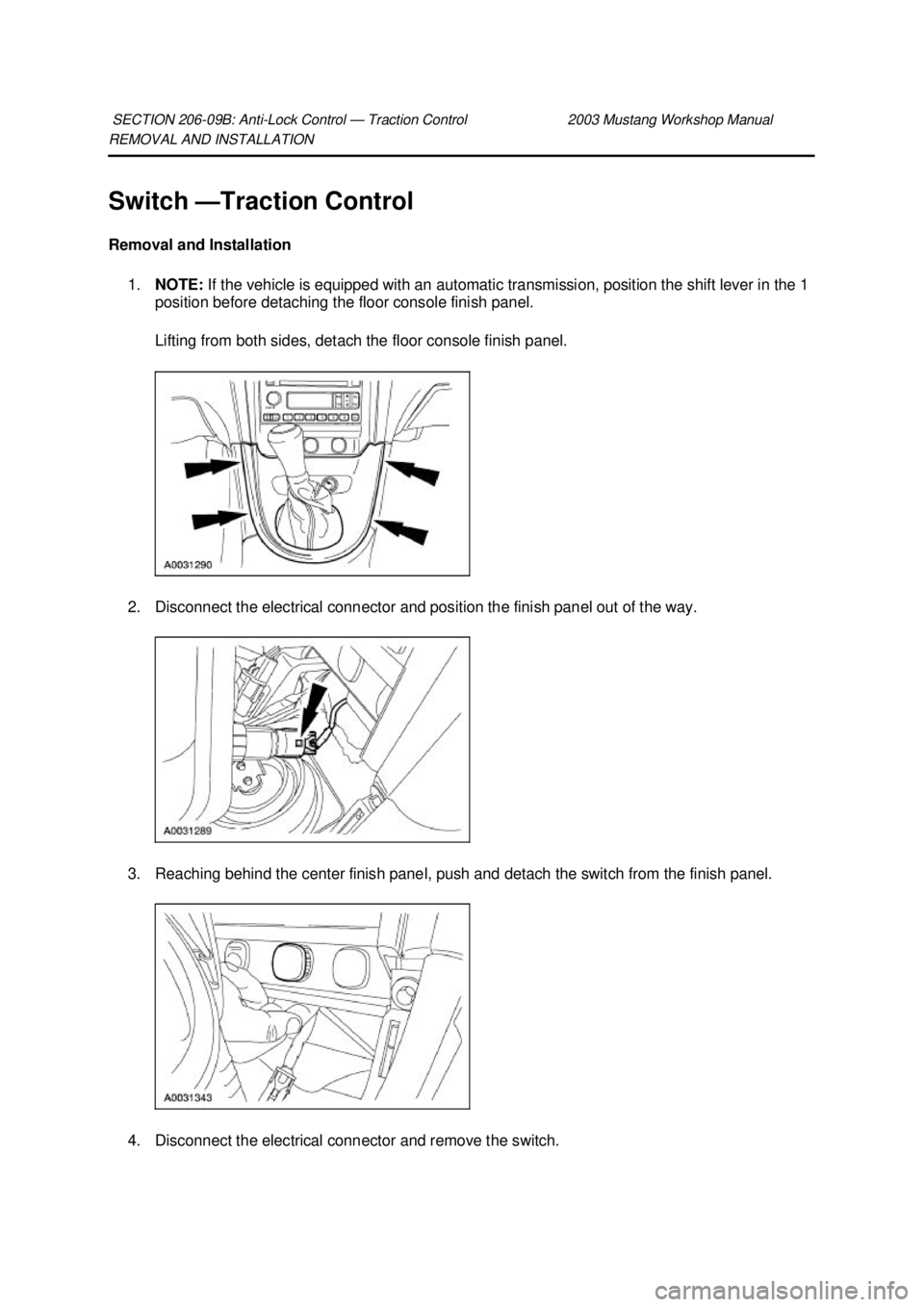

Switch —
Traction Control
Removal and Installation 1. NOTE: If the vehicle is equipped with an automatic transmission, position the shift lever in the 1
position before detaching the floor console finish panel.
Lifting from both sides, detach the floor console finish panel.
2. Disconnect the electrical connector and position the finish panel out of the way.
3. Reaching behind the center finish panel, push and detach the switch from the finish panel.
4. Disconnect the electrical connector and remove the switch.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Instrument Cluster and Panel Illumination
The instrument cluster and panel illumination system illuminates the following components:
zinstrument cluster (10849)
z audio unit (18806)
z A/C- heater control
z fog lamp switch
z transmission range indicator
z traction control switch
z rear window defrost control switch
The instrument cluster is a hybrid electronic cluster (HEC), which uses both hardwired circuitry and the
standard corporate protocol (SCP) communication network to transmit and receive information. The
Mustang instrument cluster backlighting has illumination bulbs that are installed separately from the
instrument cluster. The Cobra instrument cluster has a laminated, electroluminescent applique to
backlight the cluster . The electroluminescent applique and instrument cluster must be installed as an
assembly. SECTION 413-
00: Instrument Cluster and Panel Illumination 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
