engine FORD MUSTANG 2003 Workshop Manual

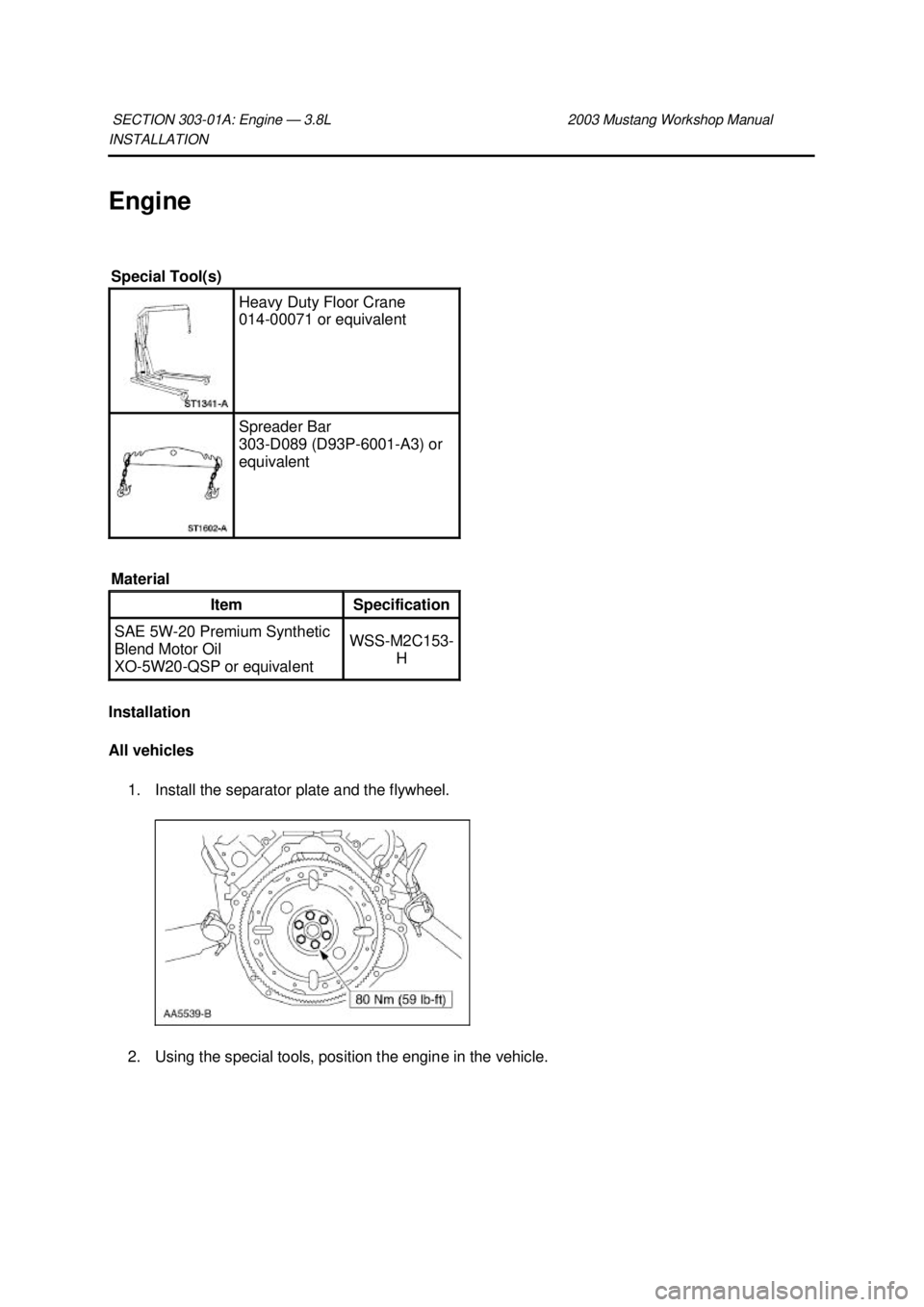

INSTALLATION
Engine
Installation
All vehicles
1. Install the separator plate and the flywheel.
2. Using the special tools, position the engine in the vehicle.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Special Tool(s)
Heavy Duty Floor Crane
014-
00071 or equivalent Spreader Bar
303-
D089 (D93P-6001- A3) or
equivalent
Material Item Specification
SAE 5W-
20 Premium Synthetic
Blend Motor Oil
XO- 5W20-QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

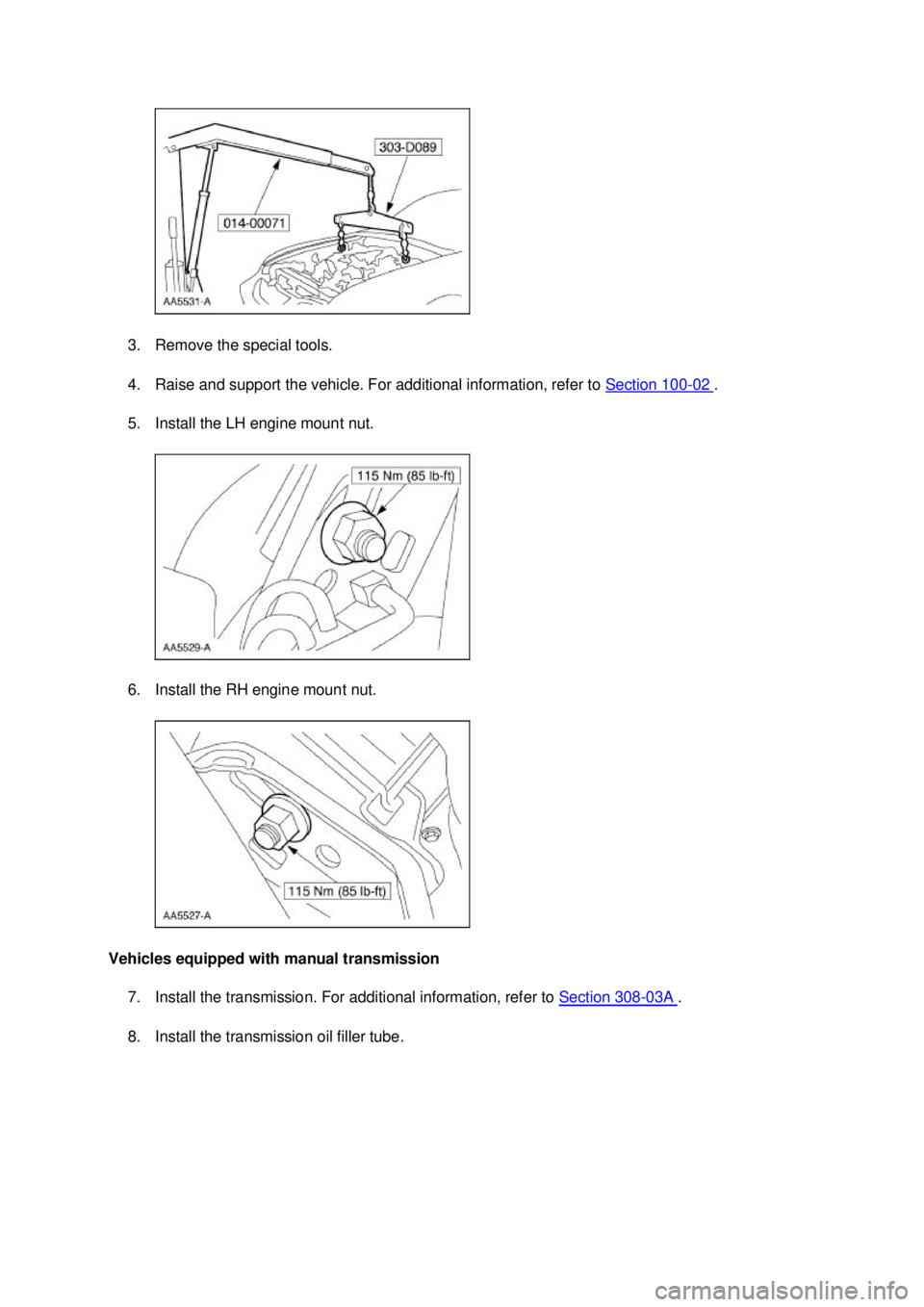

3. Remove the special tools.
4. Raise and support the vehicle. For additional information, refer to
Section 100 - 02 .
5. Install the LH engine mount nut.
6. Install the RH engine mount nut.
Vehicles equipped with manual transmission 7. Install the transmission. For additional information, refer to Section 308 - 03A .
8. Install the transmission oil filler tube. Klj . 2 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

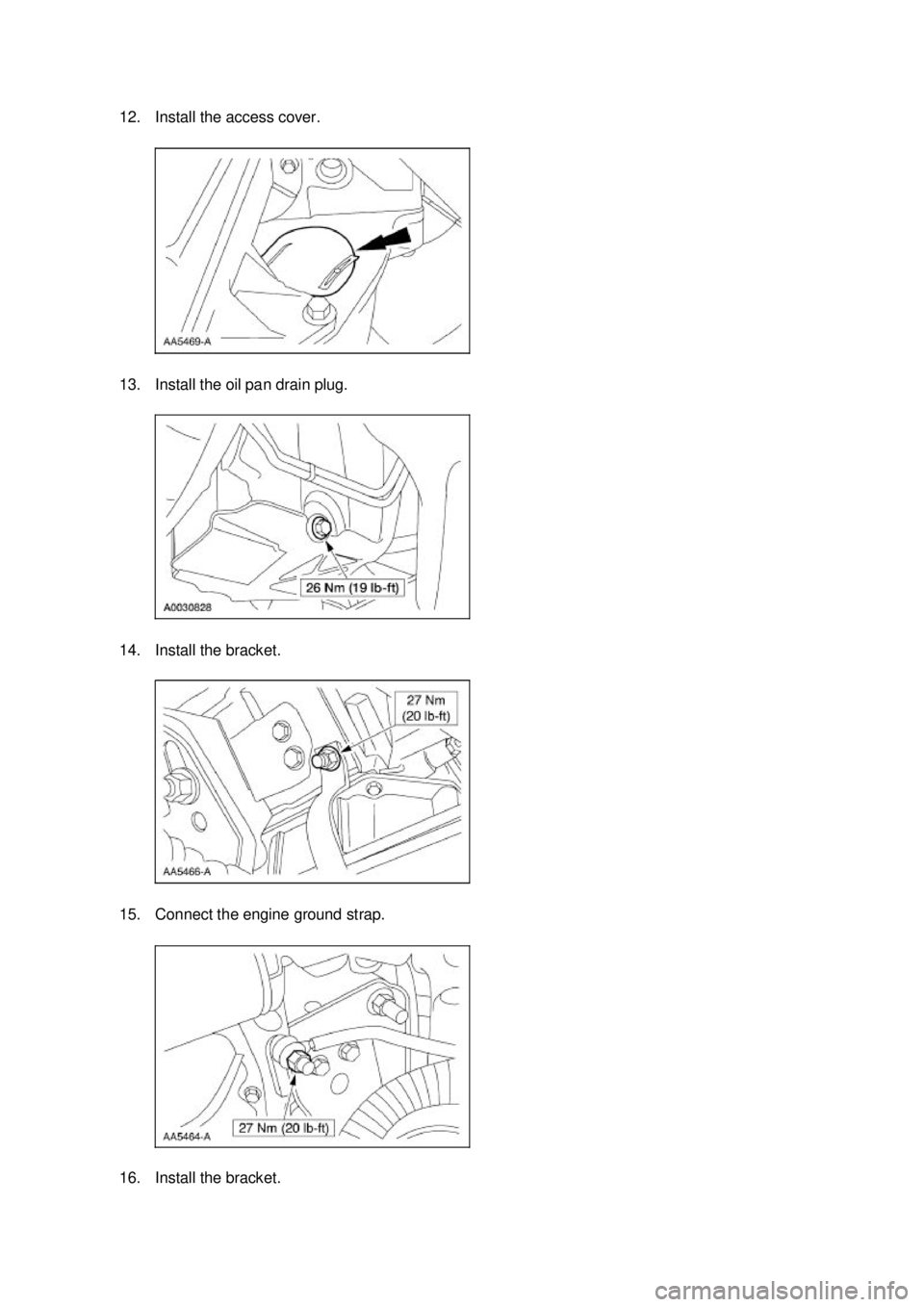

12. Install the access cover.
13. Install the oil pan drain plug.
14. Install the bracket.
15. Connect the engine ground strap.
16. Install the bracket. Klj . 4 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

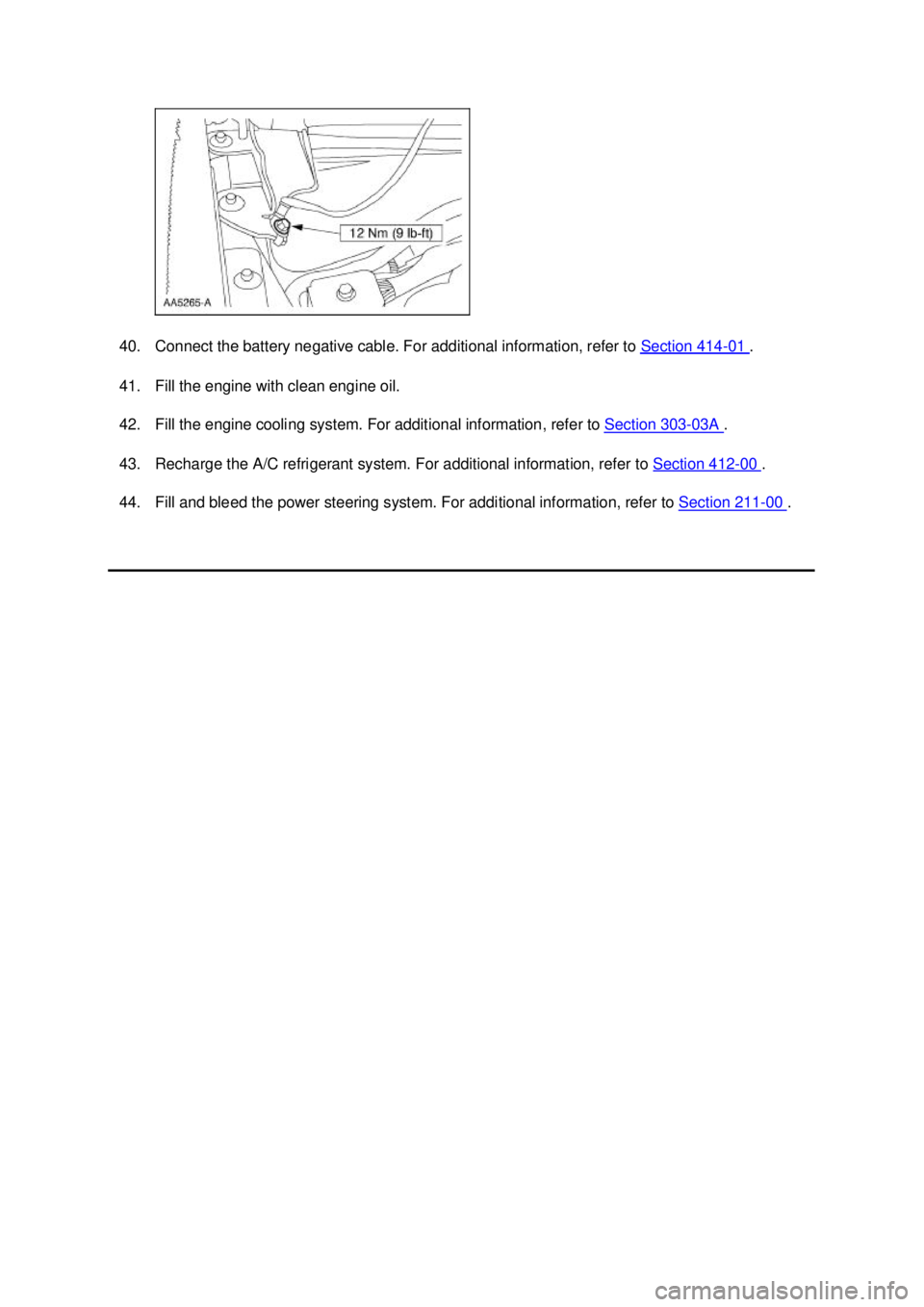

40. Connect the battery negative cable. For additional information, refer to
Section 414 - 01 .
41. Fill the engine with clean engine oil.
42. Fill the engine cooling system. For additional information, refer to Section 303 - 03A .
43. Recharge the A/C refrigerant system. For additional information, refer to Section 412 - 00 .
44. Fill and bleed the power steering system. For additional information, refer to Section 211 - 00 . Klj . 10 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

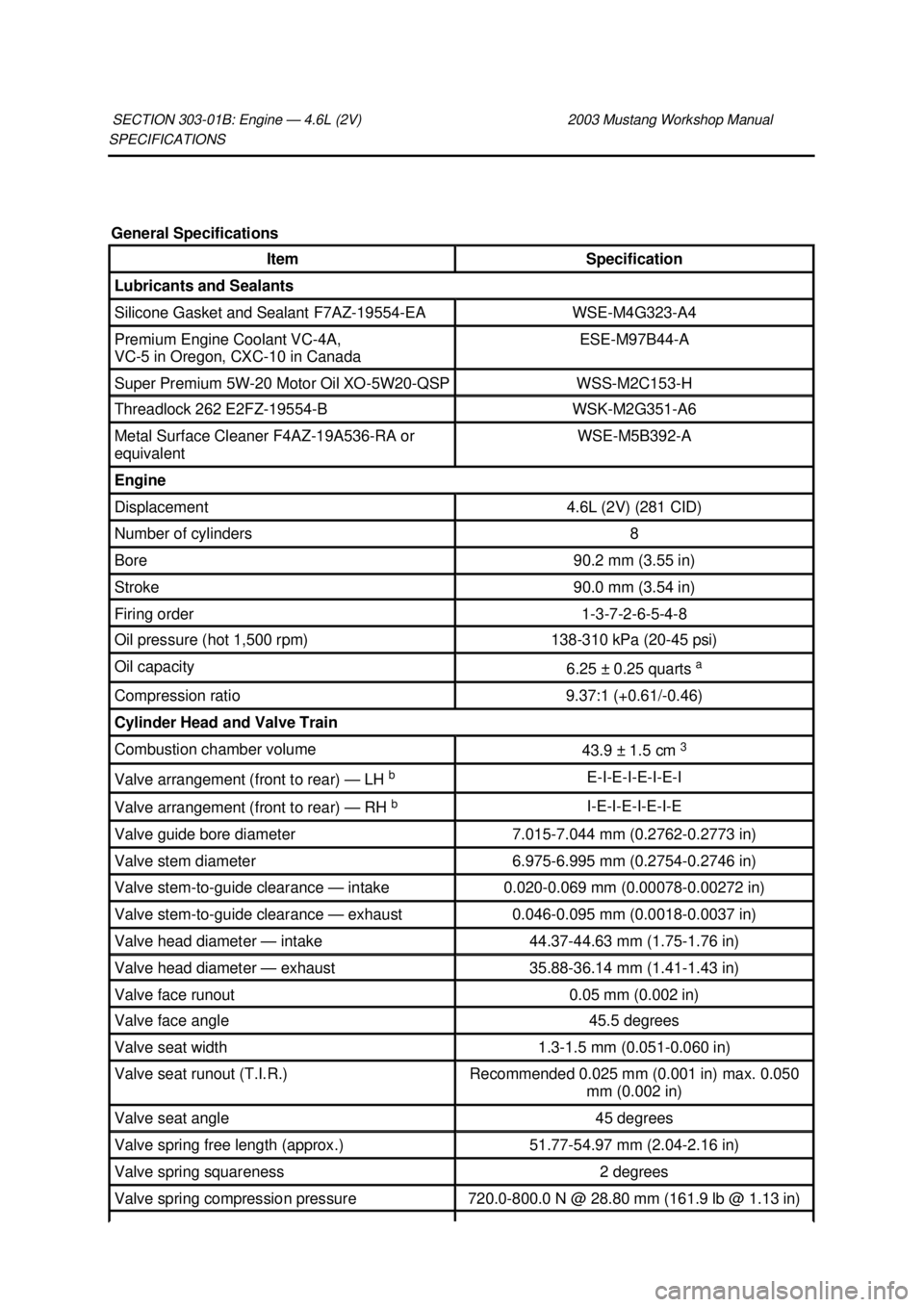

SPECIFICATIONS
SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants and Sealants
Silicone Gasket and Sealant F7AZ-19554-
EA WSE-
M4G323- A4 Premium Engine Coolant VC-
4A,
VC- 5 in Oregon, CXC- 10 in Canada ESE-
M97B44- A Super Premium 5W-
20 Motor Oil XO-5W20-QSP WSS-
M2C153- H Threadlock 262 E2FZ-19554-
B WSK-
M2G351- A6 Metal Surface Cleaner F4AZ-19A536-
RA or
equivalent WSE-
M5B392- A Engine
Displacement 4.6L (2V) (281 CID)
Number of cylinders 8
Bore 90.2 mm (3.55 in)
Stroke 90.0 mm (3.54 in)
Firing order 1-3-7-2-6-5-4-
8 Oil pressure (hot 1,500 rpm) 138-
310 kPa (20- 45 psi) Oil capacity
6.25 ±
0.25 quarts a Compression ratio 9.37:1 (+0.61/-
0.46) Cylinder Head and Valve Train
Combustion chamber volume
43.9 ±
1.5 cm 3 Valve arrangement (front to rear) —
LH b E-I-E-I-E-I-E-I
Valve arrangement (front to rear) —
RH b I-E-I-E-I-E-I-E
Valve guide bore diameter 7.015-
7.044 mm (0.2762- 0.2773 in) Valve stem diameter 6.975-
6.995 mm (0.2754- 0.2746 in) Valve stem-
to-guide clearance — intake 0.020-
0.069 mm (0.00078- 0.00272 in) Valve stem-
to-guide clearance — exhaust 0.046-
0.095 mm (0.0018- 0.0037 in) Valve head diameter —
intake 44.37-
44.63 mm (1.75- 1.76 in) Valve head diameter —
exhaust 35.88-
36.14 mm (1.41- 1.43 in) Valve face runout 0.05 mm (0.002 in)
Valve face angle 45.5 degrees
Valve seat width 1.3-
1.5 mm (0.051- 0.060 in) Valve seat runout (T.I.R.) Recommended 0.025 mm (0.001 in) max. 0.050
mm (0.002 in) Valve seat angle 45 degrees
Valve spring free length (approx.) 51.77-
54.97 mm (2.04- 2.16 in) Valve spring squareness 2 degrees
Valve spring compression pressure 720.0-
800.0 N @ 28.80 mm (161.9 lb @ 1.13 in) Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

e
Specification in 90.200 mm diameter gauge.
f If applicable, measured vertically, +0.030- 0.050 mm (0.001-0.002 inch) measured horizontally (oval
pin bore).
g Pin bore and crank bearing bore must be parallel and in same vertical plane within the specified total
difference when measured at the ends of a 203 mm bar, 101.5 mm on each side of rod centerline.
Torque Specifications Description Nm lb-
ft lb-
in Main bearing cap adjusting bolts
a — — —
EGR sensor bracket 10 — 89
Belt idler pulley 25 18 —
Oil filter 15 11 —
Oil filter adapter insert 58 43 —
Camshaft sprocket bolt
a — — —
Connecting rod bolt
a — — —
Engine mount nuts 150 111 —
Engine mount-
to-cylinder block bolts 70 52 —
Exhaust manifolds
a — — —
Engine front cover bolts
a — — —
Drive belt tensioner bolts 25 18 —
A/C muffler 20 15 —
Battery cable support brackets 20 15 —
Cylinder head bolt
a — — —
Pulley-
to-crankshaft bolt a — — —
EGR valve to intake manifold 25 18 —
EGR valve tube to exhaust manifold fittings 40 30 —
Intake manifold-
to-cylinder head bolt 25 18 —
Main bearing cap bolt
a — — —
Oil filter adapter bolts 25 18 —
Oil level indicator tube bolt 10 — 89
Oil pump screen cover and tube-
to-oil pump bolt 10 — 89
Oil pan-to-
cylinder block bolt a — — —
Flywheel 80 59
Oil pan-to-
engine front cover bolts a — — —
Oil pump-
to-cylinder block bolt 10 — 89
Oil pump screen cover and tube-
to-main bearing cap stud spacer bolt 25 18 —
Water pump pulley bolts 25 18 —
Cam cover bolt
a — — —
Water pump-
to-cylinder block bolt 25 18 —
Water bypass tube 25 18 —
EGR tube nuts (2 req'd) 40 30 —
Power steering pump to engine 25 18 — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

a
Refer to the procedure in this section. Power steering reservoir bolts 10 — 89
Water outlet connector bolts 25 18 —
Camshaft cap cluster to cylinder head bolts 10 — 89
Torque converter nuts 25 18 —
Timing chain tensioner bolts 25 18 —
Transmission filler tube bolt 47 35 —
A/C compressor bolts 25 18 —
Ignition coil bolts 6 — 53
Generator brace bolts 10 — 89
Primary timing chain guide-
to-engine bolts 10 — 89
Accelerator cable bracket bolts 10 — 89
Rear seal retainer bolts 10 — 89
Pressure plate bolts 2 — 47
Spark plugs 18 13 —
Crankshaft timing bolt sensor assembly 10 — 89
Camshaft timing bolt sensor assembly 10 — 89
Fuel rail studs 10 — 89
Engine coolant sensor 15 11 —
Exhaust manifold—
stud to cylinder head 10-
13 7-10 —
Throttle body adaptor bolts
a — — —
Throttle body bolts 10 — 89
Idle air control valve 10 — 89
RFI capacitor nut 10 — 89
Generator bolts 25 18 —
Oil pan drain plug 14 10 —
Water bypass tube bracket bolt 25 18 —
Subframe bolts 115 85 —
Battery lead to generator 10 — 89
EGR vacuum regulator solenoid bracket 10 — 89
Pipe plug—
water drain 20 15 —
Screen and cover assembly to main bearing cap stud spacer 25 18 —
Wiring harness retainer nut 10 — 89
Oil pressure switch
a — — —
A/C muffler stud to cylinder head 10 — 89
EGR tube to exhaust manifold connector 50 37 — Klj . 5 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

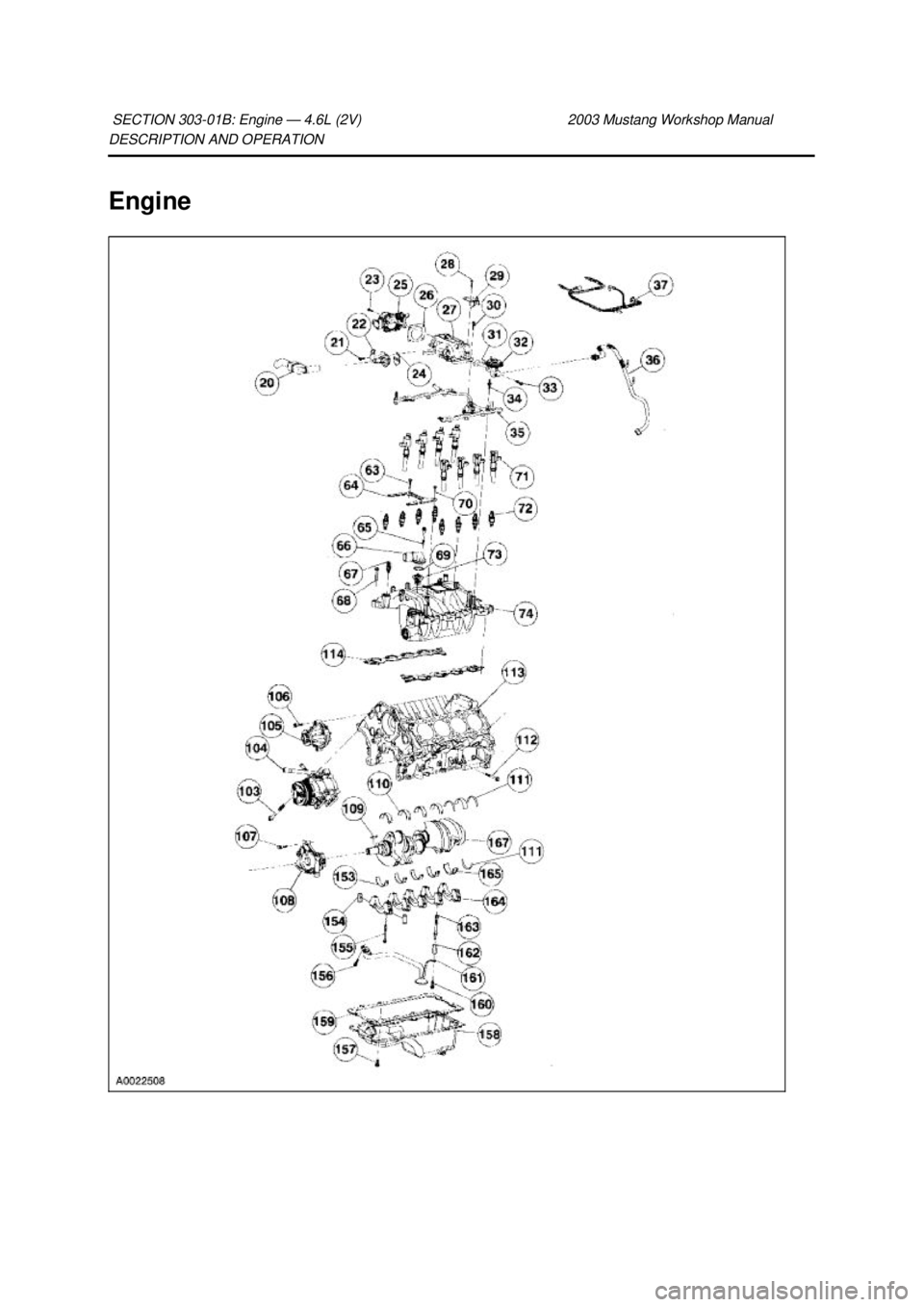

DESCRIPTION AND OPERATION
Engine
SECTION 303-
01B: Engine — 4.6L (2V) 2003 Mustang Workshop Manual Klj . 1 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9 6161 Piston ring
10 6200 Connecting rod assy.
11 6100 Piston and rod assy (8 req'd)
12 N806164 Washer
13 6256 Camshaft sprocket
14 6265 Camshaft sprocket spacer
15 6766 Oil filler cap
16 6C324 Crankcase vent connector and hose
17 6582 Valve cover
18 6B280 Camshaft bearing cap
19 6250 Camshaft
20 9H308 Idle air control valve inlet tube
21 N806155 Bolt (2 req'd)
22 9F715 Idle air control valve
23 N806154 Bolt (4 req'd)
24 9F670 Idle air control gasket
25 9E926 Throttle body
26 9E936 Throttle body gasket
27 9A589 Throttle body gasket
28 N807309 Bolt (3 req'd)
29 9728 Bracket
30 N806154 Bolt (5 req'd)
31 9D476 EGR valve gasket
32 9D460 EGR valve
33 W701625 Bolt (2 req'd)
34 N811017 Stud bolt (4 req'd)
35 9F792 Fuel injection supply manifold
36 9D477 EGR valve to exhaust manifold tube
37 9E498 Main emission vacuum control connector
38 12A522 Engine control sensor extension wire
39 N806459 Dowel (4 req'd)
40 8555 Water bypass tube
41 N646419 Dowel (2 req'd)
42 W623454 Washer (2 req'd)
43 N806040 Dowel (2 req'd)
44 N806007 Dowel (2 req'd)
45 6A636 Oil filter adapter gasket
46 6881 Oil filter adapter (manual transmission)
47 N806156 Bolt (4 req'd)
48 6714 Oil bypass filter
49 N87838 Dowel
50 Klj . 4 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

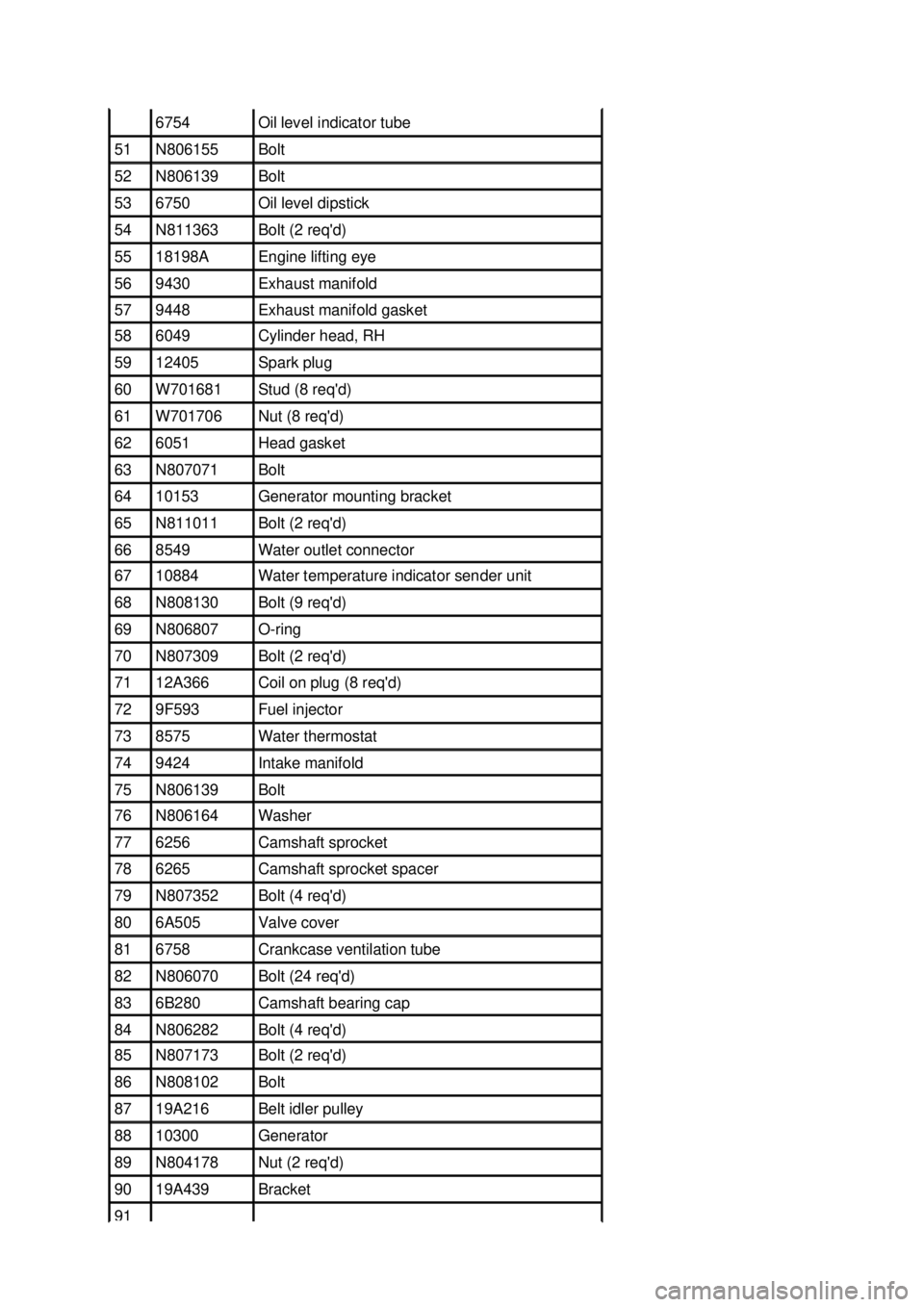

6754 Oil level indicator tube
51 N806155 Bolt
52 N806139 Bolt
53 6750 Oil level dipstick
54 N811363 Bolt (2 req'd)
55 18198A Engine lifting eye
56 9430 Exhaust manifold
57 9448 Exhaust manifold gasket
58 6049 Cylinder head, RH
59 12405 Spark plug
60 W701681 Stud (8 req'd)
61 W701706 Nut (8 req'd)
62 6051 Head gasket
63 N807071 Bolt
64 10153 Generator mounting bracket
65 N811011 Bolt (2 req'd)
66 8549 Water outlet connector
67 10884 Water temperature indicator sender unit
68 N808130 Bolt (9 req'd)
69 N806807 O-
ring 70 N807309 Bolt (2 req'd)
71 12A366 Coil on plug (8 req'd)
72 9F593 Fuel injector
73 8575 Water thermostat
74 9424 Intake manifold
75 N806139 Bolt
76 N806164 Washer
77 6256 Camshaft sprocket
78 6265 Camshaft sprocket spacer
79 N807352 Bolt (4 req'd)
80 6A505 Valve cover
81 6758 Crankcase ventilation tube
82 N806070 Bolt (24 req'd)
83 6B280 Camshaft bearing cap
84 N806282 Bolt (4 req'd)
85 N807173 Bolt (2 req'd)
86 N808102 Bolt
87 19A216 Belt idler pulley
88 10300 Generator
89 N804178 Nut (2 req'd)
90 19A439 Bracket
91 Klj . 5 ba
92003 Mustang Workshop Manual
