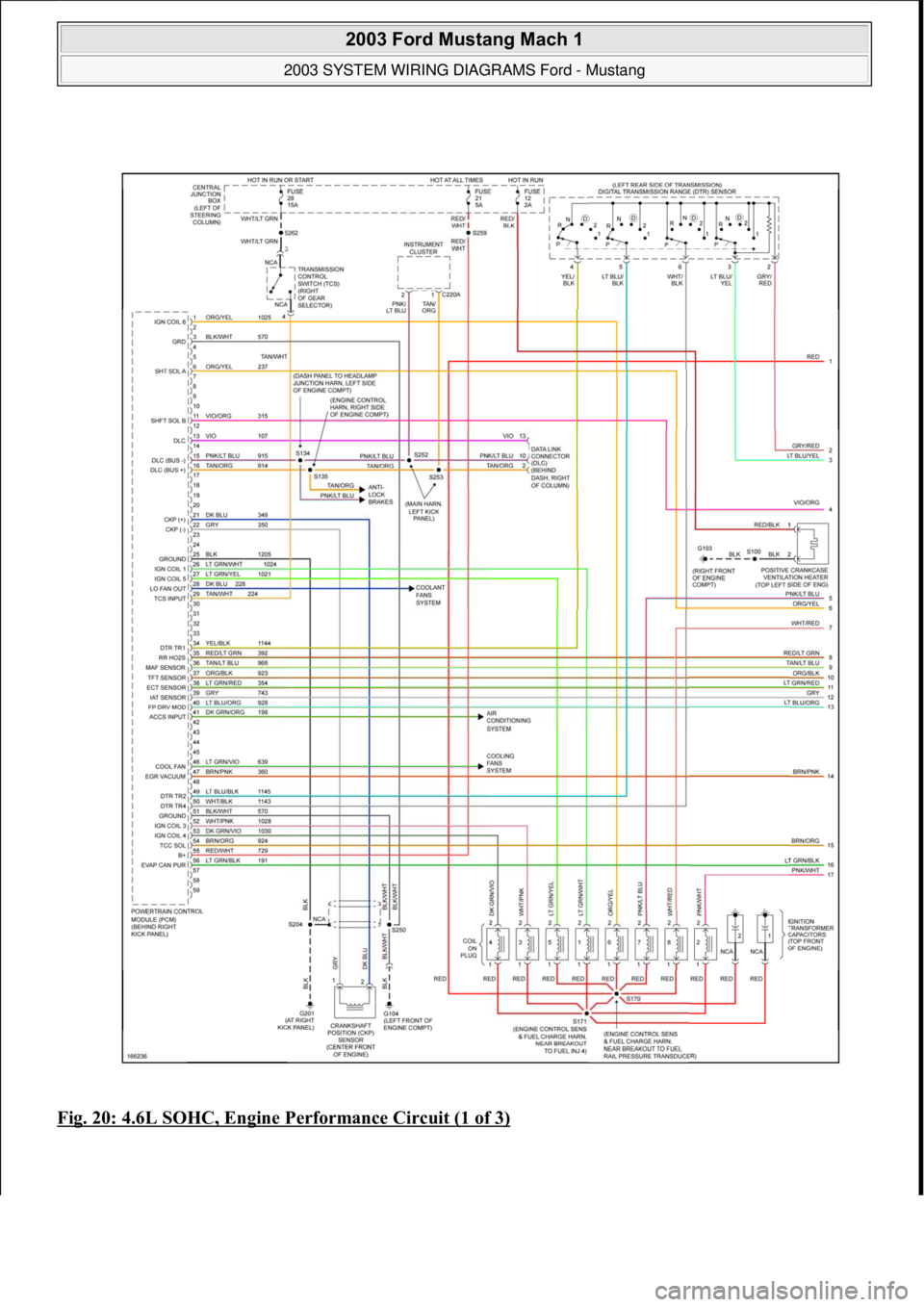

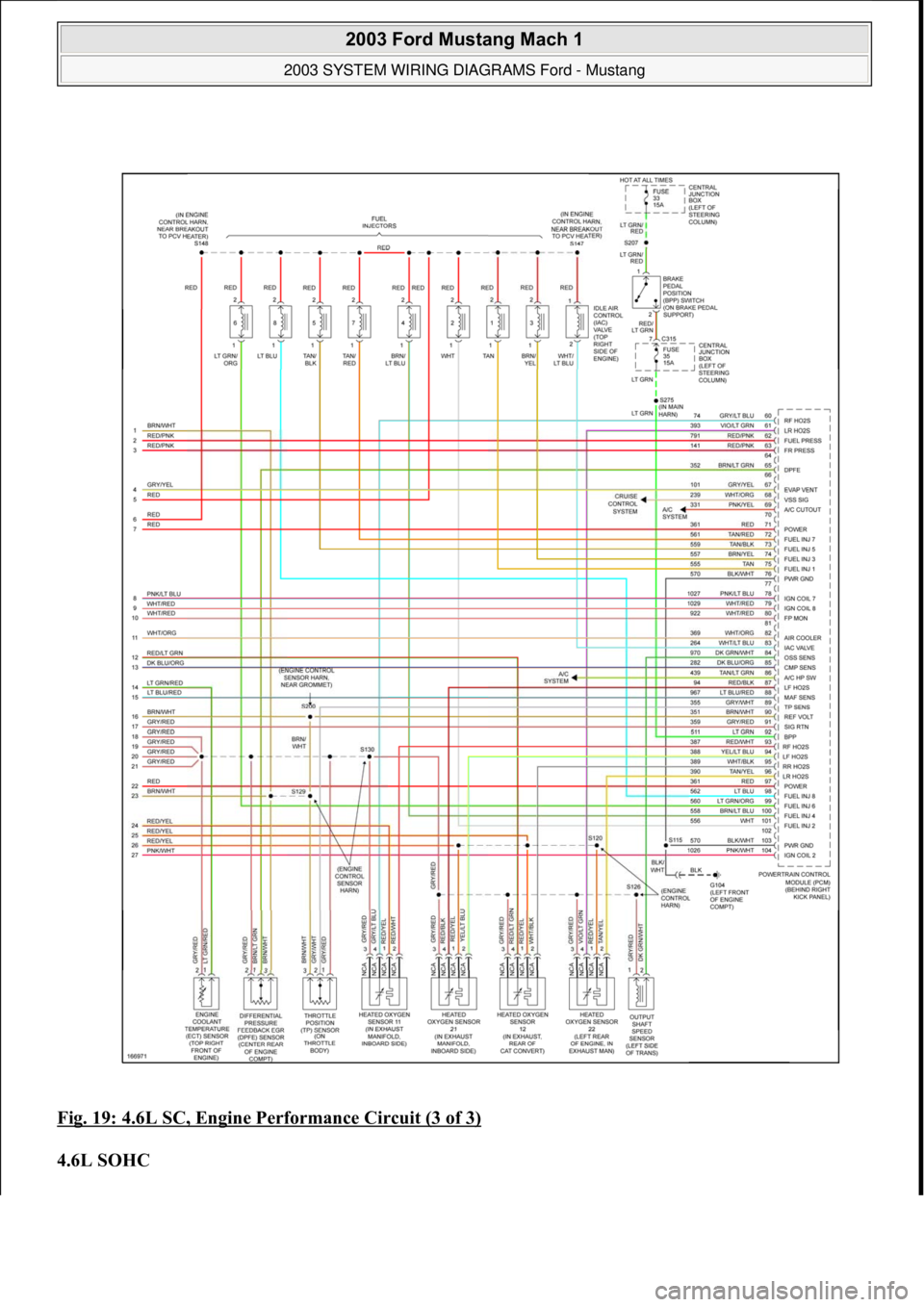

FORD MUSTANG 2003 Workshop Manual Fig. 19: 4.6L SC, Engine Performance Circuit (3 of 3) 4.6L SOHC 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 20 © 2006 Mitc

Page 4343 of 4378

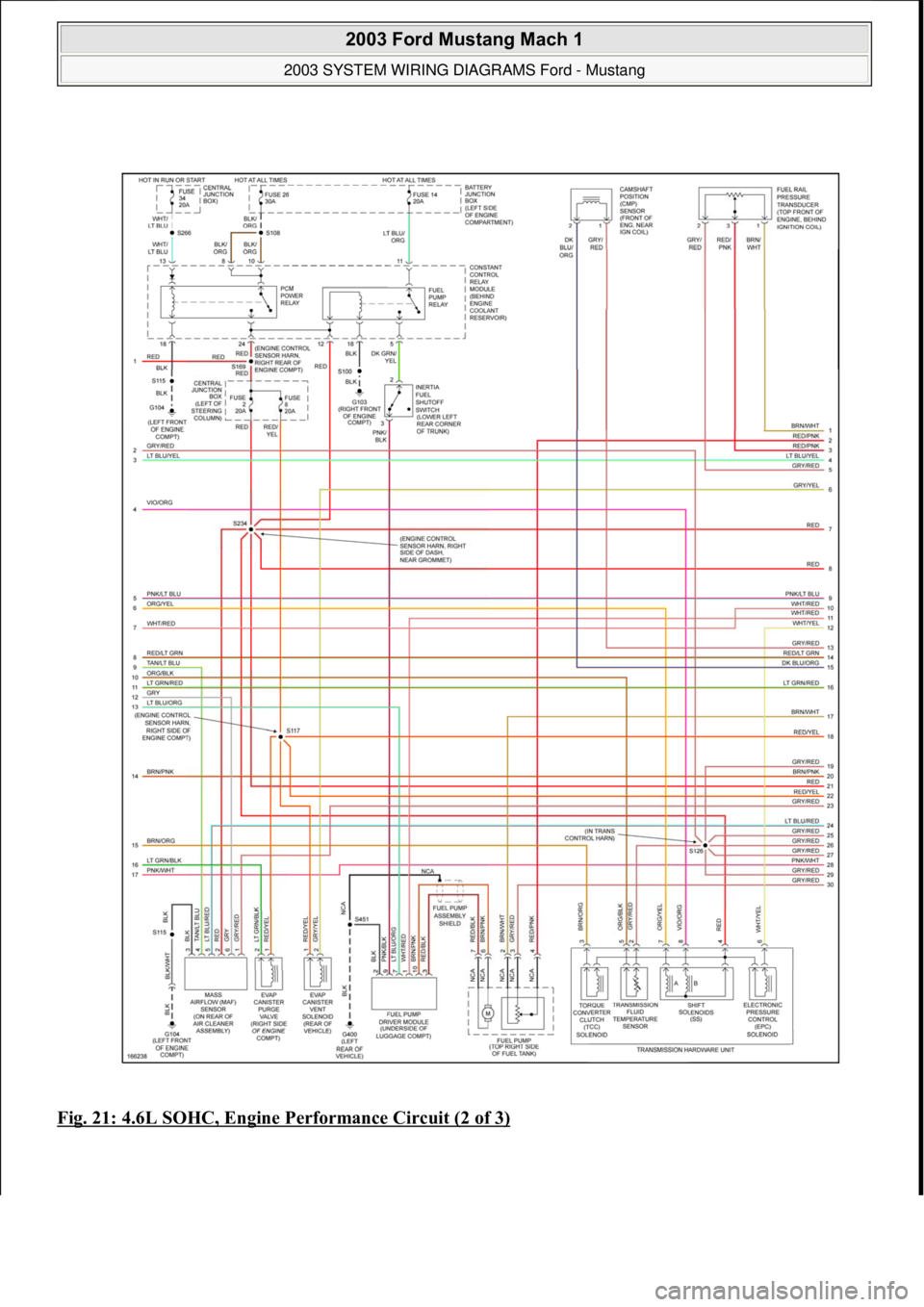

FORD MUSTANG 2003 Workshop Manual Fig. 20: 4.6L SOHC, Engine Performance Circuit (1 of 3) 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 21 © 2006 Mitchell Repair

Page 4344 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 21: 4.6L SOHC, Engine Performance Circuit (2 of 3) 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 22 © 2006 Mitchell Repair

Page 4345 of 4378

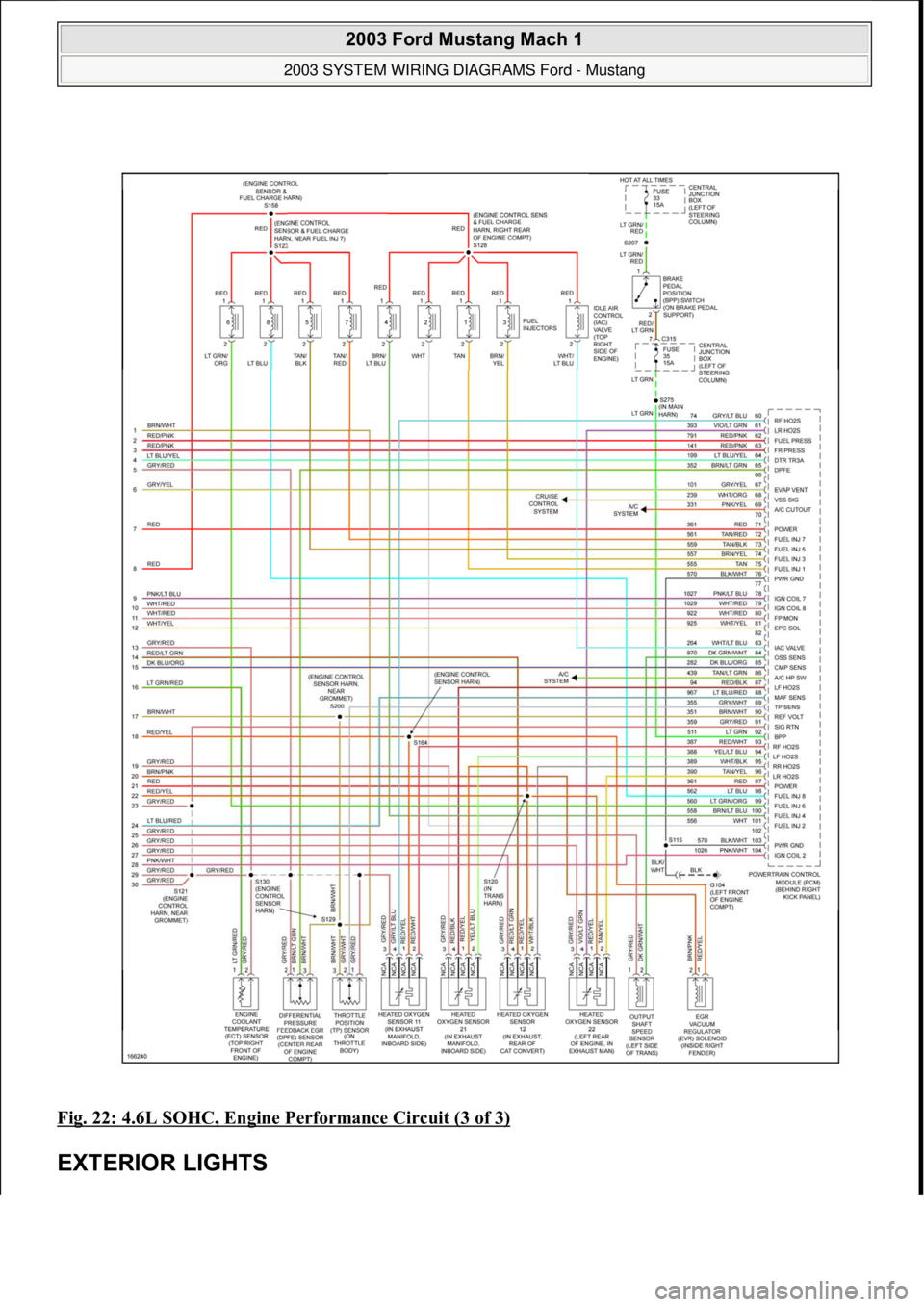

FORD MUSTANG 2003 Workshop Manual Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3) EXTERIOR LIGHTS 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 23 © 20
