DIAGNOSIS AND TESTING
Transmission Drive Cycle Test
NOTE:
Always drive the vehicle in a safe manner according to driving conditions and obey all traffic
laws.
NOTE: The Transmission Drive Cycle Test must be followed exactly. Malfunctions must occur four
times consecutively for shift error DTC code to be set, and five times consecutively for continuous TCC
code to set.
NOTE: When carrying out the Transmission Drive Cycle Test, refer to the Solenoid Application Chart
for correct solenoid operation.
After carrying out the Quick Test, use the Transmission Drive Cycle Test for checking continuous
codes.
1. Record and then erase Quick Test codes.
2. Warm engine to normal operating temperature.
3. Make sure transmission fluid level is correct.
4. With transmission in OVERDRIVE, moderately accelerate from stop to 80 km/h (50 mph). This allows the transmission to shift into fourth gear. Hold speed and throttle open steady for a
minimum of 15 seconds.
5. With transmission in fourth gear and maintaining steady speed and throttle opening, lightly apply and release brake to operate stoplamps. Then hold speed and throttle steady for a
minimum of five seconds.
6. Brake to a stop and remain stopped for a minimum of 20 seconds.
7. Repeat steps 4 through 6 at least five times.
8. Carry out Quick Test and record continuous DTCs. zIf the DTCs are still present, refer to the Diagnostic Trouble Code Chart. Repair all non
transmission DTCs first as they can directly affect the operation of the transmission.
Repeat the Quick Test and the Road Test to verify the correction. Erase the DTCs, carry
out the Drive Cycle Test and repeat the Quick Test after completing repair on the DTC.
z If the continuous test passes and a concern is still present, refer to Diagnosis By Symptom in this section, OASIS messages, and TSBs for concerns.
After On- Board Diagnostic
NOTE: The vehicle wiring harness, PCM and non- transmission sensors may affect transmission
operations. Repair these concerns first.
After the on- board diagnostic procedures are completed, repair all DTCs.
Begin with non- transmission related DTCs, then repair any transmission related DTCs. Use the
diagnostic trouble code chart for information on condition and symptoms. This chart will be helpful in
referring to the correct manual(s) and aids in diagnosing internal transmission concerns and external
non- transmission inputs. The pinpoint tests are used in diagnosing transmission electrical concerns.
Make sure that the vehicle wiring harness and the PCM are diagnosed as well. The Powertrain SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

NOTE:
Refer to the Transmission Vehicle Harness Connector illustration preceding these
pinpoint tests. A1 ELECTRONIC DIAGNOSTICS
z
Select PARK.
z Key in OFF position.
z Check to make sure the transmission harness connector
is fully seated, pins are fully engaged in connector and
in good condition before proceeding.
z Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic
tool: Diagnostic Data Link.
z Enter the following diagnostic mode on the diagnostic
tool: PCM.
z Enter the following diagnostic mode on the diagnostic
tool: Active Command Modes.
z Enter the following diagnostic mode on the diagnostic
tool: Output State Control (OSC).
z Enter the following diagnostic mode on the diagnostic
tool: Trans- Bench Mode.
z Does vehicle enter Trans- Bench Mode? Yes
GO to
A2 .
No
REPEAT procedure to enter
Trans-Bench Mode. If vehicle
did not enter Trans- Bench
Mode, REFER to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis
of PCM. A2 WIGGLE TEST
z
Select PIDs to be monitored.
z Select "ON" to turn suspect solenoid on.
z Press "SEND".
z Wiggle all wiring and connectors to the transmission.
Monitor the Solenoid State for changes.
z Select "OFF" to turn solenoid off.
z Press "SEND".
z Does the suspect solenoid(s) fault state change? PID Command PID Actual
SSA SS1F
SSB SS2F
TCC TCCF Yes
REPAIR open or short in the
vehicle harness or connector.
No
GO to
A3 .
A3 SOLENOID FUNCTIONAL CHECK
z
Monitor each solenoid state.
z Turn each solenoid ON and OFF.
z Does the solenoid turn ON and OFF when
commanded and can solenoid activation be heard? Yes
GO to
A4 .
No
GO to A5 .
A4 OSC TRANS-
DRIVE MODE (GR_CM OR TCC) z
Carry out OSC Trans- Drive Mode.
z Select GR_CM for Shift Solenoids or follow procedures
for GR_CM as listed.
z Select TCC for Torque Converter Clutch Solenoid.
Follow procedures of TCC in Drive Mode as listed.
z Does the transmission upshift and downshift or
torque converter engage/disengage when
commanded? Yes
CLEAR all DTCs. ROAD TEST
to verify if concern is still
present. If concern is still
present, REFER to
Diagnosis By Symptom in this section to
diagnose shift or torque
converter concern.
No
GO to A5 .
A5 CHECK FOR BATTERY VOLTAGE
z
Remove transmission fluid pan. Yes Klj . 4 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT)
SENSOR
Test Step Result / Action to Take
NOTE:
Refer to the Transmission Connector Layouts preceding these pinpoint tests. B1 ELECTRONIC DIAGNOSTICS
z
Check to make sure the transmission harness
connector is fully seated, pins are fully engaged in
connector and in good condition before proceeding.
z Connect the diagnostic tool.
z Key in ON position.
z Select Diagnostic Data Link.
z Select PCM.
z Select PID/Data Monitor and Record.
z Enter the following diagnostic mode on the diagnostic
tool: PIDs; TFT, TFTV.
z Does the vehicle enter PID/Data Monitor and
Record? Yes
GO to
B2 .
No
REPEAT procedure to enter PID. If
vehicle did not enter PID, REFER
to the Powertrain
Control/Emissions Diagnosis
(PC/ED) manual for diagnosis of
PCM. B2 WARM-
UP/COOL-DOWN CYCLE z
While monitoring the TFT PIDs, carry out the
following test: If transmission is cold, run transmission
to warm it up. If transmission is warm, allow
transmission to cool down.
z Do the TFT PIDs increase as the transmission is
warmed up or decrease as the transmission is
cooled or does the TFT or TFTV drop in and out
of range? Yes
If the TFT PIDs increase as the
transmission is warmed or
decrease as the transmission is
cooled, CLEAR all DTCs. ROAD
TEST to verify if concern is still
present. If concern is still present,
REFER to
Diagnosis By Symptom in this section to diagnose
transmission overheating.
If the TFT or TFTV drop in and out
of range, INSPECT for intermittent
concern in the internal/external
harness, sensor or connector.
No
GO to
B3 .
B3 ELECTRICAL SIGNAL CHECK
z
Key in ON position.
z Remove transmission fluid pan.
z Visually inspect the lead frame and connectors for
damage.
z Measure the voltage with the positive lead to positive
TFT at sensor pin and negative lead to a good
ground. Yes
GO to
B4 .
No
CHECK for open or short circuit in
vehicle harness, internal harness
or a PCM concern. Klj . 8 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

PINPOINT TEST C: DIGITAL TRANSMISSION RANGE (TR) SENSOR z
Is the voltage present? B4 CHECK RESISTANCE OF TFT SENSOR
z
Disconnect: Transmission Harness .
z Measure the resistance between the positive TFT
and negative TFT pins at transmission connector,
using the following:
z Is the resistance correct? Transmission Fluid Temperature °C °F Resistance (Ohms)
-40 to -
20 -
40 to - 4 967K - 284K
-
19 to - 1 -3 - 31 284K - 100K
0 - 20 32 - 68 100K -
37K 21 - 40 69 -
104 37K - 16K
41 - 70 105 - 158 16K - 5K
71 - 90 159 - 194 5K -
2.7K 91 - 110 195 - 230 2.7K - 1.5K
111 - 130 231 - 266 1.5K - 0.8K
131 - 150 267 - 302 0.8K -
0.54K Yes
REFER to
Diagnosis By Symptom in this section to diagnose an
overheating concern.
No
INSTALL a new internal harness
(sensor is part of harness).
Test Step Result / Action to Take
NOTE:
Refer to the Digital Transmission Range (TR) Sensor Connector illustration preceding
these pinpoint tests. NOTE:
Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart preceding these
pinpoint tests. Klj . 9 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

D2 SOLENOID FUNCTIONAL TEST
z
Install 2,060 kPa (300 psi) pressure gauge into EPC tap.
z Monitor pressure gauge.
z Enter the following diagnostic mode on the diagnostic tool:
Parameter; EPC.
z Select value - 15, 30, 45, 60, 70 or 90 psi.
z Press "SEND".
z Select another value "0- 90 psi".
z Press "SEND".
z Enter the following diagnostic mode on the diagnostic tool:
XXX.
z Press "SEND".
z Does the pressure reading match the commanded
pressure? Yes
CLEAR DTCs. REPEAT OBD
Tests.
No
GO to
D3 .
D3 CHECK FOR BATTERY VOLTAGE
z
Remove transmission fluid pan.
z Visually inspect the lead frame connectors for damage.
z Key in ON position.
z Measure the voltage with positive lead to VPWR solenoid
pin and negative lead to a good ground.
z Is voltage greater than 10 volts? Yes
GO to
D4 .
No
REPAIR the circuit. CLEAR
the DTCs. REPEAT the OBD
Tests. D4 ELECTRICAL SIGNAL CHECK
z
Measure the voltage with positive lead connected to
VPWR solenoid pin and connect negative lead to the
signal pin of the EPC solenoid.
z Turn the solenoids ON and OFF, while monitoring the
voltage reading, solenoid state on the scan tool (ON and
OFF), listen for the solenoid to activate (click).
z Enter the following diagnostic mode on the diagnostic tool:
Trans- Bench Mode.
z Enter the following diagnostic mode on the diagnostic tool:
Parameter EPC.
z Select a value "0- 90 psi".
z Press "SEND".
z Select another value "0- 90 psi".
z Press "SEND".
z Enter the following diagnostic mode on the diagnostic tool: Yes
GO to
D5 .
No
CHECK for open or short
circuit in harness or PCM. Klj . 18 ba
222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Stall Speed Test
WARNING: Apply the parking brake firmly while carrying out each stall test.
CAUTION: Carry out line pressure test prior to carrying out stall test. If the line pressure is
low at stall, do not carry out stall test or further transmission damage will occur.
The stall speed test checks:
zthe torque converter clutch operation and installation.
z the holding ability of the forward clutch.
z the reverse clutch (the low- reverse bands).
z the planetary one- way clutch.
z the engine driveability.
Conduct this test with the engine coolant and transmission fluid at correct levels and at normal
operating temperature.
Apply the parking brake firmly for each stall speed test. 1. Find the specified stall rpm for the vehicle; see the stall speed diagnosis chart. Use a grease pencil to mark the rpm on the dial of a tachometer.
2. Connect a tachometer to the engine.
3. NOTE: If the rpm recorded by the tachometer exceeds the maximum limits, release the
accelerator pedal immediately because clutch or band slippage is indicated.
In each of the following ranges (D), 2, 1, R, press the accelerator pedal to the floor and hold it ·
Reverse Clutch Low In Neutral Only ·
Valve Body Low In Overdrive Only ·
Forward Clutch ·
Valve Body Low In 1st Position Only ·
Forward Clutch ·
Valve Body ·
Low/Reverse Servo Low In 2nd Only ·
Intermediate Clutch ·
Valve Bodies ·
Forward Clutch Stall Speed
Application Min. Max.
3.8L engine 2,240 2,619
4.6L 2V engine 2,339 2,738
4.6L 4V MACH 1 engine 2,375 2,767 Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

A no-
drive condition can exist even with correct transmission fluid pressure because of inoperative
clutches or bands. An erratic shift can be located through a series of checks by substituting air
pressure for fluid pressure to determine the location of the malfunction.
Follow the procedure to determine the location of the inoperative clutch or band by introducing air
pressure into the various test plate passages.
NOTE: Use only dry, regulated 276 kPa (40 psi) maximum air pressure.
Apply air to the appropriate passage(s). A dull thud should be felt or heard or movement could be
observed when the clutch component applies. There should be no hissing sound when the component
is applied.
Cover the vent hole in the test plate with a clean, lint- free shop towel to prevent spray when the air is
applied. Plugging the vent hole during testing will result in inaccurate results.
1. Drain transmission fluid and remove the transmission fluid pan.
2. Remove the main control valve body.
3. Install transmission test plate and gasket. Tighten bolts to 10 Nm (89 lb- in).
4. NOTE: Do not apply air to the test plate vent hole.
Apply air to the appropriate clutch port (refer to the Transmission Air Test Plate illustration). A
dull thud may be heard or movement felt when the component is applied or released. If clutch
seals or check balls are leaking a hissing sound may be heard.
If the servos do not operate, disassemble, clean and inspect them to locate the source of the concern.
If air pressure applied to the clutch passages fails to operate a clutch, or operates clutches
simultaneously, inspect the fluid passages in the case.
If air pressure applied to the accumulator fails to operate an accumulator, remove and inspect case
passages and piston.
Clutch Pressure Test
The Clutch Pressure Test will diagnose a low- pressure condition or leakage in a clutch circuit. A
difference of 103 kPa (15 psi) or more between the clutch pressure and line pressure will prevent a
normal shift.
1. CAUTION: Pressure gauges affect the shift quality of the transmission. Care must
be taken not to accelerate or decelerate rapidly. Possible transmission failure can result.
Attach 0- 2068 kPa (0- 300 psi) pressure gauges to the line pressure tap and the appropriate
clutch pressure tap according to Band and Clutch Application Chart A&B. Gauges must be
accurate enough to distinguish a 103 kPa (15 psi) difference. (If this test is done in conjunction
with a control pressure test, pressure gauges will be attached to all pressure taps.) Have
sufficient flexible hose available to read the gauges in the vehicle.
2. Drive the vehicle. When pressure is applied to the clutch, note the difference between the line pressure gauge and the corresponding clutch pressure gauge.
3. If the difference in pressures is less than 103 kPa (15 psi), the corresponding clutch circuit does not have a pressure loss. The gauges on the line pressure tap and appropriate clutch pressure
tap can be switched to confirm that gauge calibration differences are not the cause. Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Leakage Inspection
CAUTION: Do not try to stop the fluid leak by increasing the torque beyond specifications.
This may cause damage to the case threads.
Check the fluid filler tube connection at the transmission case. If leakage is found here, install a new
grommet.
Check the VSS plug or VSS sensor O-ring (model dependent). If leakage is found install a new O- ring.
Check fluid lines and fittings between the transmission and the cooler in the radiator tank for
looseness, wear, or damage. If leakage cannot be stopped by tightening a fluid tube nut, install new
parts. When fluid is found leaking between the case and cooler line fitting, check for missing or
damaged O- ring, then tighten the fitting to maximum specification.
If the leak continues, install a new cooler line fitting and tighten to specification. The same procedure
should be followed for fluid leaks between the radiator cooler and the cooler line fittings in this section;
refer to Section 307 - 02 .
Check the engine coolant in the radiator. If transmission fluid is present in the coolant, the cooler in the
radiator is probably leaking.
The cooler can be further checked for leaks by disconnecting the lines for the cooler fittings and
applying no more than 345 kPa (50 psi) air pressure to the fittings. Remove the radiator cap to relieve
the pressure buildup at the exterior of the oil cooler tank. If the cooler is leaking and or will not hold
pressure, install a new cooler.
If leakage is found at the transmission range selector lever, install a new seal.
If leakage is found at the transmission internal harness connector, install a new O- ring. 4R70W External Sealing SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

following areas of possible leakage should also be checked to determine if engine oil leakage is
causing the concern.
a. Leakage at the engine valve cover gasket may allow oil to flow over the torque converter housing or seep down between the torque converter housing and cylinder block causing oil to
be present in or at the bottom of the torque converter housing.
b. Oil galley plug leaks will allow oil to flow down the rear face of the cylinder block to the bottom of the torque converter housing.
c. Leakage at the crankshaft rear oil seal will work back to the flexplate, and then into the torque converter housing.
d. Leakage at engine oil pressure sensor.
Leak Check Test 1. Remove the fluid level indicator and note the color of the fluid. Original factory fill fluid is dyed red to aid in determining if leakage is from the engine or transmission. Unless a considerable
amount of makeup fluid has been added or the fluid has been changed, the red color should
assist in pinpointing the leak.
2. Remove the torque converter housing cover. Clean off any fluid from the top and bottom of the torque converter housing, front of the case and rear face of the engine and oil pan. Clean the
torque converter area by washing with a suitable nonflammable solvent and blow dry with
compressed air.
3. Wash out the torque converter housing, the front of the flexplate and the converter drain plugs. The torque converter housing may be washed out using cleaning solvent and a squirt- type oil
can. Blow all washed areas dry with compressed air.
4. Start and run the engine until the transmission reaches its normal operating temperature. Observe the back of the cylinder block and top of the torque converter housing for evidence of
fluid leakage. Raise the vehicle on a hoist; refer to Section 100 - 02 and run the engine at fast
idle, then at engine idle, occasionally shifting to the Overdrive and Reverse ranges to increase
pressure within the transmission. Observe the front of the flexplate, back of the cylinder block
(in as far as possible), and inside the torque converter housing and front of the case. Run the
engine until fluid leakage is evident and the probable source of leakage can be determined.
Leak Check Test With Black Light Used With 12 Volt Master UV Diagnostic Inspection Kit
Oil soluble aniline or fluorescent dyes premixed at the rate of 2.5ml (1/2 teaspoon) of dye powder to
0.235L (1/2 pint) of transmission fluid have proved helpful in locating the source of fluid leakage. Such
dyes may be used to determine whether an engine oil or transmission fluid leak is present, or if the
fluid in the fluid cooler leaks into the engine cooling system. A black light must be used with the
fluorescent dye solution. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

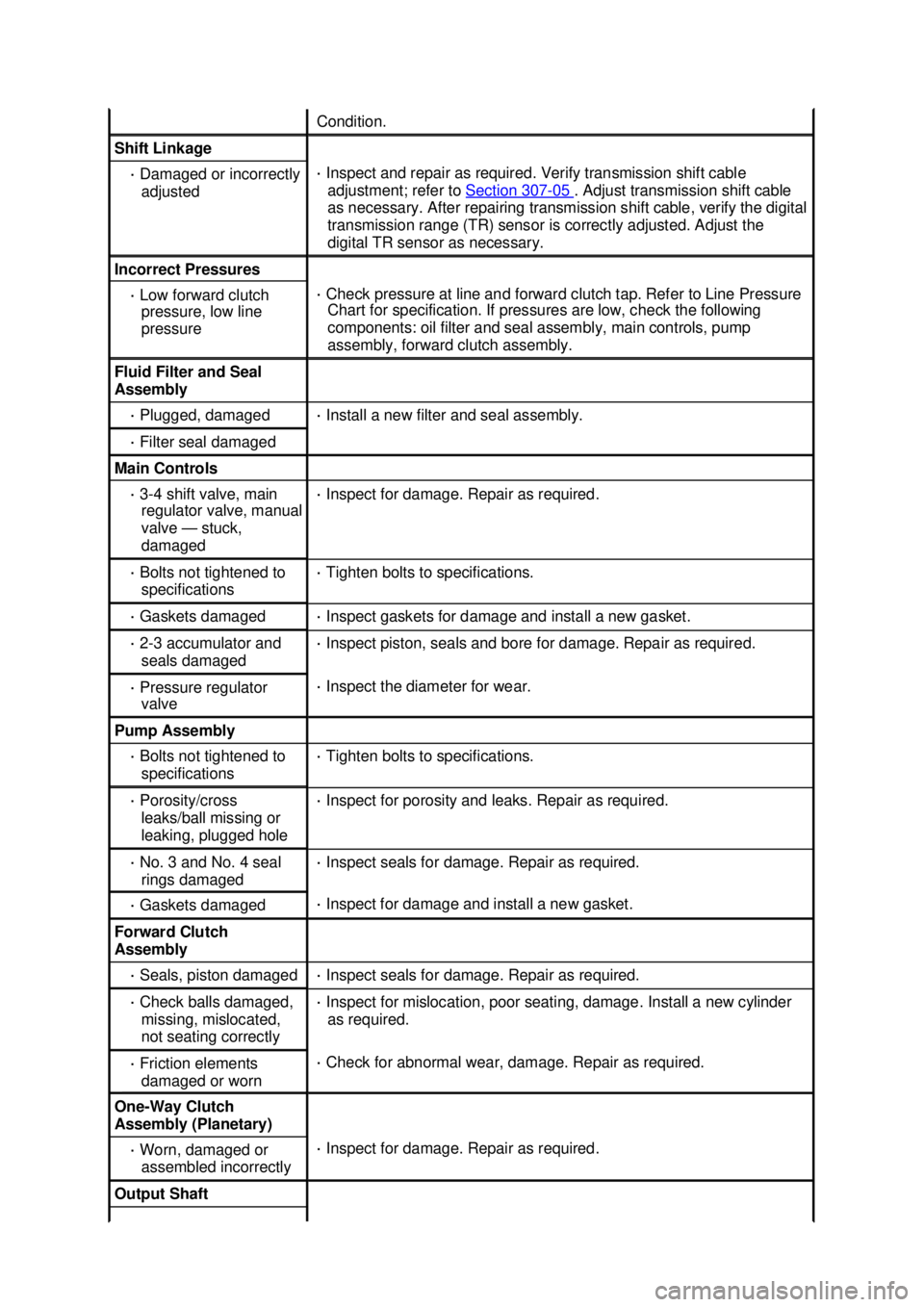

Condition.
Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift cable
as necessary. After repairing transmission shift cable, verify the digital
transmission range (TR) sensor is correctly adjusted. Adjust the
digital TR sensor as necessary. Incorrect Pressures
·
Low forward clutch
pressure, low line
pressure ·
Check pressure at line and forward clutch tap. Refer to Line Pressure
Chart for specification. If pressures are low, check the following
components: oil filter and seal assembly, main controls, pump
assembly, forward clutch assembly. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. ·
Filter seal damaged Main Controls
·
3- 4 shift valve, main
regulator valve, manual
valve — stuck,
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect gaskets for damage and install a new gasket. ·
2- 3 accumulator and
seals damaged ·
Inspect piston, seals and bore for damage. Repair as required. ·
Pressure regulator
valve ·
Inspect the diameter for wear. Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Porosity/cross
leaks/ball missing or
leaking, plugged hole ·
Inspect for porosity and leaks. Repair as required. ·
No. 3 and No. 4 seal
rings damaged ·
Inspect seals for damage. Repair as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Forward Clutch
Assembly
·
Seals, piston damaged ·
Inspect seals for damage. Repair as required. ·
Check balls damaged,
missing, mislocated,
not seating correctly ·
Inspect for mislocation, poor seating, damage. Install a new cylinder
as required. ·
Friction elements
damaged or worn ·
Check for abnormal wear, damage. Repair as required. One-
Way Clutch
Assembly (Planetary) ·
Worn, damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. Output Shaft Klj . 4 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
