2.
CAUTION: Align the index marks.
Install the driveshaft. For additional information, refer to Section 205 - 01 .
3. Check the transmission fluid level, add fluid if necessary.
4. Lower the vehicle. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

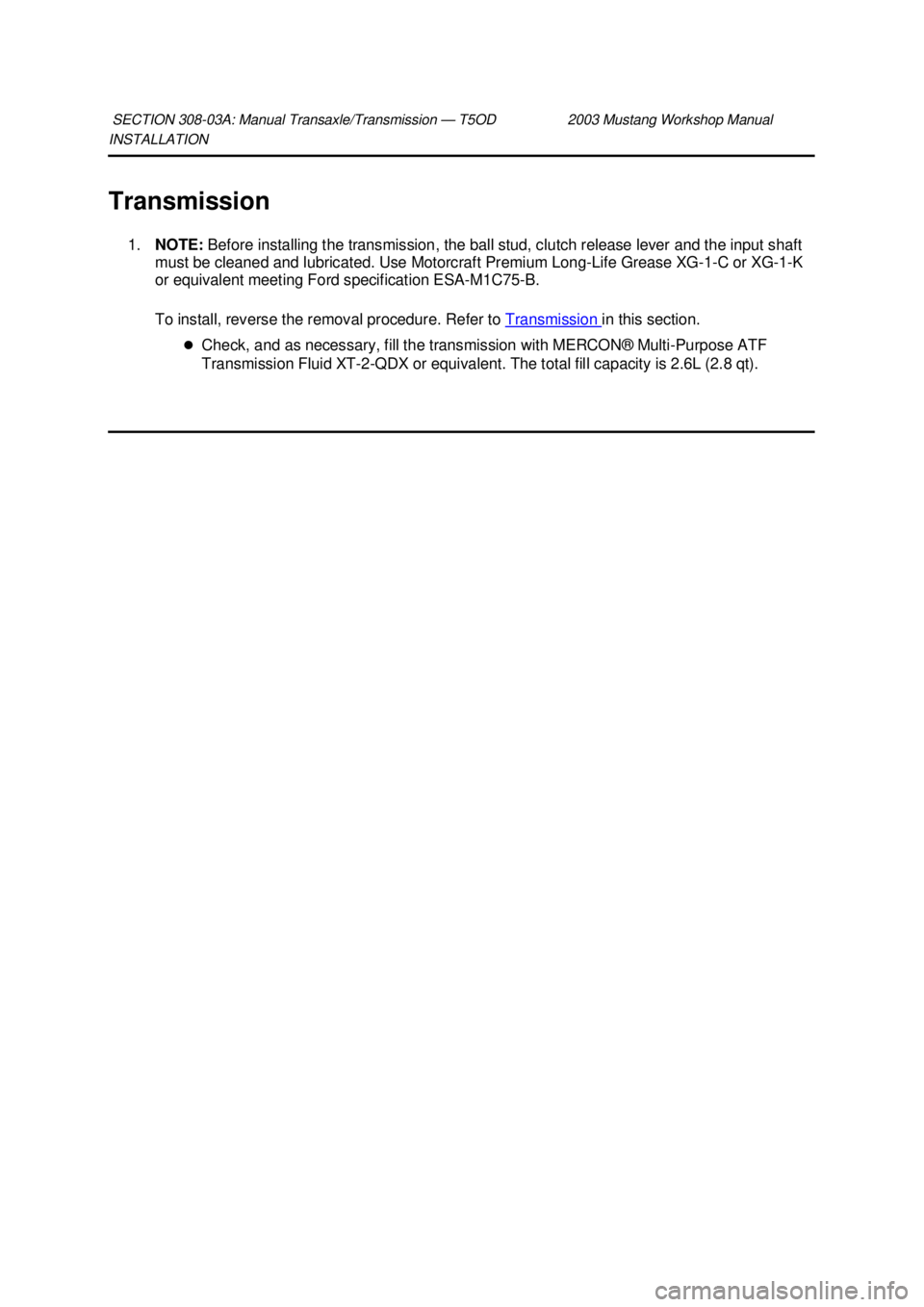

INSTALLATION
Transmission
1. NOTE: Before installing the transmission, the ball stud, clutch release lever and the input shaft
must be cleaned and lubricated. Use Motorcraft Premium Long-Life Grease XG-1- C or XG-1-K
or equivalent meeting Ford specification ESA- M1C75-B.
To install, reverse the removal procedure. Refer to Transmission in this section.
z Check, and as necessary, fill the transmission with MERCON® Multi- Purpose ATF
Transmission Fluid XT -2-QDX or equivalent. The total fill capacity is 2.6L (2.8 qt).
SECTION 308-
03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

2.
CAUTION: Align the index marks.
Install the driveshaft. For additional information, refer to Section 205 - 01 .
3. Check the transmission fluid level, add fluid if necessary.
4. Lower the vehicle. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

16. Remove the snap ring, then using the special tool, press off the first/second gear synchronizer.
Assembly 1. Carry out the following before reassembling: zInspect the gears for broken or cracked teeth. Check for unusual wear patterns.
z Inspect the thrust washers for face wear, cracks, scoring and for signs of heat damage.
z Inspect the bearings, bearing cups and the synchronizers for wear or damage.
z Inspect the output shaft for scoring or worn or damaged splines. Install new components
as necessary.
2. Lubricate all components with the recommended transmission fluid when reassembling.
3. NOTE: Position the output shaft with the output end facing upward.
NOTE: Install the synchronizer assembly with the deeper center flange of the synchronizer hub
facing toward the rear of the output shaft.
Install the first/second synchronizer assembly on the output shaft, then install a new retaining
ring.
zIt may be necessary to press the hub into position on the shaft. Klj . 6 ba
172003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

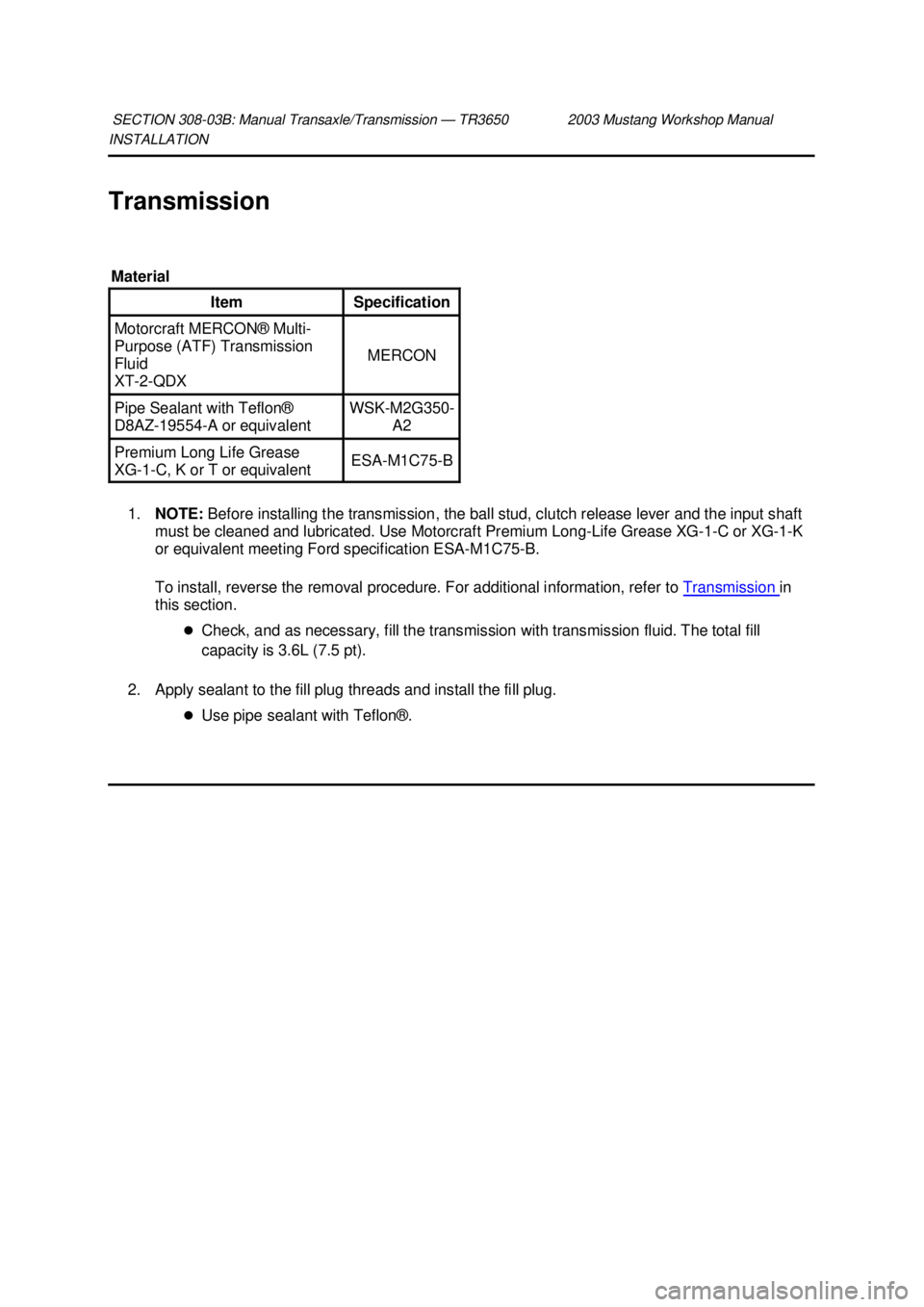

INSTALLATION
Transmission
1. NOTE: Before installing the transmission, the ball stud, clutch release lever and the input shaft
must be cleaned and lubricated. Use Motorcraft Premium Long-Life Grease XG-1- C or XG-1-K
or equivalent meeting Ford specification ESA- M1C75-B.
To install, reverse the removal procedure. For additional information, refer to Transmission in
this section.
zCheck, and as necessary, fill the transmission with transmission fluid. The total fill
capacity is 3.6L (7.5 pt).
2. Apply sealant to the fill plug threads and install the fill plug. zUse pipe sealant with Teflon® .
SECTION 308-
03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft MERCON® Multi-
Purpose (ATF) Transmission
Fluid
XT
-2-QDX MERCON
Pipe Sealant with Teflon®
D8AZ-
19554- A or equivalent WSK-
M2G350-
A2 Premium Long Life Grease
XG
-1-C, K or T or equivalent ESA-
M1C75- B Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES

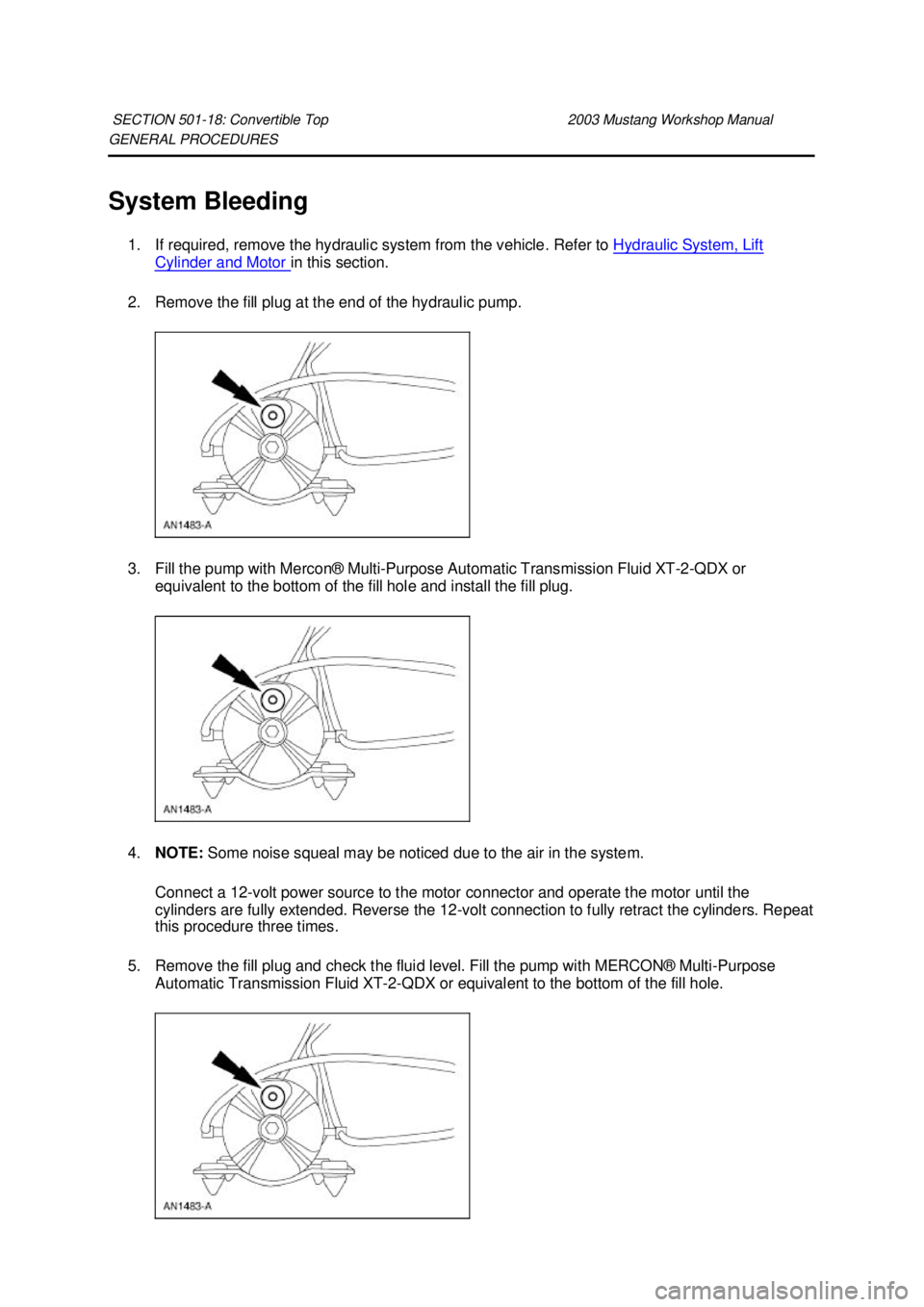

System Bleeding
1. If required, remove the hydraulic system from the vehicle. Refer to Hydraulic System, Lift Cylinder and Motor in this section.
2. Remove the fill plug at the end of the hydraulic pump.
3. Fill the pump with Mercon® Multi- Purpose Automatic Transmission Fluid XT -2-QDX or
equivalent to the bottom of the fill hole and install the fill plug.
4. NOTE: Some noise squeal may be noticed due to the air in the system.
Connect a 12- volt power source to the motor connector and operate the motor until the
cylinders are fully extended. Reverse the 12- volt connection to fully retract the cylinders. Repeat
this procedure three times.
5. Remove the fill plug and check the fluid level. Fill the pump with MERCON® Multi- Purpose
Automatic Transmission Fluid XT -2-QDX or equivalent to the bottom of the fill hole.
SECTION 501-
18: Convertible Top 2003 Mustang Workshop Manual Klj . 1 ba
