REMOVAL AND INSTALLATION
Actuator —
Speed Control Servo
1. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed
to these charges, damage may result.
Disconnect the battery ground cable.
2. Remove the LH wheel and tire; refer to Section 204 - 04 .
3. Position aside the LH front splash shield. 1. Remove the pin- type retainers.
2. Remove the screws.
3. Position aside the LH front splash shield.
4. Disconnect the speed control servo electrical connector.
5. Depress the locking tab and rotate the speed control actuator cable cap to remove.
SECTION 310-
03: Speed Control 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

GENERAL PROCEDURES
Headlamp Adjustment
Headlamp Aiming
1. The headlamp aiming procedure depends on the type of beam pattern the headlamp is equipped with. Vehicles may come equipped with visual optical right (VOR), visual optical left
(VOL), or SAE only (includes sealed beam type) headlamps. To identify the headlamp beam
pattern, look on the headlamp lens. Molded in small letters on the headlamp lens is one of the
following:
zSAE
z VOR or SAE
z VOL or SAE
2. Once the headlamp beam pattern is identified, aim the headlamps using one of the following methods as applicable.
zPhotometric aimers can aim SAE, VOR and VOL type headlamps. This is the preferred
method of headlamp aiming.
z Visual or screen method aiming can be used to aim SAE, VOR and VOL type
headlamps.
z Mechanical aimers can be used only with SAE type headlamps. Lamps that can be
aimed mechanically will have three nibs molded into the lens of the lamp.
Photometric Aiming 1. For the photometric aiming procedure, refer to the appropriate photometric headlamp aimer instruction manual.
Screen Method Aiming
All headlamp types
NOTE: Horizontal aim is not necessary for VOR or VOL headlamps.
NOTE: Consult your state vehicle inspection manual for recommended tolerance ranges for visual
aiming.
NOTE: The sight shield may need to be positioned or removed for access to the adjusters.
1. Before starting headlamp adjustment: zCheck the tire inflation.
z Check that no other load is in the vehicle other than a half tank of fuel.
z Check that the headlamps are clean.
z Check for correct headlamp operation.
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Instrument Panel
Removal
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to
these charges, damage may result.
1. Remove the driver air bag module. For additional information, refer to Section 501 - 20B .
2. Remove the passenger air bag module. For additional information, refer to Section 501 - 20B .
3. Remove the LH front wheel and tire assembly. For additional information, refer to Section 204 -
04 .
4. Position the LH fender splash shield away from the dash panel. 1. Remove the pin- type retainers.
2. Remove the screws.
3. Position the LH fender splash shield away from the dash panel.
5. Disconnect the bulkhead electrical connector from inside the fender opening. 1. Loosen the bolt.
2. Disconnect the bulkhead electrical connector.
6. Release the bulkhead electrical connector from the dash panel.
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

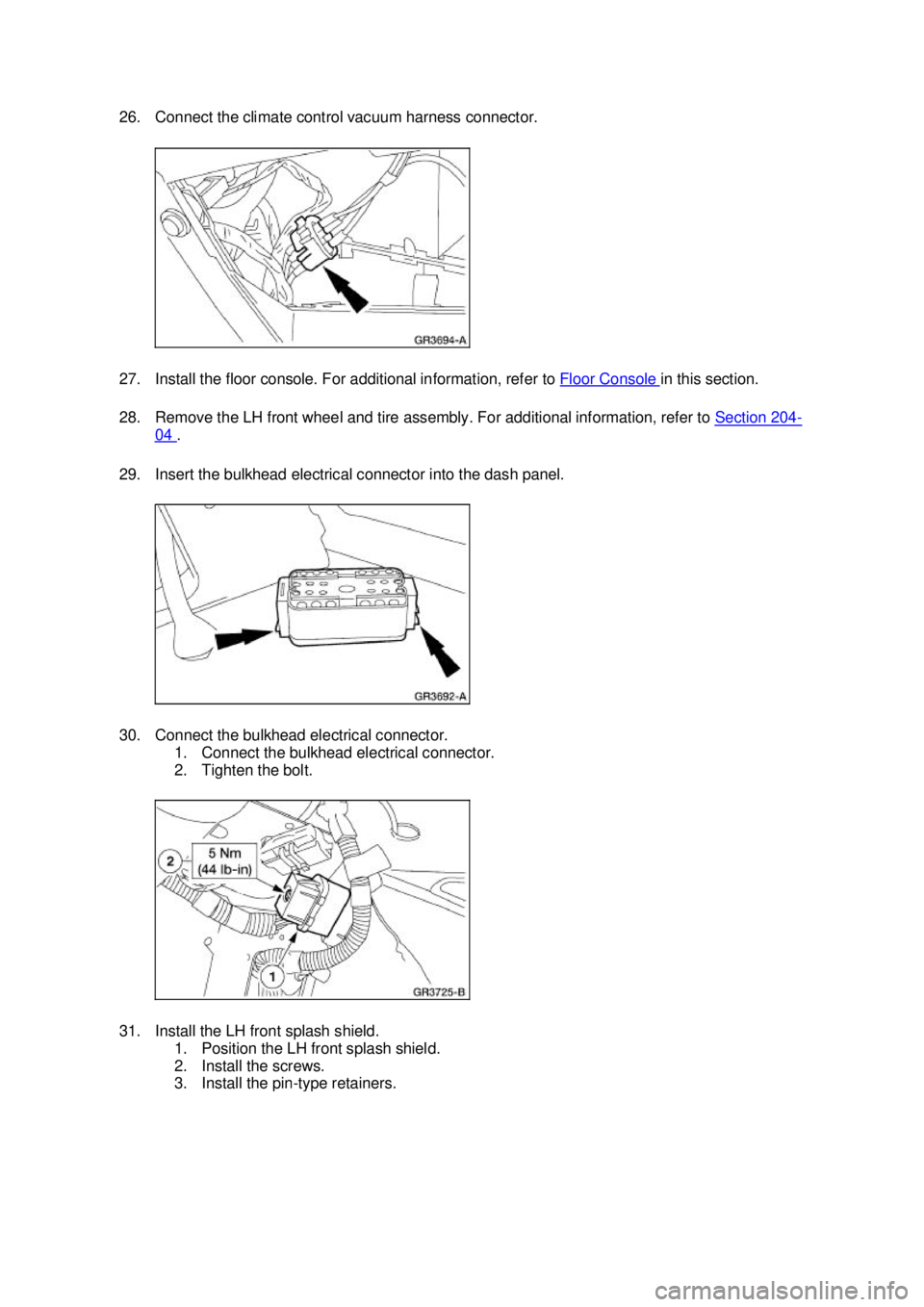

26. Connect the climate control vacuum harness connector.
27. Install the floor console. For additional information, refer to
Floor Console in this section.
28. Remove the LH front wheel and tire assembly. For additional information, refer to Section 204 -
04 .
29. Insert the bulkhead electrical connector into the dash panel.
30. Connect the bulkhead electrical connector. 1. Connect the bulkhead electrical connector.
2. Tighten the bolt.
31. Install the LH front splash shield. 1. Position the LH front splash shield.
2. Install the screws. 3. Install the pin - type retainers. Klj . 14 ba
