FORD MUSTANG 2003 Workshop Manual

4.
WARNING: When lifting a battery, excessive pressure on the end walls may cause
acid to leak out through the vent caps, resulting in personal injury, damage to the vehicle
or the battery. Failure to follow these instructions may result in personal injury.
Remove the battery by lifting from the corners of the battery.
5. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle needs to be driven to
relearn the strategy.
To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Battery Tray
Removal and Installation
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always
provide ventilation. Failure to follow these instructions may result in personal injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
1. Remove the battery. For additional information, refer to Battery in this section.
2. Remove the battery tray bolts and washers.
3. Remove the battery tray.
4. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle needs to be driven to
relearn the strategy.
To install, reverse the removal procedure.
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Battery Cables
Removal
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always
provide ventilation. Failure to follow these instructions may result in personal injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
All vehicles
1. Remove the battery. For additional information, refer to Battery in this section.
2. If equipped, unplug the engine heater intermediate connection.
3. Remove the battery ground cable harness bolt from the radiator support and release the cable harness locators.
4. Disconnect the battery cable harness electrical connectors.
5. CAUTION: The square terminal from the battery must be installed first, followed by
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

the round terminal from the generator. Reversing this sequence may cause circuit failure
or arcing.
Remove the battery junction box nut and position the positive battery cable and generator B+
cable aside.
Vehicles with 3.8L and 4.6L 2V engines 6. Remove the cable harness front support bracket by removing the nut, and position the bracket aside.
Vehicles with 4.6L 4V engines 7. Remove the nut and position the left upper battery cable bracket aside.
All vehicles 8. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
9. NOTE: 4.6L 4V shown; 3.8L and 4.6L 2V similar.
If equipped, remove the block heater plug from the block heater and the harness locators from Klj . 2 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

the oil pan clips.
10. NOTE: 4.6L 4V shown; 3.8L and 4.6L 2V similar.
Disconnect the oil pressure sender unit electrical connector.
11. CAUTION: Failure to tighten the negative cable ground nut may cause ground
circuit failure or arcing.
NOTE: 4.6L 2V shown; 3.8L and 4.6L 4V similar.
Remove the battery ground cable nut at the engine block.
12. Remove the nut and disconnect the generator electrical connections. zPosition the cover aside. Klj . 3 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

13.
NOTE: 4.6L 2V shown; 3.8L and 4.6L 4V similar.
Remove the front lower cable harness bracket nuts.
14. Pull the harness assembly downward until it clears the engine/radiator area.
15. NOTE: 4.6L 2V shown; 3.8L and 4.6L 4V similar.
Remove the right engine mount cable harness bracket nut.
16. Remove the cover from the starter solenoid connections. Klj . 4 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

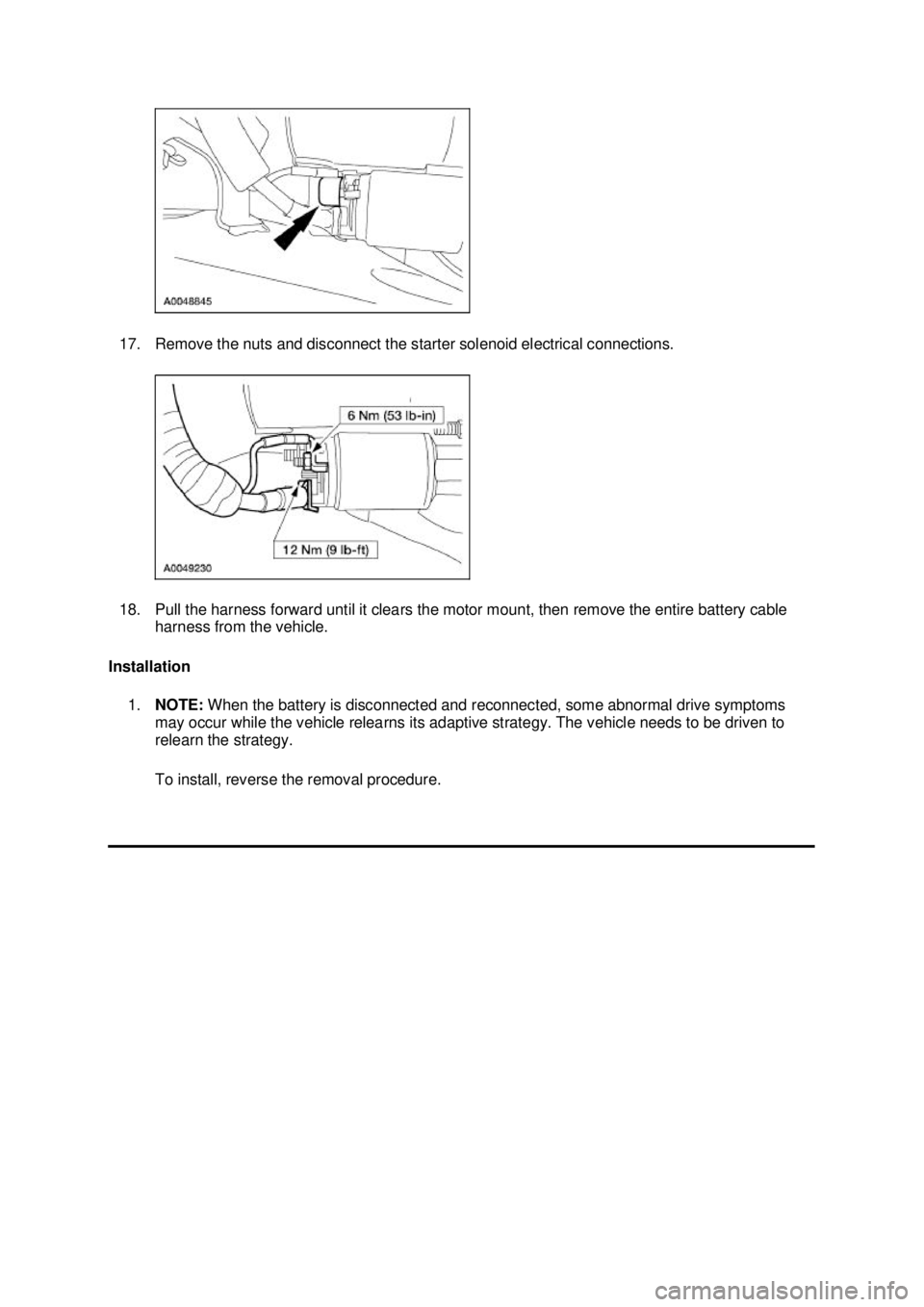

17. Remove the nuts and disconnect the starter solenoid electrical connections.
18. Pull the harness forward until it clears the motor mount, then remove the entire battery cable
harness from the vehicle.
Installation 1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle needs to be driven to
relearn the strategy.
To install, reverse the removal procedure. Klj . 5 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 6 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
