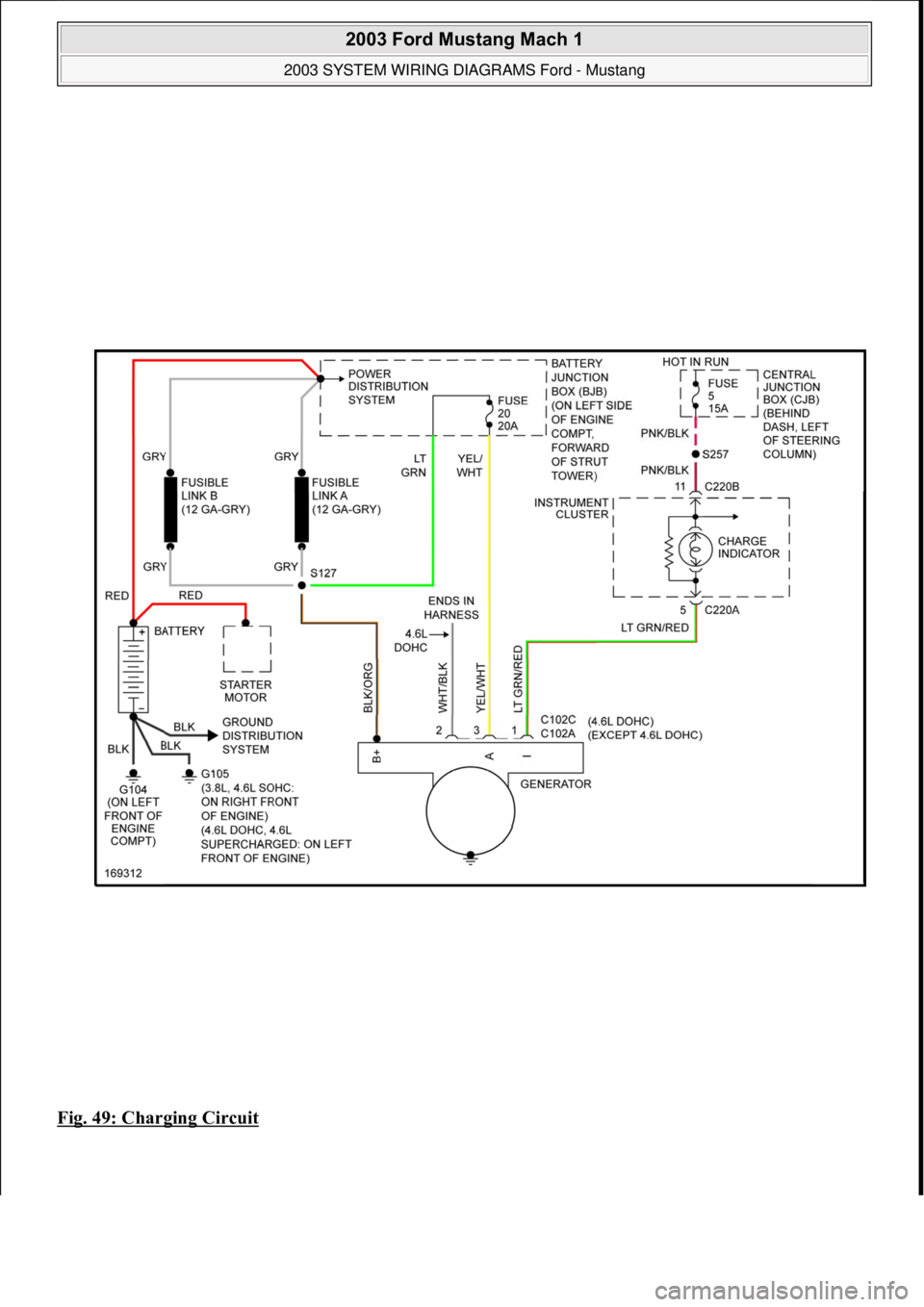

FORD MUSTANG 2003 Workshop Manual Fig. 48: Shift Interlock Circuit STARTING/CHARGING 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 49 © 2006 Mitchell Repair In

Page 4372 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 49: Charging Circuit 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 50 © 2006 Mitchell Repair Information Company, LLC.

Page 4373 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 50: Starting Circuit SUPPLEMENTAL RESTRAINTS 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 51 © 2006 Mitchell Repair Info

Page 4374 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 51: Supplemental Restraints Circuit TRANSMISSION 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 52 © 2006 Mitchell Repair

Page 4375 of 4378

FORD MUSTANG 2003 Workshop Manual Fig. 52: A/T Circuit TRUNK, TAILGATE, FUEL DOOR 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 53 © 2006 Mitchell Repair Inform

Page 4376 of 4378

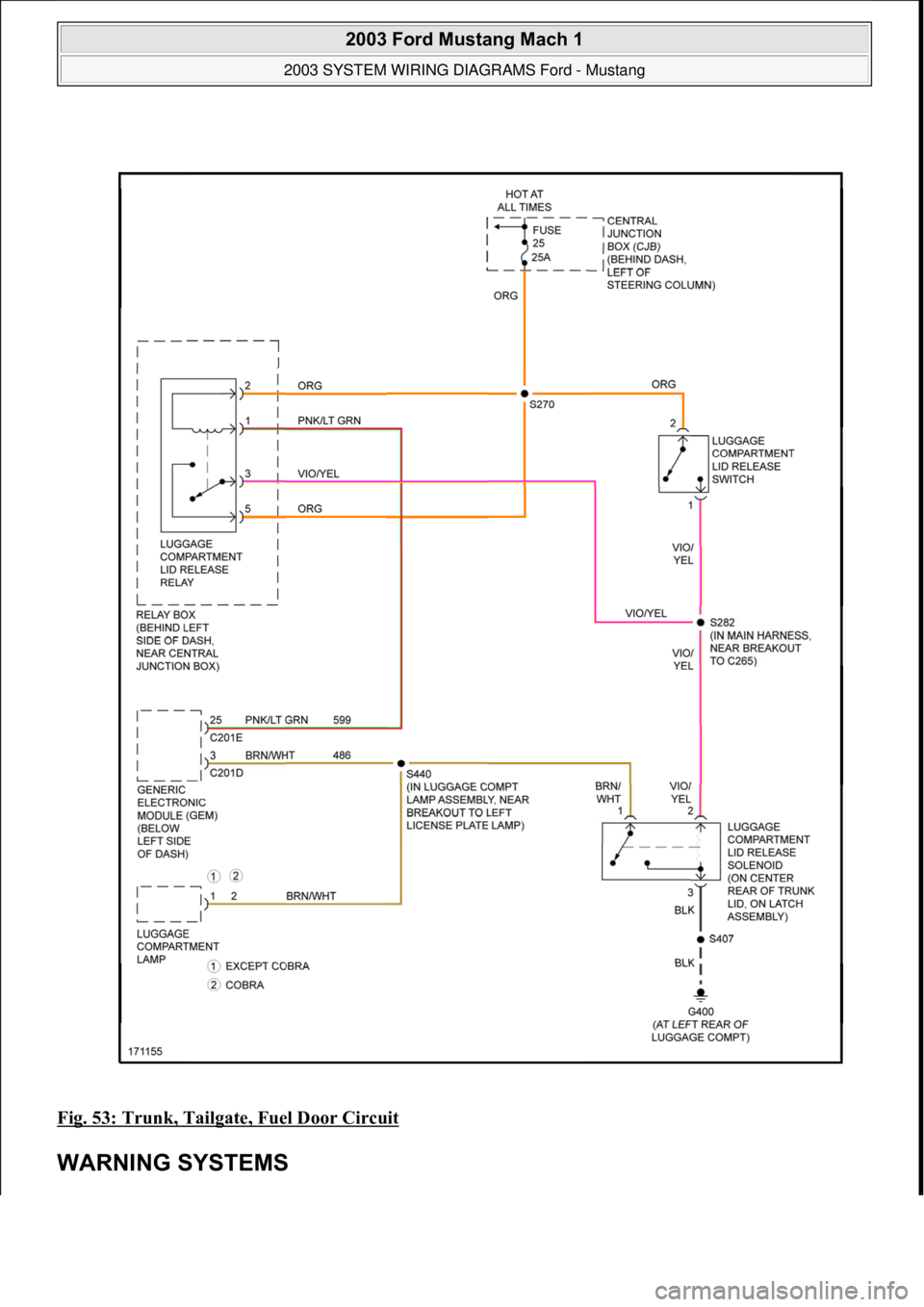

FORD MUSTANG 2003 Workshop Manual Fig. 53: Trunk, Tailgate, Fuel Door Circuit WARNING SYSTEMS 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 54 © 2006 Mitchell

Page 4377 of 4378

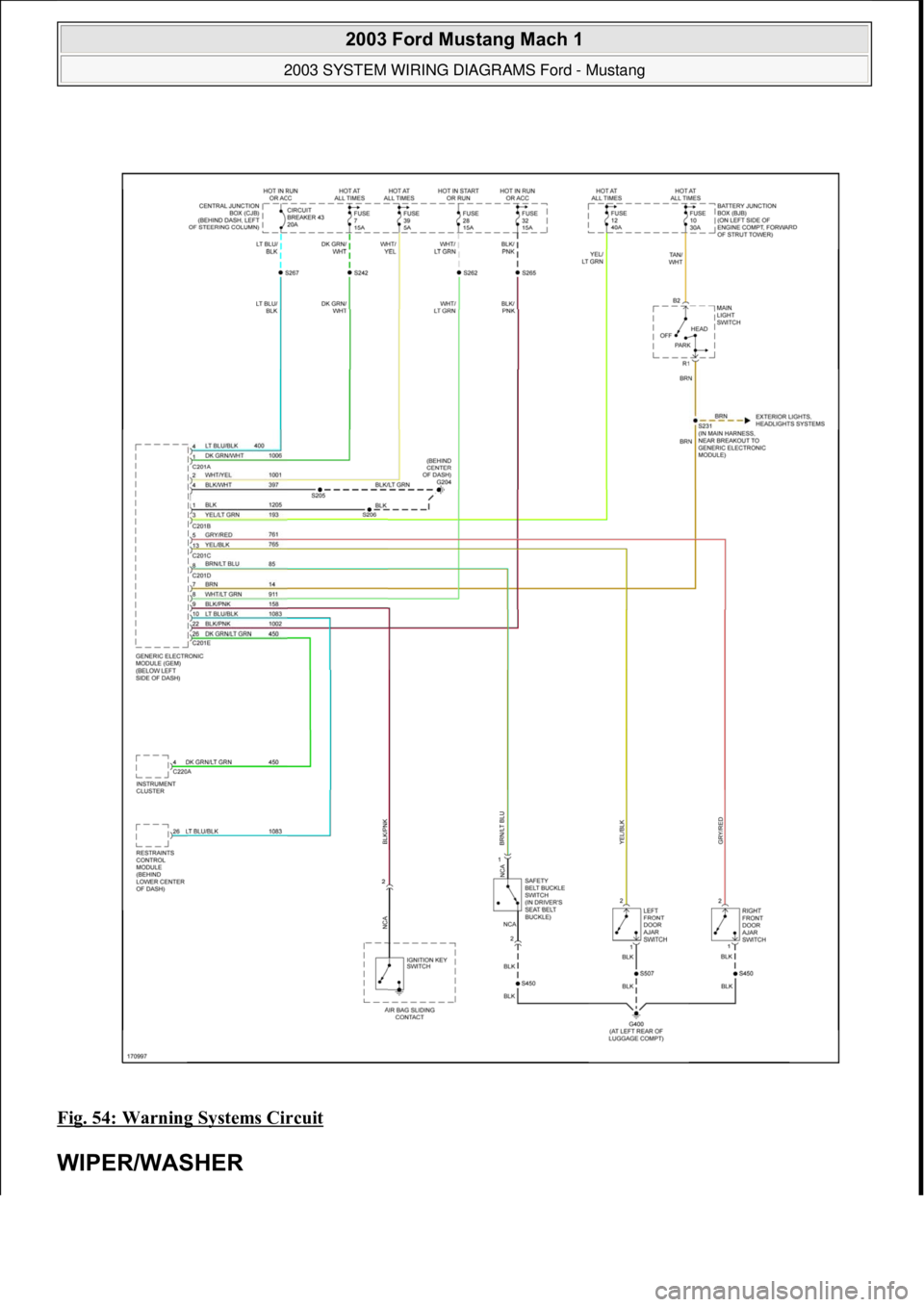

FORD MUSTANG 2003 Workshop Manual Fig. 54: Warning Systems Circuit WIPER/WASHER 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 55 © 2006 Mitchell Repair Informa

Page 4378 of 4378

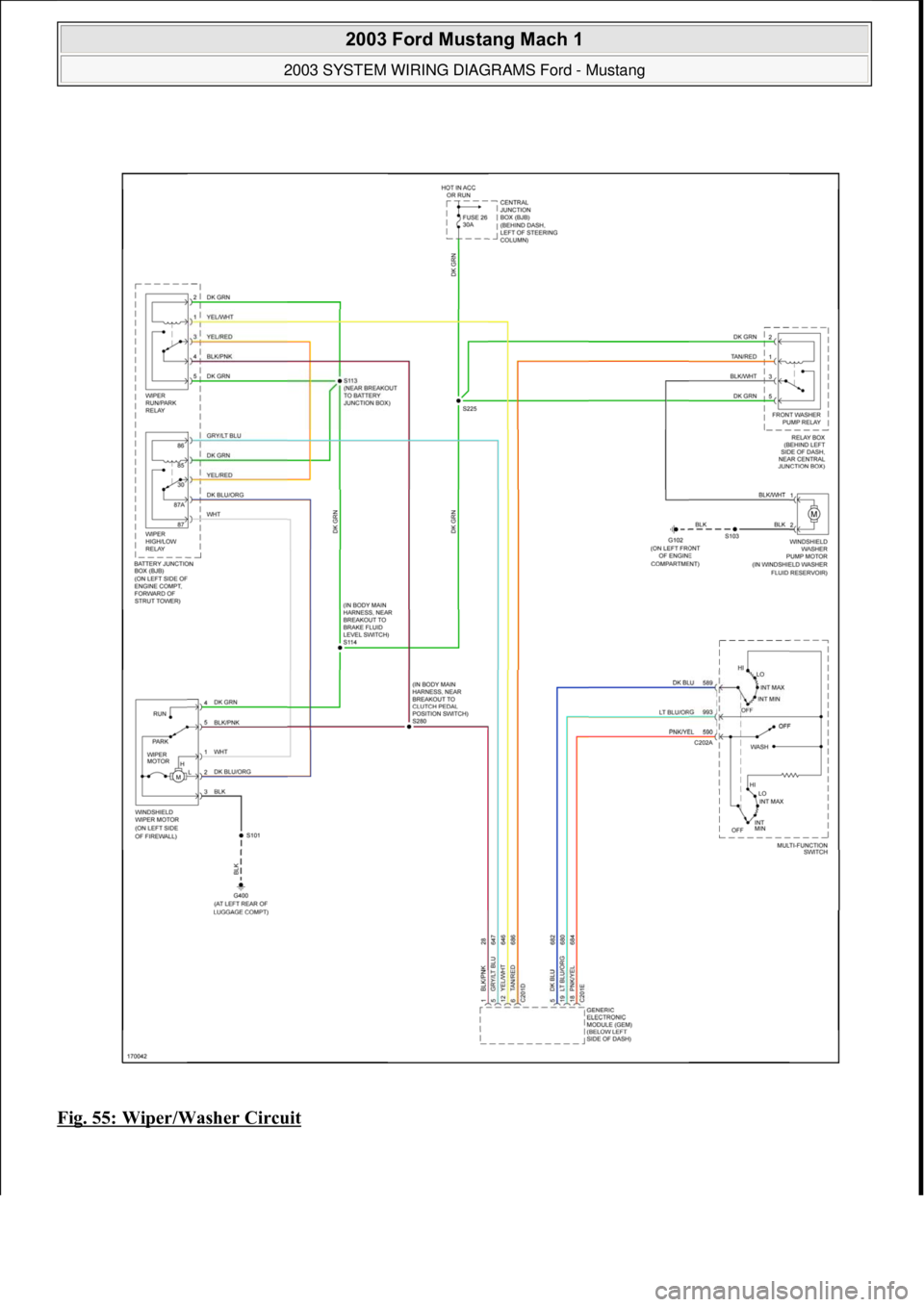

FORD MUSTANG 2003 Workshop Manual Fig. 55: Wiper/Washer Circuit 2003 Ford Mustang Mach 1 2003 SYSTEM WIRING DIAGRAMS Ford - Mustang 111 18 ноября 2011 г. 12:54:33Page 56 © 2006 Mitchell Repair Information Company, LLC
