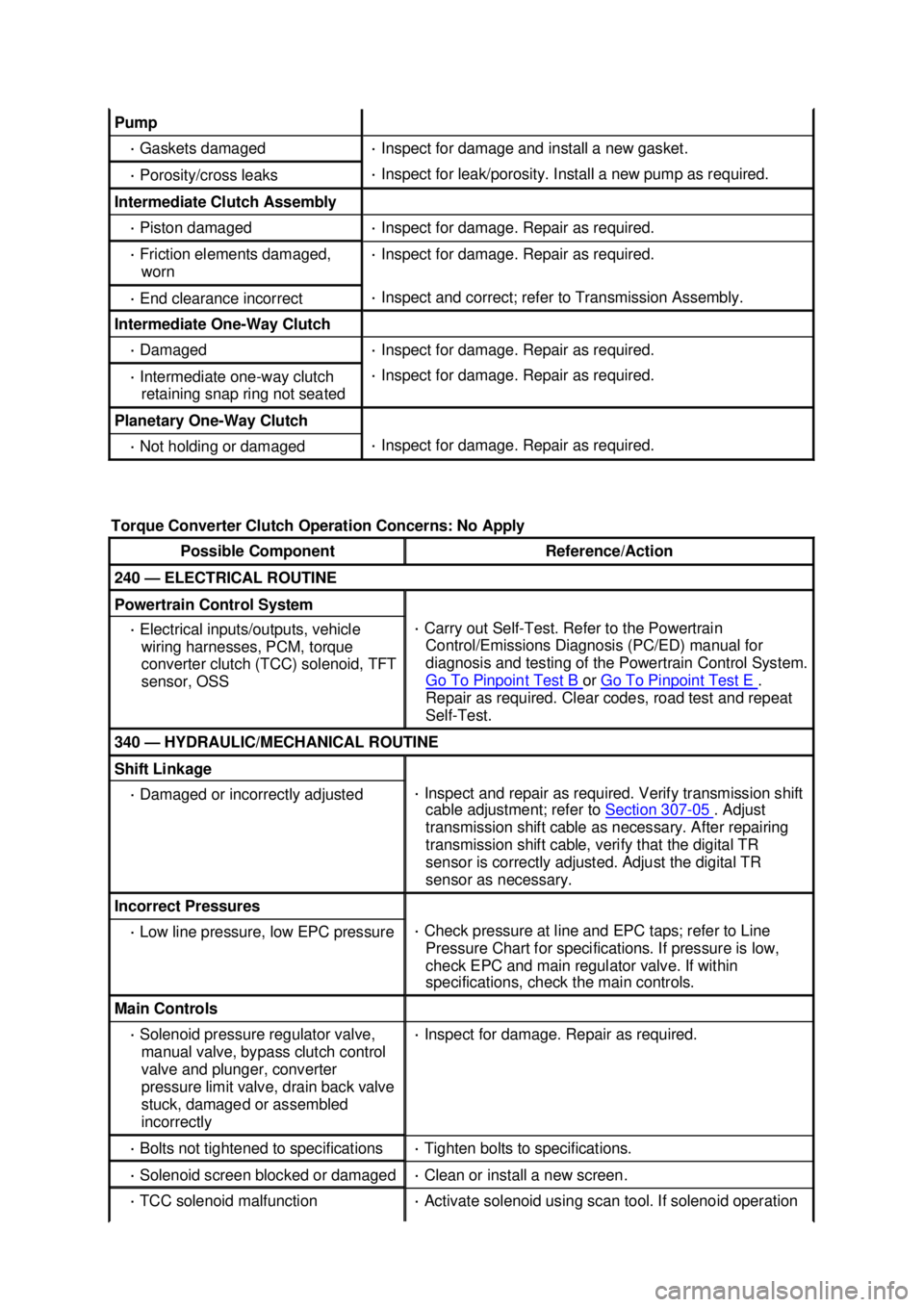

Pump
·
Gaskets damaged ·
Inspect for damage and install a new gasket. ·
Porosity/cross leaks ·
Inspect for leak/porosity. Install a new pump as required. Intermediate Clutch Assembly
·
Piston damaged ·
Inspect for damage. Repair as required. ·
Friction elements damaged,
worn ·
Inspect for damage. Repair as required. ·
End clearance incorrect ·
Inspect and correct; refer to Transmission Assembly. Intermediate One-
Way Clutch ·
Damaged ·
Inspect for damage. Repair as required. ·
Intermediate one- way clutch
retaining snap ring not seated ·
Inspect for damage. Repair as required. Planetary One-
Way Clutch ·
Not holding or damaged ·
Inspect for damage. Repair as required.
Torque Converter Clutch Operation Concerns: No Apply Possible Component Reference/Action
240 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, PCM, torque
converter clutch (TCC) solenoid, TFT
sensor, OSS ·
Carry out Self- Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for
diagnosis and testing of the Powertrain Control System.
Go To Pinpoint Test B or
Go To Pinpoint Test E .
Repair as required. Clear codes, road test and repeat
Self- Test. 340 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage
·
Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR
sensor is correctly adjusted. Adjust the digital TR
sensor as necessary. Incorrect Pressures
·
Low line pressure, low EPC pressure ·
Check pressure at line and EPC taps; refer to Line
Pressure Chart for specifications. If pressure is low,
check EPC and main regulator valve. If within
specifications, check the main controls. Main Controls
·
Solenoid pressure regulator valve,
manual valve, bypass clutch control
valve and plunger, converter
pressure limit valve, drain back valve
stuck, damaged or assembled
incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
Solenoid screen blocked or damaged ·
Clean or install a new screen. ·
TCC solenoid malfunction ·
Activate solenoid using scan tool. If solenoid operation Klj . 23 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

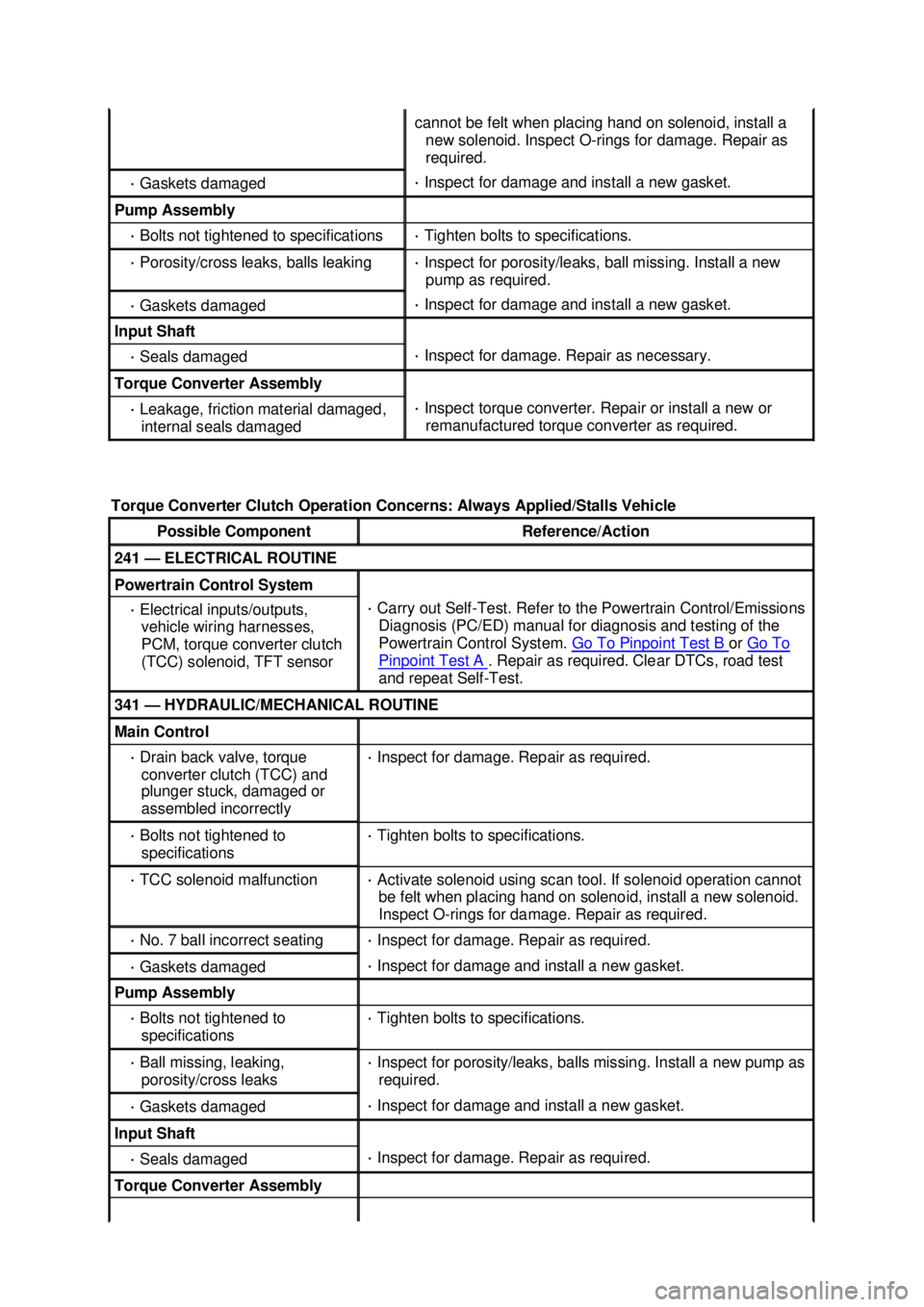

cannot be felt when placing hand on solenoid, install a
new solenoid. Inspect O- rings for damage. Repair as
required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Pump Assembly
·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
Porosity/cross leaks, balls leaking ·
Inspect for porosity/leaks, ball missing. Install a new
pump as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as necessary. Torque Converter Assembly
·
Leakage, friction material damaged,
internal seals damaged ·
Inspect torque converter. Repair or install a new or
remanufactured torque converter as required.
Torque Converter Clutch Operation Concerns: Always Applied/Stalls Vehicle Possible Component Reference/Action
241 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, torque converter clutch
(TCC) solenoid, TFT sensor ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test B or
Go To Pinpoint Test A . Repair as required. Clear DTCs, road test
and repeat Self- Test. 341 —
HYDRAULIC/MECHANICAL ROUTINE Main Control
·
Drain back valve, torque
converter clutch (TCC) and
plunger stuck, damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
TCC solenoid malfunction ·
Activate solenoid using scan tool. If solenoid operation cannot
be felt when placing hand on solenoid, install a new solenoid.
Inspect O- rings for damage. Repair as required. ·
No. 7 ball incorrect seating ·
Inspect for damage. Repair as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Ball missing, leaking,
porosity/cross leaks ·
Inspect for porosity/leaks, balls missing. Install a new pump as
required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as required. Torque Converter Assembly Klj . 24 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

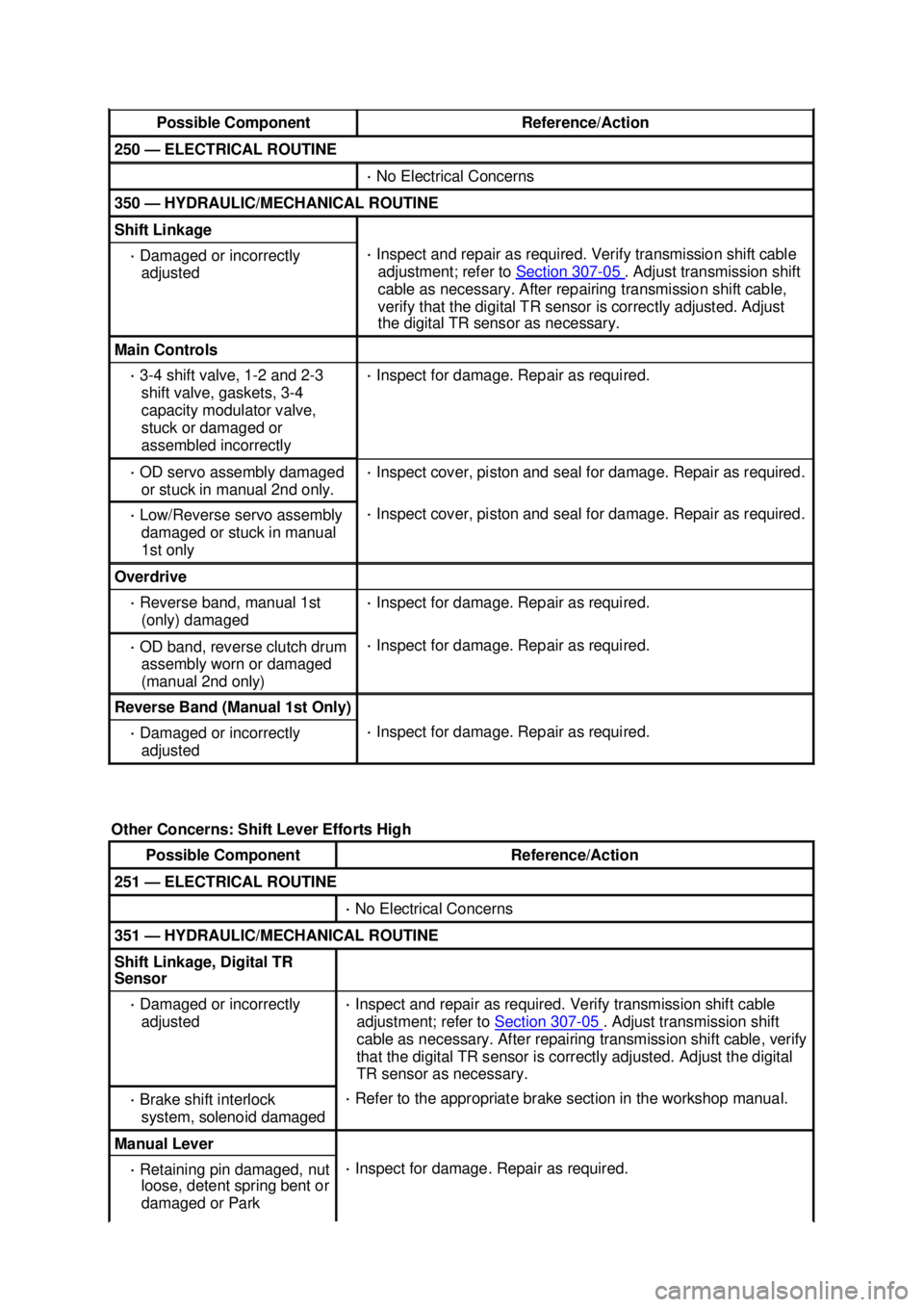

Possible Component Reference/Action
250 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 350 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust
the digital TR sensor as necessary. Main Controls
·
3- 4 shift valve, 1- 2 and 2-3
shift valve, gaskets, 3-4
capacity modulator valve,
stuck or damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. ·
OD servo assembly damaged
or stuck in manual 2nd only. ·
Inspect cover, piston and seal for damage. Repair as required. ·
Low/Reverse servo assembly
damaged or stuck in manual
1st only ·
Inspect cover, piston and seal for damage. Repair as required. Overdrive
·
Reverse band, manual 1st
(only) damaged ·
Inspect for damage. Repair as required. ·
OD band, reverse clutch drum
assembly worn or damaged
(manual 2nd only) ·
Inspect for damage. Repair as required. Reverse Band (Manual 1st Only)
·
Damaged or incorrectly
adjusted ·
Inspect for damage. Repair as required.
Other Concerns: Shift Lever Efforts High Possible Component Reference/Action
251 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 351 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR
Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable, verify
that the digital TR sensor is correctly adjusted. Adjust the digital
TR sensor as necessary. ·
Brake shift interlock
system, solenoid damaged ·
Refer to the appropriate brake section in the workshop manual. Manual Lever
·
Retaining pin damaged, nut
loose, detent spring bent or
damaged or Park ·
Inspect for damage. Repair as required. Klj . 26 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

mechanism damaged
Main Controls
·
Manual valve stuck or
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications.
Other Concerns: External Leaks Possible Component Reference/Action
252 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, sensor
seals leaking (digital TR, OSS,
vehicle speed sensor VSS, if
equipped, or transmission connector) ·
Inspect for leakage and repair as required. 352 —
HYDRAULIC/MECHANICAL ROUTINE Case
·
Case vent, case porosity, case
cracked ·
Check the vent for free breathing. Check the fluid level.
Check the transmission for overheat conditions. Repair
as required. Seals/Gaskets
·
Leakage at gaskets, seals, etc. (refer
to external sealing illustration for
potential leak locations) ·
Remove all traces of lubricant on exposed surfaces of
the transmission. Check the vent for free breathing.
Operate the transmission at normal temperatures and
perform fluid leakage check. Repair as required. Other
·
Cooler fitting, cooler lines pressure
tap, converter drain plug, band
anchor pins ·
Locate the source of the leak. Repair as required.
Other Concerns: Poor Vehicle Performance Possible Component Reference/Action
253 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, shift solenoids,
digital TR sensor, torque
converter clutch (TCC) solenoid,
transmission fluid temperature
(TFT) sensor ·
Carry out Self-Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for diagnosis
and testing of the Powertrain Control System. Go To Pinpoint Test A ,
Go To Pinpoint Test B or
Go To Pinpoint Test C . Repair as required. Clear codes, road test and
repeat Self- Test. Also refer to Routines 241/341 Torque
Converter Operation Concern: Always Applied. ·
Engine driveability concerns ·
Inspect air intake/air filter system. Check the fuel system
and fuel pressure. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual. Inspect the
exhaust system for restriction. Refer to Section 309 - 00 .
353 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR Sensor Klj . 27 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

·

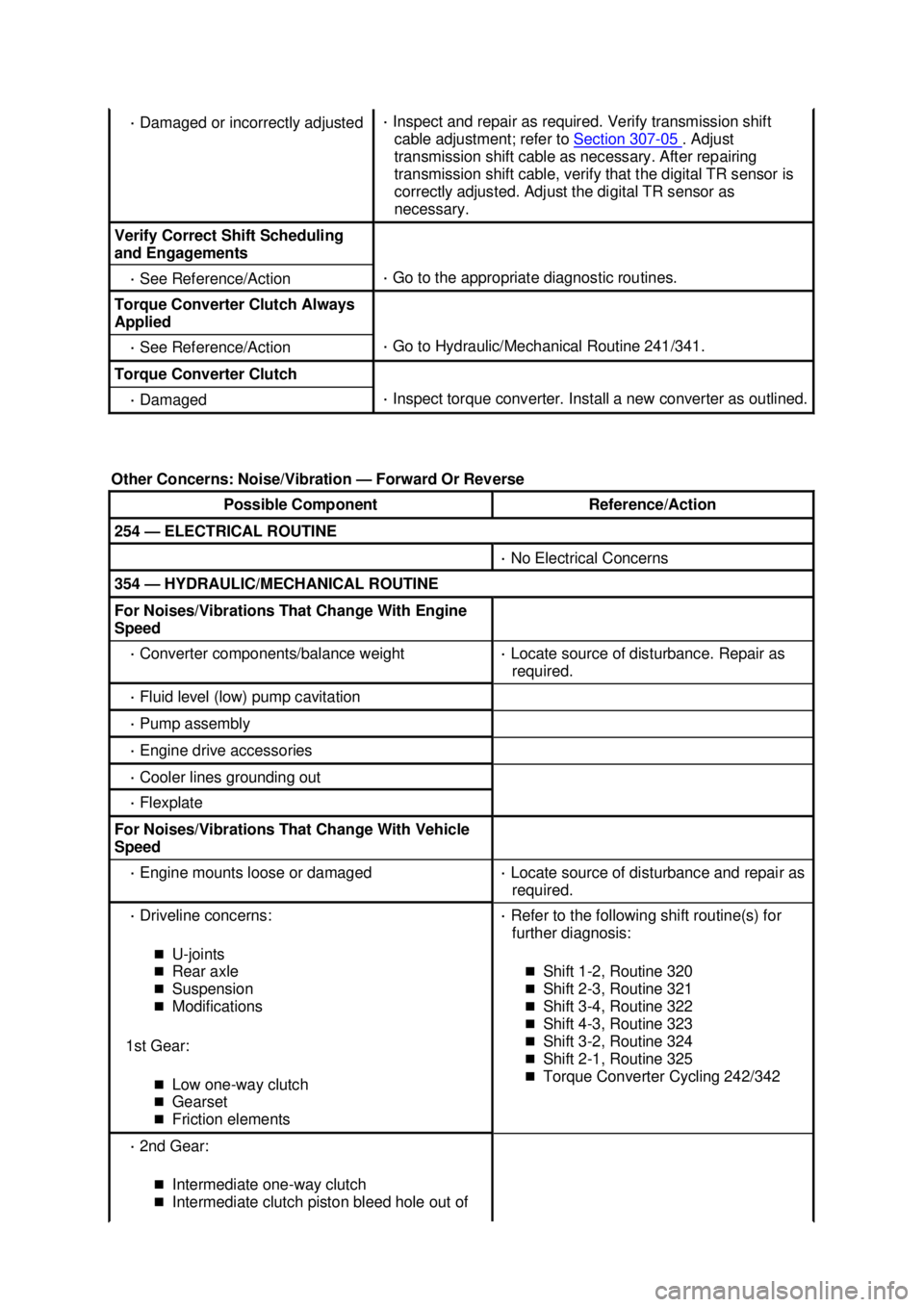

Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR sensor is
correctly adjusted. Adjust the digital TR sensor as
necessary. Verify Correct Shift Scheduling
and Engagements
·
See Reference/Action ·
Go to the appropriate diagnostic routines. Torque Converter Clutch Always
Applied
·
See Reference/Action ·
Go to Hydraulic/Mechanical Routine 241/341. Torque Converter Clutch
·
Damaged ·
Inspect torque converter. Install a new converter as outlined.
Other Concerns: Noise/Vibration — Forward Or Reverse Possible Component Reference/Action
254 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 354 —
HYDRAULIC/MECHANICAL ROUTINE For Noises/Vibrations That Change With Engine
Speed
·
Converter components/balance weight ·
Locate source of disturbance. Repair as
required. ·
Fluid level (low) pump cavitation ·
Pump assembly ·
Engine drive accessories ·
Cooler lines grounding out ·
Flexplate For Noises/Vibrations That Change With Vehicle
Speed
·
Engine mounts loose or damaged ·
Locate source of disturbance and repair as
required. ·
Driveline concerns:
„ U-joints
„ Rear axle
„ Suspension
„ Modifications
1st Gear: „Low one- way clutch
„ Gearset
„ Friction elements ·
Refer to the following shift routine(s) for
further diagnosis:
„ Shift 1- 2, Routine 320
„ Shift 2- 3, Routine 321
„ Shift 3- 4, Routine 322
„ Shift 4- 3, Routine 323
„ Shift 3- 2, Routine 324
„ Shift 2- 1, Routine 325
„ Torque Converter Cycling 242/342 ·
2nd Gear:
„ Intermediate one- way clutch
„ Intermediate clutch piston bleed hole out of Klj . 28 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

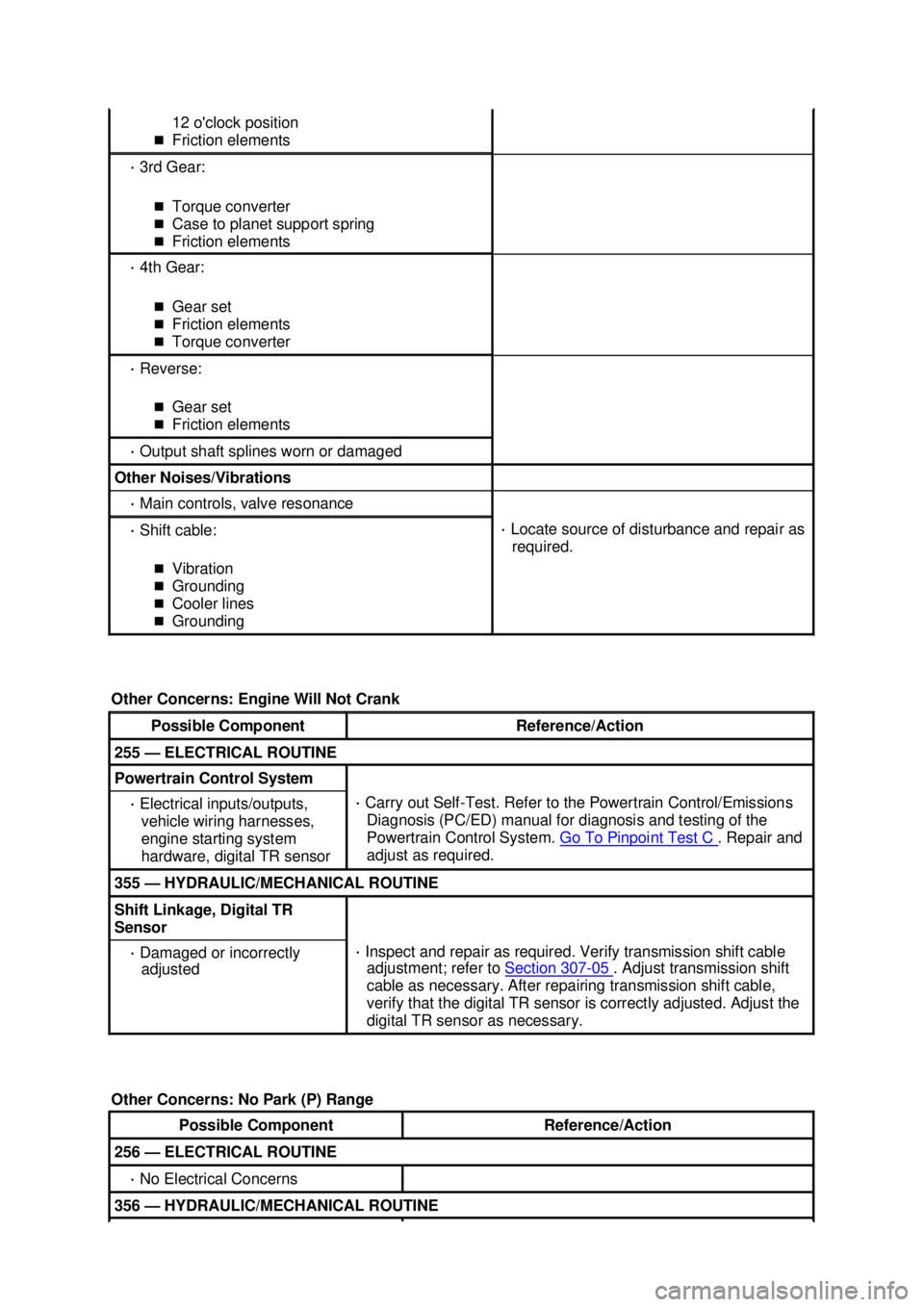

12 o'clock position
„ Friction elements ·
3rd Gear:
„ Torque converter
„ Case to planet support spring
„ Friction elements ·
4th Gear:
„ Gear set
„ Friction elements
„ Torque converter ·
Reverse:
„ Gear set
„ Friction elements ·
Output shaft splines worn or damaged Other Noises/Vibrations
·
Main controls, valve resonance ·
Shift cable:
„ Vibration
„ Grounding
„ Cooler lines
„ Grounding ·
Locate source of disturbance and repair as
required.
Other Concerns: Engine Will Not Crank Possible Component Reference/Action
255 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
engine starting system
hardware, digital TR sensor ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test C . Repair and
adjust as required. 355 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR
Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust the
digital TR sensor as necessary.
Other Concerns: No Park (P) Range Possible Component Reference/Action
256 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 356 —
HYDRAULIC/MECHANICAL ROUTINE Klj . 29 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

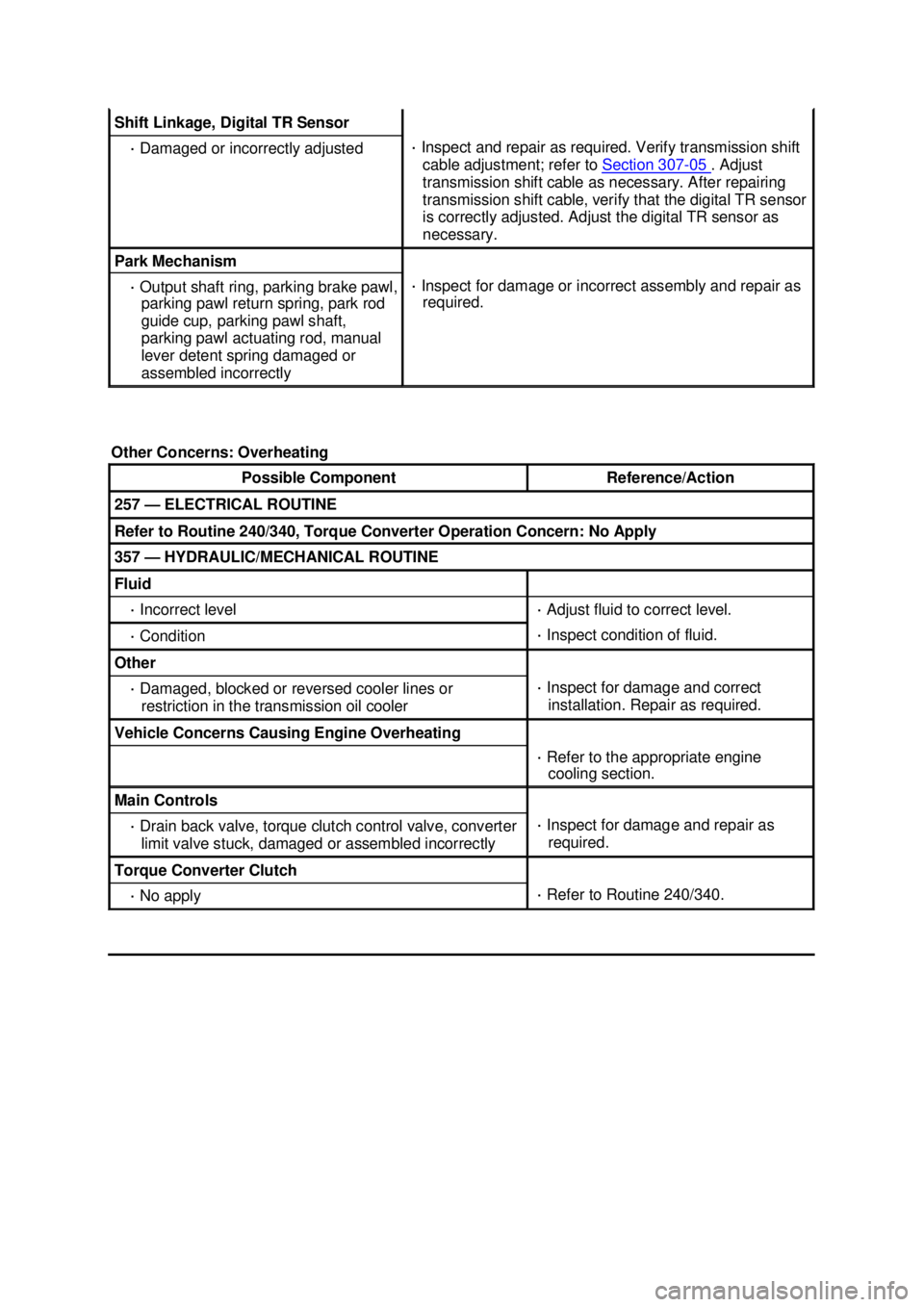

Shift Linkage, Digital TR Sensor
·
Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR sensor
is correctly adjusted. Adjust the digital TR sensor as
necessary. Park Mechanism
·
Output shaft ring, parking brake pawl,
parking pawl return spring, park rod
guide cup, parking pawl shaft,
parking pawl actuating rod, manual
lever detent spring damaged or
assembled incorrectly ·
Inspect for damage or incorrect assembly and repair as
required.
Other Concerns: Overheating Possible Component Reference/Action
257 —
ELECTRICAL ROUTINE Refer to Routine 240/340, Torque Converter Operation Concern: No Apply
357 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Other
·
Damaged, blocked or reversed cooler lines or
restriction in the transmission oil cooler ·
Inspect for damage and correct
installation. Repair as required. Vehicle Concerns Causing Engine Overheating
·
Refer to the appropriate engine
cooling section. Main Controls
·
Drain back valve, torque clutch control valve, converter
limit valve stuck, damaged or assembled incorrectly ·
Inspect for damage and repair as
required. Torque Converter Clutch
·
No apply ·
Refer to Routine 240/340. Klj . 30 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

IN-
VEHICLE REPAIR

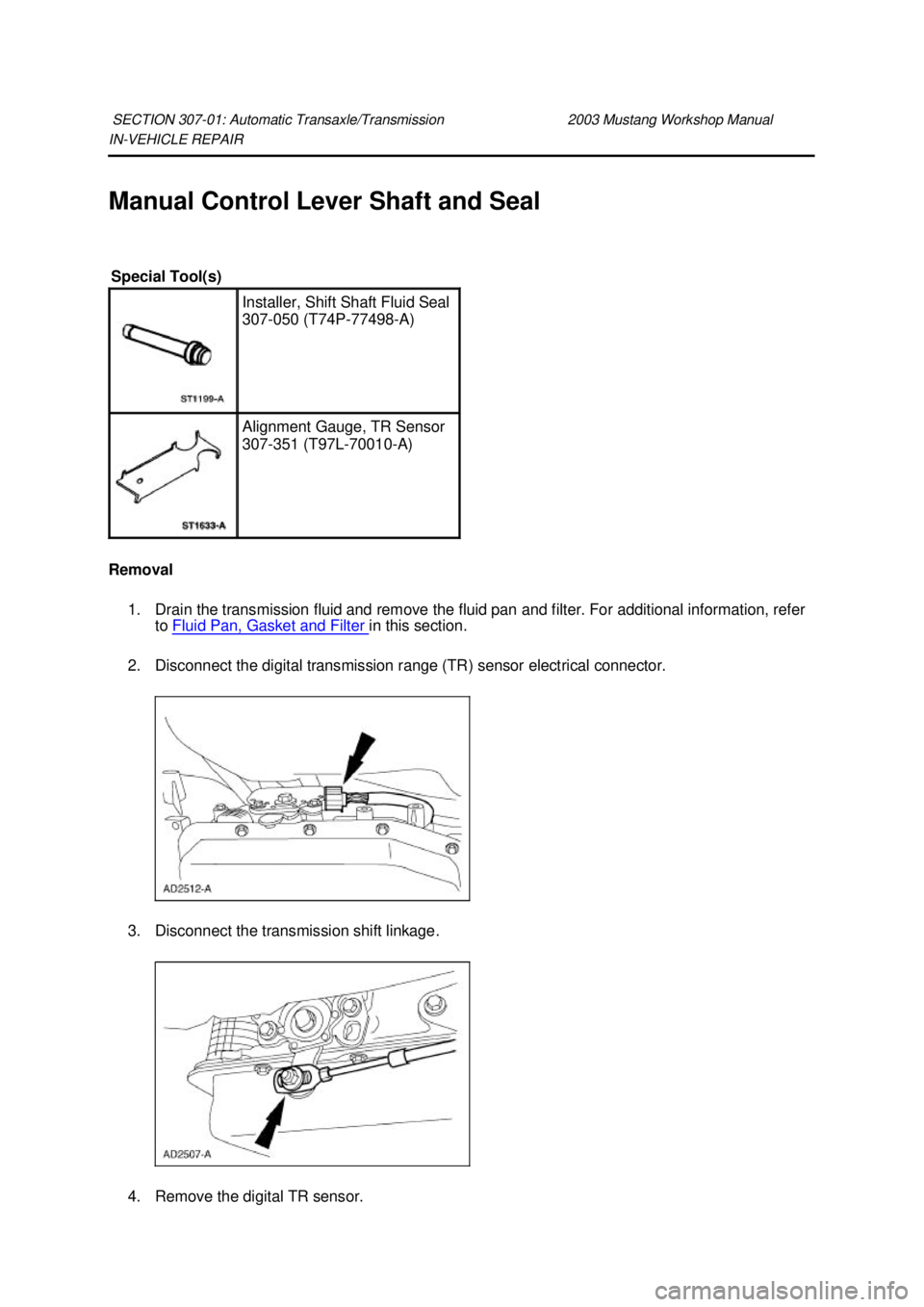

Manual Control Lever Shaft and Seal
Removal 1. Drain the transmission fluid and remove the fluid pan and filter. For additional information, refer to Fluid Pan, Gasket and Filter in this section.
2. Disconnect the digital transmission range (TR) sensor electrical connector.
3. Disconnect the transmission shift linkage.
4. Remove the digital TR sensor.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Installer, Shift Shaft Fluid Seal
307-
050 (T74P-77498- A) Alignment Gauge, TR Sensor
307-
351 (T97L-70010- A) Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

z

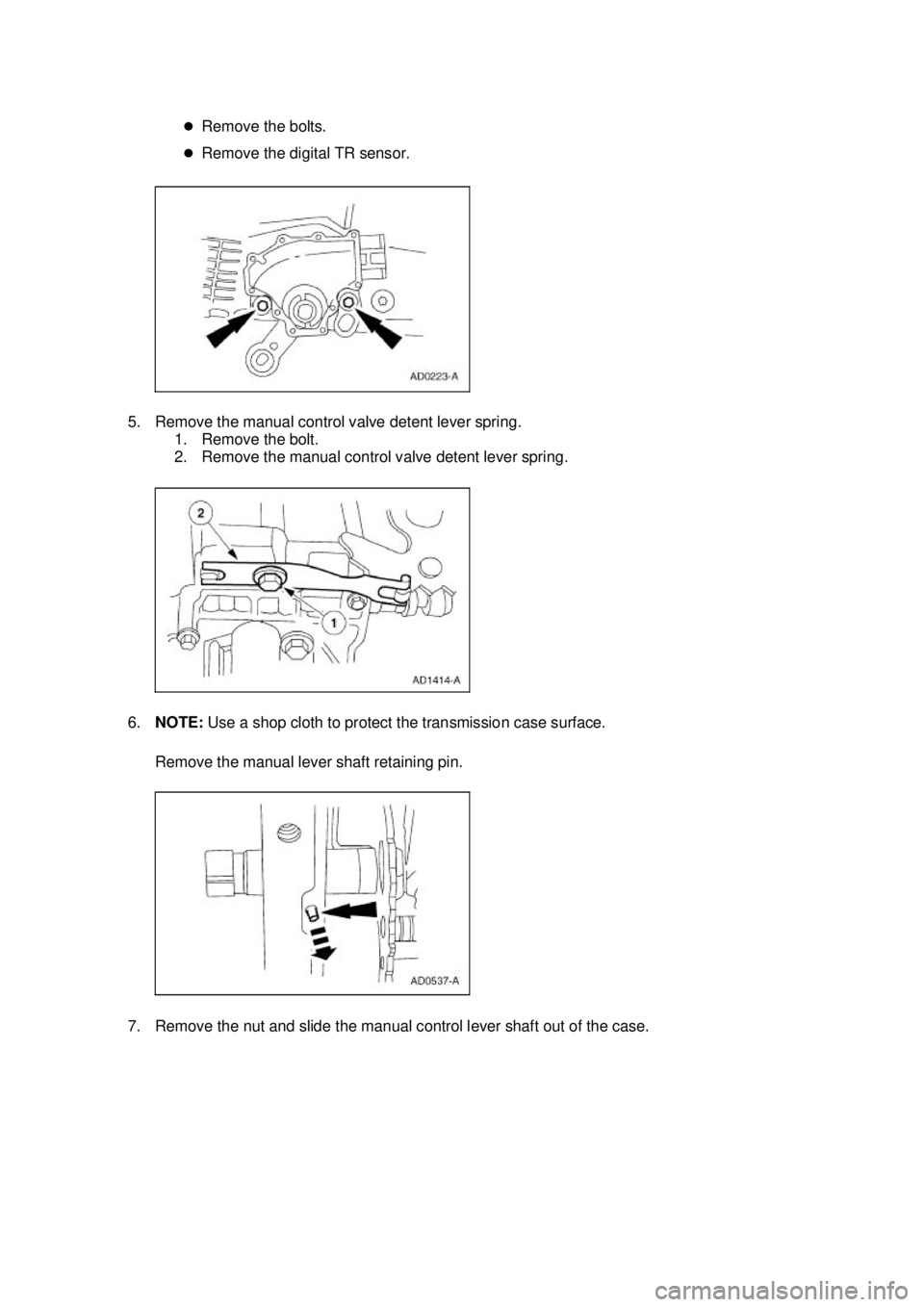

Remove the bolts.
z Remove the digital TR sensor.
5. Remove the manual control valve detent lever spring. 1. Remove the bolt.
2. Remove the manual control valve detent lever spring.
6. NOTE: Use a shop cloth to protect the transmission case surface.
Remove the manual lever shaft retaining pin.
7. Remove the nut and slide the manual control lever shaft out of the case. Klj . 2 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

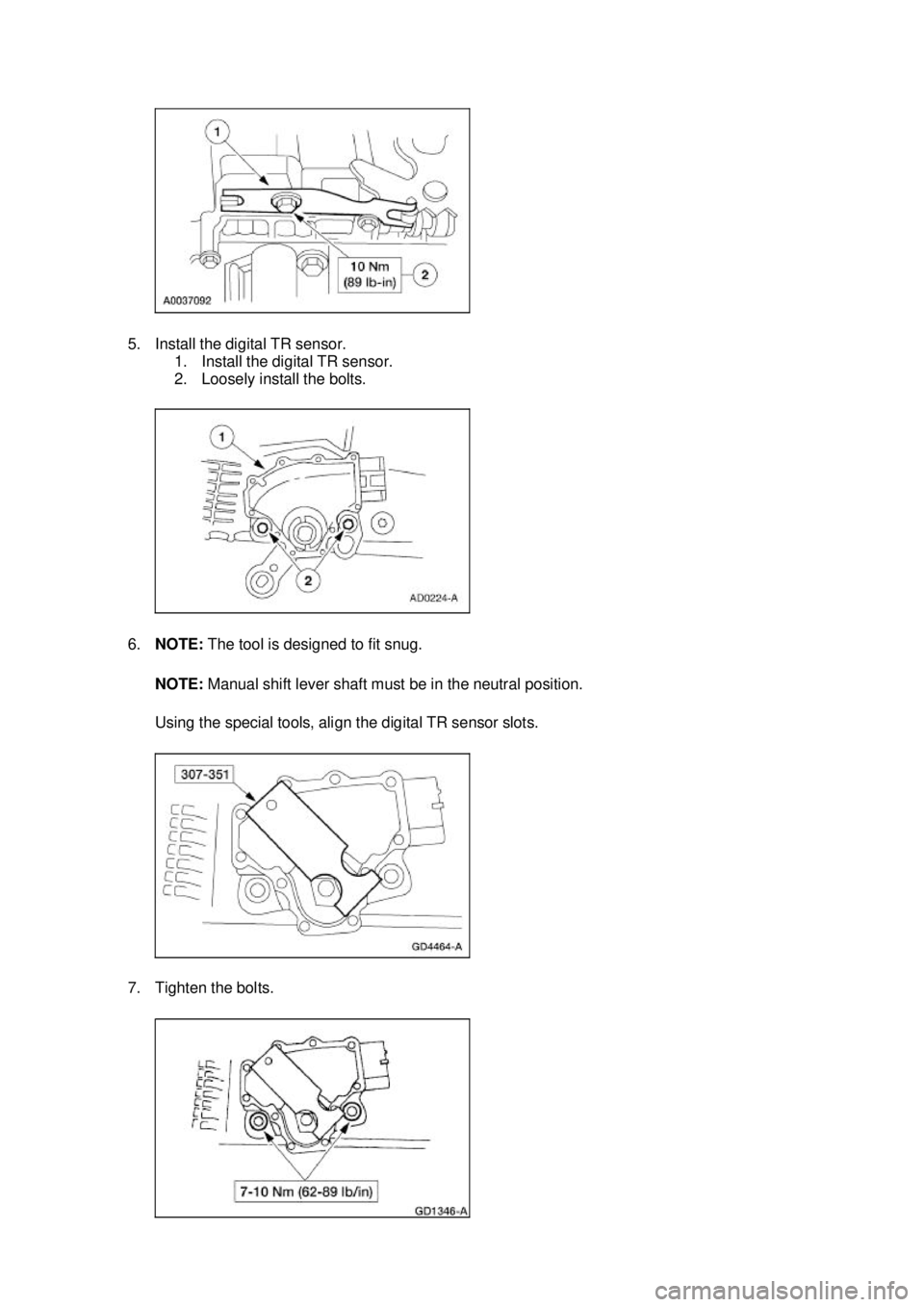

5. Install the digital TR sensor.
1. Install the digital TR sensor.
2. Loosely install the bolts.
6. NOTE: The tool is designed to fit snug.
NOTE: Manual shift lever shaft must be in the neutral position.
Using the special tools, align the digital TR sensor slots.
7. Tighten the bolts. Klj . 5 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
