13. Position the safety stand aside.
14. Release the tension from the front coil springs and remove the special tool.
15. Raise the vehicle.
16. Using the special tool, lower the engine and remove the special tool.
17. Remove the special tools. Klj . 9 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

18. Install the two nuts.
19. Install the transmission. For additional information, refer to
Section 308 - 03B .
20. Lower the vehicle.
21. Fill the engine crankcase with clean engine oil.
22. Install the A/C line. For additional information, refer to Section 412 - 03 .
23. Install the manifold and tube assembly— accumulator to compressor, 4.6L. For additional
information, refer to Section 412 - 03 .
24. Install the radiator sight shield.

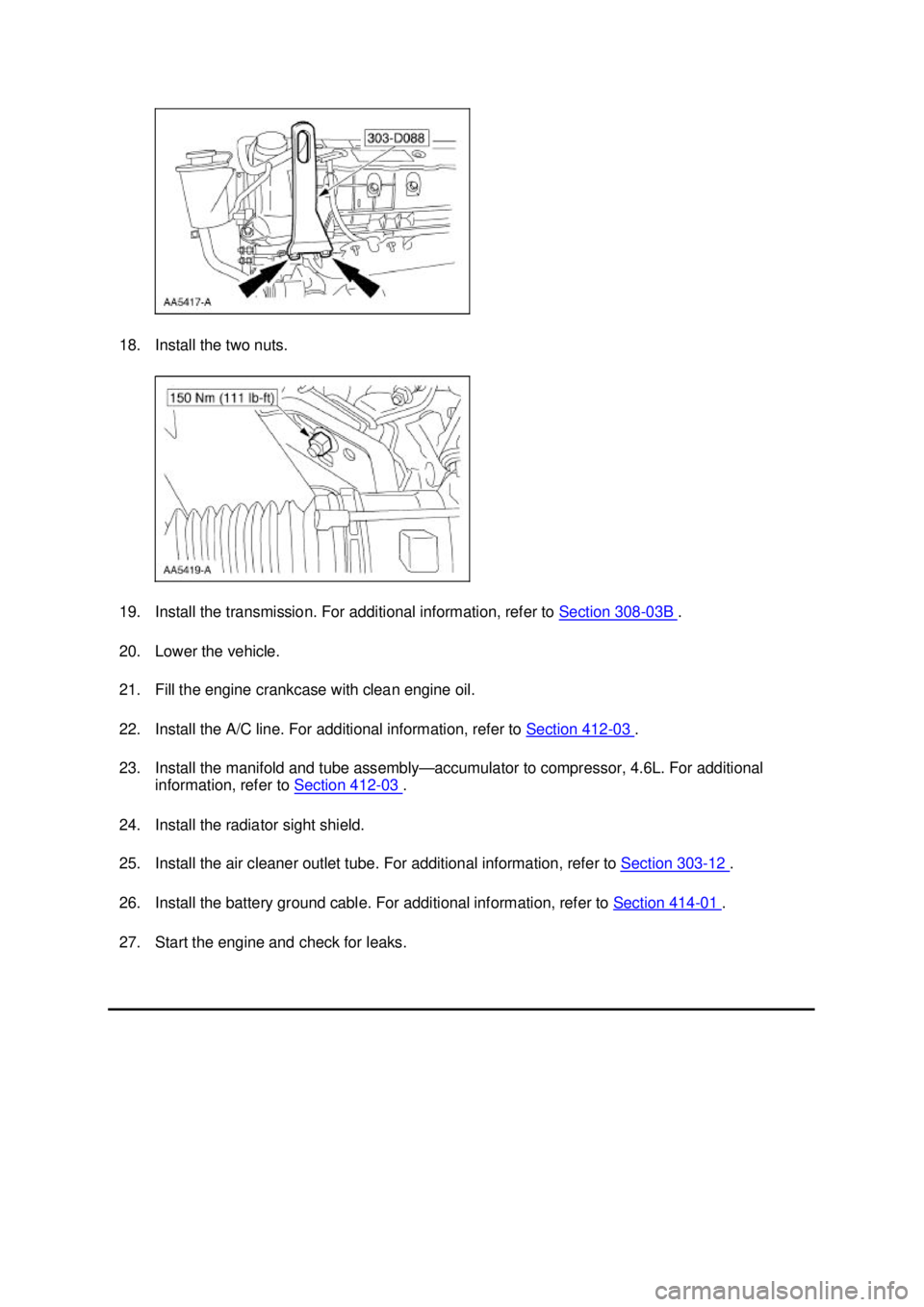

25. Install the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
26. Install the battery ground cable. For additional information, refer to Section 414 - 01 .
27. Start the engine and check for leaks. Klj . 10 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

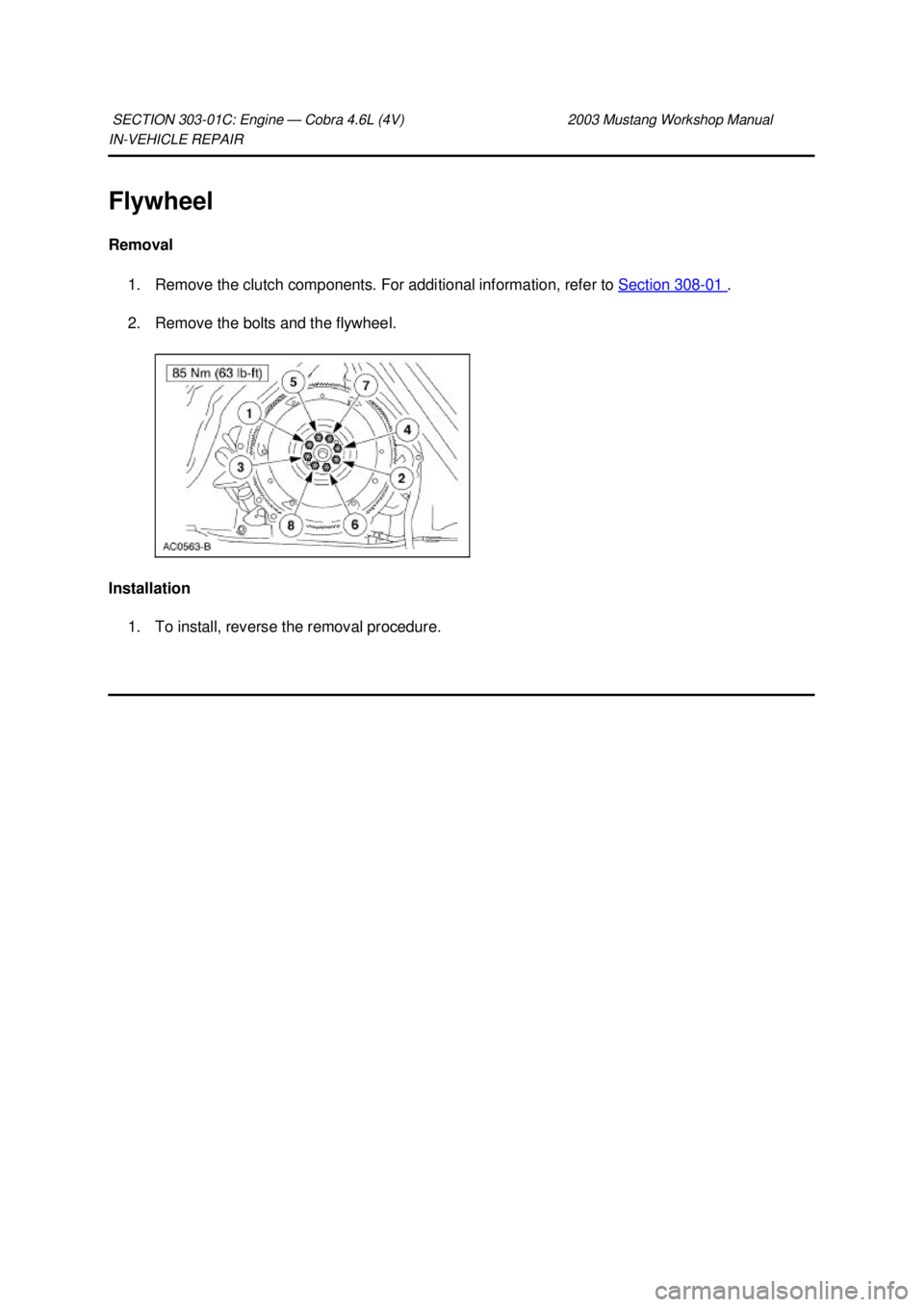

Flywheel
Removal 1. Remove the clutch components. For additional information, refer to Section 308 - 01 .
2. Remove the bolts and the flywheel.
Installation 1. To install, reverse the removal procedure.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

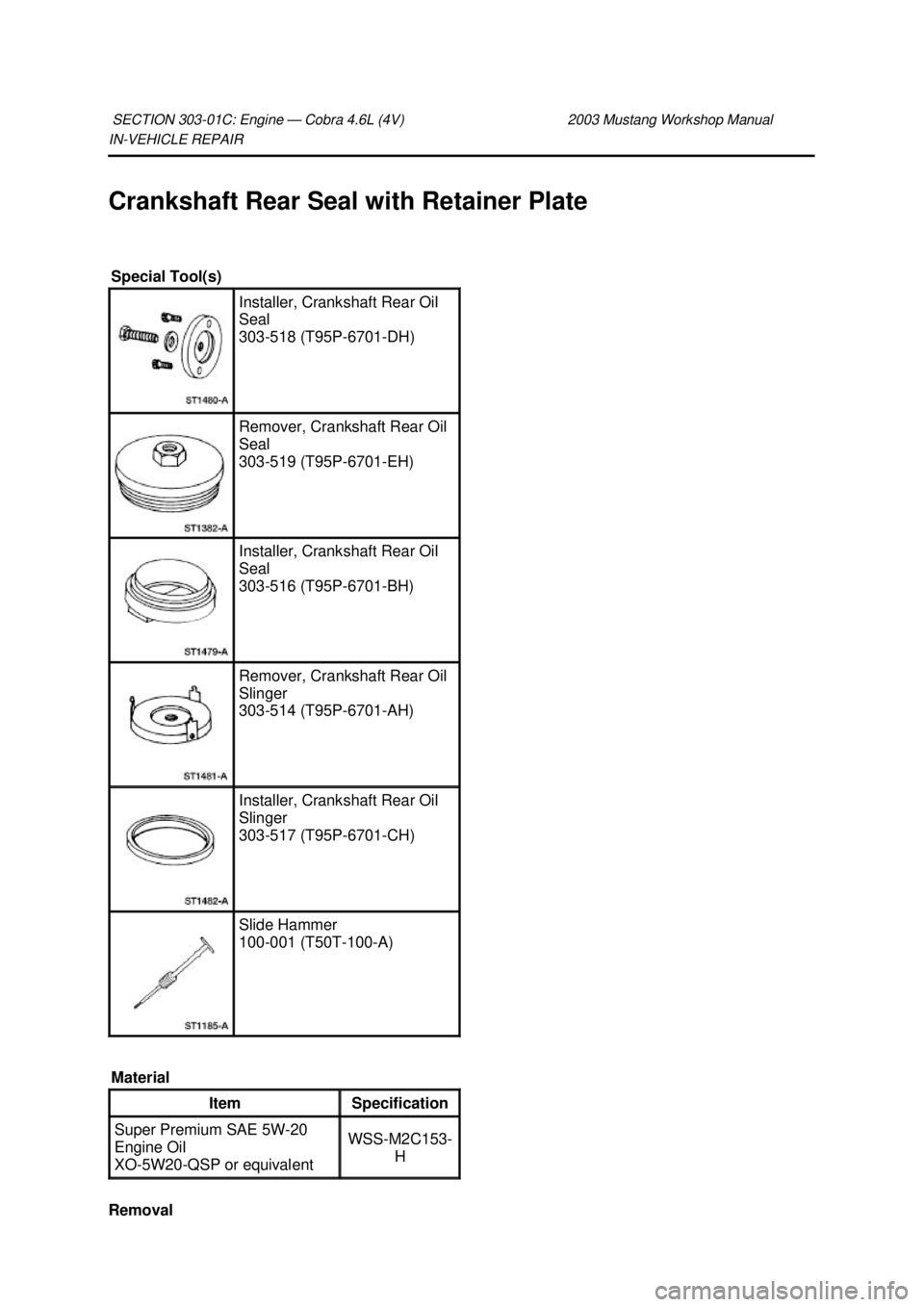

Crankshaft Rear Seal with Retainer Plate Removal SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Installer, Crankshaft Rear Oil
Seal
303-
518 (T95P-6701- DH) Remover, Crankshaft Rear Oil
Seal
303-
519 (T95P-6701- EH) Installer, Crankshaft Rear Oil
Seal
303-
516 (T95P-6701- BH) Remover, Crankshaft Rear Oil
Slinger
303-
514 (T95P-6701- AH) Installer, Crankshaft Rear Oil
Slinger
303-
517 (T95P-6701- CH) Slide Hammer
100-
001 (T50T-100- A)
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

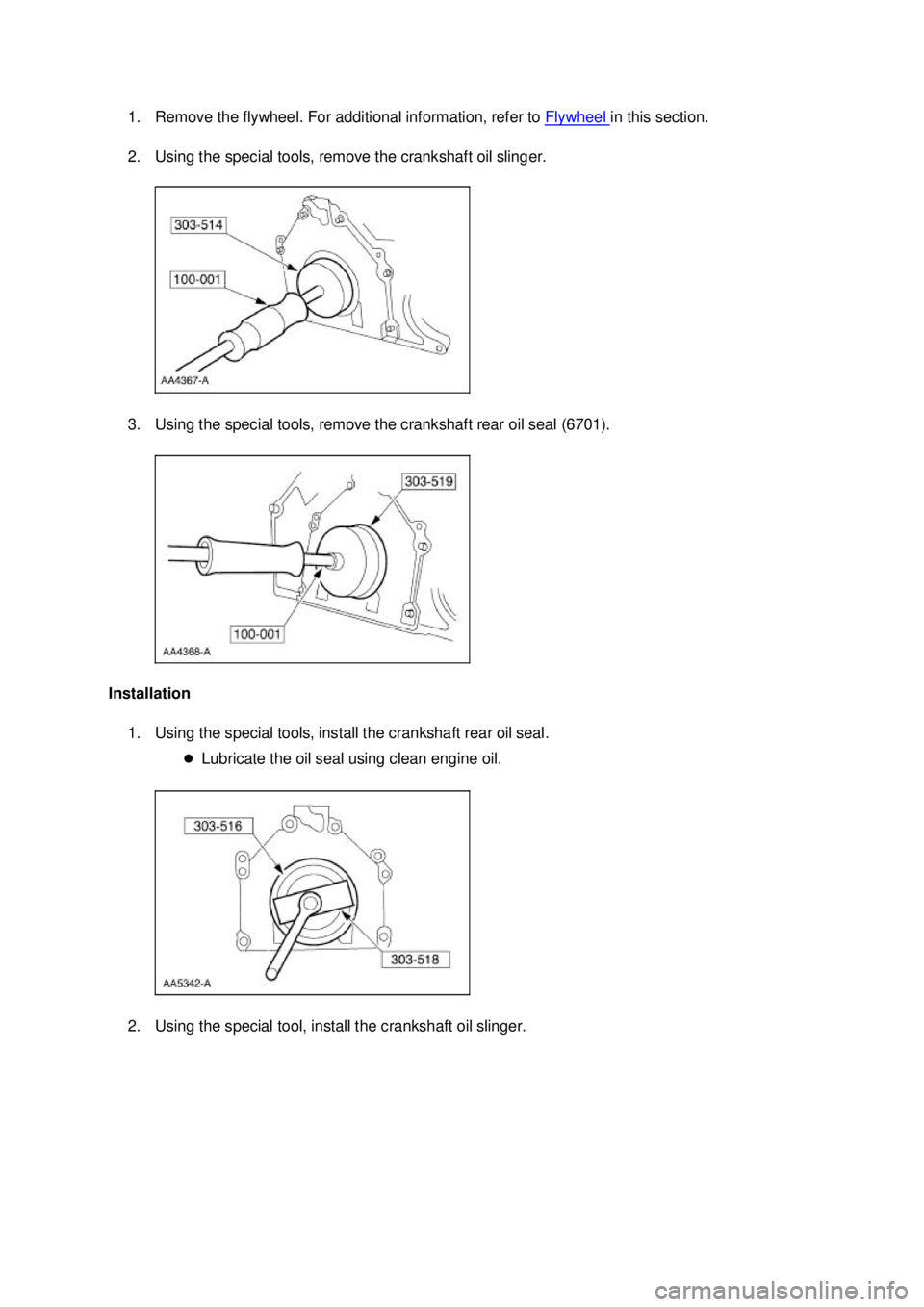

1. Remove the flywheel. For additional information, refer to
Flywheel in this section.
2. Using the special tools, remove the crankshaft oil slinger.
3. Using the special tools, remove the crankshaft rear oil seal (6701).
Installation 1. Using the special tools, install the crankshaft rear oil seal. zLubricate the oil seal using clean engine oil.
2. Using the special tool, install the crankshaft oil slinger. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

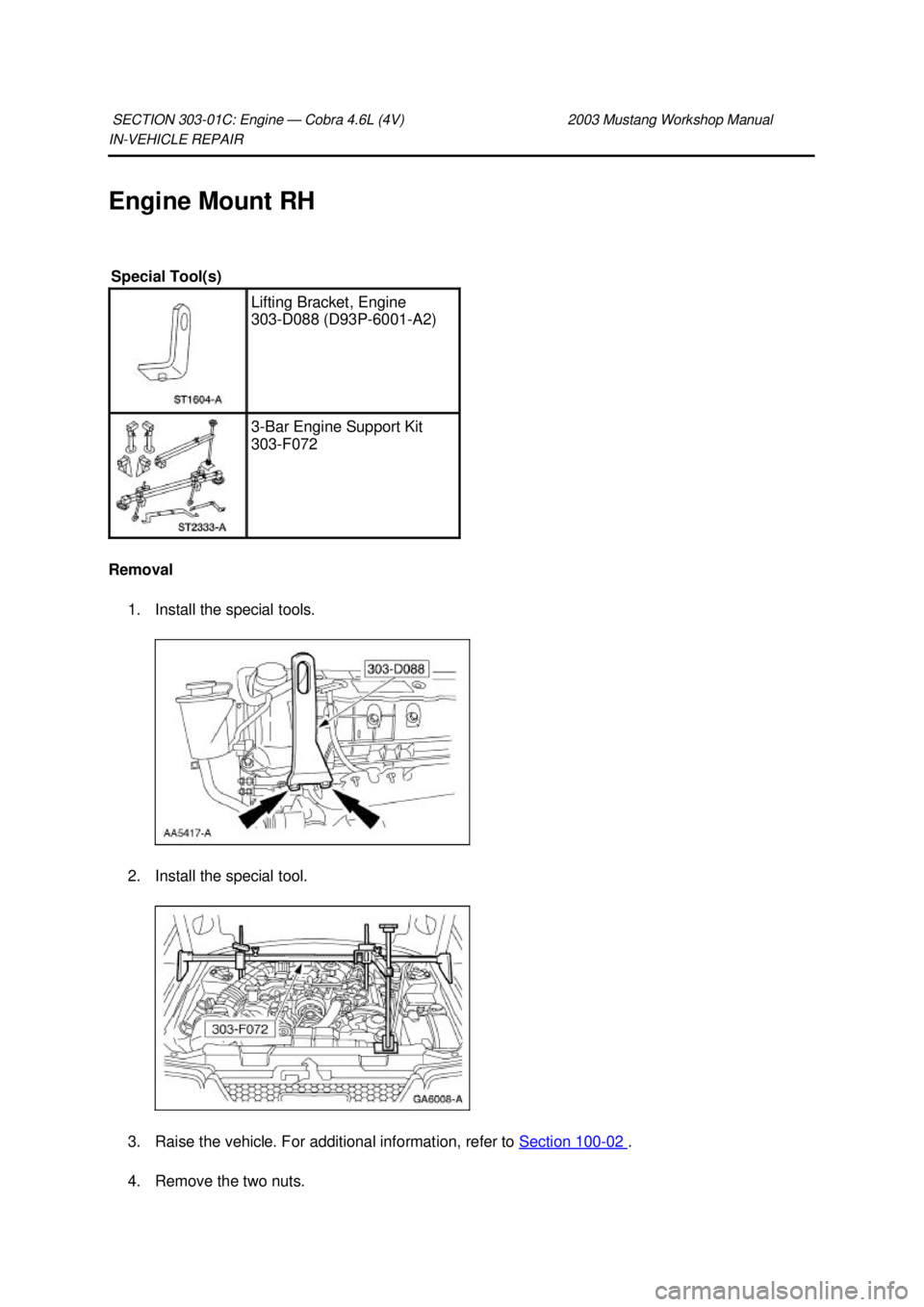

Engine Mount RH
Removal 1. Install the special tools.
2. Install the special tool.
3. Raise the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the two nuts. SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) 3-
Bar Engine Support Kit
303- F072 Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

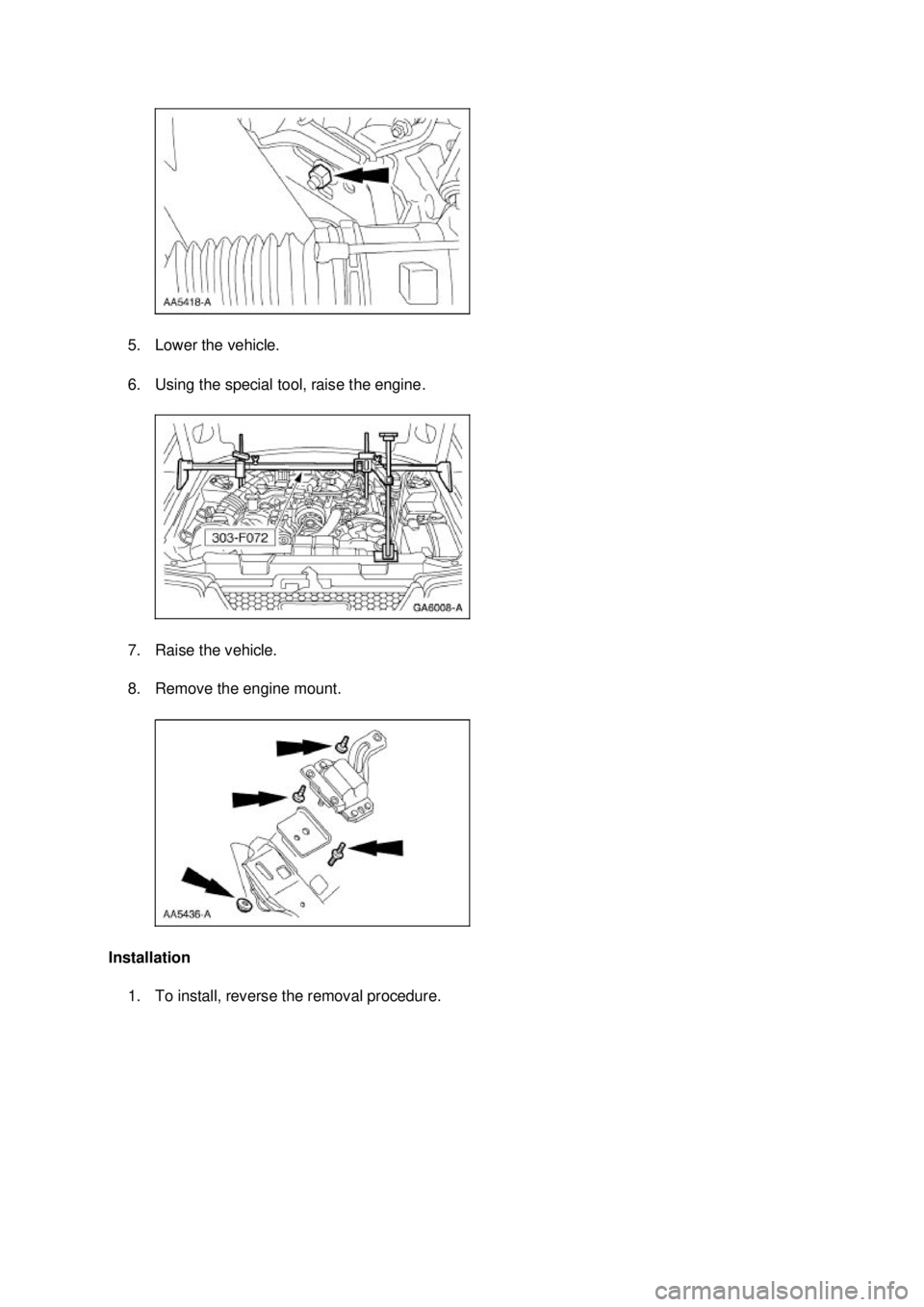

5. Lower the vehicle.
6. Using the special tool, raise the engine.
7. Raise the vehicle.
8. Remove the engine mount.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

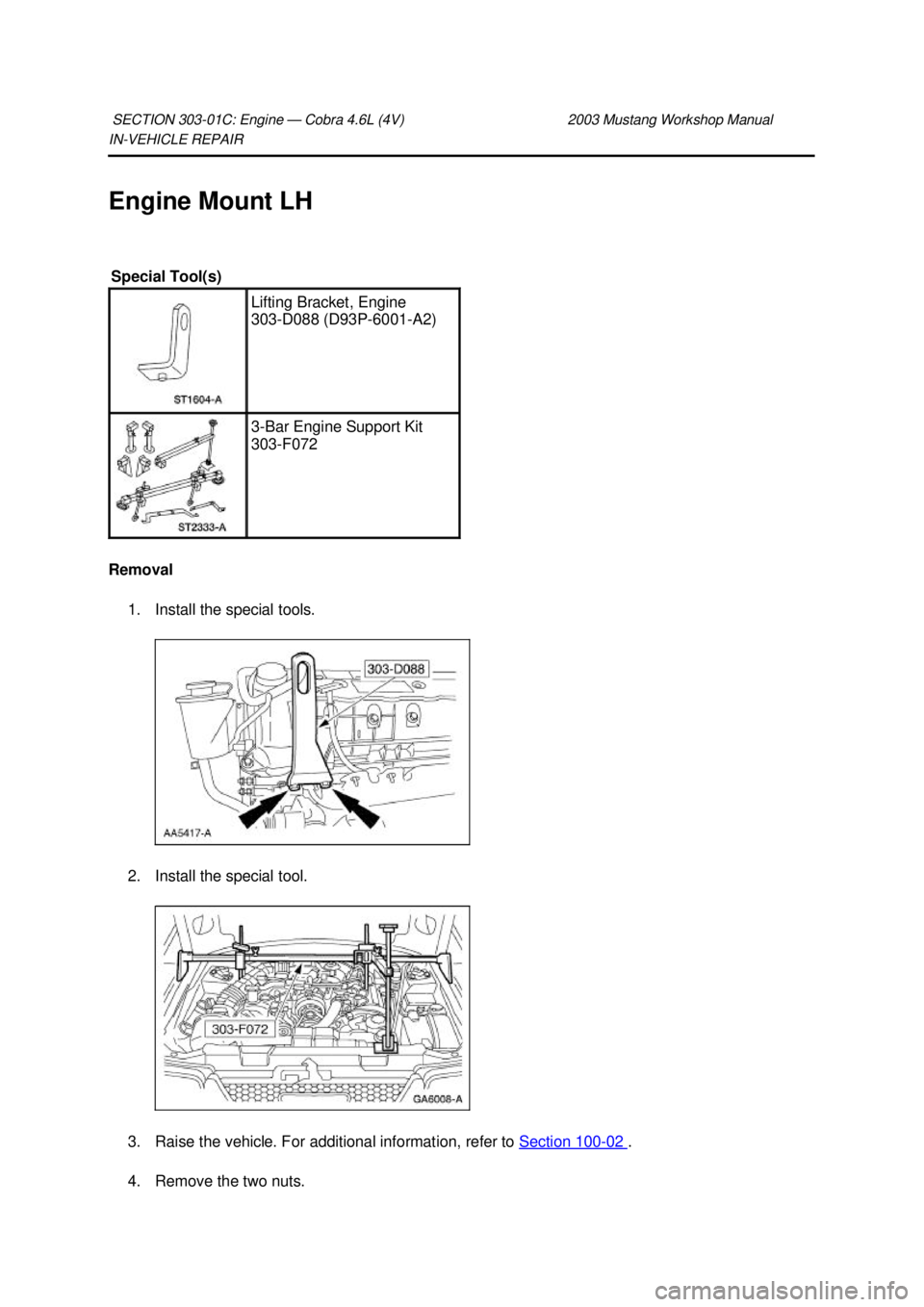

Engine Mount LH
Removal 1. Install the special tools.
2. Install the special tool.
3. Raise the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the two nuts. SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Lifting Bracket, Engine
303-
D088 (D93P-6001- A2) 3-
Bar Engine Support Kit
303- F072 Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5. Lower the vehicle.
6. Using the special tool, raise the engine.
7. Raise the vehicle on a hoist.
8. Remove the engine mount.
Installation 1. To install, follow the removal procedure in reverse. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

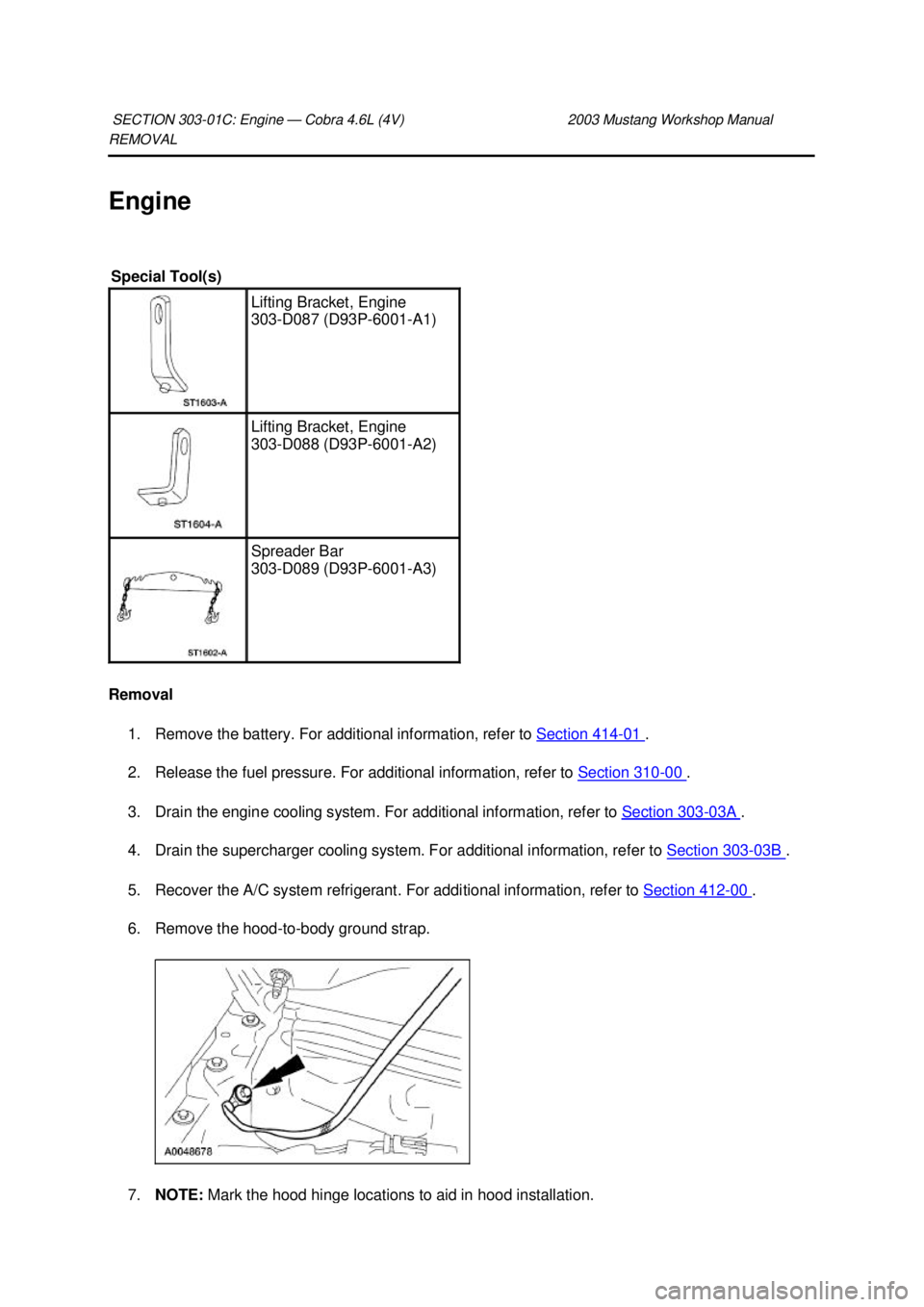

REMOVAL
Engine
Removal
1. Remove the battery. For additional information, refer to Section 414 - 01 .
2. Release the fuel pressure. For additional information, refer to Section 310 - 00 .
3. Drain the engine cooling system. For additional information, refer to Section 303 - 03A .
4. Drain the supercharger cooling system. For additional information, refer to Section 303 - 03B .
5. Recover the A/C system refrigerant. For additional information, refer to Section 412 - 00 .
