Page 342 of 4378

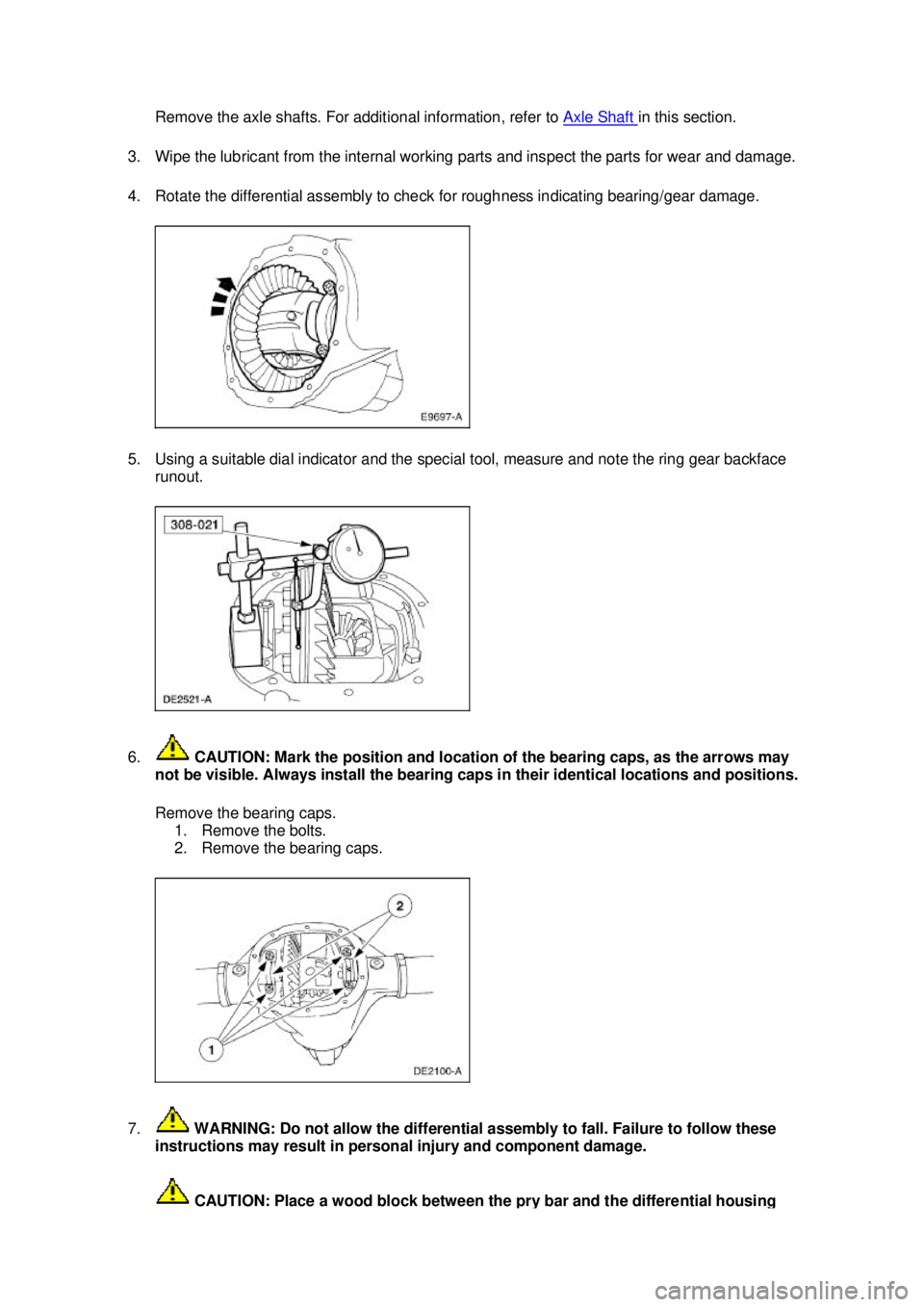

Remove the axle shafts. For additional information, refer to
Axle Shaft in this section.
3. Wipe the lubricant from the internal working parts and inspect the parts for wear and damage.
4. Rotate the differential assembly to check for roughness indicating bearing/gear damage.
5. Using a suitable dial indicator and the special tool, measure and note the ring gear backface runout.
6. CAUTION: Mark the position and location of the bearing caps, as the arrows may
not be visible. Always install the bearing caps in their identical locations and positions.
Remove the bearing caps. 1. Remove the bolts.
2. Remove the bearing caps.

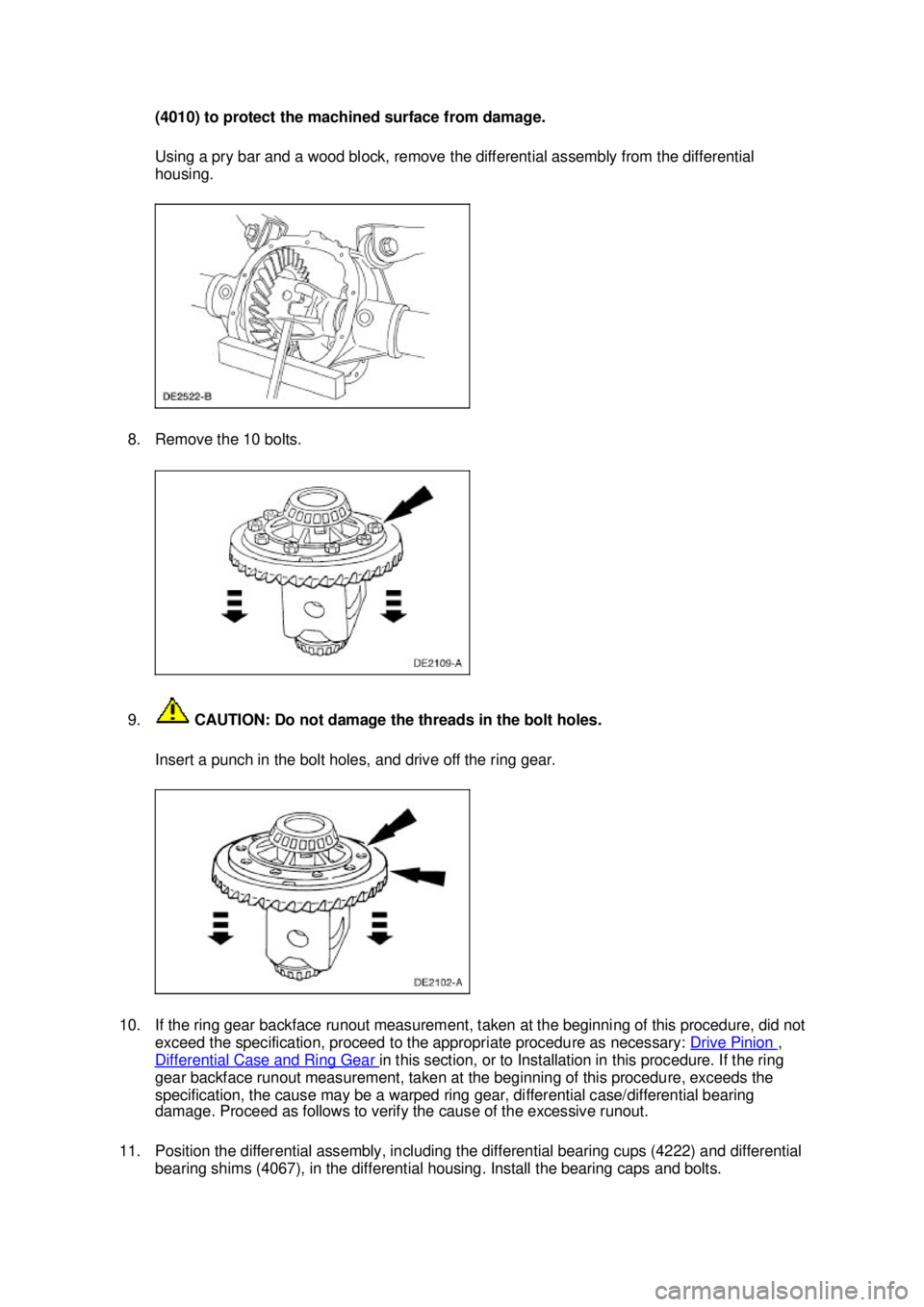

7. WARNING: Do not allow the differential assembly to fall. Failure to follow these
instructions may result in personal injury and component damage. CAUTION: Place a wood block between the pry bar and the differential housing Klj . 2 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 343 of 4378

(4010) to protect the machined surface from damage.
Using a pry bar and a wood block, remove the differential assembly from the differential
housing.
8. Remove the 10 bolts.
9. CAUTION: Do not damage the threads in the bolt holes.
Insert a punch in the bolt holes, and drive off the ring gear.
10. If the ring gear backface runout measurement, taken at the beginning of this procedure, did not exceed the specification, proceed to the appropriate procedure as necessary: Drive Pinion ,
Differential Case and Ring Gear in this section, or to Installation in this procedure. If the ring
gear backface runout measurement, taken at the beginning of this procedure, exceeds the
specification, the cause may be a warped ring gear, differential case/differential bearing
damage. Proceed as follows to verify the cause of the excessive runout.
11. Position the differential assembly, including the differential bearing cups (4222) and differential bearing shims (4067), in the differential housing. Install the bearing caps and bolts. Klj . 3 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 344 of 4378

12. Position the special tool.
1. Rotate the differential case to verify that the differential bearings (4221) have seated correctly.
2. Position the special tool.
13. Measure and note the differential case runout. 1. Rotate the differential case.
2. Note the runout.
„If the runout does not exceed the specification, install a new ring gear and drive
pinion gear. For additional information, refer to Drive Pinion in this section and to
Installation in this procedure.
„ If the runout exceeds the specification, the ring gear is true and the concern is due
to either differential case/differential bearing damage. Proceed as follows.
14. Remove the differential assembly from the differential housing.
15. Using the special tools, remove the differential bearings. Klj . 4 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 345 of 4378

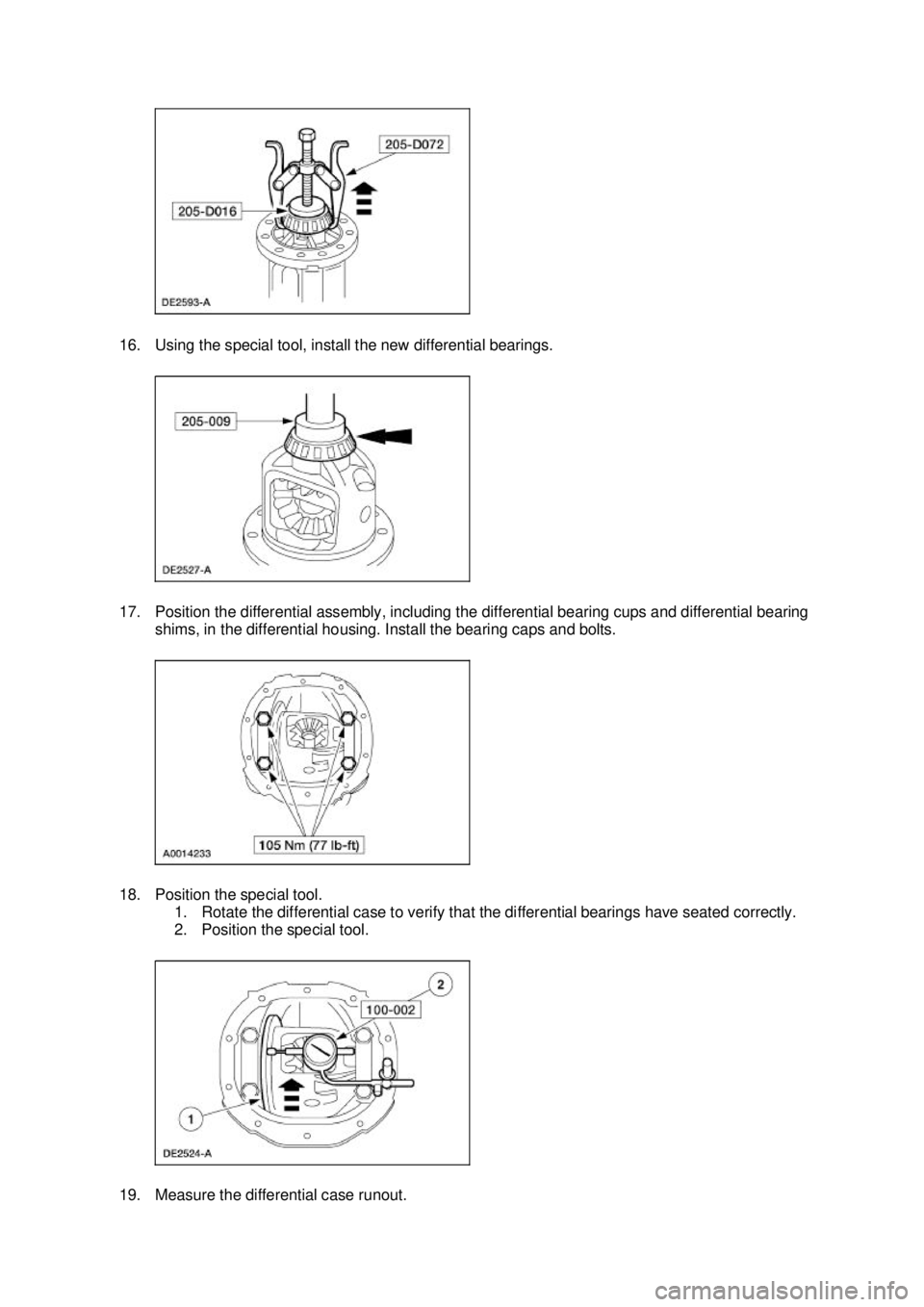

16. Using the special tool, install the new differential bearings.
17. Position the differential assembly, including the differential bearing cups and differential bearing
shims, in the differential housing. Install the bearing caps and bolts.
18. Position the special tool. 1. Rotate the differential case to verify that the differential bearings have seated correctly.
2. Position the special tool.

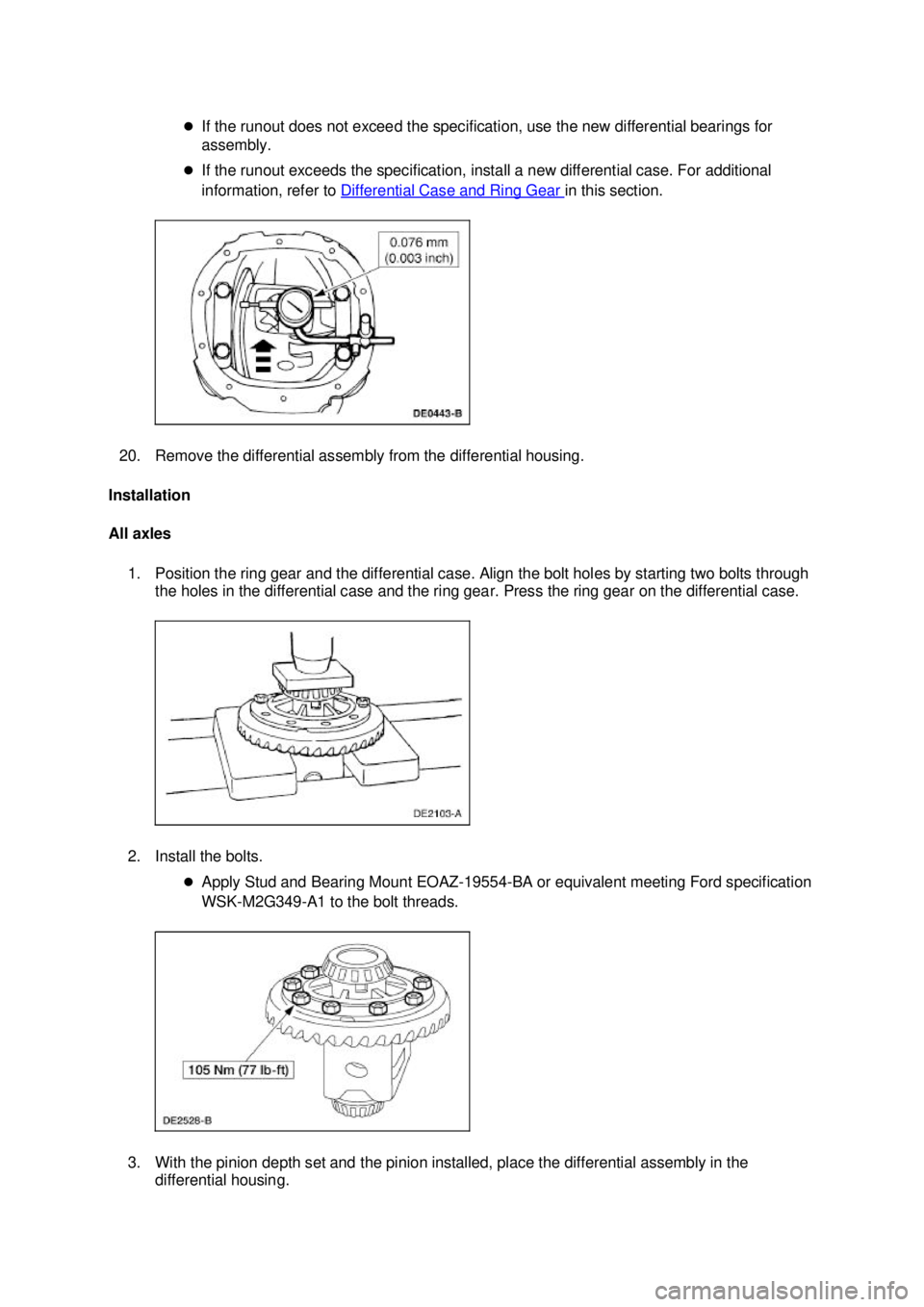

19. Measure the differential case runout. Klj . 5 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
