REMOVAL AND INSTALLATION

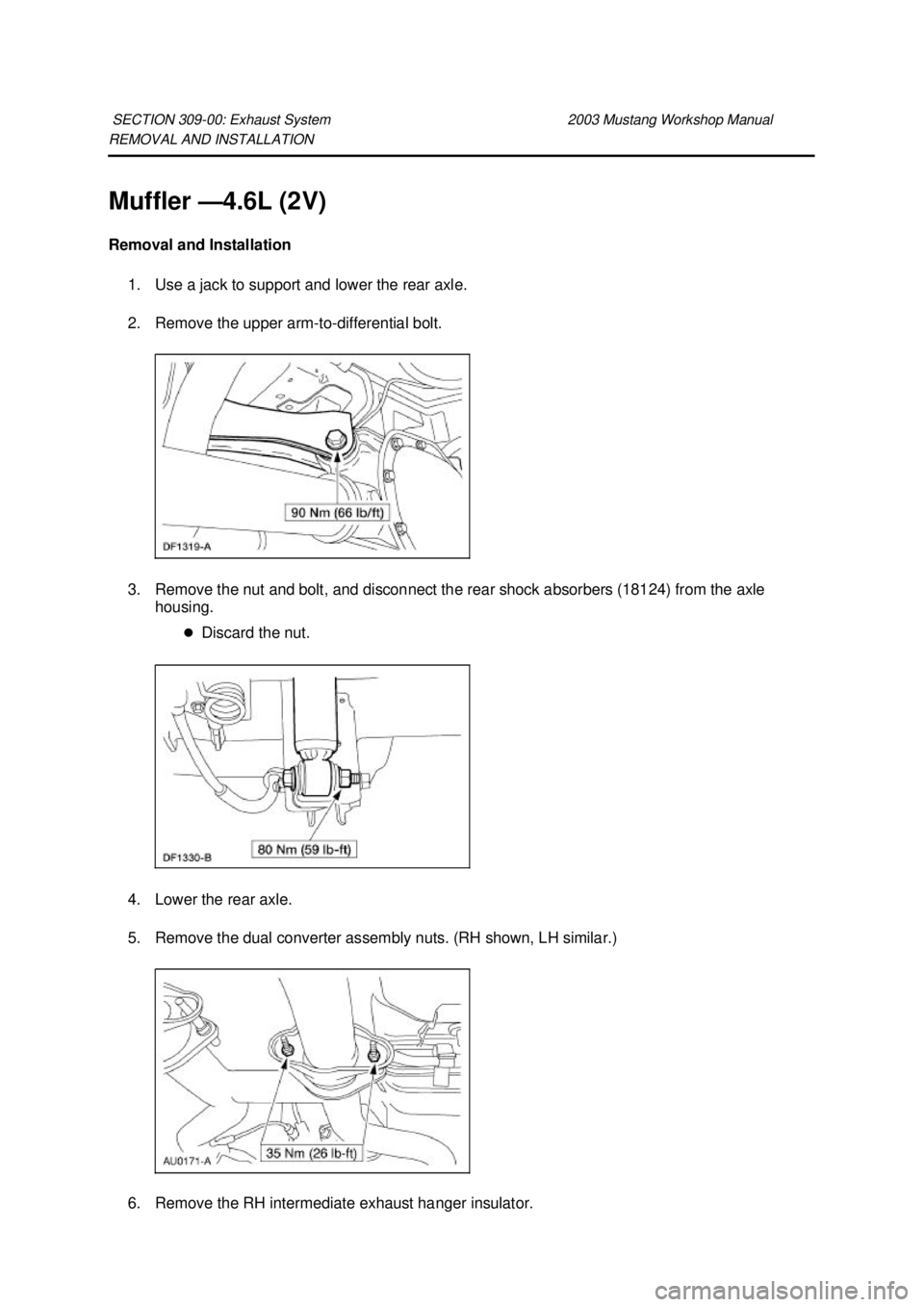

Muffler —
4.6L (2V)
Removal and Installation 1. Use a jack to support and lower the rear axle.
2. Remove the upper arm- to-differential bolt.
3. Remove the nut and bolt, and disconnect the rear shock absorbers (18124) from the axle housing.
zDiscard the nut.
4. Lower the rear axle.
5. Remove the dual converter assembly nuts. (RH shown, LH similar.)
6. Remove the RH intermediate exhaust hanger insulator.
SECTION 309-
00: Exhaust System 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Fuel Tank And Lines
WARNING: Do not smoke, carry lighted tobacco or an open flame of any type when
working on or near any fuel- related component. Highly flammable mixtures are always present
and may be ignited, possibly resulting in personal injury.
The vehicle utilizes a returnless fuel system consisting of:
zthe fuel tank.
z a fuel tank filler pipe which contains a restrictor plate to permit only unleaded fuel to be pumped
into the fuel tank.
z a 1/8 turn fuel tank filler cap.
z a fuel filter providing filtration to protect the fuel injectors.
z a single fuel line accommodating the returnless fuel system.
z a fuel injection supply manifold which contains a differential pressure sensor and a fuel
temperature sensor.
z a fuel pump and sender assembly which provides pressurized fuel to the engine and contains:
„an inlet filter.
„ a check valve which maintains system pressure after the pump is shut off.
„ a pressure relief valve for overpressure protection in the event of restricted flow.
The fuel pump is controlled by an electronic fuel pump driver module which is enabled by the
powertrain control module (PCM). Electrical power to the fuel pump is provided through the inertia fuel
shutoff (IFS) switch, which is located in the luggage compartment. SECTION 310-
01: Fuel Tank and Lines 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

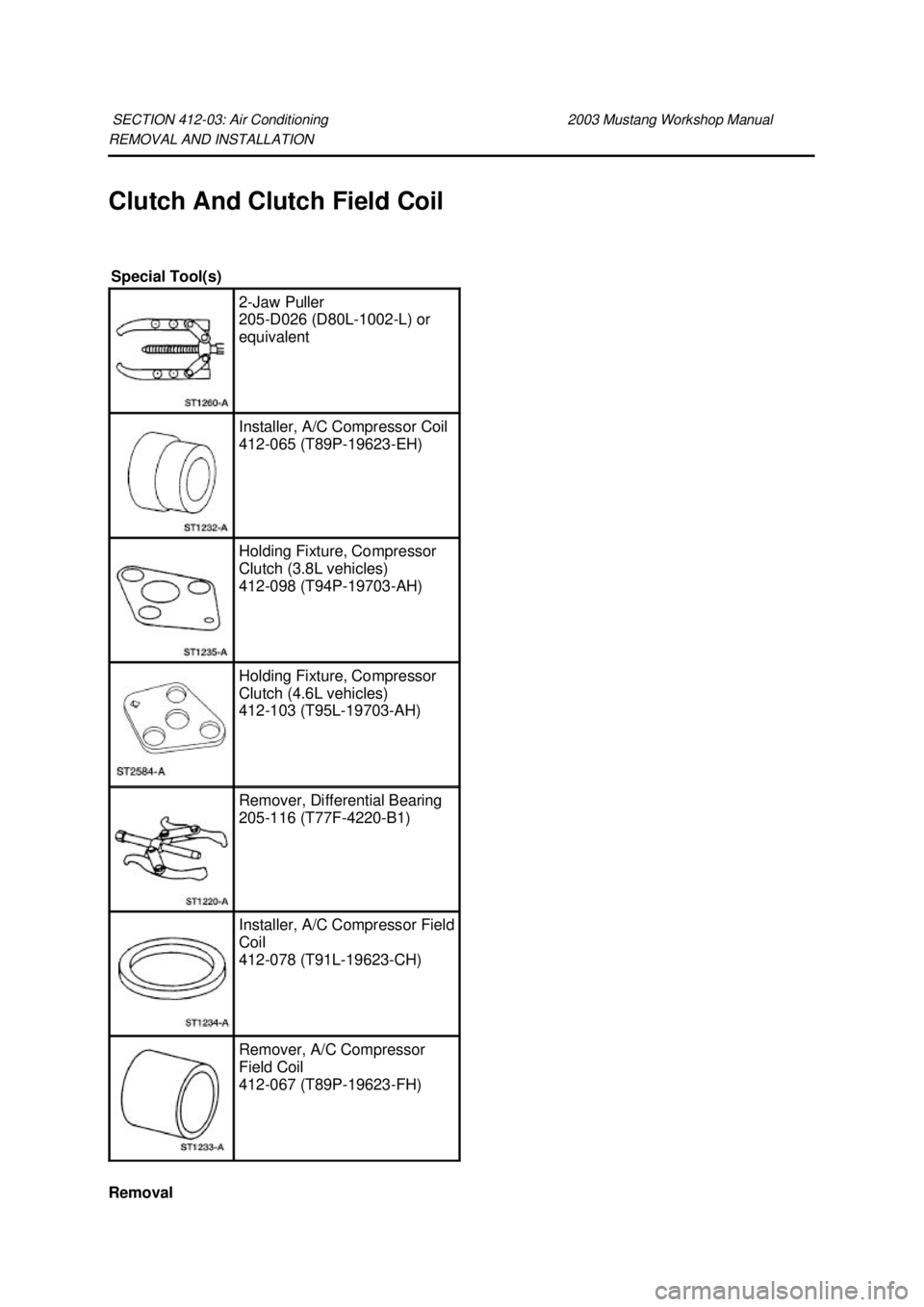

REMOVAL AND INSTALLATION
Clutch And Clutch Field Coil
Removal
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual Special Tool(s)
2-
Jaw Puller
205- D026 (D80L-1002- L) or
equivalent Installer, A/C Compressor Coil
412-
065 (T89P-19623- EH) Holding Fixture, Compressor
Clutch (3.8L vehicles)
412-
098 (T94P-19703- AH) Holding Fixture, Compressor
Clutch (4.6L vehicles)
412-
103 (T95L-19703- AH) Remover, Differential Bearing
205-
116 (T77F-4220- B1) Installer, A/C Compressor Field
Coil
412-
078 (T91L-19623- CH) Remover, A/C Compressor
Field Coil
412-
067 (T89P-19623- FH) Klj . 1 ba
