FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION

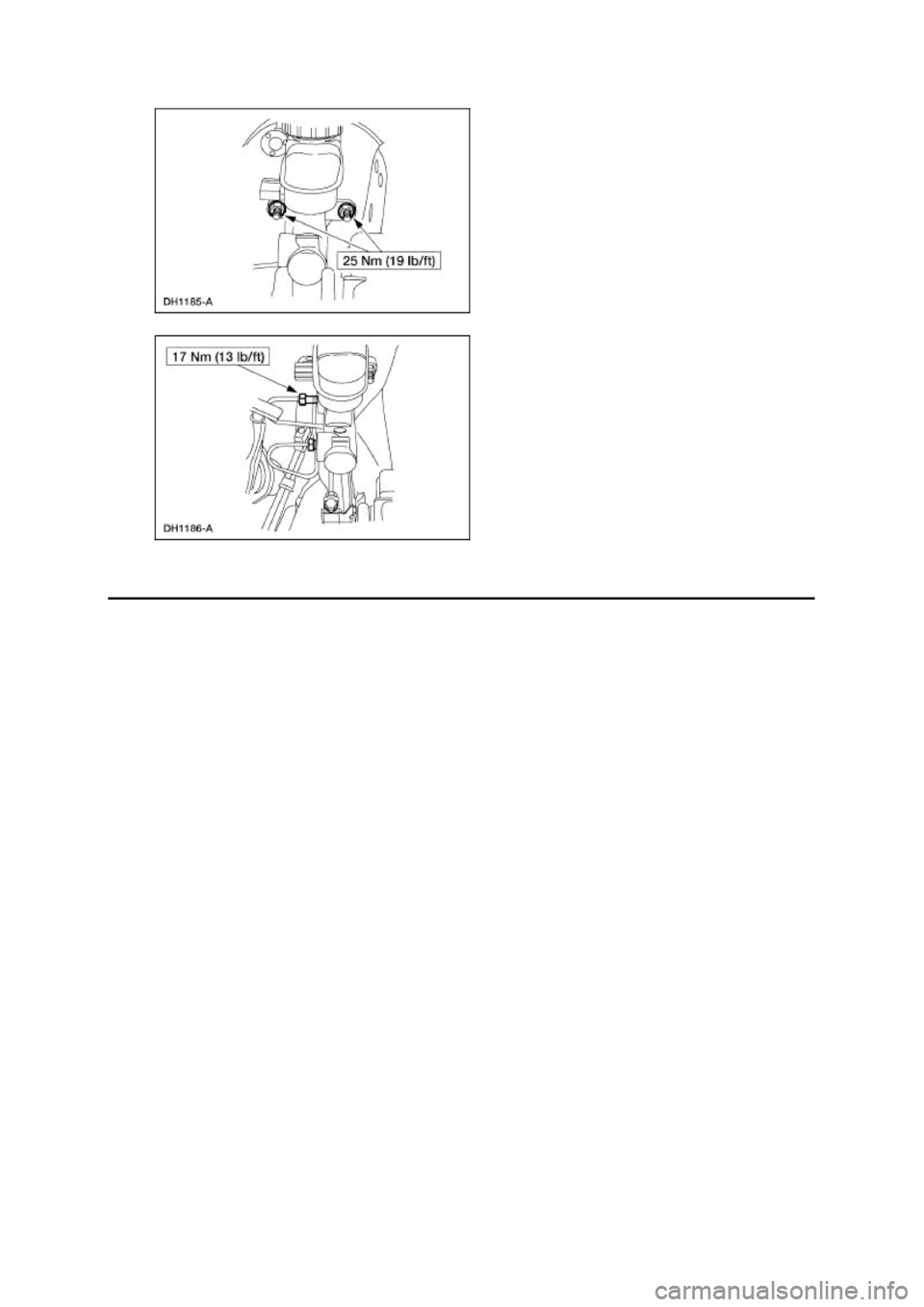

Master Cylinder
Removal
1. Disconnect the fluid level sensor connector.
2. Disconnect the brake tubes.
3. Remove the brake master cylinder nuts.
4. Remove the brake master cylinder (2140).
Installation
1. To install, reverse the removal procedure. zBleed the brake system. For additional information, refer to Section 206 - 00 .
SECTION 206-
06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Master Cylinder —
Hydro-Boost

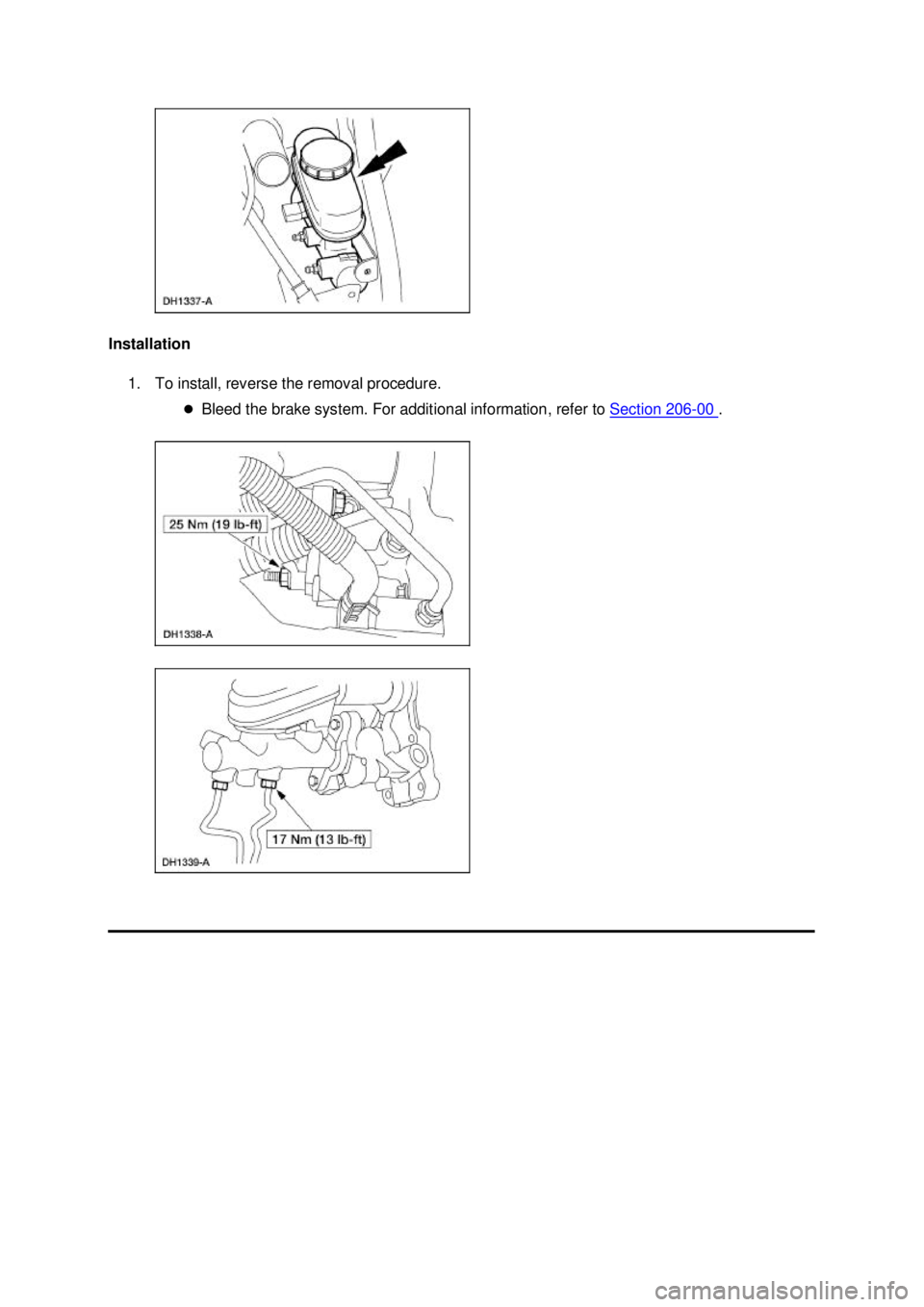

Removal 1. Disconnect the fluid level sensor connector.
2. Disconnect the brake tubes.
3. Remove the brake master cylinder nuts. 4. Remove the brake master cylinder (2140). SECTION 206-
06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Installation
1. To install, reverse the removal procedure. zBleed the brake system. For additional information, refer to Section 206 - 00 . Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Reservoir
Removal
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with
eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with
running water for 15 minutes. Get medical attention if irritation persists. If taken internally,
drink water and induce vomiting. Get medical attention immediately.
1. Disconnect the brake master cylinder fluid level switch.
2. Use a suitable suction device to drain the brake master cylinder reservoir (2K478).
3. Carefully pry up on the brake master cylinder reservoir and remove.

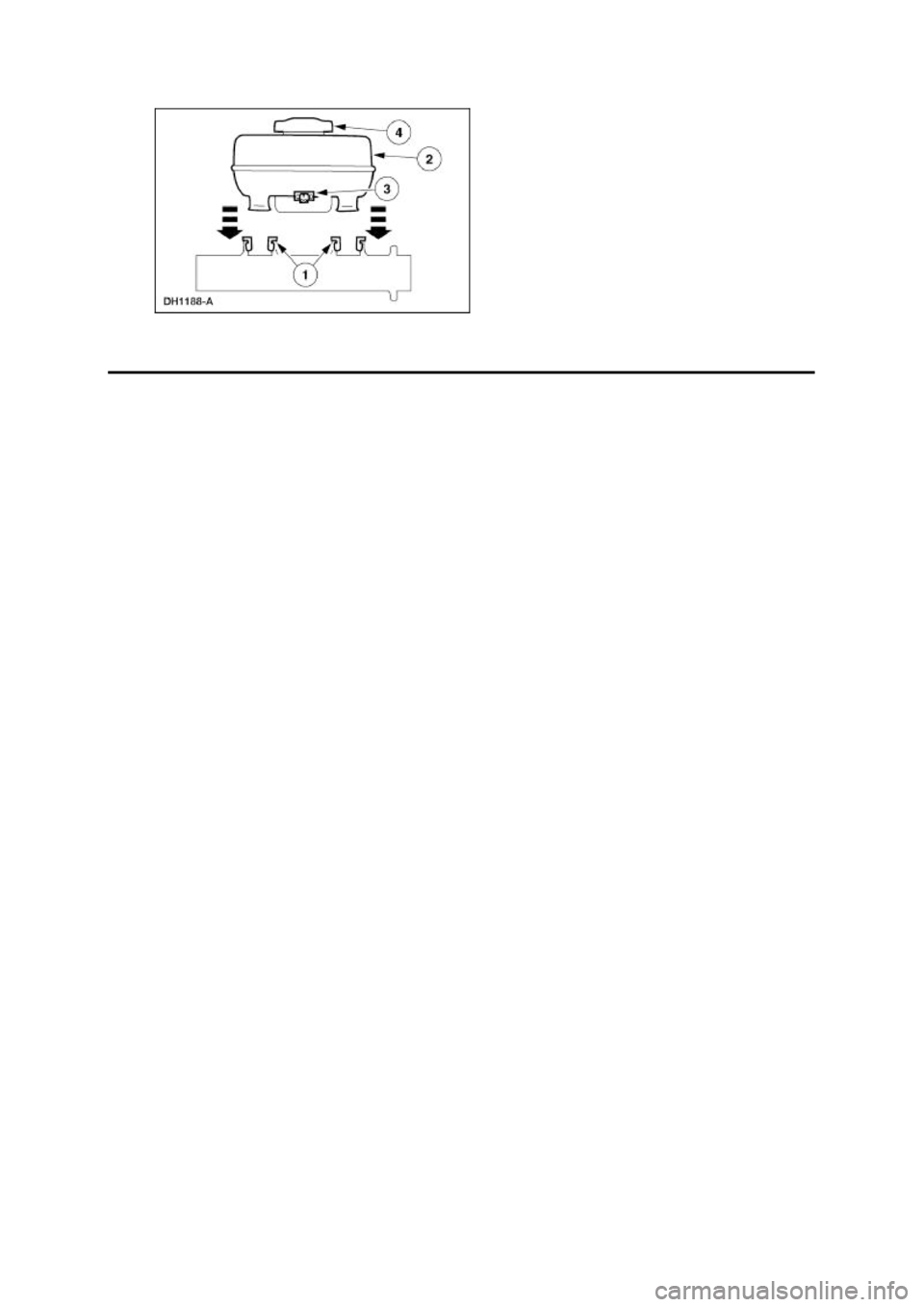

Installation 1. NOTE: Whenever installing a new brake master cylinder reservoir, install new grommets.
Install the brake master cylinder reservoir. 1. Lubricate the two grommets with High Performance DOT 3 Brake Fluid C6AZ-19542- AB
or equivalent fluid meeting Ford specification ESA- M6C25-A and insert the grommets
into the brake master cylinder (2140).
2. Press the brake master cylinder reservoir into the grommets until it is fully seated.
3. Connect the brake master cylinder fluid level switch.
4. Fill the brake master cylinder reservoir with clean High Performance DOT 3 Brake Fluid C6AZ- 19542- AB or equivalent fluid meeting Ford specification ESA- M6C25-A.
5. Bleed the brake master cylinder. For additional information, refer to Section 206 - 00 .
SECTION 206-
06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION

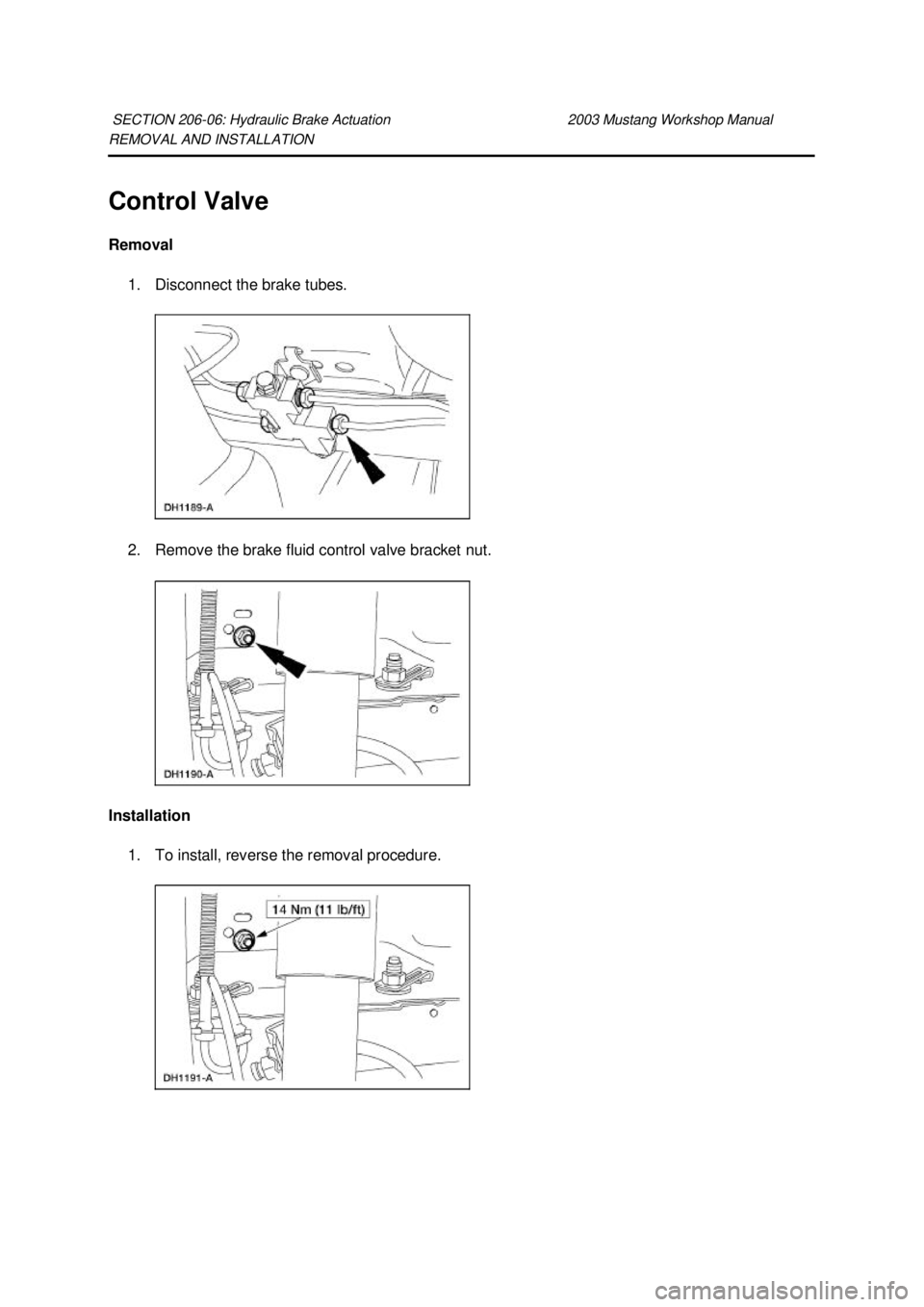

Control Valve
Removal

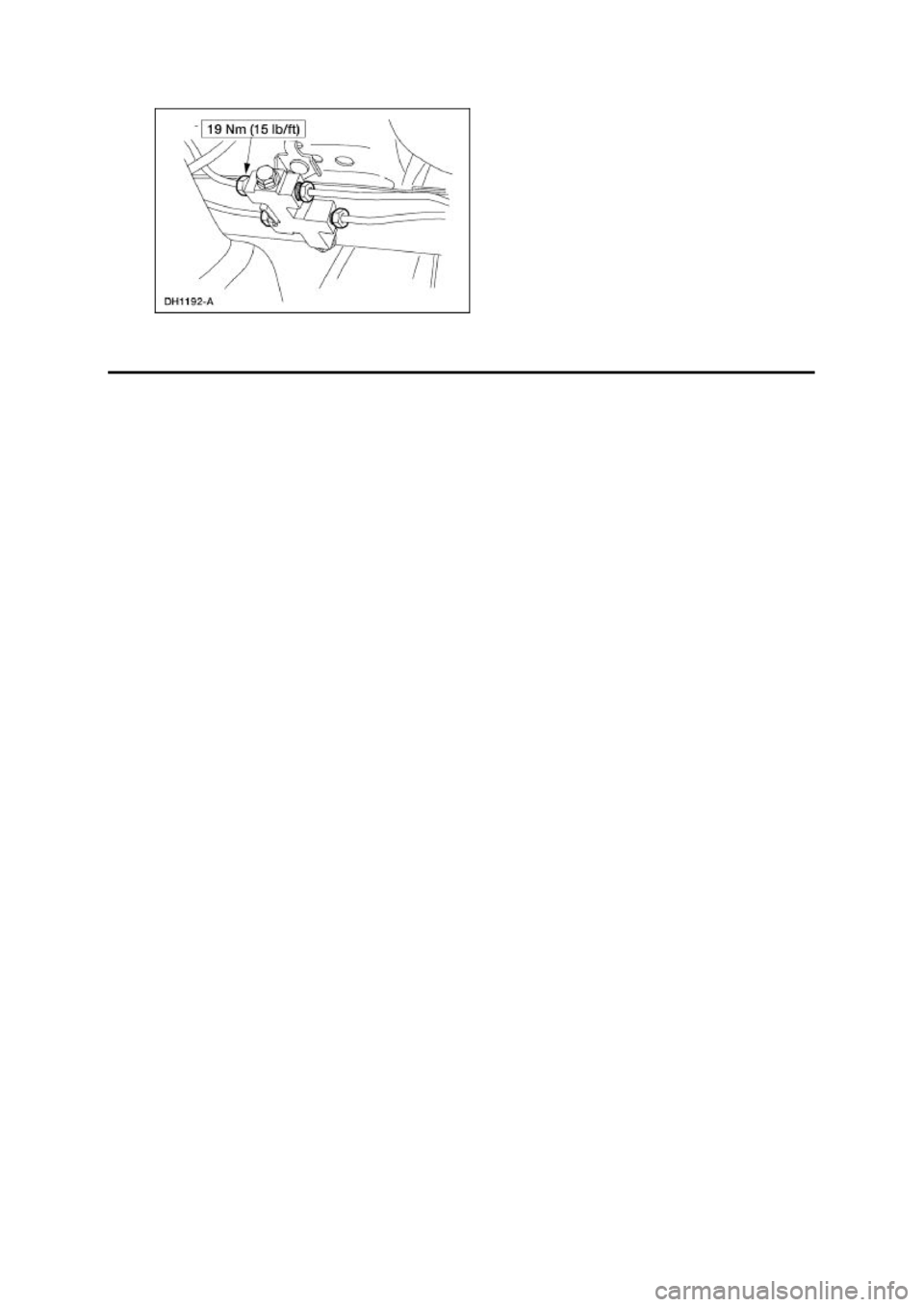

1. Disconnect the brake tubes.
2. Remove the brake fluid control valve bracket nut.
Installation 1. To install, reverse the removal procedure.
SECTION 206-
06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-
07: Power Brake Actuation 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft Power brake booster nuts 25 19
Brake master cylinder nuts 25 19
Hydraulic tube connections 17 13
Power steering pressure lines 19 14 Klj . 1 ba
