FORD MUSTANG 2003 Repair Manual
Page 4308 of 4378
Fig. 41: Power Windows Circuit, Coupe
RADIO
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 42 © 2006 Mitchell Repair Information Company, LLC.
Page 4309 of 4378

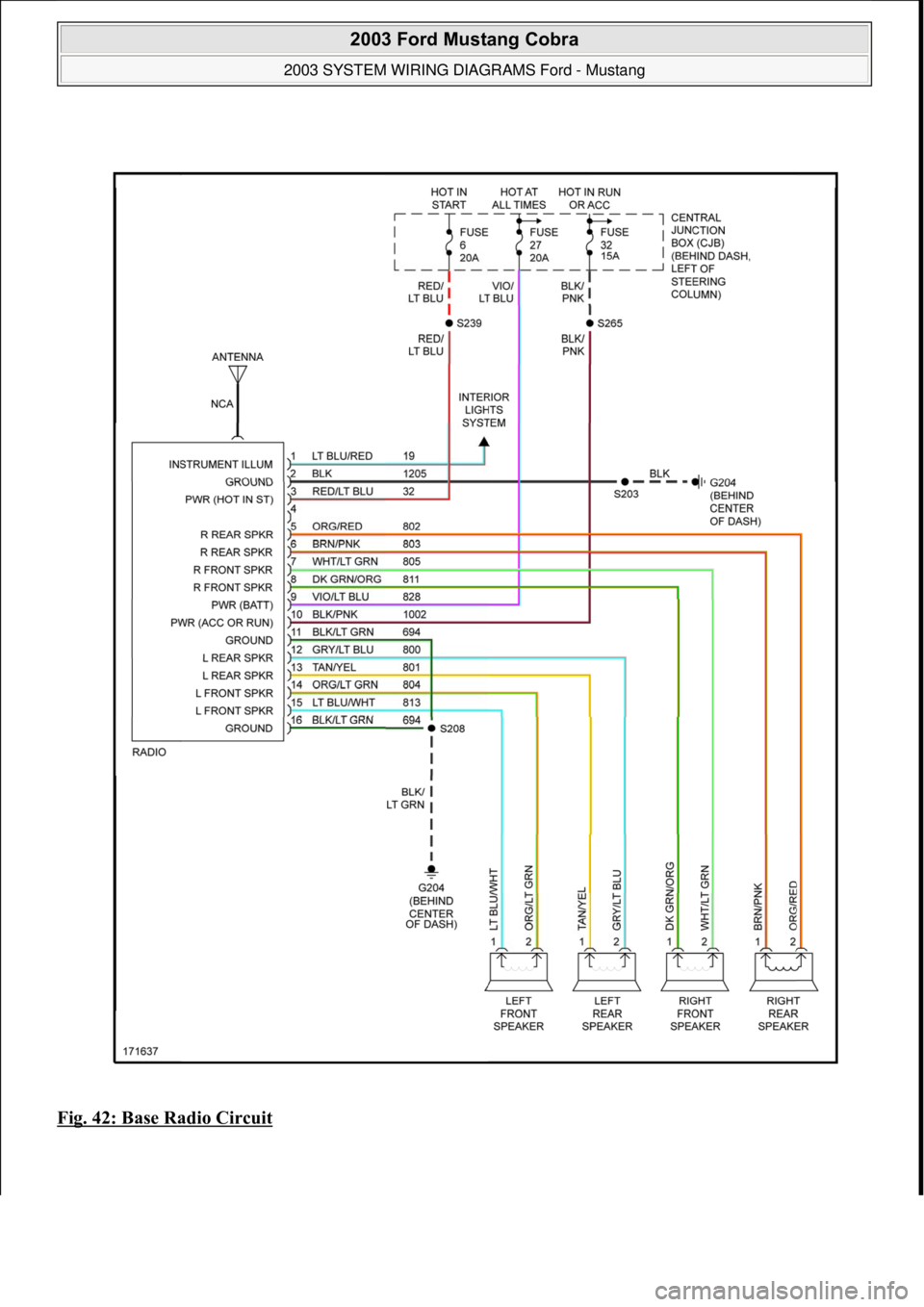

Fig. 42: Base Radio Circuit
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 43 © 2006 Mitchell Repair Information Company, LLC.
Page 4310 of 4378

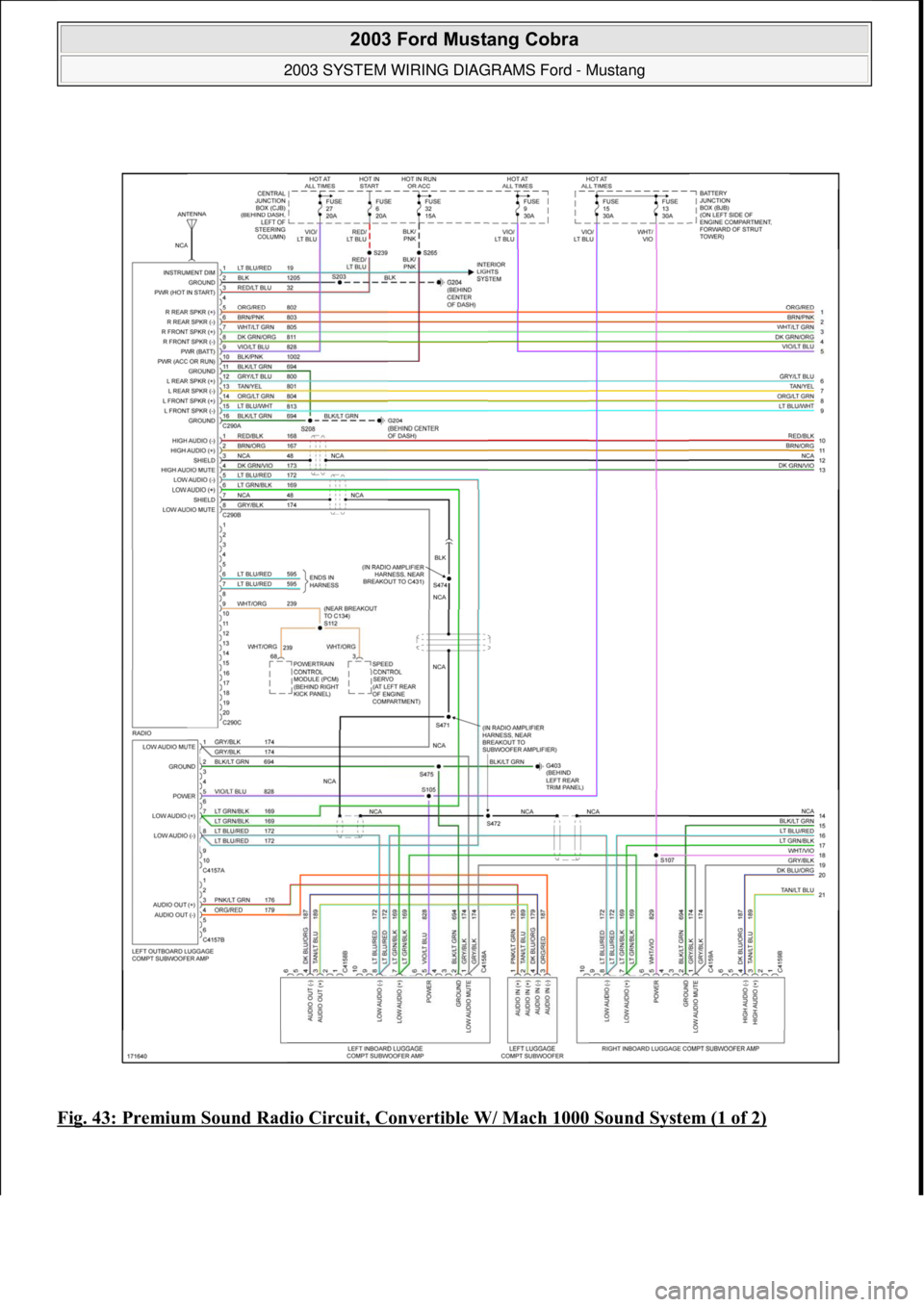

Fig. 43: Premium Sound Radio Circuit, Convertible W/ Mach 1000 Sound System (1 of 2)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 44 © 2006 Mitchell Repair Information Company, LLC.
Page 4311 of 4378

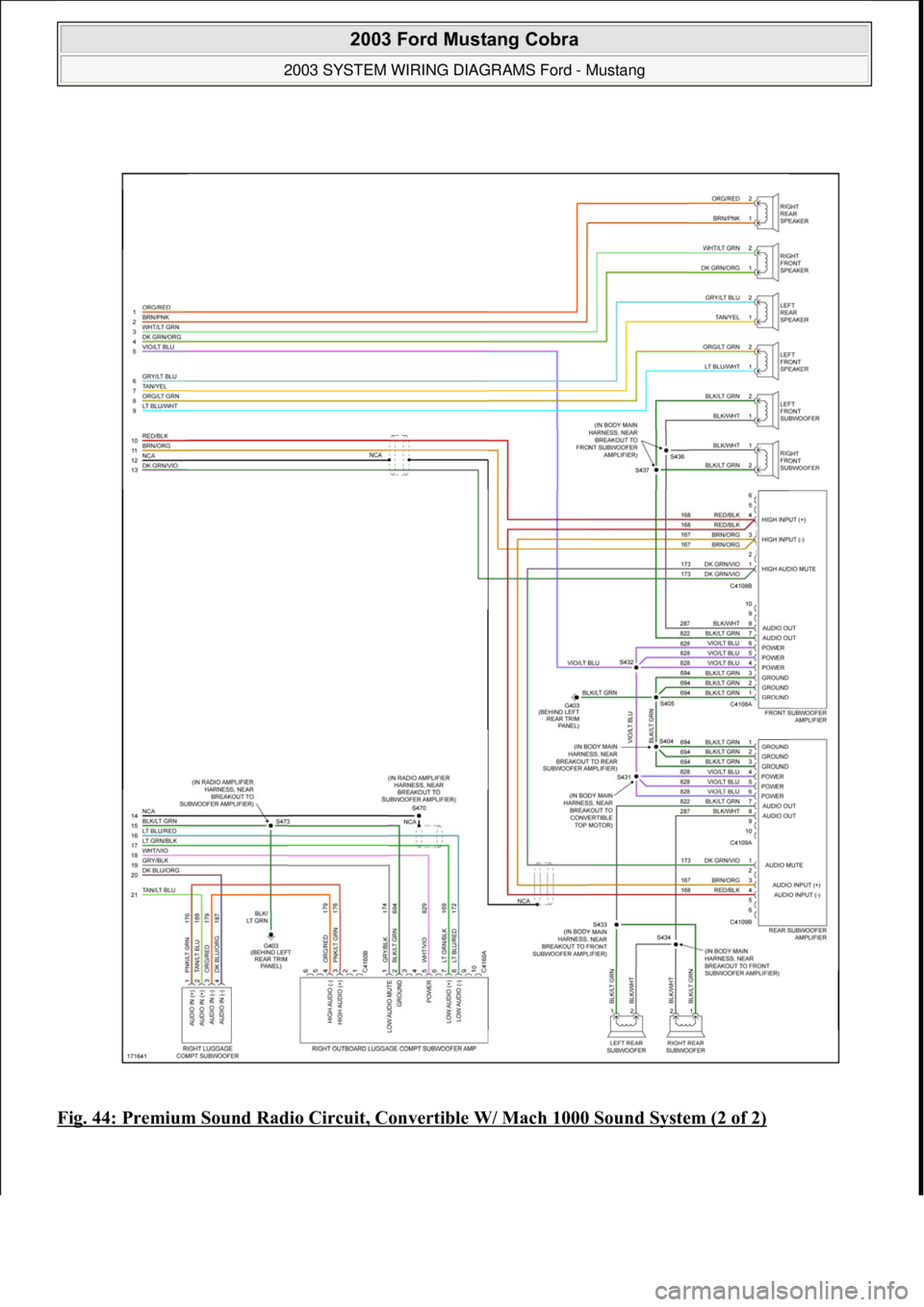

Fig. 44: Premium Sound Radio Circuit, Convertible W/ Mach 1000 Sound System (2 of 2)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 45 © 2006 Mitchell Repair Information Company, LLC.
Page 4312 of 4378

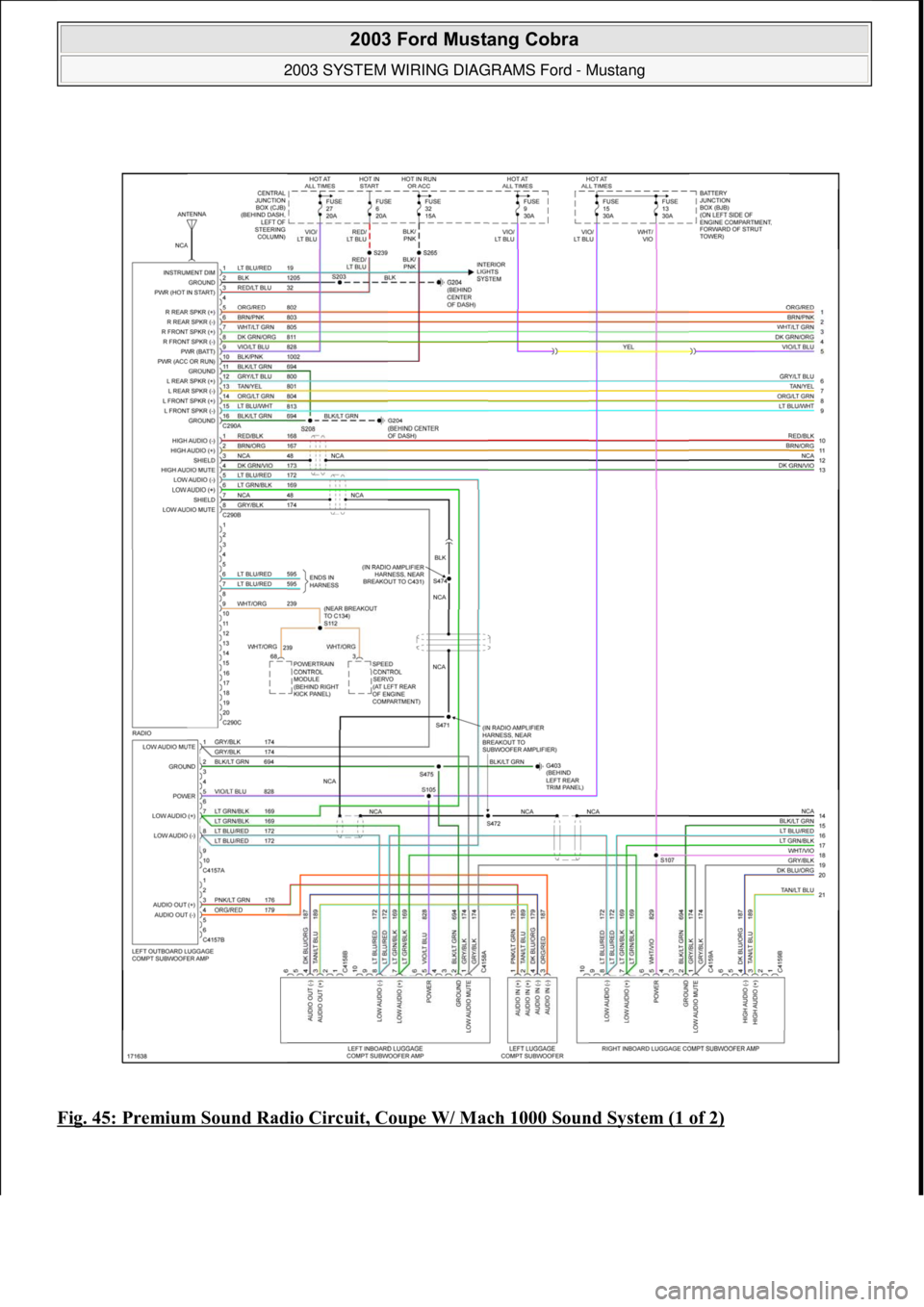

Fig. 45: Premium Sound Radio Circuit, Coupe W/ Mach 1000 Sound System (1 of 2)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 46 © 2006 Mitchell Repair Information Company, LLC.
Page 4313 of 4378

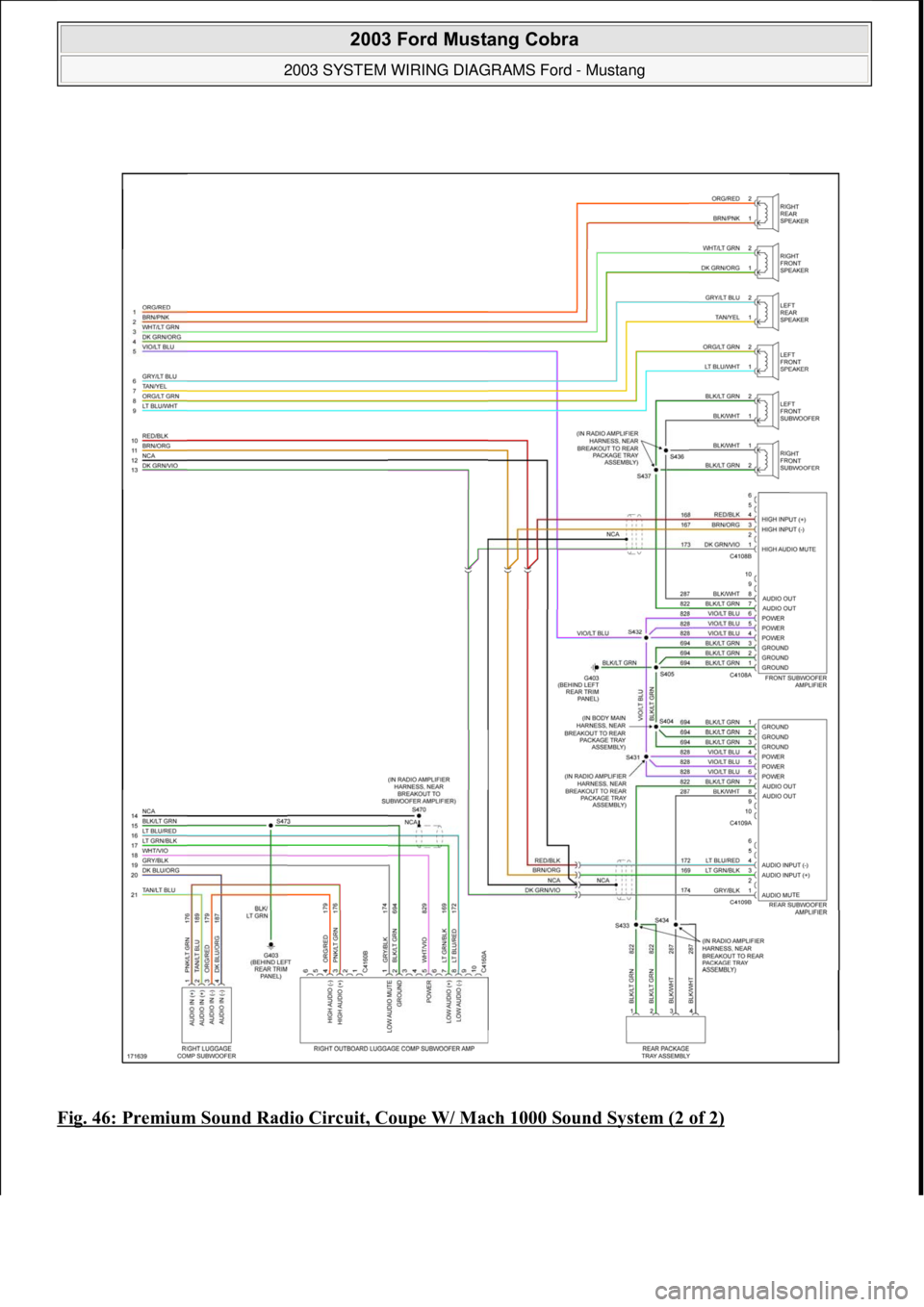

Fig. 46: Premium Sound Radio Circuit, Coupe W/ Mach 1000 Sound System (2 of 2)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 47 © 2006 Mitchell Repair Information Company, LLC.
Page 4314 of 4378

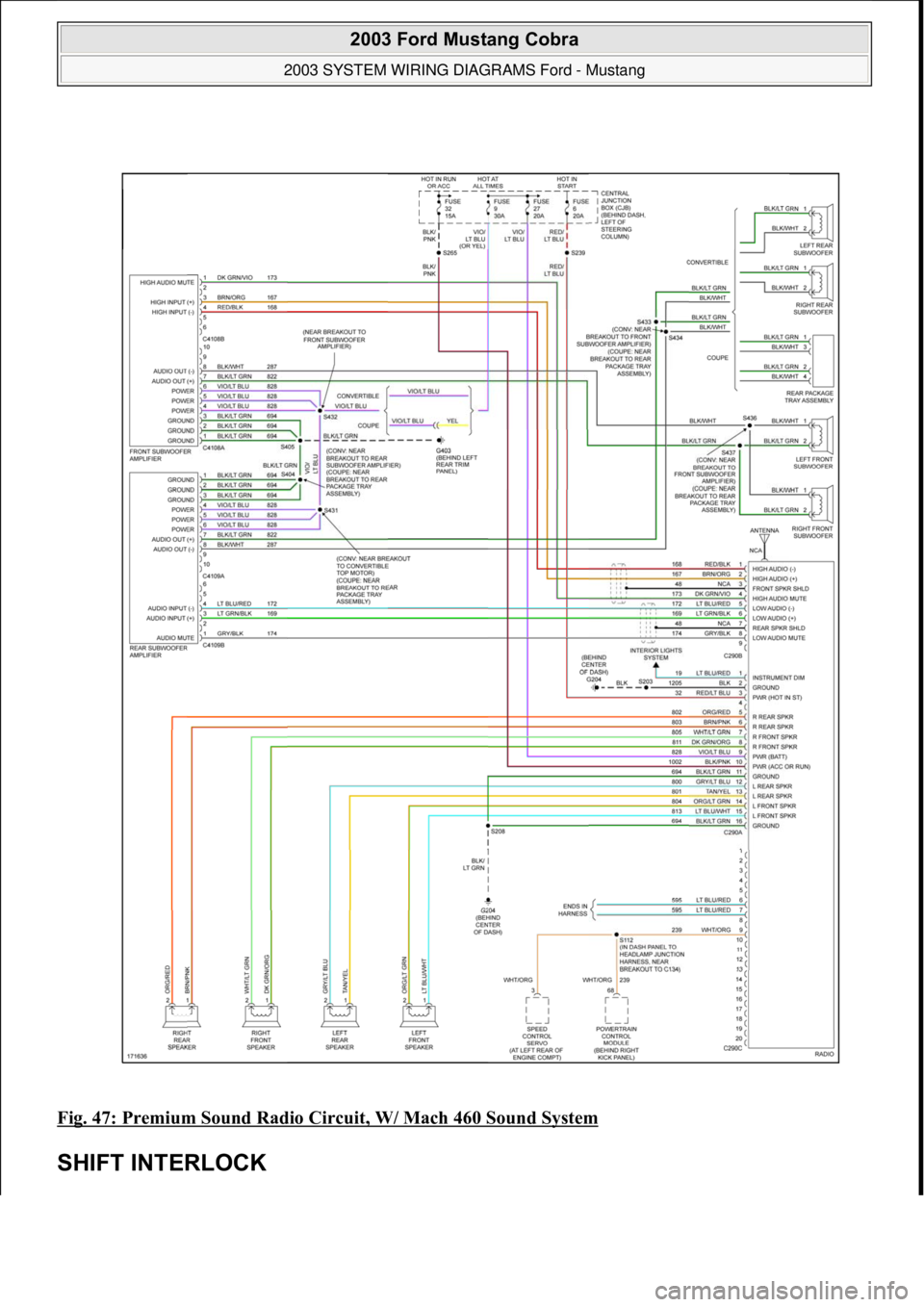

Fig. 47: Premium Sound Radio Circuit, W/ Mach 460 Sound System
SHIFT INTERLOCK
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:07Page 48 © 2006 Mitchell Repair Information Company, LLC.
Page 4364 of 4378
Fig. 41: Power Windows Circuit, Coupe
RADIO
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 42 © 2006 Mitchell Repair Information Company, LLC.
Page 4365 of 4378
Fig. 42: Base Radio Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 43 © 2006 Mitchell Repair Information Company, LLC.
Page 4366 of 4378
Fig. 43: Premium Sound Radio Circuit, Convertible W/ Mach 1000 Sound System (1 of 2)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 44 © 2006 Mitchell Repair Information Company, LLC.
