REMOVAL AND INSTALLATION
Wheel Studs
Removal
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number must be installed if installation becomes necessary. If substitution is
necessary, the part must be of the same finish and property class. Torque values must be used
as specified during reassembly to make sure of correct retention of these parts.
1. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 .
2. Remove the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
3. Remove the rear brake disc. For additional information, refer to Section 206 - 04 .
4. Using the special tool, remove and discard the wheel stud.
Installation CAUTION: Do not use air tools to install the wheel stud. The serrations in the hub flange
can be stripped.
1. Install the wheel stud. 1. Position a new wheel stud in the hub flange making sure the serrations on the stud line up with the serrations in the flange.
2. Position washers and a reversed wheel nut on the wheel stud.
3. Tighten the wheel nut until the wheel stud seats on the back of the hub flange.
SECTION 204-
02: Rear Suspension 2003 Mustang Workshop Manual Special Tool(s)
C-
Frame and Clamp Assembly
211- 023 (T74P-3044- A1) Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

2. Remove the four bolts.
6. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion
flange pilot. Never hammer on the driveshaft or any of its components to disconnect the
yoke from the flange. Pry only in the area shown, with a suitable tool, to disconnect the
yoke from the flange.
Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear
axle pinion flange.
7. CAUTION: Do not allow the slip yoke to bottom on the transmission output shaft.
Lower the rear end of the driveshaft to clear the rear axle housing. Pull the driveshaft rearward
until the driveshaft slip yoke clears the transmission extension housing. zPlace a paint index mark on the driveshaft slip yoke and the transmission output shaft.
z Place a commercially available plug in the extension housing to prevent fluid leakage.
8. CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
threadlock and sealer to the threads of the original bolts.
CAUTION: Do not allow the slip yoke to bottom on the transmission output shaft.
CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion
flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts
evenly in a cross pattern as shown.
NOTE: Clean all foreign material from the yoke areas of the driveshaft.
To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5.
CAUTION: Do not under any circumstance loosen the nut to reduce preload. If it is
necessary to reduce preload, install a new collapsible spacer (4662) and nut.
CAUTION: Remove the special tool while taking preload readings with the Nm
(inch/pound) torque wrench.
Tighten the nut to set the preload.
zRotate the drive pinion occasionally to make sure the differential pinion bearings (4630)
(4621) seat correctly. Take frequent differential pinion bearing torque preload readings by
rotating the drive pinion with a Nm (inch/pound) torque wrench.
z If the preload recorded prior to disassembly is lower than the specification for used
bearings, then tighten the nut to specification. If the preload recorded prior to
disassembly is higher than the specification for used bearings, then tighten the nut to the
original reading as recorded.
z Refer to the torque specification for used differential pinion bearings in the Specifications
portion of this section.
6. CAUTION: Align the index marks.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange
pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in
a cross pattern as shown.
Connect the driveshaft. For additional information, refer to Section 205 - 01 . Klj . 4 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

2. Install the bearing caps.
3. Install the four bolts.

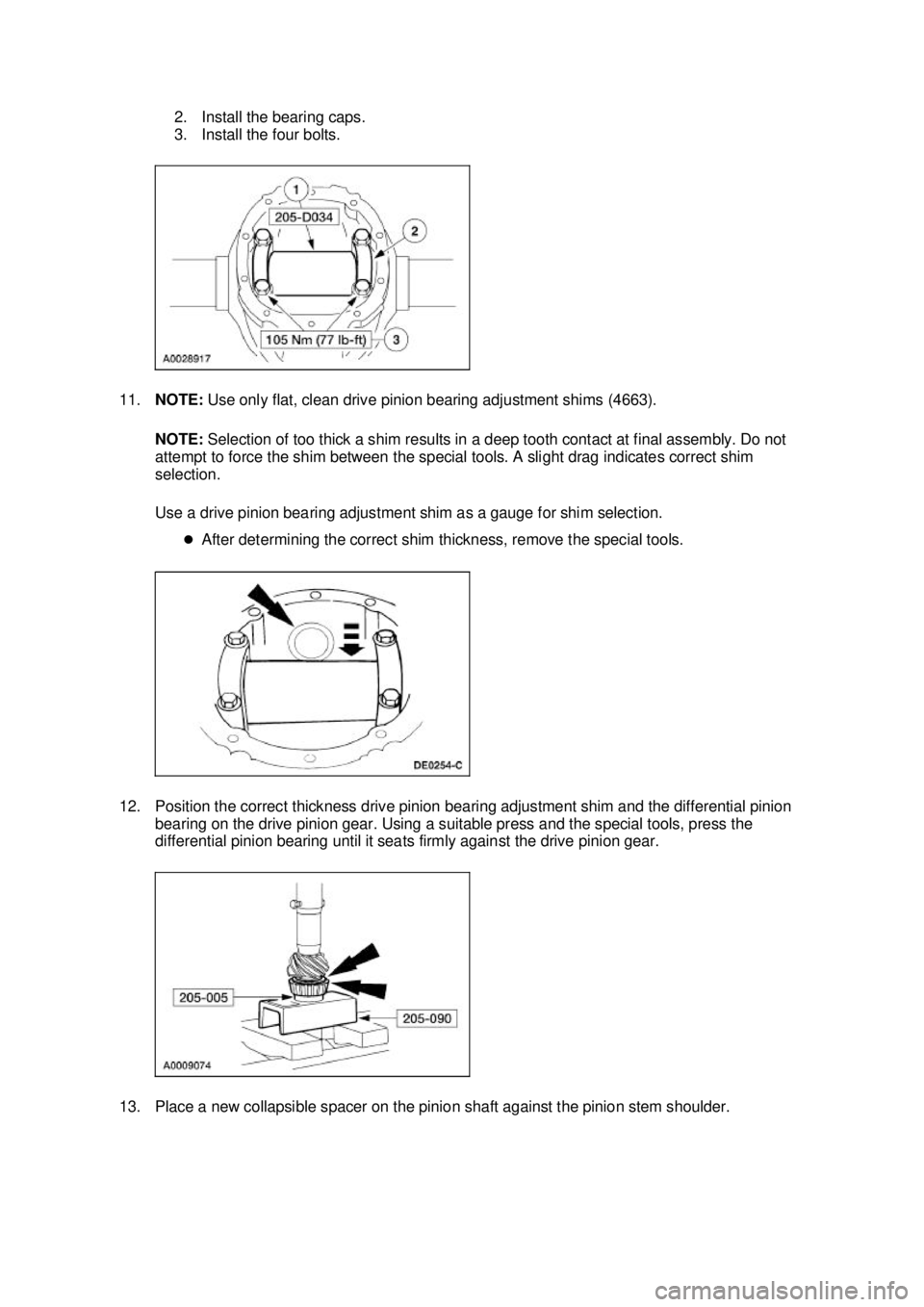

11. NOTE: Use only flat, clean drive pinion bearing adjustment shims (4663).
NOTE: Selection of too thick a shim results in a deep tooth contact at final assembly. Do not
attempt to force the shim between the special tools. A slight drag indicates correct shim
selection.
Use a drive pinion bearing adjustment shim as a gauge for shim selection.
zAfter determining the correct shim thickness, remove the special tools.
12. Position the correct thickness drive pinion bearing adjustment shim and the differential pinion bearing on the drive pinion gear. Using a suitable press and the special tools, press the
differential pinion bearing until it seats firmly against the drive pinion gear.
13. Place a new collapsible spacer on the pinion shaft against the pinion stem shoulder. Klj . 9 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

12. Disconnect the lower suspension arm and bushings from the axle.
13. Remove the axle from the vehicle.
14.
CAUTION: Align the index marks on the driveshaft centering socket yoke and the
pinion flange.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange
pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in
a cross pattern as shown.
CAUTION: Raise the suspension to the reference marks on the rear shock
absorbers before tightening the suspension fasteners.
NOTE: Apply High Temperature Nickel Anti- Sieze Lubricant F6AZ-9L494-AA meeting Ford
specification ESE-M124A- A to the rear anti-lock brake sensor body where it will make contact
when installed.
To install, reverse the removal procedure.
zRefer to Section 204 - 02 for rear suspension fastener tightening specifications.
z Refer to Section 204 - 04 for wheel nut tightening specification.
z Check and, if necessary, fill the axle with the specified lubricant to the specified level. For
additional information, refer to Specifications in this section. Klj . 4 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

17. Remove the axle from the vehicle.
18.
CAUTION: Align the index marks on the driveshaft centering socket yoke and the
pinion flange.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange
pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in
a cross pattern as shown.
CAUTION: Raise the suspension to the reference marks on the rear shock
absorbers before tightening the suspension fasteners.
NOTE: Apply High Temperature Nickel Anti- Sieze Lubricant F6AZ-9L494-AA meeting Ford
specification ESE-M124A- A to the rear anti-lock brake sensor body where it will make contact
when installed.
Follow the removal procedure in reverse order.
zRefer to Section 204 - 02 for rear suspension fastener tightening specifications.
z Refer to Section 204 - 04 for wheel nut tightening specification. Klj . 5 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5.
CAUTION: Align the index- marks.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion
flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts
evenly in a cross pattern as shown.
Connect the driveshaft and install the bolts.
6. Install the pinion nose crossmember.
7. NOTE: The following halfshaft and knuckle assembly installation steps apply to both sides of
the vehicle.
Remove the special tool. Klj . 8 ba
142003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

8.
CAUTION: Differential seal damage will occur if installing the halfshaft without the
special tool.
Install the special tool.
9. Position the halfshaft for installation.
10. Seat the CV joint stub shaft in the differential side gear. 1. Slide the stub shaft into the differential housing until the shaft splines are past the differential seal.
2. Remove the special tool.
3. Align the stub shaft splines and the side gear splines, and slide the stub shaft into the gear until it seats.
„When seated, the axle circlip will lock the stub shaft in the differential side gear.
Check the circlip engagement by attempting to pull the inboard CV joint out of the
differential side gear. If the circlip has not seated, push the CV joint inward until
the circlip is fully engaged in the differential side gear. Klj . 9 ba
142003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

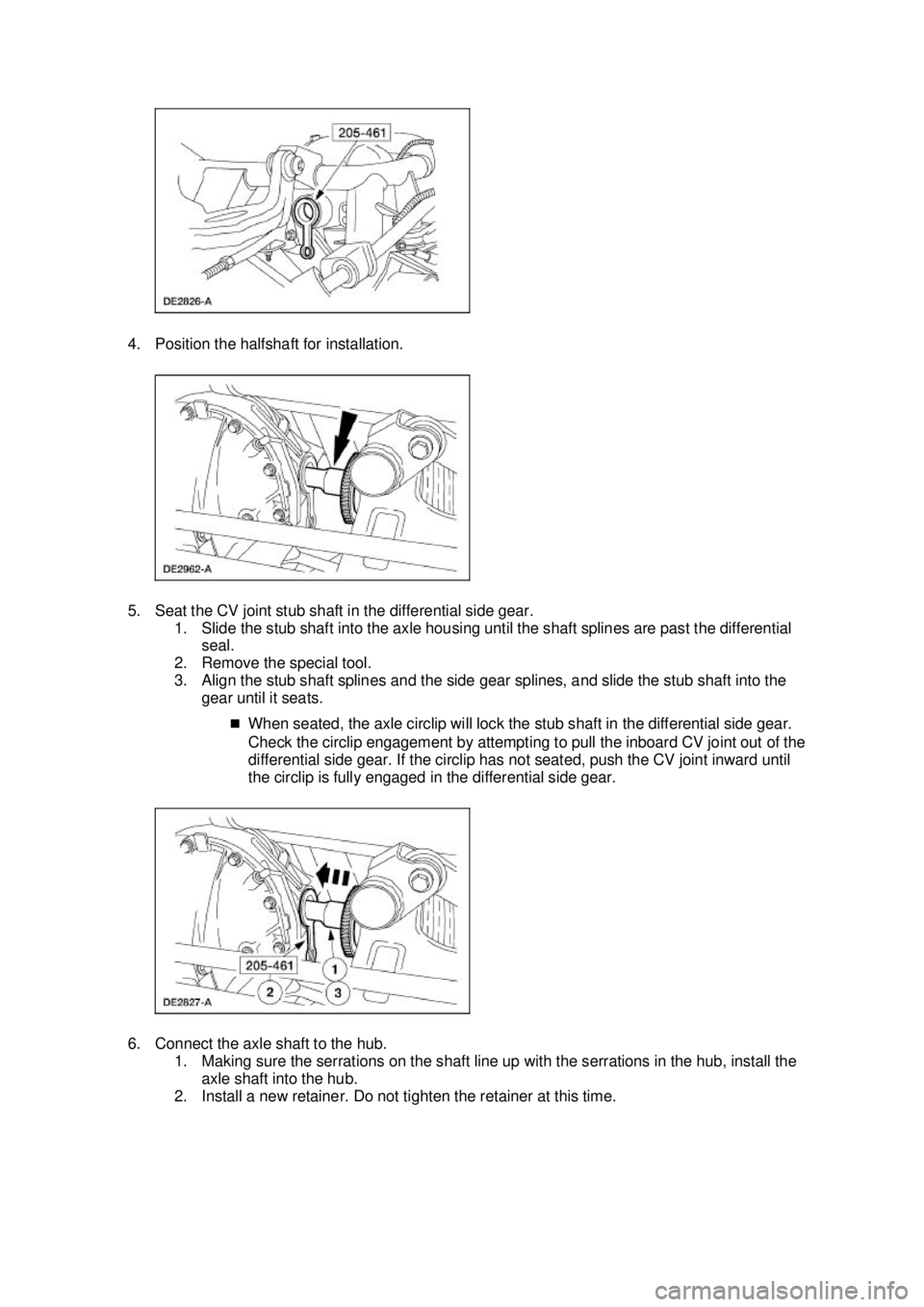

4. Position the halfshaft for installation.
5. Seat the CV joint stub shaft in the differential side gear.
1. Slide the stub shaft into the axle housing until the shaft splines are past the differential seal.
2. Remove the special tool.
3. Align the stub shaft splines and the side gear splines, and slide the stub shaft into the gear until it seats.
„When seated, the axle circlip will lock the stub shaft in the differential side gear.
Check the circlip engagement by attempting to pull the inboard CV joint out of the
differential side gear. If the circlip has not seated, push the CV joint inward until
the circlip is fully engaged in the differential side gear.
6. Connect the axle shaft to the hub. 1. Making sure the serrations on the shaft line up with the serrations in the hub, install the axle shaft into the hub.
2. Install a new retainer. Do not tighten the retainer at this time. Klj . 6 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Supplemental Restraint System (SRS) Deactivation and
Reactivation
Deactivation
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint
system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury
in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium
hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your
hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air
bag deployment, which can result in personal injury.
WARNING: Air bag modules with discolored or damaged trim covers must be installed
new, not repainted.
WARNING: The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in injury and possible
violation of vehicle safety standards.
1. WARNING: To avoid accidental deployment and possible personal injury, the
backup power supply must be depleted before repairing or replacing any front or side air
bag supplemental restraint system (SRS) components and before servicing, replacing,
adjusting or striking components near the front or side air bag sensors, such as doors,
instrument panel, console, door latches, strikers, seats and hood latches.
Please refer to the appropriate vehicle shop manual to determine location of the front air
bag sensors.
The side air bag sensors are located at or near the base of the B- pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and
wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Special Tool(s)
Diagnostic Tool, Restraint
System (2 Req'd)
418-
F088 (105- R0012) Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
