8.
CAUTION: Do not hold the steering wheel against the stops for more than three to
five seconds at a time. Damage to the power steering pump will occur.
Cycle the steering wheel fully to the left and right every 30 seconds for approximately five
minutes.
9. Stop the engine, release the vacuum, and remove the special tool.
10. Install the reservoir cap.
11. Check for fluid leaks at all of the connections. If the power steering fluid shows signs of air, repeat this procedure. Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Fill
1. WARNING: Do not mix oil types, any mixture or any unapproved oil can lead to seal
deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a
loss of power steering assist.
Check the fluid level. If necessary, fill the reservoir to the correct level.
zUse Motorcraft MERCON® Multi-Purpose ATF XT -2-QDX or MERCON® equivalent.
2. Remove the fuel pump fuse from the battery junction box.
3. Raise the front wheels off the floor. For additional information, refer to Section 100 - 02 .
4. CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the
starter to cool for 1 minute before cranking again. Premature starter failure can occur.
CAUTION: Do not hold the steering wheel against the stops for more than three to
five seconds at a time. Damage to the power steering pump will occur.
Turn the steering wheel from stop- to-stop while cranking the engine.
5. Lower the vehicle.
6. CAUTION: Do not overfill the reservoir.
Check the fluid level. If necessary, fill the reservoir to the correct level. zUse Motorcraft MERCON® Multi-Purpose ATF XT -2-QDX or MERCON® equivalent.
7. Install the fuel pump fuse.
SECTION 211-
00: Steering System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
a
Once torque is reached, continue turning to align slot in nut with cotter pin hole in tie- rod.
SECTION 211-
02: Power Steering 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants
Motorcraft Multi-Purpose (ATF) Transmission Fluid XT
-2-QDX MERCON®
Silicone Dielectric Compound D7AZ-
19A331-A ESE-
M1C171- A Steering Gear Grease C3AZ-19578-
A ESW-
M1C87- A
Torque Specifications Description Nm lb-
ft lb-
in Front wheel spindle tie-
rod 100 74 —
Power steering pump mounting bolts (CII pump) 51 38 —
Power steering pump mounting bolts
(CIII pump) 25 18 —
Pressure line fitting
(CII pump) 40 30 —
Pressure line fitting
(CIII pump) 65 48 —
Pressure line fitting 30 22 —
Return line fitting
(steering gear) 30 22 —
Steering gear mounting nut 48 35 —
Steering intermediate shaft coupling pinch bolt 34 25 —
Tie-
rod end castellated nut 56
a 11
a —
Tie-
rod end jam nut 55 41 — Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

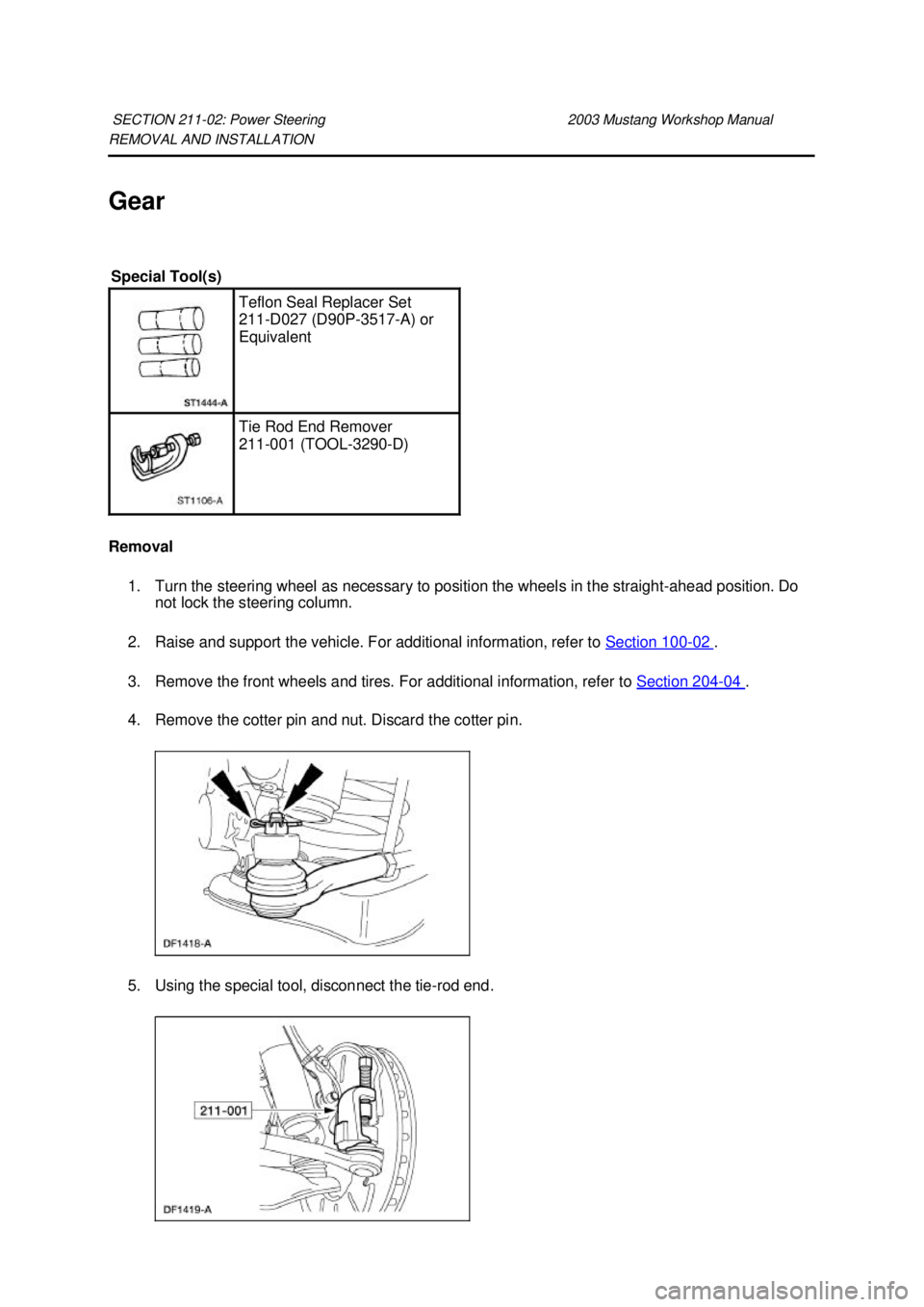

REMOVAL AND INSTALLATION
Gear
Removal
1. Turn the steering wheel as necessary to position the wheels in the straight- ahead position. Do
not lock the steering column.
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. Remove the front wheels and tires. For additional information, refer to Section 204 - 04 .
4. Remove the cotter pin and nut. Discard the cotter pin.
5. Using the special tool, disconnect the tie- rod end.
SECTION 211-
02: Power Steering 2003 Mustang Workshop Manual Special Tool(s)
Teflon Seal Replacer Set
211-
D027 (D90P-3517- A) or
Equivalent Tie Rod End Remover
211-
001 (TOOL- 3290-D) Klj . 1 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. Rotate the steering column intermediate shaft as necessary to access the pinch bolt. Remove
and discard the pinch bolt.
7. Lower the vehicle.
8. Turn the steering wheel back to the straight- ahead position. Turn the ignition key to the locked
position.
9. CAUTION: Do not rotate the steering wheel when the lower steering column shaft is
disconnected, or damage to the air bag sliding contact will result.
Disconnect the steering column intermediate shaft coupling (3A525).
10. Remove the nuts, washers and bolts. Position the steering gear (3504) forward.
11. Disconnect the power steering hoses. Remove and discard the seal rings. zPlug or cap the power steering hoses and steering gear ports to prevent damage and the
entry of foreign material. Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

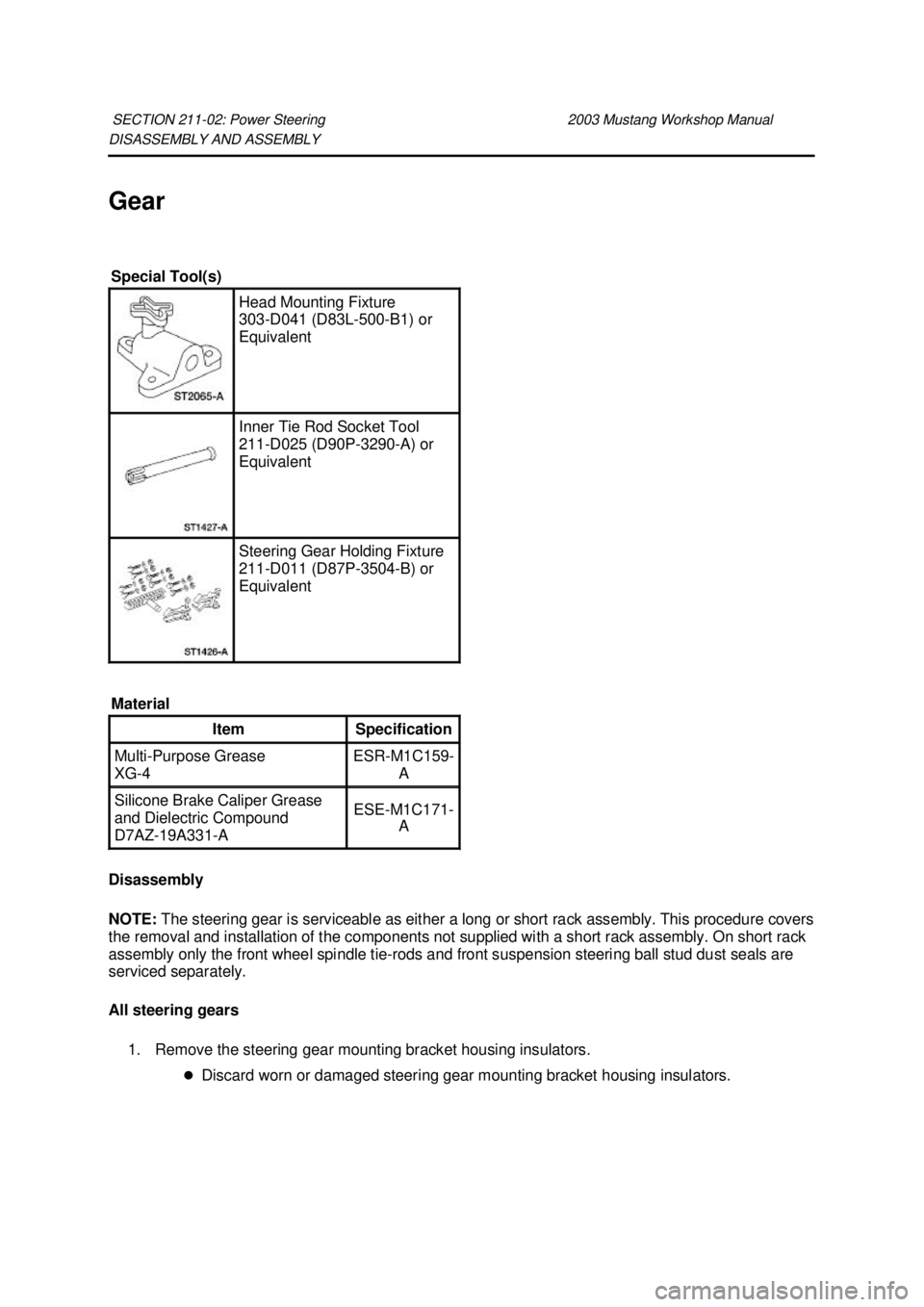

DISASSEMBLY AND ASSEMBLY
Gear
Disassembly
NOTE:
The steering gear is serviceable as either a long or short rack assembly. This procedure covers
the removal and installation of the components not supplied with a short rack assembly. On short rack
assembly only the front wheel spindle tie- rods and front suspension steering ball stud dust seals are
serviced separately.
All steering gears
1. Remove the steering gear mounting bracket housing insulators. zDiscard worn or damaged steering gear mounting bracket housing insulators.
SECTION 211-
02: Power Steering 2003 Mustang Workshop Manual Special Tool(s)
Head Mounting Fixture
303-
D041 (D83L-500- B1) or
Equivalent Inner Tie Rod Socket Tool
211-
D025 (D90P-3290- A) or
Equivalent Steering Gear Holding Fixture
211-
D011 (D87P-3504- B) or
Equivalent
Material Item Specification
Multi-
Purpose Grease
XG- 4 ESR-
M1C159-
A Silicone Brake Caliper Grease
and Dielectric Compound
D7AZ-
19A331- A ESE-
M1C171-
A Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

2. Install the steering gear into the special tools.
3. Clean the exterior of the steering gear with solvent. If necessary, drain any excess power
steering fluid.
4. Inspect the steering gear housing for cracks and other damage. If necessary, install a new steering gear.
5. Verify the power steering gear input shaft bearing rotates freely. If necessary, install a new steering gear.
6. Place an alignment mark on the tie- rod ends, nuts and front wheel spindle tie- rods. Remove the
tie- rod ends and nuts.
7. CAUTION: Use care not to damage the front suspension steering ball stud dust
seals. If the front suspension steering ball stud dust seals are damaged, this will allow
contamination into the steering gear and cause leakage.
Remove the clamps and the two front suspension steering ball stud dust seals.
zDiscard any clamps that are damaged or excessively corroded.
z Discard any front suspension steering ball stud dust seals that are damaged. Klj . 2 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

8.
CAUTION: Place the steering gear at the center position. Use a crowfoot on the flat
of the rack gear to resist rotation and prevent damage to the steering gear during
removal and installation of the front wheel spindle tie- rods.
Place the steering gear at the center position. Install a crowfoot on the flat of the steering gear.
Using the special tool remove the front wheel spindle tie- rods.
Steering gears equipped with travel restrictors 9. NOTE: Some steering gears may contain one or two rack travel restrictors on each side of the
steering gear. The restrictors are split washers and can be removed if necessary.
Remove the travel restrictors.
zDiscard any travel restrictors that are heavily worn.
All steering gears 10. Remove the steering gear from the special tools.
Assembly
All steering gears 1. Install the steering gear in the special tools.
Steering gears equipped with travel restrictors 2. Install the travel restrictors. zInstall new travel restrictors as necessary. All steering gears Klj . 3 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3.
CAUTION: Place the steering gear at the center position. Use a crowfoot on the flat
of the rack gear to resist rotation and prevent damage to the steering gear during
removal and installation of the front wheel spindle tie- rods.
Place the steering gear at the center position. Install a crowfoot on the flat of the steering gear.
Using the special tool install the front wheel spindle tie- rods.
4. Thoroughly clean the steering gear of any foreign material.
5. CAUTION: Use care not to damage the front suspension steering ball stud dust
seals. If the front suspension steering ball stud dust seals are damaged, this will allow
contamination into the steering gear and cause leakage.
Install the front suspension steering ball stud dust seals and clamps.
zPosition the front suspension steering ball stud seals and steering gear rack tubes as
shown.
z Install new front suspension steering ball stud dust seals and clamps as necessary.
z To prevent the front suspension steering ball stud dust seals from twisting during toe
adjustment, apply grease to the groove in the front wheel spindle tie- rods and uniformly
to the inner- diameter of the front suspension steering ball stud dust seals. Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

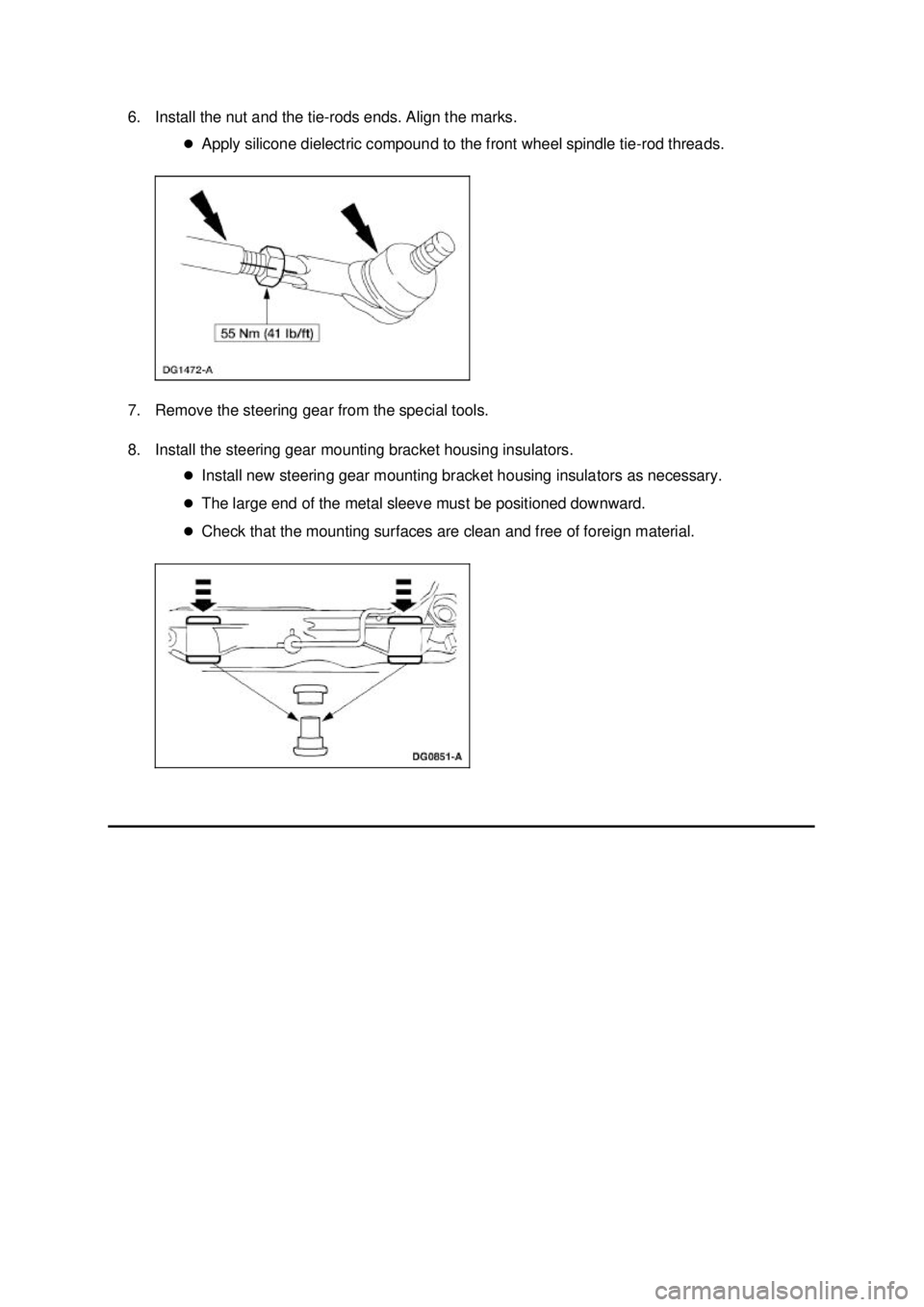

6. Install the nut and the tie-
rods ends. Align the marks.
z Apply silicone dielectric compound to the front wheel spindle tie- rod threads.
7. Remove the steering gear from the special tools.
8. Install the steering gear mounting bracket housing insulators. zInstall new steering gear mounting bracket housing insulators as necessary.
z The large end of the metal sleeve must be positioned downward.
z Check that the mounting surfaces are clean and free of foreign material. Klj . 5 ba
