DESCRIPTION AND OPERATION
Jacking
WARNING: Never run the engine with one wheel off the ground, such as when changing a
tire. The wheel still on the ground could cause the vehicle to move.
CAUTION: The jack (17080) provided with the vehicle is intended to be used in an
emergency for changing a deflated tire. To avoid damage to the vehicle, never use the jack to
lift the vehicle for any other purpose. Refer to the Owner Guide when using the jack supplied
with the vehicle.
CAUTION: Under no circumstances should the vehicle ever be lifted by the suspension
arm brackets, rear stabilizer or differential housing or convertible cross brace. Severe damage
to the vehicle could result.
CAUTION: Do not attempt to use jack pressure on either the front bumper (17757) or the
rear bumper (17906) of any vehicle. Damage to the bumper covers will occur.
Lift the vehicle using the Jacking Points procedure in this section.
Jacking Points
To lift the front or either side of the front end, position the floor jack under the front frame lift points. SECTION 100-
02: Jacking and Lifting 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

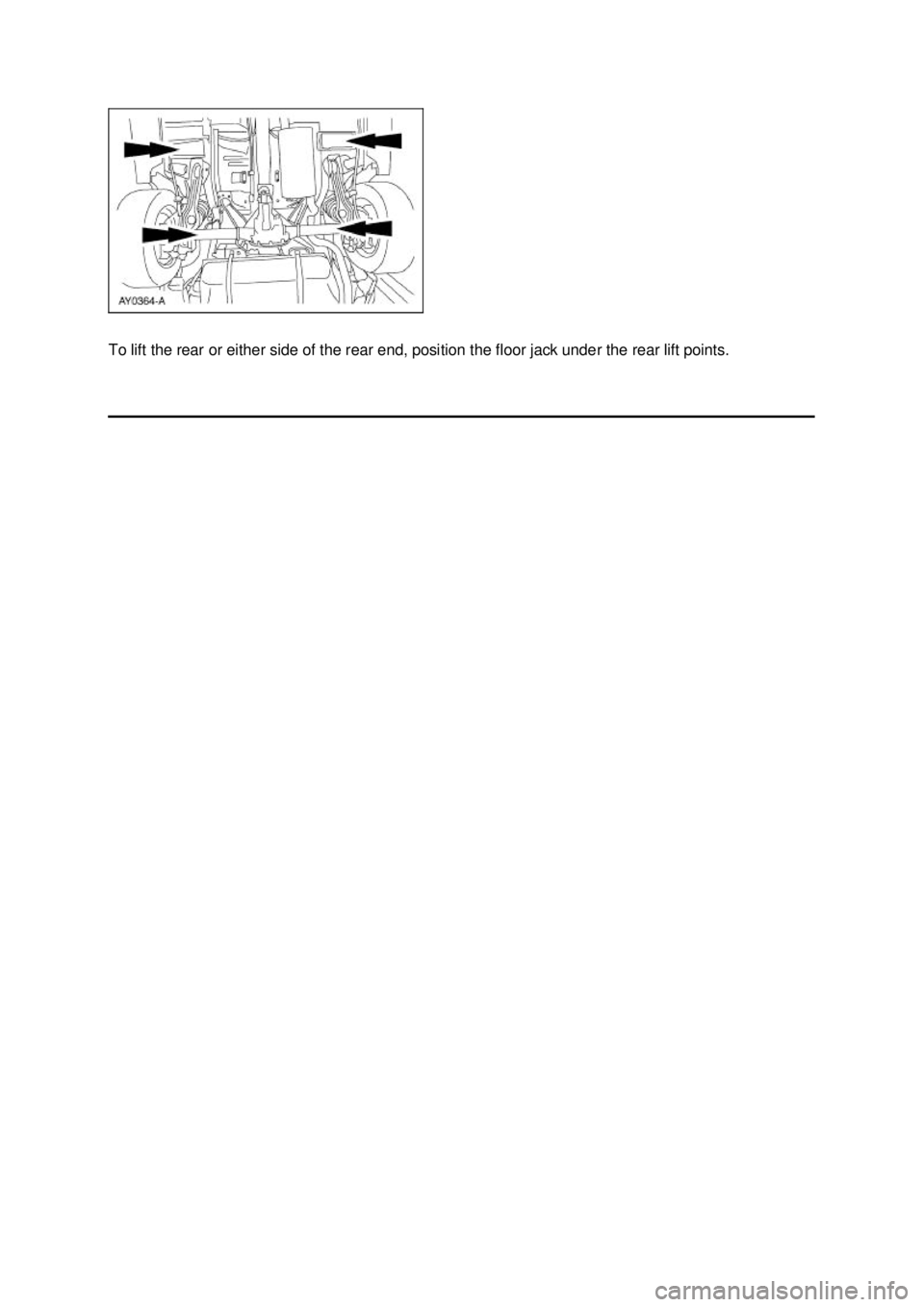

To lift the rear or either side of the rear end, position the floor jack under the rear lift points. Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Lifting
CAUTION: Do not allow the lift adapters to contact the steering linkage, suspension arms,
stabilizer arms, or to compress the lower suspension arm stabilizer bar insulator (5493).
Damage to the suspension, exhaust and steering linkage components may occur if care is not
exercised when positioning the hoist adapters prior to lifting the vehicle.
CAUTION: Never use the differential housing as a lift point. Damage to the differential
housing and cover may occur.
CAUTION: Do not lift vehicle on rocker panel pinch flange or convertible cross brace.
Body damage may occur.
Lift the vehicle using the Lifting Points procedure in this section.
Lifting Points—Drive On Lift
CAUTION: To prevent possible damage to the underbody, do not drive the vehicle onto
the drive on lift without first checking for possible interference.
Check for interference between the upright flanges of the hoist rails and the underbody.
If an interference exists, modify the hoist flanges or build up the approach ramps as necessary to
provide clearance. Lifting Points — Frame Contact Lift, Single Post Lift, Two Post Lift SECTION 100-
02: Jacking and Lifting 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

If no improvement is noted, rotate the clamps in opposite directions, equal distances from the best
position determined in Step 8. Separate the clamp heads about 13 mm (1/2 inch) and recheck for
vibration at the road speed.
Repeat the process with increasing separation until the best combination is found or the vibration is
reduced to an acceptable level.
10. Install the wheels and road test (vibration noticeable on the hoist may not be evident during the road test). If the vibration is still not acceptable, install a new axle driveline vibration damper
first, if so equipped. If the vibration is still not acceptable, refer to Section 205 - 02A or
Section 205 - 02B for differential case and ring gear runout checks.
Driveshaft Vibrates 1. Road test the vehicle to determine the critical vibration points. Note the road speed, the engine RPM, and the shift lever positions at which the vibration occurs.
2. Stop the vehicle, place the transmission lever in neutral and run the engine through the critical speed ranges determined in Step 1.
3. If no vibration is felt, balance the driveshaft. Refer to Driveline Vibration in this section.
Traction- Lok® Differential Operation Check
A Traction-Lok® differential can be checked for correct operation without removing it from the rear axle
housing.
WARNING: A vehicle equipped with a Traction- Lok® differential will always have both
wheels driving. If only one wheel is raised off the floor and the rear axle is driven by the engine, the wheel on the floor could drive the vehicle off the stand or jack. Be sure both rear wheels are Klj . 14 ba
