engine FORD MUSTANG 2003 Workshop Manual

Direct Clutch Assembly
·
Seals or piston damaged ·
Inspect for damage. Repair as required. ·
Friction elements worn or
damaged ·
Inspect for damage. Repair as required. ·
Check ball not seating ·
Inspect for damage. Repair as required. ·
Return spring assembly
damaged ·
Inspect for damage. Repair as required. Case
·
Output shaft rear seals
leaking or damaged ·
Inspect for damage. Repair as required. Inspect case for
damaged seal area. If damaged, install a new case. 2-
3 Accumulator ·
Damaged accumulator piston ·
Inspect for damage. Repair as required. ·
Springs damaged or broken ·
Inspect for damage. Repair as required. ·
Case bore scored ·
Inspect for damage. Repair as required.
Shift Concerns: 3-4 Shift (Automatic) Possible Component Reference/Action
222 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, PCM, shift
solenoids, OSS, transmission
control switch (TCS) ·
Carry out Self- Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for
diagnosis and testing of the Powertrain Control System.
Go To Pinpoint Test A or
Go To Pinpoint Test E . Repair
as required. Clear DTCs, road test and repeat Self- Test. ·
Engine driveability concerns ·
Refer to Routine 253. 322 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR Sensor
·
Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR sensor
is correctly adjusted. Adjust the digital TR sensor as
necessary. Incorrect Pressures
·
Forward clutch pressure, direct
clutch pressure, line pressure ·
Check line, direct and forward clutch pressures at
appropriate taps; refer to Line Pressure Chart for
specifications. If pressures are out of specification, check
main controls. Main Controls
·
3- 4 shift valve, solenoid pressure
regulator valve, OD servo regulator,
3- 4 capacity modulator valve, 1- 2
and 2- 3 shift valves stuck, damaged
or assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
SSA or SSB malfunction ·
Activate solenoid using scan tool. If solenoid operation
cannot be felt when placing hand on solenoid, install a
new solenoid. Inspect O- rings for damage. Repair as Klj . 19 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

·

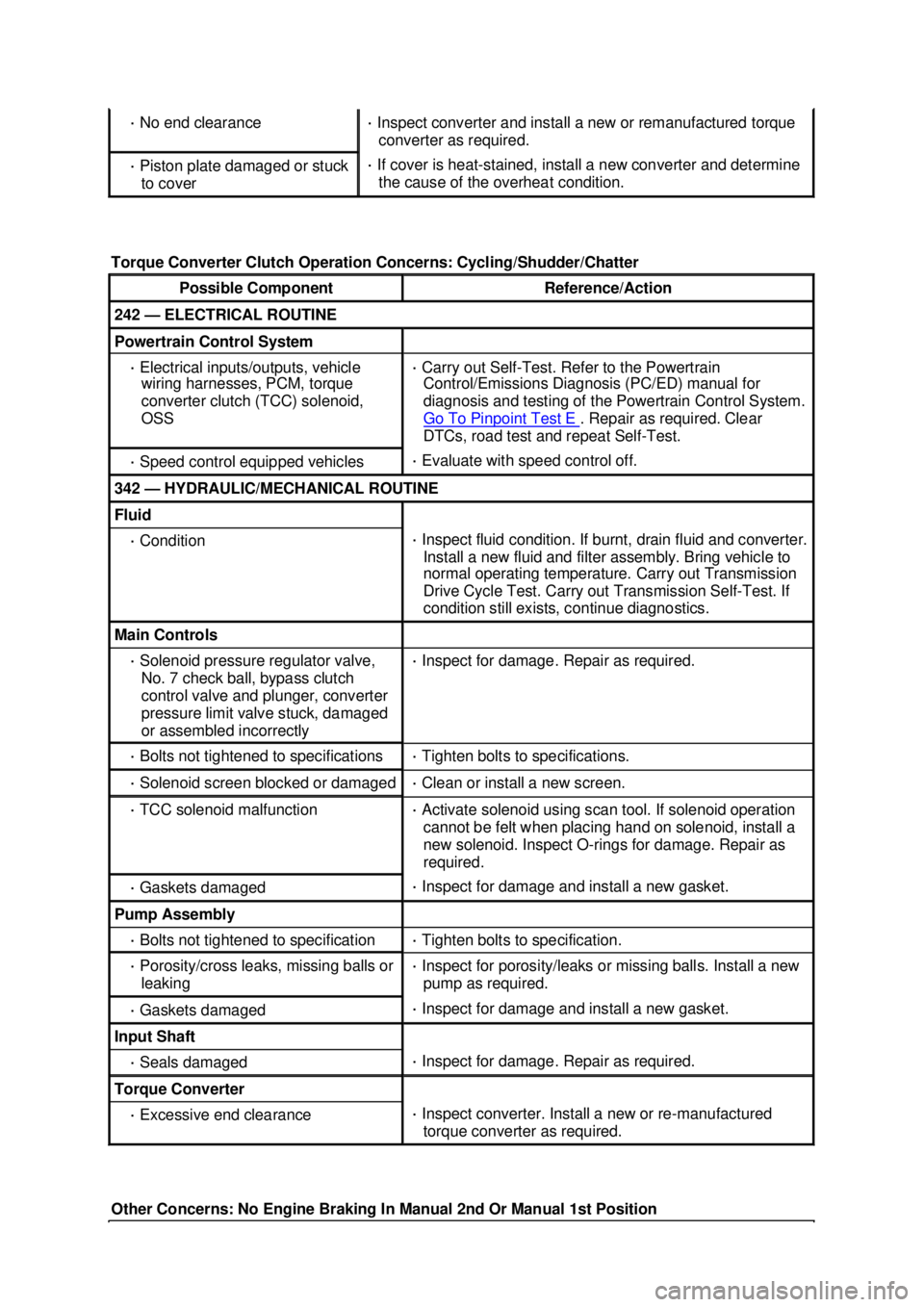

No end clearance ·
Inspect converter and install a new or remanufactured torque
converter as required. ·
Piston plate damaged or stuck
to cover ·
If cover is heat- stained, install a new converter and determine
the cause of the overheat condition.
Torque Converter Clutch Operation Concerns: Cycling/Shudder/Chatter Possible Component Reference/Action
242 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, PCM, torque
converter clutch (TCC) solenoid,
OSS ·
Carry out Self-Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for
diagnosis and testing of the Powertrain Control System.
Go To Pinpoint Test E . Repair as required. Clear
DTCs, road test and repeat Self- Test. ·
Speed control equipped vehicles ·
Evaluate with speed control off. 342 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Condition ·
Inspect fluid condition. If burnt, drain fluid and converter.
Install a new fluid and filter assembly. Bring vehicle to
normal operating temperature. Carry out Transmission
Drive Cycle Test. Carry out Transmission Self- Test. If
condition still exists, continue diagnostics. Main Controls
·
Solenoid pressure regulator valve,
No. 7 check ball, bypass clutch
control valve and plunger, converter
pressure limit valve stuck, damaged
or assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
Solenoid screen blocked or damaged ·
Clean or install a new screen. ·
TCC solenoid malfunction ·
Activate solenoid using scan tool. If solenoid operation
cannot be felt when placing hand on solenoid, install a
new solenoid. Inspect O- rings for damage. Repair as
required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Pump Assembly
·
Bolts not tightened to specification ·
Tighten bolts to specification. ·
Porosity/cross leaks, missing balls or
leaking ·
Inspect for porosity/leaks or missing balls. Install a new
pump as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as required. Torque Converter
·
Excessive end clearance ·
Inspect converter. Install a new or re- manufactured
torque converter as required.
Other Concerns: No Engine Braking In Manual 2nd Or Manual 1st Position Klj . 25 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

mechanism damaged
Main Controls
·
Manual valve stuck or
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications.
Other Concerns: External Leaks Possible Component Reference/Action
252 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, sensor
seals leaking (digital TR, OSS,
vehicle speed sensor VSS, if
equipped, or transmission connector) ·
Inspect for leakage and repair as required. 352 —
HYDRAULIC/MECHANICAL ROUTINE Case
·
Case vent, case porosity, case
cracked ·
Check the vent for free breathing. Check the fluid level.
Check the transmission for overheat conditions. Repair
as required. Seals/Gaskets
·
Leakage at gaskets, seals, etc. (refer
to external sealing illustration for
potential leak locations) ·
Remove all traces of lubricant on exposed surfaces of
the transmission. Check the vent for free breathing.
Operate the transmission at normal temperatures and
perform fluid leakage check. Repair as required. Other
·
Cooler fitting, cooler lines pressure
tap, converter drain plug, band
anchor pins ·
Locate the source of the leak. Repair as required.
Other Concerns: Poor Vehicle Performance Possible Component Reference/Action
253 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, shift solenoids,
digital TR sensor, torque
converter clutch (TCC) solenoid,
transmission fluid temperature
(TFT) sensor ·
Carry out Self-Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for diagnosis
and testing of the Powertrain Control System. Go To Pinpoint Test A ,
Go To Pinpoint Test B or
Go To Pinpoint Test C . Repair as required. Clear codes, road test and
repeat Self- Test. Also refer to Routines 241/341 Torque
Converter Operation Concern: Always Applied. ·
Engine driveability concerns ·
Inspect air intake/air filter system. Check the fuel system
and fuel pressure. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual. Inspect the
exhaust system for restriction. Refer to Section 309 - 00 .
353 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR Sensor Klj . 27 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

·
Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR sensor is
correctly adjusted. Adjust the digital TR sensor as
necessary. Verify Correct Shift Scheduling
and Engagements
·
See Reference/Action ·
Go to the appropriate diagnostic routines. Torque Converter Clutch Always
Applied
·
See Reference/Action ·
Go to Hydraulic/Mechanical Routine 241/341. Torque Converter Clutch
·
Damaged ·
Inspect torque converter. Install a new converter as outlined.
Other Concerns: Noise/Vibration — Forward Or Reverse Possible Component Reference/Action
254 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 354 —
HYDRAULIC/MECHANICAL ROUTINE For Noises/Vibrations That Change With Engine
Speed
·
Converter components/balance weight ·
Locate source of disturbance. Repair as
required. ·
Fluid level (low) pump cavitation ·
Pump assembly ·
Engine drive accessories ·
Cooler lines grounding out ·
Flexplate For Noises/Vibrations That Change With Vehicle
Speed
·
Engine mounts loose or damaged ·
Locate source of disturbance and repair as
required. ·
Driveline concerns:
„ U-joints
„ Rear axle
„ Suspension
„ Modifications
1st Gear: „Low one- way clutch
„ Gearset
„ Friction elements ·
Refer to the following shift routine(s) for
further diagnosis:
„ Shift 1- 2, Routine 320
„ Shift 2- 3, Routine 321
„ Shift 3- 4, Routine 322
„ Shift 4- 3, Routine 323
„ Shift 3- 2, Routine 324
„ Shift 2- 1, Routine 325
„ Torque Converter Cycling 242/342 ·
2nd Gear:
„ Intermediate one- way clutch
„ Intermediate clutch piston bleed hole out of Klj . 28 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

12 o'clock position
„ Friction elements ·
3rd Gear:
„ Torque converter
„ Case to planet support spring
„ Friction elements ·
4th Gear:
„ Gear set
„ Friction elements
„ Torque converter ·
Reverse:
„ Gear set
„ Friction elements ·
Output shaft splines worn or damaged Other Noises/Vibrations
·
Main controls, valve resonance ·
Shift cable:
„ Vibration
„ Grounding
„ Cooler lines
„ Grounding ·
Locate source of disturbance and repair as
required.
Other Concerns: Engine Will Not Crank Possible Component Reference/Action
255 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
engine starting system
hardware, digital TR sensor ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test C . Repair and
adjust as required. 355 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR
Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust the
digital TR sensor as necessary.
Other Concerns: No Park (P) Range Possible Component Reference/Action
256 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 356 —
HYDRAULIC/MECHANICAL ROUTINE Klj . 29 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Shift Linkage, Digital TR Sensor
·
Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR sensor
is correctly adjusted. Adjust the digital TR sensor as
necessary. Park Mechanism
·
Output shaft ring, parking brake pawl,
parking pawl return spring, park rod
guide cup, parking pawl shaft,
parking pawl actuating rod, manual
lever detent spring damaged or
assembled incorrectly ·
Inspect for damage or incorrect assembly and repair as
required.
Other Concerns: Overheating Possible Component Reference/Action
257 —
ELECTRICAL ROUTINE Refer to Routine 240/340, Torque Converter Operation Concern: No Apply
357 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Other
·
Damaged, blocked or reversed cooler lines or
restriction in the transmission oil cooler ·
Inspect for damage and correct
installation. Repair as required. Vehicle Concerns Causing Engine Overheating
·
Refer to the appropriate engine
cooling section. Main Controls
·
Drain back valve, torque clutch control valve, converter
limit valve stuck, damaged or assembled incorrectly ·
Inspect for damage and repair as
required. Torque Converter Clutch
·
No apply ·
Refer to Routine 240/340. Klj . 30 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

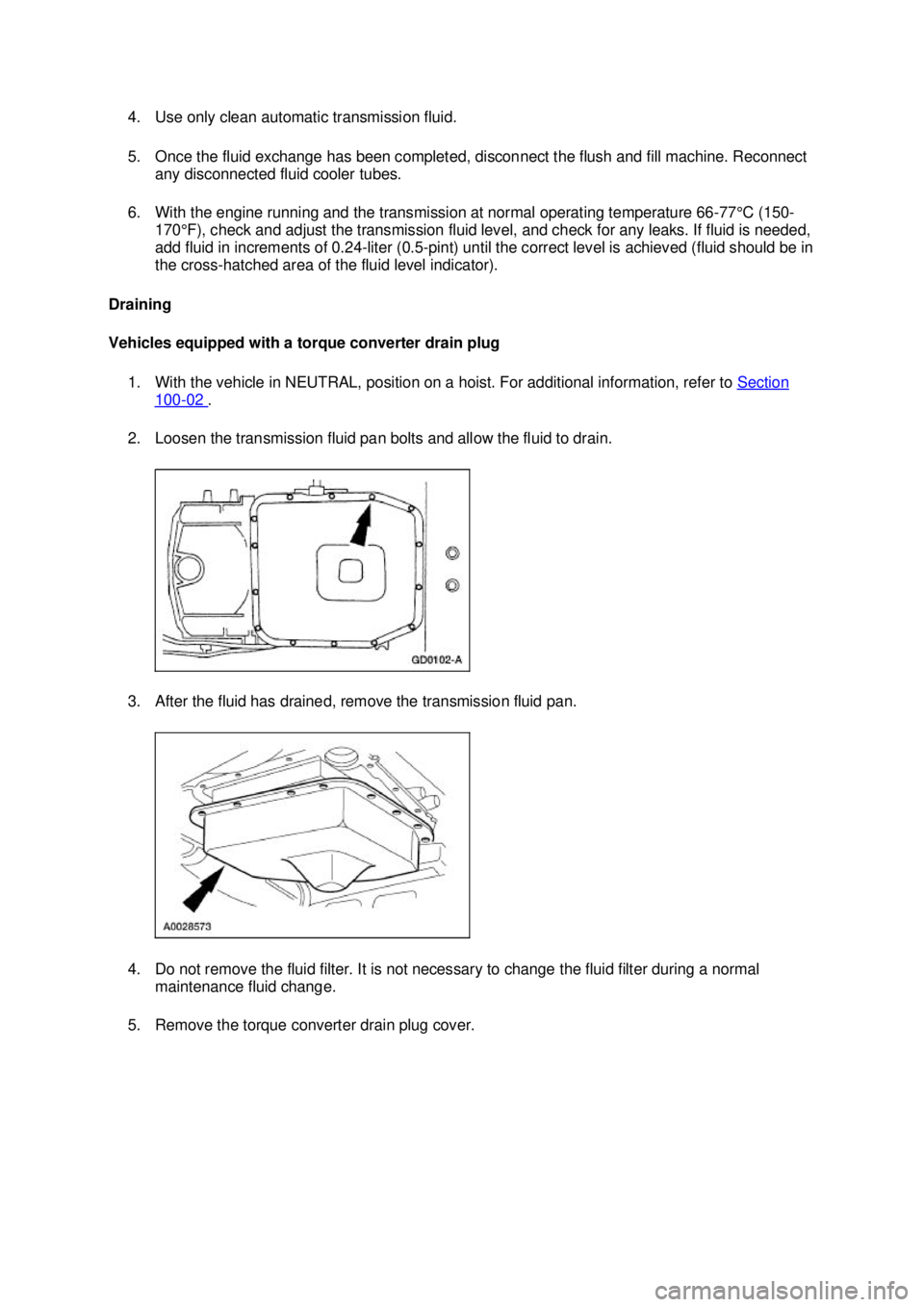

4. Use only clean automatic transmission fluid.
5. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect
any disconnected fluid cooler tubes.
6. With the engine running and the transmission at normal operating temperature 66- 77°C (150-
170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed,
add fluid in increments of 0.24- liter (0.5-pint) until the correct level is achieved (fluid should be in
the cross- hatched area of the fluid level indicator).
Draining
Vehicles equipped with a torque converter drain plug 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Loosen the transmission fluid pan bolts and allow the fluid to drain.
3. After the fluid has drained, remove the transmission fluid pan.
4. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
5. Remove the torque converter drain plug cover. Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

10. Install the torque converter drain plug cover.
11. Position the magnet into the transmission fluid pan.
12.
NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the
gasket should be reused.
Install the fluid pan and gasket. 1. Position the fluid pan with the gasket in place.
2. Install the bolts.
13. CAUTION: The use of any other transmission fluid can result in the transmission
failing to operate in a normal manner or transmission failure.
Fill the transmission.
zAdd 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the
fluid filler tube.
14. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
15. With the engine running and the transmission at normal operating temperature 66- 77°C (150- Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Refill
7. Position the magnet into the transmission fluid pan.
8. NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the
gasket should be reused.
Install the fluid pan and gasket.
1. Position the fluid pan with the gasket in place.
2. Install the bolts.
9. CAUTION: The use of any other transmission fluid can result in the transmission
failing to operate in a normal manner or transmission failure.
Fill the transmission.
zAdd 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the
fluid filler tube.
10. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
11. With the engine running and the transmission at normal operating temperature 66- 77°C (150-
170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed,
add fluid in increments of 0.24- liter (0.5-pint) until the correct level is achieved (fluid should be in
the cross- hatched area of the fluid level indicator). Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

INSTALLATION
Transmission
1. CAUTION: During this move, to avoid damage, do not allow the transmission to get
into a nose- down position as this will cause the torque converter to move forward and
disengage from the pump gear. The converter housing is piloted into position by dowels
in the rear of the engine block. The torque converter must rest squarely against the
flexplate. This indicates that the converter pilot is not binding in the engine crankshaft.
Position and secure the transmission on the high- lift transmission jack.
2. CAUTION: Make sure the torque converter is fully seated in the transmission before
positioning the transmission to the engine.
Using the special tool, install the transmission to the engine.
zAlign the orange balancing marks on the converter stud and the flexplate bolt hole. 3. Reconnect the harness. SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Retainer, Torque Converter
307-
346 (T97T-7902- A)
Material Item Specification
Multi-
Purpose Grease
D0AZ- 19584- AA ESB-
M1C93-
B MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
