engine FORD MUSTANG 2003 Workshop Manual

PINPOINT TEST P: THE CHARGING SYSTEM WARNING INDICATOR
IS NEVER/ALWAYS ON
Test Step Result / Action to Take
P1 CHECK THE CHARGING SYSTEM
CAUTION: Use the correct probe adapter(s) when
making measurements. Failure to use the correct probe
adapter(s) may damage the connector.
z Check the charging system operation. Refer to Section 414 -
00 .
z Is the charging system operating correctly? Yes
GO to
P2 .
No
REFER to Section 414 - 00 .
P2 CHECK CHARGING SYSTEM WARNING INDICATOR WITH
ENGINE OFF z
Key in ON position.
z Observe the charging system warning indicator.
z Is the charging system warning indicator on? Yes
GO to
P5 .
No
GO to P3 .
P3 CHECK THE INSTRUMENT CLUSTER INPUT
z
Key in OFF position.
z Disconnect: Generator C102c.
z Connect a fused (10A) jumper wire between the generator
C102c pin 1, circuit 904 (LG/RD), harness side and ground.
z Key in ON position.
z Does the charging system indicator illuminate? Yes
INSTALL a new generator.
REFER to
Section 414 - 02 .
TEST the system for normal
operation.
No
GO to P4 .
P4 CHECK CIRCUIT 904 (LG/RD) FOR OPEN
z
Key in OFF position.
z Disconnect: Instrument Cluster C220a .
z Measure the resistance between the instrument cluster
C220a pin 5, circuit 904 (LG/RD), harness side and the
generator C102c pin 1, circuit 904 (LG/RD), harness side.
z Is the resistance less than 5 ohms? Yes
GO to
P7 .
No
REPAIR the circuit. TEST
the system for normal
operation. P5 CHECK THE GENERATOR Klj . 32 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

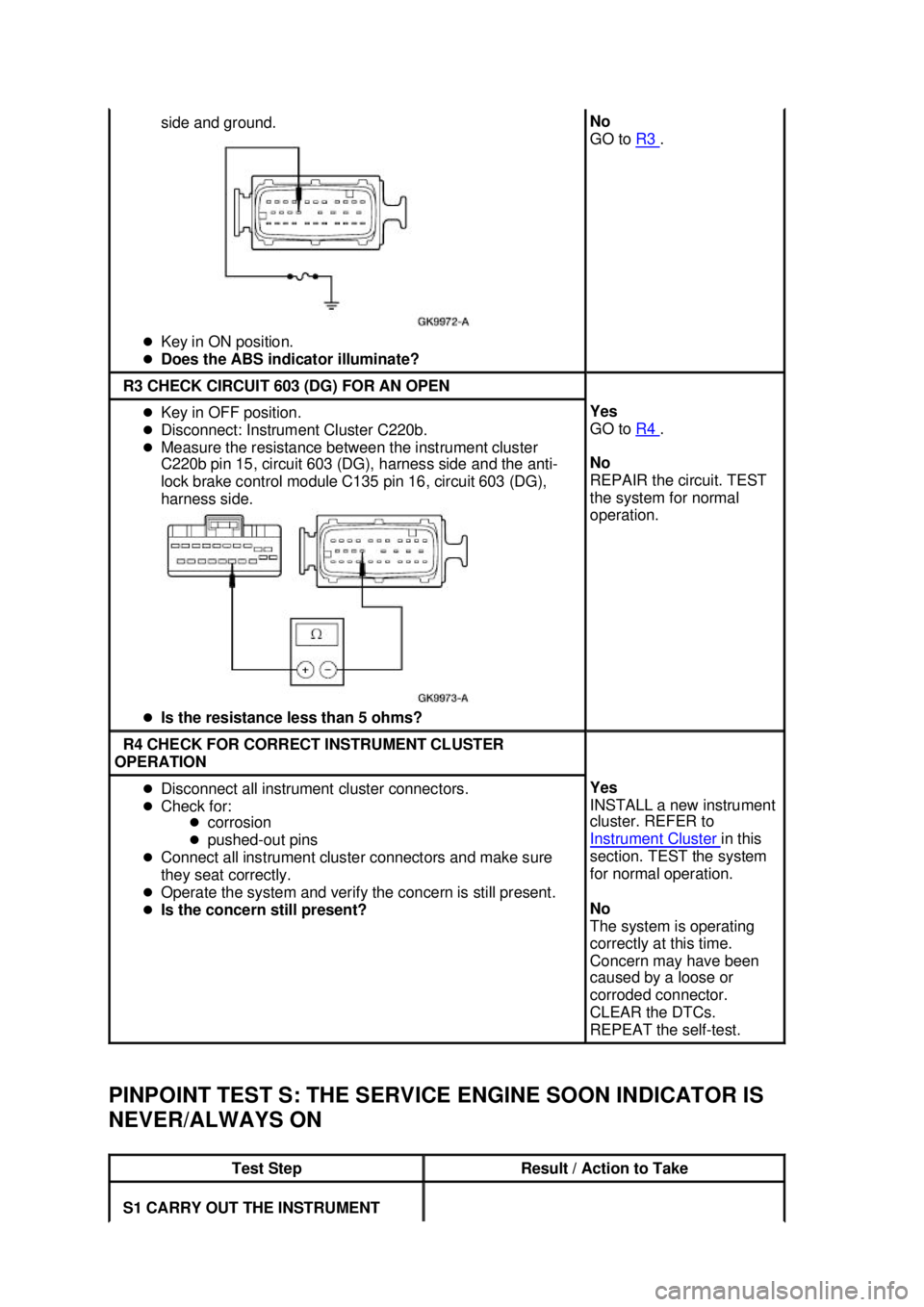

PINPOINT TEST S: THE SERVICE ENGINE SOON INDICATOR IS
NEVER/ALWAYS ON side and ground.
z Key in ON position.
z Does the ABS indicator illuminate? No
GO to
R3 .
R3 CHECK CIRCUIT 603 (DG) FOR AN OPEN
z
Key in OFF position.
z Disconnect: Instrument Cluster C220b.
z Measure the resistance between the instrument cluster
C220b pin 15, circuit 603 (DG), harness side and the anti-
lock brake control module C135 pin 16, circuit 603 (DG),
harness side.
z Is the resistance less than 5 ohms? Yes
GO to
R4 .
No
REPAIR the circuit. TEST
the system for normal
operation. R4 CHECK FOR CORRECT INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster connectors and make sure
they seat correctly.
z Operate the system and verify the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument
cluster. REFER to
Instrument Cluster
in this
section. TEST the system
for normal operation.
No
The system is operating
correctly at this time.
Concern may have been
caused by a loose or
corroded connector.
CLEAR the DTCs.
REPEAT the self- test. Test Step Result / Action to Take
S1 CARRY OUT THE INSTRUMENT Klj . 35 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST T: THE TURN/HAZARD INDICATOR IS
NEVER/ALWAYS ON CLUSTER SERVICE ENGINE SOON
INDICATOR ACTIVE COMMAND
z
Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode
on the diagnostic tool: Instrument
Cluster Active Command.
z Trigger the instrument cluster active
command MIL.
z Did the SERVICE ENGINE SOON
indicator illuminate? Yes
REFER to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
No
GO to
S2 .
S2 CHECK FOR CORRECT
INSTRUMENT CLUSTER OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they seat
correctly.
z Operate the system and verify the
concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the
system for normal operation.
No
The system is operating correctly at this time.
Concern may have been caused by a loose or
corroded connector. CLEAR the DTCs. REPEAT
the self- test. Test Step Result / Action to
Take T1 CHECK THE TURN SIGNAL AND HAZARD LAMPS OPERATION
CAUTION: Use the correct probe adapter(s) when making
measurements. Failure to use the correct probe adapter(s) may
damage the connector.
z Key in ON position.
z Operate the left and right turn signals.
z Operate the hazard lamps.
z Do the turn signals and hazard lamps operate correctly? Yes
GO to
T2 .
No
REFER to Section 417 - 01 .
T2 CHECK THE CIRCUIT IN QUESTION —
CIRCUIT 2 (WH/LB) (RH)
OR CIRCUIT 3 (LG/WH) (LH) z
Key in OFF position.
z Disconnect: Instrument Cluster C220a (RH) or C220b (LH).
z Key in ON position.
z Measure the voltage between the instrument cluster C220a pin 3,
circuit 3 (LG/WH), harness side and ground, while the steering
column multifunction switch is placed in the left turn position (LH); or
between the instrument cluster C220b pin 3, circuit 2 (WH/LB),
harness side and ground, while the steering column multifunction
switch is placed in the right turn position (RH). Yes
GO to
T3 .
No
REPAIR the circuit
(s) in question.
TEST the system for
normal operation. Klj . 36 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

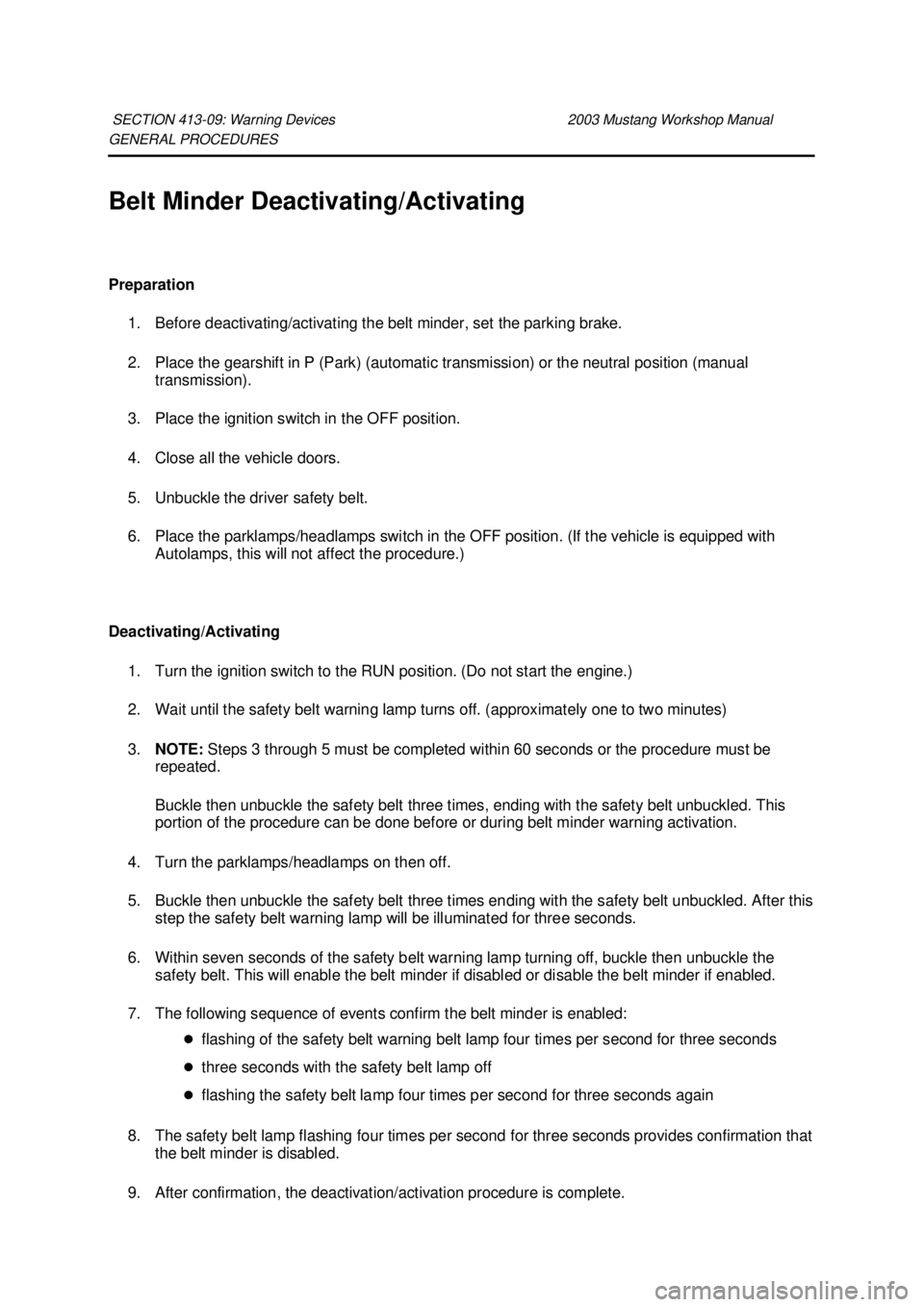

GENERAL PROCEDURES
Belt Minder Deactivating/Activating
Preparation
1. Before deactivating/activating the belt minder, set the parking brake.
2. Place the gearshift in P (Park) (automatic transmission) or the neutral position (manual transmission).
3. Place the ignition switch in the OFF position.
4. Close all the vehicle doors.
5. Unbuckle the driver safety belt.
6. Place the parklamps/headlamps switch in the OFF position. (If the vehicle is equipped with Autolamps, this will not affect the procedure.)
Deactivating/Activating 1. Turn the ignition switch to the RUN position. (Do not start the engine.)
2. Wait until the safety belt warning lamp turns off. (approximately one to two minutes)
3. NOTE: Steps 3 through 5 must be completed within 60 seconds or the procedure must be
repeated.
Buckle then unbuckle the safety belt three times, ending with the safety belt unbuckled. This
portion of the procedure can be done before or during belt minder warning activation.
4. Turn the parklamps/headlamps on then off.
5. Buckle then unbuckle the safety belt three times ending with the safety belt unbuckled. After this step the safety belt warning lamp will be illuminated for three seconds.
6. Within seven seconds of the safety belt warning lamp turning off, buckle then unbuckle the safety belt. This will enable the belt minder if disabled or disable the belt minder if enabled.
7. The following sequence of events confirm the belt minder is enabled: zflashing of the safety belt warning belt lamp four times per second for three seconds
z three seconds with the safety belt lamp off
z flashing the safety belt lamp four times per second for three seconds again
8. The safety belt lamp flashing four times per second for three seconds provides confirmation that the belt minder is disabled. 9. After confirmation, the deactivation/activation procedure is complete. SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

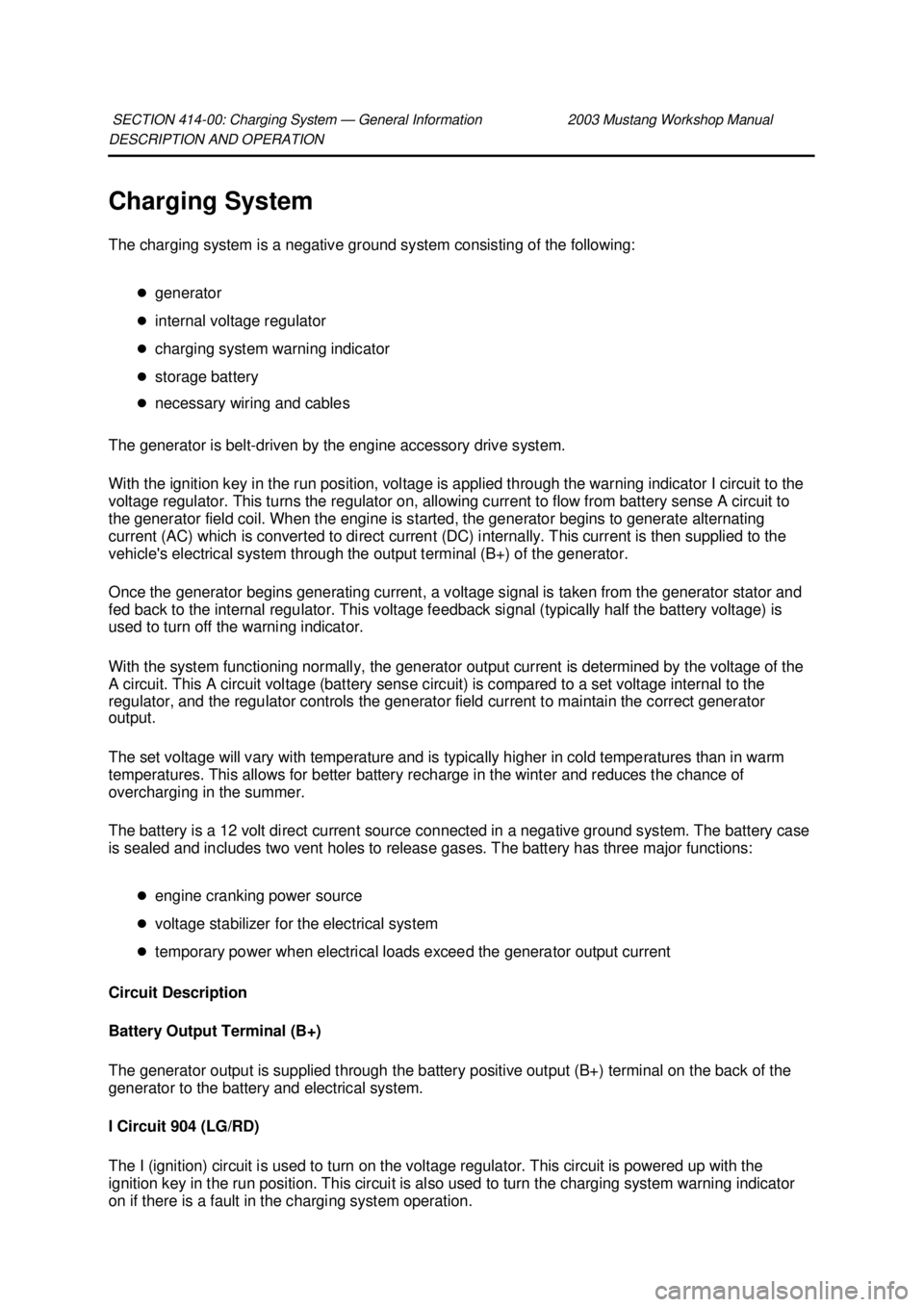

DESCRIPTION AND OPERATION
Charging System
The charging system is a negative ground system consisting of the following:
zgenerator
z internal voltage regulator
z charging system warning indicator
z storage battery
z necessary wiring and cables
The generator is belt- driven by the engine accessory drive system.
With the ignition key in the run position, voltage is applied through the warning indicator I circuit to the
voltage regulator. This turns the regulator on, allowing current to flow from battery sense A circuit to
the generator field coil. When the engine is started, the generator begins to generate alternating
current (AC) which is converted to direct current (DC) internally. This current is then supplied to the
vehicle's electrical system through the output terminal (B+) of the generator.
Once the generator begins generating current, a voltage signal is taken from the generator stator and
fed back to the internal regulator. This voltage feedback signal (typically half the battery voltage) is
used to turn off the warning indicator.
With the system functioning normally, the generator output current is determined by the voltage of the
A circuit. This A circuit voltage (battery sense circuit) is compared to a set voltage internal to the
regulator, and the regulator controls the generator field current to maintain the correct generator
output.
The set voltage will vary with temperature and is typically higher in cold temperatures than in warm
temperatures. This allows for better battery recharge in the winter and reduces the chance of
overcharging in the summer.
The battery is a 12 volt direct current source connected in a negative ground system. The battery case
is sealed and includes two vent holes to release gases. The battery has three major functions:
zengine cranking power source
z voltage stabilizer for the electrical system
z temporary power when electrical loads exceed the generator output current
Circuit Description
Battery Output Terminal (B+)
The generator output is supplied through the battery positive output (B+) terminal on the back of the
generator to the battery and electrical system.
I Circuit 904 (LG/RD)
The I (ignition) circuit is used to turn on the voltage regulator. This circuit is powered up with the
ignition key in the run position. This circuit is also used to turn the charging system warning indicator
on if there is a fault in the charging system operation. SECTION 414-
00: Charging System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Functionality
With the ignition switch in the RUN position, voltage is applied through the warning indicator I circuit
904 (LG/RD) to the voltage regulator. This turns the regulator on, allowing current to flow from battery
sense A circuit 36 (YE/WH) to the generator field coil. When the engine is started, the generator
begins to generate alternating current (AC) which is internally converted to direct current (DC). This
current is then supplied to the vehicle's electrical system through the output (B+) terminal of the
generator.
Once the generator begins generating current, a voltage signal is taken from the generator stator and
fed back to the regulator internally. This voltage feedback signal (typically half the battery voltage) is
used to turn off the warning indicator.
With the system functioning normally, the generator output current is determined by the voltage of the
A circuit. The A circuit voltage is compared to a set voltage internal to the regulator, and the regulator
controls the generator field current to maintain the correct generator output.
The set voltage will vary with temperature and is typically higher in cold temperatures and lower in
warm temperatures. This allows for better battery recharge in the winter and reduces the chance of
overcharging in the summer.
Battery Positive Output Circuit 38 (B+) (BK/OG)
The generator output is supplied through the battery positive output (B+) terminal on the back of the
generator to the battery and electrical system.
I Circuit 904 (LG/RD)
The I (ignition) circuit is used to turn on the voltage regulator. This circuit is powered up with the
ignition key in the run position. This circuit is also used to turn the charging system warning indicator
on if there is a fault in the charging system operation.
A Circuit 36 (YE/WH)
The A circuit or battery sense circuit is used to sense battery voltage. This voltage is used by the
regulator to determine generator output. This circuit is used to supply current to the generator field
(rotor). The amount of current supplied to the rotor will determine generator output.
Inspection and Verification
WARNING: Batteries contain sulfuric acid. Avoid contact with skin, eyes, or clothing.
Also, shield your eyes when working near batteries to protect against possible splashing of the
acid solution. In case of acid contact with skin or eyes, flush immediately with water for a
minimum of 15 minutes and get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always Connector C102a End View
A Circuit 36 (YE/WH)
I Circuit 904 (LG/RD) Klj . 2 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

provide ventilation.
WARNING: When lifting a plastic- cased battery, excessive pressure on the end walls
could cause acid to spew through the vent caps resulting in personal injury, damage to the
vehicle or to the battery. Lift with a battery carrier or with your hands on opposite corners.
1. Verify the customer concern by operating the engine to duplicate the concern.
2. Inspect the charging system (battery, generator cable, harness connectors, connections) to determine if any obvious mechanical or electrical concerns exist. If found, repair as necessary
and test the system for normal operation. Refer to the following tables:
3. Check the operation of the charging system warning indicator lamp (instrument cluster). Normal operation is as follows:
zWith the ignition switch OFF, the charging system warning indicator should be OFF.
z With the ignition switch in RUN and the engine off, the charging system warning indicator
light should be on.
z With the engine running, the charging system warning indicator light should be off.
4. Verify the battery is being charged. Carry out the Battery— Load Test. Refer to Component
Tests in this section.
5. If the customer concern is verified after the initial inspection, refer to the Symptom Chart to determine which tests to carry out.
Symptom Chart Visual Inspection Chart
Mechanical Electrical
z
Battery case, posts, hold- down clamp, cables and
connections
z Generator drive (serpentine) belt for condition and
tension. Refer to Section 303 - 05 .
z Generator pulley z
Battery junction box (BJB)
fuse 20 (20A)
z Fuse links
z Circuitry
z Battery charge warning
indicator
z Cables
Normal Charging System Voltages Ignition
Switch
Position A Circuit
36
(YE/WH) I Circuit
904
(LG/RD) Generator B+
Circuit 38 (BK/OG) Battery Engine to
battery
ground Charging
System Warning Indicator
Operation OFF 12V 0V 12V 12V 0V Off
RUN-
engine off 12V 1-
3V 12V 12V 0V Illuminated
RUN-
engine
running 13-
15V 13-
15V 13-
15V 13-15V 0V Off Klj . 3 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
CAUTION: Do not make jumper connections except as directed. Incorrect connections
may damage the voltage regulator test terminals, fuses, or fuse links.
CAUTION: Do not allow any metal object to come in contact with the generator housing
and internal diode cooling fins.
NOTE: All voltage measurements are referenced to the negative (- ) battery post unless otherwise
specified. PINPOINT TEST A: BATTERY IS DISCHARGED OR VOLTAGE IS Symptom Chart
Condition
Possible Sources Action
z Battery is discharged or voltage is
low z
Circuitry.
z High key- off current
drain(s).
z Battery.
z Generator. z
Go To Pinpoint
Test A .
z The charging system warning
indicator is on with the engine
running (the system voltage does
not increase) z
Circuitry.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test B .
z The system overcharges (the
battery voltage is greater than 15.5
volts) z
Circuitry.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test C .
z The charging system warning
indicator is on with the engine
running and the battery increases
voltage z
Circuitry.
z Instrument cluster.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test D .
z The charging system warning
indicator is off with the ignition
switch in the RUN position and the
engine off z
Bulb.
z Circuitry.
z Instrument cluster.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test E .
z The charging system warning
indicator flickers or is intermittent z
Central junction box
(CJB) fuse 5 (15A).
z Generator
connector
unplugged (C102a).
z Circuitry.
z Generator. z
Go To Pinpoint
Test F .
z The generator is noisy zBolts or brackets.
z Drive belt.
z Generator or pulley. z
Go To Pinpoint
Test G .
z Radio interference zGenerator.
z Circuitry.
z In-vehicle
entertainment
system. z
Go To Pinpoint
Test F . Klj . 4 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

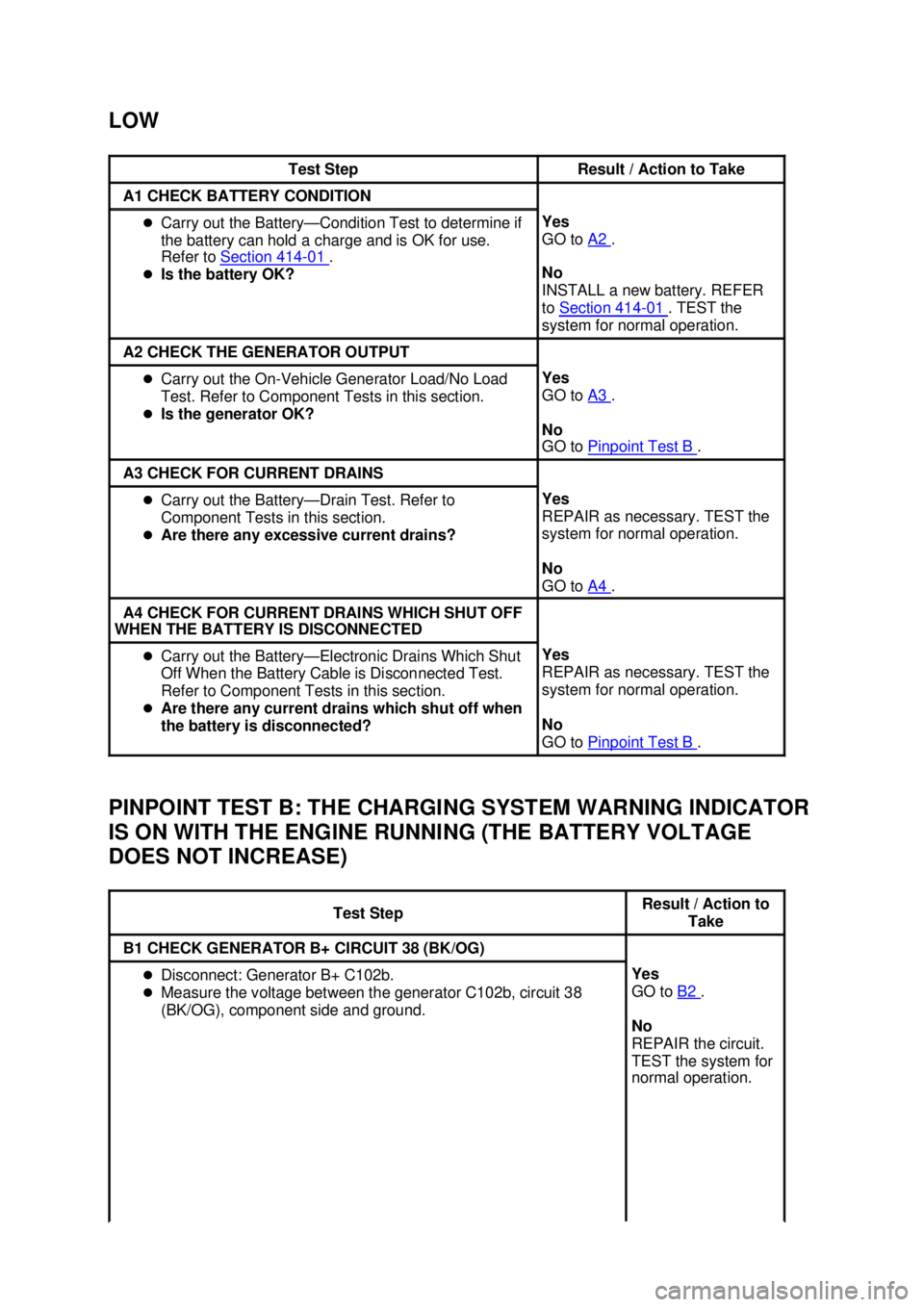

LOW
PINPOINT TEST B: THE CHARGING SYSTEM WARNING INDICATOR
IS ON WITH THE ENGINE RUNNING (THE BATTERY VOLTAGE
DOES NOT INCREASE)
Test Step Result / Action to Take
A1 CHECK BATTERY CONDITION
z
Carry out the Battery— Condition Test to determine if
the battery can hold a charge and is OK for use.
Refer to Section 414 - 01 .
z Is the battery OK? Yes
GO to
A2 .
No
INSTALL a new battery. REFER
to Section 414 - 01 . TEST the
system for normal operation. A2 CHECK THE GENERATOR OUTPUT
z
Carry out the On- Vehicle Generator Load/No Load
Test. Refer to Component Tests in this section.
z Is the generator OK? Yes
GO to
A3 .
No
GO to Pinpoint Test B .
A3 CHECK FOR CURRENT DRAINS
z
Carry out the Battery— Drain Test. Refer to
Component Tests in this section.
z Are there any excessive current drains? Yes
REPAIR as necessary. TEST the
system for normal operation.
No
GO to
A4 .
A4 CHECK FOR CURRENT DRAINS WHICH SHUT OFF
WHEN THE BATTERY IS DISCONNECTED z
Carry out the Battery— Electronic Drains Which Shut
Off When the Battery Cable is Disconnected Test.
Refer to Component Tests in this section.
z Are there any current drains which shut off when
the battery is disconnected? Yes
REPAIR as necessary. TEST the
system for normal operation.
No
GO to
Pinpoint Test B .
Test Step Result / Action to
Take B1 CHECK GENERATOR B+ CIRCUIT 38 (BK/OG)
z
Disconnect: Generator B+ C102b.
z Measure the voltage between the generator C102b, circuit 38
(BK/OG), component side and ground. Yes
GO to
B2 .
No
REPAIR the circuit.
TEST the system for
normal operation. Klj . 5 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z

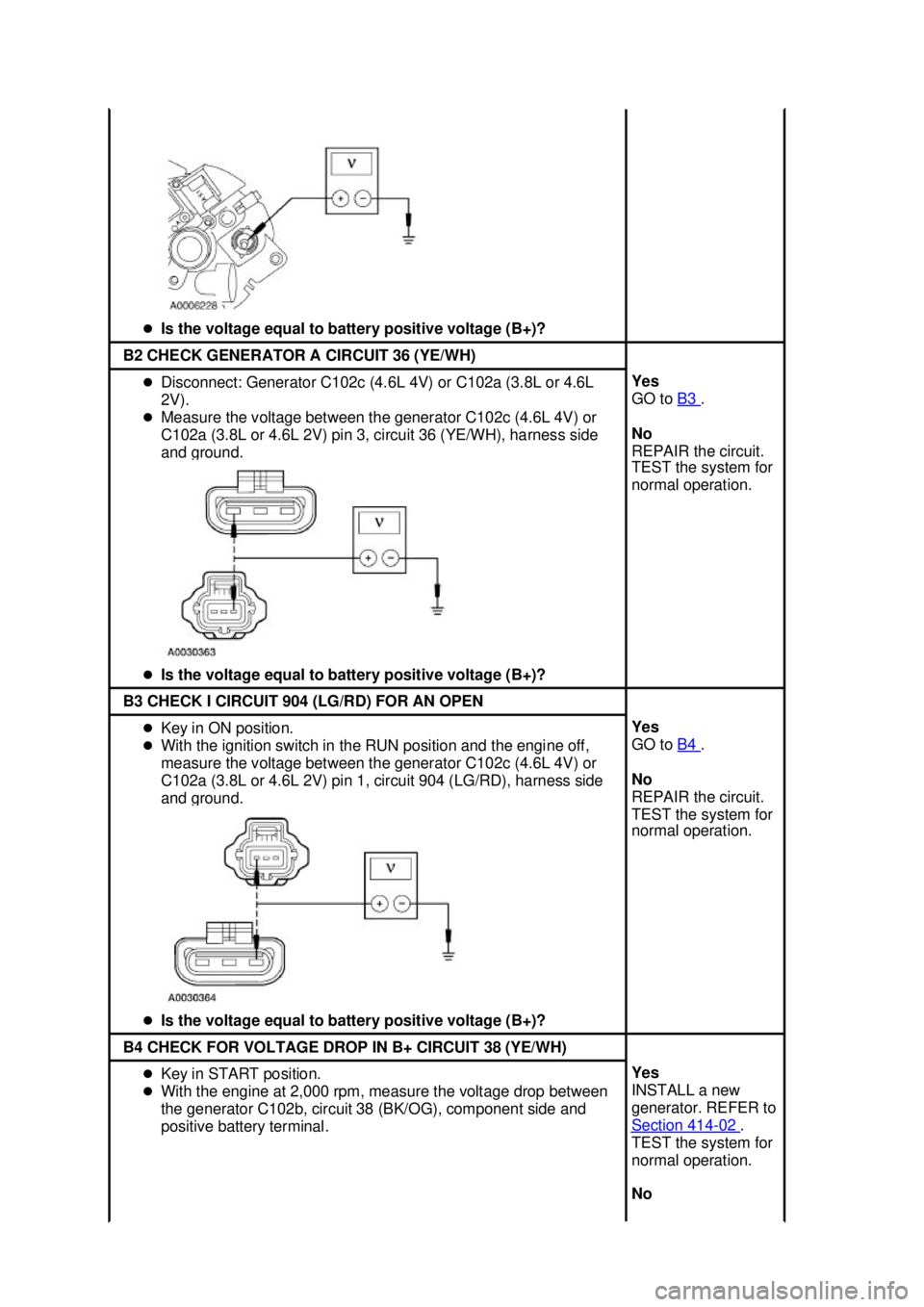

Is the voltage equal to battery positive voltage (B+)? B2 CHECK GENERATOR A CIRCUIT 36 (YE/WH)
z
Disconnect: Generator C102c (4.6L 4V) or C102a (3.8L or 4.6L
2V).
z Measure the voltage between the generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V) pin 3, circuit 36 (YE/WH), harness side
and ground.
z Is the voltage equal to battery positive voltage (B+)? Yes
GO to
B3 .
No
REPAIR the circuit.
TEST the system for
normal operation. B3 CHECK I CIRCUIT 904 (LG/RD) FOR AN OPEN
z
Key in ON position.
z With the ignition switch in the RUN position and the engine off,
measure the voltage between the generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V) pin 1, circuit 904 (LG/RD), harness side
and ground.
z Is the voltage equal to battery positive voltage (B+)? Yes
GO to
B4 .
No
REPAIR the circuit.
TEST the system for
normal operation. B4 CHECK FOR VOLTAGE DROP IN B+ CIRCUIT 38 (YE/WH)
z
Key in START position.
z With the engine at 2,000 rpm, measure the voltage drop between
the generator C102b, circuit 38 (BK/OG), component side and
positive battery terminal. Yes
INSTALL a new
generator. REFER to
Section 414
- 02 .
TEST the system for
normal operation.
No Klj . 6 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
