height adjustment FORD MUSTANG 2003 Workshop Manual

GENERAL PROCEDURES

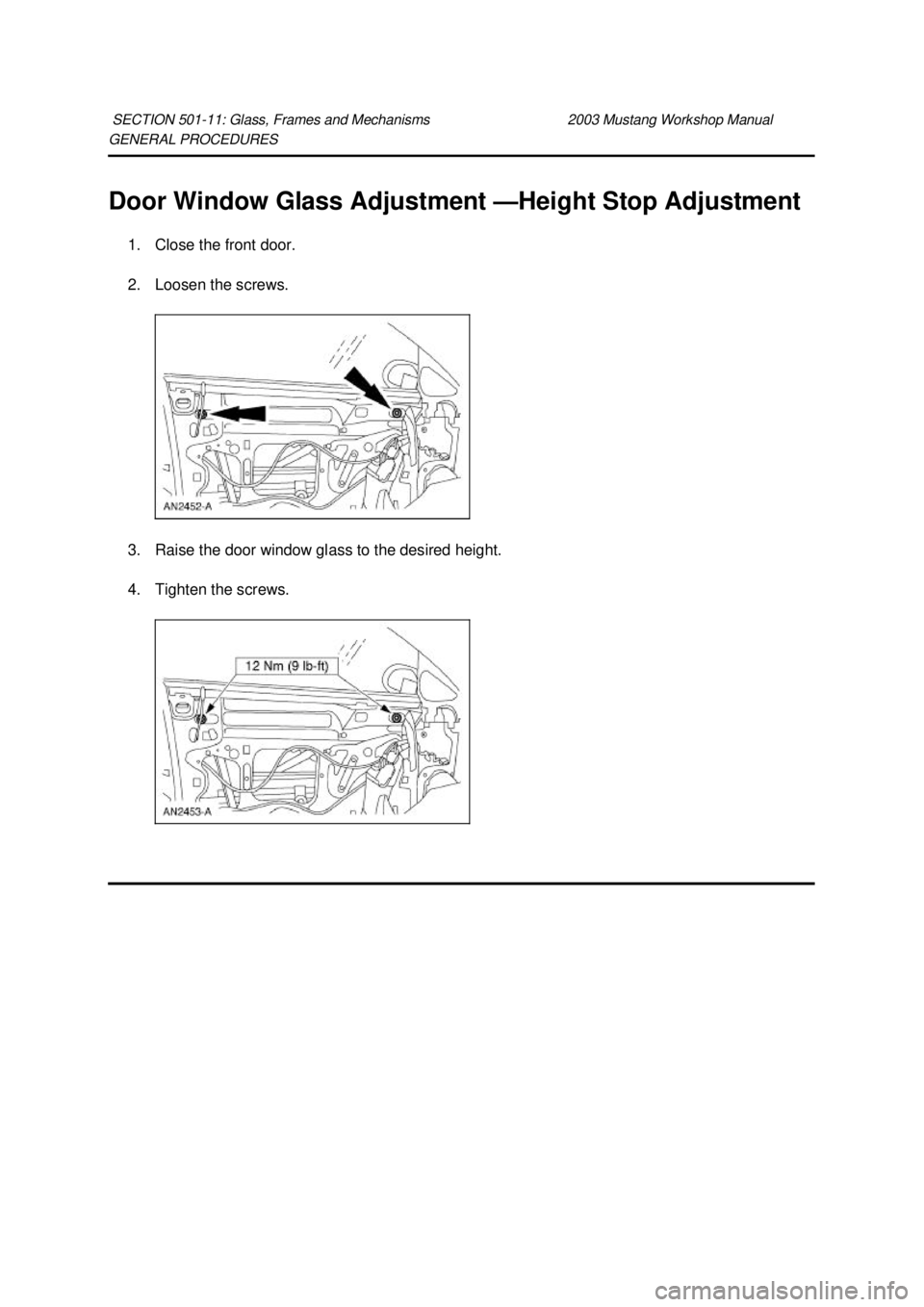

Door Window Glass Adjustment —
Height Stop Adjustment
1. Close the front door.
2. Loosen the screws.
3. Raise the door window glass to the desired height.
4. Tighten the screws.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

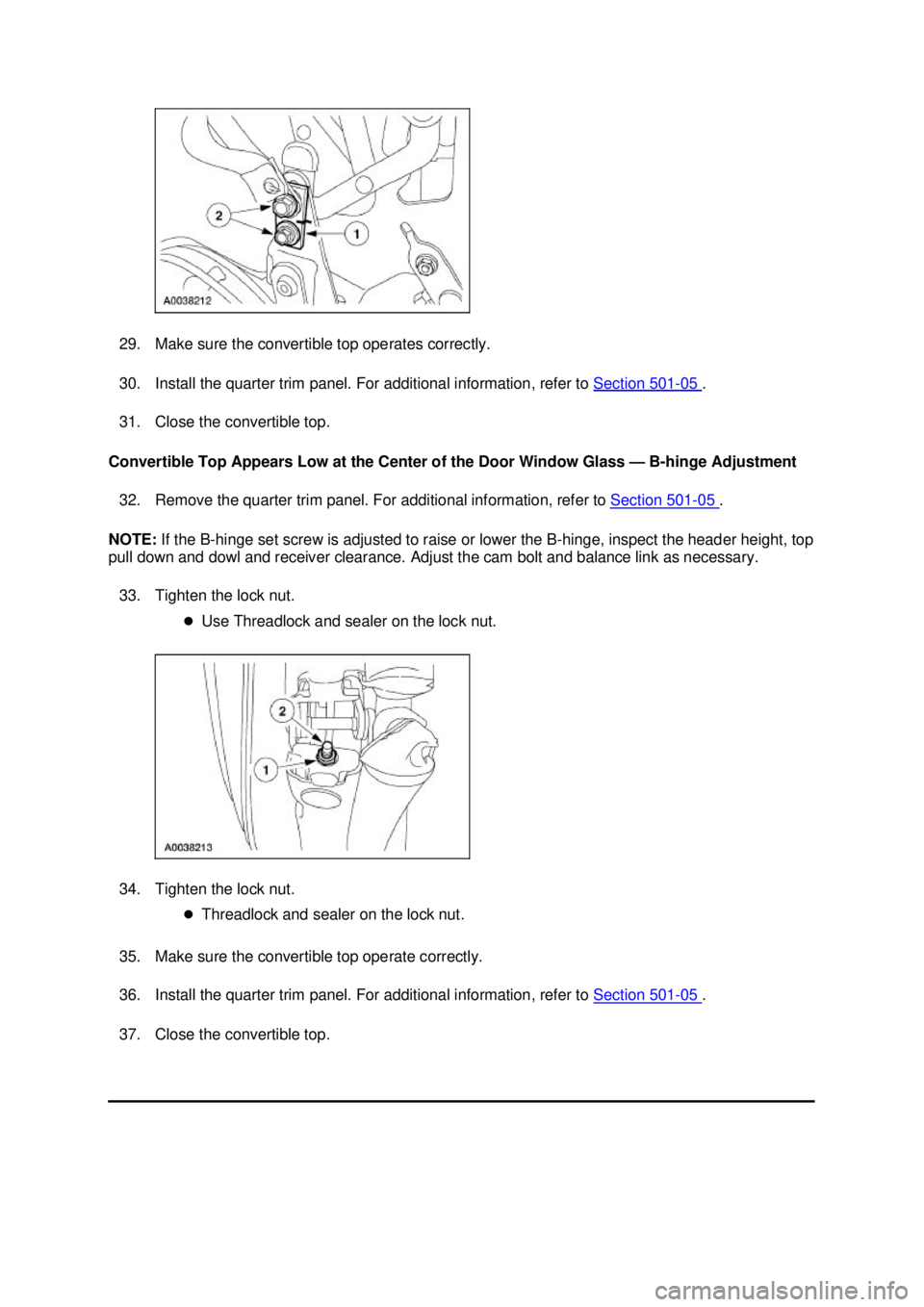

29. Make sure the convertible top operates correctly.
30. Install the quarter trim panel. For additional information, refer to
Section 501 - 05 .
31. Close the convertible top.
Convertible Top Appears Low at the Center of the Door Window Glass — B-hinge Adjustment
32. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
NOTE: If the B- hinge set screw is adjusted to raise or lower the B- hinge, inspect the header height, top
pull down and dowl and receiver clearance. Adjust the cam bolt and balance link as necessary.
33. Tighten the lock nut. zUse Threadlock and sealer on the lock nut.
34. Tighten the lock nut. zThreadlock and sealer on the lock nut.
35. Make sure the convertible top operate correctly.
36. Install the quarter trim panel. For additional information, refer to Section 501 - 05 .
37. Close the convertible top. Klj . 6 ba
