8. Disconnect the parking brake cable and conduits from the knuckles (5A968/5A969).
9. Remove the bolts and the parking brake cable brackets.
10. Remove the bolts and the rear brake lines.
11. Remove the bolts and the ABS sensors. Klj . 2 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Axle Housing
Removal and Installation
1. CAUTION: The vehicle must be on level ground and at curb height.
Mark the rear shock absorbers relative to their protective sleeve. zDuring installation, raise the suspension to this reference mark before tightening the
suspension fasteners.
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. Remove the rear wheel and tire assemblies. For additional information, refer to Section 204 - 04 .
4. NOTE: If necessary, use Rust Penetrant and Inhibitor F2AZ-19A501- A meeting Ford
specification ESR-M99C56- A to loosen the sensor for removal.
Remove the rear anti- lock brake sensors from the rear disc brake adapters. For additional
information, refer to Section 206 - 09A .
5. Disconnect the parking brake cables and conduits from the rear disc brake calipers. For additional information, refer to Section 206 - 05 .
SECTION 205-
02B: Rear Drive Axle/Differential — Ford 8.8-Inch Ring
Gear 2003 Mustang Workshop
Manual Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

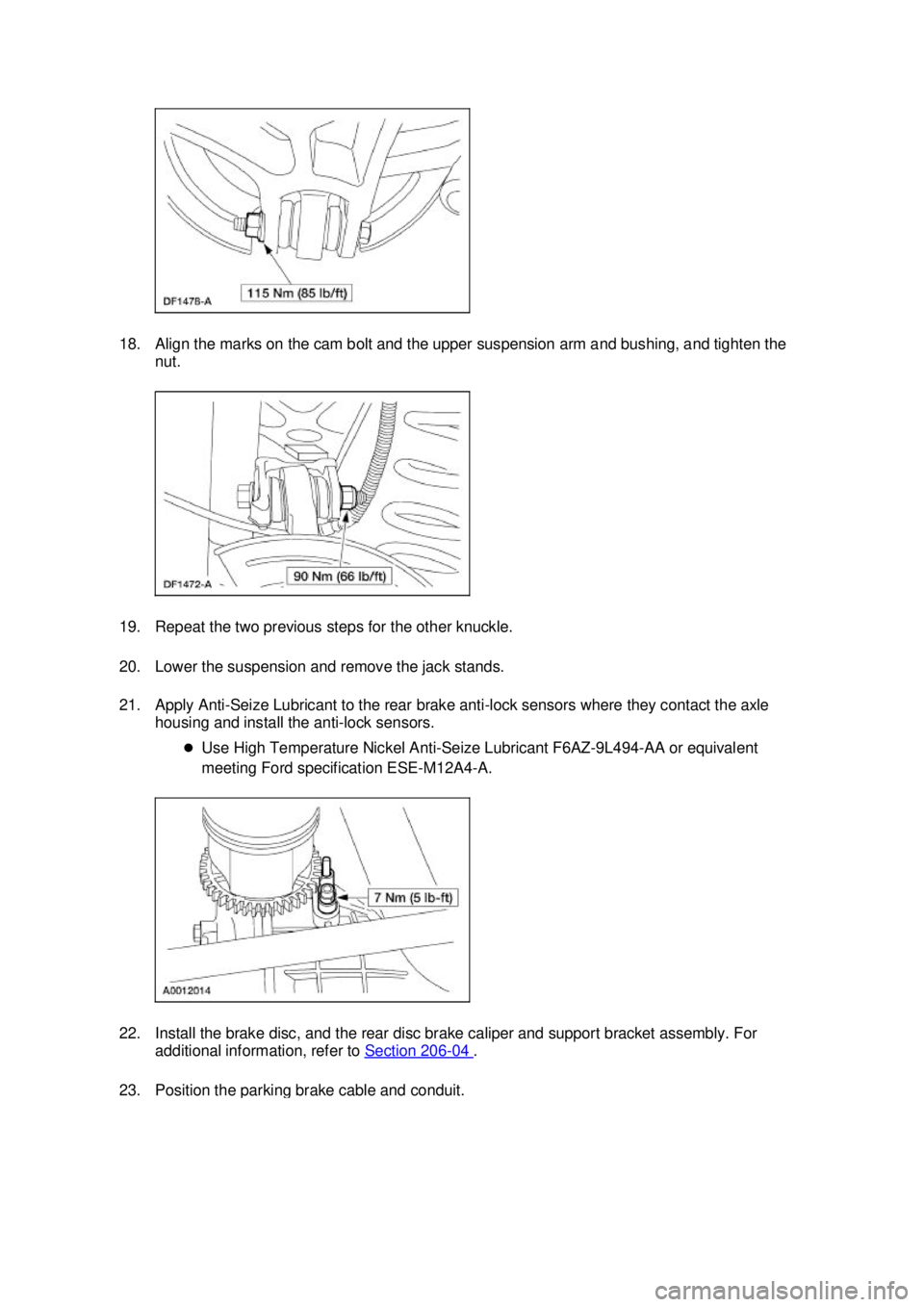

18. Align the marks on the cam bolt and the upper suspension arm and bushing, and tighten the
nut.
19. Repeat the two previous steps for the other knuckle.
20. Lower the suspension and remove the jack stands.
21. Apply Anti- Seize Lubricant to the rear brake anti- lock sensors where they contact the axle
housing and install the anti- lock sensors.
z Use High Temperature Nickel Anti- Seize Lubricant F6AZ-9L494-AA or equivalent
meeting Ford specification ESE- M12A4-A.
22. Install the brake disc, and the rear disc brake caliper and support bracket assembly. For additional information, refer to Section 206 - 04 .
23. Position the parking brake cable and conduit. Klj . 12 ba
