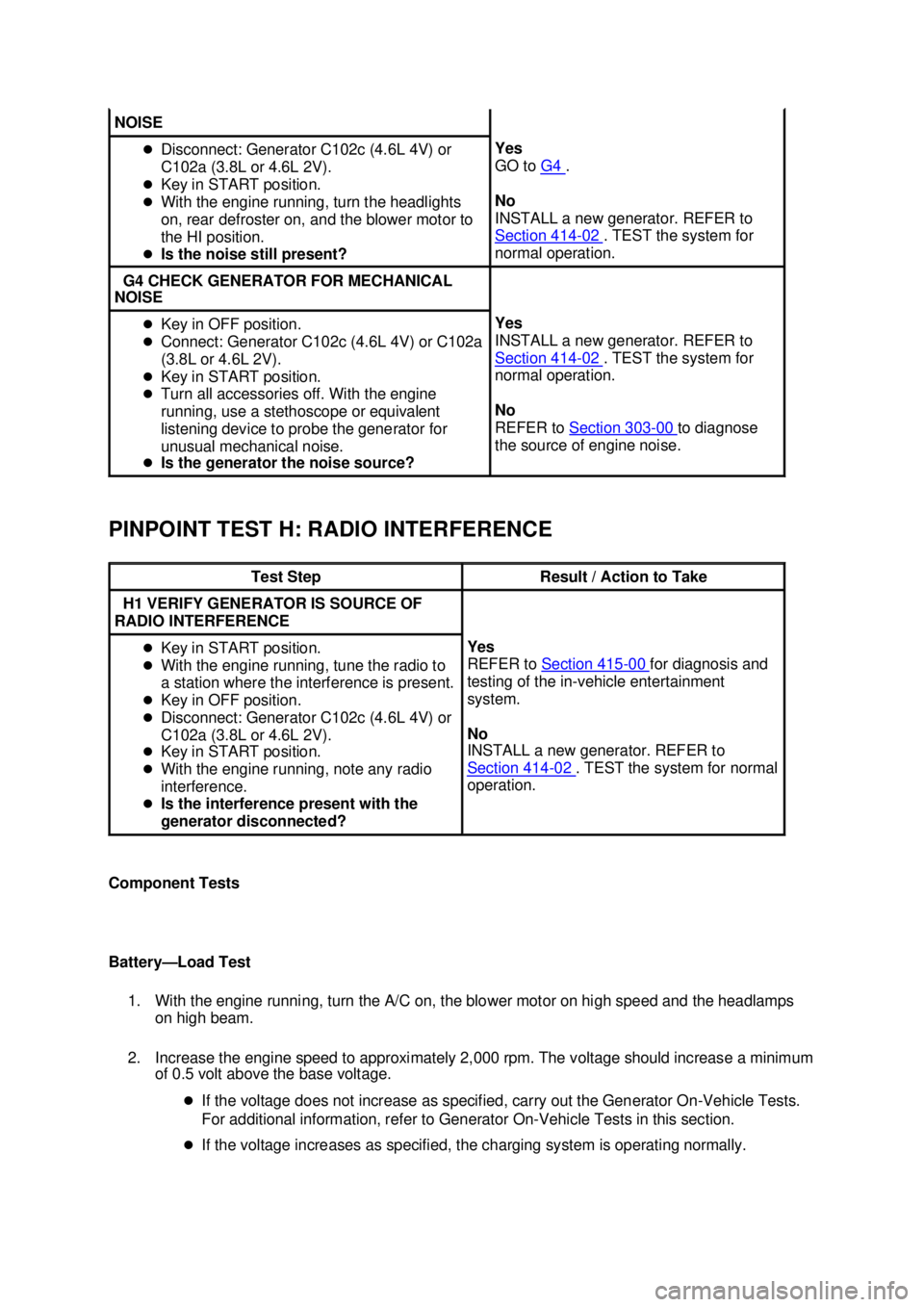

PINPOINT TEST H: RADIO INTERFERENCE
Component Tests
Battery—Load Test
1. With the engine running, turn the A/C on, the blower motor on high speed and the headlamps on high beam.
2. Increase the engine speed to approximately 2,000 rpm. The voltage should increase a minimum of 0.5 volt above the base voltage.
zIf the voltage does not increase as specified, carry out the Generator On- Vehicle Tests.
For additional information, refer to Generator On- Vehicle Tests in this section.
z If the voltage increases as specified, the charging system is operating normally. NOISE
z
Disconnect: Generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V).
z Key in START position.
z With the engine running, turn the headlights
on, rear defroster on, and the blower motor to
the HI position.
z Is the noise still present? Yes
GO to
G4 .
No
INSTALL a new generator. REFER to
Section 414 - 02 . TEST the system for
normal operation. G4 CHECK GENERATOR FOR MECHANICAL
NOISE z
Key in OFF position.
z Connect: Generator C102c (4.6L 4V) or C102a
(3.8L or 4.6L 2V).
z Key in START position.
z Turn all accessories off. With the engine
running, use a stethoscope or equivalent
listening device to probe the generator for
unusual mechanical noise.
z Is the generator the noise source? Yes
INSTALL a new generator. REFER to
Section 414
- 02 . TEST the system for
normal operation.
No
REFER to Section 303 - 00 to diagnose
the source of engine noise. Test Step Result / Action to Take
H1 VERIFY GENERATOR IS SOURCE OF
RADIO INTERFERENCE z
Key in START position.
z With the engine running, tune the radio to
a station where the interference is present.
z Key in OFF position.
z Disconnect: Generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V).
z Key in START position.
z With the engine running, note any radio
interference.
z Is the interference present with the
generator disconnected? Yes
REFER to
Section 415 - 00 for diagnosis and
testing of the in- vehicle entertainment
system.
No
INSTALL a new generator. REFER to
Section 414 - 02 . TEST the system for normal
operation. Klj . 10 ba
