window FORD MUSTANG 2004 4.G Owners Manual

Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 14
Entertainment Systems 18
AM/FM stereo with CD 18
AM/FM stereo with in-dash six CD 25
Climate Controls 33
Manual heating and air conditioning 33
Rear window defroster 34
Lights 35
Headlamps 35
Turn signal control 38
Bulb replacement 38
Driver Controls 43
Windshield wiper/washer control 43
Steering wheel adjustment 44
Power windows 45
Mirrors 46
Speed control 46
Locks and Security 54
Keys 54
Locks 54
Anti-theft system 57
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Table of Contents
1

These are some of the symbols you may see on your
vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat
Installation WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake
SystemBrake Fluid -
Non-Petroleum
Based
Traction ControlAdvanceTrac

Master Lighting
SwitchHazard Warning
Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield
Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Power Windows
Front/RearPower Window
Lockout
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Introduction
8

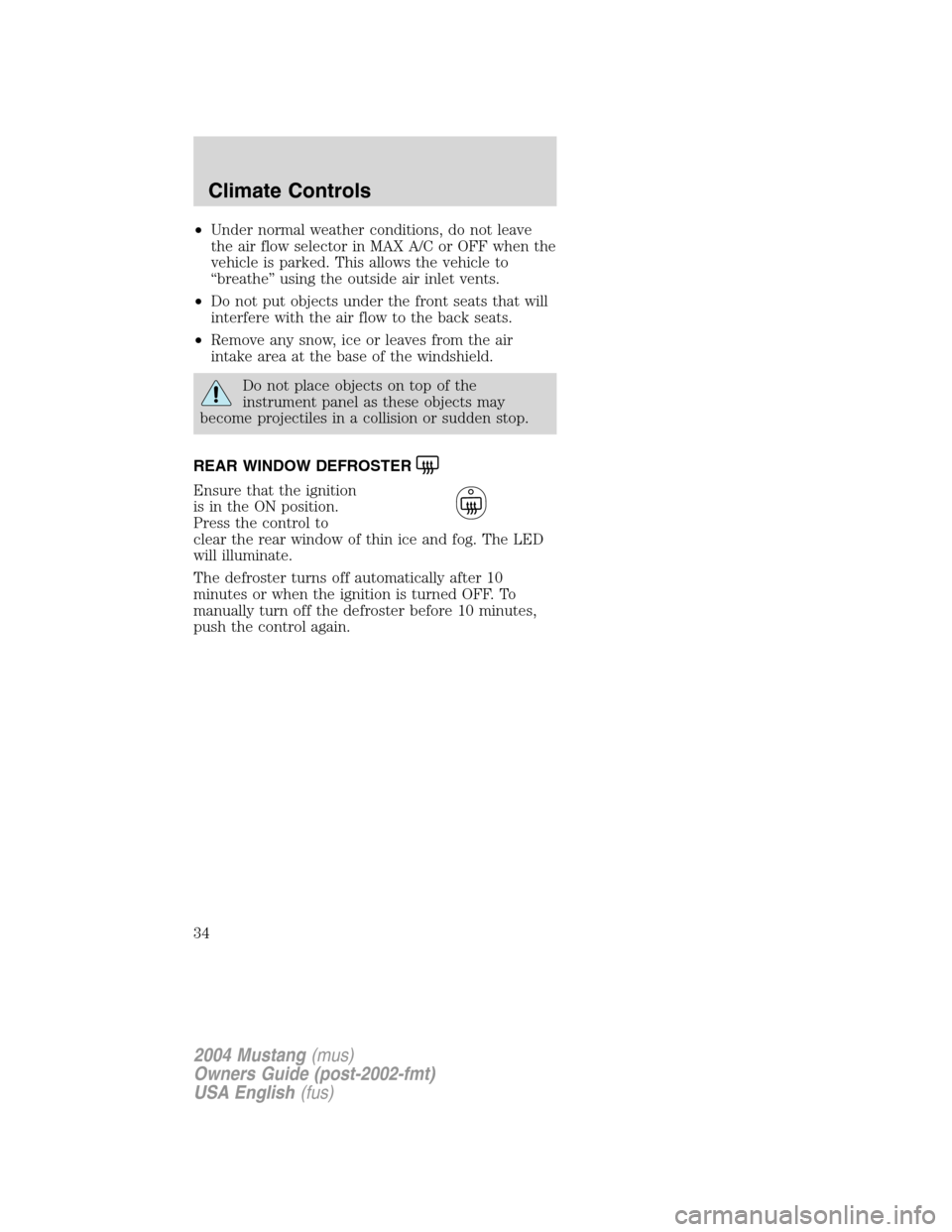

•Under normal weather conditions, do not leave
the air flow selector in MAX A/C or OFF when the
vehicle is parked. This allows the vehicle to
“breathe”using the outside air inlet vents.
•Do not put objects under the front seats that will
interfere with the air flow to the back seats.
•Remove any snow, ice or leaves from the air
intake area at the base of the windshield.
Do not place objects on top of the
instrument panel as these objects may
become projectiles in a collision or sudden stop.
REAR WINDOW DEFROSTER
Ensure that the ignition
is in the ON position.
Press the control to
clear the rear window of thin ice and fog. The LED
will illuminate.
The defroster turns off automatically after 10
minutes or when the ignition is turned OFF. To
manually turn off the defroster before 10 minutes,
push the control again.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Climate Controls
34

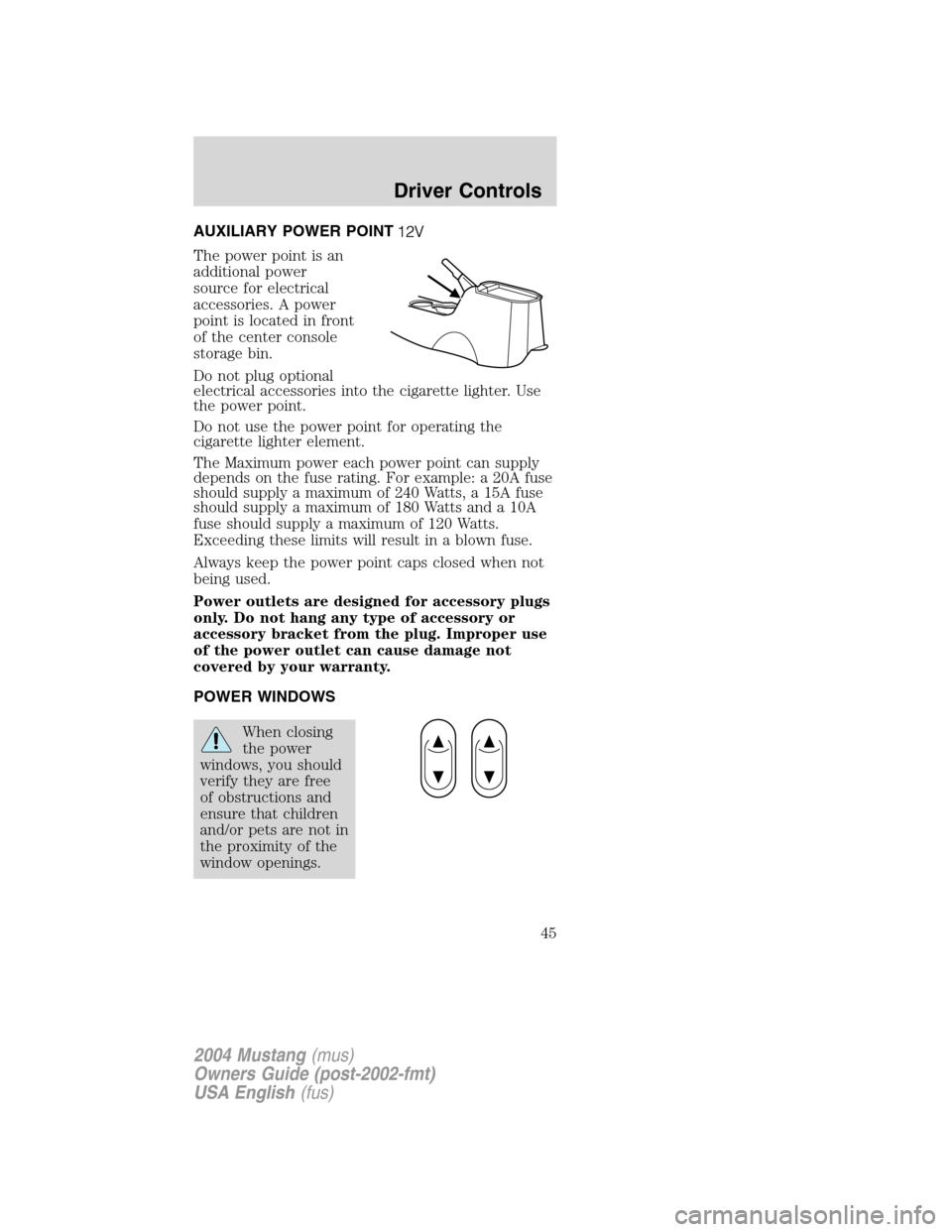

AUXILIARY POWER POINT
The power point is an
additional power
source for electrical
accessories. A power
point is located in front
of the center console
storage bin.
Do not plug optional
electrical accessories into the cigarette lighter. Use
the power point.
Do not use the power point for operating the
cigarette lighter element.
The Maximum power each power point can supply
depends on the fuse rating. For example: a 20A fuse
should supply a maximum of 240 Watts, a 15A fuse
should supply a maximum of 180 Watts and a 10A
fuse should supply a maximum of 120 Watts.
Exceeding these limits will result in a blown fuse.
Always keep the power point caps closed when not
being used.
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use
of the power outlet can cause damage not
covered by your warranty.
POWER WINDOWS
When closing
the power
windows, you should
verify they are free
of obstructions and
ensure that children
and/or pets are not in
the proximity of the
window openings.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
45

Press and hold the bottom part of the rocker switch
to open the window. Press and hold the top part of
the rocker switch to close the window.
One touch down
Allows the driver’s
window to open fully
without holding the
control down. Press
completely down on
the bottom part of the
rocker switch and release quickly. Press again to
stop.
POWER SIDE VIEW MIRRORS
(IF EQUIPPED)
To adjust your mirrors:
1. Move the mirror
selector control all the
way to the left to
adjust the left mirror
or all the way to the
right to adjust the right
mirror.
2. Move the control in the direction you wish to tilt
the mirror.
3. Return the control to the center position.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of
48 km/h (30 mph) or more without keeping your
foot on the accelerator pedal. Speed control does
not work at speeds below 48 km/h (30 mph).
Do not use the speed control in heavy traffic
or on roads that are winding, slippery or
unpaved.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
46

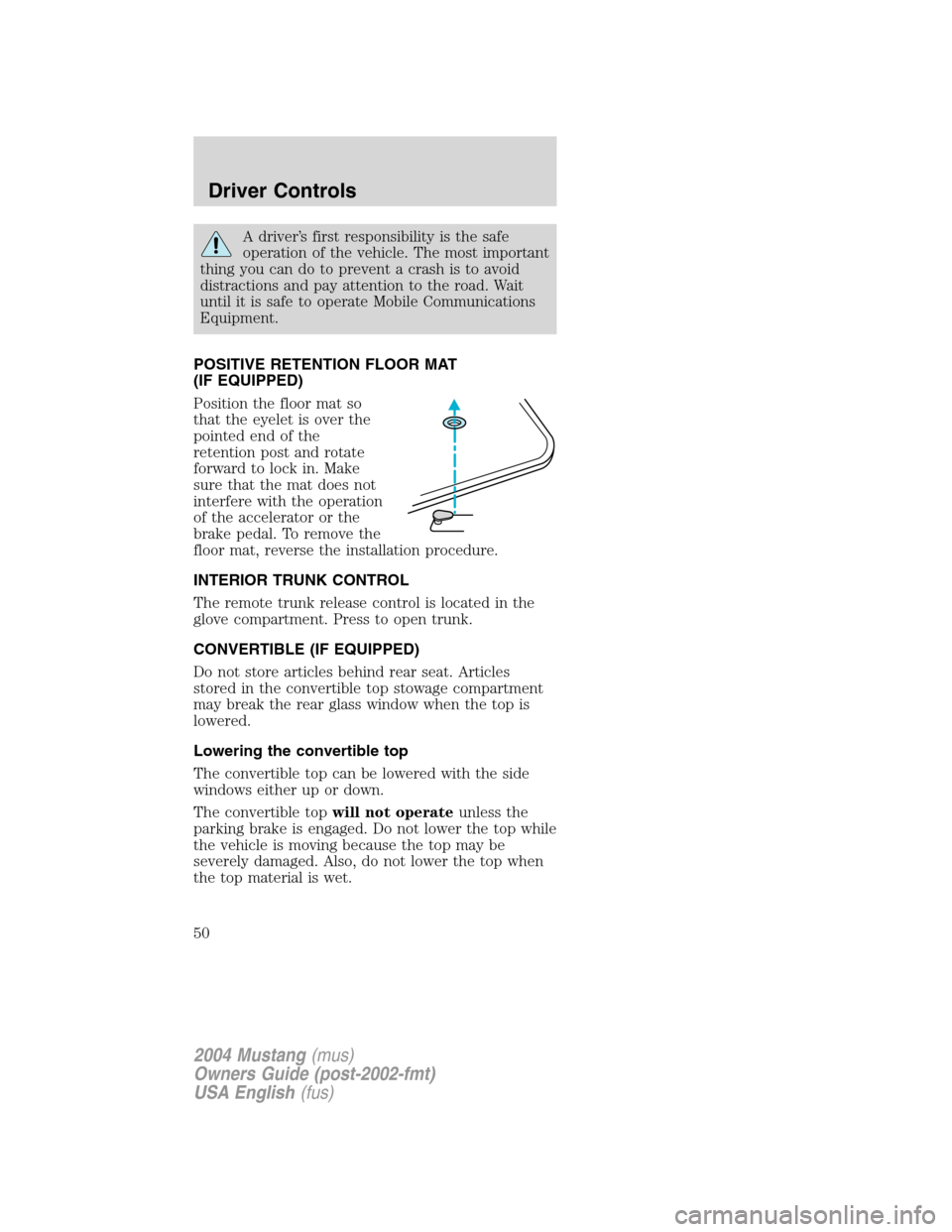

A driver’s first responsibility is the safe
operation of the vehicle. The most important
thing you can do to prevent a crash is to avoid
distractions and pay attention to the road. Wait
until it is safe to operate Mobile Communications
Equipment.
POSITIVE RETENTION FLOOR MAT
(IF EQUIPPED)
Position the floor mat so
that the eyelet is over the
pointed end of the
retention post and rotate
forward to lock in. Make
sure that the mat does not
interfere with the operation
of the accelerator or the
brake pedal. To remove the
floor mat, reverse the installation procedure.
INTERIOR TRUNK CONTROL
The remote trunk release control is located in the
glove compartment. Press to open trunk.
CONVERTIBLE (IF EQUIPPED)
Do not store articles behind rear seat. Articles
stored in the convertible top stowage compartment
may break the rear glass window when the top is
lowered.
Lowering the convertible top
The convertible top can be lowered with the side
windows either up or down.
The convertible topwill not operateunless the
parking brake is engaged. Do not lower the top while
the vehicle is moving because the top may be
severely damaged. Also, do not lower the top when
the top material is wet.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
50

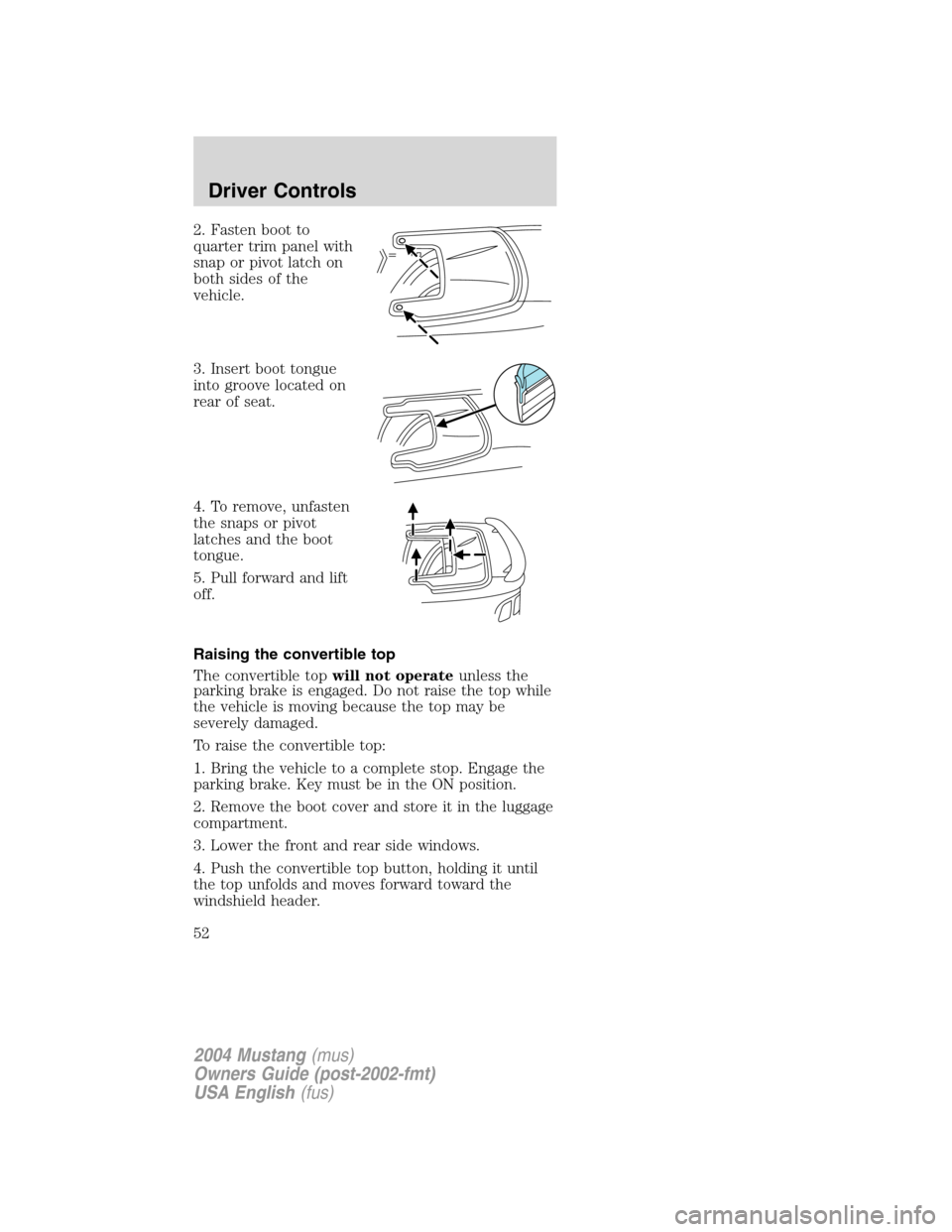

2. Fasten boot to
quarter trim panel with
snap or pivot latch on
both sides of the
vehicle.
3. Insert boot tongue
into groove located on
rear of seat.
4. To remove, unfasten
the snaps or pivot
latches and the boot
tongue.
5. Pull forward and lift
off.
Raising the convertible top
The convertible topwill not operateunless the
parking brake is engaged. Do not raise the top while
the vehicle is moving because the top may be
severely damaged.
To raise the convertible top:
1. Bring the vehicle to a complete stop. Engage the
parking brake. Key must be in the ON position.
2. Remove the boot cover and store it in the luggage
compartment.
3. Lower the front and rear side windows.
4. Push the convertible top button, holding it until
the top unfolds and moves forward toward the
windshield header.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
52

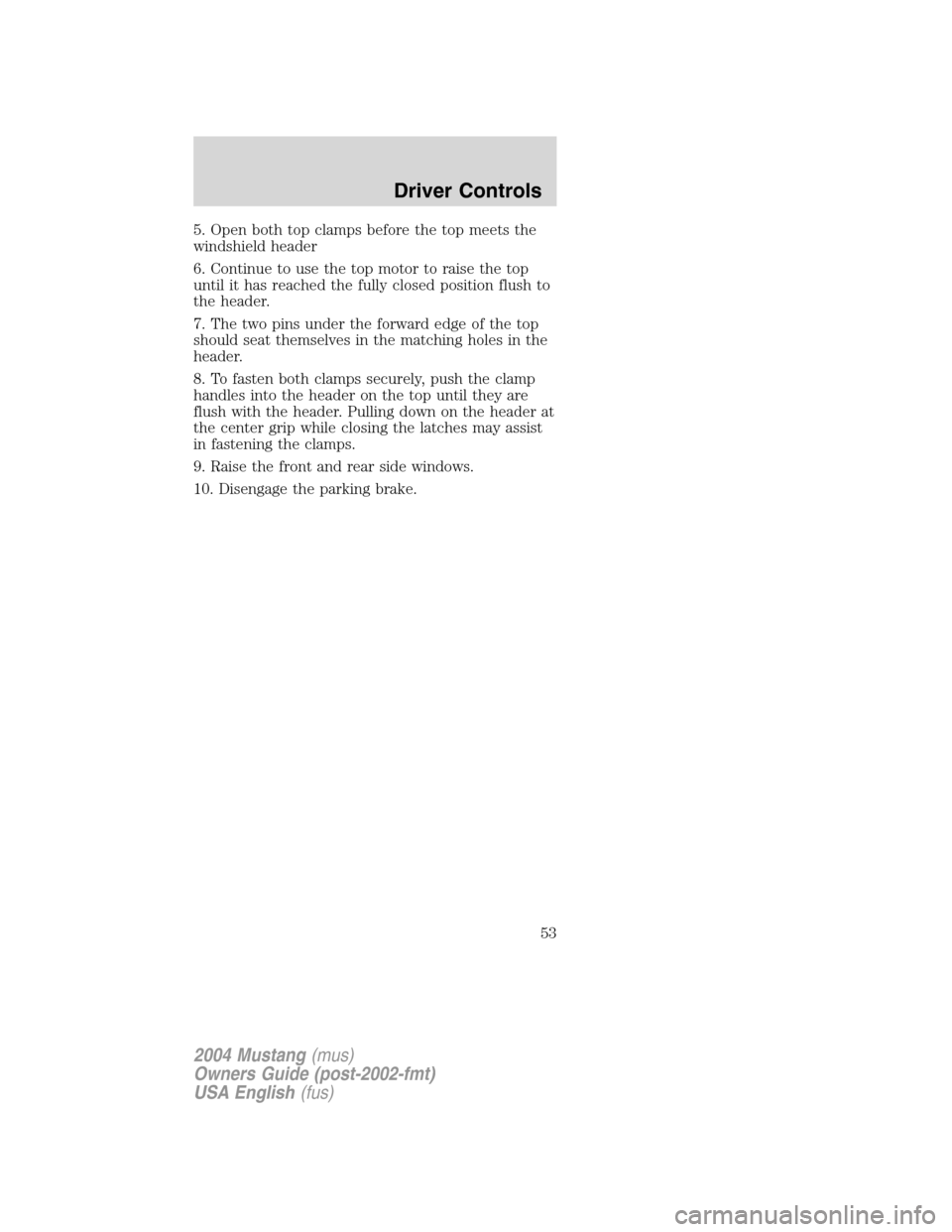

5. Open both top clamps before the top meets the
windshield header
6. Continue to use the top motor to raise the top
until it has reached the fully closed position flush to
the header.
7. The two pins under the forward edge of the top
should seat themselves in the matching holes in the
header.
8. To fasten both clamps securely, push the clamp
handles into the header on the top until they are
flush with the header. Pulling down on the header at
the center grip while closing the latches may assist
in fastening the clamps.
9. Raise the front and rear side windows.
10. Disengage the parking brake.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
53

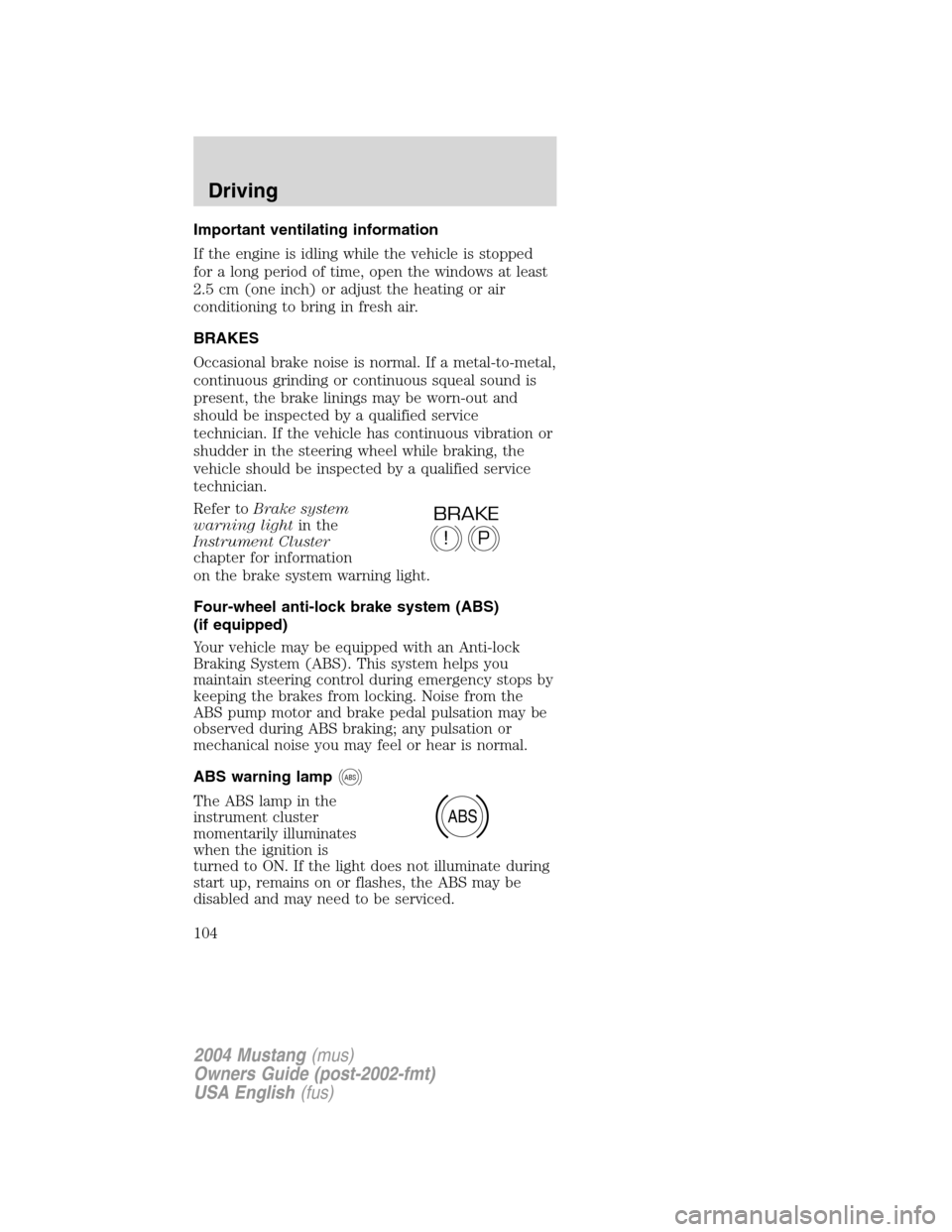

Important ventilating information
If the engine is idling while the vehicle is stopped
for a long period of time, open the windows at least
2.5 cm (one inch) or adjust the heating or air
conditioning to bring in fresh air.
BRAKES
Occasional brake noise is normal. If a metal-to-metal,
continuous grinding or continuous squeal sound is
present, the brake linings may be worn-out and
should be inspected by a qualified service
technician. If the vehicle has continuous vibration or
shudder in the steering wheel while braking, the
vehicle should be inspected by a qualified service
technician.
Refer toBrake system
warning lightin the
Instrument Cluster
chapter for information
on the brake system warning light.
Four-wheel anti-lock brake system (ABS)
(if equipped)
Your vehicle may be equipped with an Anti-lock
Braking System (ABS). This system helps you
maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the
ABS pump motor and brake pedal pulsation may be
observed during ABS braking; any pulsation or
mechanical noise you may feel or hear is normal.
ABS warning lamp
ABS
The ABS lamp in the
instrument cluster
momentarily illuminates
when the ignition is
turned to ON. If the light does not illuminate during
start up, remains on or flashes, the ABS may be
disabled and may need to be serviced.
P!
BRAKE
ABS
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
104

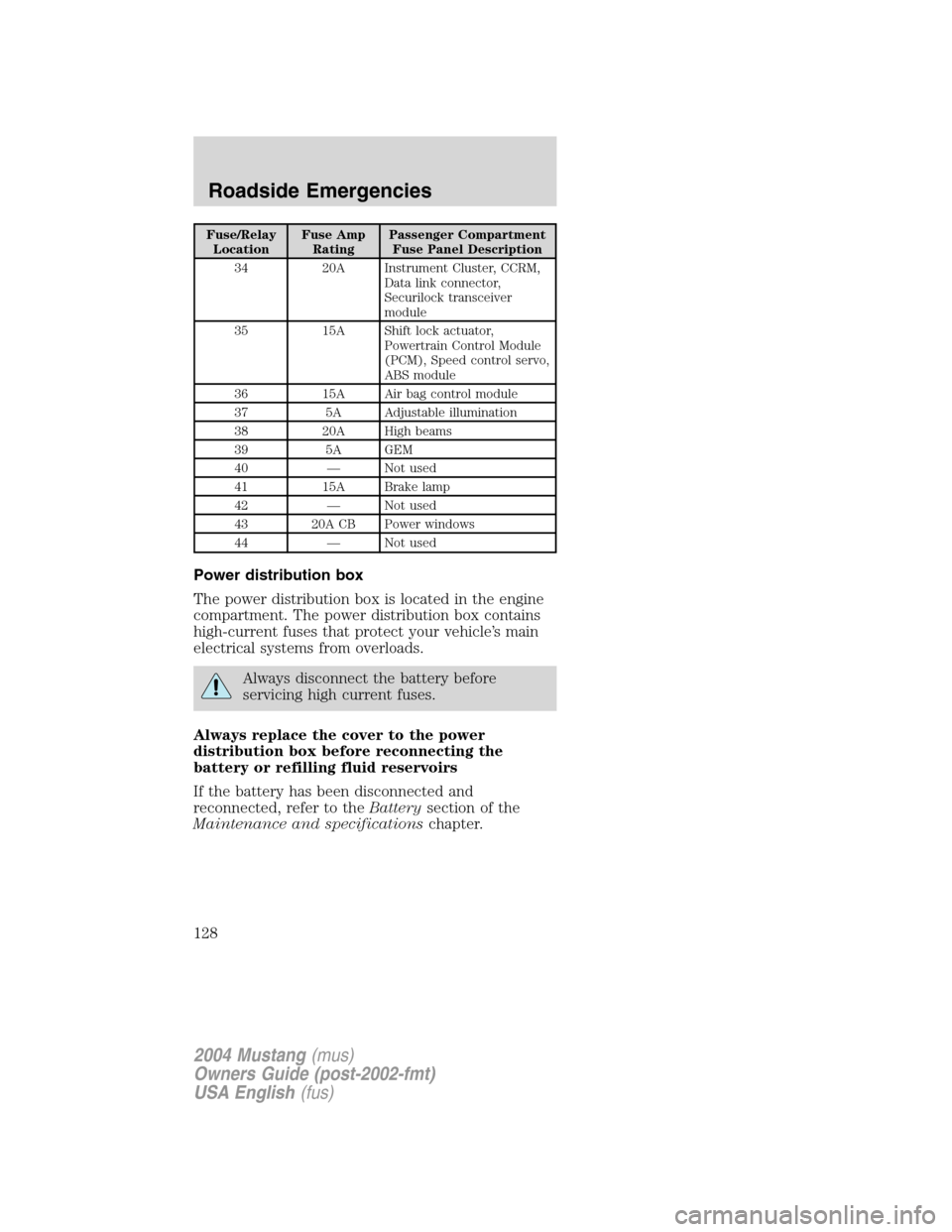

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment
Fuse Panel Description
34 20A Instrument Cluster, CCRM,
Data link connector,
Securilock transceiver
module
35 15A Shift lock actuator,
Powertrain Control Module
(PCM), Speed control servo,
ABS module
36 15A Air bag control module
37 5A Adjustable illumination
38 20A High beams
39 5A GEM
40—Not used
41 15A Brake lamp
42—Not used
43 20A CB Power windows
44—Not used
Power distribution box
The power distribution box is located in the engine
compartment. The power distribution box contains
high-current fuses that protect your vehicle’s main
electrical systems from overloads.
Always disconnect the battery before
servicing high current fuses.
Always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs
If the battery has been disconnected and
reconnected, refer to theBatterysection of the
Maintenance and specificationschapter.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
128
