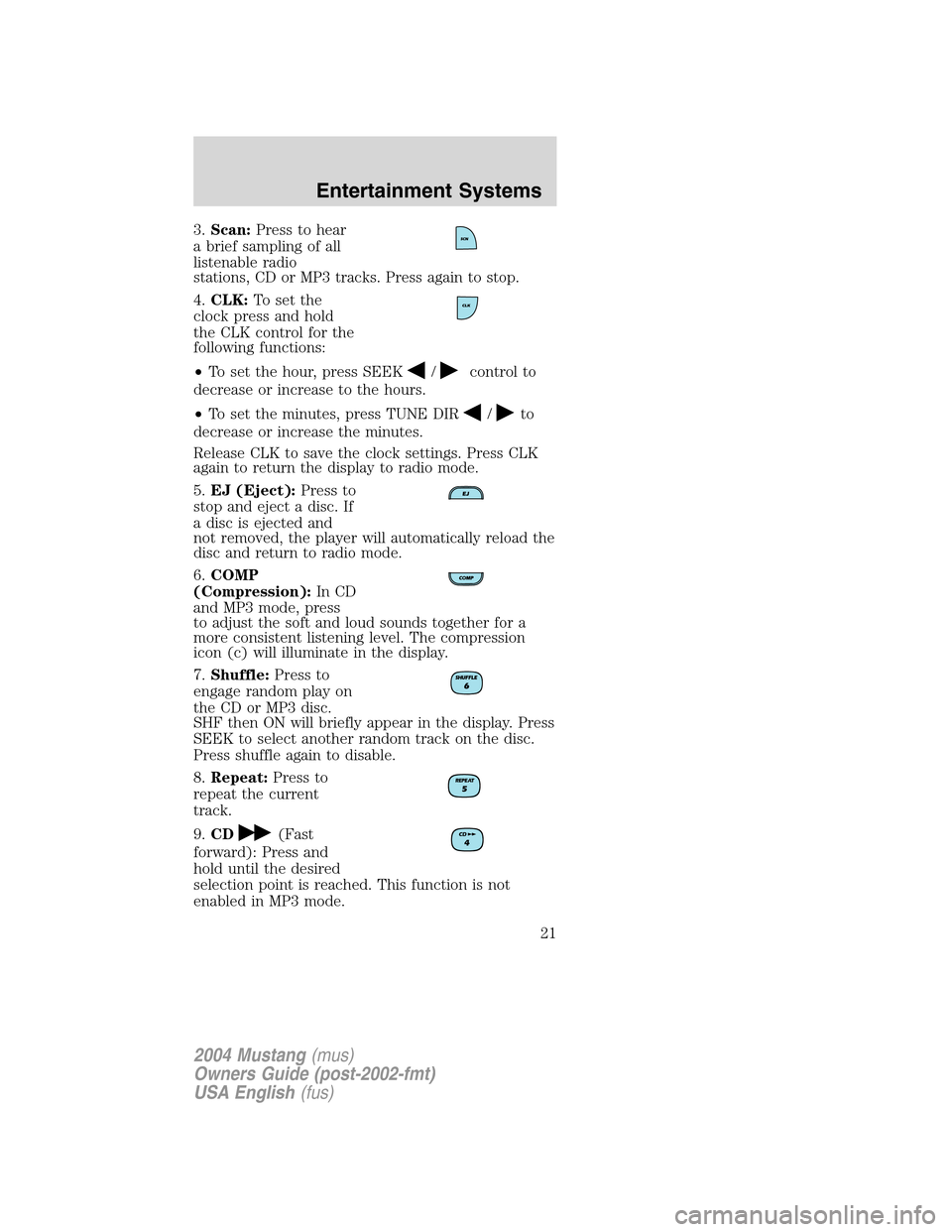

3.Scan:Press to hear
a brief sampling of all
listenable radio
stations, CD or MP3 tracks. Press again to stop.
4.CLK:To set the
clock press and hold
the CLK control for the
following functions:
•To set the hour, press SEEK
/control to
decrease or increase to the hours.
•To set the minutes, press TUNE DIR
/to
decrease or increase the minutes.
Release CLK to save the clock settings. Press CLK
again to return the display to radio mode.
5.EJ (Eject):Press to
stop and eject a disc. If
a disc is ejected and
not removed, the player will automatically reload the
disc and return to radio mode.
6.COMP
(Compression):In CD
and MP3 mode, press
to adjust the soft and loud sounds together for a
more consistent listening level. The compression
icon (c) will illuminate in the display.
7.Shuffle:Press to
engage random play on
the CD or MP3 disc.
SHF then ON will briefly appear in the display. Press
SEEK to select another random track on the disc.
Press shuffle again to disable.
8.Repeat:Press to
repeat the current
track.
9.CD
(Fast
forward): Press and
hold until the desired
selection point is reached. This function is not
enabled in MP3 mode.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21

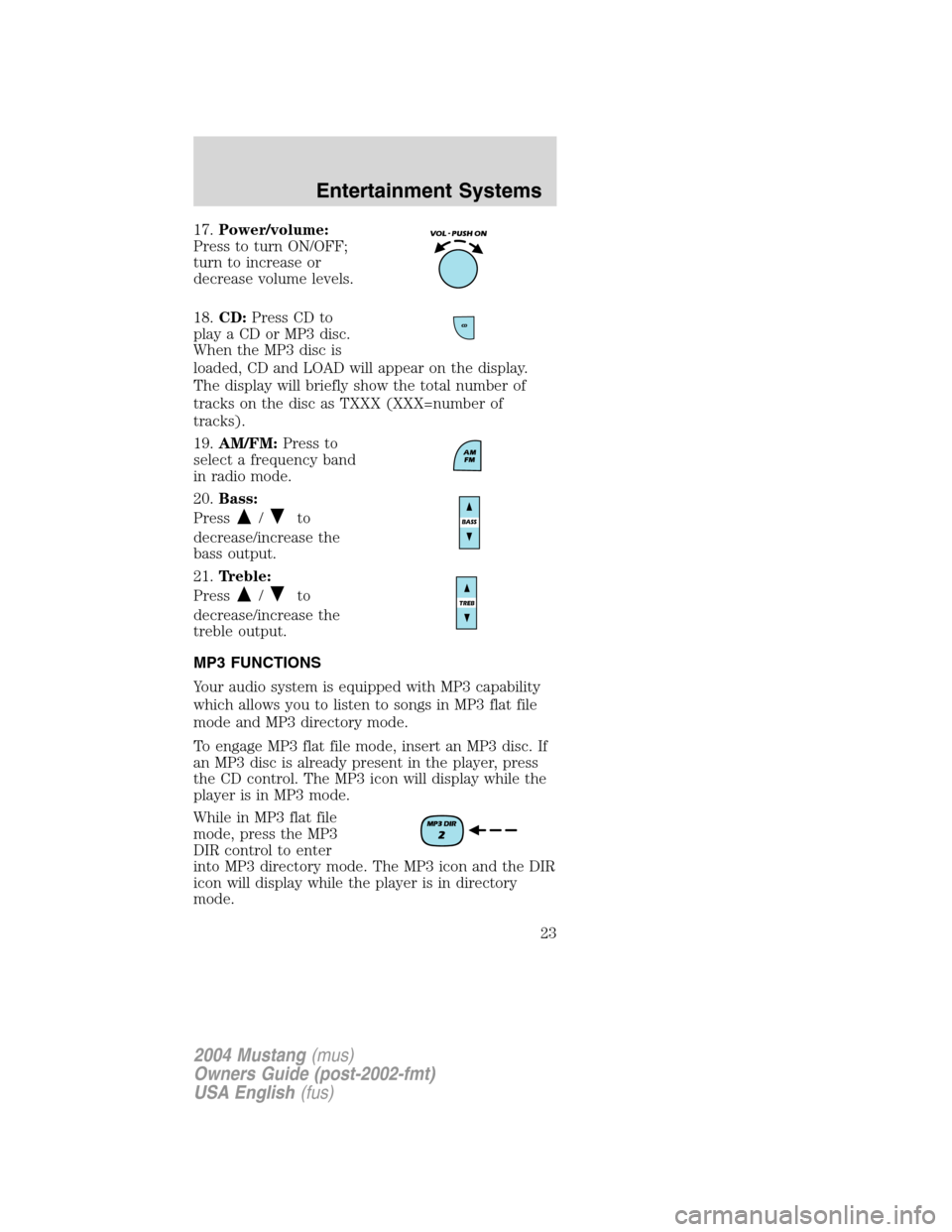

17.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
18.CD:Press CD to
play a CD or MP3 disc.
When the MP3 disc is
loaded, CD and LOAD will appear on the display.
The display will briefly show the total number of
tracks on the disc as TXXX (XXX=number of
tracks).
19.AM/FM:Press to
select a frequency band
in radio mode.
20.Bass:
Press
/to
decrease/increase the
bass output.
21.Treble:
Press
/to
decrease/increase the
treble output.
MP3 FUNCTIONS
Your audio system is equipped with MP3 capability
which allows you to listen to songs in MP3 flat file
mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If
an MP3 disc is already present in the player, press
the CD control. The MP3 icon will display while the
player is in MP3 mode.
While in MP3 flat file
mode, press the MP3
DIR control to enter
into MP3 directory mode. The MP3 icon and the DIR
icon will display while the player is in directory
mode.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
23

Your MACHMP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 FILE DIRECTORY STRUCTURE
The MACHMP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
•There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
•MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
numbers each MP3 track on the disc (denoted by
the .mp3 file extension) from T001 to T255.
•MP3 directory mode represents a directory
structure consisting of one level of directories
(folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3
extension) and all directories containing MP3
files, from 01–01 to 99–99. The first two digits
denote the directory number and the last two
digits denote the track number within that
directory.
•Creating discs with only one level of
subdirectories will help with navigation through
the disc files.
ERROR MESSAGES
You may experience an error message for the
following situations:
•NO DISC when the CD control is pressed and
there is not a CD present.
•DISC ERR when there is a damaged or unreadable
disc. Such as, data discs containing no .mp3 files,
or for data discs containing more than 255 files or
directories.
•CD ERR for any other disc malfunction.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
24

Autostore:Allows you to set the strongest local
radio stations without losing your original manually
set preset stations for AM/FM1/FM2 . Press and
momentarily hold AM/FM. AUTOSTORE will flash on
the display. When the six strongest stations are
filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the
system will store the last one in the remaining
presets. Press again to disengage.
13.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
Speed sensitive volume:Radio volume changes
automatically and slightly with vehicle speed to
compensate for road and wind noise. Recommended
level is 1–3. Level 0 turns the feature off and level 7
is the maximum setting.
Press and hold the volume control for five seconds.
Then press SEL to increase (
) or decrease ()
the volume setting. The level will appear in the
display.
14.Load:Press LOAD
and the corresponding
preset (1–6) to load a
CD into the desired slot. Press and hold to load up
to six discs at once.
15.CD AUX:Press to
access CD or AUX
mode.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
peel and cause the CD to become jammed. It is
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
29

RADIO RECEPTION FACTORS
There are three factors that can effect radio
reception:
•Distance/strength: The further you travel from an
FM station, the weaker the signal and the weaker
the reception.
•Terrain: Hills, mountains, tall buildings, power
lines, electric fences, traffic lights and
thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast
tower, a stronger signal may overtake a weaker
one and play while the weak station frequency is
displayed.
CD PLAYER CARE
All audios are CD changer compatible. See your
dealer for further details.
Do:
•Handle discs by their edges only. Never touch the
playing surface.
•Inspect discs before playing. Clean only with an
approved CD cleaner and wipe from the center
out.
Don’t:
•Expose discs to direct sunlight or heat sources for
extended periods of time.
•Insert more than one disc into each slot of the CD
changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
31
