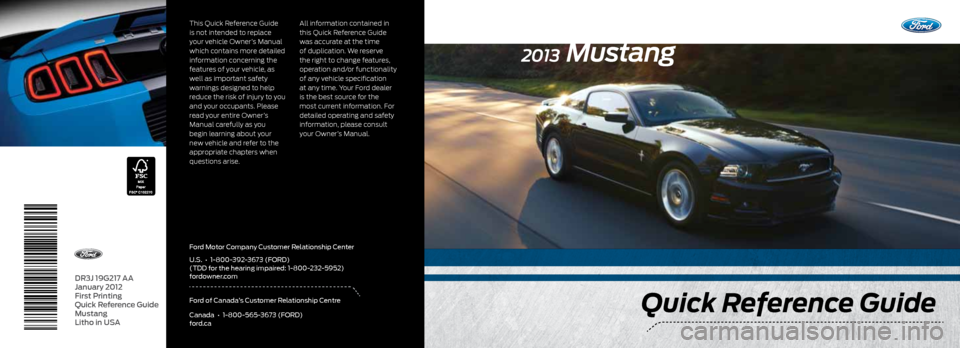

FORD MUSTANG 2013 5.G Quick Reference Guide

DR3J 19G217 AA
January 2012
First Printing
Quick Reference Guide
Mustang
Litho in USA
Quick Reference Guide
2013 Mustang
This Quick Reference Guide
is not intended to replace
your vehicle Owner’s Manual
which contains more detailed
information concerning the
features of your vehicle, as
well as important safety
warnings designed to help
reduce the risk of injury to you
and your occupants. Please
read your entire Owner’s
Manual carefully as you
begin learning about your
new vehicle and refer to the
appropriate chapters when
questions arise. All information contained in
this Quick Reference Guide
was accurate at the time
of duplication. We reserve
the right to change features,
operation and/or functionality
of any vehicle specification
at any time. Your Ford dealer
is the best source for the
most current information. For
detailed operating and safety
information, please consult
your Owner’s Manual.
Ford Motor Company Customer Relationship Center
U.S. • 1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
fordowner.com
Ford of Canada’s Customer Relationship Centre
Canada • 1-800-565-3673 (FORD)
ford.ca

2013 mustang/Quick RefeRence Guide /3
2/2013 mustang/ Quick RefeRence Guide
fordowner.com

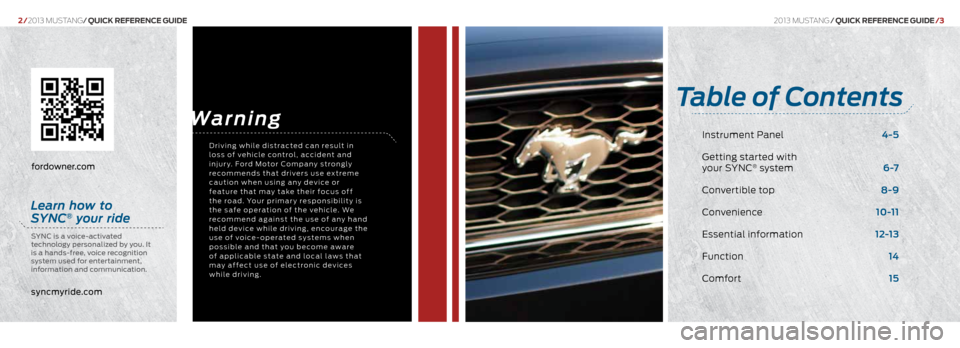

Table of Contents
Instrument Panel 4-5
Getting started with
your SYnc
® system 6 -7
c onvertible top 8-9
c onvenience
10-11
Essential information 12-13
Function 14
c omfort 15
SYNC is a voice-activated
technology personalized by you. It
is a hands-free, voice recognition
system used for entertainment,
information and communication.
syncmyride.com
Learn how to
SYNC® your ride
Driving while distracted can result in
loss of vehicle control, accident and
injury. Ford Motor c ompany strongly
recommends that drivers use extreme
caution when using any device or
feature that may take their focus off
the road. Your primary responsibility is
the safe operation of the vehicle. We
recommend against the use of any hand
held device while driving, encourage the
use of voice-operated systems when
possible and that you become aware
of applicable state and local laws that
may affect use of electronic devices
while driving.
Warning

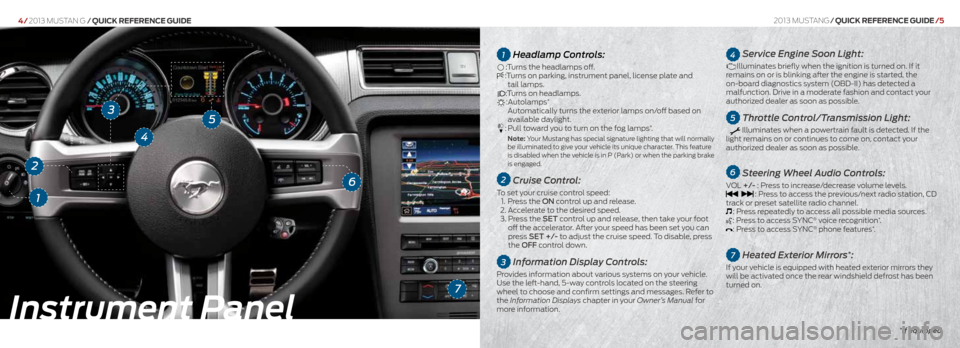

1Headlamp Controls:
:Turns the headlamps off. :Turns on parking, instrument panel, license plate and
tail lamps.
:Turns on headlamps.:Autolamps*
Automatically turns the exterior lamps on/off based on
available daylight.
: Pull toward you to turn on the fog lamps*. Note: Y our Mustang has special signature lighting that will normally
be illuminated to give your vehicle its unique character. This feature
is disabled when the vehicle is in P (Park) or when the parking brake
is engaged .
2Cruise Control:
To set your cruise control speed:
1. Press the ON control up and release.
2. Accelerate to the desired speed.
3. Press the SET control up and release, then take your foot
off the accelerator. After your speed has been set you can
press SET +/- to adjust the cruise speed. To disable, press
the OFF control down.
3Information Display Controls:
Provides information about various systems on your vehicle.
Use the left-hand, 5-way controls located on the steering
wheel to choose and confirm settings and messages. Refer to
the Information Displays chapter in your Owner’s Manual for
more information.
4Service Engine Soon Light:
Illuminates briefly when the ignition is turned on. If it
remains on or is blinking after the engine is started, the
on-board diagnostics system (OBD-II) has detected a
malfunction. Drive in a moderate fashion and contact your
authorized dealer as soon as possible.
5Throttle Control/Transmission Light:
Illuminates when a powertrain fault is detected. If the
light remains on or continues to come on, contact your
authorized dealer as soon as possible.
6Steering Wheel Audio Controls:
VOL +/- : Press to increase/decrease volume levels.: Press to access the previous/next radio station, cD
track or preset satellite radio channel.
: Press repeatedly to access all possible media sources.: Press to access SYnc® voice recognition*.: Press to access SYnc® phone features*.
7Heated Exterior Mirrors*:
If your vehicle is equipped with heated exterior mirrors they
will be activated once the rear windshield defrost has been
turned on.
4/ 2013 mustan g /Quick RefeRence Guide
1
Instrument Panel
2
6
*if equipped
3
2013 mustang /Quick RefeRence Guide /5
4
5
7

SYNC is a hands-free, voice recognition system used for entertainment, information and communication.
SYNC…Say the word.
6/2013 mustan g /Quick RefeRence Guide
Commonly used voice commands –
SYNC say the word:
Every time you want to give SYNC a voice command you
must first press the voice button and when prompted,
speak your voice command. For a list of voice commands
say “What can I say?”
Making a phone call:
Use SYNC to make a phone call to anyone in your
phonebook by pressing voice button
and when
prompted, say any of the following voice commands:
Call Call at work
Call on mobile or cell Call at home
For example, you could say “Call Mom at home”. SYNC
repeats the command back to you and dials the number.
Note: You can also make phone calls by pressing the voice button and when prompted, say the voice command “Dial”, then
verbally say the phone number.
Answering incoming calls:
Whenever you have an incoming call, you will be able
to see the name and number of the person calling in
your display. Press the phone button
to answer an
incoming call. You can hang up at any time by pressing
and holding the phone button
. Do not disturb mode:
This feature blocks incoming calls and text messages and
sends them to your voice mail and saves text messages
for later. You still have access to outgoing calls when this
feature is active. Say the voice command, “Do not disturb
on” to enable and “Do not disturb off” to disable.
Using SYNC to access digital media:
SYNC has a media hub with multiple inputs allowing you to access personal media from your digital devices.
Using voice commands to play music:
1.
Plug your media player into your USB port.
2. Press the voice button
. When prompted say
“USB”, then follow-up saying one of the following
voice commands.
“Play all” “Play next song”
“Play song ” “Play album ”
3. You will hear the command repeated back to you and the
selected item will play.
Do more:
After creating your account at SYNCMYRIDE.com
use SYNC Services to get the most out of your SYNC
experience. This includes; voice activated turn-by-turn
directions, the latest traffic reports, business searches,
sports scores and more. Say the voice command
“Services”, and SYNC will guide you through to your
available services.
Getting Started with your SYNC® System
Before you get started:
1. Set up your owner account at syncmyride.com. Register
by following the on-screen instructions. After registering
you can see what complimentary services you are
eligible for.
2. SYnc uses a wireless connection called Bluetooth
® to
communicate with your phone. Turn Bluetooth mode
on in your phone’s menu options. This lets your phone
find SYnc . If you need more details on setting up your
phone to work with SYnc , visit syncmyride.com, or your
phone manufacturer’s website.
Pairing your phone with SYNC:
In order to use many of the features of SYnc® such
as making a phone call, receiving a text or using SYnc
services, you must first connect or pair your phone
with SYnc .
To pair your phone for the first time:
1. Make sure that your vehicle is in (P) park and turn your
ignition and radio on.
2. Press the phone button
, when the display indicates
no Phone Found, press OK. 3.
When Add Bluetooth
Device? appears in the
display press OK.
4. When Find SYnc appears
in the display press OK.
When prompted on your
phone’s display, enter the
PIn provided by SYnc into
your phone.
5. The display will
indicate when the pairing
is successful.
Note: The system may prompt
you to:
• Set your phone as primary/
favorite (the primary phone
will receive messages and
voice mails)
• Download your phone book
(this is recommended to use
voice commands)
• Turn on 911 Assist
™
Tips:
•
To pair subsequent
phones, please refer to
Pairing Subsequent Phones
in the SYNC chapter of
your Owner’s Manual.
• If you are experiencing
pairing problems, try
performing a clean
pairing by deleting your
services from SYnc
and deleting the SYnc
connection from your
phone, and then repeat
the process
• Make sure that there
are no security features
active on your phone
preventing you from
connecting to SYnc .
2013 mustang/Quick RefeRence Guide /7

8/2013 mustan g /Quick RefeRence Guide

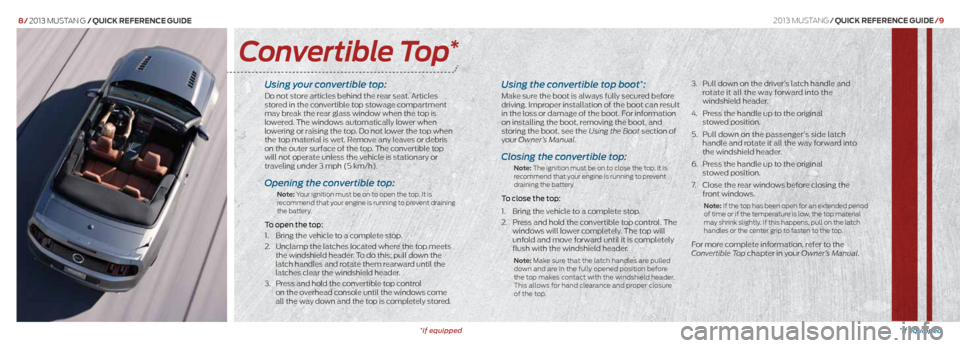

Convertible To p*
Using your convertible top:
Do not store articles behind the rear seat. Articles
stored in the convertible top stowage compartment
may break the rear glass window when the top is
lowered. The windows automatically lower when
lowering or raising the top. Do not lower the top when
the top material is wet. Remove any leaves or debris
on the outer surface of the top. The convertible top
will not operate unless the vehicle is stationary or
traveling under 3 mph (5 km/h).
Opening the convertible top:
Note: Your ignition must be on to open the top. It is
recommend that your engine is running to prevent draining
the battery.
To open the top:
1. Bring the vehicle to a complete stop.
2. Unclamp the latches located where the top meets
the windshield header. To do this; pull down the
latch handles and rotate them rearward until the
latches clear the windshield header.
3. Press and hold the convertible top control
on the overhead console until the windows come
all the way down and the top is completely stored.
Using the convertible top boot*:
Make sure the boot is always fully secured before
driving. Improper installation of the boot can result
in the loss or damage of the boot. For information
on installing the boot, removing the boot, and
storing the boot, see the Using the Boot section of
your Owner’s Manual.
Closing the convertible top:
Note: The ignition must be on to close the top. It is
recommend that your engine is running to prevent
draining the battery.
To close the top:
1. Bring the vehicle to a complete stop.
2. Press and hold the convertible top control. The
windows will lower completely. The top will
unfold and move forward until it is completely
flush with the windshield header.
Note: Make sure that the latch handles are pulled
down and are in the fully opened position before
the top makes contact with the windshield header.
This allows for hand clearance and proper closure
of the top.
3. Pull down on the driver’s latch handle and
rotate it all the way forward into the
windshield header.
4. Press the handle up to the original
stowed position.
5. Pull down on the passenger’s side latch
handle and rotate it all the way forward into
the windshield header.
6. Press the handle up to the original
stowed position.
7. close the rear windows before closing the
front windows.
Note: If the top has been open for an extended period
of time or if the temperature is low, the top material
may shrink slightly. If this happens, pull on the latch
handles or the center grip to fasten to the top.
For more complete information, refer to the
Convertible Top chapter in your Owner’s Manual.
*if equipped
2013 mustang /Quick RefeRence Guide /9
*if equipped

10/2013 mustan g /Quick RefeRence Guide

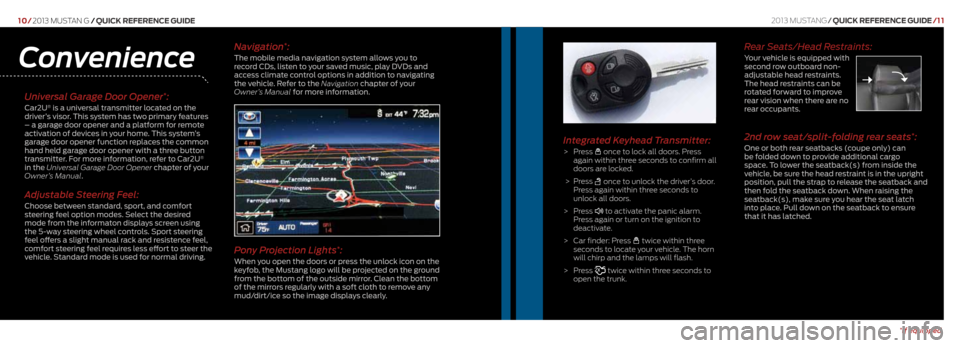

Universal Garage Door Opener*:
Car2U® is a universal transmitter located on the
driver’s visor. This system has two primary features
– a garage door opener and a platform for remote
activation of devices in your home. This system’s
garage door opener function replaces the common
hand held garage door opener with a three button
transmitter. For more information, refer to Car2U
®
in the Universal Garage Door Opener chapter of your
Owner’s Manual.
Adjustable Steering Feel:
Choose between standard, sport, and comfort
steering feel option modes. Select the desired
mode from the informaton displays screen using
the 5-way steering wheel controls. Sport steering
feel offers a slight manual rack and resistence feel,
comfort steering feel requires less effort to steer the
vehicle. Standard mode is used for normal driving.
Convenience
Integrated Keyhead Transmitter:
> Press once to lock all doors. Press
again within three seconds to confirm all
doors are locked.
> Press
once to unlock the driver’s door.
Press again within three seconds to
unlock all doors.
> Press
to activate the panic alarm.
Press again or turn on the ignition to
deactivate.
> c ar finder: Press
twice within three
seconds to locate your vehicle. The horn
will chirp and the lamps will flash.
> Press
twice within three seconds to
open the trunk.
Navigation*:
The mobile media navigation system allows you to
record CDs, listen to your saved music, play DVDs and
access climate control options in addition to navigating
the vehicle. Refer to the Navigation chapter of your
Owner’s Manual for more information.
Pony Projection Lights*:
When you open the doors or press the unlock icon on the
keyfob, the Mustang logo will be projected on the ground
from the bottom of the outside mirror. Clean the bottom
of the mirrors regularly with a soft cloth to remove any
mud/dirt/ice so the image displays clearly.
*if equipped
2013 mustang /Quick RefeRence Guide /1 1
Rear Seats/Head Restraints:
Your vehicle is equipped with
second row outboard non-
adjustable head restraints.
The head restraints can be
rotated forward to improve
rear vision when there are no
rear occupants.
2nd row seat/split-folding rear seats*:
One or both rear seatbacks (coupe only) can
be folded down to provide additional cargo
space. To lower the seatback(s) from inside the
vehicle, be sure the head restraint is in the upright
position, pull the strap to release the seatback and
then fold the seatback down. When raising the
seatback(s), make sure you hear the seat latch
into place. Pull down on the seatback to ensure
that it has latched.

Roadside assistance:
Your new Ford vehicle comes
with the assurance and support
of 24-hour emergency roadside
assistance. To receive roadside
assistance in the United States,
call 1-800-241-3673. In canada,
call 1 -800-665-2006.
Tire pressure monitoring system:
Your vehicle illuminates a low tire pressure warning light in your instrument cluster when one or more of your
tires is significantly underinflated. If this happens, stop and
check your tires as soon as possible. Inflate them to the
proper pressure. Refer to the Inflating Your Tires section in
the Wheels and Tires chapter of your Owner’s Manual for
more information.
Cleaning:
When washing your vehicle, do not use a commercial
or high pressure wand to wash striped surfaces. For the
best results use Motorcraft
® cleaning products. Wash
your vehicle regularly with cool or lukewarm water and a
neutral pH shampoo such as Motorcraft Detail Wash. For
cleaning chrome wheels use c ustom Bright Metal cleaner.
Apply the product as you would a wax to clean bumpers
and other chrome parts; allow the cleaner to dry for a few
minutes, then wipe off the haze with a clean, dry rag.

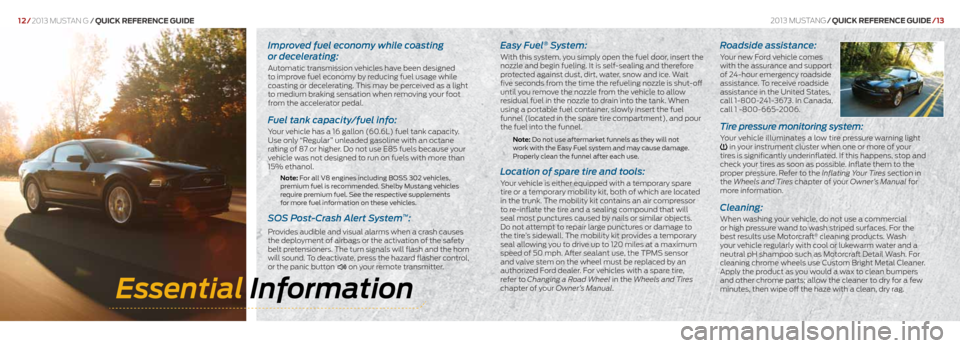

Improved fuel economy while coasting
or decelerating:
Automatic transmission vehicles have been designed
to improve fuel economy by reducing fuel usage while
coasting or decelerating. This may be perceived as a light
to medium braking sensation when removing your foot
from the accelerator pedal.
Fuel tank capacity/fuel info:
Your vehicle has a 16 gallon (60.6L) fuel tank capacity.
Use only “Regular” unleaded gasoline with an octane
rating of 87 or higher. Do not use E85 fuels because your
vehicle was not designed to run on fuels with more than
15% ethanol.
Note: For all V8 engines including BOSS 302 vehicles,
premium fuel is recommended. Shelby Mustang vehicles
require premium fuel. See the respective supplements
for more fuel information on these vehicles.
SOS Post-Crash Alert System™:
Provides audible and visual alarms when a crash causes
the deployment of airbags or the activation of the safety
belt pretensioners. The turn signals will flash and the horn
will sound. To deactivate, press the hazard flasher control,
or the panic button
on your remote transmitter.
12/
2013 mustan g /Quick RefeRence Guide
Easy Fuel® System:
With this system, you simply open the fuel door, insert the
nozzle and begin fueling. It is self-sealing and therefore
protected against dust, dirt, water, snow and ice. Wait
five seconds from the time the refueling nozzle is shut-off
until you remove the nozzle from the vehicle to allow
residual fuel in the nozzle to drain into the tank. When
using a portable fuel container, slowly insert the fuel
funnel (located in the spare tire compartment), and pour
the fuel into the funnel.
Note: Do not use aftermarket funnels as they will not
work with the Easy Fuel system and may cause damage.
Properly clean the funnel after each use.
Location of spare tire and tools:
Your vehicle is either equipped with a temporary spare
tire or a temporary mobility kit, both of which are located
in the trunk. The mobility kit contains an air compressor
to re-inflate the tire and a sealing compound that will
seal most punctures caused by nails or similar objects.
Do not attempt to repair large punctures or damage to
the tire’s sidewall. The mobility kit provides a temporary
seal allowing you to drive up to 120 miles at a maximum
speed of 50 mph. After sealant use, the TPMS sensor
and valve stem on the wheel must be replaced by an
authorized Ford dealer. For vehicles with a spare tire,
refer to Changing a Road Wheel in the Wheels and Tires
chapter of your Owner’s Manual.
Essential Information
2013 mustang /Quick RefeRence Guide /13

Heated front seats*:
The heated seat controls are located on the
instrument panel. Press to enable and disable
heated front seats.
Tilting head restraints*:
Your vehicle’s front row
head restraints can be
adjusted. Pull up to raise
the head restraint. To lower,
press the head restraint
down while pressing and
holding the guide sleeve
adjust/release button. Tilt
the head restraint forward for additional comfort by
gently pulling the top of the head restraint. Once it is
in the forward-most position, tilting it forward once
more will release it to the upright position.
Note: Do not attempt to force the
head restraint backward after it is
tilted. Instead, continue tilting it
forward until the headrest releases
to the upright position.
Accessing and adjusting gauge color,
ambient color, halo color and MyColor®:
The information display screen allows you to select
specific colors to backlight your gauges (Gauge
color) the area around your gauges (Halo color) as
well as selecting ambient lighting options to appear
in the footwell areas, cupholders and console bin
(Ambient color). To access. Press SETUP repeatedly
until the desired feature (GAUGE COLOR, AMBIENT
COLOR or HALO COLOR) appears in the display.
Press RESET repeatedly to scroll through all possible
color options as well as Myc olor
®. Mycolor® allows
you to create your own color preference by adjusting
the levels of the three primary colors (blue, red and
green). Vehicles equipped with the 5-way control
(located on the steering wheel), use the arrows to
scroll through a menu and press the OK button to
select your lighting preferences. See the Information
Displays chapter of your Owner’s Manual for
information on how to customize the colors of
your vehicle.
Glass roof and roller blind sunshade*:
Use the center mounted handle to slide the shade
open or closed.Function

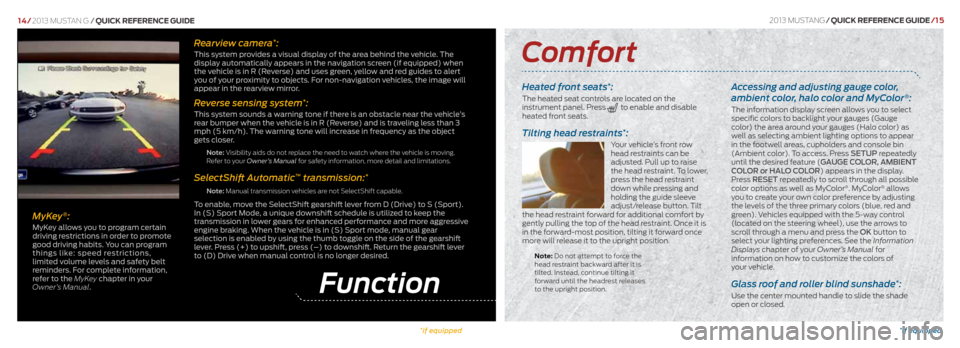

Rearview camera*:
This system provides a visual display of the area behind the vehicle. The
display automatically appears in the navigation screen (if equipped) when
the vehicle is in R (Reverse) and uses green, yellow and red guides to alert
you of your proximity to objects. For non-navigation vehicles, the image will
appear in the rearview mirror.
Reverse sensing system*:
This system sounds a warning tone if there is an obstacle near the vehicle’s
rear bumper when the vehicle is in R (Reverse) and is traveling less than 3
mph (5 km/h). The warning tone will increase in frequency as the object
gets closer.
Note: Visibility aids do not replace the need to watch where the vehicle is moving.
Refer to your Owner’s Manual for safety information, more detail and limitations.
SelectShift Automatic™ transmission:*
Note: Manual transmission vehicles are not SelectShift capable.
To enable, move the SelectShift gearshift lever from D (Drive) to S (Sport).
In (S) Sport Mode, a unique downshift schedule is utilized to keep the
transmission in lower gears for enhanced performance and more aggressive
engine braking. When the vehicle is in (S) Sport mode, manual gear
selection is enabled by using the thumb toggle on the side of the gearshift
lever. Press (+) to upshift, press (–) to downshift. Return the gearshift lever
to (D) Drive when manual control is no longer desired.
14/
2013 mustan g /Quick RefeRence Guide
Comfort
MyKey®:
MyKey allows you to program certain
driving restrictions in order to promote
good driving habits. You can program
things like: speed restrictions,
limited volume levels and safety belt
reminders. For complete information,
refer to the MyKey chapter in your
Owner’s Manual. 2013 mustang
/Quick RefeRence Guide /1 5
*if equipped*if equipped
