Introduction
3
Welcome 3
Shelby® GT500® Unique Features
5
Safety Belts
10
Driving your Shelby® GT500®
11
Breaking-in your vehicle 11
Transmission operation 11
Clutch protection 12
Virtual gauges 15
Track Apps 15
AdvanceTrac® 16
Brakes 20
Launch control 20
Electronically selectable dampers 21
Engine over-rev 22
Ground clearance 23
Driving through water 24
Washing your vehicle 24
Wheels and Tires
25
Wheels 25
Wheel lug nut torque 25
Tire information 26
Roadside Emergencies
29
Wrecker towing 29
Maintenance
34
Engine oil 35
Air filter(s) 40
Table of Contents
1
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 2 of 63

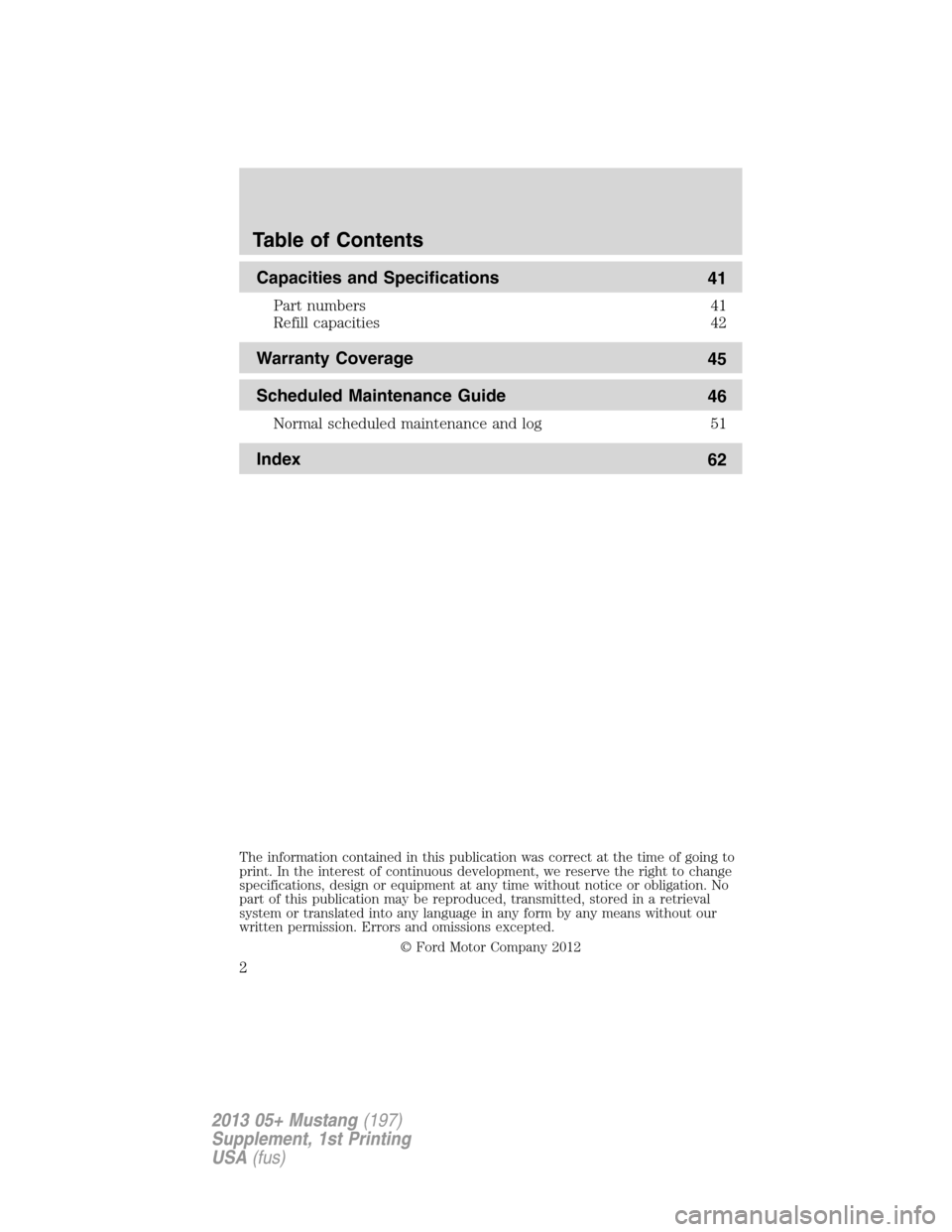

Capacities and Specifications
41
Part numbers 41
Refill capacities 42
Warranty Coverage
45
Scheduled Maintenance Guide
46
Normal scheduled maintenance and log 51
Index
62
The information contained in this publication was correct at the time of going to
print. In the interest of continuous development, we reserve the right to change
specifications, design or equipment at any time without notice or obligation. No
part of this publication may be reproduced, transmitted, stored in a retrieval
system or translated into any language in any form by any means without our
written permission. Errors and omissions excepted.
© Ford Motor Company 2012
Table of Contents
2
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 3 of 63

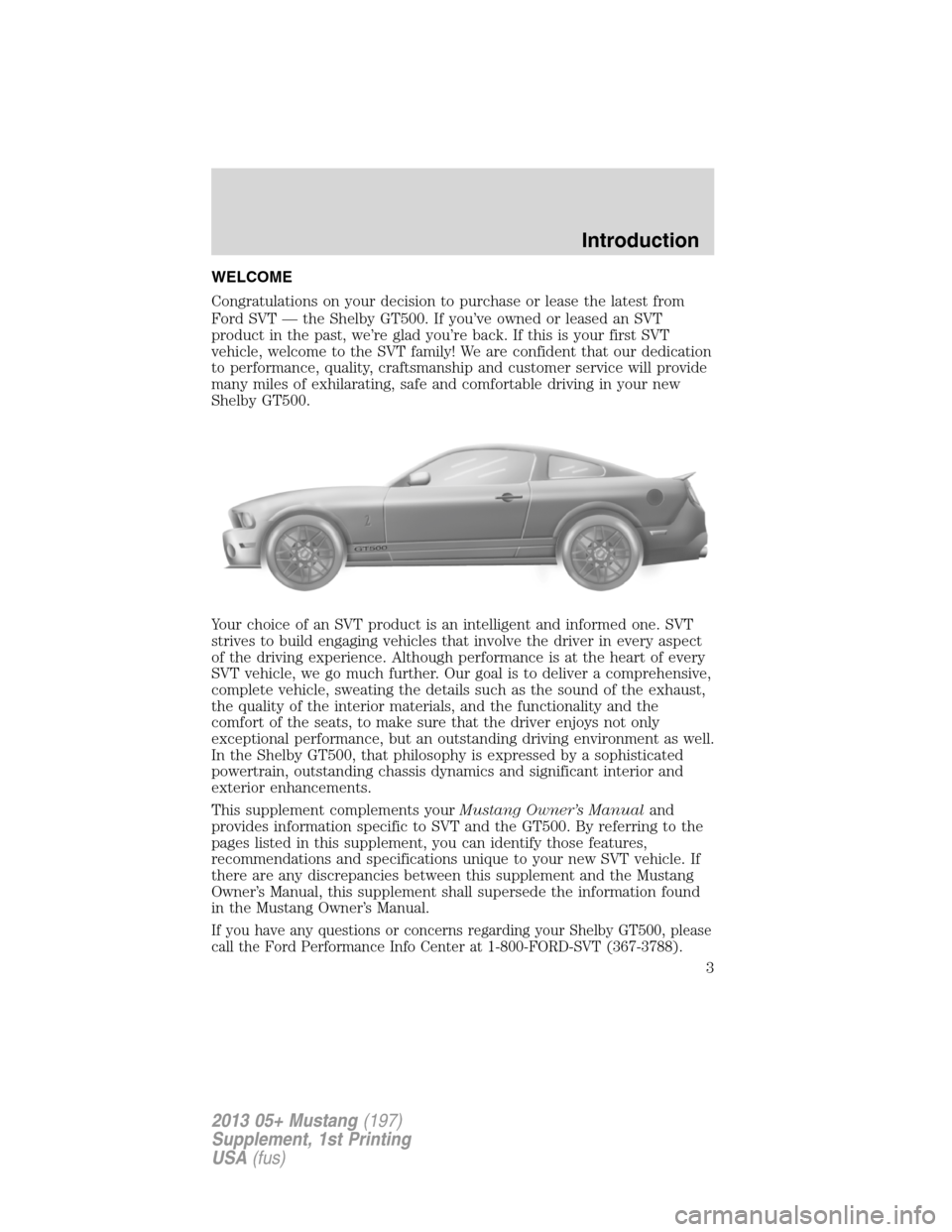

WELCOME
Congratulations on your decision to purchase or lease the latest from
Ford SVT — the Shelby GT500. If you’ve owned or leased an SVT
product in the past, we’re glad you’re back. If this is your first SVT
vehicle, welcome to the SVT family! We are confident that our dedication
to performance, quality, craftsmanship and customer service will provide
many miles of exhilarating, safe and comfortable driving in your new
Shelby GT500.
Your choice of an SVT product is an intelligent and informed one. SVT
strives to build engaging vehicles that involve the driver in every aspect
of the driving experience. Although performance is at the heart of every
SVT vehicle, we go much further. Our goal is to deliver a comprehensive,
complete vehicle, sweating the details such as the sound of the exhaust,
the quality of the interior materials, and the functionality and the
comfort of the seats, to make sure that the driver enjoys not only
exceptional performance, but an outstanding driving environment as well.
In the Shelby GT500, that philosophy is expressed by a sophisticated
powertrain, outstanding chassis dynamics and significant interior and
exterior enhancements.
This supplement complements yourMustang Owner’s Manualand
provides information specific to SVT and the GT500. By referring to the
pages listed in this supplement, you can identify those features,
recommendations and specifications unique to your new SVT vehicle. If
there are any discrepancies between this supplement and the Mustang
Owner’s Manual, this supplement shall supersede the information found
in the Mustang Owner’s Manual.
If you have any questions or concerns regarding your Shelby GT500, please
call the Ford Performance Info Center at 1-800-FORD-SVT (367-3788).
Introduction
3
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 4 of 63

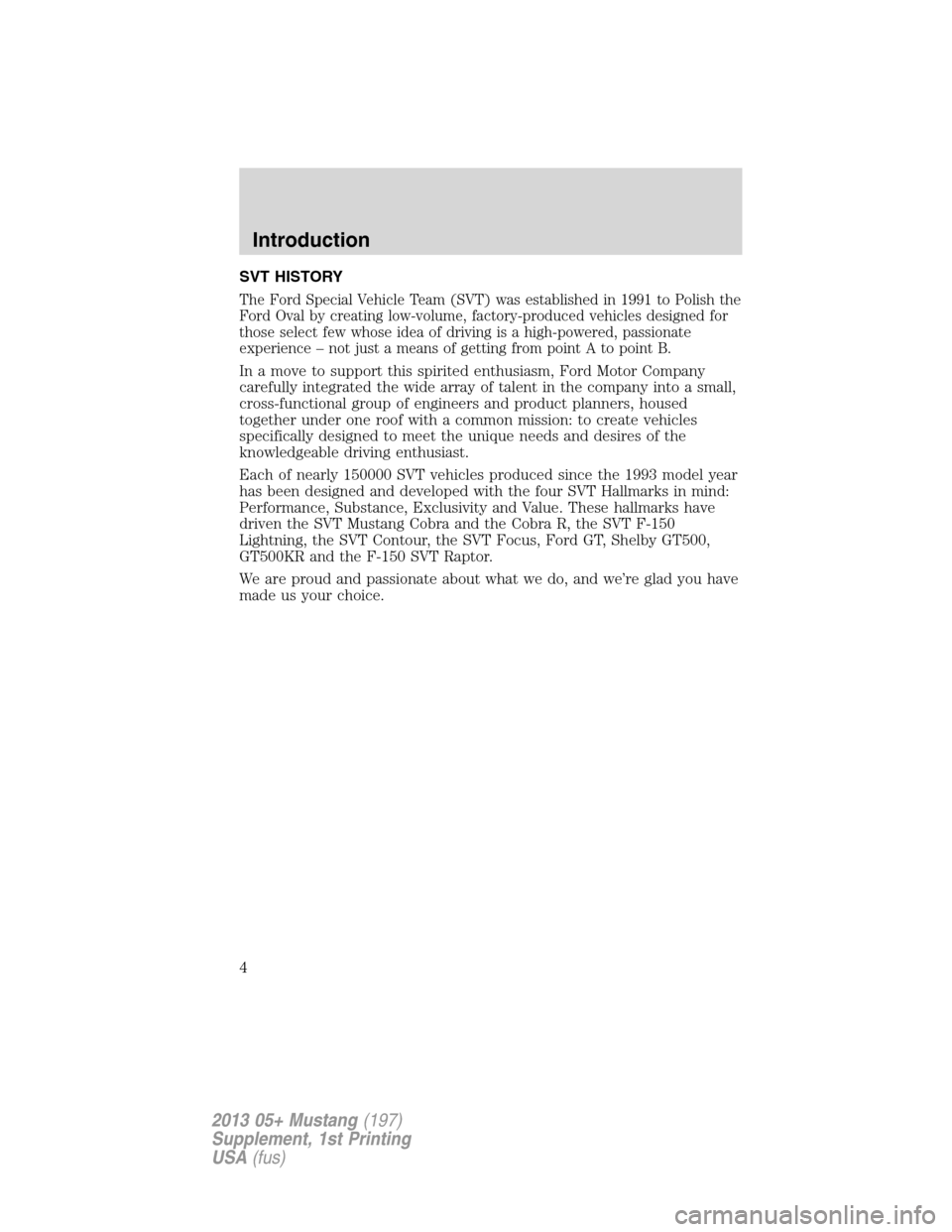

SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991 to Polish the
Ford Oval by creating low-volume, factory-produced vehicles designed for
those select few whose idea of driving is a high-powered, passionate
experience – not just a means of getting from point A to point B.
In a move to support this spirited enthusiasm, Ford Motor Company
carefully integrated the wide array of talent in the company into a small,
cross-functional group of engineers and product planners, housed
together under one roof with a common mission: to create vehicles
specifically designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
Each of nearly 150000 SVT vehicles produced since the 1993 model year
has been designed and developed with the four SVT Hallmarks in mind:
Performance, Substance, Exclusivity and Value. These hallmarks have
driven the SVT Mustang Cobra and the Cobra R, the SVT F-150
Lightning, the SVT Contour, the SVT Focus, Ford GT, Shelby GT500,
GT500KR and the F-150 SVT Raptor.
We are proud and passionate about what we do, and we’re glad you have
made us your choice.
Introduction
4
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 5 of 63

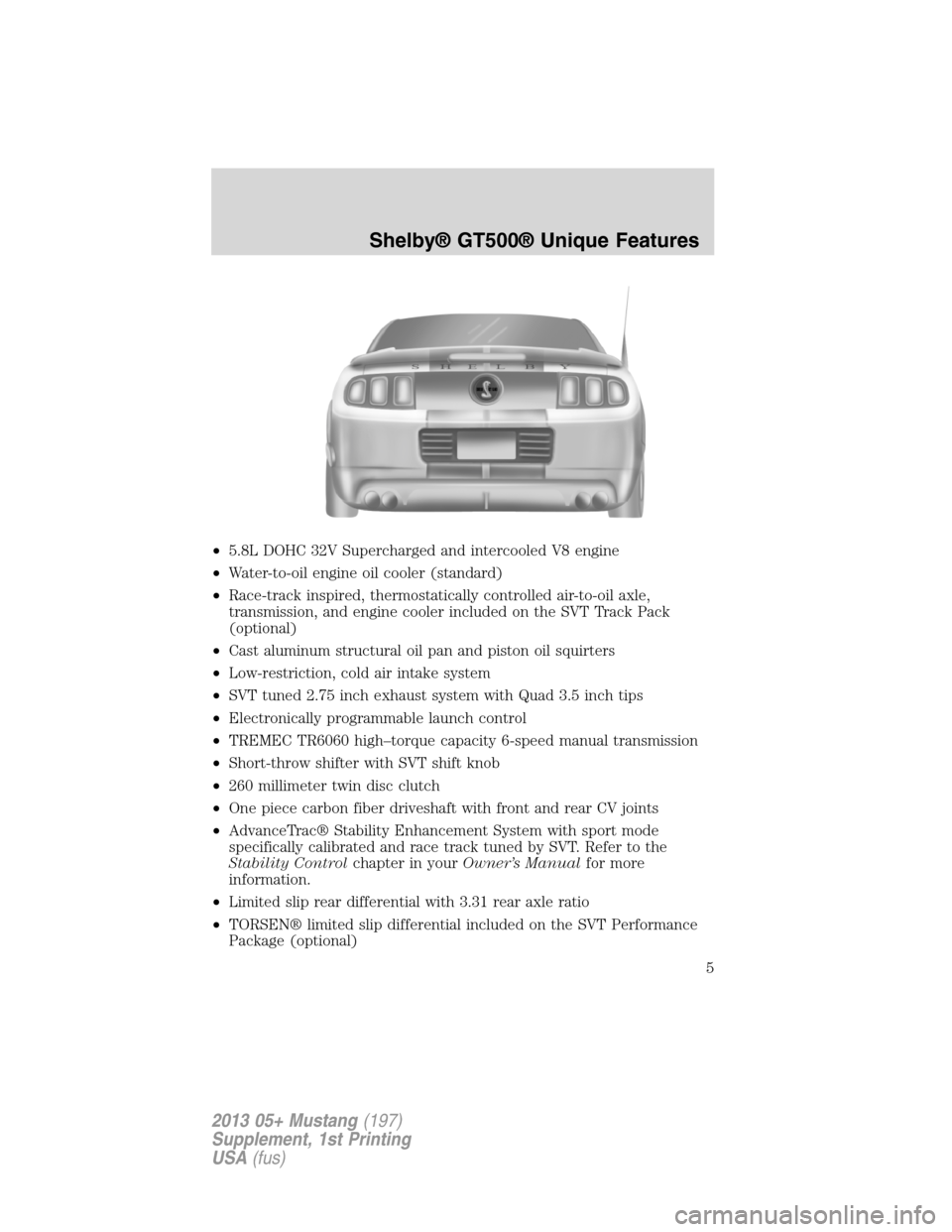

•5.8L DOHC 32V Supercharged and intercooled V8 engine
•Water-to-oil engine oil cooler (standard)
•Race-track inspired, thermostatically controlled air-to-oil axle,
transmission, and engine cooler included on the SVT Track Pack
(optional)
•Cast aluminum structural oil pan and piston oil squirters
•Low-restriction, cold air intake system
•SVT tuned 2.75 inch exhaust system with Quad 3.5 inch tips
•Electronically programmable launch control
•TREMEC TR6060 high–torque capacity 6-speed manual transmission
•Short-throw shifter with SVT shift knob
•260 millimeter twin disc clutch
•One piece carbon fiber driveshaft with front and rear CV joints
•AdvanceTrac® Stability Enhancement System with sport mode
specifically calibrated and race track tuned by SVT. Refer to the
Stability Controlchapter in yourOwner’s Manualfor more
information.
•Limited slip rear differential with 3.31 rear axle ratio
•TORSEN® limited slip differential included on the SVT Performance
Package (optional)
Shelby® GT500® Unique Features
5
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 6 of 63
•Front brakes: Brembo™ six-piston aluminum calipers with 15 inch x
1.3 inch (380 millimeter x 32 millimeter) vented disc, high air flow
shields and high-performance friction material pads
•Rear brakes: 13.8 inch x 0.75 inch (350 millimeter x 19 millimeter)
vented disc and high-performance friction material pads
•Electronic over-rev with 7000 rpm maximum
•SVT tuned front and rear suspension and optional electronically
selectable dampers by Bilstein™ included on the SVT Performance
Package
•19 inch x 9.5 inch front, 20 inch x 9.5 inch rear forged aluminum
wheels with bolt-in valve stems (standard and optional styles)
•P265/40-19 front, P285/35-20 rear directional Goodyear Eagle F1
Supercar G2 R compound tires
•SVT engineered front fascia, grilles, cold air inlet, rear fascia, fog
lamps, hood with functional air extractor and aerodynamically tuned
front splitter with removable air dam and rear decklid spoiler
•SVT high-speed instrument cluster with track applications dashboard,
over-rev and programmable performance shift indicator
•One-touch instrument panel buttons for launch control (LC),
electronically selectable dampers (ESD) (if equipped) and electric
power assisted steering (EPAS)
•SVT designed seats with over the top stripes and increased lateral
support
•Optional race inspired RECARO® front seats with increased lateral
support on back and cushion, unique Shelby GT500 trim cover,
integrated head restraint, and driver four-way manual adjuster. See the
Seatssection in yourOwner’s Manualfor more information
•Leather and Alcantara® wrapped sport steering wheel, leather shift
boot, parking brake control boot and handle
•I/P appliques, door panels and lighted scuff plates
Shelby® GT500® Unique Features
6
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 7 of 63

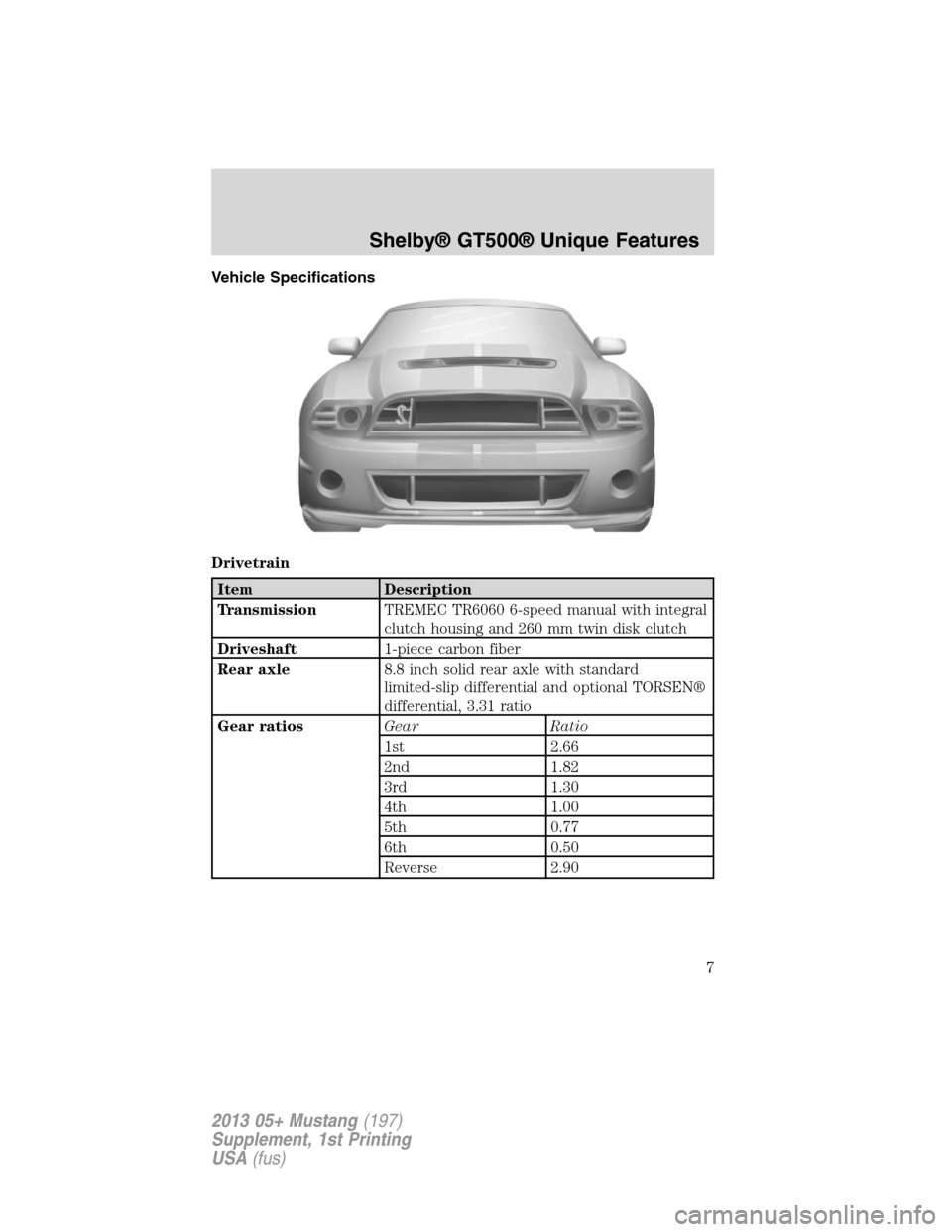

Vehicle Specifications
Drivetrain
Item Description
TransmissionTREMEC TR6060 6-speed manual with integral
clutch housing and 260 mm twin disk clutch
Driveshaft1-piece carbon fiber
Rear axle8.8 inch solid rear axle with standard
limited-slip differential and optional TORSEN®
differential, 3.31 ratio
Gear ratiosGear Ratio
1st 2.66
2nd 1.82
3rd 1.30
4th 1.00
5th 0.77
6th 0.50
Reverse 2.90
Shelby® GT500® Unique Features
7
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 8 of 63

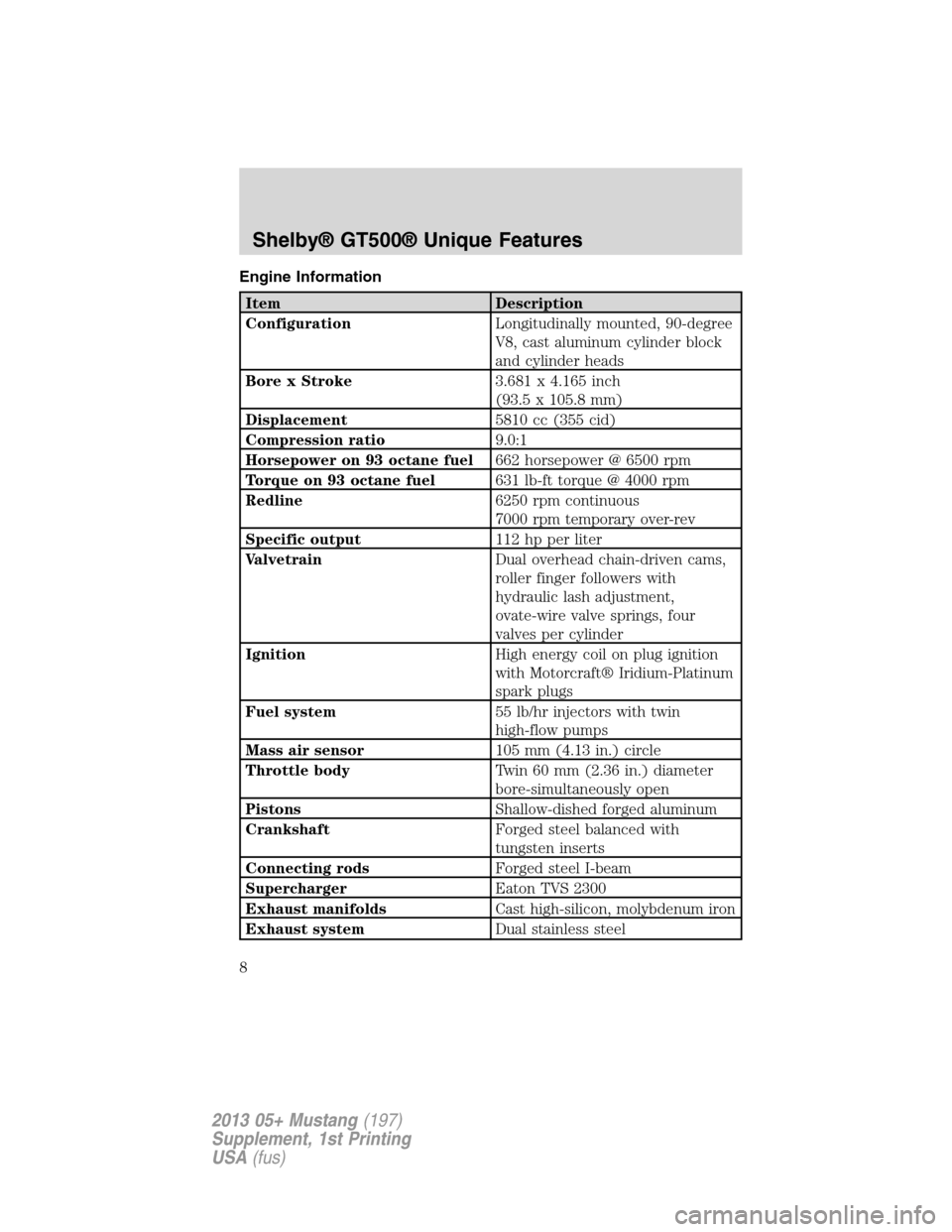

Engine Information
Item Description
ConfigurationLongitudinally mounted, 90-degree
V8, cast aluminum cylinder block
and cylinder heads
Bore x Stroke3.681 x 4.165 inch
(93.5 x 105.8 mm)
Displacement5810 cc (355 cid)
Compression ratio9.0:1
Horsepower on 93 octane fuel662 horsepower @ 6500 rpm
Torque on 93 octane fuel631 lb-ft torque @ 4000 rpm
Redline6250 rpm continuous
7000 rpm temporary over-rev
Specific output112 hp per liter
ValvetrainDual overhead chain-driven cams,
roller finger followers with
hydraulic lash adjustment,
ovate-wire valve springs, four
valves per cylinder
IgnitionHigh energy coil on plug ignition
with Motorcraft® Iridium-Platinum
spark plugs
Fuel system55 lb/hr injectors with twin
high-flow pumps
Mass air sensor105 mm (4.13 in.) circle
Throttle bodyTwin 60 mm (2.36 in.) diameter
bore-simultaneously open
PistonsShallow-dished forged aluminum
CrankshaftForged steel balanced with
tungsten inserts
Connecting rodsForged steel I-beam
SuperchargerEaton TVS 2300
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
Shelby® GT500® Unique Features
8
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 9 of 63

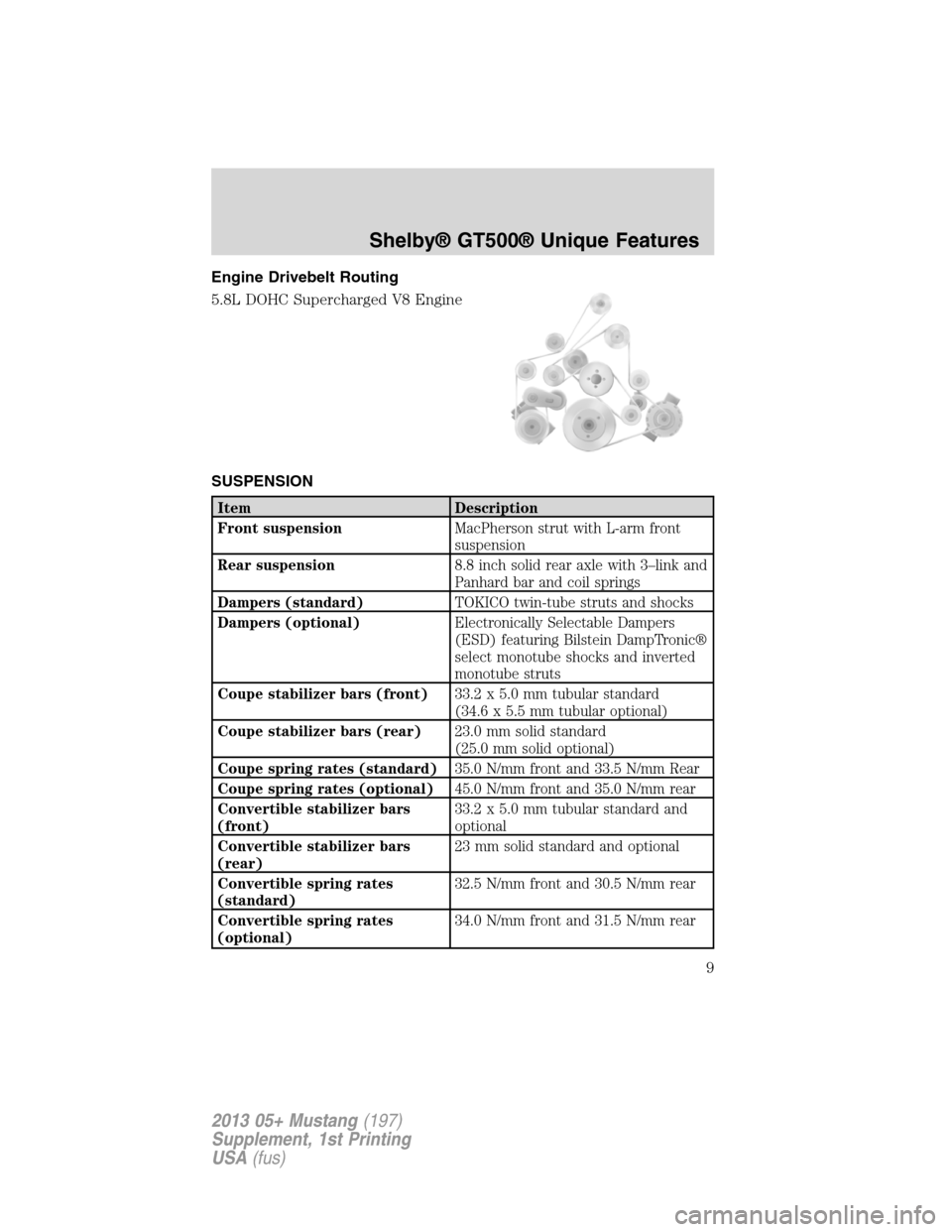

Engine Drivebelt Routing
5.8L DOHC Supercharged V8 Engine
SUSPENSION
Item Description
Front suspensionMacPherson strut with L-arm front
suspension
Rear suspension8.8 inch solid rear axle with 3–link and
Panhard bar and coil springs
Dampers (standard)TOKICO twin-tube struts and shocks
Dampers (optional)Electronically Selectable Dampers
(ESD) featuring Bilstein DampTronic®
select monotube shocks and inverted
monotube struts
Coupe stabilizer bars (front)33.2 x 5.0 mm tubular standard
(34.6 x 5.5 mm tubular optional)
Coupe stabilizer bars (rear)23.0 mm solid standard
(25.0 mm solid optional)
Coupe spring rates (standard)35.0 N/mm front and 33.5 N/mm Rear
Coupe spring rates (optional)45.0 N/mm front and 35.0 N/mm rear
Convertible stabilizer bars
(front)33.2 x 5.0 mm tubular standard and
optional
Convertible stabilizer bars
(rear)23 mm solid standard and optional
Convertible spring rates
(standard)32.5 N/mm front and 30.5 N/mm rear
Convertible spring rates
(optional)34.0 N/mm front and 31.5 N/mm rear
Shelby® GT500® Unique Features
9
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
Page 10 of 63

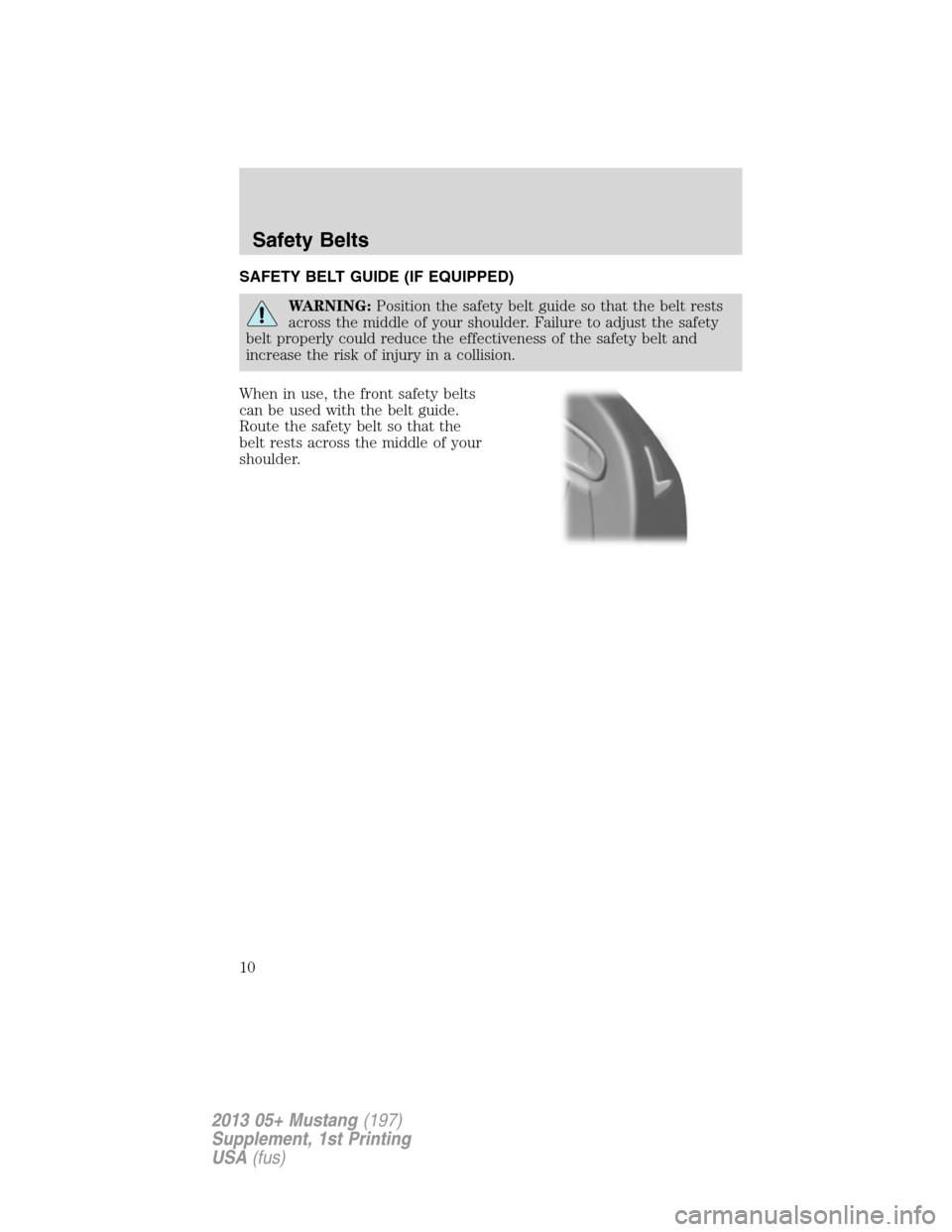

SAFETY BELT GUIDE (IF EQUIPPED)
WARNING:Position the safety belt guide so that the belt rests
across the middle of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness of the safety belt and
increase the risk of injury in a collision.
When in use, the front safety belts
can be used with the belt guide.
Route the safety belt so that the
belt rests across the middle of your
shoulder.
Safety Belts
10
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
